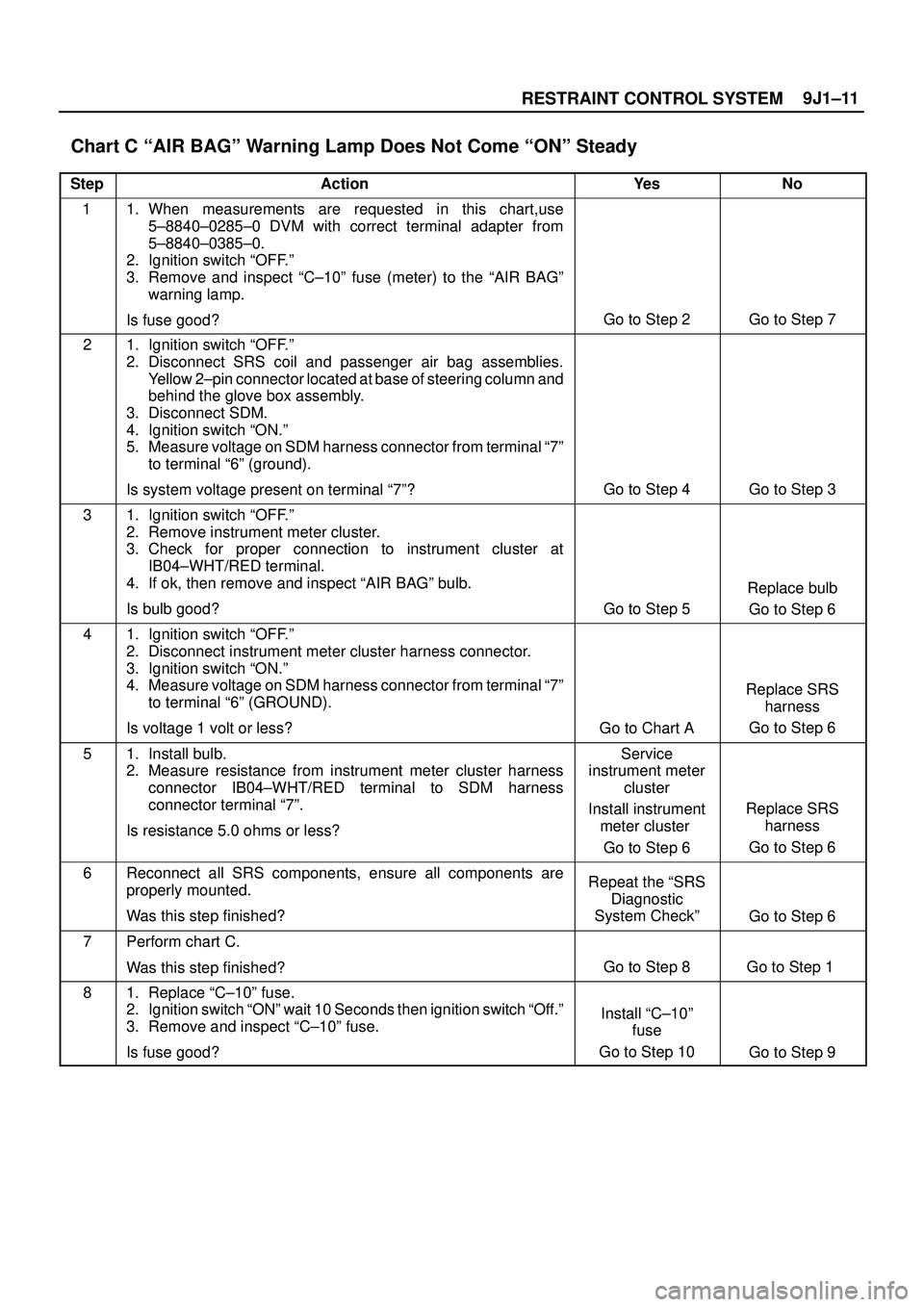

9J1±11
RESTRAINT CONTROL SYSTEM
Chart C ªAIR BAGº Warning Lamp Does Not Come ªONº Steady
StepActionYe sNo
11. When measurements are requested in this chart,use
5±8840±0285±0 DVM with correct terminal adapter from
5±8840±0385±0.
2. Ignition switch ªOFF.º
3. Remove and inspect ªC±10º fuse (meter) to the ªAIR BAGº
warning lamp.
Is fuse good?
Go to Step 2Go to Step 7
21. Ignition switch ªOFF.º
2. Disconnect SRS coil and passenger air bag assemblies.
Yellow 2±pin connector located at base of steering column and
behind the glove box assembly.
3. Disconnect SDM.
4. Ignition switch ªON.º
5. Measure voltage on SDM harness connector from terminal ª7º
to terminal ª6º (ground).
Is system voltage present on terminal ª7º?
Go to Step 4Go to Step 3
31. Ignition switch ªOFF.º
2. Remove instrument meter cluster.
3. Check for proper connection to instrument cluster at
IB04±WHT/RED terminal.
4. If ok, then remove and inspect ªAIR BAGº bulb.
Is bulb good?
Go to Step 5
Replace bulb
Go to Step 6
41. Ignition switch ªOFF.º
2. Disconnect instrument meter cluster harness connector.
3. Ignition switch ªON.º
4. Measure voltage on SDM harness connector from terminal ª7º
to terminal ª6º (GROUND).
Is voltage 1 volt or less?
Go to Chart A
Replace SRS
harness
Go to Step 6
51. Install bulb.
2. Measure resistance from instrument meter cluster harness
connector IB04±WHT/RED terminal to SDM harness
connector terminal ª7º.
Is resistance 5.0 ohms or less?Service
instrument meter
cluster
Install instrument
meter cluster
Go to Step 6
Replace SRS
harness
Go to Step 6
6Reconnect all SRS components, ensure all components are
properly mounted.
Was this step finished?Repeat the ªSRS
Diagnostic
System Checkº
Go to Step 6
7Perform chart C.
Was this step finished?
Go to Step 8Go to Step 1
81. Replace ªC±10º fuse.
2. Ignition switch ªONº wait 10 Seconds then ignition switch ªOff.º
3. Remove and inspect ªC±10º fuse.
Is fuse good?
Install ªC±10º
fuse
Go to Step 10
Go to Step 9

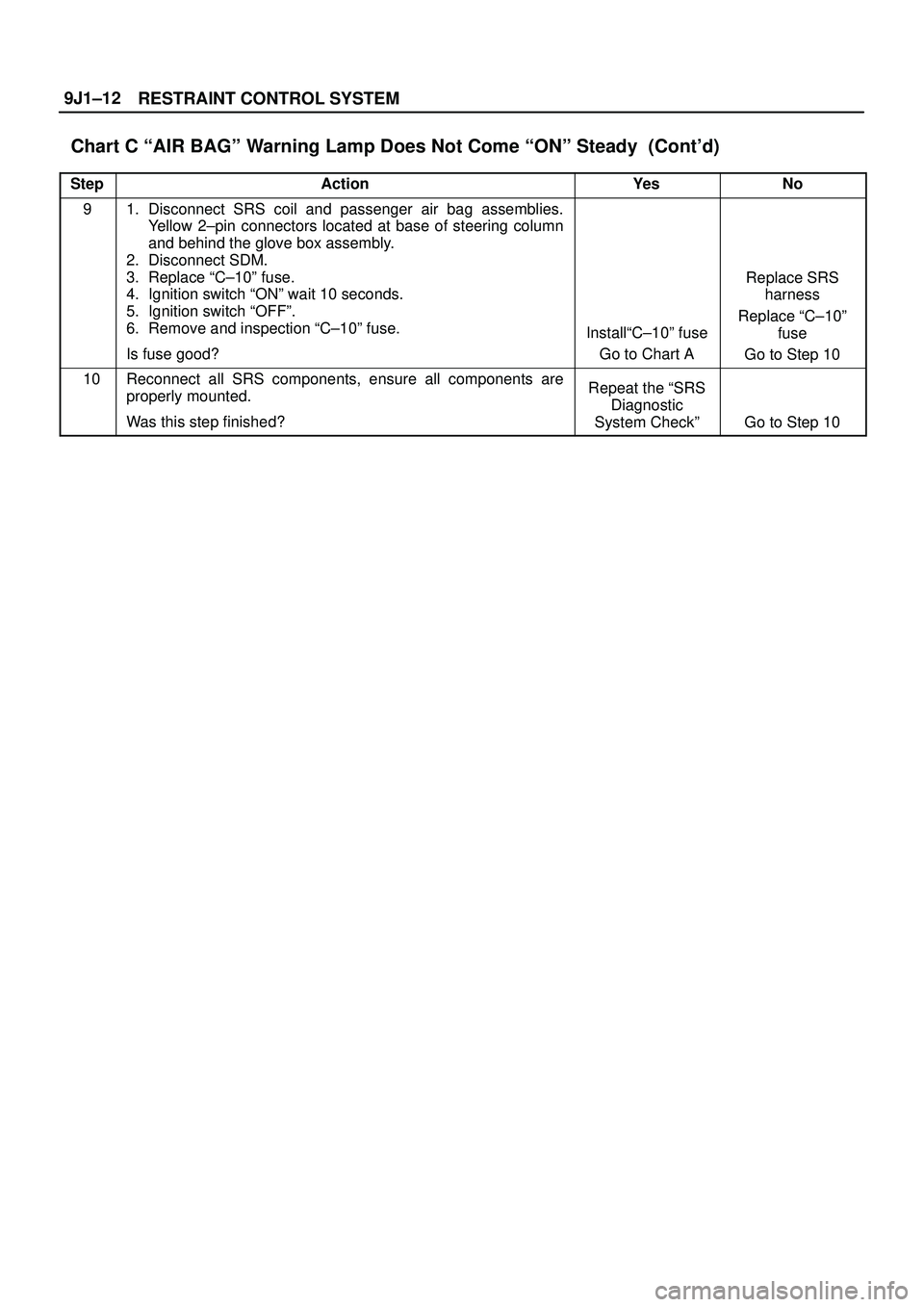

RESTRAINT CONTROL SYSTEM 9J1±12
Chart C ªAIR BAGº Warning Lamp Does Not Come ªONº Steady (Cont'd)
StepNo Ye s Action
91. Disconnect SRS coil and passenger air bag assemblies.
Yellow 2±pin connectors located at base of steering column
and behind the glove box assembly.
2. Disconnect SDM.
3. Replace ªC±10º fuse.
4. Ignition switch ªONº wait 10 seconds.
5. Ignition switch ªOFFº.
6. Remove and inspection ªC±10º fuse.
Is fuse good?
InstallªC±10º fuse
Go to Chart A
Replace SRS
harness
Replace ªC±10º
fuse
Go to Step 10
10Reconnect all SRS components, ensure all components are
properly mounted.
Was this step finished?Repeat the ªSRS
Diagnostic
System Checkº
Go to Step 10
