JAGUAR XJ 2004 X350 / 3.G Owners Manual

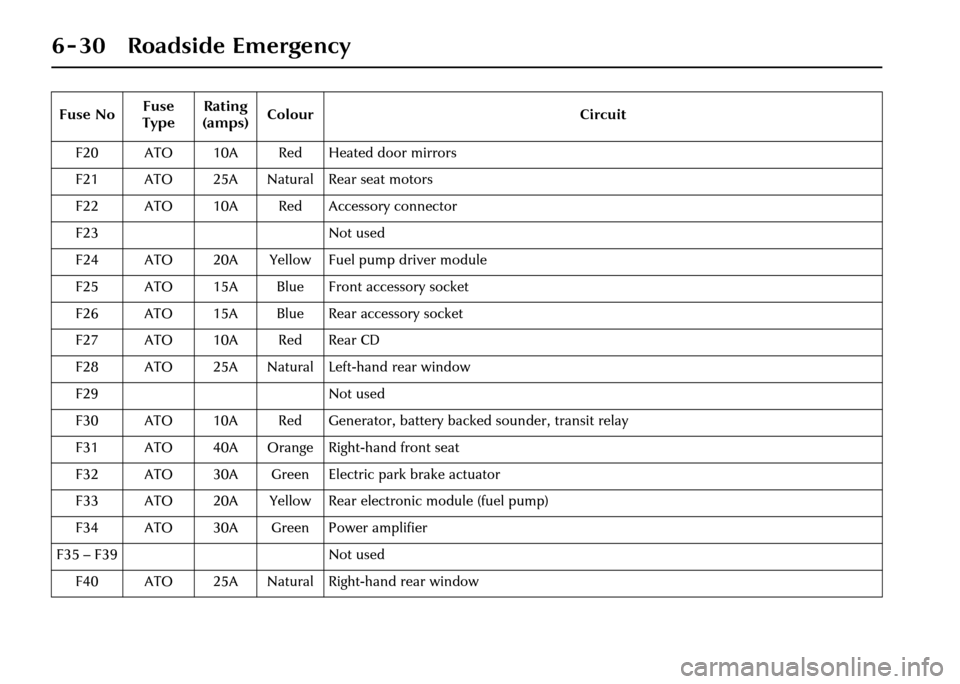

6 - 30 Roadside Emergency
F20 ATO 10A Red Heated door mirrors
F21 ATO 25A Natural Rear seat motors
F22 ATO 10A Red Accessory connector
F23 Not used
F24 ATO 20A Yellow Fuel pump driver module
F25 ATO 15A Blue Front accessory socket
F26 ATO 15A Blue Rear accessory socket
F27 ATO 10A Red Rear CD
F28 ATO 25A Natural Left-hand rear window
F29 Not used
F30 ATO 10A Red Generator, battery backed sounder, transit relay
F31 ATO 40A Orange Right-hand front seat
F32 ATO 30A Green Electric park brake actuator
F33 ATO 20A Yellow Rear electronic module (fuel pump)
F34 ATO 30A Green Power amplifier
F35 – F39 Not used
F40 ATO 25A Natural Right-hand rear window
Fuse No
Fuse
Type Rating
(amps) Colour
Circuit

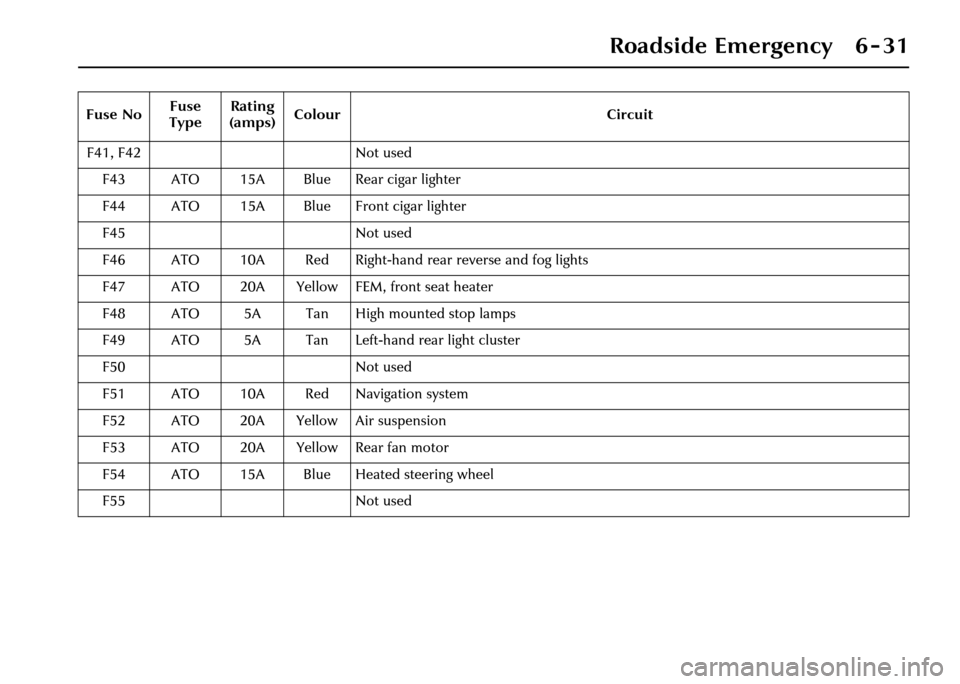

Roadside Emergency 6 - 31
F41, F42Not used
F43 ATO 15A Blue Rear cigar lighter
F44 ATO 15A Blue Front cigar lighter
F45 Not used
F46 ATO 10A Red Right-hand rear reverse and fog lights
F47 ATO 20A Yellow FEM, front seat heater
F48 ATO 5A Tan High mounted stop lamps
F49 ATO 5A Tan Left-hand rear light cluster
F50 Not used
F51 ATO 10A Red Navigation system
F52 ATO 20A Yellow Air suspension
F53 ATO 20A Yellow Rear fan motor
F54 ATO 15A Blue Heated steering wheel
F55 Not used
Fuse No
Fuse
Type Rating
(amps) Colour
Circuit

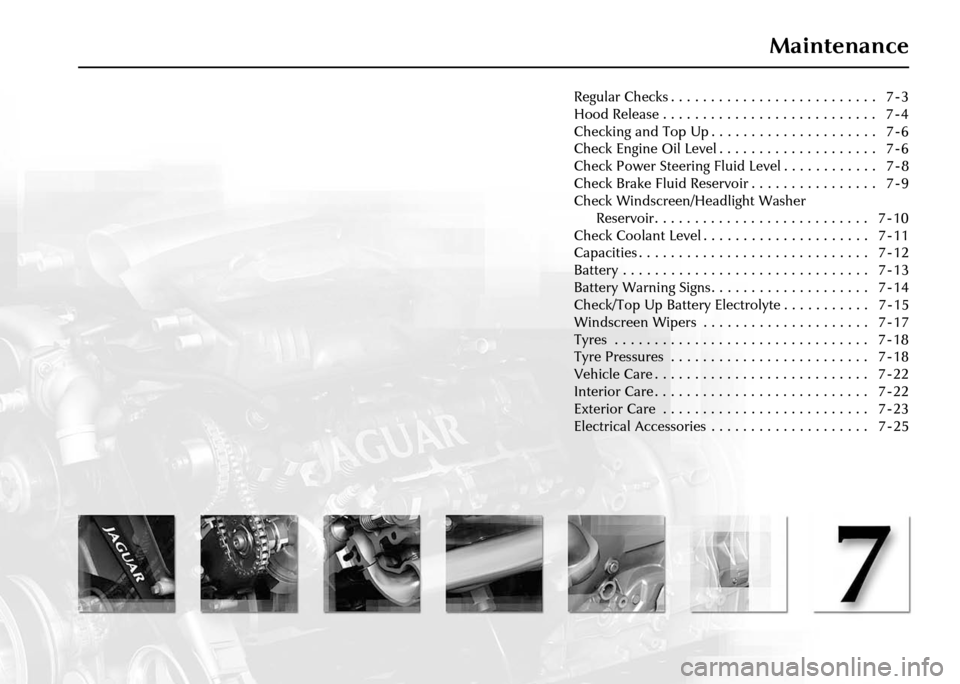

Maintenance
Regular Checks . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 3
Hood Release . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4
Checking and Top Up . . . . . . . . . . . . . . . . . . . . . 7 - 6
Check Engine Oil Level . . . . . . . . . . . . . . . . . . . . 7 - 6
Check Power Steering Fluid Level . . . . . . . . . . . . 7 - 8
Check Brake Fluid Reservoir . . . . . . . . . . . . . . . . 7 - 9
Check Windscreen/Headlight Washer Reservoir. . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 10
Check Coolant Level . . . . . . . . . . . . . . . . . . . . . 7 - 11
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 13
Battery Warning Signs. . . . . . . . . . . . . . . . . . . . 7 - 14
Check/Top Up Battery Electrolyte . . . . . . . . . . . 7 - 15
Windscreen Wipers . . . . . . . . . . . . . . . . . . . . . 7 - 17
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18
Tyre Pressures . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 23
Electrical Accessories . . . . . . . . . . . . . . . . . . . . 7 - 25

Maintenance 7 - 3
7 Maintenance

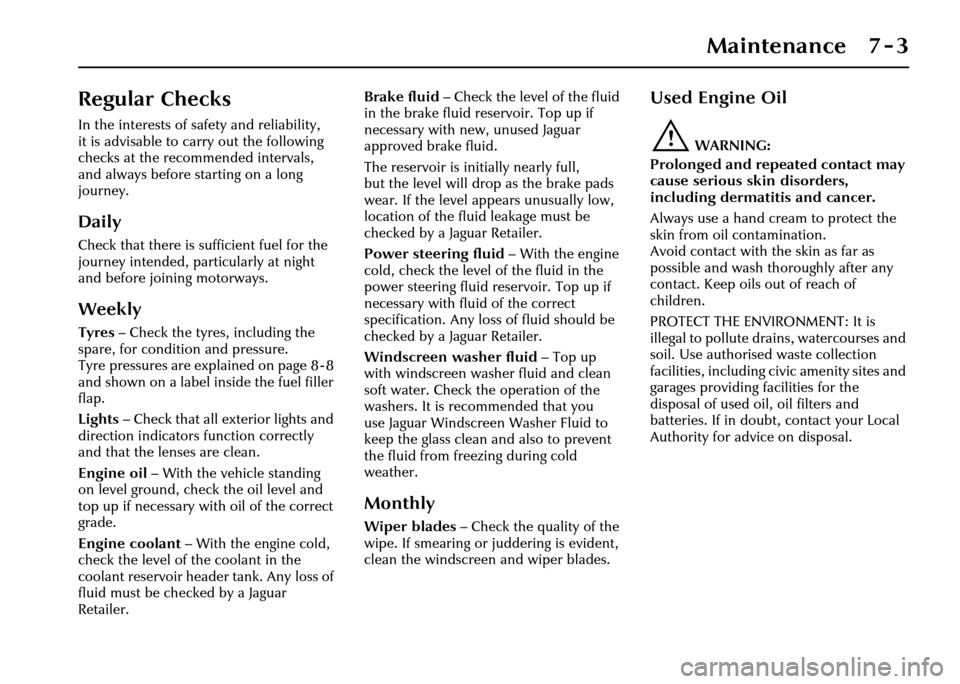

Regular Checks
In the interests of safety and reliability,
it is advisable to carry out the following
checks at the recommended intervals,
and always before starting on a long
journey.
Daily
Check that there is sufficient fuel for the
journey intended, particularly at night
and before joining motorways.
Weekly
Tyres– Check the tyres, including the
spare, for condition and pressure.
Tyre pressures are explained on page 8 - 8
and shown on a label inside the fuel filler
flap.
Lights – Check that all exterior lights and
direction indicators function correctly
and that the lenses are clean.
Engine oil – With the vehicle standing
on level ground, check the oil level and
top up if necessary with oil of the correct
grade.
Engine coolant – With the engine cold,
check the level of the coolant in the
coolant reservoir header tank. Any loss of
fluid must be checked by a Jaguar
Retailer. Brake fluid
– Check the level of the fluid
in the brake fluid reservoir. Top up if
necessary with new, unused Jaguar
approved brake fluid.
The reservoir is initially nearly full,
but the level will drop as the brake pads
wear. If the level appears unusually low,
location of the fluid leakage must be
checked by a Jaguar Retailer.
Power steering fluid – With the engine
cold, check the level of the fluid in the
power steering fluid reservoir. Top up if
necessary with fluid of the correct
specification. Any loss of fluid should be
checked by a Jaguar Retailer.
Windscreen washer fluid – Top up
with windscreen washer fluid and clean
soft water. Check the operation of the
washers. It is recommended that you
use Jaguar Windscreen Washer Fluid to
keep the glass clean and also to prevent
the fluid from freezing during cold
weather.
Monthly
Wiper blades – Check the quality of the
wipe. If smearing or juddering is evident,
clean the windscreen and wiper blades.
Used Engine Oil
!WARNING:
Prolonged and repeated contact may
cause serious skin disorders,
including dermatitis and cancer.
Always use a hand cream to protect the
skin from oil contamination.
Avoid contact with the skin as far as
possible and wash thoroughly after any
contact. Keep oils out of reach of
children.
PROTECT THE ENVIRONMENT: It is
illegal to pollute drai ns, watercourses and
soil. Use authorised waste collection
facilities, including civic amenity sites and
garages providing fa cilities for the
disposal of used oi l, oil filters and
batteries. If in doubt, contact your Local
Authority for advice on disposal.

7 - 4 Maintenance

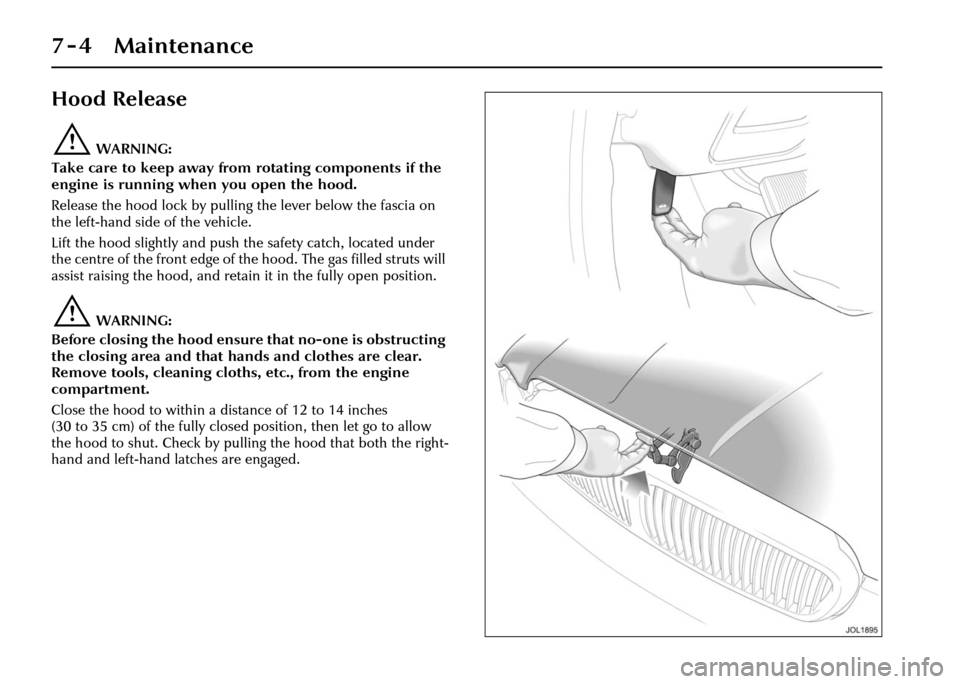

Hood Release
!WARNING:
Take care to keep away from rotating components if the
engine is running when you open the hood.
Release the hood lock by pullin g the lever below the fascia on
the left-hand side of the vehicle.
Lift the hood slightly and push the safety catch, located under
the centre of the front edge of th e hood. The gas filled struts will
assist raising the hood, and retain it in the fully open position.
!WARNING:
Before closing the hood ensure that no-one is obstructing
the closing area and that hands and clothes are clear.
Remove tools, cleaning cloths, etc., from the engine
compartment.
Close the hood to within a distance of 12 to 14 inches
(30 to 35 cm) of the fully closed position, then let go to allow
the hood to shut. Check by pulling the hood that both the right-
hand and left-hand latches are engaged.

Maintenance 7 - 5

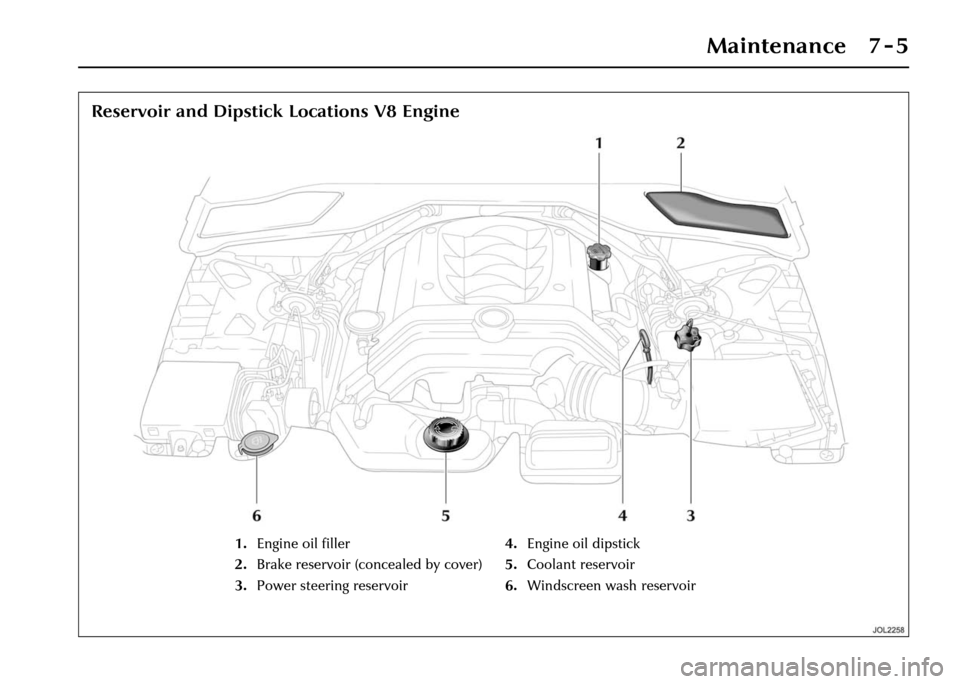

Reservoir and Dipstick Locations V8 Engine
1.Engine oil filler
2. Brake reservoir (concealed by cover)
3. Power steering reservoir 4.
Engine oil dipstick
5. Coolant reservoir
6. Windscreen wash reservoir

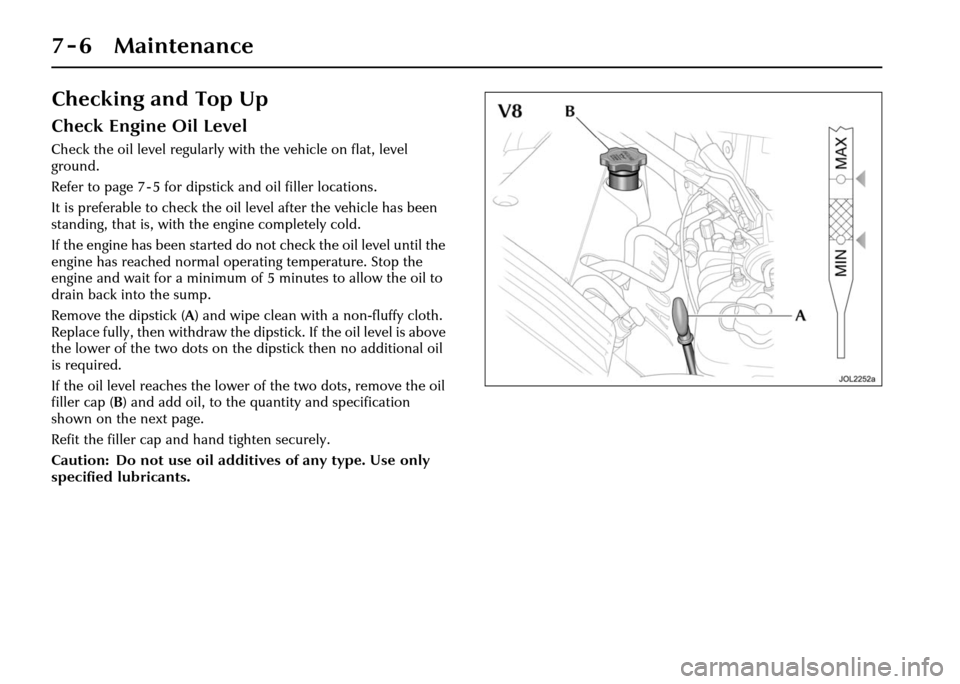

7 - 6 Maintenance
Checking and Top Up
Check Engine Oil Level
Check the oil level regularly with the vehicle on flat, level
ground.
Refer to page 7 - 5 for dipstick and oil filler locations.
It is preferable to check the oil level after the vehicle has been
standing, that is, with th e engine completely cold.
If the engine has been started do not check the oil level until the
engine has reached normal operating temperature. Stop the
engine and wait for a minimum of 5 minutes to allow the oil to
drain back into the sump.
Remove the dipstick ( A) and wipe clean with a non-fluffy cloth.
Replace fully, then wi thdraw the dipstick. If the oil level is above
the lower of the two dots on the dipstick then no additional oil
is required.
If the oil level reaches the lower of the two dots, remove the oil
filler cap ( B) and add oil, to the quantity and specification
shown on the next page.
Refit the filler cap and hand tighten securely.
Caution: Do not use oil additives of any type. Use only
specified lubricants.

Maintenance 7 - 7

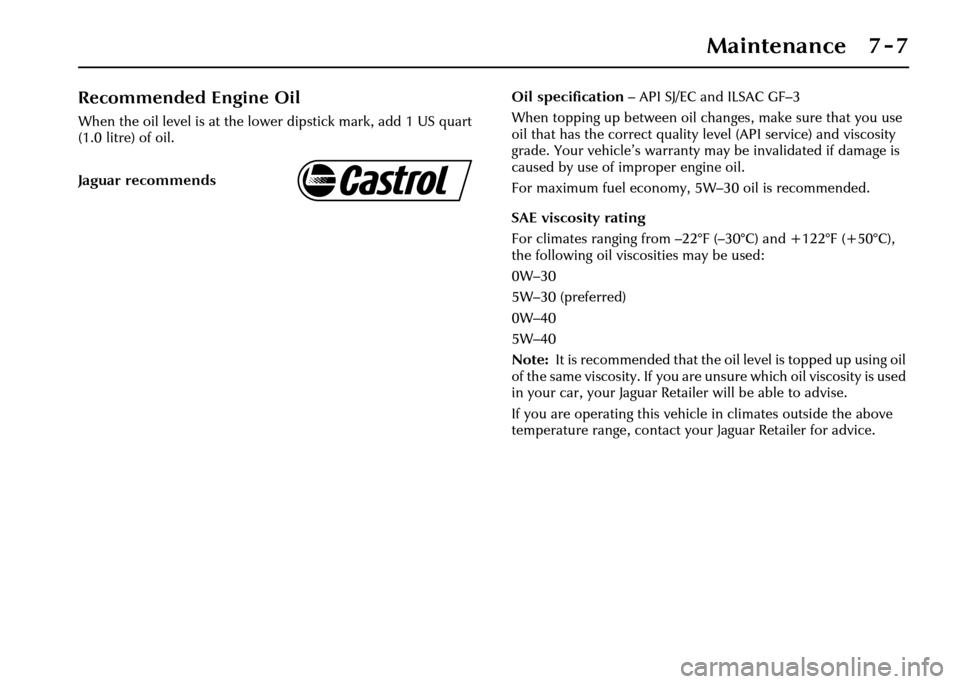

Recommended Engine Oil
When the oil level is at the lower dipstick mark, add 1 US quart
(1.0 litre) of oil.Oil specification
– API SJ/EC and ILSAC GF–3
When topping up between oil chan ges, make sure that you use
oil that has the correct quality le vel (API service) and viscosity
grade. Your vehicle’s warranty ma y be invalidated if damage is
caused by use of improper engine oil.
For maximum fuel economy, 5W–30 oil is recommended.
SAE viscosity rating
For climates ranging from –22°F (–30°C) and +122°F (+50°C),
the following oil viscosities may be used:
0W–30
5W–30 (preferred)
0W–40
5W–40
Note: It is recommended that the oil level is topped up using oil
of the same viscosity. If you are unsure which oil viscosity is used
in your car, your Jaguar Retailer will be able to advise.
If you are operating this vehicle in climates outside the above
temperature range, contact your Jaguar Retailer for advice.
Jaguar recommends
