6 - 20 Roadside Emergency

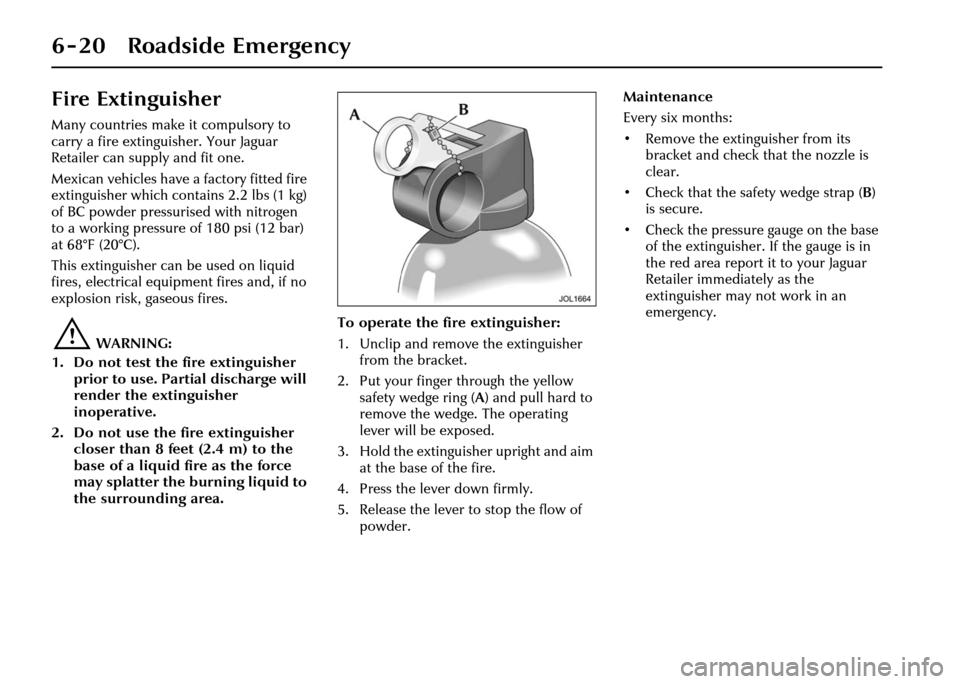

Fire Extinguisher
Many countries make it compulsory to
carry a fire extinguisher. Your Jaguar
Retailer can supply and fit one.
Mexican vehicles have a factory fitted fire
extinguisher which contains 2.2 lbs (1 kg)
of BC powder pressurised with nitrogen
to a working pressure of 180 psi (12 bar)
at 68°F (20°C).
This extinguisher can be used on liquid
fires, electrical equipment fires and, if no
explosion risk, gaseous fires.
!WARNING:
1. Do not test the fire extinguisher prior to use. Partial discharge will
render the extinguisher
inoperative.
2. Do not use the fire extinguisher closer than 8 feet (2.4 m) to the
base of a liquid fire as the force
may splatter the burning liquid to
the surrounding area. To operate the fire extinguisher:
1. Unclip and remove the extinguisher
from the bracket.
2. Put your finger through the yellow safety wedge ring ( A) and pull hard to
remove the wedge. The operating
lever will be exposed.
3. Hold the extinguisher upright and aim at the base of the fire.
4. Press the lever down firmly.
5. Release the lever to stop the flow of powder. Maintenance
Every six months:
• Remove the extinguisher from its
bracket and check that the nozzle is
clear.
• Check that the safety wedge strap ( B)
is secure.
• Check the pressure gauge on the base of the extinguisher. If the gauge is in
the red area report it to your Jaguar
Retailer immediately as the
extinguisher may not work in an
emergency.

Roadside Emergency 6 - 21
Fuses and Fuse Boxes
Do not fit a new fuse if the wiring is
damaged; contact a Jaguar Retailer.
After renewing a fuse have the circuit
checked by a Jaguar Retailer.
Two types of fuses are fitted in the fuse
boxes, ATO type and Midi type.
Spare fuses and a special tool for
removing and replacing fuses are located
on a removable panel clipped to the rear
of the trunk ( A).
Use only the spare fuses supplied. If a
spare fuse is used, renew it with a Jaguar
approved fuse of the same amperage
rating.
Checking and Renewing a
Blown Fuse
Make sure the new fuse is the correct
rating (amperage).
Fuses are colour coded according to the
amperage and the rating is also marked
on each fuse.
Caution: When a fuse box lid is
removed, take care to protect the box
from moisture, and refit the lid at the
earliest opportunity. ATO-fuse replacement
Push the tool on to the suspect ATO fuse
and withdraw the fuse. If the wire in the
fuse is broken, the fuse has blown.
Fit a new fuse using the tool.
Midi fuse replacement
(not shown)
Unscrew the two nuts and remove the
fuse. Note that the fuse is supplied
directly from the battery +ve; take care
not to short a spanner or other metal tool
to the chassis when removing the nuts.!WARNING:
1. Do not fit a fuse of a different amperage from that removed.
The electrical circuits may
become overloaded with the
subsequent possibility of a fire.
2. No attempt should be made to repair a fuse that has blown as this
may cause a fire hazard or serious
damage elsewhere in the
electrical circuit.

6 - 22 Roadside Emergency
Fuse Box Locations
There are three separate fuse boxes fitted
to the vehicle, each one containing fuses
protecting a different group of circuits.
Engine compartment fuse box
The fuse box is located in the engine
compartment on the right-hand side
adjacent to the windscreen wash
reservoir.
Remove the fuse box lid by pressing the
spring catch and lifting.
When refitting, press the fuse box lid in
the area of the retaining lugs until the lid
engages. Cabin fuse box
The cabin fuse box is located behind the
right-hand side trim panel in the footwell.
To access the fuse box, pull out the
bottom of the trim panel (arrowed), slide
the panel down slightly and remove.
Trunk fuse box
A fuse box is located in the trunk,
situated behind the battery.
Open the trunk floor panel to gain access
to the fuse box.
Remove the fuse box lid by pulling the
retaining clips and pulling the lid
upwards.
Reposition the lid and press down until
the retaining clips engage.
Replace the floor panel.

Roadside Emergency 6 - 23
Fuse Positions
A – Trunk fuse box
B – Cabin fuse box
C – Engine compartment fuse box

6 - 24 Roadside Emergency
Engine compartment fuse boxFuse No Fuse
Type Rating
(amps) Colour
Circuit
F1 ATO 10A Red Front ignition, UHEGO, fu el pump, rear ignition relay coils
F2 – F3 Not used
F4 ATO 30A Green Powerwash pump
F5 Not used
F6 ATO 40A Orange Air suspension compressor
F7 ATO 40A Orange Right-hand front screen heater or wiper park zone heater
F8 ATO 20A Yellow Right-hand dipped beam
F9 ATO 20A Yellow Left-hand dipped beam
F10, F11 Not used
F12 ATO 10A Red Engine control module
F13 ATO 10A Red Fuel injectors
F14 ATO 10A Red Purge valve, EGR valve, canister close valve (CCV), port deactivation, V6 intake manifold
tuning valves (IMTV), MAFS, air filter solenoid, radiator fan controller
F15 Not used
F16 ATO 20A Yellow Right-hand main beam, left-hand main beam
F17 ATO 10A Red Engine control module, transmission control module
F18 ATO 15A Blue Front fog lights, instrument cluster front fog status

Roadside Emergency 6 - 25
F19 ATO 25A Natural Starter solenoid
F20 ATO 30A Green ABS module (pump)
F21 Not used
F22 ATO 30A Green ABS module
F23 Not used
F24 ATO 20A Yellow Throttle motor
F25 ATO 15A Blue Horns
F26 ATO 40A Orange Wiper system, front electronics module (FEM)
F27 – F29 Not used F30 ATO 10A Red Ignition coils
F31 ATO 15A Blue Intercooler water pump (supercharged engines)
F32 ATO 40A Orange Left-hand front screen heater
F33 ATO 30A Green ‘A’ bank heated oxygen sensors
F34 ATO 30A Green ‘B’ bank heated oxygen sensors
F35 Midi 80A Radiator cooling fan
Fuse No
Fuse
Type Rating
(amps) Colour Circuit

6 - 26 Roadside Emergency
Cabin fuse boxFuse No Fuse
Type Rating
(amps) Colour
Circuit
F1 ATO 10A Red Climate control unit, fan, screen heaters and wiper relay coils, smog sensor
F2 ATO 5A Tan Radiator fan controller, cruise control switch, adaptive cruise control
F3 ATO 5A Tan Rear outer seat, electrochromic mirror, driver seat heater, electric parkbrake, left and right-hand HID lamps levelling, left and right-hand seat belt switches
F4 ATO 5A Tan Instrument cluster
F5 – F6 Not used
F7 ATO 5A Tan Cigar lighter, sunroof module, electric park brake switch illumination, accessory relays (trunk fuse box)
F8 ATO 5A Tan Instrument cluster
F9 ATO 10A Red Left-hand direction indicator and repeater
F10 ATO 5A Tan Glove compartm ent door motor and lamps
F11 ATO 5A Tan Radio muting (engine start), ignition feed
F12 ATO 10A Red Front electronic module (FEM), passenger mirror
F13 ATO 20A Yellow Rear electronic module (REM), door locks
F14 ATO 10A Red Courtesy light, footwell lamps, rain sensor, FEM
F15 ATO 5A Tan ECM, FEM, instrument cluster air bag fa ult lamp, instrument cluster ignition (run/start)
F16 ATO 5A Tan Diagnostic connector

Roadside Emergency 6 - 27

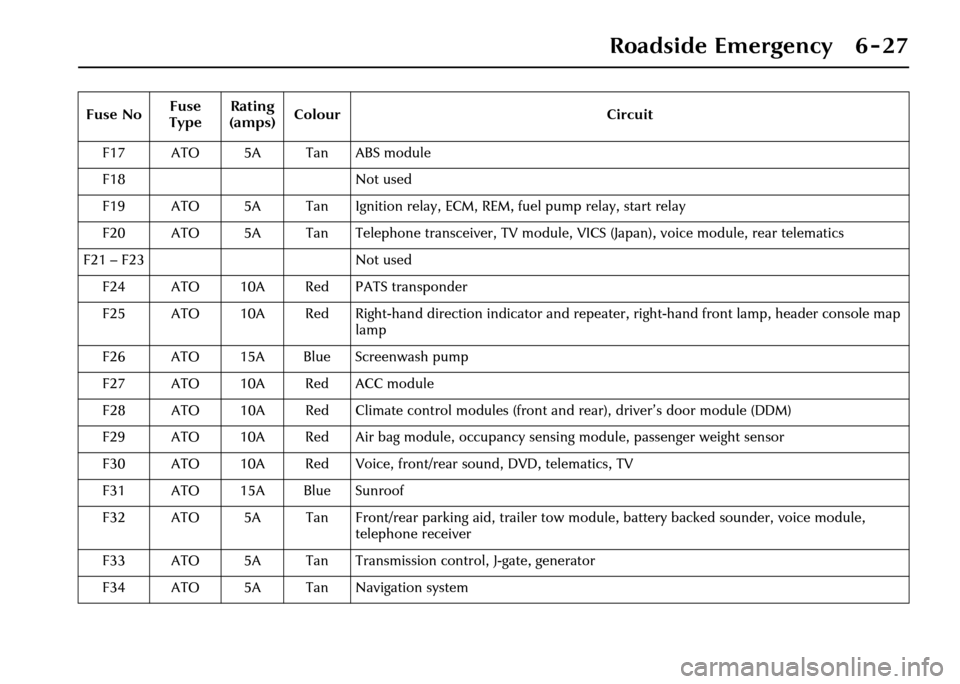

F17 ATO 5A Tan ABS module
F18 Not used
F19 ATO 5A Tan Ignition relay, ECM, REM, fuel pump relay, start relay
F20 ATO 5A Tan Telephone transceiver, TV module, VICS (Japan), voice module, rear telematics
F21 – F23 Not used
F24 ATO 10A Red PATS transponder
F25 ATO 10A Red Right-hand direction indicator and repe ater, right-hand front lamp, header console map
lamp
F26 ATO 15A Blue Screenwash pump
F27 ATO 10A Red ACC module
F28 ATO 10A Red Climate control modules (front and rear), driver’s door module (DDM)
F29 ATO 10A Red Air bag module, occupancy se nsing module, passenger weight sensor
F30 ATO 10A Red Voice, front/rear sound, DVD, telematics, TV
F31 ATO 15A Blue Sunroof
F32 ATO 5A Tan Front/rear parking aid, trailer tow module, battery backed sounder, voice module, telephone receiver
F33 ATO 5A Tan Transmission control, J-gate, generator
F34 ATO 5A Tan Navigation system
Fuse No
Fuse
Type Rating
(amps) Colour
Circuit

6 - 28 Roadside Emergency

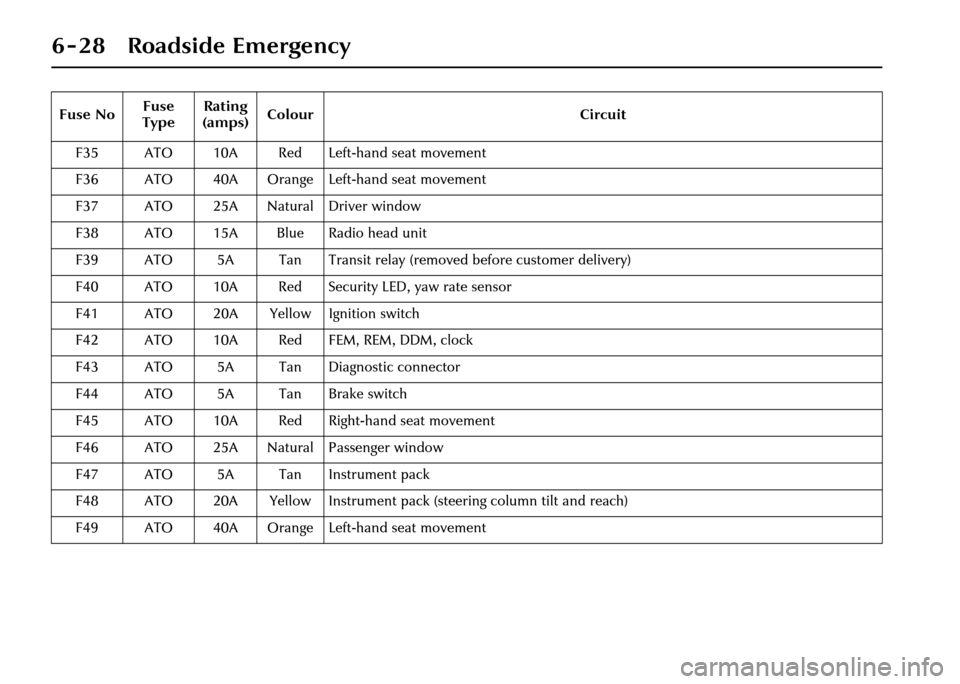

F35 ATO 10A Red Left-hand seat movement
F36 ATO 40A Orange Left-hand seat movement
F37 ATO 25A Natural Driver window
F38 ATO 15A Blue Radio head unit
F39 ATO 5A Tan Transit relay (removed before customer delivery)
F40 ATO 10A Red Security LED, yaw rate sensor
F41 ATO 20A Yellow Ignition switch
F42 ATO 10A Red FEM, REM, DDM, clock
F43 ATO 5A Tan Diagnostic connector
F44 ATO 5A Tan Brake switch
F45 ATO 10A Red Right-hand seat movement
F46 ATO 25A Natural Passenger window
F47 ATO 5A Tan Instrument pack
F48 ATO 20A Yellow Instrument pack (steering column tilt and reach)
F49 ATO 40A Orange Left-hand seat movement
Fuse No
Fuse
Type Rating
(amps) Colour
Circuit

Roadside Emergency 6 - 29

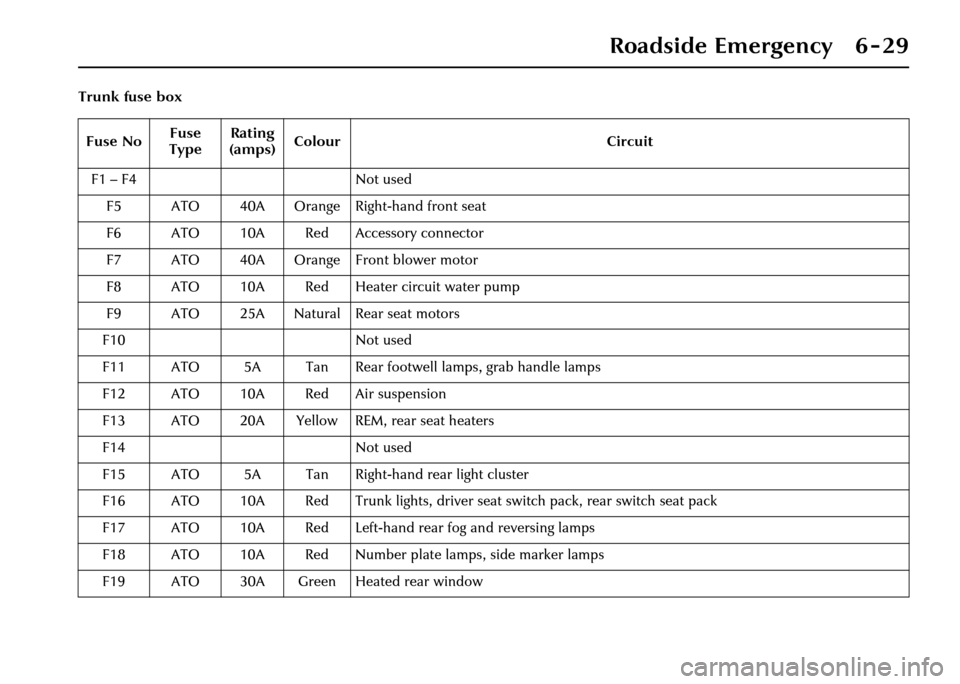

Trunk fuse boxFuse No Fuse
Type Rating
(amps) Colour
Circuit
F1 – F4 Not used
F5 ATO 40A Orange Right-hand front seat
F6 ATO 10A Red Accessory connector
F7 ATO 40A Orange Front blower motor
F8 ATO 10A Red Heater circuit water pump
F9 ATO 25A Natural Rear seat motors
F10 Not used
F11 ATO 5A Tan Rear footwell lamps, grab handle lamps
F12 ATO 10A Red Air suspension
F13 ATO 20A Yellow REM, rear seat heaters
F14 Not used
F15 ATO 5A Tan Right-hand rear light cluster
F16 ATO 10A Red Trunk lights, driver seat switch pack, rear switch seat pack
F17 ATO 10A Red Left-hand rear fog and reversing lamps
F18 ATO 10A Red Number plate lamps, side marker lamps
F19 ATO 30A Green Heated rear window
