Page 161 of 227

JAGUAR XJ 2004 X350 / 3.G Owners Manual 6 - 10 Roadside Emergency
!WARNING:
1. Do not attempt to lift the vehicle  unless the jack  head is fully
engaged in the jacking point.
2. Ensure that the parkbrake is  applied.
Place the jack square

Page 162 of 227

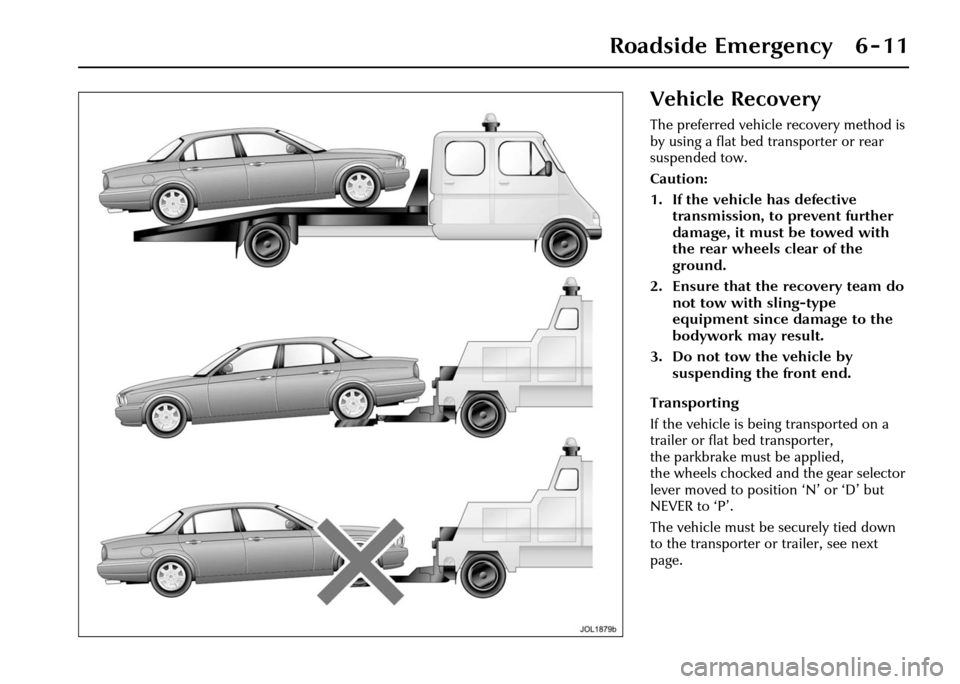

JAGUAR XJ 2004 X350 / 3.G Owners Manual Roadside Emergency 6 - 11
Vehicle Recovery
The preferred vehicle recovery method is
by using a flat bed transporter or rear
suspended tow.
Caution:
1. If the vehicle has defective  transmission, to

Page 163 of 227

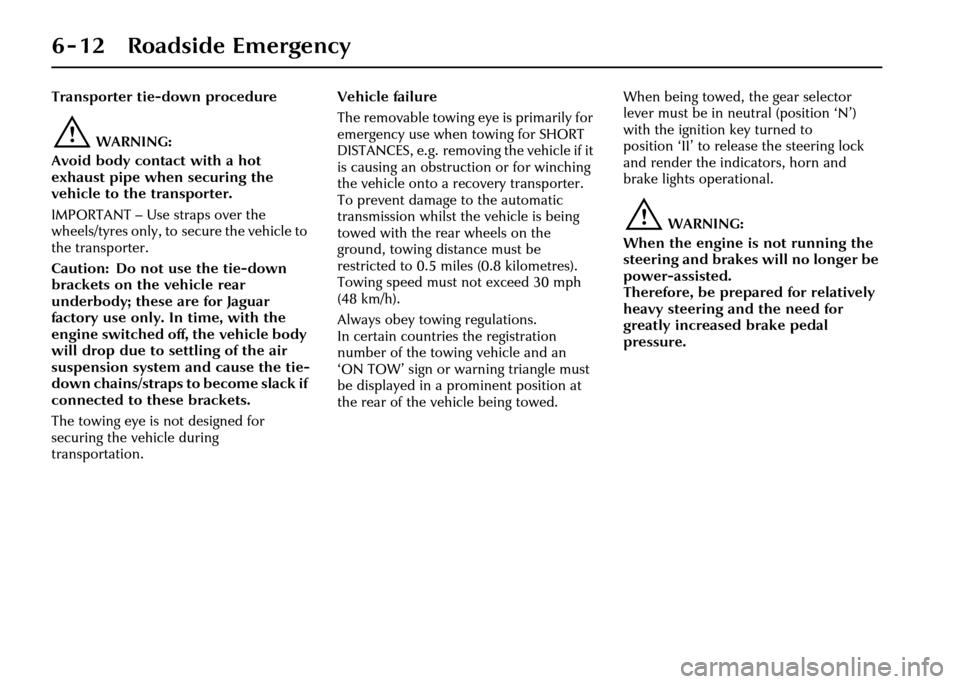

JAGUAR XJ 2004 X350 / 3.G Owners Manual 6 - 12 Roadside Emergency
Transporter tie-down procedure
!WARNING:
Avoid body contact with a hot
exhaust pipe when securing the
vehicle to the transporter.
IMPORTANT – Use straps over the
wheels/

Page 164 of 227

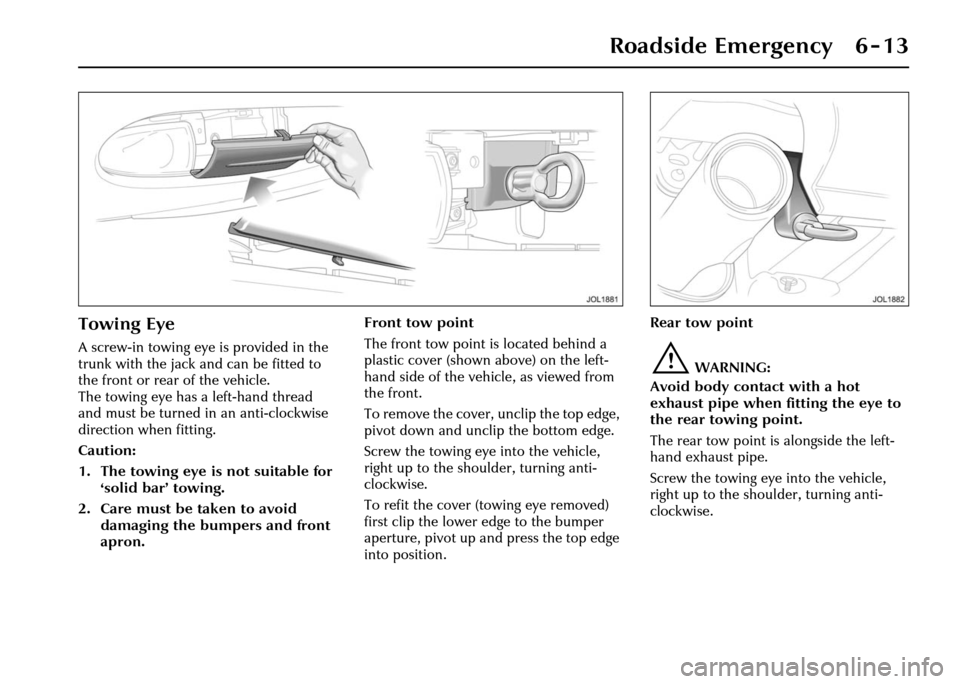

JAGUAR XJ 2004 X350 / 3.G Owners Manual Roadside Emergency 6 - 13
Towing Eye
A screw-in towing eye is provided in the
trunk with the jack and can be fitted to
the front or rear of the vehicle.
The towing eye has a left-hand thread
and m

Page 165 of 227

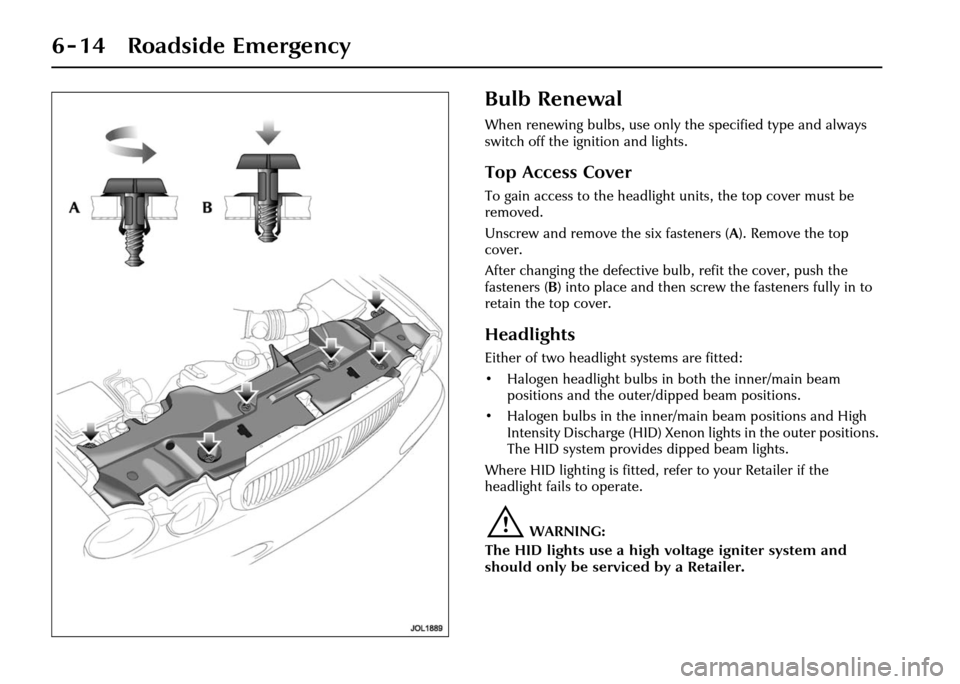

JAGUAR XJ 2004 X350 / 3.G Owners Manual 6 - 14 Roadside Emergency
Bulb Renewal
When renewing bulbs, use only the specified type and always
switch off the ignition and lights.
Top Access Cover
To gain access to the headlight units, the top

Page 166 of 227

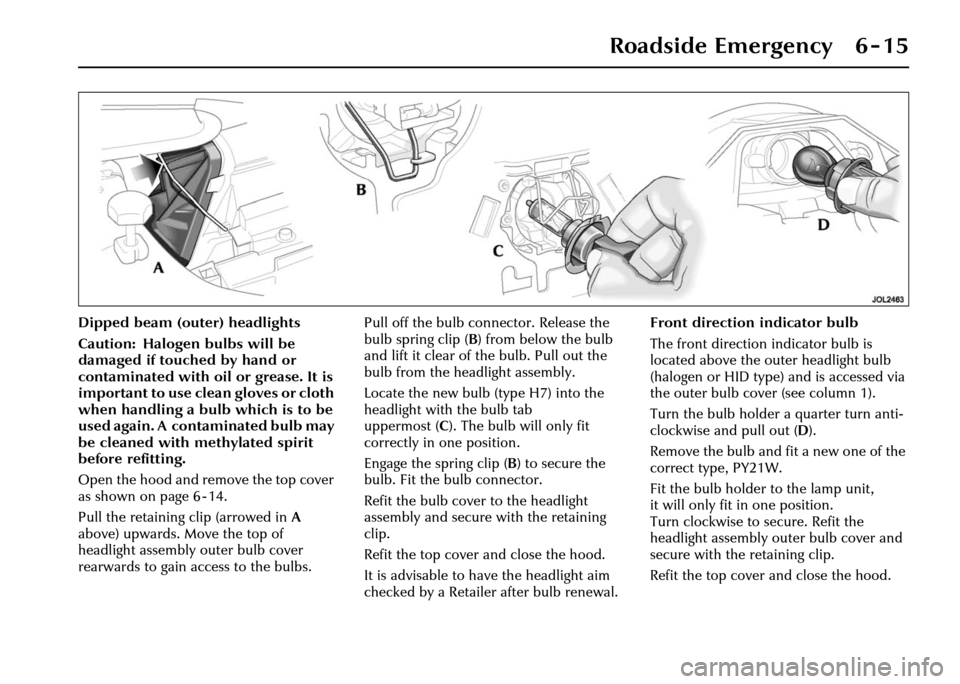

JAGUAR XJ 2004 X350 / 3.G Owners Manual Roadside Emergency 6 - 15
Dipped beam (outer) headlights
Caution: Halogen bulbs will be
damaged if touched by hand or
contaminated with oil or grease. It is
important to use clean gloves or cloth

Page 167 of 227

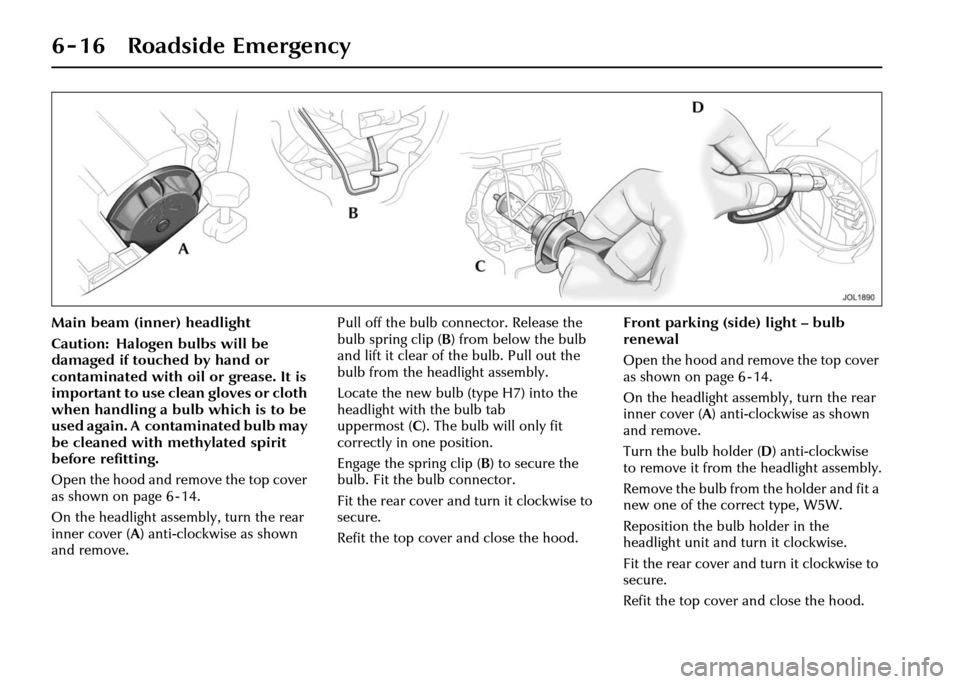

JAGUAR XJ 2004 X350 / 3.G Owners Manual 6 - 16 Roadside Emergency
Main beam (inner) headlight
Caution: Halogen bulbs will be
damaged if touched by hand or
contaminated with oil or grease. It is
important to use clean gloves or cloth
whe

Page 168 of 227

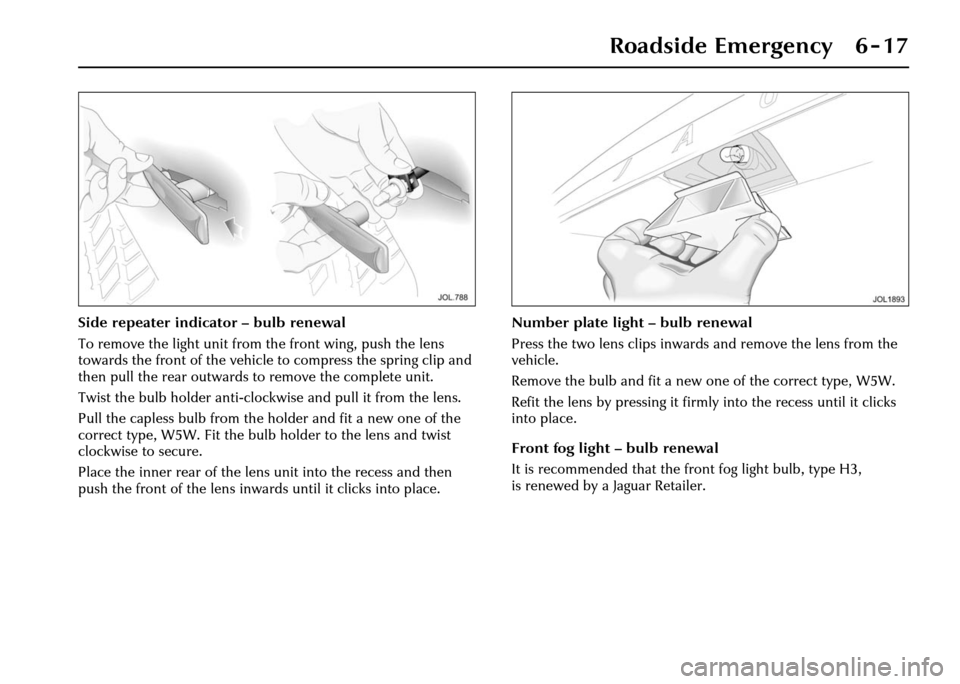

JAGUAR XJ 2004 X350 / 3.G Owners Manual Roadside Emergency 6 - 17
Side repeater indicator – bulb renewal
To remove the light unit from the front wing, push the lens
towards the front of the vehicle  to compress the spring clip and
then

Page 169 of 227

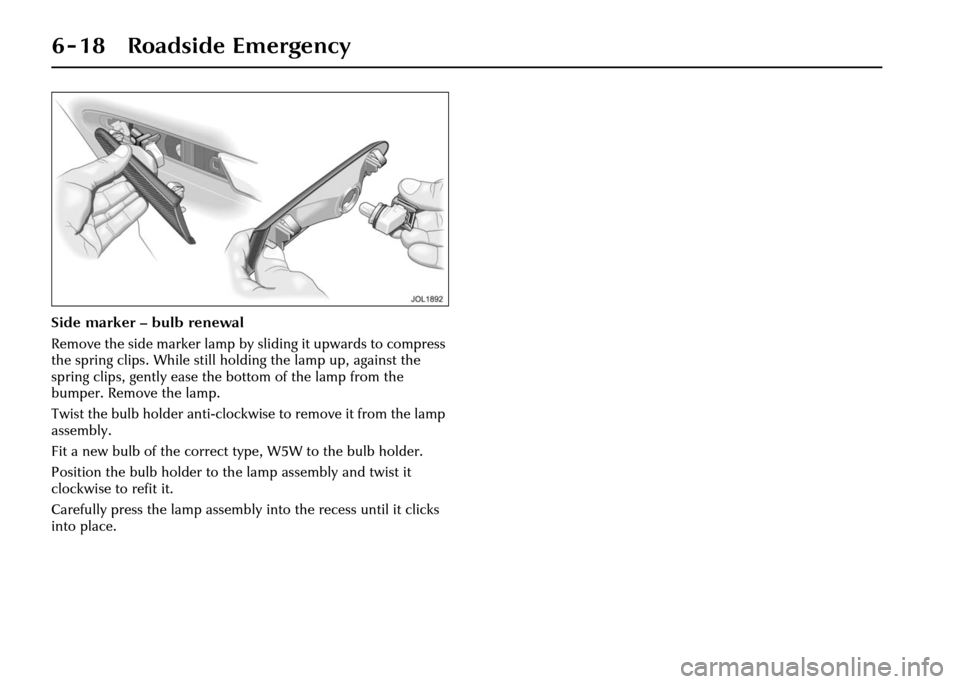

JAGUAR XJ 2004 X350 / 3.G Owners Manual 6 - 18 Roadside Emergency
Side marker – bulb renewal
Remove the side marker lamp by sliding it upwards to compress
the spring clips. While still holding the lamp up, against the
spring clips, gent

Page 170 of 227

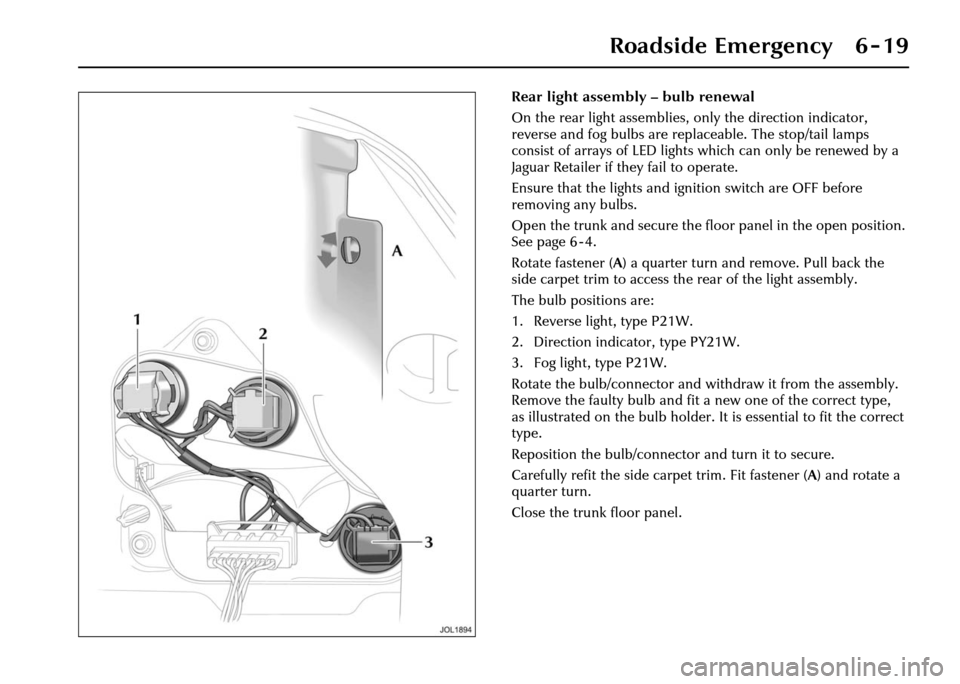

JAGUAR XJ 2004 X350 / 3.G Owners Manual Roadside Emergency 6 - 19
Rear light assembly – bulb renewal
On the rear light assemblies, only the direction indicator,
reverse and fog bulbs are replaceable. The stop/tail lamps
consist of array
