2 - 6 Security and Locks
Key transmitter battery renewal
When the battery needs renewal there will be a significant
decrease in the effective range of the key transmitter. To renew
the battery, follow the procedure below:
• Insert a small, flat-blade, screwdriver at an angle of about 45 degrees, into the slot on th e back of the key transmitter
as shown ( A). Apply light pressure to the screwdriver and
lever the screwdriver forward to separate the two halves of
the key transmitter. Finally, pu ll the transmitter from the key
body.
• Insert the screwdriver into th e slot between the transmitter
covers adjacent to the key stowage area as shown ( B).
Apply light pressure to the screwdriver and lever the
screwdriver downward to separate the covers.
• Unscrew and remove the small screw ( C) and remove the
printed circuit board, taking care not to touch the battery
terminals. Remove the battery and dispose of it safely.
• Fit a new battery cell, type CR2032 (available from your
Jaguar Retailer), with the si de marked with the positive
symbol (+) downwards in the battery receptacle.
Avoid touching the new battery as moisture/oil from the
fingers can reduce the life of the battery and corrode the
contacts.
• Replace the printed circuit board making sure to engage the board under the securing tabs (D ), and secure with the
screw.
• Refit the cover and click into place with thumb pressure.
• Slide the transmitter back onto the key body until it clicks
into place.

Security and Locks 2 - 7
Keys
Vehicles are supplied with two integrated
transmitter keys and one green-headed
valet key. Additionally, black-headed keys
are available and for further details,
contact a Jaguar Retailer.
Integrated transmitter key
The integrated tr ansmitter key is
comprised of the key body, which is
integrated with a re mote transmitter.
The key operates all the locks on your
vehicle.
Green-headed valet key
The green-headed valet key is not
integrated with a re mote transmitter.
The key operates the driver’s door lock
and the ignition switch, but does not
operate the luggage compartment lock.
Black-headed key
The black-headed key is not integrated
with a remote transm itter, but it does
operate all the locks and the ignition
switch on your vehicle. The key is not
supplied with your vehicle.
Additional keys
Five additional keys can be programmed
to operate the locks on your vehicle. Note:
A maximum of three additional
integrated transmitter keys can be used.
All additional keys mu st be obtained from
and programmed by, a Jaguar Retailer.
Key number label
The key number is recorded on an
adhesive label which is affixed to the rear
of the integrated transmitter keys.
Peel off the label and keep safely, not in
the vehicle.
Immobilisation System
This vehicle is fitted with an
immobilisation system. The system
prevents the vehicle be ing driven away by
unauthorised persons. The features of the
system include the following:
Programmable key
An electronic device is fitted in the head
of each key which is programmed to the
vehicle electronic systems.
When a programmed key is inserted into
the ignition switch it is recognised and
accepted by the vehicle’s electronic
systems.
The engine cannot be started with a key
that is not programmed to the vehicle
electronic systems. Immobilisation system status light
The immobilisation system status is
shown by a Light Emitting Diode (LED),
which is located on the top surface of the
fascia panel (
A).
If an ignition key is put into the ignition
switch and turned to position ‘II’, and the
LED remains flashing af ter three seconds,
it is possible that the engine will not start.
Should this occur, please contact a Jaguar
Retailer, who will inve stigate the cause of
the flashing LED.

2 - 8 Security and Locks
Door Locks and Handles
All doors can be centrally locked and
unlocked remotely, using the key
transmitter buttons.
Only the driver’s door is equipped with
an external key lock, which activates the
central locking and the two-stage
unlocking.
Vehicle Locking and
Unlocking
Lock the vehicle and set the alarm
• Ensure windows and sunroof (if fitted) are fully closed. • Press the lock button on the key
transmitter, or;
• Put the key in the driver’s door lock, turn the key toward s the rear of the
vehicle and release.
The direction indicators will flash once,
a chirp will be heard (if enabled) and the
security light (located on the top surface
of the fascia) will start flashing.
After 20 seconds, the alarm will be set.
If a door, the hood or the luggage
compartment are open and an attempt is
made to lock the vehicle, the direction
indicators will flash five times (if enabled)
and/or an audible warning will sound
twice as a warning that the vehicle is not
secure.
Note: The security system will not arm if
a key is in the ignition switch. If a key is
used in the drivers door lock and turned
towards the front of the vehicle then
released when an aperture is ajar,
the security will arm (2 error tones
(if enabled), or five flashes of the direction
indicators (if enabled) will be emitted). The security system will arm, but will not
monitor the aperture th
at is ajar until it
has been fully closed.
Drive-away door locking
With the ignition key at position ‘II’ and
all the doors closed, all doors will lock
when the gear selector is moved from
position ‘P’ or ‘N’. The gear selector has
to be moved from ‘P’ or ‘N’, and into a
different gear, for longer than one
second.
If the vehicle is stopped and a door is
opened and subsequently closed,
the doors will lock again when the gear
selector is moved from position ‘P’ or ‘N’,
and into a different gear.
If the vehicle is stopped and a door is
opened and subsequently closed, but the
gear selector is not moved from
position ‘P’ or ‘N’, or the current gear
position the doors will remain unlocked.
All vehicles have the drive-away door
locking feature installed during
manufacture. This feature can be
disabled, or reinstated, by a Jaguar
Retailer, if required.

Security and Locks 2 - 9
Central locking switch
With the ignition switch in either
position ‘I’ or ‘II’ and all the doors closed
and unlocked, one press of the switch
will lock all of the doors and inhibit the
luggage compartment.
With the ignition switch in either
position ‘I’ or ‘II’ and all the doors closed
and locked, one press of the switch will
unlock all of the doors and allow access
to the luggage compartment.
If the vehicle is unlocked, press and hold
the switch for more than two seconds to
centrally lock the vehicle and close all the
windows and sunroof (if fitted). Releasing
the switch will halt the operation of the
windows and sunroof (if fitted). If the vehicle is locked, press and hold the
switch for more than two seconds to
unlock the vehicle and open all the
windows and sunroof (i
f fitted). Releasing
the switch will halt the operation of the
windows and sunroof (if fitted).
Note: All windows must be ‘taught’ to
the vehicle for this function to operate.
See Window Operation on page 4 - 29.
If the central locking switch is pressed
when the ignition switch is not in
position ‘I’ or ‘II’ the security systems
inclination and intrusion sensors (if fitted)
will not operate for one arming period.
The security LED in the fascia will flash
for 5 seconds to indicate that this has
occurred.
!WARNING:
1. Make sure that all occupants are kept clear of the windows and
sunroof aperture (if fitted).
2. When an interior door release lever is pulled, the door will
unlatch.
After using the central locking switch,
it may be necessary to press the switch
again or pull a front door interior release
lever to unlock the vehicle. Smart locking
This feature helps prevent locking the key
in the vehicle.
If a door is open or ajar and an attempt is
made to lock the doors using a front door
interior locking le
ver, all doors will
centrally lock and then centrally unlock.
If a door is open or ajar and an attempt is
made to lock the doors using a rear door
interior locking lever, only the door on
which the lever is operated will lock,
the remaining doors will remain
unlocked.
If a door, hood or luggage compartment is
open, the vehicle can only be locked from
the outside by using a key in the driver’s
door lock.
Note: An audible and/or visual error
warning will be given.
It will not be possible to lock the vehicle
with a key transmitter if a door, luggage
compartment or hood is open, or a key is
left in the ignition.

2 - 10 Security and Locks
Global closing
!WARNING:
Make sure that all occupants are kept
clear of the windows and sunroof
aperture (if fitted).
Key in the driver’s door: Turn and hold
the key towards the rear of the vehicle,
for more than 2 seconds duration,
to close all the electrically operated
windows and sunroof (if fitted). If the key
is released, the global closing action stops
immediately.
Global opening
Key in the drivers door: Turn and hold
the key towards the front of the vehicle
for more than 2 seconds duration,
to open all the electrically operated
windows and sunroof (if fitted).
If the key is released, the global opening
action stops immediately.
Key transmitter: Press and hold the
unlock button for longer than 2 seconds
to open all the electrically operated
windows and sunroof (if fitted – one shot
operation). Pressing any button again
while global opening is taking place will
stop all movement. Unlock the vehicle and disarm the
alarm using a key transmitter
• Press the unlock button on the key
transmitter.
Single-stage unlocking
This unlocks all doors and the luggage
compartment and turns the interior lights
on. The security LED stops flashing.
The direction indicators will flash twice
and two audible tones will be given
(if enabled) to indicate that the system is
disarmed.
Two-stage unlocking
This unlocks the driver’s door,
the luggage compartm ent and turns on
the interior lights. T his will also disarm
the system if it was armed, the direction
indicators will flash twice and two
audible tones will sound (if enabled), and
the security LED stops flashing. A second
press is required to unlock all doors
(Retailer programmable or key fob
selectable). Selecting single-stage or two-stage
unlocking
The procedure for changing from single-
stage to two-stage unlocking (if enabled),
or vice versa, is as follows:
• Press and hold the lock and unlock
buttons on the key transmitter
simultaneously for four seconds.
Note:
1. The direction indi cators will flash
twice and two chirps will be heard
(if enabled) to confirm the unlocking
action.
2. To revert to the previous condition, repeat the procedure described above.
3. For operation of the two-stage unlocking feature when the vehicle is
equipped with a touch-screen, please
refer to the Touch-screen Handbook.

Security and Locks 2 - 11
Unlock the vehicle and disarm the
alarm using a key
Single-stage unlocking: Put the key in
the driver’s door lock, turn the key
towards the front of the vehicle and
release. This will unlock all the doors,
the luggage compartmen t is un-inhibited,
and turn on the interior lighting. This will

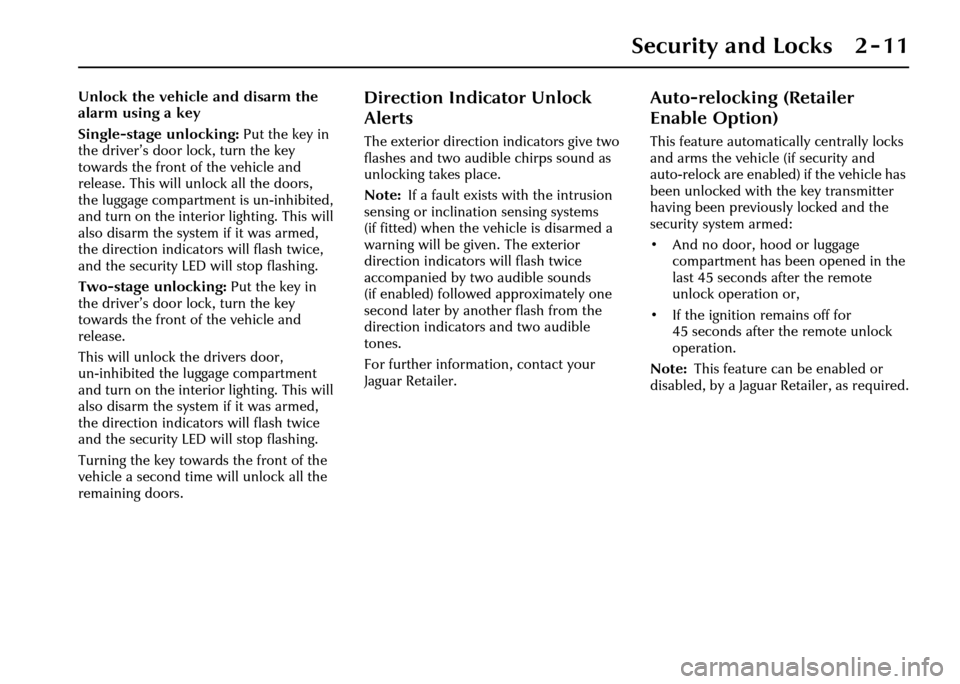

also disarm the system if it was armed,
the direction indicators will flash twice,
and the security LED will stop flashing.
Two-stage unlocking: Put the key in
the driver’s door lock, turn the key
towards the front of the vehicle and
release.
This will unlock the drivers door,
un-inhibited the luggage compartment
and turn on the interior lighting. This will
also disarm the system if it was armed,
the direction indicators will flash twice
and the security LED will stop flashing.
Turning the key towards the front of the
vehicle a second time will unlock all the
remaining doors.Direction Indicator Unlock
Alerts
The exterior direction indicators give two
flashes and two audible chirps sound as
unlocking takes place.
Note: If a fault exists with the intrusion
sensing or inclination sensing systems
(if fitted) when the vehicle is disarmed a
warning will be given. The exterior
direction indicators will flash twice
accompanied by tw o audible sounds
(if enabled) followed approximately one
second later by another flash from the
direction indicators and two audible
tones.
For further information, contact your
Jaguar Retailer.
Auto-relocking (Retailer
Enable Option)
This feature automatically centrally locks
and arms the vehicle (if security and
auto-relock are enabled) if the vehicle has
been unlocked with the key transmitter
having been previously locked and the
security system armed:
• And no door, hood or luggage compartment has been opened in the
last 45 seconds after the remote
unlock operation or,
• If the ignition remains off for 45 seconds after the remote unlock
operation.
Note: This feature can be enabled or
disabled, by a Jaguar Retailer, as required.

2 - 12 Security and Locks

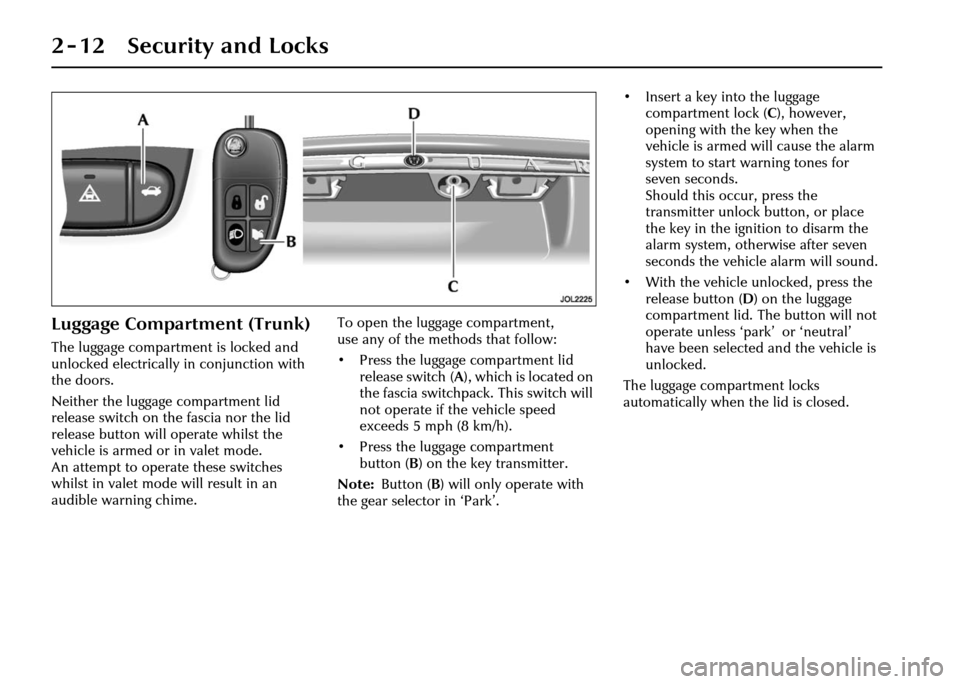

Luggage Compartment (Trunk)
The luggage compartment is locked and
unlocked electrically in conjunction with
the doors.
Neither the luggage compartment lid
release switch on the fascia nor the lid
release button will operate whilst the
vehicle is armed or in valet mode.
An attempt to operate these switches
whilst in valet mode will result in an
audible warning chime. To open the luggage compartment,
use any of the methods that follow:
• Press the luggage compartment lid
release switch ( A), which is located on
the fascia switchpack. This switch will
not operate if the vehicle speed
exceeds 5 mph (8 km/h).
• Press the luggage compartment button ( B) on the key transmitter.
Note: Button ( B) will only operate with
the gear selector in ‘Park’. • Insert a key into the luggage
compartment lock ( C), however,
opening with the key when the
vehicle is armed will cause the alarm
system to start warning tones for
seven seconds.
Should this occur, press the
transmitter unlock button, or place
the key in the ignition to disarm the
alarm system, otherwise after seven
seconds the vehicle alarm will sound.
• With the vehicle unlocked, press the release button ( D) on the luggage
compartment lid. The button will not
operate unless ‘park’ or ‘neutral’
have been selected and the vehicle is
unlocked.
The luggage compartment locks
automatically when the lid is closed.

Security and Locks 2 - 13

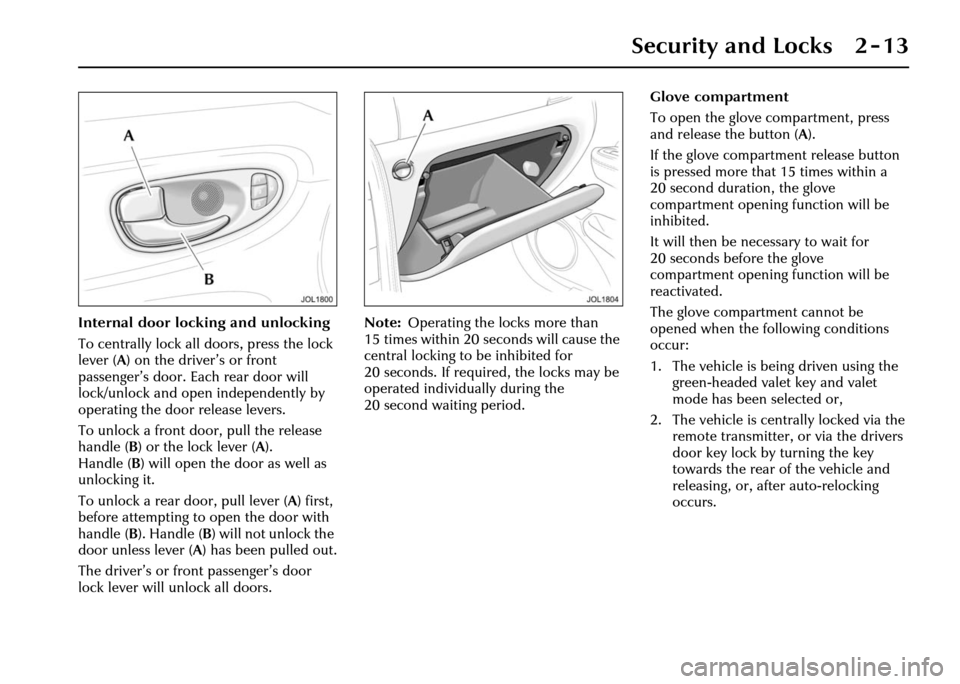

Internal door locking and unlocking
To centrally lock all doors, press the lock
lever (A) on the driver’s or front
passenger’s door. Each rear door will
lock/unlock and open independently by
operating the door release levers.
To unlock a front door, pull the release
handle ( B) or the lock lever ( A).
Handle ( B) will open the door as well as
unlocking it.
To unlock a rear door, pull lever ( A) first,
before attempting to open the door with
handle ( B). Handle ( B) will not unlock the
door unless lever (A ) has been pulled out.
The driver’s or front passenger’s door
lock lever will unlock all doors. Note:
Operating the locks more than
15 times within 20 seconds will cause the
central locking to be inhibited for
20 seconds. If required, the locks may be
operated individually during the
20 second waiting period. Glove compartment
To open the glove compartment, press
and release the button (
A).
If the glove compar tment release button
is pressed more that 15 times within a
20 second duration, the glove
compartment opening function will be
inhibited.
It will then be necessary to wait for
20 seconds before the glove
compartment opening function will be
reactivated.
The glove compartment cannot be
opened when the following conditions
occur:
1. The vehicle is being driven using the green-headed valet key and valet
mode has been selected or,
2. The vehicle is centrally locked via the remote transmitter, or via the drivers
door key lock by turning the key
towards the rear of the vehicle and
releasing, or, after auto-relocking
occurs.

2 - 14 Security and Locks

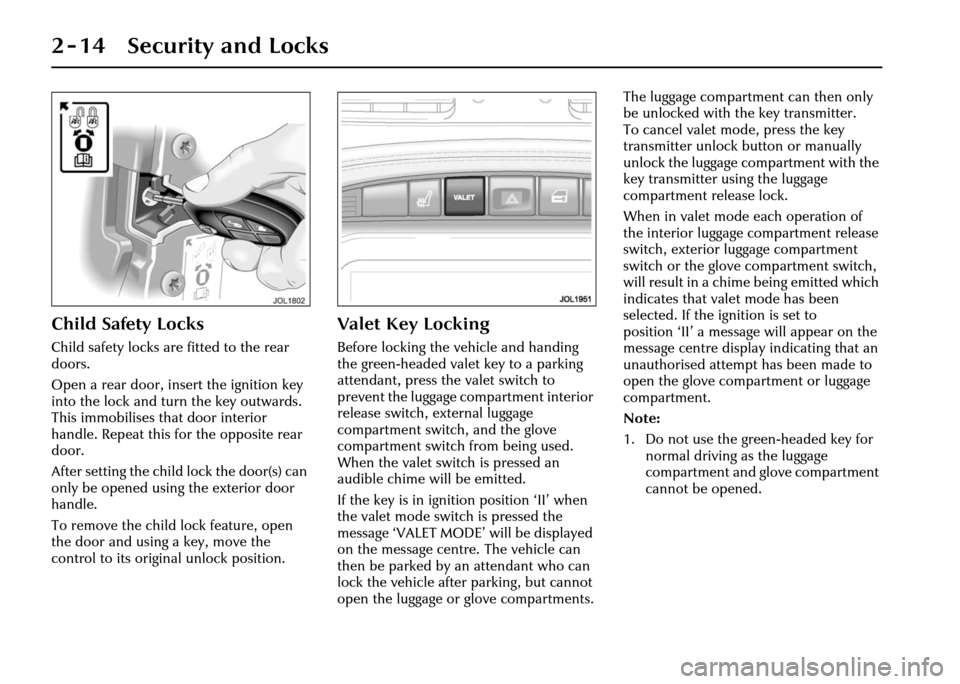

Child Safety Locks
Child safety locks are fitted to the rear
doors.
Open a rear door, insert the ignition key
into the lock and turn the key outwards.
This immobilises that door interior
handle. Repeat this for the opposite rear
door.
After setting the child lock the door(s) can
only be opened using the exterior door
handle.
To remove the child lock feature, open
the door and using a key, move the
control to its original unlock position.
Valet Key Locking
Before locking the vehicle and handing
the green-headed valet key to a parking
attendant, press the valet switch to
prevent the luggage co mpartment interior
release switch, external luggage
compartment switch, and the glove
compartment switch from being used.
When the valet switch is pressed an
audible chime will be emitted.
If the key is in ignition position ‘II’ when
the valet mode switch is pressed the
message ‘VALET MODE’ will be displayed
on the message centre. The vehicle can
then be parked by an attendant who can
lock the vehicle after parking, but cannot
open the luggage or glove compartments. The luggage compartment can then only
be unlocked with th
e key transmitter.
To cancel valet mode, press the key
transmitter unlock button or manually
unlock the luggage compartment with the
key transmitter us ing the luggage
compartment release lock.
When in valet mode each operation of
the interior luggage compartment release
switch, exterior lu ggage compartment
switch or the glove compartment switch,
will result in a chim e being emitted which
indicates that vale t mode has been
selected. If the ignition is set to
position ‘II’ a message will appear on the
message centre display indicating that an
unauthorised attempt has been made to
open the glove compartment or luggage
compartment.
Note:
1. Do not use the green-headed key for normal driving as the luggage
compartment and glove compartment
cannot be opened.

Security and Locks 2 - 15
2. If the vehicle alarm system is armed and the luggage compartment is
opened using the key transmitter,
the alarm will not sound. The system
will be rearmed when the lid is closed,
provided the vehicle has not been
disarmed.
3. Neither the luggage compartment lid release switch on the fascia
switchpack nor the lid release button
will operate when the vehicle is
armed, or in valet mode. An attempt
to operate these switches whilst in
valet mode will result in an audible
warning chime.
4. Operating the inte rnal, external or
remote luggage compartment switches
more than 15 times within
20 seconds, or opening and closing
the luggage compartment will cause
opening to be inhibited for
20 seconds. Should this happen wait
20 seconds for normal operation to
resume. If required, the luggage
compartment may be opened by using
the key during the 20 second waiting

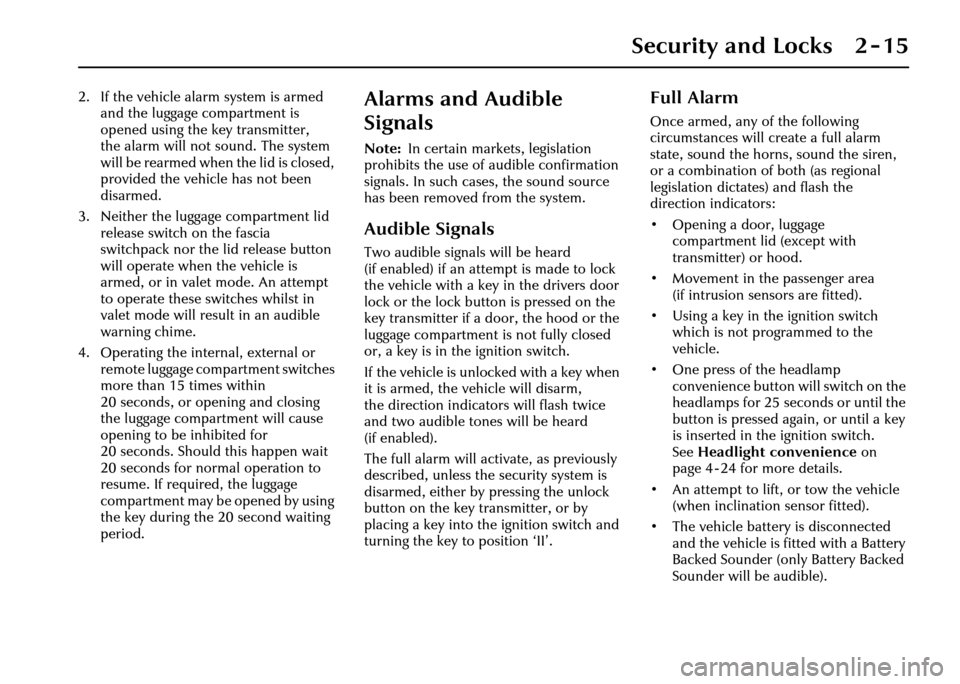

period.Alarms and Audible
Signals
Note: In certain markets, legislation
prohibits the use of audible confirmation
signals. In such cases, the sound source
has been removed from the system.
Audible Signals
Two audible signals will be heard
(if enabled) if an atte mpt is made to lock
the vehicle with a key in the drivers door
lock or the lock button is pressed on the
key transmitter if a door, the hood or the
luggage compartment is not fully closed
or, a key is in the ignition switch.
If the vehicle is unlocked with a key when
it is armed, the vehicle will disarm,
the direction indicators will flash twice
and two audible tones will be heard
(if enabled).
The full alarm will activate, as previously
described, unless the security system is
disarmed, either by pressing the unlock
button on the key tr ansmitter, or by
placing a key into the ignition switch and
turning the key to position ‘II’.
Full Alarm
Once armed, any of the following
circumstances will create a full alarm
state, sound the horns, sound the siren,
or a combination of both (as regional
legislation dictates) and flash the
direction indicators:
• Opening a door, luggage compartment lid (except with
transmitter) or hood.
• Movement in the passenger area (if intrusion sensors are fitted).
• Using a key in the ignition switch which is not programmed to the
vehicle.
• One press of the headlamp convenience button will switch on the
headlamps for 25 seconds or until the
button is pressed again, or until a key
is inserted in the ignition switch.
See Headlight convenience on
page 4 - 24 for more details.
• An attempt to lift, or tow the vehicle (when inclination sensor fitted).
• The vehicle battery is disconnected and the vehicle is fitted with a Battery
Backed Sounder (onl y Battery Backed
Sounder will be audible).
