Owner Information 1 - 7
Health and Safety
!WARNING:
1. Many liquids and other substances used in vehicles are
poisonous and should never be
consumed and must be kept away
from open wounds.
These substances include anti-
freeze, brake fluid, fuel,
windscreen washer additives,
lubricants and various adhesives.
2. The presence of any unusual fumes (for example; petrol or
exhaust fumes) in the passenger
compartment and/or luggage
compartment should be corrected
immediately by a Jaguar Retailer.
If you must drive under these
conditions do so only with all
windows fully open.
3. By operating other electronic equipment (for example; a mobile
phone without an exterior
antenna) electro-magnetic fields
can cause malfunctions of the
vehicle electronics.
Therefore, you should observe the
instructions of the equipment
manufacturers. 4. Any modifications to the fuel
system not specifically designed
for this Jaguar are prohibited.
Such modifications in some
circumstances could result in a
fire. All service actions must be
entrusted to a Jaguar Retailer.
5. Alterations to the electrical system, including the fitting of
accessories not designed for this
Jaguar, will cause damage to the
electrical circuits and systems.
In some circumstances this could
result in a malfunction or fire.
All accessory work should be
entrusted to a Jaguar Retailer.
6. No attempt should be made to repair a fuse that has blown.
Always install a new fuse of the
correct amperage. Failure to
comply with the above may cause
a fire hazard or create serious
damage elsewhere in the
electrical circuit.
7. Avoid contact with battery acid which is poisonous and corrosive.
Acid will cause burns to the skin
as well as to the eyes. In the event
of skin or eye contamination,
wash the affected area with water
thoroughly. Seek immediate medical attention when eye
contact has occurred.
8. Do not disconnect any pipes in the air conditioning refrigeration
system. A refrigerant is used
which can cause blindness if
allowed to contact the eyes.
If refrigerant should contact the
eyes or skin, wash the eyes or
affected area with cold water for
several minutes. Do not rub.
As soon as possible thereafter,
obtain treatment from a doctor or
eye specialist.
9. When working within the engine compartment, take care to avoid
contact with moving parts and hot
components.
10. California Proposition 65: Engine exhaust, some of it’s
constituents, and certain vehicle
components, contain or emit
chemicals known to the State of
California to cause cancer and
birth defects or other
reproductive harm.
Page 12 of 227
1 - 8 Owner Information
Regular Servicing
Each vehicle is given a full ‘Pre-Delivery
Inspection’ to ensure that all systems
function correctly and that the vehicle
meets its specification.
Owners are responsible for the regular
maintenance and servicing of the vehicle.
Jaguar Retailers will be pleased to arrange
periodic servicing and can provide you
with details of tasks carried out at each
service interval.
Failure to implement maintenance at the
recommended interval s could result in
deterioration of vehicle performance and
possible infringement of regulations.
Regular routine maintenance not only
helps to prevent unnecessary
‘breakdowns’ and inconvenience,
but enhances the ‘trade in’ or resale
value of the vehicle.
Failure to perform regular maintenance at
the correct interval may void the factory
warranty.
USA and Canada
Jaguar Retailers will arrange for
appointments on a mileage/kilometre or
time interval basis to ensure that all
routine and corrective maintenance work
is undertaken and recorded in the
‘Passport to Service’ Booklet. This booklet
not only contains a record of vital
information, but also information about
warranties, Jaguar Cars, Jaguar Car Clubs,
Tyre Manufacturers and change of
ownership or address vouchers.
Mexico
Jaguar Retailers will arrange for
appointments on a mileage/distance or
time interval basis to ensure that all
routine and corrective maintenance work
is undertaken and recorded in the Service
Record and Warranty Book. This booklet
not only contains a record of vital
information, but also information about
warranty and a change of ownership
card.
Jaguar Diagnostic System
Many of the vehicle systems are
controlled by complex electronic devices.
Specialist equipment is required to trace
and rectify faults in the systems and
ensure that only faulty components are
repaired or renewed.
Caution: Severe damage to the
electrical system and electronic
components can occur if any attempt
is made to diagnose faults in the
electrical system using conventional
diagnostic equipment (for example;
the use of test lamps or low
impedance voltmeters ). The fitting of
any electrical accessory should only
be entrusted to a Jaguar Retailer.
Page 13 of 227
Owner Information 1 - 9

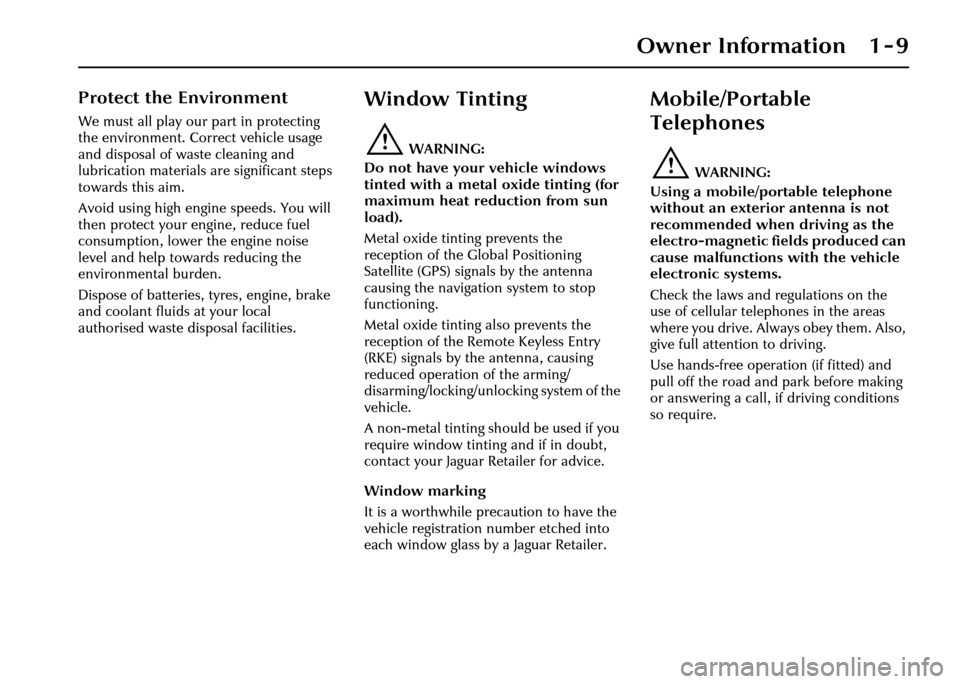

Protect the Environment
We must all play our part in protecting
the environment. Correct vehicle usage
and disposal of waste cleaning and
lubrication materials are significant steps
towards this aim.
Avoid using high engine speeds. You will
then protect your engine, reduce fuel
consumption, lower the engine noise
level and help towards reducing the
environmental burden.
Dispose of batteries, tyres, engine, brake
and coolant fluids at your local
authorised waste disposal facilities.
Window Tinting
!WARNING:
Do not have your vehicle windows
tinted with a metal oxide tinting (for
maximum heat reduction from sun
load).
Metal oxide tinting prevents the
reception of the Global Positioning
Satellite (GPS) signals by the antenna
causing the navigation system to stop
functioning.
Metal oxide tinting also prevents the
reception of the Remote Keyless Entry
(RKE) signals by the antenna, causing
reduced operation of the arming/
disarming/locking/unlocking system of the
vehicle.
A non-metal tinting should be used if you
require window tinting and if in doubt,
contact your Jaguar Retailer for advice.
Window marking
It is a worthwhile precaution to have the
vehicle registration number etched into
each window glass by a Jaguar Retailer.
Mobile/Portable
Telephones
!WARNING:
Using a mobile/portable telephone
without an exterior antenna is not
recommended when driving as the
electro-magnetic fields produced can
cause malfunctions with the vehicle
electronic systems.
Check the laws and regulations on the
use of cellular telephones in the areas
where you drive. Always obey them. Also,
give full attention to driving.
Use hands-free operation (if fitted) and
pull off the road and park before making
or answering a call, if driving conditions
so require.
Page 14 of 227
1 - 10 Owner Information
Floor mat retention
Ensure that the driver floor mat is
correctly positioned and secured under
the tongue on the retention post (A),
so that it does not interfere with the
operation of the accelerator pedal or the
brake pedal.
The positioning of the mat should be
especially checked when refitted after
removal for cleaning or servicing.
Page 15 of 227
Page 16 of 227
Security and Locks
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Key Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7
Door Locks and Handles . . . . . . . . . . . . . . . . . . . 2 - 8
Alarms and Audible Signals. . . . . . . . . . . . . . . . 2 - 15
Security Features . . . . . . . . . . . . . . . . . . . . . . . 2 - 17
Luggage Compartment Emergency Release . . . . 2 - 19
Garage Door Opener Transceiver . . . . . . . . . . . 2 - 20
Page 17 of 227
Page 18 of 227
Security and Locks 2 - 3
2 Security and Locks
Ignition Switch
The fascia-mounted ignition switch,
on the right-hand side of the steering
column, has four key positions:
0.Ignition OFF – This is the only
position in which the key can be
inserted and removed.
I. Auxiliary – Allows use of some
electrical circuits, for example, radio
and window oper ation (accessory
delay only).
II. Ignition ON – All electrical circuits
except the starter motor are
activated. The key remains in this
position when driving. III.
Engine start – The starter motor is
operated for as long as the key is held
in this position, against spring
pressure.
When the key is turned back to the OFF
position, the delayed accessory feature
becomes active.
The circuits available in the auxiliary
position remain activated for a preset
timed period or until a front door is
opened.
To Remove the Ignition Key
Automatic transmissi on vehicles have a
key interlock feature.
Apply the electronic parkbrake, move the
gear selector to the Park ‘P’ position and
turn the key to position ‘0’.
The automatic transmis sion gear selector
must be placed in Park ‘P’ before the key
can be removed from the ignition switch.
When the key is removed, the gear
selector will be locked in Park.
Steering Column Lock
The steering column lock is controlled by
the ignition switch.
When the key is removed from the
ignition switch, you will hear the steering
column lock engage.
When the key is inserted into the ignition
switch, you will hear the steering column
lock disengage.
In rare circumstances, it may be
necessary to gently turn the steering
wheel from side to side to release the
steering column lock.
Gearshift Interlock
A brake pedal/gearshift interlock system
is incorporated in the automatic
transmission gear selector mechanism.
To move the gear selector from Park:
1. Turn the ignition key to position ‘II’ or start the engine.
2. Press the brake pedal.
Page 19 of 227
2 - 4 Security and Locks
Vehicle Security
When the vehicle is unoccupied or
unattended, you are advised to do the
following:
• Apply the electronic parkbrake and move the gear selector to the
Park ‘P’ position.
• Do not leave children or pets in the vehicle unattended.
• Do not leave luggage or valuables on display.
• Remove all keys, including remote transmitters, from the vehicle prior to
locking the doors, even when the
vehicle is in your garage.
• Close all windows, hood, luggage compartment and glove
compartment, and lock all the doors.
• Park the vehicle where it can be seen. At night, park in a well-lit area.
• It is important to keep your keys in safe places at all times. Leaving them
in conspicuous places is an invitation
for a thief to steal them and,
consequently, your vehicle or
belongings. Keep them as secure as
you would your wallet or purse, both
at home and away.
Key Transmitter
The security system is controlled
remotely by a radio frequency, battery-
operated, integrated transmitter key.
The transmitter is ac tivated by pressing
one of the operating buttons.
( A ) – Unlocks and disarms the vehicle.
( B ) – Releases the luggage compartment
lock.
( C ) – Activates the convenience headlamp
feature and sounds the panic alarm.
For further information on the
convenience headlamp feature,
see Headlight convenience on
page 4 - 24.
( D ) – Locks and arms the vehicle.
( E ) – Locks/unlocks the key.
To free the key, press the release
button ( E). When not required press and
hold the button and fold the key into the
transmitter housing.
Page 20 of 227
Security and Locks 2 - 5
Note:
1. The key transmitter may not operate correctly in areas which are subject to
interference from other radio
equipment operating on the same
frequency. Interference may emanate
from sources such as amateur radio,
telecommunications devices, medical
equipment, and other remote controls
or alarms. Where such interference is
experienced operate the key
transmitter as close as possible to the
vehicle, or use the key in the drivers
door lock.
2. All buttons on the key transmitter will not operate if a key is in the ignition
switch, however, if the doors, hood or
luggage compartment are open, only
button ( D) will not operate.
Each integrated key will operate all the
locks on your vehicle.
Additional integrated key transmitters
can be ordered from your Jaguar Retailer.
See Additional keys on page 2 - 7. Care of key transmitters
The key transmitters must be treated with
care. Do not expose to extremes of heat,
dust, humidity or fluids. Do not leave the
transmitter exposed to direct sunlight.
The battery is the only serviceable part.
Caution: Should a key transmitter be
lost, a new one can be obtained and
programmed to the vehicle by a
Jaguar Retailer, who will ask for proof
of vehicle ownership. It is advisable
to notify a Retailer as soon as a key
transmitter is lost or stolen and have
the remaining key transmitter(s)
reprogrammed. This will then
prevent the lost or stolen key
transmitter from being used to
disarm and unlock the vehicle.
Note:
Retailers keep a log of all enquiries
for replacement keys and notify
Jaguar Cars Ltd. of any such requests.
Radio Frequency
The radio frequency remote system
operates on a frequency subject to USA
Federal Communications Commission
(FCC) rules.
The device complies with Part 15 of the
FCC rules and RSS–210 of the Industry
Canada. Operation is subject to the two following
conditions:
1. The device may not cause harmful
interference.
2. This device mu st accept any
interference received, including
interference that may cause undesired
operation.
The key transmitter radio frequency
approval numbers for the USA and
Canada are as shown below:
USA – NHVWB1U241.
Canada – 3495 103 2304.
Note: The manufacturer is not
responsible for any radio interference or
TV interference caused by unauthorised
modifications to this equipment. Changes
or modifications not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
the equipment.
Caution: The key-ring transmitter
may suffer interference from other
legal users of this radio frequency
band, such as radio amateurs,
medical equipment, remote controls
or alarm systems. To lock or unlock
the vehicle either use a key or
operate the transmitter as close to the
security antenna as possible.
