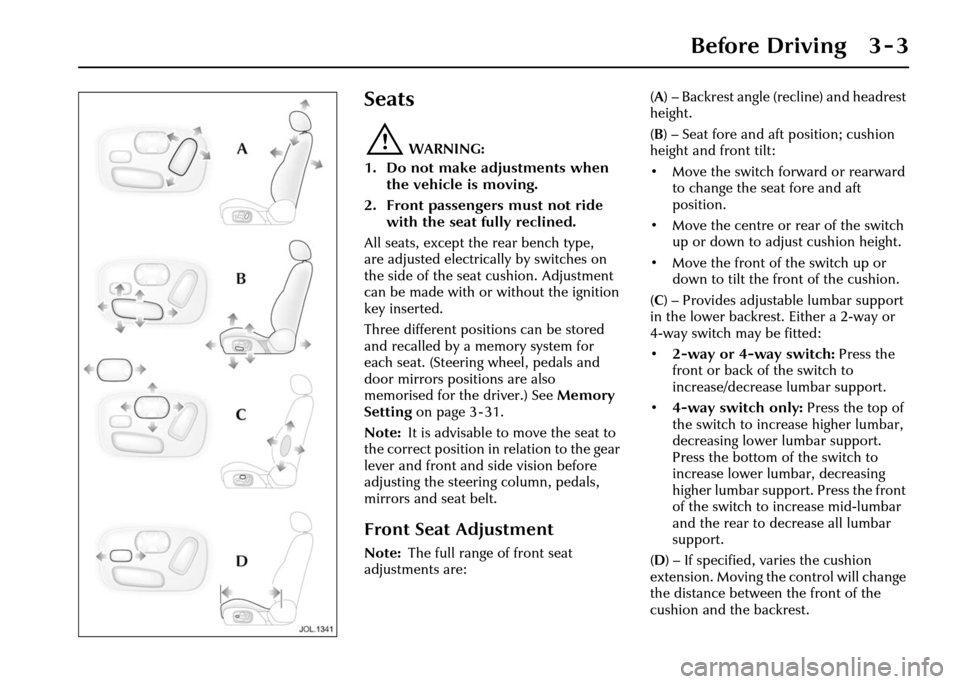

Before Driving 3 - 3
3 Before Driving
Seats
!WARNING:
1. Do not make adjustments when the vehicle is moving.
2. Front passengers must not ride with the seat fully reclined.
All seats, except the rear bench type,
are adjusted electrically by switches on
the side of the seat cushion. Adjustment
can be made with or without the ignition
key inserted.
Three different positions can be stored
and recalled by a memory system for
each seat. (Steering wheel, pedals and
door mirrors positions are also
memorised for the driver.) See Memory
Setting on page 3 - 31.
Note: It is advisable to move the seat to
the correct position in relation to the gear
lever and front and side vision before
adjusting the steering column, pedals,
mirrors and seat belt.
Front Seat Adjustment
Note: The full range of front seat
adjustments are: (
A ) – Backrest angle (recline) and headrest
height.
( B ) – Seat fore and aft position; cushion
height and front tilt:
• Move the switch forward or rearward to change the seat fore and aft
position.
• Move the centre or rear of the switch up or down to adjust cushion height.
• Move the front of the switch up or down to tilt the front of the cushion.
( C ) – Provides adjustable lumbar support
in the lower backrest. Either a 2-way or
4-way switch may be fitted:
• 2-way or 4-way switch: Press the
front or back of the switch to
increase/decrease lumbar support.
• 4-way switch only: Press the top of
the switch to increase higher lumbar,
decreasing lower lumbar support.
Press the bottom of the switch to
increase lower lumbar, decreasing
higher lumbar support. Press the front
of the switch to increase mid-lumbar
and the rear to decrease all lumbar
support.
( D ) – If specified, varies the cushion
extension. Moving the control will change
the distance between the front of the
cushion and the backrest.
Page 43 of 227

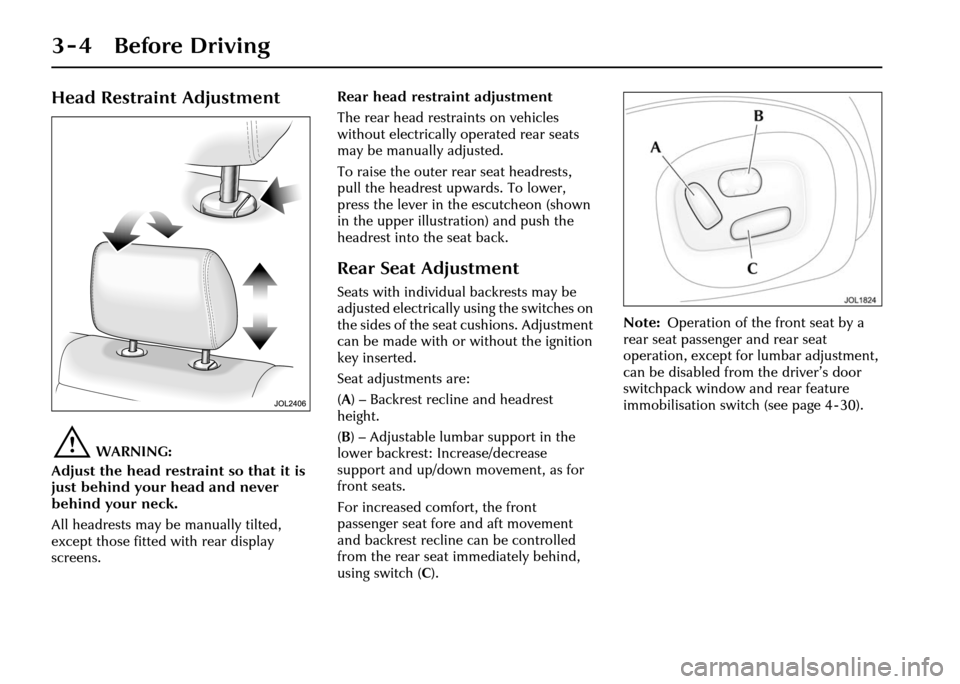

3 - 4 Before Driving
Head Restraint Adjustment
!WARNING:
Adjust the head restraint so that it is
just behind your head and never
behind your neck.
All headrests may be manually tilted,
except those fitted with rear display
screens. Rear head restraint adjustment
The rear head restraints on vehicles
without electrically operated rear seats
may be manually adjusted.
To raise the outer rear seat headrests,
pull the headrest upwards. To lower,
press the lever in the escutcheon (shown
in the upper illustra
tion) and push the
headrest into the seat back.
Rear Seat Adjustment
Seats with individual backrests may be
adjusted electrically using the switches on
the sides of the seat cushions. Adjustment
can be made with or without the ignition
key inserted.
Seat adjustments are:
( A ) – Backrest recline and headrest
height.
( B ) – Adjustable lumbar support in the
lower backrest: Increase/decrease
support and up/down movement, as for
front seats.
For increased comfort, the front
passenger seat fore and aft movement
and backrest recline can be controlled
from the rear seat immediately behind,
using switch ( C). Note:
Operation of the front seat by a
rear seat passenger and rear seat
operation, except for lumbar adjustment,
can be disabled from the driver’s door
switchpack window and rear feature
immobilisation switch (see page 4 - 30).
Page 44 of 227
Before Driving 3 - 5
Heated Seats
Some seats have heaters in the backrests
and cushions. The heaters have three
heat settings and each seat has its own
control.
The front seat buttons are located at the
top of the centre console.
With the engine running, pressing a
heater button will select the highest heat
setting, as indicated by three illuminated
red lights.
A second press selects the mid setting
(two red lights) and a third press selects
the lowest heat setting (one red light).
A fourth press turns the seat heater off;
all indicator lights off. The rear seat heater buttons are located
below the rear air vents.
Note:
The heater will automatically
switch off if the engine is turned off or if a
fault is detected.
A heater will maintain a preset
temperature while it is switched on.
Storage of the vehicle in a heated garage,
body heat or warm ambient temperatures
may prevent operation of the seat heater.
Heated Steering Wheel
A heater is incorporated in the steering
wheel rim and operates in conjunction
with the driver’s seat heater. The steering
wheel heater is switched on in any of the
three driver seat heater positions.
Page 45 of 227
3 - 6 Before Driving
Pedal Adjustment
!WARNING:
Do not adjust the pedals whilst driving.
This facility enables the pedals to be moved towards or away
from the driver’s seat, providing extra adjustment for the driving
position. All pedals move together (no individual pedal
adjustment) and are electrically controlled from the combined
steering column/pedal adjust switch on the left side of the
steering column housing. The adjustment can be made with or
without the ignition key inserted.
To adjust the position of the pedals, turn the switch
to ‘PEDALS’, then push it forwards or rearwards to cause a
corresponding movement of the pedal assembly.
Three pedal positions may be stored and recalled by the driver
position memory system. See Memory Setting on page 3 - 31.
It will not be possible to adjust the pedals if cruise control has
been set.
Page 46 of 227
Before Driving 3 - 7

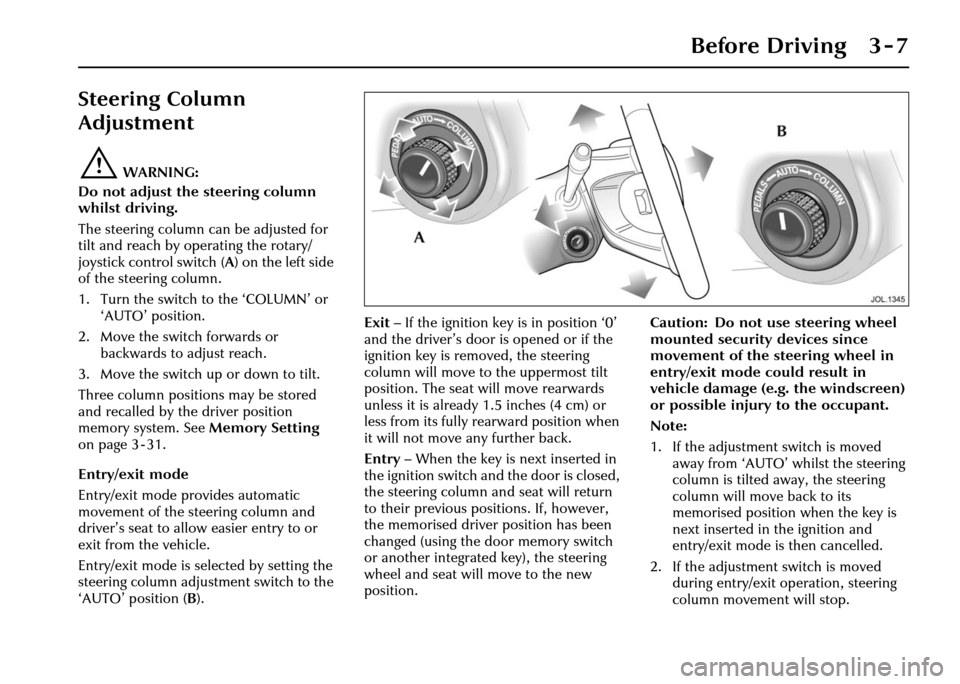

Steering Column
Adjustment
!WARNING:
Do not adjust the steering column
whilst driving.
The steering column can be adjusted for
tilt and reach by operating the rotary/
joystick control switch (A ) on the left side
of the steering column.
1. Turn the switch to the ‘COLUMN’ or ‘AUTO’ position.
2. Move the switch forwards or backwards to adjust reach.
3. Move the switch up or down to tilt.
Three column positions may be stored
and recalled by the driver position
memory system. See Memory Setting
on page 3 - 31.
Entry/exit mode
Entry/exit mode provides automatic
movement of the steering column and
driver’s seat to allow easier entry to or
exit from the vehicle.
Entry/exit mode is selected by setting the
steering column adjustment switch to the
‘AUTO’ position ( B). Exit
– If the ignition key is in position ‘0’
and the driver’s door is opened or if the
ignition key is removed, the steering
column will move to the uppermost tilt
position. The seat will move rearwards
unless it is already 1.5 inches (4 cm) or
less from its fully rearward position when
it will not move any further back.
Entry – When the key is next inserted in
the ignition switch and the door is closed,
the steering column and seat will return
to their previous positions. If, however,
the memorised driver position has been
changed (using the door memory switch
or another integrated key), the steering
wheel and seat will move to the new
position. Caution: Do not use steering wheel
mounted security devices since
movement of the steering wheel in
entry/exit mode could result in
vehicle damage (e.g. the windscreen)
or possible injury to the occupant.
Note:
1. If the adjustment switch is moved
away from ‘AUTO’ whilst the steering
column is tilted away, the steering
column will move back to its
memorised position when the key is
next inserted in the ignition and
entry/exit mode is then cancelled.
2. If the adjustment switch is moved during entry/exit operation, steering
column movement will stop.
Page 47 of 227
3 - 8 Before Driving

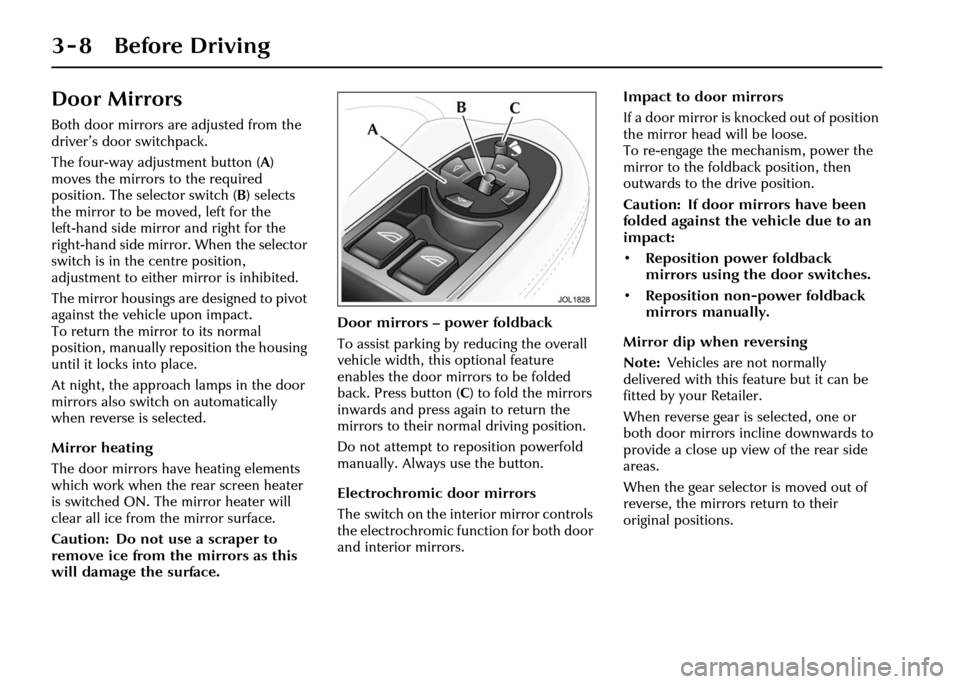

Door Mirrors
Both door mirrors are adjusted from the
driver’s door switchpack.
The four-way adjustment button (A)
moves the mirrors to the required
position. The selector switch ( B) selects
the mirror to be moved, left for the
left-hand side mirror and right for the
right-hand side mirror. When the selector
switch is in the centre position,
adjustment to either mirror is inhibited.
The mirror housings are designed to pivot
against the vehicle upon impact.
To return the mirror to its normal
position, manually re position the housing
until it locks into place.
At night, the approach lamps in the door
mirrors also switch on automatically
when reverse is selected.
Mirror heating
The door mirrors have heating elements
which work when the rear screen heater
is switched ON. The mirror heater will
clear all ice from the mirror surface.
Caution: Do not use a scraper to
remove ice from the mirrors as this
will damage the surface. Door mirrors – power foldback
To assist parking by reducing the overall
vehicle width, this optional feature
enables the door mirrors to be folded
back. Press button (
C) to fold the mirrors
inwards and press again to return the
mirrors to their normal driving position.
Do not attempt to re position powerfold
manually. Always use the button.
Electrochromic door mirrors
The switch on the interior mirror controls
the electrochromic function for both door
and interior mirrors. Impact to door mirrors
If a door mirror is knocked out of position
the mirror head will be loose.
To re-engage the mechanism, power the
mirror to the foldback position, then
outwards to the drive position.
Caution: If door mirrors have been
folded against the vehicle due to an
impact:
• Reposition power foldback
mirrors using the door switches.
• Reposition non- power foldback
mirrors manually.
Mirror dip when reversing
Note: Vehicles are not normally
delivered with this feature but it can be
fitted by your Retailer.
When reverse gear is selected, one or
both door mirrors incline downwards to
provide a close up view of the rear side
areas.
When the gear selector is moved out of
reverse, the mirrors return to their
original positions.
Page 48 of 227
Before Driving 3 - 9

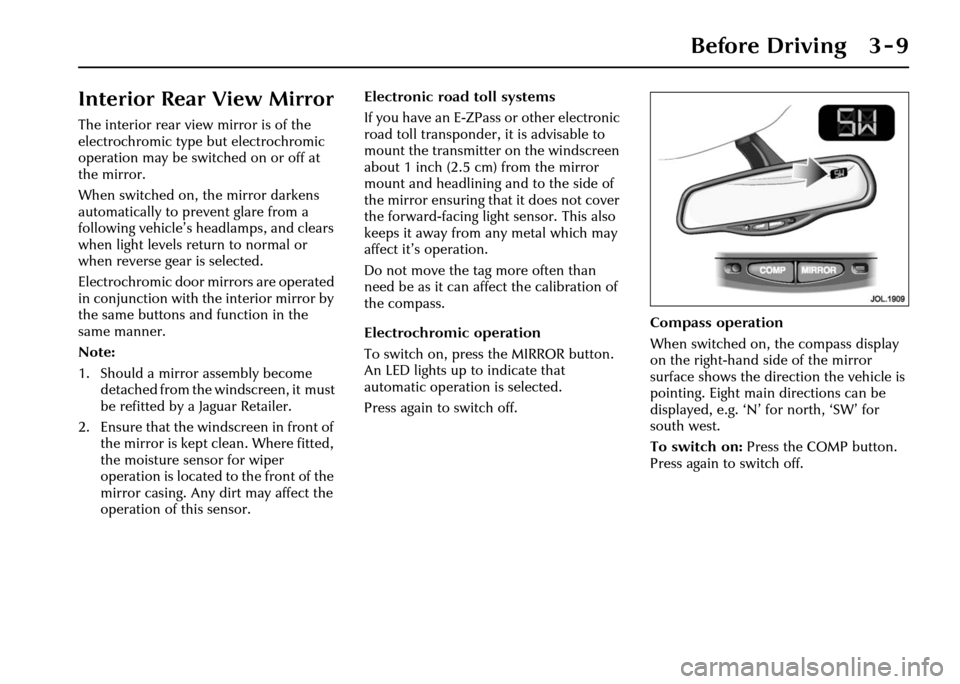

Interior Rear View Mirror
The interior rear view mirror is of the
electrochromic type but electrochromic
operation may be switched on or off at
the mirror.
When switched on, the mirror darkens
automatically to prevent glare from a
following vehicle’s headlamps, and clears
when light levels return to normal or
when reverse gear is selected.
Electrochromic door mirrors are operated
in conjunction with the interior mirror by
the same buttons an d function in the
same manner.
Note:
1. Should a mirror assembly become detached from the windscreen, it must
be refitted by a Jaguar Retailer.
2. Ensure that the windscreen in front of the mirror is kept clean. Where fitted,
the moisture sensor for wiper
operation is located to the front of the
mirror casing. Any dirt may affect the
operation of this sensor. Electronic road toll systems
If you have an E-ZPass or other electronic
road toll transponder, it is advisable to
mount the transmitter
on the windscreen
about 1 inch (2.5 cm) from the mirror
mount and headlining and to the side of
the mirror ensuring that it does not cover
the forward-facing light sensor. This also
keeps it away from any metal which may
affect it’s operation.
Do not move the tag more often than
need be as it can affect the calibration of
the compass.
Electrochromic operation
To switch on, press the MIRROR button.
An LED lights up to indicate that
automatic operation is selected.
Press again to switch off. Compass operation
When switched on, the compass display
on the right-hand side of the mirror
surface shows the direction the vehicle is
pointing. Eight main directions can be
displayed, e.g. ‘N’ for north, ‘SW’ for
south west.
To switch on:
Press the COMP button.
Press again to switch off.
Page 49 of 227
3 - 10 Before Driving
‘C’ displayed: If ‘C’ is displayed in the compass window,
the compass must be calibrated. Drive the vehicle in a circle at
less than 5 mph (8 km/h) until the display shows a direction.
The compass will be calibrated once it has tracked a complete
circle.
Incorrect direction displayed: The compass responds to
magnetic north but displays direct ions relative to true north.
The difference between magnetic north and true north varies
around the world and is separated into numbered zones as
shown on the map. The correct zone number must be entered
into the compass to show a heading relative to true north.
If the compass displays the wrong direction, it may be because
the wrong zone number has been entered or the vehicle has
moved to a different zone:
1. With the display turned on , press the COMP button for
3 seconds until the zone selection number is displayed on the
mirror compass.
2. If the incorrect zone number is displayed, repeatedly push the COMP button until the correct zone number is displayed.
3. The mirror compass will retu rn to normal compass mode
within 10 seconds of no button activity.
All display segments illuminated: If the vehicle is in the
vicinity of strong magnetic fields, e.g. electricity power lines,
the compass may show an erroneous display with all display
segments illuminated. To correct, drive the vehicle away from
the problem area and reset th e compass by switching the
ignition off and then on.
Page 50 of 227
Before Driving 3 - 11
Occupant Protection
Seat Belts
The use of front and rear seat belts is
mandatory in most countries. Using seat
belts saves lives. They should be worn by
all occupants whenever the vehicle is in
use, for maximum protection.
Lap/shoulder inertia reel seat belts are
provided for both front occupants and
three rear seat positions.
The inertia operating mechanism of the
seat belts allows the wearers to move
their upper bodies to reach various
controls. The seat belts lock automatically
with accelerated body movement or in
the event of emergency braking.
The seat belt assemblies incorporate
additional safety devices. All have belt
pretensioners and the front belts also
have force limiters. These devices provide
increased protection in the event of a
severe frontal impact.
The pretensioners operate with the air
bags as part of the Advanced Restraints
Technology System (see page 3 - 14). All passenger seat belt mechanisms
incorporate an automatic locking device
to allow child seats to be secured safely.
Forchild safety seepage3-23.
Comfort belts are fitted to both individual
electrically operated rear seats. They are
also fitted to the outer seats only on the
electrically operated rear bench seat.
These belts incorporate a twin tension
facility. When the belt is buckled around
the occupant, a reduced tension is
applied to provide a more comfortable
fitting. When the belt is unfastened,
a higher tension is applied to allow it to
retract correctly.
Beltminder
The Beltminder feature is a supplemental
warning to the seat belt warning function
(see page 4 - 6). This feature provides
additional reminders to the driver that
the driver’s and/or front passenger’s seat
belt is unbuckled by intermittently
sounding a chime and illuminating the
seat belt warning lamp in the instrument
cluster.
Note:
Not all countries have the warning
chime. Front belt height adjustment
To adjust the front seat belt heights, press
the locking button and slide the
anchorage so that the seat belt webbing
passes over the shoulder without pulling
against the neck. Release the button and
check that the anchorage point is locked.
Always check the anchorage point after
the seat has been adjusted to ensure that
the belt is correctly positioned.
