Page 9 of 227
Owner Information 1 - 5
If you believe that your vehicle has a
defect which could cause a crash or could
cause injury or death, you should inform
the National Highway Traffic Safety
Administration (NHTSA) (USA only) in
addition to notifying Jaguar Cars.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a group
of vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your Retailer,
or Jaguar Cars.
To contact NHTSA, you may either call
the Auto Safety Hotline toll-free at
1–800–424–9393 (or 366–0123 in
Washington, D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington, D.C. 20590.
To contact Jaguar Cars call 1–800 4
Jaguar.
You can also obtain other information
about motor safety from the Hotline.Vehicle Identification

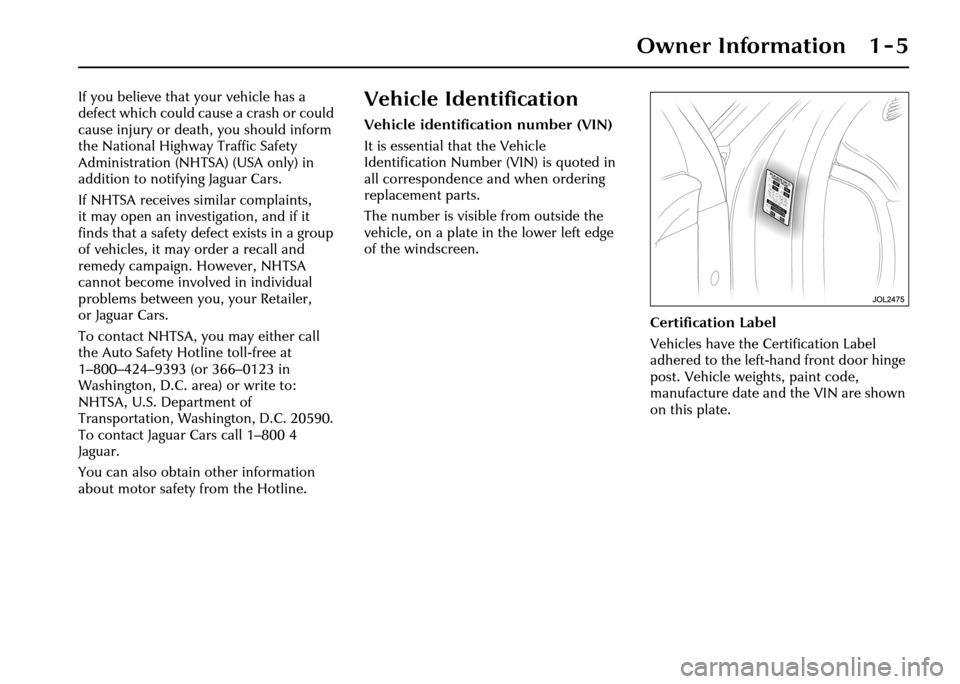

Vehicle identification number (VIN)
It is essential that the Vehicle
Identification Number (VIN) is quoted in
all correspondence an d when ordering
replacement parts.
The number is visible from outside the
vehicle, on a plate in the lower left edge
of the windscreen.
Certification Label
Vehicles have the Certification Label
adhered to the left-hand front door hinge
post. Vehicle weights, paint code,
manufacture date and the VIN are shown
on this plate.
Page 12 of 227
1 - 8 Owner Information
Regular Servicing
Each vehicle is given a full ‘Pre-Delivery
Inspection’ to ensure that all systems
function correctly and that the vehicle
meets its specification.
Owners are responsible for the regular
maintenance and servicing of the vehicle.
Jaguar Retailers will be pleased to arrange
periodic servicing and can provide you
with details of tasks carried out at each
service interval.
Failure to implement maintenance at the
recommended interval s could result in
deterioration of vehicle performance and
possible infringement of regulations.
Regular routine maintenance not only
helps to prevent unnecessary
‘breakdowns’ and inconvenience,
but enhances the ‘trade in’ or resale
value of the vehicle.
Failure to perform regular maintenance at
the correct interval may void the factory
warranty.
USA and Canada
Jaguar Retailers will arrange for
appointments on a mileage/kilometre or
time interval basis to ensure that all
routine and corrective maintenance work
is undertaken and recorded in the
‘Passport to Service’ Booklet. This booklet
not only contains a record of vital
information, but also information about
warranties, Jaguar Cars, Jaguar Car Clubs,
Tyre Manufacturers and change of
ownership or address vouchers.
Mexico
Jaguar Retailers will arrange for
appointments on a mileage/distance or
time interval basis to ensure that all
routine and corrective maintenance work
is undertaken and recorded in the Service
Record and Warranty Book. This booklet
not only contains a record of vital
information, but also information about
warranty and a change of ownership
card.
Jaguar Diagnostic System
Many of the vehicle systems are
controlled by complex electronic devices.
Specialist equipment is required to trace
and rectify faults in the systems and
ensure that only faulty components are
repaired or renewed.
Caution: Severe damage to the
electrical system and electronic
components can occur if any attempt
is made to diagnose faults in the
electrical system using conventional
diagnostic equipment (for example;
the use of test lamps or low
impedance voltmeters ). The fitting of
any electrical accessory should only
be entrusted to a Jaguar Retailer.
Page 14 of 227
1 - 10 Owner Information
Floor mat retention
Ensure that the driver floor mat is
correctly positioned and secured under
the tongue on the retention post (A),
so that it does not interfere with the
operation of the accelerator pedal or the
brake pedal.
The positioning of the mat should be
especially checked when refitted after
removal for cleaning or servicing.
Page 20 of 227
Security and Locks 2 - 5
Note:
1. The key transmitter may not operate correctly in areas which are subject to
interference from other radio
equipment operating on the same
frequency. Interference may emanate
from sources such as amateur radio,
telecommunications devices, medical
equipment, and other remote controls
or alarms. Where such interference is
experienced operate the key
transmitter as close as possible to the
vehicle, or use the key in the drivers
door lock.
2. All buttons on the key transmitter will not operate if a key is in the ignition
switch, however, if the doors, hood or
luggage compartment are open, only
button ( D) will not operate.
Each integrated key will operate all the
locks on your vehicle.
Additional integrated key transmitters
can be ordered from your Jaguar Retailer.
See Additional keys on page 2 - 7. Care of key transmitters
The key transmitters must be treated with
care. Do not expose to extremes of heat,
dust, humidity or fluids. Do not leave the
transmitter exposed to direct sunlight.
The battery is the only serviceable part.
Caution: Should a key transmitter be
lost, a new one can be obtained and
programmed to the vehicle by a
Jaguar Retailer, who will ask for proof
of vehicle ownership. It is advisable
to notify a Retailer as soon as a key
transmitter is lost or stolen and have
the remaining key transmitter(s)
reprogrammed. This will then
prevent the lost or stolen key
transmitter from being used to
disarm and unlock the vehicle.
Note:
Retailers keep a log of all enquiries
for replacement keys and notify
Jaguar Cars Ltd. of any such requests.
Radio Frequency
The radio frequency remote system
operates on a frequency subject to USA
Federal Communications Commission
(FCC) rules.
The device complies with Part 15 of the
FCC rules and RSS–210 of the Industry
Canada. Operation is subject to the two following
conditions:
1. The device may not cause harmful
interference.
2. This device mu st accept any
interference received, including
interference that may cause undesired
operation.
The key transmitter radio frequency
approval numbers for the USA and
Canada are as shown below:
USA – NHVWB1U241.
Canada – 3495 103 2304.
Note: The manufacturer is not
responsible for any radio interference or
TV interference caused by unauthorised
modifications to this equipment. Changes
or modifications not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
the equipment.
Caution: The key-ring transmitter
may suffer interference from other
legal users of this radio frequency
band, such as radio amateurs,
medical equipment, remote controls
or alarm systems. To lock or unlock
the vehicle either use a key or
operate the transmitter as close to the
security antenna as possible.
Page 38 of 227
Security and Locks 2 - 23
Entry gate programming
The technology of some entry gates
requires you to press and re-press (cycle)
the hand-held transmitter every
2 seconds during programming.
Continue to press and hold the desired
overhead console button while you cycle
your hand-held transmitter until the
indicator light flashes rapidly.
Information and Assistance
For information on the range of available
compatible products or accessories,
or for assistance, contact your Jaguar
Retailer.
You can also contact the supplier’s
helpline on 1–800–355–3515 or the
website address for Homelink™ is
www.homelink.jci.com. Note:
Keep the original transmitter for
future use or programming procedures if,
for example, you purchase a new vehicle’
Caution: It is recommended that
when you sell or dispose of the
vehicle, the programmed transceiver
buttons be erased for security
purposes.
!WARNING:
The manufacturer is not responsible
for any radio or TV interference
caused by unauthorised
modifications to this equipment.
Such modifications could void the
user’s authority to operate the
equipment.
Page 45 of 227
3 - 6 Before Driving
Pedal Adjustment
!WARNING:
Do not adjust the pedals whilst driving.
This facility enables the pedals to be moved towards or away
from the driver’s seat, providing extra adjustment for the driving
position. All pedals move together (no individual pedal
adjustment) and are electrically controlled from the combined
steering column/pedal adjust switch on the left side of the
steering column housing. The adjustment can be made with or
without the ignition key inserted.
To adjust the position of the pedals, turn the switch
to ‘PEDALS’, then push it forwards or rearwards to cause a
corresponding movement of the pedal assembly.
Three pedal positions may be stored and recalled by the driver
position memory system. See Memory Setting on page 3 - 31.
It will not be possible to adjust the pedals if cruise control has
been set.
Page 49 of 227
3 - 10 Before Driving
‘C’ displayed: If ‘C’ is displayed in the compass window,
the compass must be calibrated. Drive the vehicle in a circle at
less than 5 mph (8 km/h) until the display shows a direction.
The compass will be calibrated once it has tracked a complete
circle.
Incorrect direction displayed: The compass responds to
magnetic north but displays direct ions relative to true north.
The difference between magnetic north and true north varies
around the world and is separated into numbered zones as
shown on the map. The correct zone number must be entered
into the compass to show a heading relative to true north.
If the compass displays the wrong direction, it may be because
the wrong zone number has been entered or the vehicle has
moved to a different zone:
1. With the display turned on , press the COMP button for
3 seconds until the zone selection number is displayed on the
mirror compass.
2. If the incorrect zone number is displayed, repeatedly push the COMP button until the correct zone number is displayed.
3. The mirror compass will retu rn to normal compass mode
within 10 seconds of no button activity.
All display segments illuminated: If the vehicle is in the
vicinity of strong magnetic fields, e.g. electricity power lines,
the compass may show an erroneous display with all display
segments illuminated. To correct, drive the vehicle away from
the problem area and reset th e compass by switching the
ignition off and then on.
Page 62 of 227
Before Driving 3 - 23

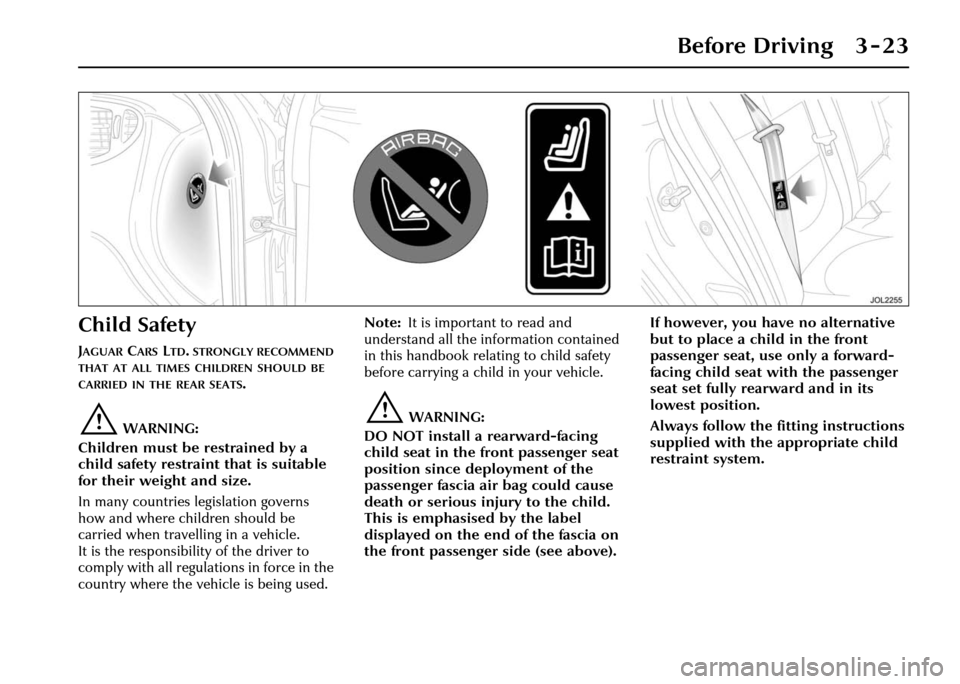

Child Safety
JAGUARCARSLTD. STRONGLY RECOMMEND
THAT AT ALL TIMES CHILDREN SHOULD BE
CARRIED IN THE REAR SEATS.
!WARNING:
Children must be restrained by a
child safety restraint that is suitable
for their weight and size.
In many countries legislation governs
how and where children should be
carried when travelling in a vehicle.
It is the responsibility of the driver to
comply with all regulations in force in the
country where the vehicle is being used. Note:
It is important to read and
understand all the information contained
in this handbook rela ting to child safety
before carrying a child in your vehicle.
!WARNING:
DO NOT install a rearward-facing
child seat in the fr ont passenger seat
position since deployment of the
passenger fascia air bag could cause
death or serious injury to the child.
This is emphasised by the label
displayed on the end of the fascia on
the front passenger side (see above). If however, you hav
e no alternative
but to place a child in the front
passenger seat, use only a forward-
facing child seat with the passenger
seat set fully rearward and in its
lowest position.
Always follow the fitting instructions
supplied with the appropriate child
restraint system.
Page 97 of 227
4-26 On the Road
Direction Indicators
The direction indicators, the left column
stalk, operate when the ignition is in
position ‘II’. Move the stalk up for
indicating a right turn or move it down to
indicate a left turn.
Two positions are provided. The first
position, partly moving the stalk up or
down, causes the indicator to flash while
it is held in this position. On releasing the
stalk the indicators stop flashing.
The second position is a full movement of
the stalk up or down, which can then be
released. The indicators will remain
flashing and will cancel when the turn is
completed. An audible ticking an
d a flashing green
arrow on the instrument cluster indicates
that the selected direction indicator is
operating.
Bulb failure
The direction indicators (including those
on a trailer, if attached) and side
repeaters are monitored for bulb failure.
If a bulb fails when it is on, a message is
shown in the message centre. At the same
time, the corresponding side green
warning light will flash at twice the
normal rate. The audible ticking will
sound at twice the normal rate.Door Guard/Puddle Lights
Door guard lights are fitted to each door
to give warning of an open door to
passing vehicles.
Puddle lights illuminate the ‘step out’
area at night.
Each light comes on automatically when
the door is opened. If the door is left
open the lights remain on for 5 minutes
and then switch off.
Approach Lights
Approach lights are fitted in the door
mirrors to provide illumination for the
floor area around the front doors.
The approach lights come on when:
• The vehicle is unlocked using a key, key transmitter or the central locking
switch.
• Using the headlight convenience button on the key transmitter.
• Reverse gear is selected.
The approach lights will not illuminate if
the autolamp sensor determines that the
ambient light is sufficiently bright.
Luggage Compartment
Lighting
The luggage compar tment will be
illuminated when the lid is opened.
Glove Compartment
The glove compartment will be
illuminated when the lid is opened.
Page 100 of 227
On the Road 4 - 29
Window Operation
The front and rear door windows are
electrically operated by switches located
on each door.
Switches on the driver’s door control all
door windows.
Passengers are provided with a switch to
control their door window only.
These switches will only operate the
windows when the ignition switch is in
position ‘I’ or ‘II’.
Button (A) immobilises operation of the
rear windows (and front seat adjustment,
when fitted) by rear seat occupants.
!WARNING:
1. When raising windows ensure all occupants are clear.
2. When leaving the vehicle take the ignition keys to prevent misuse of
the window switches by
remaining occupants, especially
children.
Raise/lower
Each switch has two positions to raise the
window and two positions to lower the
window.
To lower a window, press the switch
downwards to the first position until the
desired window position is reached, then
release.
To raise a window, pull the switch
upwards to the first position until the
desired position is re ached, then release.
If the switches are held for longer than
6 seconds, for example, when attempting
to overcome frozen or jammed windows,
the window drive will be switched off for
a few seconds to protect the window
drive motors. The windows can be operated with the
key removed from the ignition switch
within 10 minutes of the vehicle being
stopped provided the driver’s or front
passenger’s door has not been opened.
If a rear door is opened the windows can
still be operated within the 10 minute
period.
One-touch operation
Each window has a ‘one-touch’ facility
enabling the occupant to fully open or
close the window in one quick
movement.
Press the switch briefly to the second
position to fully open the window in one
movement. Pull the swit
ch briefly to the
second position to fully close the window
in one movement. Window travel can be
stopped at any time by pressing the
switch again.
