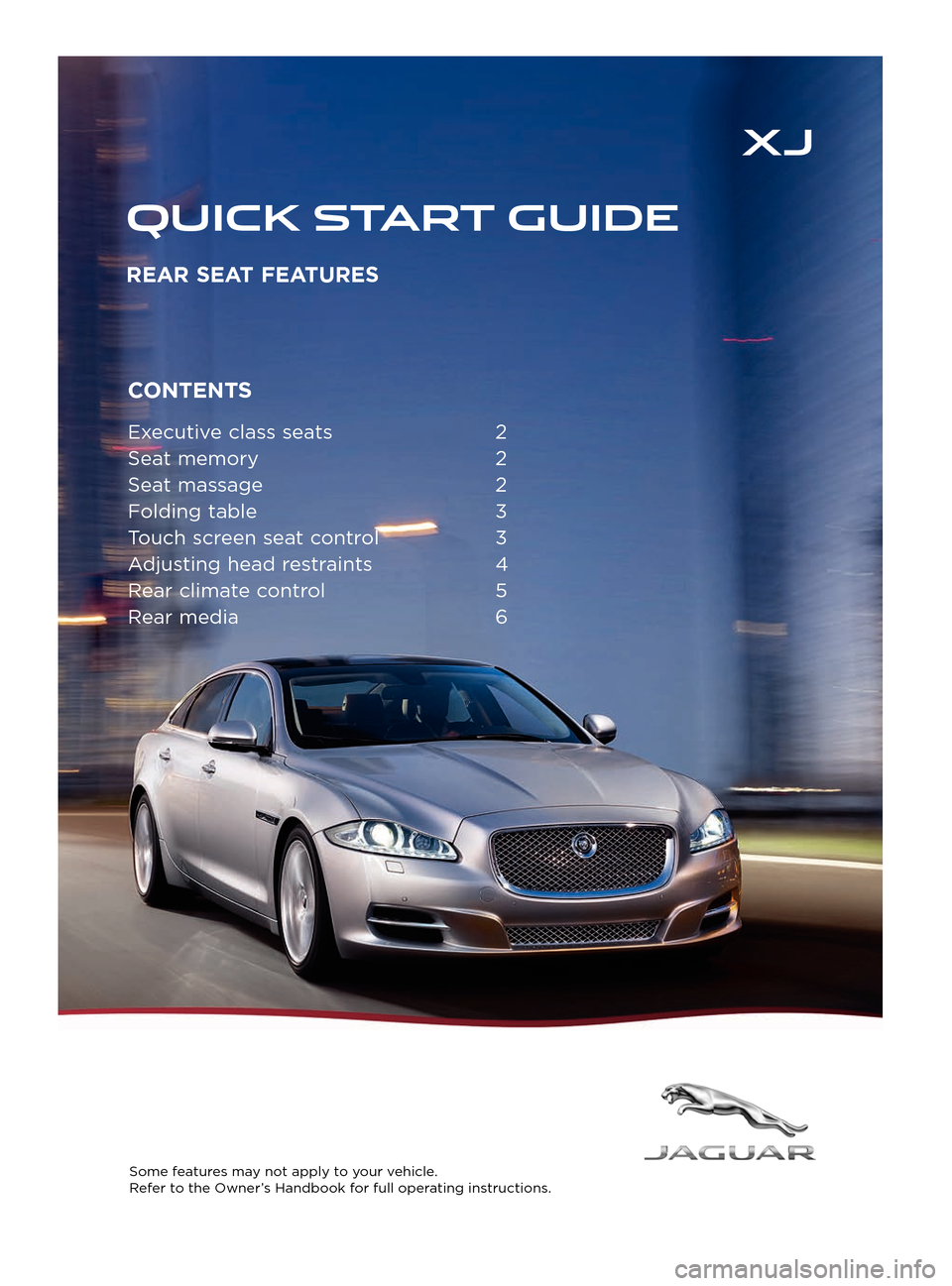

JAGUAR XJ 2015 X351 / 4.G Rear Seat Features

CONTENTS
Executive class seats 2
Sea t memory
2
Sea

t massage
2
F

olding table
3
T

ouch screen seat control
3
A

djusting head restraints
4
R

ear climate control
5
R

ear media
6
Some features may not apply to your vehicle.
Refer to the Owner

REAR SEAT CONTROLS
2

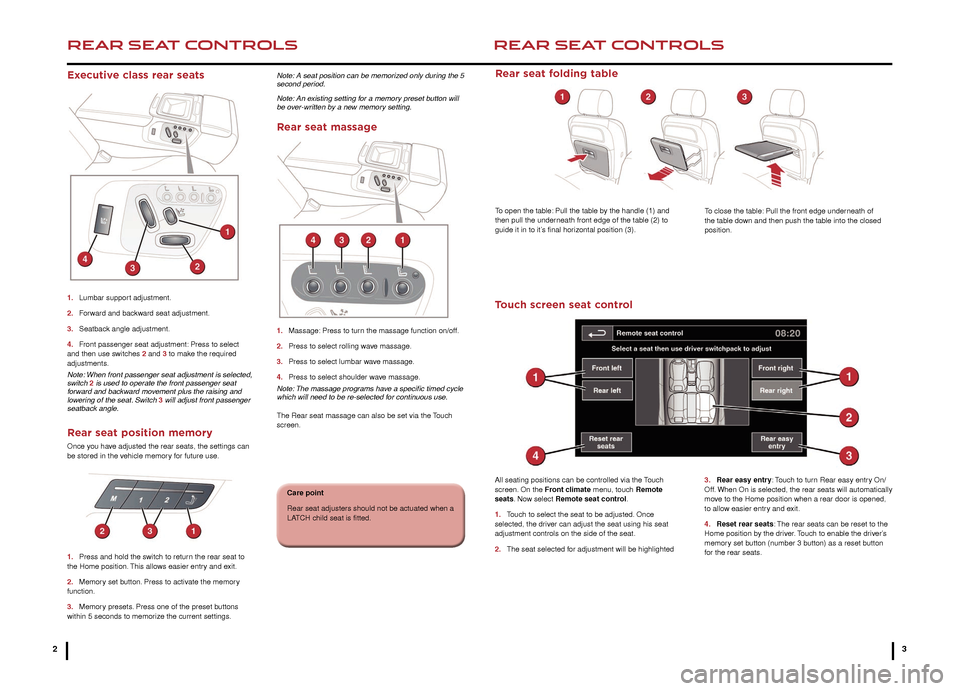

Executive class rear seats
1. Lumbar support adjustment.
2.
F
orward and backward seat adjustment.
3.

Seatbac
k angle adjustment.
4.

F
ront passenger seat adjustment: Press to select
and then use switches 2 and 3 to make the required
adjustments.
Note: When front passenger seat adjustment is selected,
switch 2 is used to operate the front passenger seat
forward and backward movement plus the raising and
lowering of the seat. Switch 3 will adjust front passenger
seatback angle.
Rear seat position memory
Once you have adjusted the rear seats, the settings can
be stored in the vehicle memory for future use.
1.

Press and hold the s
witch to return the rear seat to
the Home position. This allows easier entry and exit.
2.

Memor
y set button. Press to activate the memory
function.
3.

Memor
y presets. Press one of the preset buttons
within 5 seconds to memorize the current settings. Note: A seat position can be memorized only during the 5
second period.
Note: An existing setting for a memory preset button will
be over-written by a new memory setting.
Rear seat massage
1. Massage:
Press to turn the massage function on/off.
2.
Press to select rolling w
ave massage.
3.

Press to select lumbar w
ave massage.
4.

Press to select shoulder w
ave massage.
Note: The massage programs have a specific timed cycle
which will need to be re-selected for continuous use.
The Rear seat massage can also be set via the Touch
screen.
REAR SEAT CONTROLS
3
Rear seat folding table
To open the table: Pull the table by the handle (1) and
then pull the underneath front edge of the table (2) to
guide it in to it’s final horizontal position (3).To close the table: Pull the front edge underneath of
the table down and then push the table into the closed
position.
Touch screen seat control
All seating positions can be controlled via the Touch
screen. On the Front climate menu, touch Remote
seats. Now select Remote seat control.
1.

T
ouch to select the seat to be adjusted. Once
selected, the driver can adjust the seat using his seat
adjustment controls on the side of the seat.
2.

The seat selected f
or adjustment will be highlighted 3.
Rear easy entr y: Touch to turn Rear easy entry On/
Off. When On is selected, the rear seats will automatically
move to the Home position when a rear door is opened,
to allow easier entry and exit.
4.

Reset rear seats
: The rear seats can be reset to the
Home position by the driver. Touch to enable the driver’s
memory set button (number 3 button) as a reset button
for the rear seats.
Care point
Rear seat adjusters should not be actuated when a
LATCH child seat is fitted.

REAR HEAD RESTRAINTSREAR CLIMATE CONTROL
4 5
1. Temperature control: Rotate to adjust temperature
59°F (16°C) - 83°F (28°C). The temperature is displayed
on the Touch screen (rear climate menu).
2.

A
UTO control: Press to switch automatic operation on.
3.

Blo
wer speed: Rotate to adjust blower speed. With
blower speed at minimum, rotate the control counter-
clockwise to switch the Rear climate system off. Press
AUTO to turn on again.
4.

Air distr
ibution to face: Press to switch on/off. The
switch indicator illuminates when on.
5.

Air distr
ibution to feet: Press to switch on/off. The
switch indicator illuminates when on.
6.

Seat temper
ature control: Press the red arrow to
increase and the blue arrow to decrease the temperature.
The LEDs illuminate to indicate the current setting.
7.

Climatic seat z
one control: Press to select full seat or
seatback only ventilation. The switch indicators illuminate
accordingly.
8.

Air distr
ibution to the feet: Touch to turn on/off. 9.
Air distr ibution to the face: Touch to turn on/off.
10.
T
emperature adjustment: Select the red arrow to
increase and the blue arrow to decrease the temperature.
The temperature setting is displayed above the arrows.
11.
A

uto: Select to switch automatic operation on/off.
12.
Rear seats:

Select to adjust the rear seat temperature
and ventilation settings.
13.
Rear panel loc

k: Select to disable the Rear climate
control switches, to prevent the rear passengers from
adjusting the rear climate settings. Select again to re-
enable the controls.
In addition to the selectable controls, the Rear climate
menu displays symbols that indicate the status of heating
and ventilation functions.
Note: If the Climate control system is switched off,
pressing a rear AUTO button will switch the Climate
control system on.
Note: If the system is in Defrost mode, all rear controls
are disabled and no airflow is available to the rear
occupants.
Rear climate controls
To access the Rear climate menu, select Rear climate
from the Front climate menu.

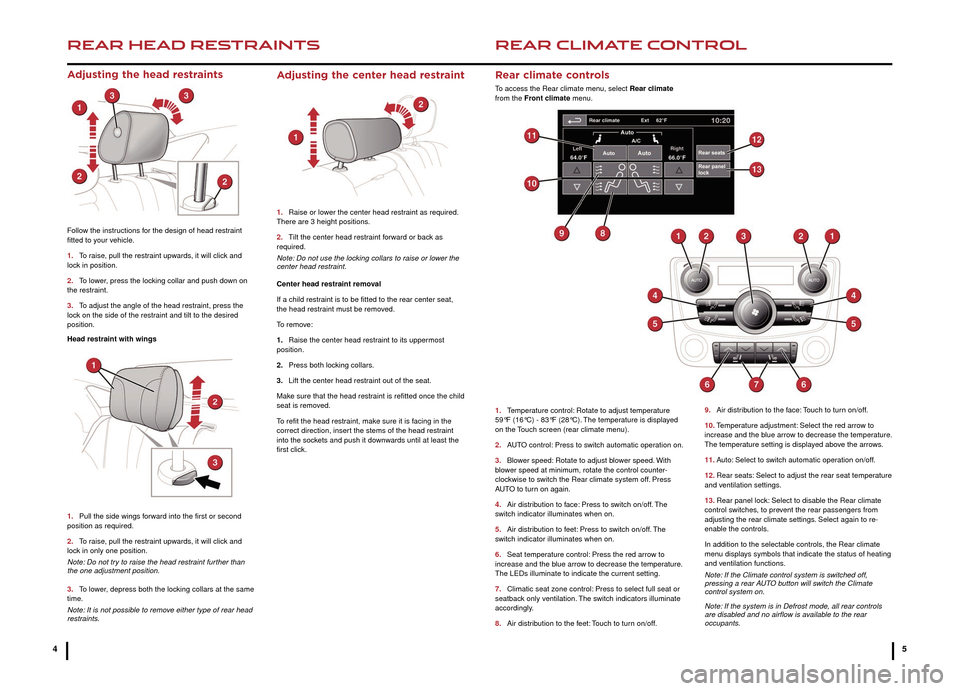

Adjusting the head restraints
Follow the instructions for the design of head restraint
fitted to your vehicle.
1.

T
o raise, pull the restraint upwards, it will click and
lock in position.
2.

T
o lower, press the locking collar and push down on
the restraint.
3.

T
o adjust the angle of the head restraint, press the
lock on the side of the restraint and tilt to the desired
position.
Head restraint with wings
1.

Pull the side wings f
orward into the first or second
position as required.
2.

T
o raise, pull the restraint upwards, it will click and
lock in only one position.
Note: Do not try to raise the head restraint further than
the one adjustment position.
3.

T
o lower, depress both the locking collars at the same
time.
Note: It is not possible to remove either type of rear head
restraints.
Adjusting the center head restraint
1. Raise or lo wer the center head restraint as required.
There are 3 height positions.
2.

Tilt the center head restr
aint forward or back as
required.
Note: Do not use the locking collars to raise or lower the
center head restraint.
Center head restraint removal
If a child restraint is to be fitted to the rear center seat,
the head restraint must be removed.
To remove:
1.

Raise the center head restr
aint to its uppermost
position.
2.

Press both loc
king collars.
3.

Lift the center head restr
aint out of the seat.
Make sure that the head restraint is refitted once the child
seat is removed.
To refit the head restraint, make sure it is facing in the
correct direction, insert the stems of the head restraint
into the sockets and push it downwards until at least the
first click.

76
REAR MEDIAREAR MEDIA
Headphone controls
1. Main power.
2.
Change audio channel.
3

.
Headphone v
olume.
When the headphones are
not being used, make sure
the power switch is turned
off to prevent battery
discharge.
1.

Press and release to tur

n the screen off.
Press and hold to turn the Rear media system off.
2.

Right screen select.
3

.

*

Video source select.
4.

Na

vigation summary.
5.

Not a

vailable.
6.

Ne

xt track/file/station.
7.
Pre
vious track/file/station.
8.
Pla
y/Pause.
9.

Repeat.


10.
Inf

ormation.
11.
Subtitles on/off

.
12.
Not a

vailable.
13.
Cabin audio v

olume on/off.
14.
Shuffle

.
15.
Cabin audio v

olume decrease/mute.
Remote control for Rear media
16. Cabin audio v olume increase.
17.
Bac
k to the previous menu.
18.
Radio band select.


19.
* A

udio source select.
20.
Left screen select.
21.
OK.

Confirm selection.
22.
D

VD MENU.
23.
** Cursor control:

Up.
24.
** Cursor control:

Right.
25.
** Cursor control:

Down.
26.
**

Cursor control: Left.

* Available sources depend on vehicle configuration.
** Multi-function keys, depending on the source selected.
Touch screen control
From the next menu, select one of the available sources,
e.g., CD. The selected media will be displayed on the
rear screen(s). Touch Source or the Back key to return to
the previous menu where soft keys can now be used for
control of the selected source.
Rear media must first be selected from the front Touch
screen Audio/Video menu.
From the Rear media menu, select a rear screen. If both
rear screens are required to display the same source,
select Sync.
Select the Source soft key.
Remote control source selection
Select the left screen (20) or the right screen (2).
Select a source button, (19) AUDIO or (3) VIDEO.
Multiple presses of either button will display available sources in
that category on the selected rear screen.
Audio source examples
Radio, SAT radio, DVD/CD, USB, Stored CDs, Bluetooth
©
Audio and AUX. Video source examples
DVD/CD, USB and AUX.
Operating note. While the Rear media menu is displayed on the front screen, the remote control is disabled. The
remote control can also be disabled via the Lock soft key.

REAR MEDIA
8Part No. JJM 18 53 34 142 © Jaguar Land Rover Limited 2013.

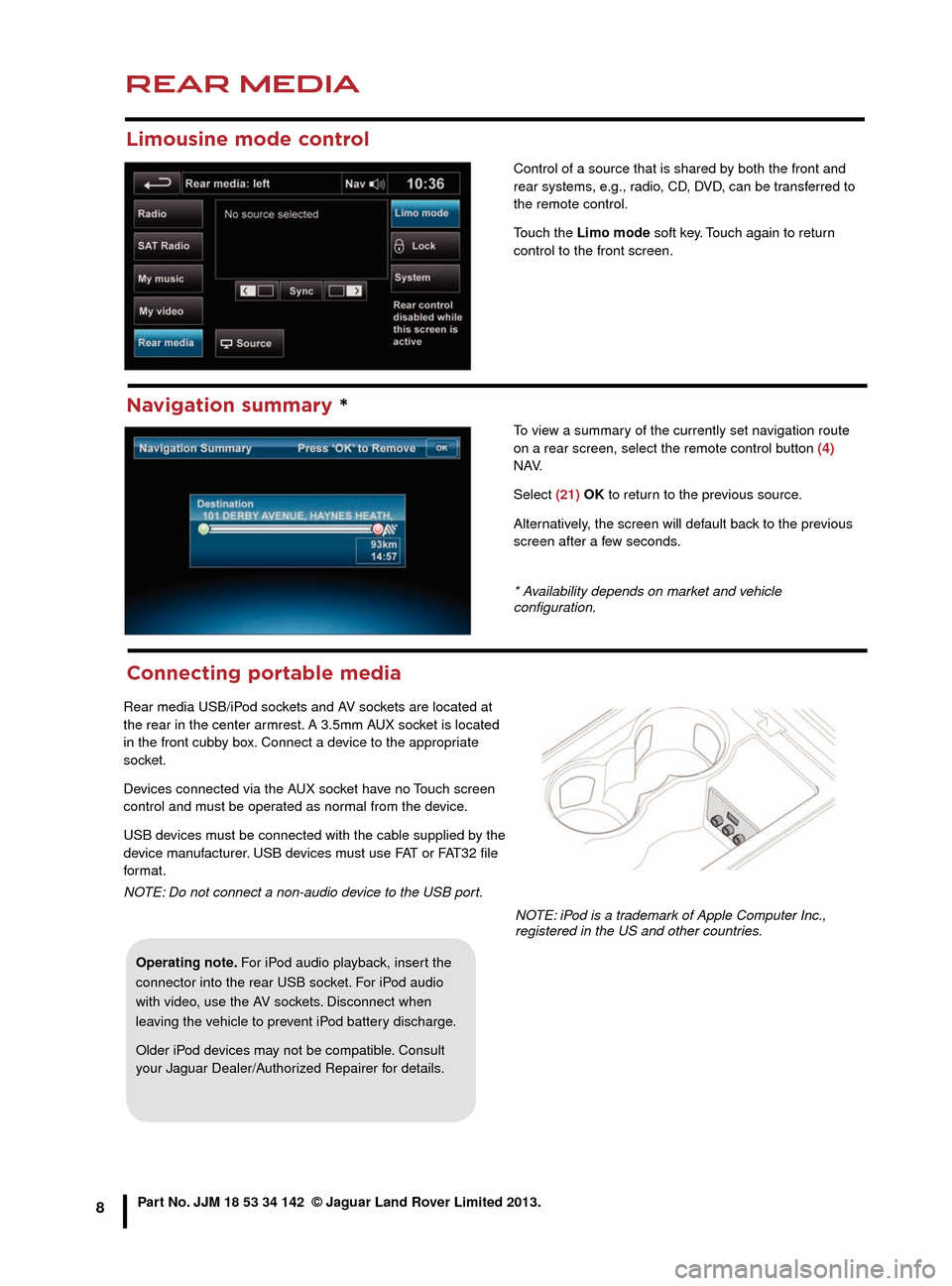

Limousine mode control
Control of a source that is shared by both the front and
rear systems, e.g., radio, CD, DVD, can be transferred to
the remote control.
Touch the Limo mode soft key. Touch again to return
control to the front screen.
Connecting portable media
Rear media USB/iPod sockets and AV sockets are located at
the rear in the center armrest. A 3.5mm AUX socket is located
in the front cubby box. Connect a device to the appropriate
socket.
Devices connected via the AUX socket have no Touch screen
control and must be operated as normal from the device.
USB devices must be connected with the cable supplied by the
device manufacturer. USB devices must use FAT or FAT32 file
format.
NOTE: Do not connect a non-audio device to the USB port.NOTE: iPod is a trademark of Apple Computer Inc.,
registered in the US and other countries.
Navigation summary *
To view a summary of the currently set navigation route
on a rear screen, select the remote control button (4)
N A V.
Select (21) OK to return to the previous source.
Alternatively, the screen will default back to the previous
screen after a few seconds.
* Availability depends on market and vehicle
configuration.
Operating note. For iPod audio playback, insert the
connector into the rear USB socket. For iPod audio
with video, use the AV sockets. Disconnect when
leaving the vehicle to prevent iPod battery discharge.
Older iPod devices may not be compatible. Consult
your Jaguar Dealer/Authorized Repairer for details.
