JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual , ,
Automatic Transmission (AJ16)

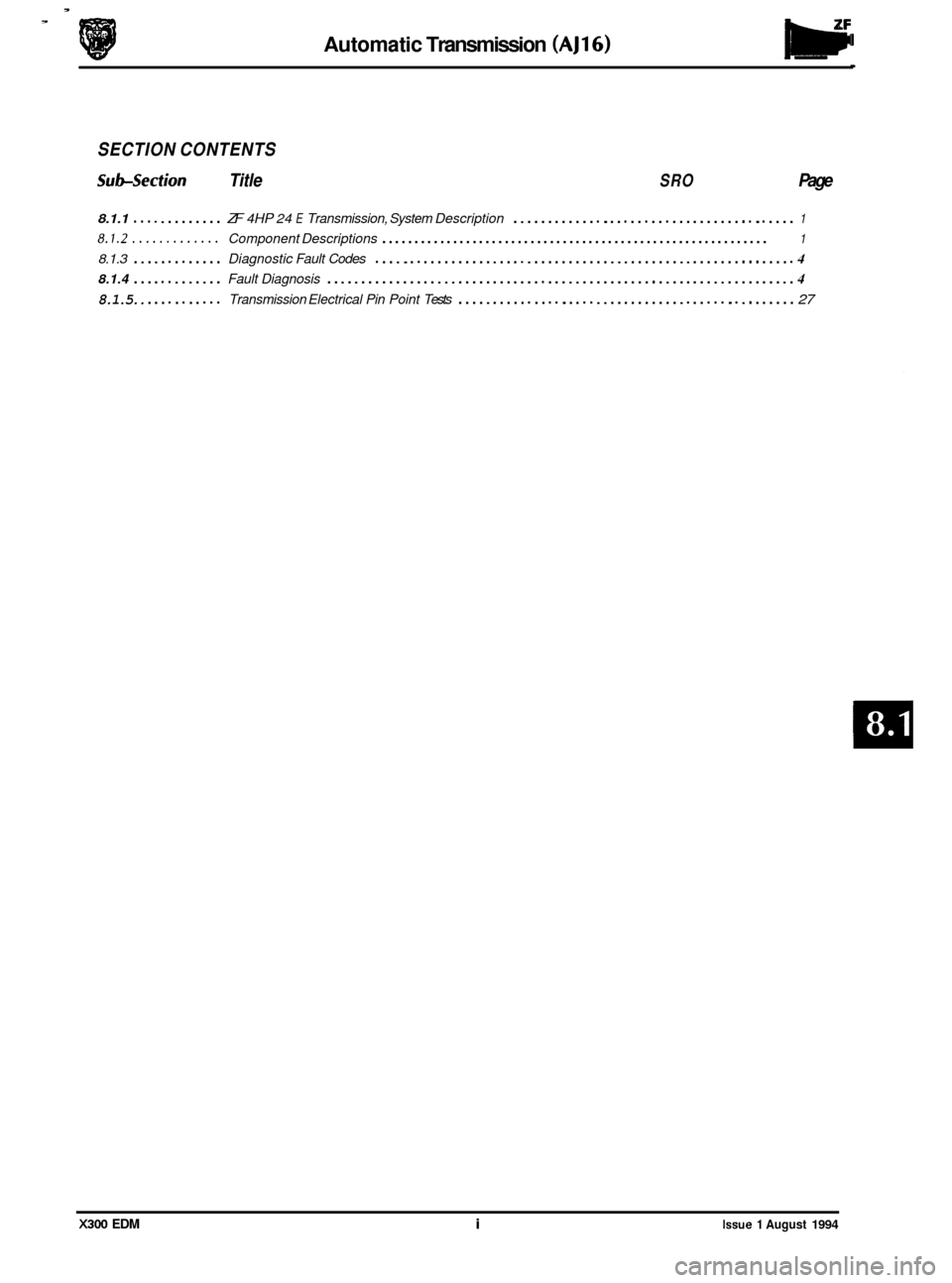

SECTION CONTENTS
Sub-section Title SRO Page
8.1.1 . . . . . . . . . . . . . ZF 4HP 24 E Transmission,  System Description . . . . . . . . . . . . . . . . . . . .

Page 4 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Automatic Transmission (AJ16) w

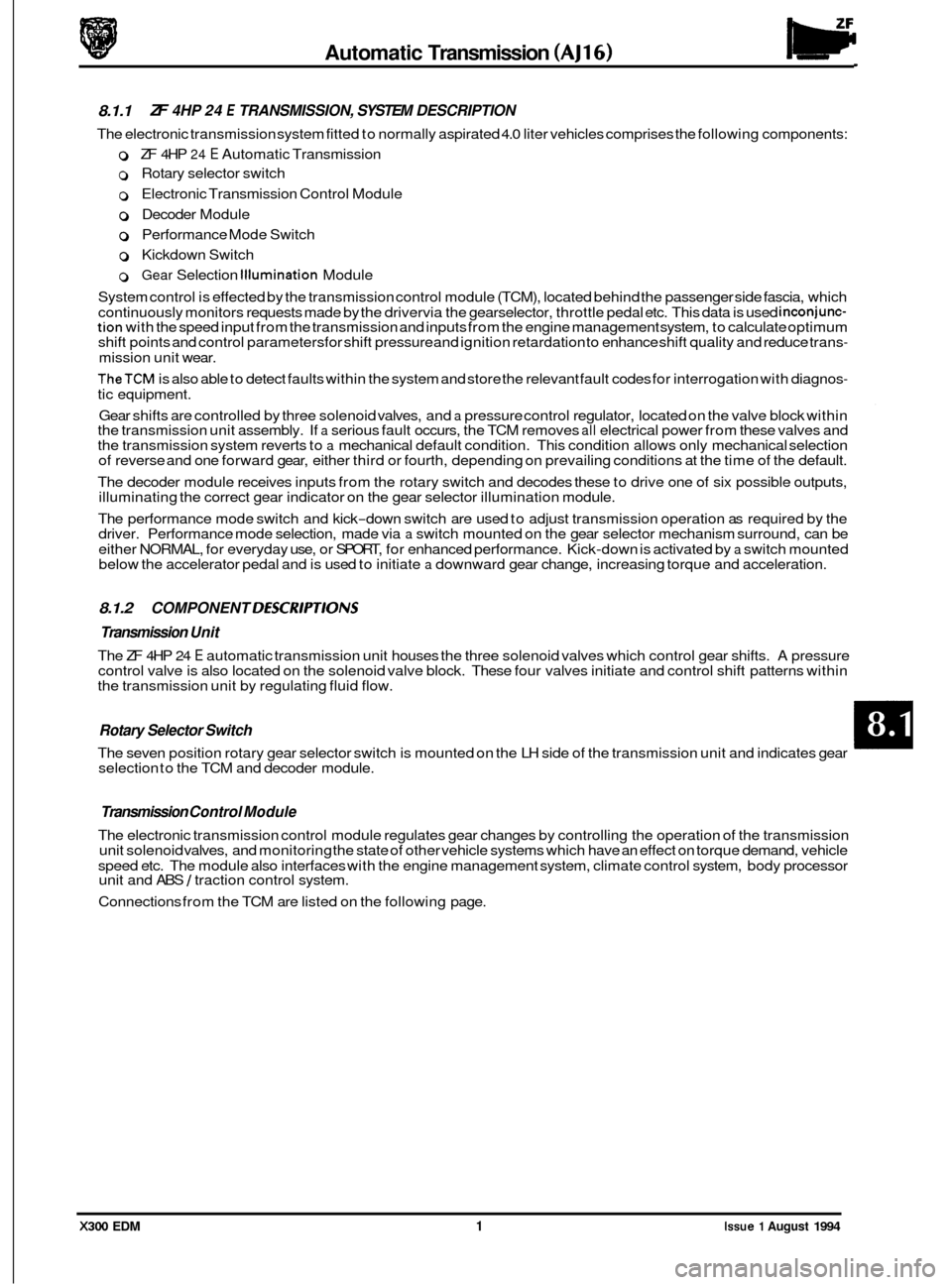

8.1.1 ZF 4HP 24 E TRANSMISSION,  SYSTEM DESCRIPTION
The electronic  transmission  system fitted to normally  aspirated  4.0 liter  vehicles comprises the  following c

Page 5 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Automatic Transmission (AJ16)
7

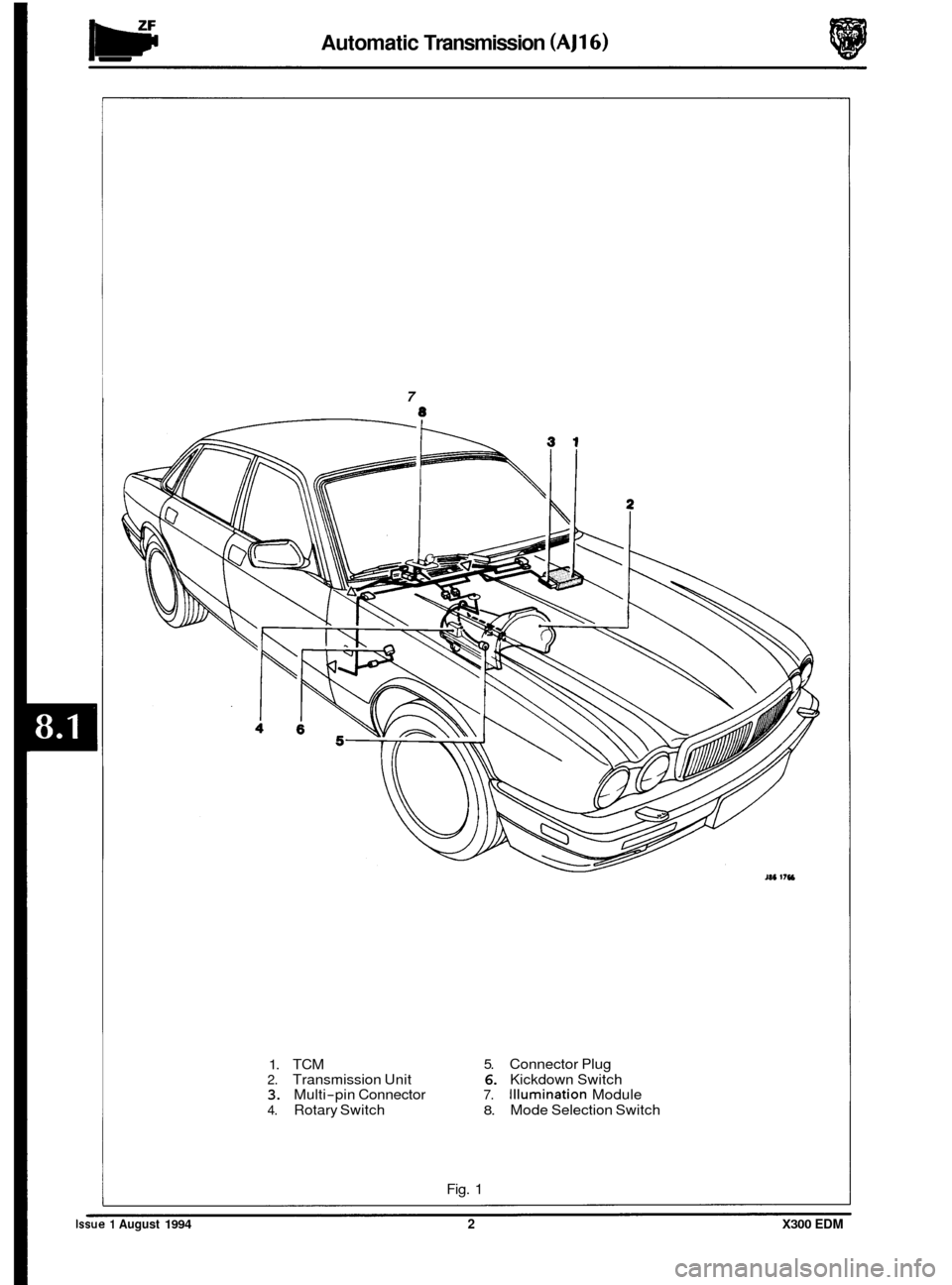

1. TCM 5. Connector Plug
2. Transmission  Unit 6. Kickdown Switch 3. Multi-pin Connector 7. Illumination Module
4. Rotary  Switch 8. Mode Selection  Switch
Fig.
1

Page 6 of 327

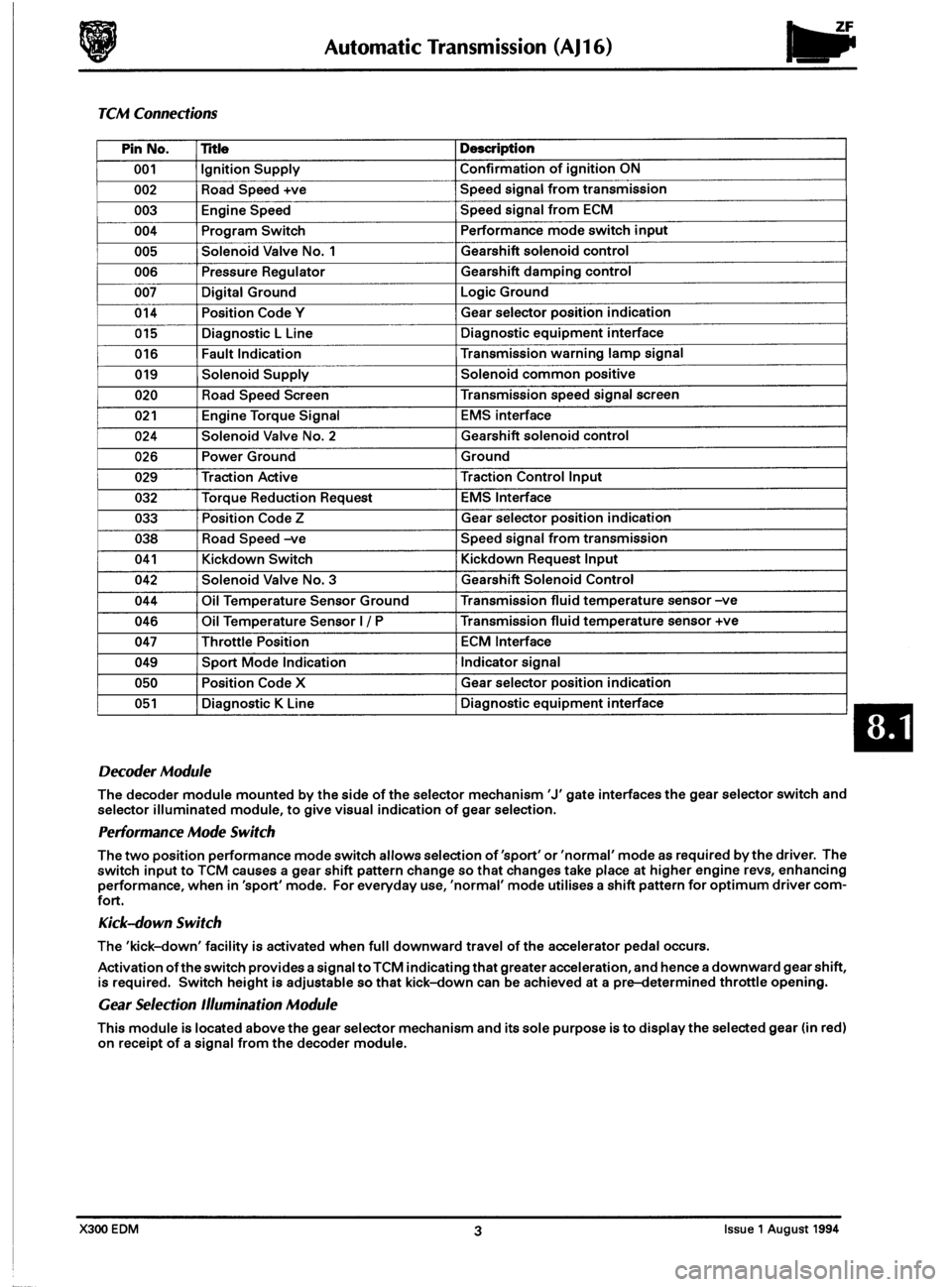

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual

Page 7 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Automatic Transmission (AJ16)
8.1.3 DIAGNOSTIC  FAULT CODES
The following  codes are stored  within the TCM  whenever a fault is  detected  on the system.  The codes can be accessed
using  Jaguar

Page 8 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Automatic Transmission (AJ16)

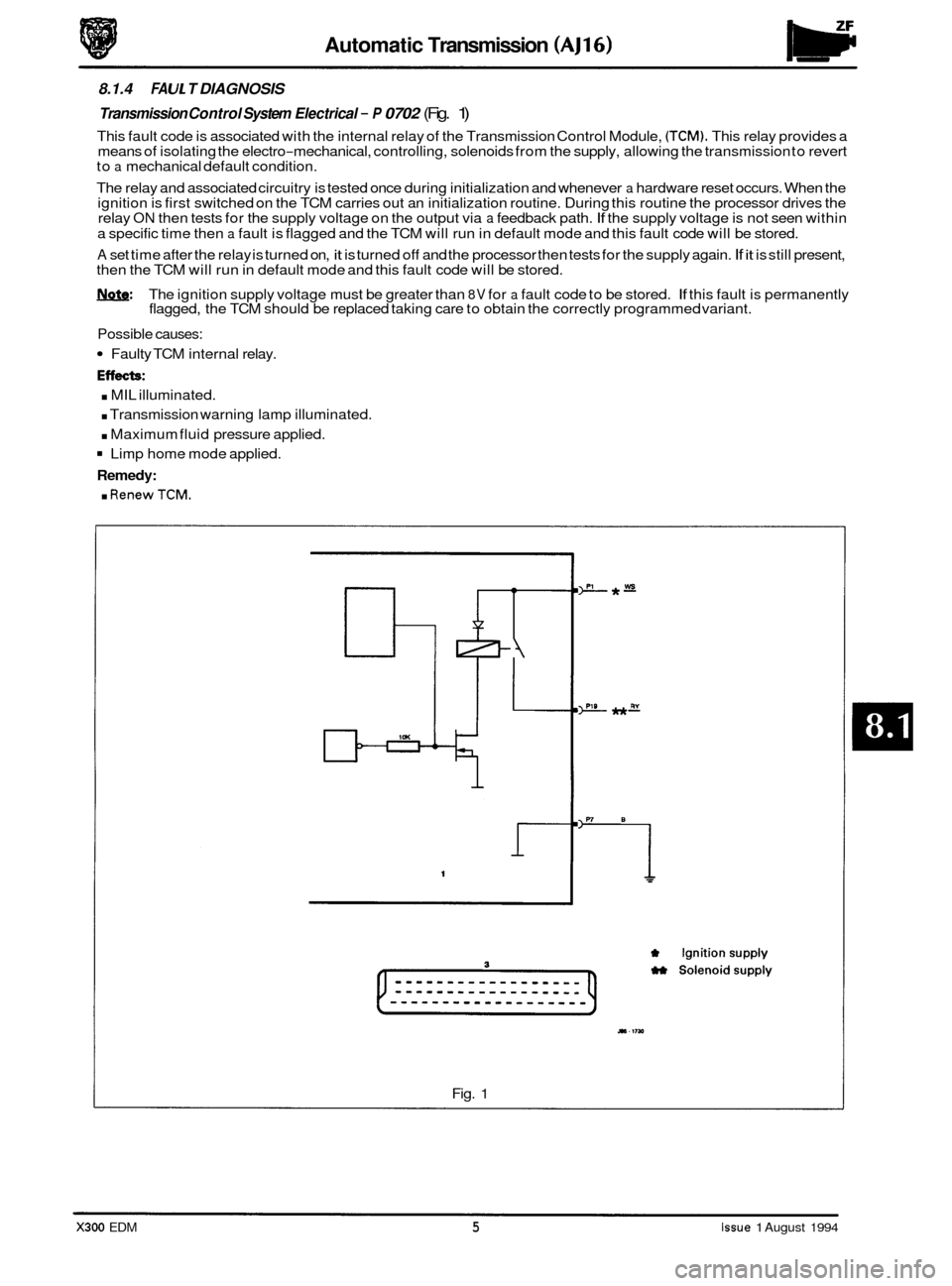

8.1.4 FA U1 T DIAGNOSIS
Transmission  Control System Electrical - P 0702 (Fig. 1)
This fault  code  is associated  with the internal relay of the  Transmission Control

Page 9 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual w Automatic Transmission (AJ16)
TRANSMISSION  RANGE SENSOR - P 0705 / P 0706
The rotary switch  is located on the  LH side  of the  transmission.  The harness incorporates  the transmission  wiring

Page 10 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Automatic Transmission (AJl6)
t12v
X
Y
z
4 1
J88 - 1731

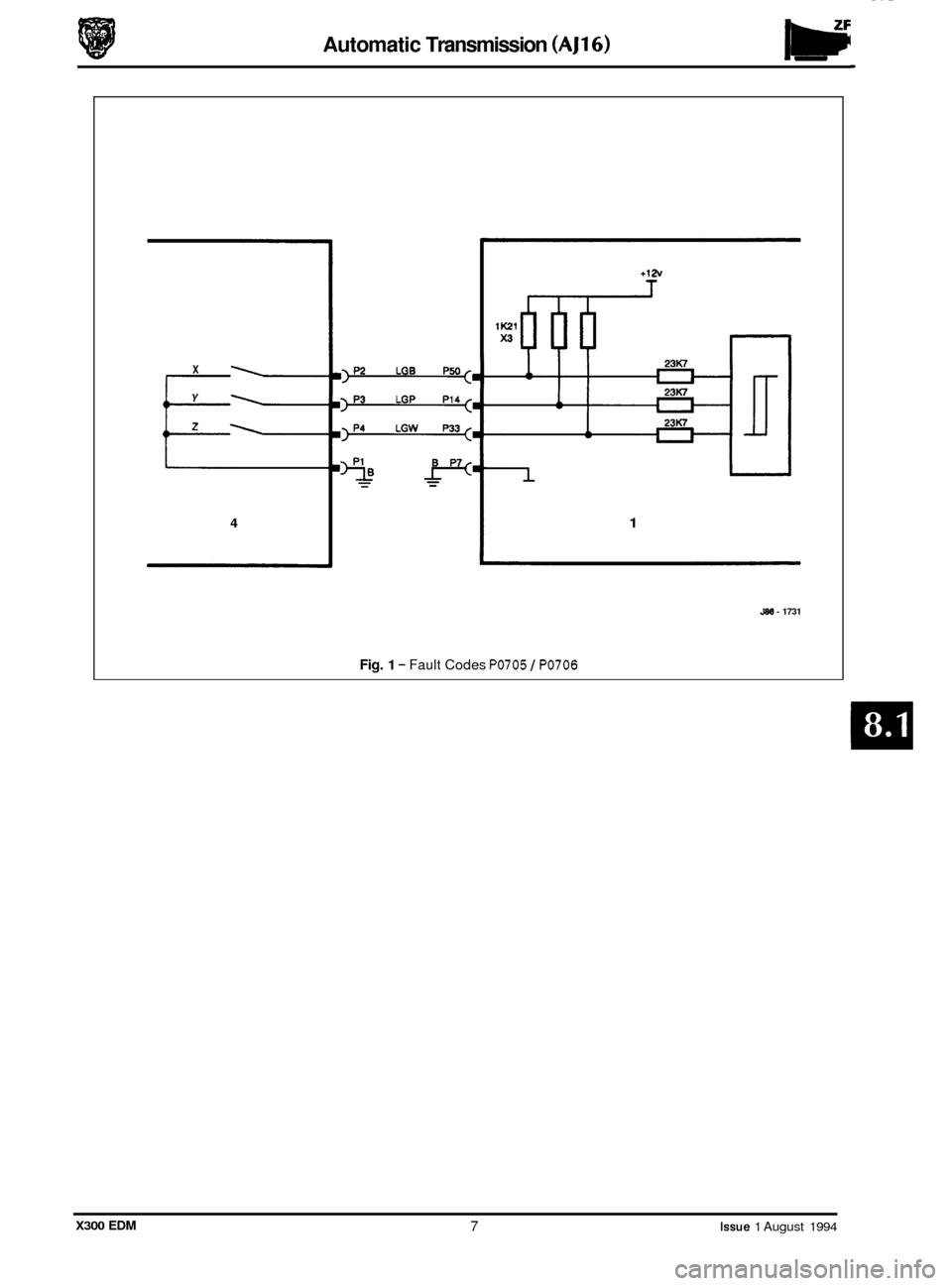

Fig. 1 - Fault Codes PO705 I PO706
X300 EDM 7 Issue 1 August 1994
