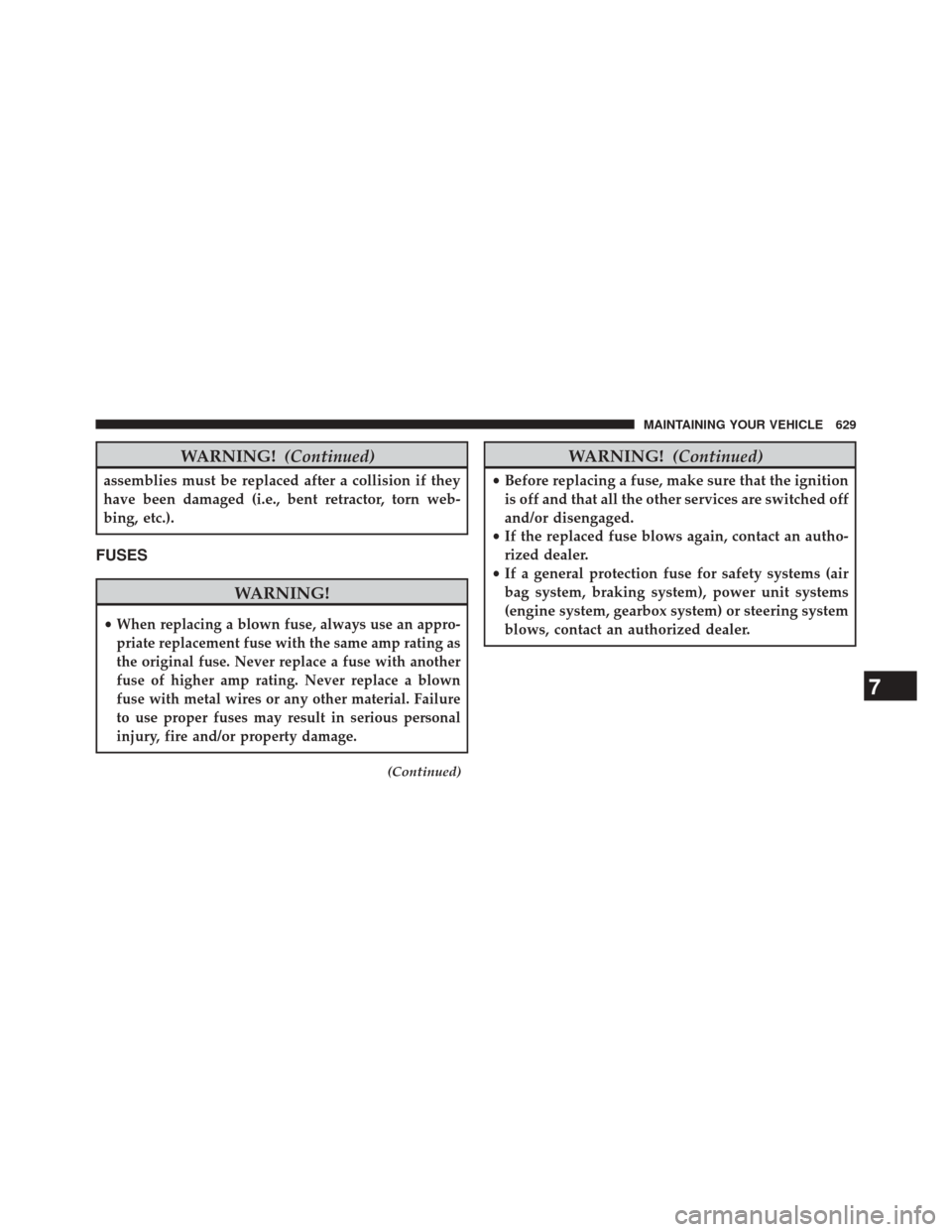

WARNING!(Continued)
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
(Continued)
WARNING! (Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
7
MAINTAINING YOUR VEHICLE 629

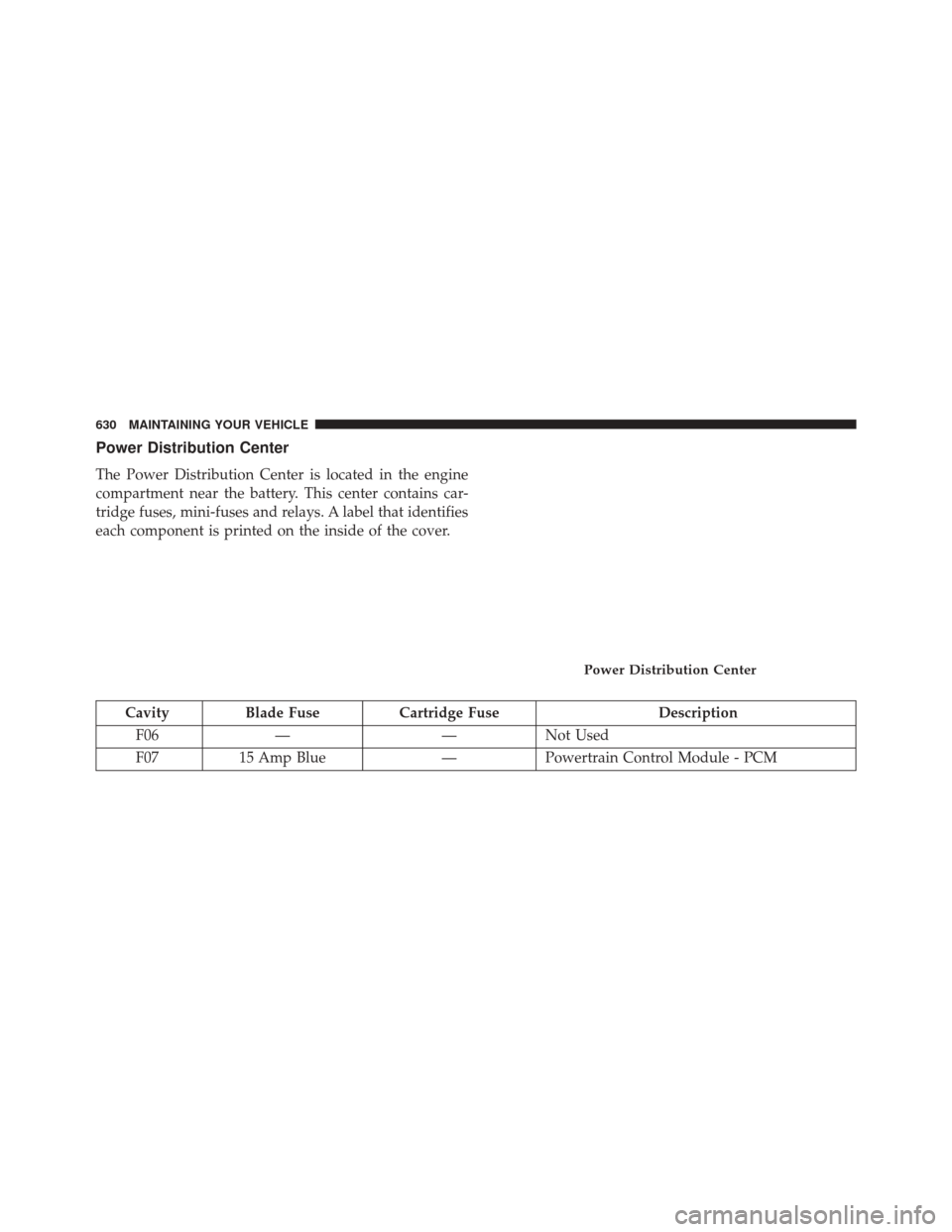

Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, mini-fuses and relays. A label that identifies
each component is printed on the inside of the cover.
CavityBlade Fuse Cartridge Fuse Description
F06 — —Not Used
F07 15 Amp Blue —Powertrain Control Module - PCM
Power Distribution Center
630 MAINTAINING YOUR VEHICLE

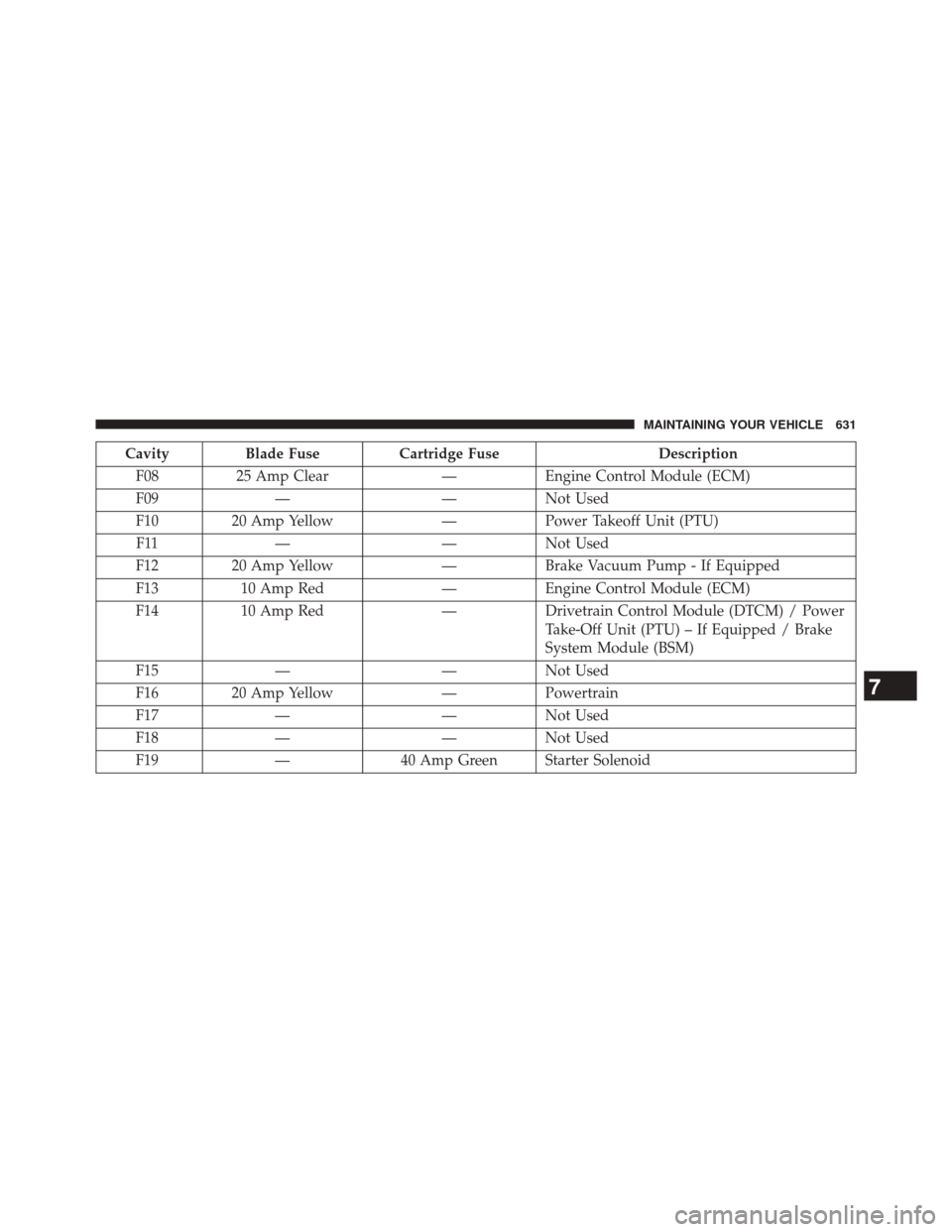

CavityBlade Fuse Cartridge Fuse Description
F08 25 Amp Clear —Engine Control Module (ECM)
F09 — —Not Used
F10 20 Amp Yellow —Power Takeoff Unit (PTU)
F11 — —Not Used
F12 20 Amp Yellow —Brake Vacuum Pump - If Equipped
F13 10 Amp Red —Engine Control Module (ECM)
F14 10 Amp Red —Drivetrain Control Module (DTCM) / Power
Take-Off Unit (PTU) – If Equipped / Brake
System Module (BSM)
F15 — —Not Used
F16 20 Amp Yellow —Powertrain
F17 — —Not Used
F18 — —Not Used
F19 —40 Amp Green Starter Solenoid
7
MAINTAINING YOUR VEHICLE 631

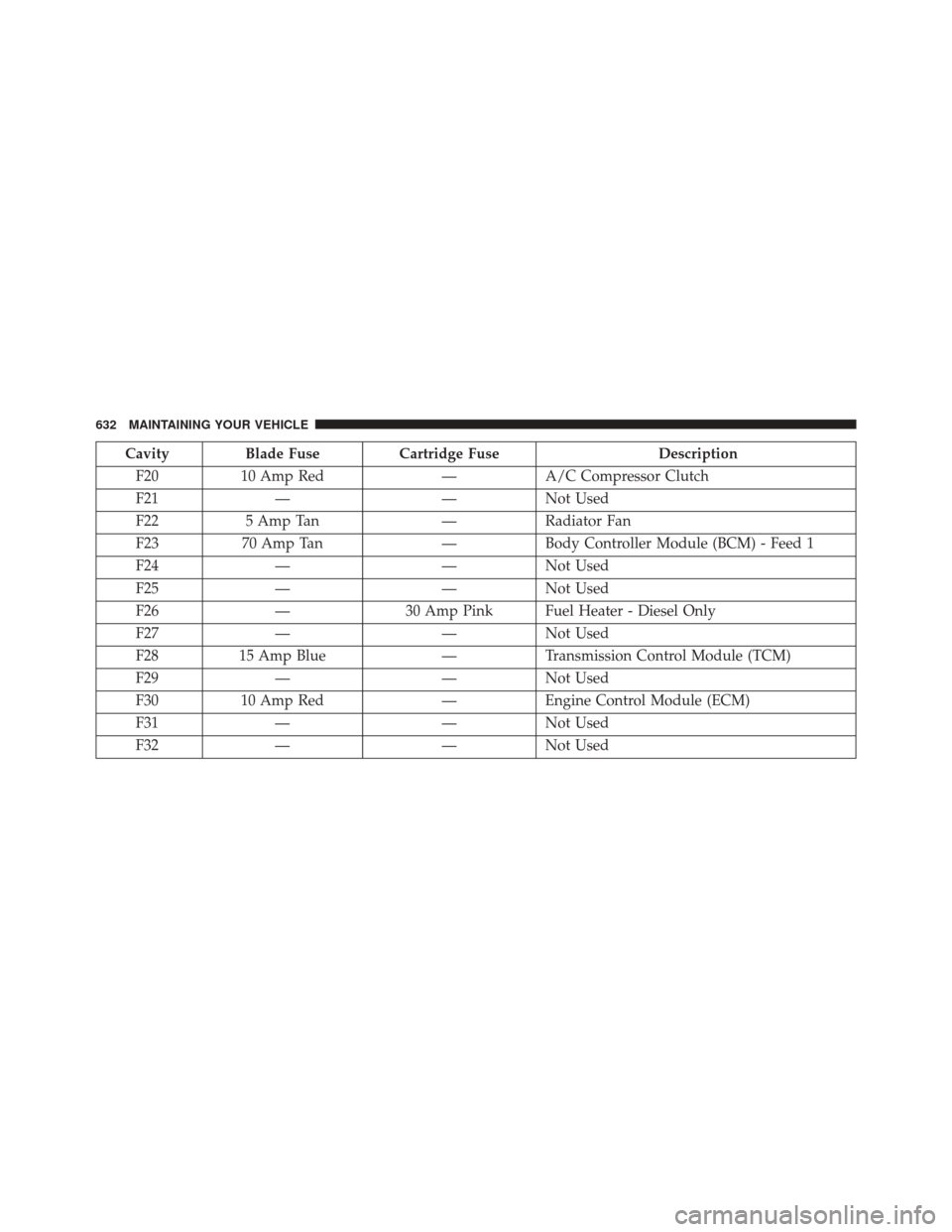

CavityBlade Fuse Cartridge Fuse Description
F20 10 Amp Red —A/C Compressor Clutch
F21 — —Not Used
F22 5 Amp Tan —Radiator Fan
F23 70 Amp Tan —Body Controller Module (BCM) - Feed 1
F24 — —Not Used
F25 — —Not Used
F26 —30 Amp Pink Fuel Heater - Diesel Only
F27 — —Not Used
F28 15 Amp Blue —Transmission Control Module (TCM)
F29 — —Not Used
F30 10 Amp Red —Engine Control Module (ECM)
F31 — —Not Used
F32 — —Not Used
632 MAINTAINING YOUR VEHICLE

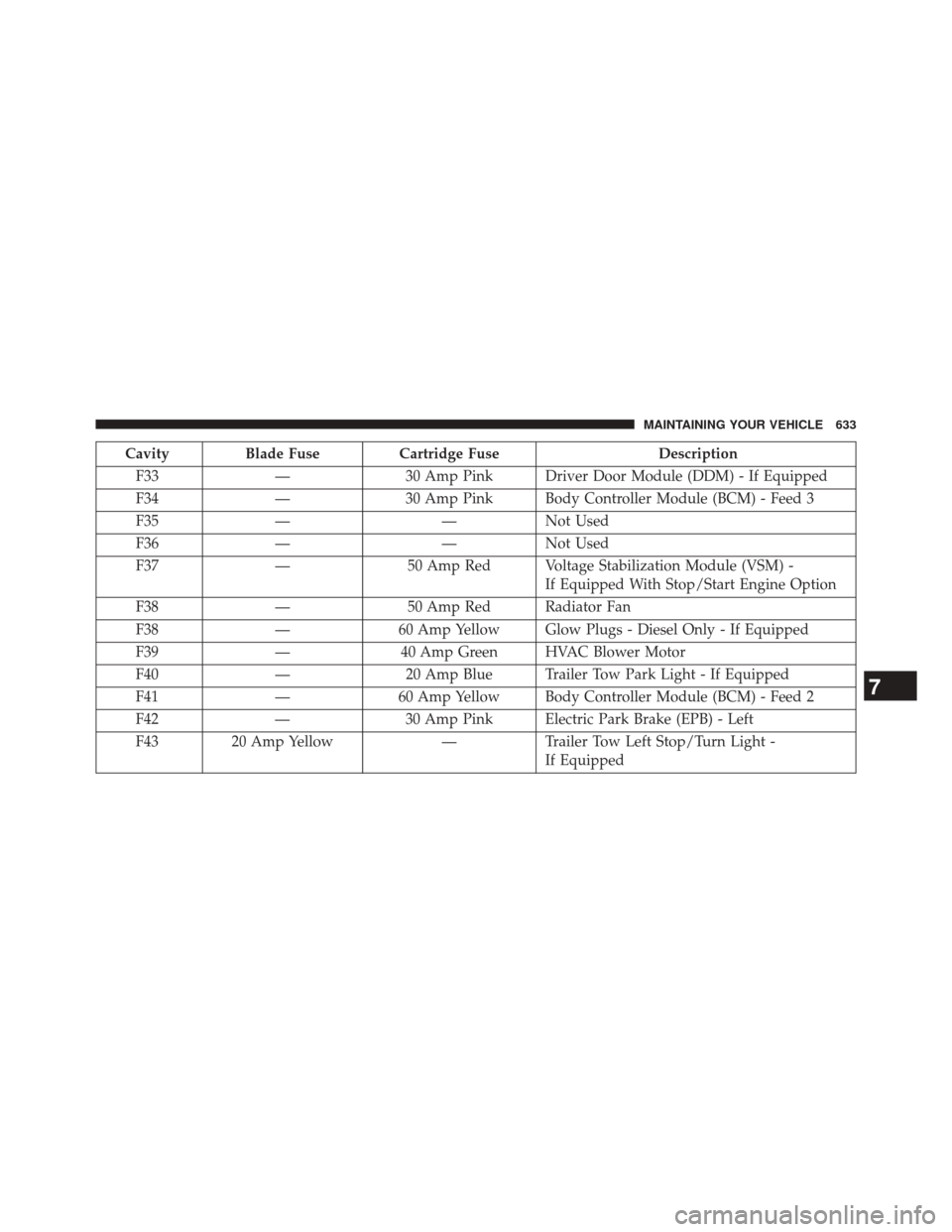

CavityBlade Fuse Cartridge Fuse Description
F33 —30 Amp Pink Driver Door Module (DDM) - If Equipped
F34 —30 Amp Pink Body Controller Module (BCM) - Feed 3
F35 — —Not Used
F36 — —Not Used
F37 —50 Amp Red Voltage Stabilization Module (VSM) -
If Equipped With Stop/Start Engine Option
F38 —50 Amp Red Radiator Fan
F38 —60 Amp Yellow Glow Plugs - Diesel Only - If Equipped
F39 —40 Amp Green HVAC Blower Motor
F40 —20 Amp Blue Trailer Tow Park Light - If Equipped
F41 —60 Amp Yellow Body Controller Module (BCM) - Feed 2
F42 —30 Amp Pink Electric Park Brake (EPB) - Left
F43 20 Amp Yellow —Trailer Tow Left Stop/Turn Light -
If Equipped
7
MAINTAINING YOUR VEHICLE 633

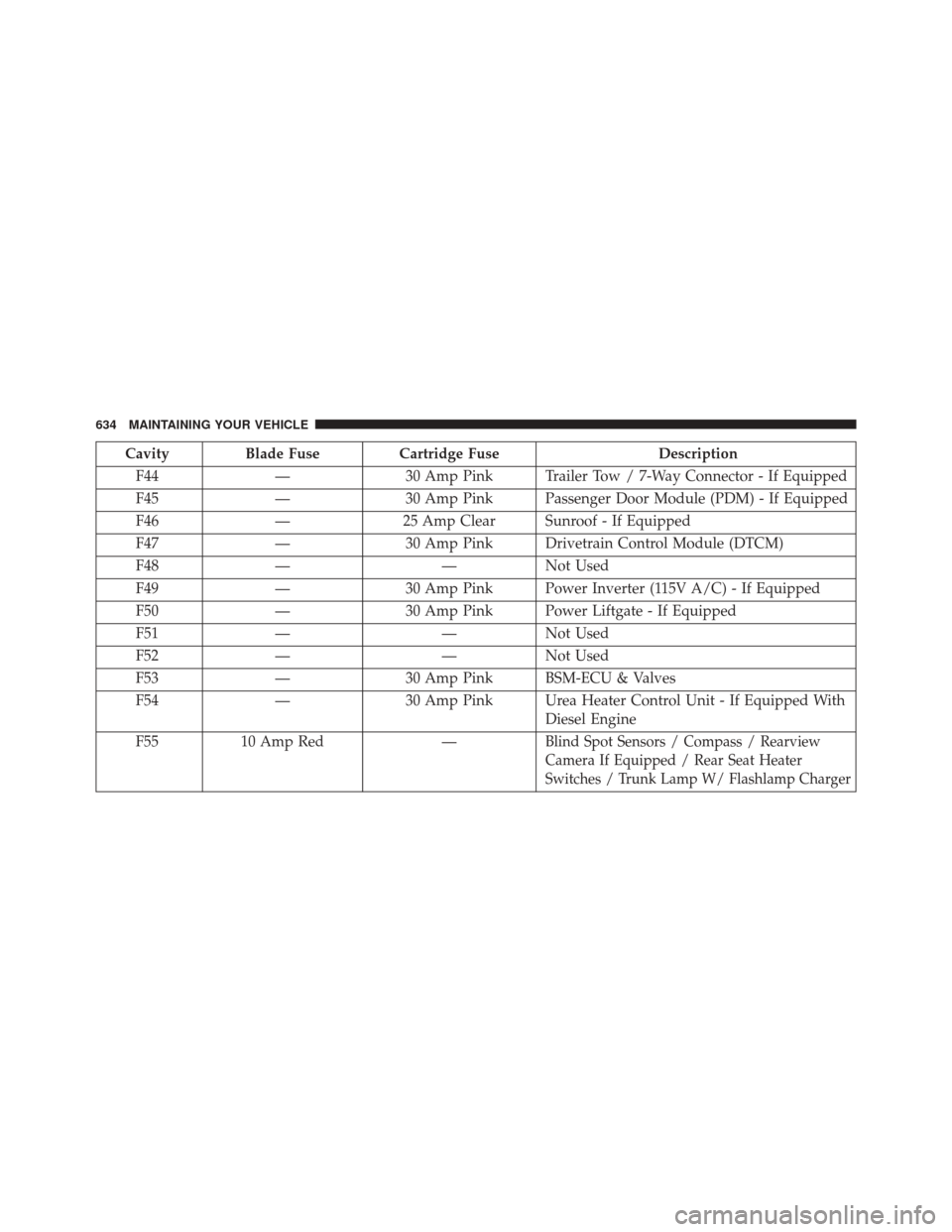

CavityBlade Fuse Cartridge Fuse Description
F44 —30 Amp Pink Trailer Tow / 7-Way Connector - If Equipped
F45 —30 Amp Pink Passenger Door Module (PDM) - If Equipped
F46 —25 Amp Clear Sunroof - If Equipped
F47 —30 Amp Pink Drivetrain Control Module (DTCM)
F48 — —Not Used
F49 —30 Amp Pink Power Inverter (115V A/C) - If Equipped
F50 —30 Amp Pink Power Liftgate - If Equipped
F51 — —Not Used
F52 — —Not Used
F53 —30 Amp Pink BSM-ECU & Valves
F54 —30 Amp Pink Urea Heater Control Unit - If Equipped With
Diesel Engine
F55 10 Amp Red —
Blind Spot Sensors / Compass / Rearview
Camera If Equipped / Rear Seat Heater
Switches / Trunk Lamp W/ Flashlamp Charger
634 MAINTAINING YOUR VEHICLE

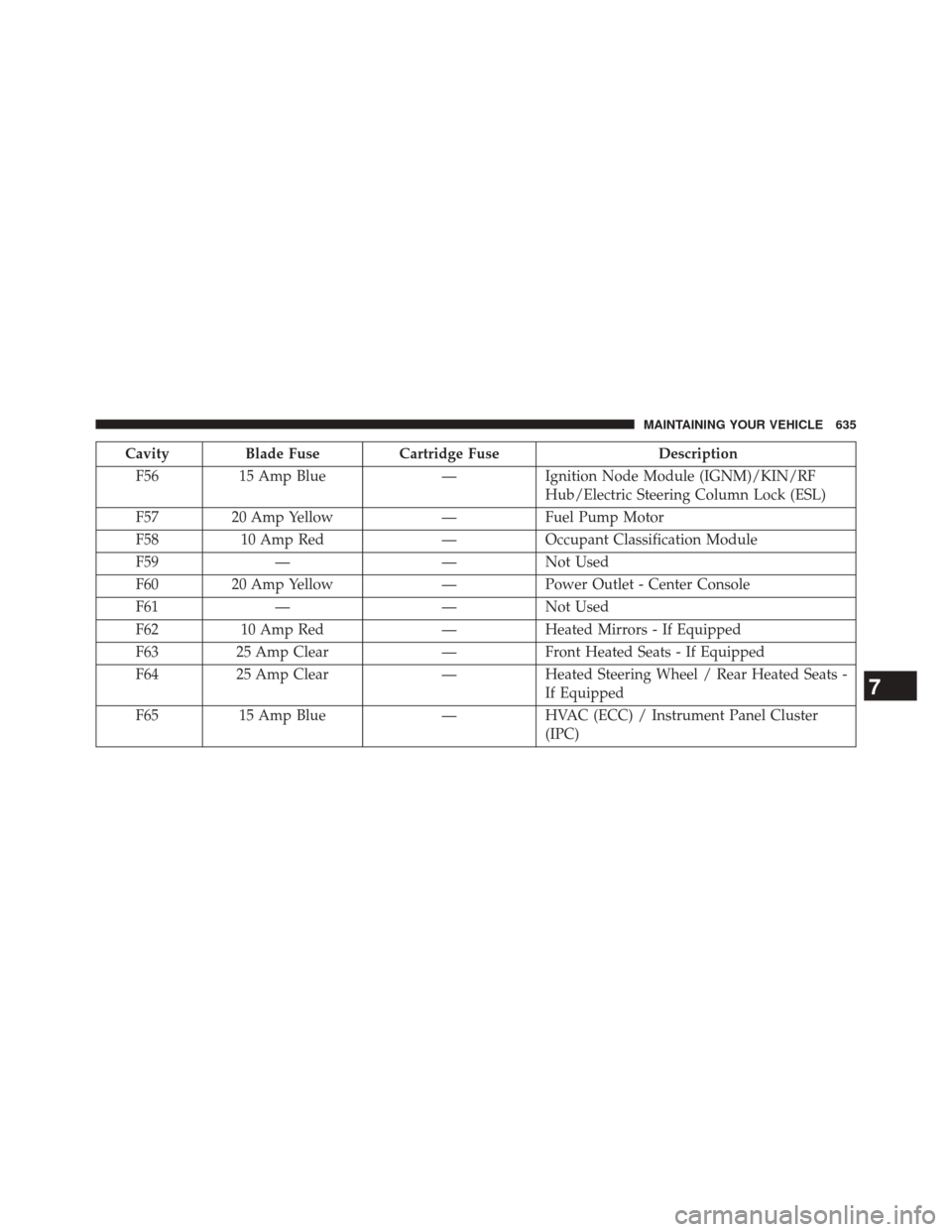

CavityBlade Fuse Cartridge Fuse Description
F56 15 Amp Blue —Ignition Node Module (IGNM)/KIN/RF
Hub/Electric Steering Column Lock (ESL)
F57 20 Amp Yellow —Fuel Pump Motor
F58 10 Amp Red —Occupant Classification Module
F59 — —Not Used
F60 20 Amp Yellow —Power Outlet - Center Console
F61 — —Not Used
F62 10 Amp Red —Heated Mirrors - If Equipped
F63 25 Amp Clear —Front Heated Seats - If Equipped
F64 25 Amp Clear —Heated Steering Wheel / Rear Heated Seats -
If Equipped
F65 15 Amp Blue —HVAC (ECC) / Instrument Panel Cluster
(IPC)
7
MAINTAINING YOUR VEHICLE 635

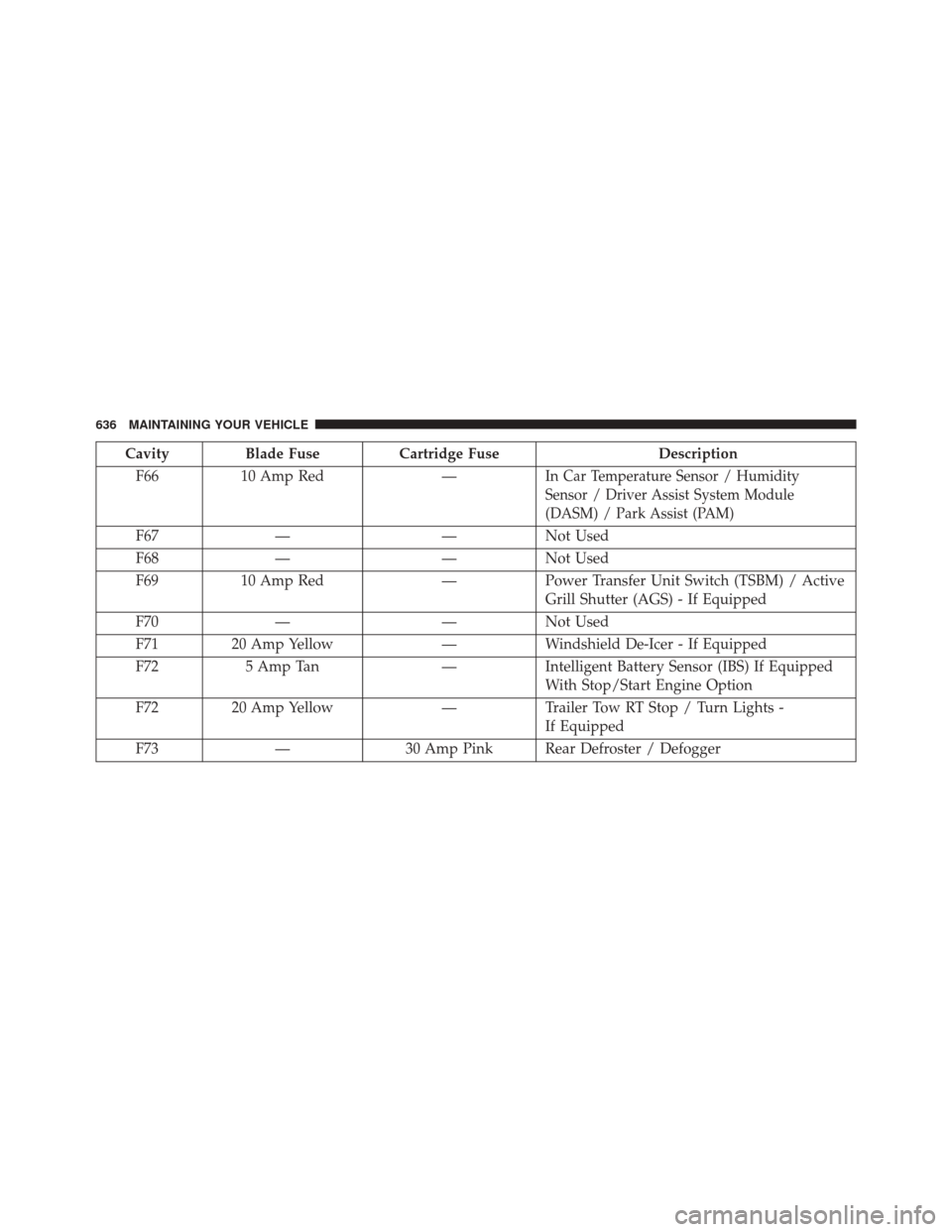

CavityBlade Fuse Cartridge Fuse Description
F66 10 Amp Red —
In Car Temperature Sensor / Humidity
Sensor / Driver Assist System Module
(DASM) / Park Assist (PAM)
F67— —Not Used
F68 — —Not Used
F69 10 Amp Red —Power Transfer Unit Switch (TSBM) / Active
Grill Shutter (AGS) - If Equipped
F70 — —Not Used
F71 20 Amp Yellow —Windshield De-Icer - If Equipped
F72 5 Amp Tan —Intelligent Battery Sensor (IBS) If Equipped
With Stop/Start Engine Option
F72 20 Amp Yellow —Trailer Tow RT Stop / Turn Lights -
If Equipped
F73 —30 Amp Pink Rear Defroster / Defogger
636 MAINTAINING YOUR VEHICLE

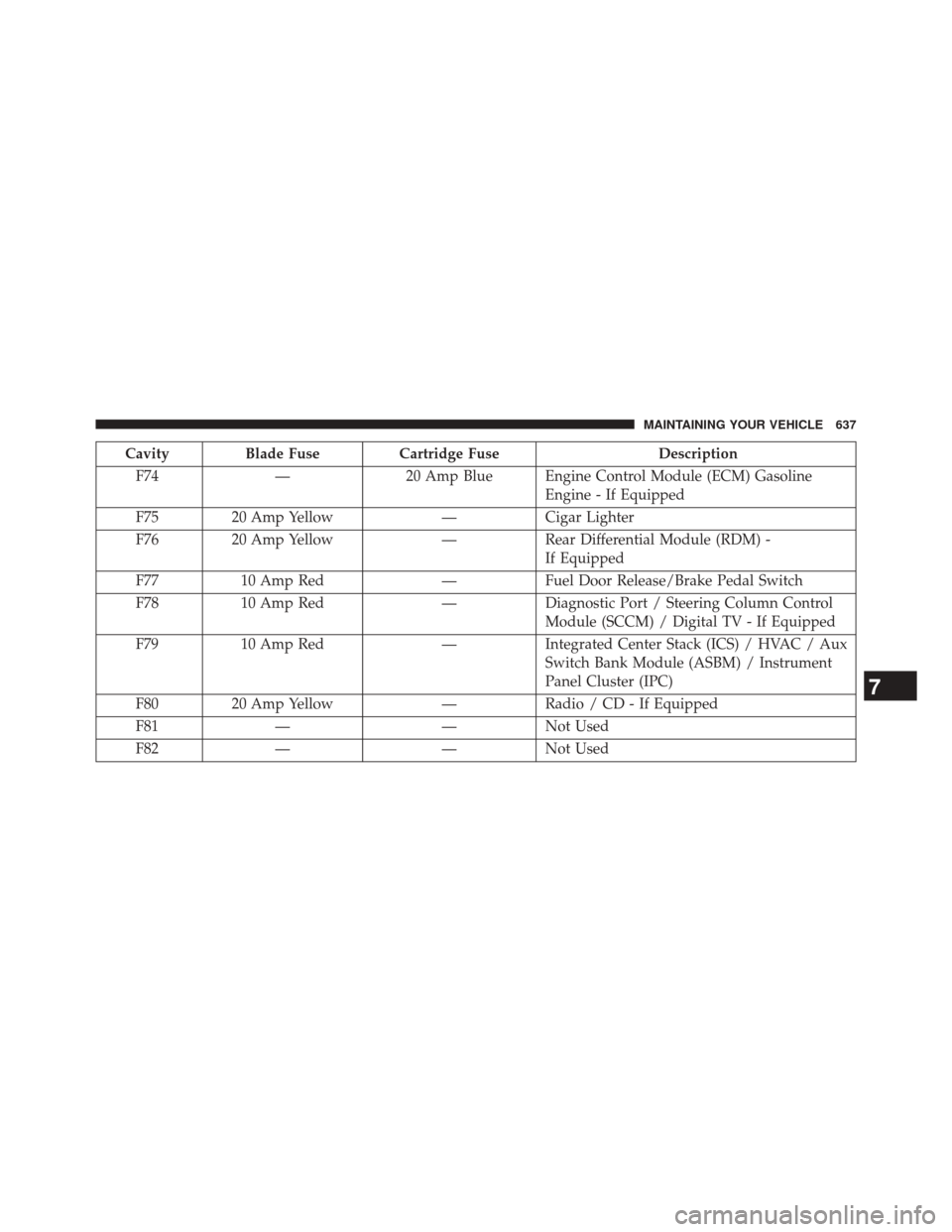

CavityBlade Fuse Cartridge Fuse Description
F74 —20 Amp Blue Engine Control Module (ECM) Gasoline
Engine - If Equipped
F75 20 Amp Yellow —Cigar Lighter
F76 20 Amp Yellow —Rear Differential Module (RDM) -
If Equipped
F77 10 Amp Red —Fuel Door Release/Brake Pedal Switch
F78 10 Amp Red —Diagnostic Port / Steering Column Control
Module (SCCM) / Digital TV - If Equipped
F79 10 Amp Red —Integrated Center Stack (ICS) / HVAC / Aux
Switch Bank Module (ASBM) / Instrument
Panel Cluster (IPC)
F80 20 Amp Yellow —Radio / CD - If Equipped
F81 — —Not Used
F82 — —Not Used
7
MAINTAINING YOUR VEHICLE 637

CavityBlade Fuse Cartridge Fuse Description
F83 —30 Amp Pink Headlamp Washer Pump - If Equipped
F84 —40 Amp Green Brake System Module (BSM) - Pump Motor
If Equipped With Diesel Engine
F84 —20 Amp Blue Trailer Tow Backup Lights - If Equipped With
Gasoline Engine
F85 — —Not Used
F86 — —Not Used
F87 — —Not Used
F88 15 Amp Blue —Collision Mitigation Module (CMM) /
Electrochromatic Mirror / Smart Camera
Module - If Equipped
F89 10 Amp Red —Headlamp Leveling - If Equipped
F90 — —Not Used
