Page 641 of 690
CavityBlade Fuse Cartridge Fuse Description
F91 — —Not Used
F92 20 Amp Yellow —Rear Power Outlet
F93 —40 Amp Green Brake System Module (BSM) - Pump Motor -
If Equipped With Gasoline Engine
F94 —30 Amp Pink Electric Park Brake (EPB) - Right
F95 10 Amp Red —Electrochromatic Mirror / Rain Sensor /
Sunroof - If Equipped
F96 10 Amp Red —Occupant Restraint Controller (ORC)
F97 10 Amp Red —Occupant Restraint Controller (ORC)
F98 25 Amp Clear —Audio Amplifier - If Equipped
F99 —30 Amp Pink Trailer Tow Module - If Equipped With
Gasoline Engine
F100 — —Not Used
7
MAINTAINING YOUR VEHICLE 639
Page 642 of 690

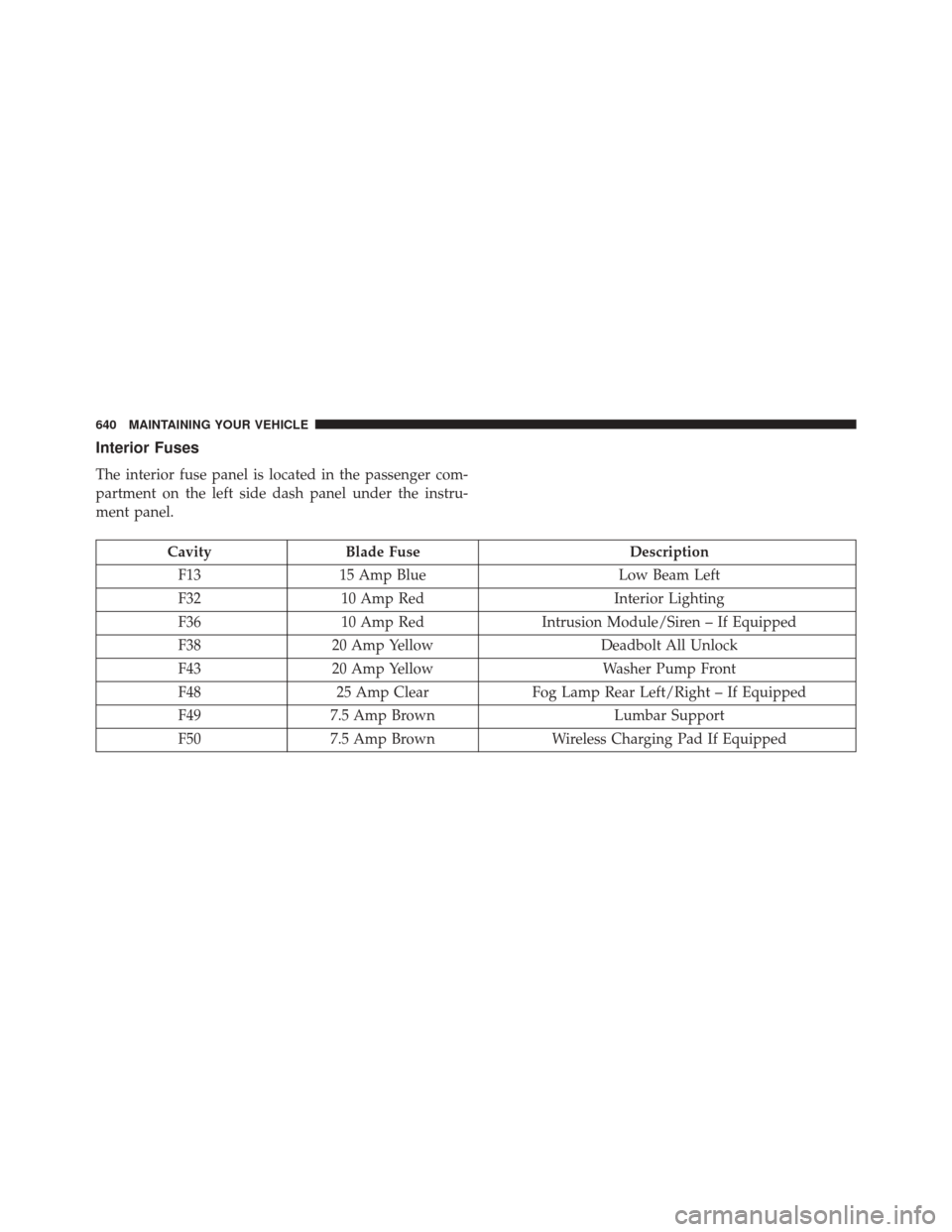

Interior Fuses
The interior fuse panel is located in the passenger com-
partment on the left side dash panel under the instru-
ment panel.
CavityBlade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module/Siren – If Equipped
F38 20 Amp Yellow Deadbolt All Unlock
F43 20 Amp Yellow Washer Pump Front
F48 25 Amp Clear Fog Lamp Rear Left/Right – If Equipped
F49 7.5 Amp Brown Lumbar Support
F50 7.5 Amp Brown Wireless Charging Pad If Equipped
640 MAINTAINING YOUR VEHICLE
Page 643 of 690

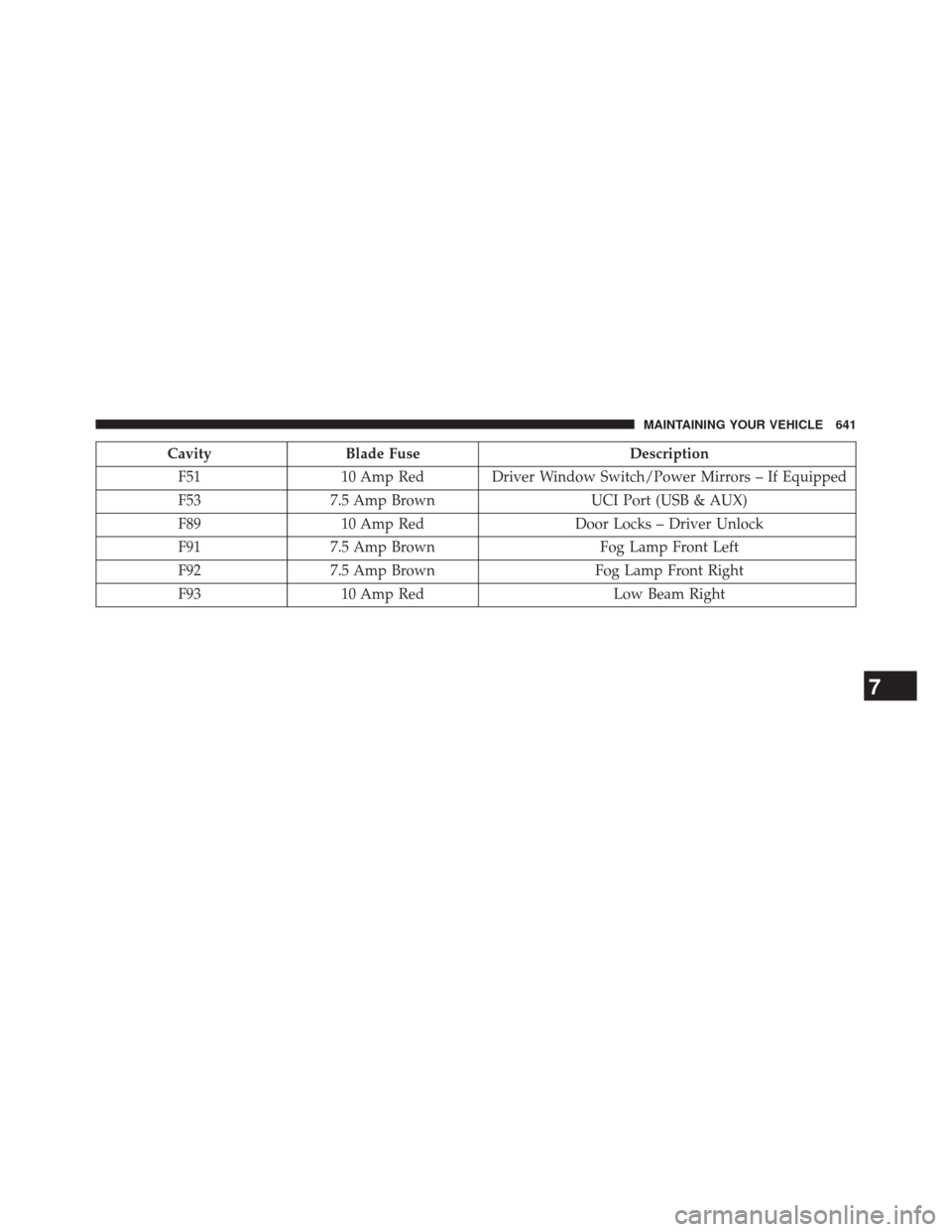

CavityBlade Fuse Description
F51 10 Amp Red Driver Window Switch/Power Mirrors – If Equipped
F53 7.5 Amp Brown UCI Port (USB & AUX)
F89 10 Amp Red Door Locks – Driver Unlock
F91 7.5 Amp Brown Fog Lamp Front Left
F92 7.5 Amp Brown Fog Lamp Front Right
F93 10 Amp Red Low Beam Right
7
MAINTAINING YOUR VEHICLE 641
Page 644 of 690
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Cargo Lamp TL212–2
Overhead Console Lamp PLW214–2A Reading Lamp WL212–2
Exterior Bulbs
Bulb Number
Low Beam/High Beam
(Bi-Halogen) Headlamps HIR2
Low Beam/High Beam (Bi-Xenon) Headlamps D3S (Serviced at an
Authorized Dealer)
Front Park/Daytime Running Lamps LED (Serviced at an
Authorized Dealer)
642 MAINTAINING YOUR VEHICLE
Page 645 of 690
Bulb Number
Front Turn Signal Lamps WY21W
Front Fog Lamps H11
Front Fog Lamps (Trailhawk) PSX24W
Rear Tail/Stop Lamps LED ( Serviced at an Authorized Dealer)
Rear Turn Signal Lamps WY21W
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an
Authorized Dealer)
Back-Up Lamps W16W
License Plate Lamp W5WBULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off and the key removed.
Because of this, you should not attempt to service a HID
headlamp light source yourself. If an HID headlamp light
source fails, take your vehicle to an authorized dealer for
service.
7
MAINTAINING YOUR VEHICLE 643
Page 646 of 690
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Unlock upper access door in wheel liner.
2. Reach behind the headlamp housing to access the headlamp bulb cap. 3. Firmly grasp the cap and rotate it counterclockwise to
unlock it.
4. Firmly grasp the bulb and connector assembly and rotate counterclockwise to remove from the housing.
5. Disconnect the bulb from the electrical connector and then connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the headlamp housing and rotate clockwise to lock it in
place.
644 MAINTAINING YOUR VEHICLE
Page 647 of 690
7. Install the bulb cap in the headlamp housing androtate clockwise to lock it in place.
8. Lock upper door in wheel liner.
Front Turn Signals
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the upper lamp
assembly on the passenger side of the vehicle.
2. Twist the bulb and socket assembly counterclockwise, and then remove the bulb and socket assembly from
the lamp housing.
3. Pull the bulb out of the socket and insert the replace- ment bulb.
4. Install the bulb and socket assembly into the housing, and rotate the socket clockwise to lock it in place.
5. Re-install air cleaner filter housing, if removed.
Front Fog Lamp
1. Unlock lower access door in wheel liner.
2. Reach behind the fog lamp housing to access the bulb.
3. Rotate the bulb’s socket counterclockwise, and remove the bulb and socket assembly from the fog lamp
housing.
4. Pull the bulb out of the socket and insert the replace- ment bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.7
MAINTAINING YOUR VEHICLE 645
Page 648 of 690

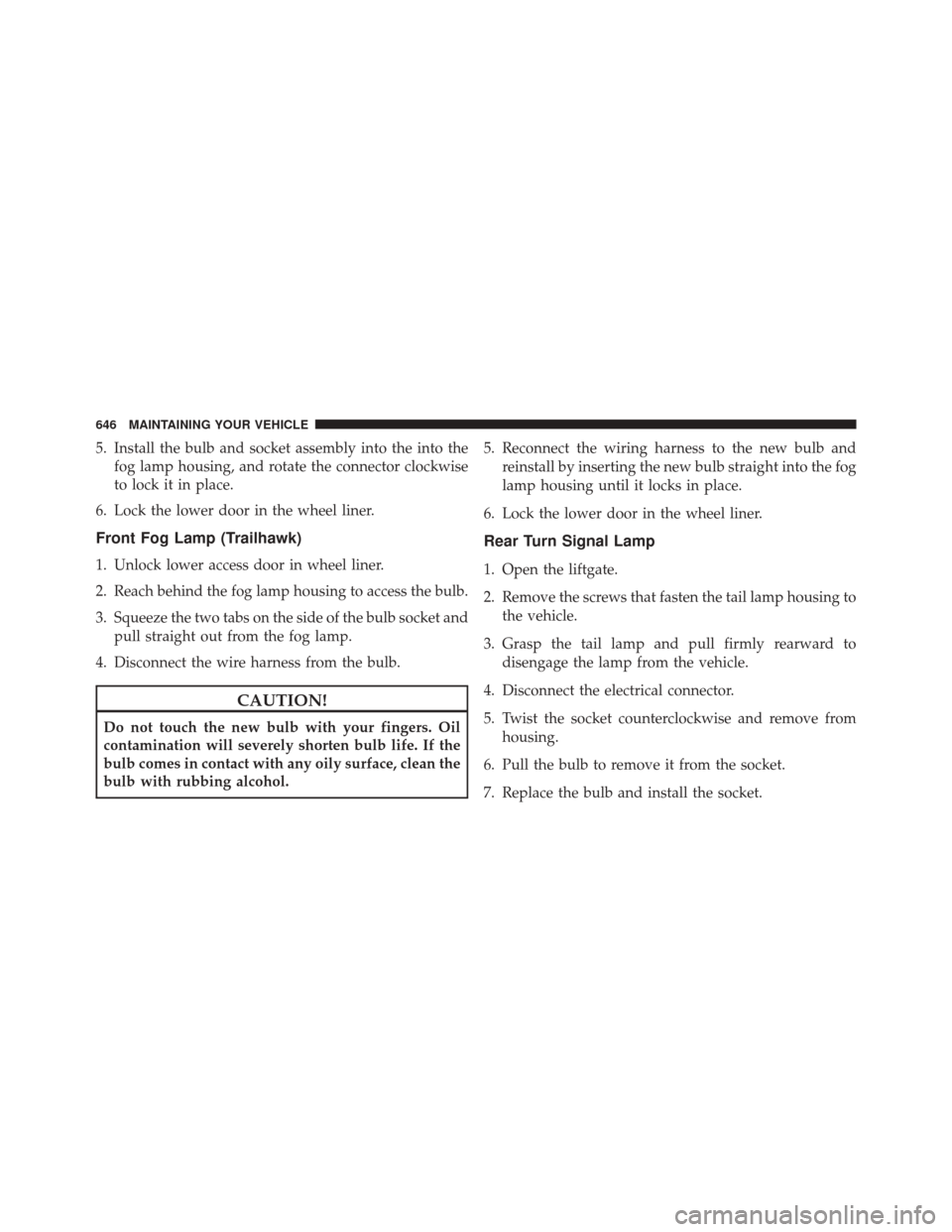

5. Install the bulb and socket assembly into the into thefog lamp housing, and rotate the connector clockwise
to lock it in place.
6. Lock the lower door in the wheel liner.
Front Fog Lamp (Trailhawk)
1. Unlock lower access door in wheel liner.
2. Reach behind the fog lamp housing to access the bulb.
3. Squeeze the two tabs on the side of the bulb socket and pull straight out from the fog lamp.
4. Disconnect the wire harness from the bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol. 5. Reconnect the wiring harness to the new bulb and
reinstall by inserting the new bulb straight into the fog
lamp housing until it locks in place.
6. Lock the lower door in the wheel liner.
Rear Turn Signal Lamp
1. Open the liftgate.
2. Remove the screws that fasten the tail lamp housing to the vehicle.
3. Grasp the tail lamp and pull firmly rearward to disengage the lamp from the vehicle.
4. Disconnect the electrical connector.
5. Twist the socket counterclockwise and remove from housing.
6. Pull the bulb to remove it from the socket.
7. Replace the bulb and install the socket.
646 MAINTAINING YOUR VEHICLE
Page 649 of 690

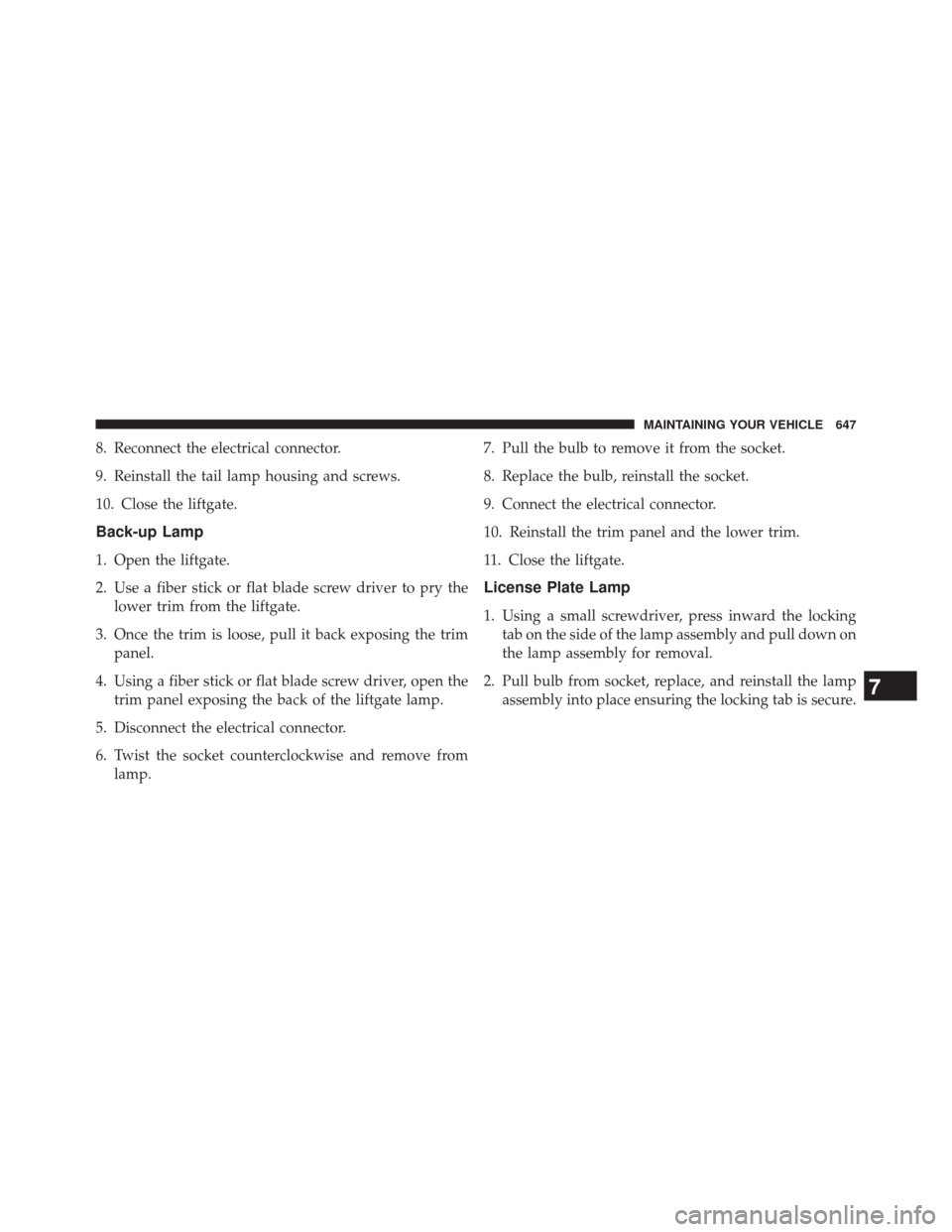

8. Reconnect the electrical connector.
9. Reinstall the tail lamp housing and screws.
10. Close the liftgate.
Back-up Lamp
1. Open the liftgate.
2. Use a fiber stick or flat blade screw driver to pry thelower trim from the liftgate.
3. Once the trim is loose, pull it back exposing the trim panel.
4. Using a fiber stick or flat blade screw driver, open the trim panel exposing the back of the liftgate lamp.
5. Disconnect the electrical connector.
6. Twist the socket counterclockwise and remove from lamp. 7. Pull the bulb to remove it from the socket.
8. Replace the bulb, reinstall the socket.
9. Connect the electrical connector.
10. Reinstall the trim panel and the lower trim.
11. Close the liftgate.
License Plate Lamp
1. Using a small screwdriver, press inward the locking
tab on the side of the lamp assembly and pull down on
the lamp assembly for removal.
2. Pull bulb from socket, replace, and reinstall the lamp assembly into place ensuring the locking tab is secure.
7
MAINTAINING YOUR VEHICLE 647
Page 650 of 690

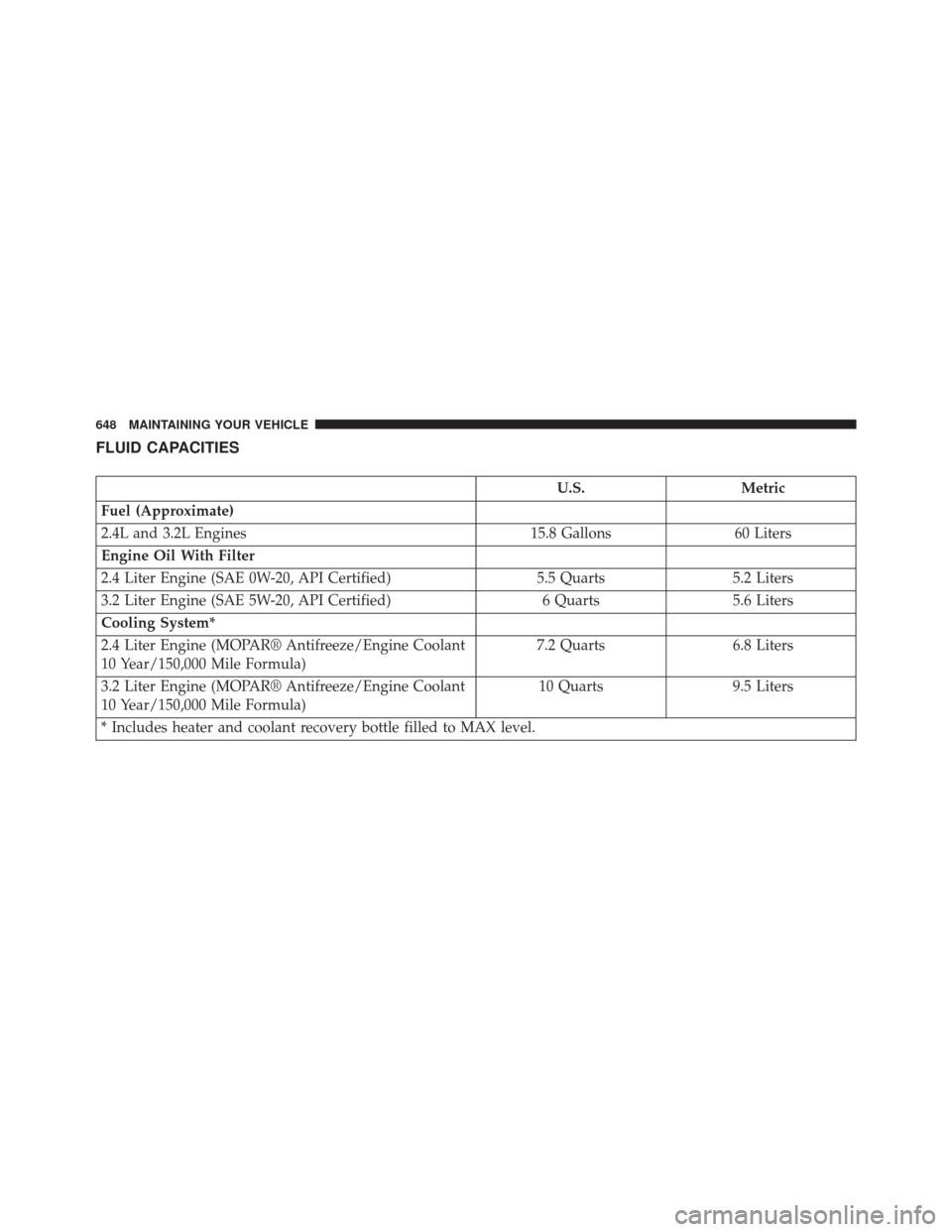

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.4L and 3.2L Engines 15.8 Gallons60 Liters
Engine Oil With Filter
2.4 Liter Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
3.2 Liter Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4 Liter Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 7.2 Quarts
6.8 Liters
3.2 Liter Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 10 Quarts
9.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
648 MAINTAINING YOUR VEHICLE
