Page 503 of 772
7. After the shift is completed and the NEUTRAL (N)
light stays on, release the NEUTRAL (N) button.
8. Start the engine.
9. Shift the transmission into REVERSE.
10. Release the brake pedal for five seconds and ensure
that there is no vehicle movement.
11. Shift the transmission to NEUTRAL.
12. Apply the parking brake.
13. Shift the transmission into PARK, turn the engine
OFF, and remove the key fob.
Repeat steps 1-7 to shift out of NEUTRAL.
Rear Electronic Locker (E-Locker) System — If
Equipped
The Rear E-Locker System features a mechanical locking
rear differential to provide better traction in the 4WD
LOW position. The “REAR LOCK” button is on the
Selec-Terrain Knob.

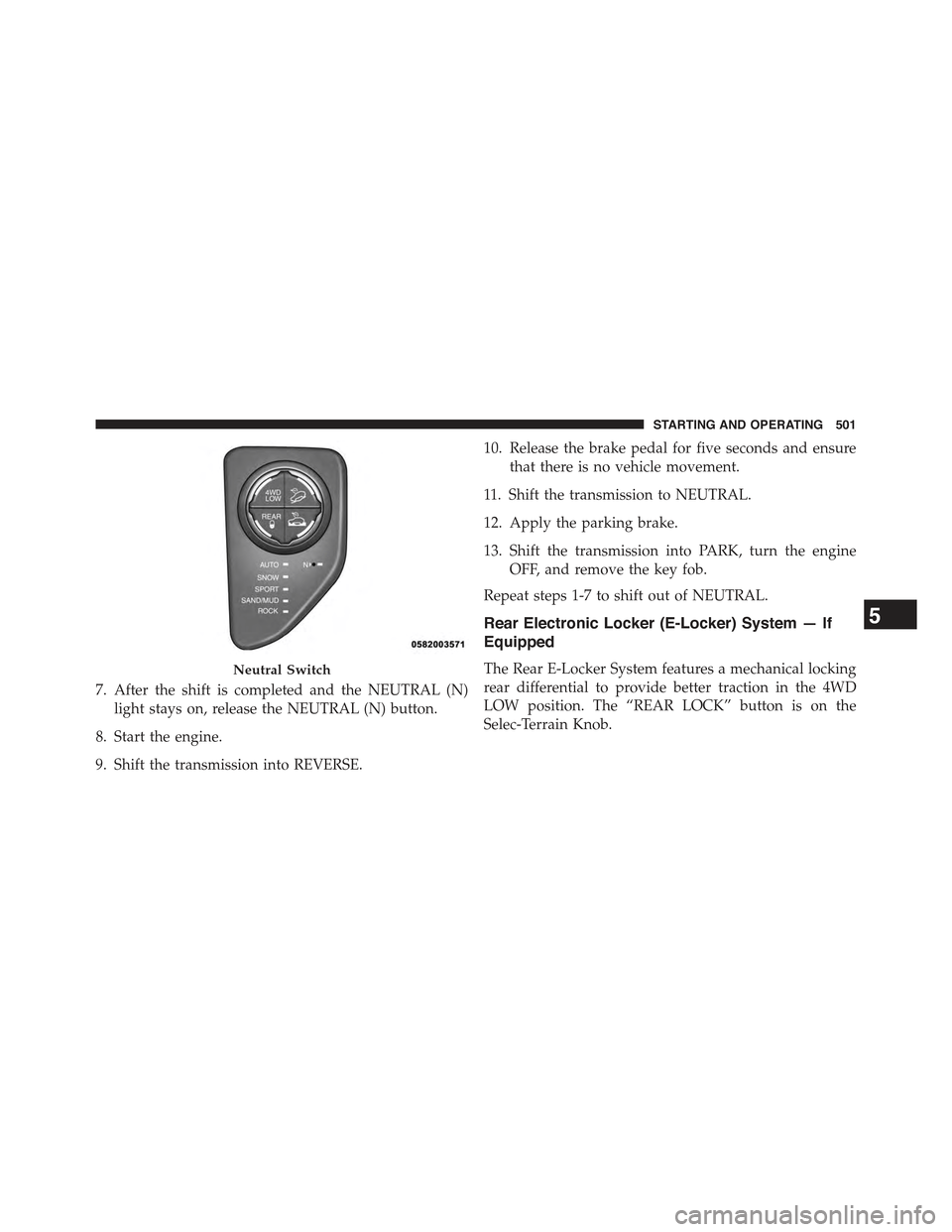

Neutral Switch
5
STARTING AND OPERATING 501
Page 523 of 772
•Do not “ride” the brakes by resting your foot on the
pedal. This could overheat the brakes and result in
unpredictable braking action, longer stopping dis-
tances, or brake damage.
•When descending mountains or hills, repeated braking
can cause brake fade with loss of braking control.
Avoid repeated heavy braking by downshifting the
transmission or locking out overdrive whenever pos-
sible.
•Engines may idle at higher speeds during warm-up,
which could cause rear wheels to spin and result in
loss of vehicle control. Be especially careful while
driving on slippery roads, in close-quarter maneuver-
ing, parking, or stopping.
•Do not drive too fast for road conditions, especially
when roads are wet or slushy. A wedge of water can
build up between the tire tread and the road. This
hydroplaning action can cause loss of traction, braking
ability, and control.
•After going through deep water or a car wash, brakes
may become wet, resulting in decreased performance
and unpredictable braking action. Dry the brakes by
gentle, intermittent pedal action while driving at very
slow speeds.
Traction Control System (TCS)
This system monitors the amount of wheel spin of each of
the driven wheels. If wheel spin is detected, brake
pressure is applied to the slipping wheel(s) and engine
power is reduced to provide enhanced acceleration and
stability. A feature of the TCS system, Brake Limited
Differential (BLD), functions similar to a limited slip
differential and controls the wheel spin across a driven
axle. If one wheel on a driven axle is spinning faster than
the other, the system will apply the brake of the spinning
5
STARTING AND OPERATING 521
Page 717 of 772
CavityBlade FuseCartridge FuseDescription
F6910 Amp Red–Power Transfer Unit Switch
(TSBM) / Active Grill Shutter
(AGS) - If Equipped
F705 Amp Tan–Intelligent Battery Sensor If
Equipped with Stop/Start
Engine Option
F7120 Amp Yellow–HID Headlamp Right if
Equipped with Stop/Start
Engine Option
F7210 Amp Red–Heated Mirrors - If Equipped
F73–20 Amp BlueTrailer Tow Back Up - If
Equipped
F74–30 Amp PinkRear Defroster
F7520 Amp Yellow–Cigar Lighter
F7620 Amp Yellow–Rear Differential Module
(RDM) - If Equipped
7
MAINTAINING YOUR VEHICLE 715
