FUSES
Power Distribution Center
The Power Distribution Center is located in the engine compartment near the battery.
This center contains cartridge fuses, mini-fuses and relays. A label that identifies
each component is printed on the inside of the cover.
CavityBlade Fuse Cartridge Fuse Description
F06––NotUsed
F0715 Amp Blue–PowertrainControlModule - PCM
F0825 Amp Clear–EngineControlModule (ECM)
F09––NotUsed
F1020 Amp Yellow– Power TransferUnit (PTU) –If Equipped
F11––NotUsed
F1220 Amp Yellow– Brake VacuumPump - If Equipped
F1310 Amp Red–EngineControlModule (ECM)
F1410 Amp Red–Drivetrain ControlModule (DTCM) /Power Take-Off Unit(PTU) / BrakeSystem Module(BSM) – If Equipped
F15––NotUsed
F1620 Amp Yellow– Powertrain
F17––NotUsed
F18––NotUsed
F19–40 Amp Green Starter Solenoid
F2010 Amp Red–A/CCompressorClutch
F21––NotUsed
F225AmpTan–RadiatorFan
F2370 Amp Tan–BodyControllerModule (BCM) -Feed 2
F2350 Amp Red–Voltage StabilityModule (VSM)Feed #2 - IfEquipped with Stop/Start Engine Option
MAINTAINING YOUR VEHICLE
213

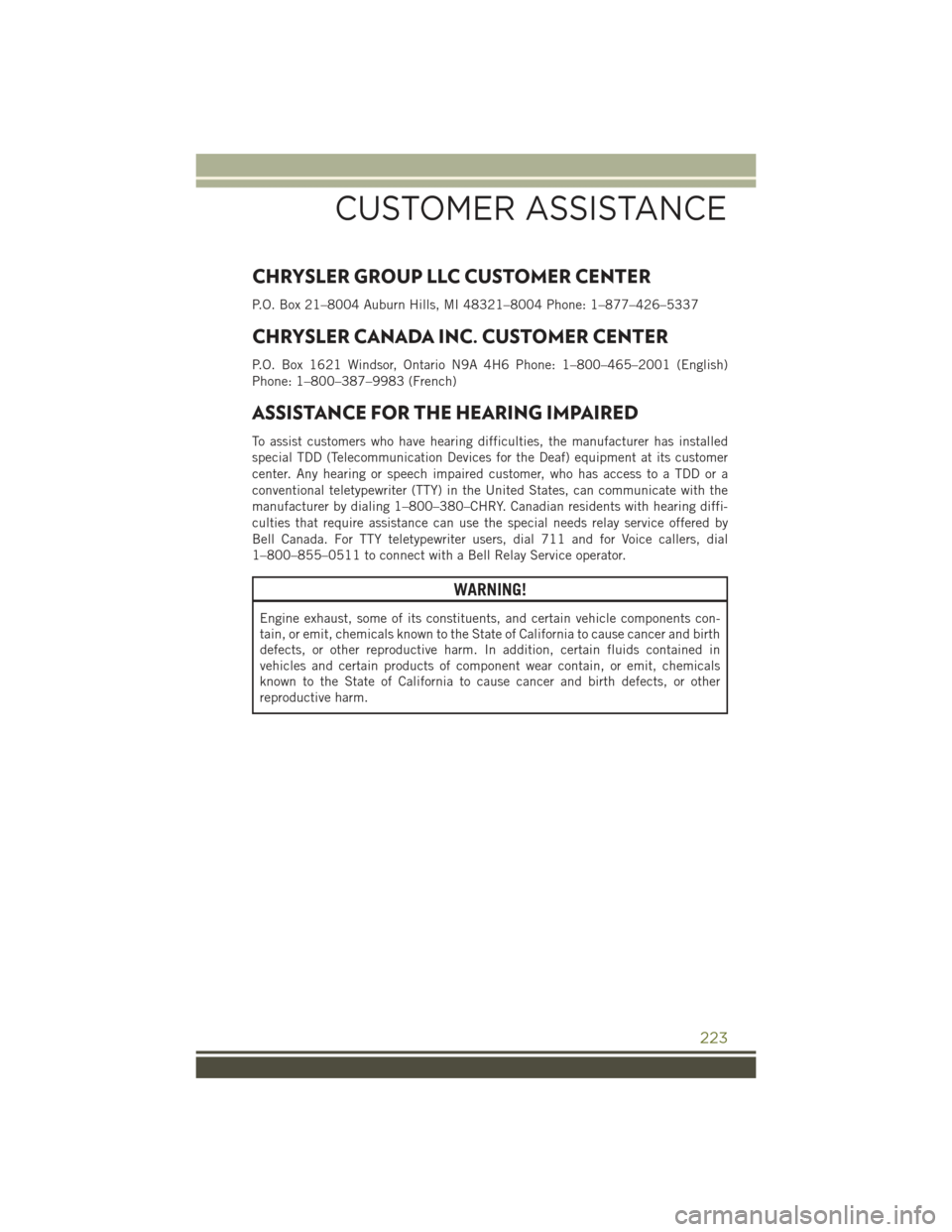

CHRYSLER GROUP LLC CUSTOMER CENTER
P.O. Box 21–8004 Auburn Hills, MI 48321–8004 Phone: 1–877–426–5337
CHRYSLER CANADA INC. CUSTOMER CENTER
P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1–800–465–2001 (English)
Phone: 1–800–387–9983 (French)
ASSISTANCE FOR THE HEARING IMPAIRED
To assist customers who have hearing difficulties, the manufacturer has installed
special TDD (Telecommunication Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who has access to a TDD or a
conventional teletypewriter (TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY. Canadian residents with hearing diffi-
culties that require assistance can use the special needs relay service offered by
Bell Canada. For TTY teletypewriter users, dial 711 and for Voice callers, dial
1–800–855–0511 to connect with a Bell Relay Service operator.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components con-
tain, or emit, chemicals known to the State of California to cause cancer and birth
defects, or other reproductive harm. In addition, certain fluids contained in
vehicles and certain products of component wear contain, or emit, chemicals
known to the State of California to cause cancer and birth defects, or other
reproductive harm.
CUSTOMER ASSISTANCE
223
