jacking JEEP CHEROKEE 2020 Owner handbook (in English)

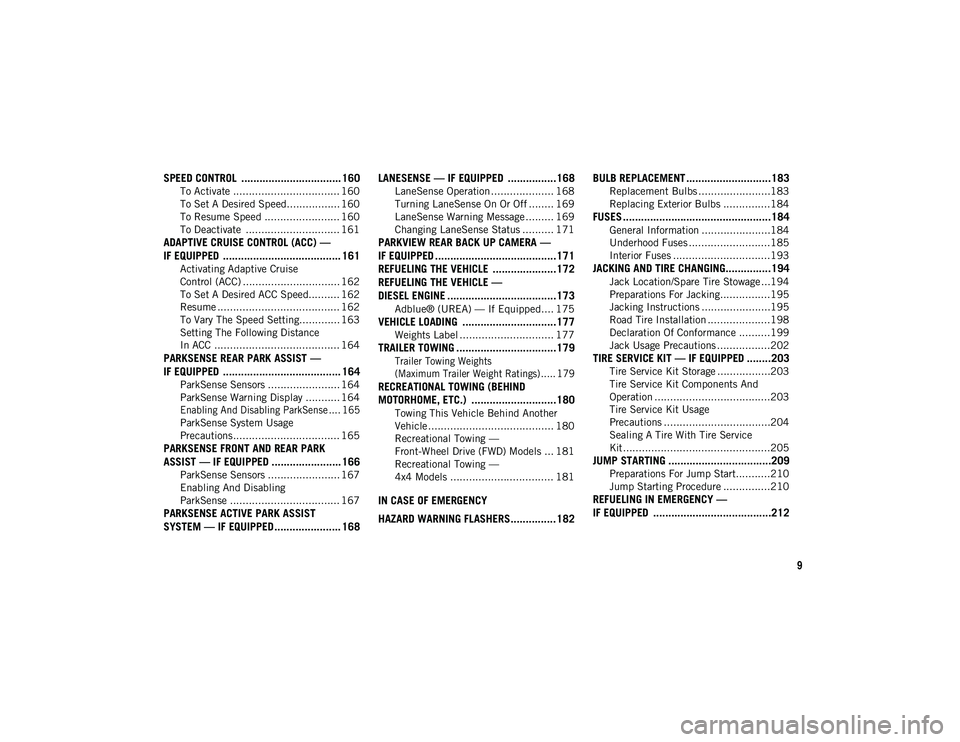

9
SPEED CONTROL ................................. 160
To Activate .................................. 160
To Set A Desired Speed................. 160
To Resume Speed ........................ 160
To Deactivate .............................. 161
ADAPTIVE CRUISE CONTROL (ACC) —
IF EQUIPPED ....................................... 161
Activating Adaptive Cruise
Control (ACC) ............................... 162 To Set A Desired ACC Speed.......... 162
Resume ....................................... 162
To Vary The Speed Setting............. 163
Setting The Following Distance
In ACC ........................................ 164
PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ....................................... 164
ParkSense Sensors ....................... 164
ParkSense Warning Display ........... 164

Enabling And Disabling ParkSense .... 165

ParkSense System Usage
Precautions .................................. 165
PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED ....................... 166
ParkSense Sensors ....................... 167
Enabling And Disabling
ParkSense ................................... 167
PARKSENSE ACTIVE PARK ASSIST
SYSTEM — IF EQUIPPED ...................... 168 LANESENSE — IF EQUIPPED ................168
LaneSense Operation .................... 168
Turning LaneSense On Or Off ........ 169
LaneSense Warning Message ......... 169
Changing LaneSense Status .......... 171
PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ........................................171
REFUELING THE VEHICLE .....................172
REFUELING THE VEHICLE —
DIESEL ENGINE ....................................173
Adblue® (UREA) — If Equipped.... 175
VEHICLE LOADING ...............................177
Weights Label .............................. 177
TRAILER TOWING .................................179

Trailer Towing Weights
(Maximum Trailer Weight Ratings)..... 179

RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ............................180
Towing This Vehicle Behind Another
Vehicle ........................................ 180 Recreational Towing —
Front-Wheel Drive (FWD) Models ... 181 Recreational Towing —
4x4 Models ................................. 181
IN CASE OF EMERGENCY
HAZARD WARNING FLASHERS...............182 BULB REPLACEMENT ............................183
Replacement Bulbs .......................183
Replacing Exterior Bulbs ...............184
FUSES .................................................184
General Information ......................184
Underhood Fuses ..........................185
Interior Fuses ...............................193
JACKING AND TIRE CHANGING...............194
Jack Location/Spare Tire Stowage ...194
Preparations For Jacking................195
Jacking Instructions ......................195
Road Tire Installation ....................198
Declaration Of Conformance ..........199
Jack Usage Precautions .................202
TIRE SERVICE KIT — IF EQUIPPED ........203
Tire Service Kit Storage .................203
Tire Service Kit Components And
Operation .....................................203 Tire Service Kit Usage
Precautions ..................................204 Sealing A Tire With Tire Service
Kit...............................................205
JUMP STARTING ..................................209
Preparations For Jump Start...........210
Jump Starting Procedure ...............210
REFUELING IN EMERGENCY —
IF EQUIPPED .......................................212
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 9

GETTING TO KNOW YOUR VEHICLE
54

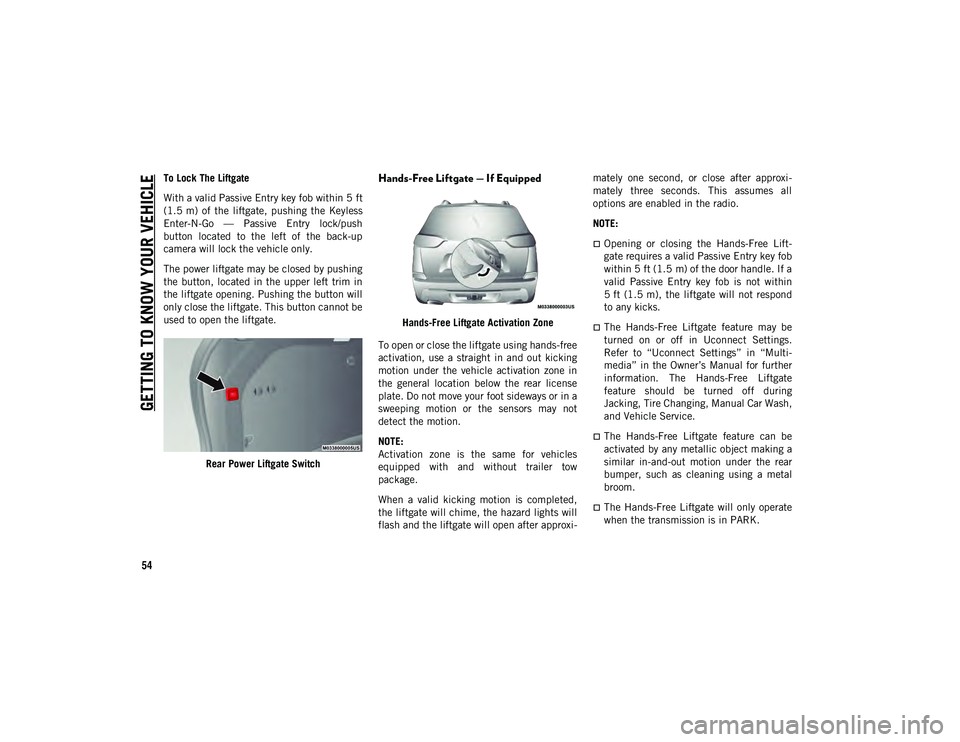

To Lock The Liftgate
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the liftgate, pushing the Keyless
Enter-N-Go — Passive Entry lock/push
button located to the left of the back-up
camera will lock the vehicle only.
The power liftgate may be closed by pushing
the button, located in the upper left trim in
the liftgate opening. Pushing the button will
only close the liftgate. This button cannot be
used to open the liftgate.Rear Power Liftgate SwitchHands-Free Liftgate — If Equipped
Hands-Free Liftgate Activation Zone
To open or close the liftgate using hands-free
activation, use a straight in and out kicking
motion under the vehicle activation zone in
the general location below the rear license
plate. Do not move your foot sideways or in a
sweeping motion or the sensors may not
detect the motion.
NOTE:
Activation zone is the same for vehicles
equipped with and without trailer tow
package.
When a valid kicking motion is completed,
the liftgate will chime, the hazard lights will
flash and the liftgate will open after approxi -mately one second, or close after approxi
-
mately three seconds. This assumes all
options are enabled in the radio.
NOTE:
Opening or closing the Hands-Free Lift -
gate requires a valid Passive Entry key fob
within 5 ft (1.5 m) of the door handle. If a
valid Passive Entry key fob is not within
5 ft (1.5 m), the liftgate will not respond
to any kicks.
The Hands-Free Liftgate feature may be
turned on or off in Uconnect Settings.
Refer to “Uconnect Settings” in “Multi -
media” in the Owner’s Manual for further
information. The Hands-Free Liftgate
feature should be turned off during
Jacking, Tire Changing, Manual Car Wash,
and Vehicle Service.
The Hands-Free Liftgate feature can be
activated by any metallic object making a
similar in-and-out motion under the rear
bumper, such as cleaning using a metal
broom.
The Hands-Free Liftgate will only operate
when the transmission is in PARK.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 54

IN CASE OF EMERGENCY
194

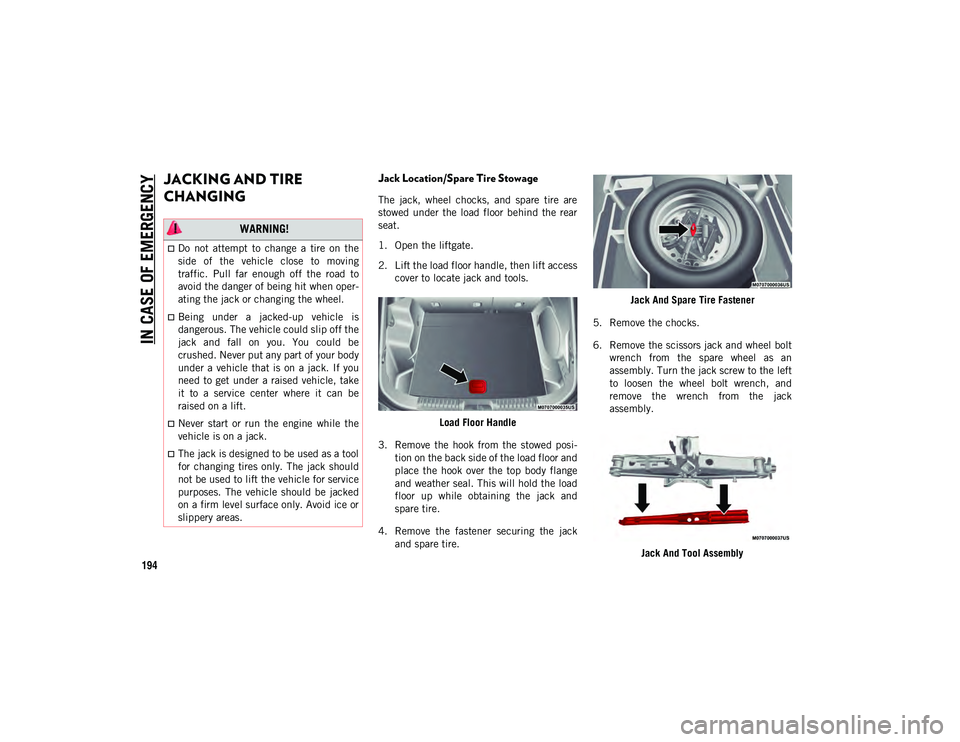

JACKING AND TIRE
CHANGING Jack Location/Spare Tire Stowage
The jack, wheel chocks, and spare tire are
stowed under the load floor behind the rear
seat.
1. Open the liftgate.
2. Lift the load floor handle, then lift accesscover to locate jack and tools.
Load Floor Handle
3. Remove the hook from the stowed posi -
tion on the back side of the load floor and
place the hook over the top body flange
and weather seal. This will hold the load
floor up while obtaining the jack and
spare tire.
4. Remove the fastener securing the jack and spare tire. Jack And Spare Tire Fastener
5. Remove the chocks.
6. Remove the scissors jack and wheel bolt wrench from the spare wheel as an
assembly. Turn the jack screw to the left
to loosen the wheel bolt wrench, and
remove the wrench from the jack
assembly.
Jack And Tool Assembly
WARNING!
Do not attempt to change a tire on the
side of the vehicle close to moving
traffic. Pull far enough off the road to
avoid the danger of being hit when oper -
ating the jack or changing the wheel.
Being under a jacked-up vehicle is
dangerous. The vehicle could slip off the
jack and fall on you. You could be
crushed. Never put any part of your body
under a vehicle that is on a jack. If you
need to get under a raised vehicle, take
it to a service center where it can be
raised on a lift.
Never start or run the engine while the
vehicle is on a jack.
The jack is designed to be used as a tool
for changing tires only. The jack should
not be used to lift the vehicle for service
purposes. The vehicle should be jacked
on a firm level surface only. Avoid ice or
slippery areas.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 194

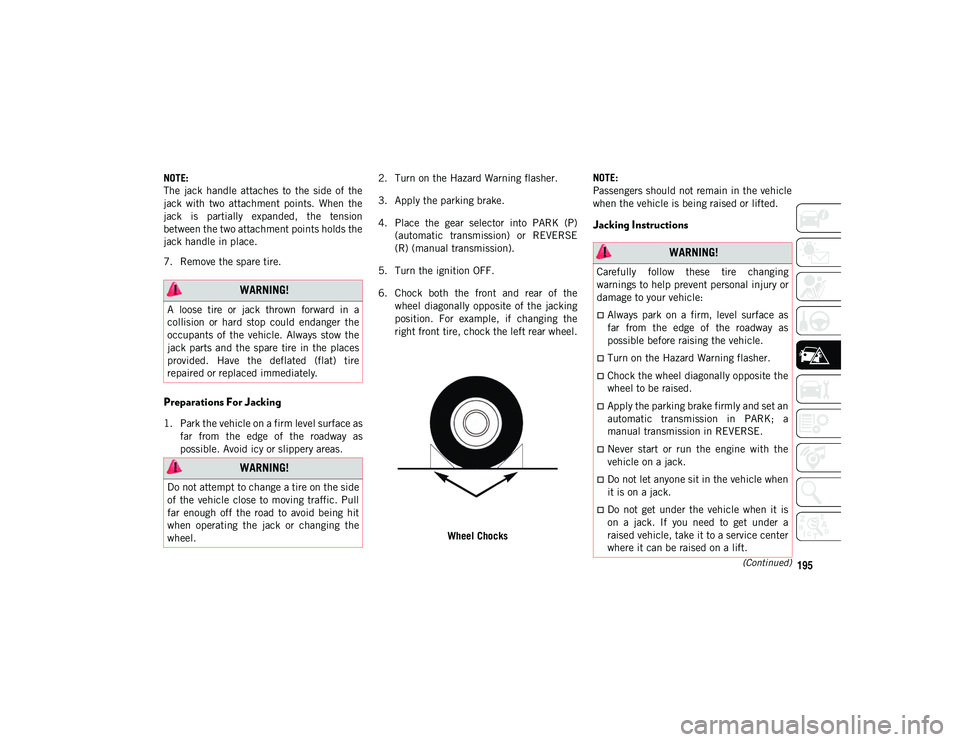

195(Continued)
NOTE:
The jack handle attaches to the side of the
jack with two attachment points. When the
jack is partially expanded, the tension
between the two attachment points holds the
jack handle in place.
7. Remove the spare tire.
Preparations For Jacking
1. Park the vehicle on a firm level surface asfar from the edge of the roadway as
possible. Avoid icy or slippery areas. 2. Turn on the Hazard Warning flasher.
3. Apply the parking brake.
4. Place the gear selector into PARK (P)
(automatic transmission) or REVERSE
(R) (manual transmission).
5. Turn the ignition OFF.
6. Chock both the front and rear of the wheel diagonally opposite of the jacking
position. For example, if changing the
right front tire, chock the left rear wheel.
Wheel Chocks NOTE:
Passengers should not remain in the vehicle
when the vehicle is being raised or lifted.
Jacking Instructions
WARNING!
A loose tire or jack thrown forward in a
collision or hard stop could endanger the
occupants of the vehicle. Always stow the
jack parts and the spare tire in the places
provided. Have the deflated (flat) tire
repaired or replaced immediately.
WARNING!
Do not attempt to change a tire on the side
of the vehicle close to moving traffic. Pull
far enough off the road to avoid being hit
when operating the jack or changing the
wheel.
WARNING!
Carefully follow these tire changing
warnings to help prevent personal injury or
damage to your vehicle:
Always park on a firm, level surface as
far from the edge of the roadway as
possible before raising the vehicle.
Turn on the Hazard Warning flasher.
Chock the wheel diagonally opposite the
wheel to be raised.
Apply the parking brake firmly and set an
automatic transmission in PARK; a
manual transmission in REVERSE.
Never start or run the engine with the
vehicle on a jack.
Do not let anyone sit in the vehicle when
it is on a jack.
Do not get under the vehicle when it is
on a jack. If you need to get under a
raised vehicle, take it to a service center
where it can be raised on a lift.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 195

IN CASE OF EMERGENCY
196

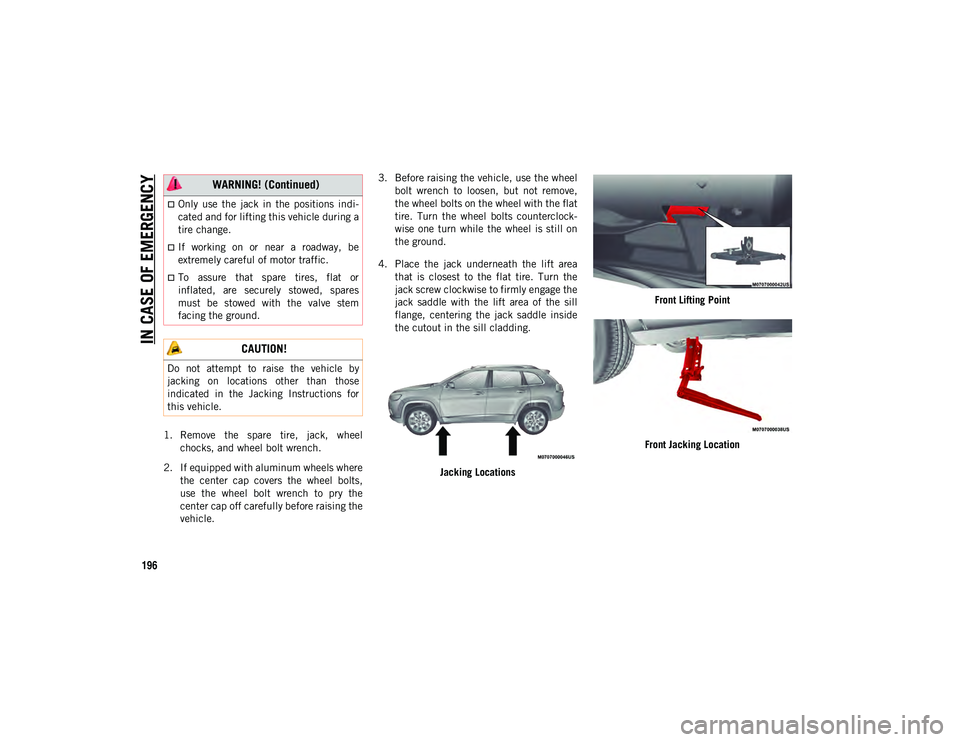

1. Remove the spare tire, jack, wheelchocks, and wheel bolt wrench.
2. If equipped with aluminum wheels where the center cap covers the wheel bolts,
use the wheel bolt wrench to pry the
center cap off carefully before raising the
vehicle. 3. Before raising the vehicle, use the wheel
bolt wrench to loosen, but not remove,
the wheel bolts on the wheel with the flat
tire. Turn the wheel bolts counterclock -
wise one turn while the wheel is still on
the ground.
4. Place the jack underneath the lift area that is closest to the flat tire. Turn the
jack screw clockwise to firmly engage the
jack saddle with the lift area of the sill
flange, centering the jack saddle inside
the cutout in the sill cladding.
Jacking Locations Front Lifting Point
Front Jacking Location
Only use the jack in the positions indi -
cated and for lifting this vehicle during a
tire change.
If working on or near a roadway, be
extremely careful of motor traffic.
To assure that spare tires, flat or
inflated, are securely stowed, spares
must be stowed with the valve stem
facing the ground.
CAUTION!
Do not attempt to raise the vehicle by
jacking on locations other than those
indicated in the Jacking Instructions for
this vehicle.
WARNING! (Continued)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 196

197

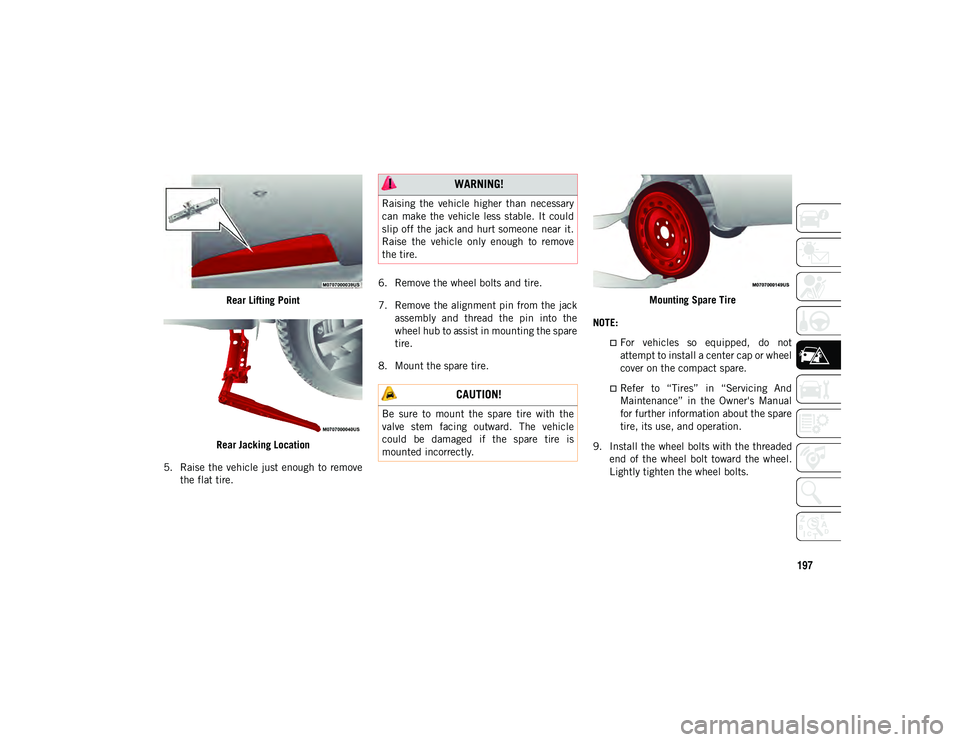

Rear Lifting Point
Rear Jacking Location
5. Raise the vehicle just enough to remove the flat tire. 6. Remove the wheel bolts and tire.
7. Remove the alignment pin from the jack
assembly and thread the pin into the
wheel hub to assist in mounting the spare
tire.
8. Mount the spare tire. Mounting Spare Tire
NOTE:
For vehicles so equipped, do not
attempt to install a center cap or wheel cover on the compact spare.
Refer to “Tires” in “Servicing And
Maintenance” in the Owner's Manual
for further information about the spare
tire, its use, and operation.
9. Install the wheel bolts with the threaded end of the wheel bolt toward the wheel.
Lightly tighten the wheel bolts.
WARNING!
Raising the vehicle higher than necessary
can make the vehicle less stable. It could
slip off the jack and hurt someone near it.
Raise the vehicle only enough to remove
the tire.
CAUTION!
Be sure to mount the spare tire with the
valve stem facing outward. The vehicle
could be damaged if the spare tire is
mounted incorrectly.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 197

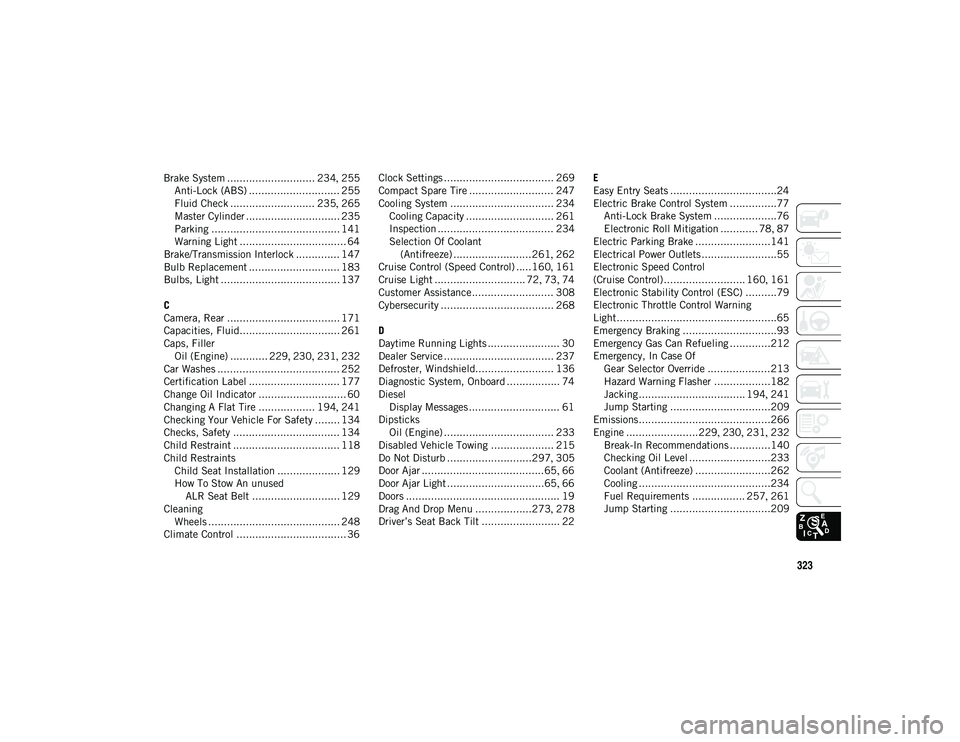

323
Brake System ............................ 234, 255
Anti-Lock (ABS) ............................. 255 Fluid Check ........................... 235 , 265
Master Cylinder .............................. 235
Parking ......................................... 141
Warning Light .................................. 64
Brake/Transmission Interlock .............. 147
Bulb Replacement ............................. 183
Bulbs, Light ...................................... 137
C
Camera, Rear .................................... 171
Capacities, Fluid................................ 261
Caps, Filler Oil (Engine) ............ 229 , 230 , 231 , 232
Car Washes ....................................... 252
Certification Label ............................. 177
Change Oil Indicator ............................ 60
Changing A Flat Tire .................. 194 , 241
Checking Your Vehicle For Safety ........ 134
Checks, Safety .................................. 134
Child Restraint .................................. 118
Child Restraints Child Seat Installation .................... 129
How To Stow An unused ALR Seat Belt ............................ 129
Cleaning Wheels .......................................... 248
Climate Control ................................... 36 Clock Settings ................................... 269
Compact Spare Tire ........................... 247
Cooling System ................................. 234
Cooling Capacity ............................ 261
Inspection ..................................... 234
Selection Of Coolant (Antifreeze) .........................261 , 262
Cruise Control (Speed Control) .....160 , 161
Cruise Light ............................. 72 , 73 , 74
Customer Assistance .......................... 308
Cybersecurity .................................... 268
D
Daytime Running Lights ....................... 30
Dealer Service ................................... 237
Defroster, Windshield......................... 136
Diagnostic System, Onboard ................. 74
Diesel Display Messages ............................. 61
Dipsticks Oil (Engine) ................................... 233
Disabled Vehicle Towing .................... 215
Do Not Disturb ...........................297 , 305
Door Ajar .......................................65 , 66
Door Ajar Light ...............................65 , 66
Doors ................................................. 19
Drag And Drop Menu ..................273 , 278
Driver’s Seat Back Tilt ......................... 22 E
Easy Entry Seats ..................................24
Electric Brake Control System ...............77
Anti-Lock Brake System ....................76
Electronic Roll Mitigation ............ 78 , 87
Electric Parking Brake ........................141
Electrical Power Outlets ........................55
Electronic Speed Control
(Cruise Control) .......................... 160 , 161
Electronic Stability Control (ESC) ..........79
Electronic Throttle Control Warning
Light ...................................................65
Emergency Braking ..............................93
Emergency Gas Can Refueling .............212
Emergency, In Case Of Gear Selector Override ....................213
Hazard Warning Flasher ..................182
Jacking .................................. 194 , 241
Jump Starting ................................209
Emissions..........................................266
Engine .......................229 , 230 , 231 , 232
Break-In Recommendations .............140 Checking Oil Level ..........................233
Coolant (Antifreeze) ........................262
Cooling ..........................................234Fuel Requirements ................. 257 , 261
Jump Starting ................................209
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 323

325
J
Jack Location .................................... 194
Jack Operation .......................... 194, 241
Jacking And Tire Changing ................. 194
Jump Starting ................................... 209
K
Key Fob Arm The System ............................... 18
Disarm The System .......................... 18
Keyless Enter-N-Go .............................. 19 Passive Entry ................................... 19
Keys ................................................... 13 Replacement ................................... 14
L
LaneSense ........................................ 168
Lap/Shoulder Belts ............................ 100
Latches............................................. 137 Hood ............................................... 52
Leaks, Fluid ...................................... 137
Life Of Tires ...................................... 244
Liftgate ............................................... 53 Closing ............................................ 53
Hands-Free ...................................... 54
Opening .......................................... 53
Light Bulbs ....................................... 137 Lights............................................... 137
Air Bag ............................ 64 , 108 , 135
Automatic Headlights ....................... 31
Automatic High Beam ...................... 31
Brake Assist Warning........................ 81
Brake Warning ................................. 64
Bulb Replacement ......................... 183
Cruise .................................. 72 , 73 , 74
Daytime Running ............................. 30
Electronic Stability Program(ESP) Indicator...................................... 66
Engine Temperature Warning ............ 66
Exterior ....................................30 , 137
Fog............................................32 , 71
High Beam .................................30 , 31
High Beam/Low Beam Select ............ 31
Hill Descent Control Indicator ........... 83
Lights On Reminder ......................... 32
Low Fuel ......................................... 68
Malfunction Indicator (Check Engine) 68
Park ..........................................31 , 73
Passing ........................................... 31
Seat Belt Reminder .......................... 64
Security Alarm ................................. 67
Service ......................................... 183
Tire Pressure Monitoring (TPMS) ....... 93
Traction Control ............................... 81
Turn Signals ....................... 33 , 73 , 137
Warning Instrument Cluster Descriptions ............................66 , 73 Loading Vehicle .................................177
Locks
Child Protection ...............................22
Low Tire Pressure System .....................93
Lug Nuts/Bolts ...................................256
Luggage Carrier ....................................57
M
Maintenance........................................51
Maintenance Free Battery ...................236
Maintenance Schedule .......................218
Malfunction Indicator Light
(Check Engine) ....................................68
Manual Transmission.................. 143 , 236
Fluid Level Check ...........................236
Lubricant Selection.........................265
Shift Speeds ..................................144
Media Hub ........................................286
Memory Feature (Memory Seats)............23
Mirrors ................................................29
Modifications/Alterations Vehicle ..............................................4
Monitor, Tire Pressure System ...............93
Mopar Accessories .............................266
MP3 Control ......................................286
Multi-Function Control Lever .................30
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 325

326
INDEX
N
Navigation ........................................ 287
New Vehicle Break-In Period ............... 140
O
Occupant Restraints............................. 98
Octane Rating, Gasoline (Fuel) ............ 262
Oil Pressure Light ................................ 66
Oil, Engine ........................................ 262 Capacity ........................................ 261
Checking ....................................... 233
Dipstick ........................................ 233
Filter............................................. 262
Pressure Warning Light ..................... 66
Recommendation ........................... 261Viscosity ........................................ 261
Onboard Diagnostic System .................. 74
Operating Precautions .......................... 74
Operator Manual Owner's Manual ................................. 2
Overheating, Engine ........................... 212
P
Paddle Shifters .................................. 148
Parking Brake .................................... 141
ParkSense Active Park Assist .............. 168
ParkSense System, Rear ............. 164 , 166
Passive Entry....................................... 19
Personalized Main Menu .................... 273
Pets ................................................. 134 Phone (Uconnect).............................. 290
Pairing .......................................... 292
Phonebook ........................................ 296
Pinch Protection.................................. 51
Power Brakes .......................................... 255
Inverter ........................................... 56
Outlet (Auxiliary Electrical Outlet) ..... 55
Windows ......................................... 47
Pregnant Women And Seat Belts......... 106
Preparation For Jacking...................... 194
Pretensioners Seat Belts ..................................... 106
R
Radial Ply Tires ................................. 243
Radio ............................................... 277 Presets .......................... 270 , 274 , 279
Radio Operation .........................269 , 272
Radio Screens ............................272 , 277
Rain Sensitive Wiper System ................ 35
Rear Camera ..................................... 171
Rear Cross Path................................... 89
Rear ParkSense System ..............164 , 166
Rear Wiper/Washer .............................. 36
Recreational Towing .......................... 180
Release, Hood ..................................... 52
Reminder, Lights On ............................ 32
Reminder, Seat Belt ............................ 99 Remote Control
Starting System ................................17
Remote Keyless Entry ...........................14 Arm The Alarm .................................18
Disarm The Alarm .............................18
Remote Starting System .......................17
Replacement Keys ...............................14
Replacement Tires .............................245
Restraints, Child ................................118
Restraints, Head ..................................26
Roll Over Warning ..................................2
Roof Type Carrier .................................57
Rotation, Tires ...................................250
S
Safety Checks Inside Vehicle ...............135
Safety Checks Outside Vehicle.............137
Safety Tips ........................................134
Schedule, Maintenance ......................218
Seat Belt Reminder ..............................64
Seat Belts ................................... 99 , 135
Adjustable Shoulder Belt .................103
Adjustable Upper Shoulder Anchorage ..................................103
Adjustable Upper Shoulder Belt Anchorage ..................................103

Automatic Locking Retractor (ALR) ... 106

Child Restraints..............................118
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 326

327
Energy Management Feature ........... 106
Front Seat ........................99, 100 , 102
Inspection ..................................... 135
Lap/Shoulder Belt Operation............ 102
Lap/Shoulder Belt Untwisting .......... 103
Lap/Shoulder Belts ......................... 100
Operating Instructions .................... 102
Pregnant Women ............................ 106 Pretensioners ................................. 106
Rear Seat ...................................... 100
Reminder ........................................ 99
Seat Belt Pretensioner .................... 106
Seat Belt Reminder .......................... 99
Untwisting Procedure ..................... 103
Seat Belts Maintenance...................... 253
Seats .................................................. 22 Adjustment ...................................... 22
Easy Entry ....................................... 24
Head Restraints ............................... 26
Heated ...................................... 24 , 25
Memory ........................................... 23
Rear Folding .................................... 22
Tilting ............................................. 22
Ventilated ........................................ 25
Security Alarm............................... 18 , 67
Arm The System ............................... 18
Disarm The System .......................... 18
Selec-Terrain..................................... 153
Selection Of Coolant (Antifreeze) ......... 262 Sentry Key Replacement ...................... 14
Service Assistance ............................. 308
Shift Lever Override ........................... 213
Shifting Automatic Transmission ................. 147Manual Transmission ..................... 143
Shoulder Belts .................................. 100
Signals, Turn ...............................73 , 137
Siri .................................................. 305
Snow Chains (Tire Chains) .................. 249
Snow Tires ........................................ 246
Spare Tires ................................246 , 247
Spark Plugs ...................................... 262
Specifications Fuel (Gasoline) .............................. 262
Oil ................................................ 262
Speed Control Accel/Decel ................................... 160
Cancel ...................................160 , 161
Resume ........................................ 160
Set ............................................... 160
Speed Control (Cruise Control) .....160 , 161
Speed Limiter, Active ........................ 159
Starting ............................................ 138 Button ............................................ 15
Remote ........................................... 17
Starting Procedures ........................... 138
Steering Tilt Column ..................................... 28
Wheel, Heated ................................. 28 Steering Wheel Audio Controls.............286
Stop/Start............................................73
Storage, Vehicle ...................................46
Stuck, Freeing ...................................214
Sun Roof ....................................... 49
, 51
Closing ............................................49 Opening...........................................49
Sunshade Operation .............................49
Sway Control, Trailer ............................87
System, Remote Starting ......................17
T
Temperature Control,
Automatic (ATC) ..................................45
Text Messages ........................... 271 , 297
Time Delay Headlight.........................................32
Tire Service Kit ...........203 , 204 , 208 , 209
Tires ..........................137 , 241 , 246 , 247
Aging (Life Of Tires)........................244
Air Pressure ...................................241
Chains ...........................................249 Changing ............................... 194 , 241
Compact Spare...............................247
General Information ........ 241 , 246 , 247
High Speed ....................................242
Inflation Pressure ...........................242
Jacking .................................. 194 , 241
Life Of Tires ...................................244
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 327
