Page 18 of 456
4. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds, a single chime will sound. The SKIM indicator
light will stop flashing, turn on for 3 seconds; then turn
off.
The new Sentry Key has been programmed. Repeat this
process to program up to a total of 8 keys.
General Information
The Sentry Key Immobilizer System complies with FCC
rules part 15 and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors, liftgate, liftgate
flipper glass, and ignition for unauthorized operation
and movement inside of the vehicle. When the alarm is
activated, the system provides both audible and visual
signals. The horn will sound repeatedly for three minutes
and the headlights and taillights will flash for an addi-
tional 15 minutes.
To Set the Alarm
The alarm will set when you use the remote keyless entry
transmitter to lock the doors and liftgate or when you use
the power door lock switch while the door is open. After
all the doors are locked and closed, a red light (located in
the instrument cluster) will flash rapidly for about 16
seconds to signal that the system is arming. During this
16 second pre-arm period, opening any door or the
liftgate will cancel the arming. If the system successfully
arms, the red light will flash at a slower rate to indicate
the alarm is set. A manual lock of the doors, either with
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 456
To Unlock the Doors
Press and release the “Unlock” button on the transmitter
once to unlock the driver’s door, or twice to unlock all
doors. The turn signal lights will flash twice to acknowl-
edge the unlock signal. The illuminated entry system also
turns on.NOTE:If desired, the system can be programmed to
unlock all doors on the first press of the “Unlock” button.
Refer to “Remote Unlock Driver’s Door 1st” in the
Personal Settings section of the “Electronic Vehicle Infor-
mation Center (EVIC)”, or simply follow these steps:
1. Press and hold the “Lock” button for 4 to 10 seconds.
2. While the “Lock” button is pressed, (after 4 seconds)
press the “Unlock” button. Release both buttons.
The “Remote Unlock Driver’s Door 1st” feature can be
reactivated by repeating this procedure.
To Lock the Doors
Press and release the “Lock” button on the transmitter to
lock all doors. The turn signal lights will flash once to
acknowledge the lock signal. The horn will chirp once to
acknowledge the signal. If desired, the “Sound Horn On
Lock” feature can be turned on and off by referring to the
Six Button Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 34 of 456
Once the liftgate flipper glass has been opened, connec-
tion to the rear window wiper is interrupted, preventing
activation of the rear wiper blade while the flipper glass
is open.
WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once theliftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.
When the remote keyless entry transmitter button is
pressed two times and the “Lamp Flash” feature is
enabled, the turn signals will flash twice to signal that the
liftgate is opening or closing.Power Liftgate Switch
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 456
NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
A beeping signal will sound two seconds before the
liftgate starts to open or close.
NOTE:
•If anything obstructs the power liftgate while it isclosing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
•There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
•The power liftgate must be in the full open position for
any of the buttons to operate. If the liftgate is not fully
open, press the remote keyless entry transmitter to
fully open the liftgate and then press again to close.
•If the liftgate handle is pulled while the power liftgate
is closing, the liftgate will reverse to the full open
position.
•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 70 of 456

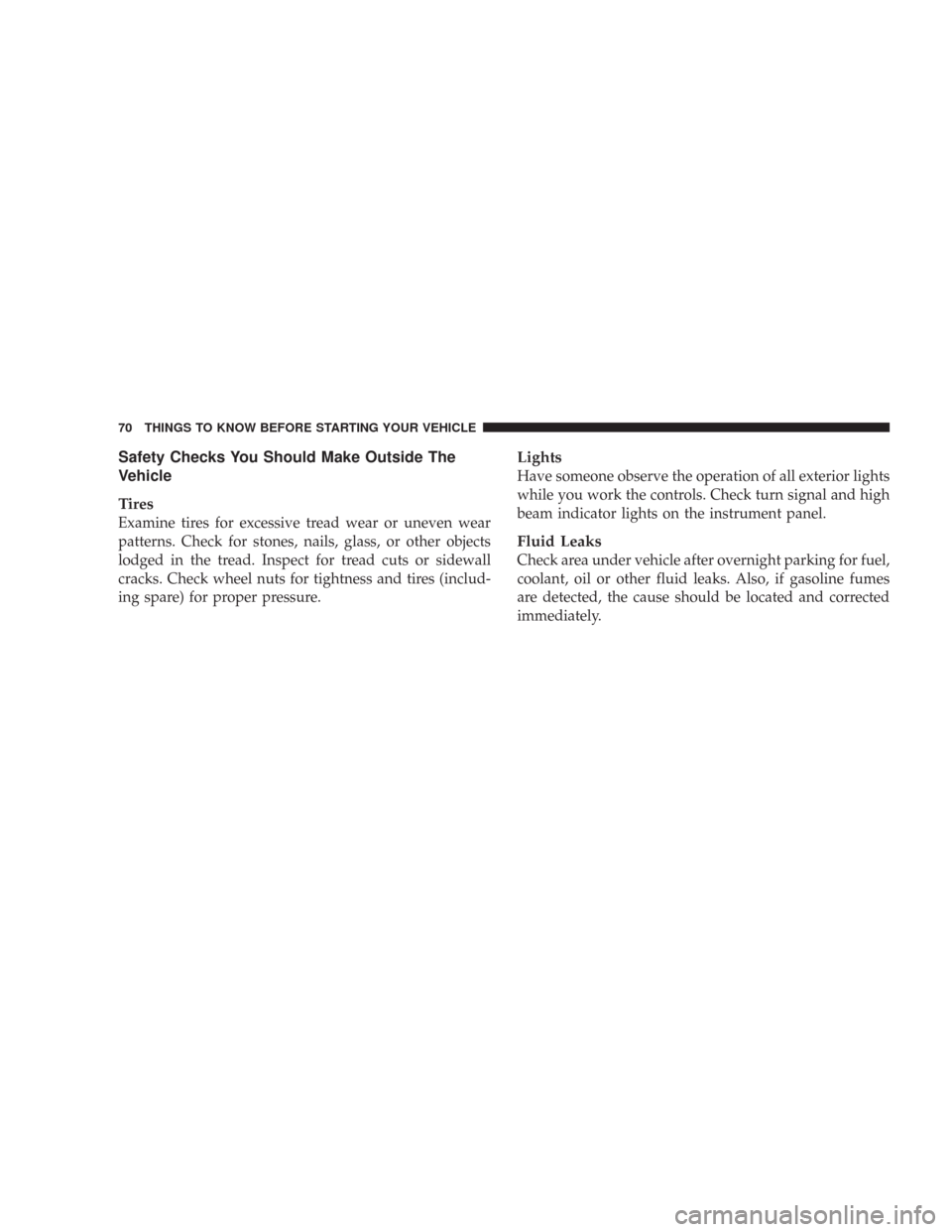

Safety Checks You Should Make Outside The
Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires (includ-
ing spare) for proper pressure.
Lights
Have someone observe the operation of all exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
coolant, oil or other fluid leaks. Also, if gasoline fumes
are detected, the cause should be located and corrected
immediately.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 73 of 456
▫Daytime Running Lights — If Equipped.....123
▫Lights-On Reminder...................123
▫Fog Lights — If Equipped...............123
▫Turn Signals.........................124
▫High Beam Switch....................124
▫Passing Light........................124
▫Headlight Time Delay..................124
▫Interior Lights.......................125
▫Courtesy/Reading Lights................125
Windshield Wipers And Washers............126
▫Mist...............................127
▫Speed Sensitive Intermittent Wiper System . . . 127
▫Rain Sensing Wipers—If Equipped.........128Tilt Steering Column....................130
Adjustable Pedals — If Equipped...........130
Electronic Speed Control..................132
▫To Activate..........................132
▫To Set At a Desired Speed...............132
▫To Deactivate........................132
▫To Resume Speed.....................133
▫To Vary The Speed Setting...............133
▫To Accelerate For Passing...............133
▫Driving Up Or Down Hills..............134
Electronic Brake Control System............135
▫ABS (Anti-Lock Brake System)............135
▫TCS (Traction Control System)............136
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3
Page 94 of 456
Barge In - Overriding Prompts
The ’Voice Recognition’ button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is playingWould you like to pair a phone, clear
a,you could press the ’Voice Recognition’ button and
sayPair a Phoneto select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect™
system will not repeat a phone number before you dial
it).
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations.The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect™ system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect™. The status is given for roaming net-
work signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnect™ system (while
dialing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth™ cellular
phone, the audio will be played through your vehicle’s
audio system. The UConnect™ system will work the
same as if you dial the number using voice recognition.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 119 of 456
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
LIGHTS
Multi-Function Control Lever
The multi-function control lever controls the operation of
the headlights, turn signals, headlight beam selection,
instrument panel light dimming, passing light, interior
courtesy/dome lights, and optional fog lights.
Multi-Function Control Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3
Page 124 of 456
Turn Signals
Move the multi-function control lever up or down and
the arrows on each side of the instrument cluster will
flash to show proper operation of the front and rear turn
signal lights. You can signal a lane change by moving the
lever partially up or down.
Turn Signal Auto-Mode
Tap the multi-function control lever once and the turn
signal (left or right) will flash 3 times, and automatically
turn off.
High Beam Switch
Pull the multi-function control lever towards you to
switch the headlights to “High” beam. The “High Beam
Indicator Light” on the instrument cluster will illumi-
nate. Pull the multi-function control lever a second time
to switch the headlights to “Low” beam.
Passing Light
You can signal another vehicle with your headlights by
lightly pulling the multi-function control lever toward
the steering wheel. This will cause the headlights to turn
on at high beam and remain on until the lever is released.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60, or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multi-
function control lever must be rotated to the “Off”
position after the ignition switch is turned OFF. Only the
headlights will illuminate during this time. Refer to
“EVIC- Customer Programmable Features” in Section 4
to turn this feature “On/Off” or set the time interval.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 130 of 456
TILT STEERING COLUMN
To tilt the column, push down on the lever below the turn
signal control and move the wheel up or down, as
desired. Pull the lever back towards you and firmly push
the lever until it is above the lower surface of the shroud
to lock the column in place.WARNING!
Tilting the steering wheel column while the vehicle
is moving is dangerous. Without a stable steering
column, you could lose control of the vehicle and
have an accident. Adjust the tilting mechanism only
while the vehicle is stopped. Be sure it is locked
before driving.
ADJUSTABLE PEDALS — IF EQUIPPED
This feature allows both the brake and accelerator pedals
to move toward the driver to provide improved position
with the steering wheel. The adjustable pedal system is
designed to allow a greater range of driver comfort for
steering wheel tilt and seat position. The position of the
brake and accelerator pedals can be adjusted without
compromising safety or comfort in actuating the pedals.
Tilt Steering Column
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
