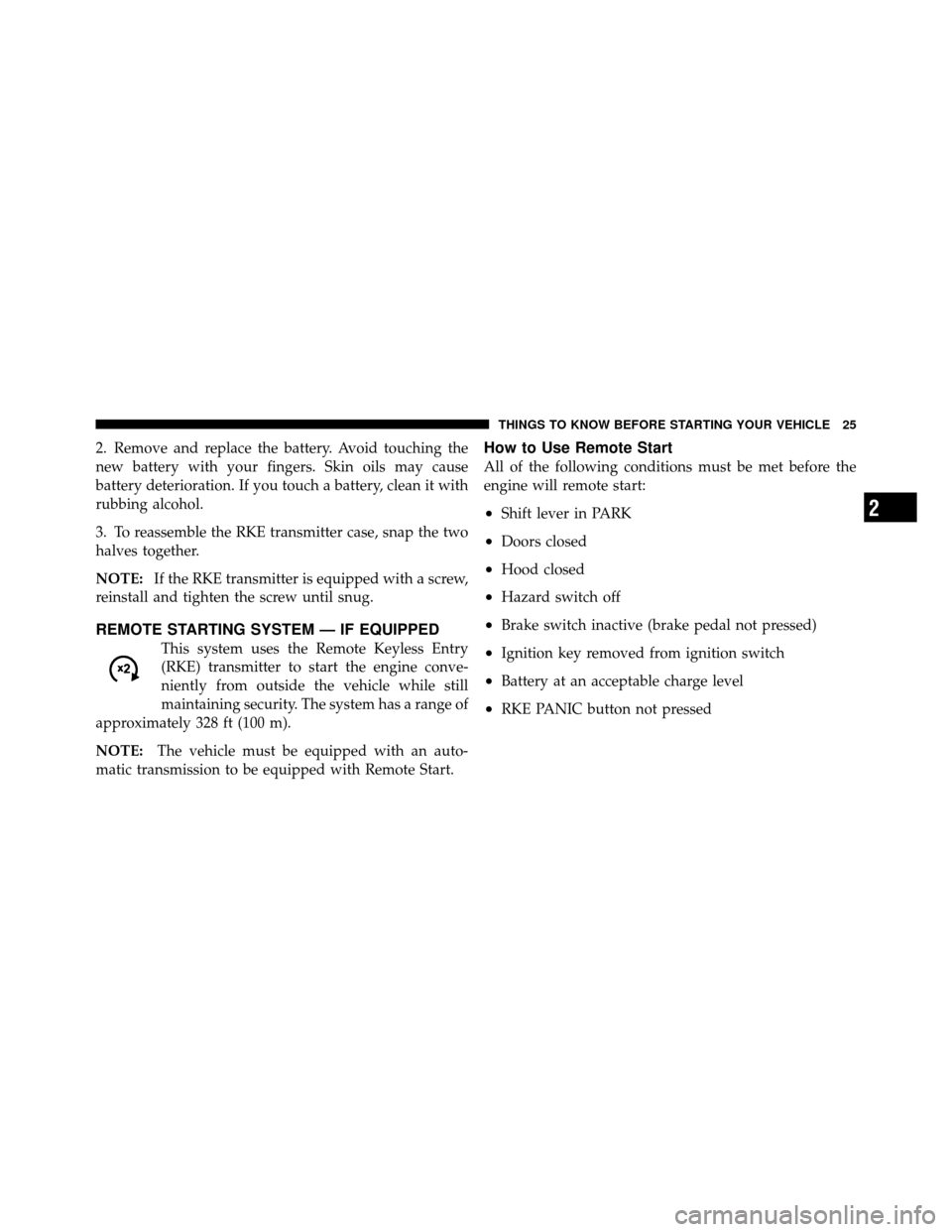

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves together.
NOTE:If the RKE transmitter is equipped with a screw,
reinstall and tighten the screw until snug.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 328 ft (100 m).
NOTE: The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How to Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

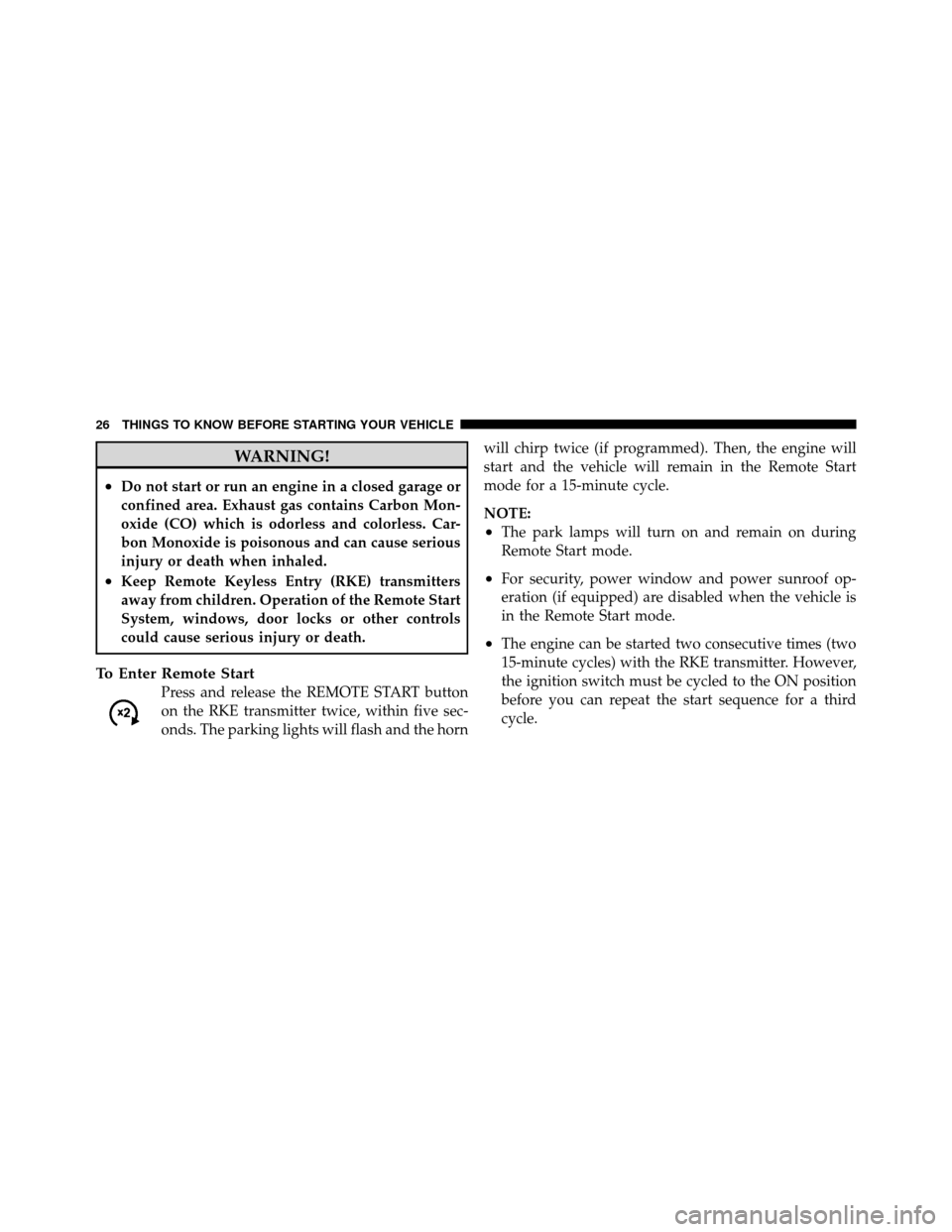

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the hornwill chirp twice (if programmed). Then, the engine will
start and the vehicle will remain in the Remote Start
mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

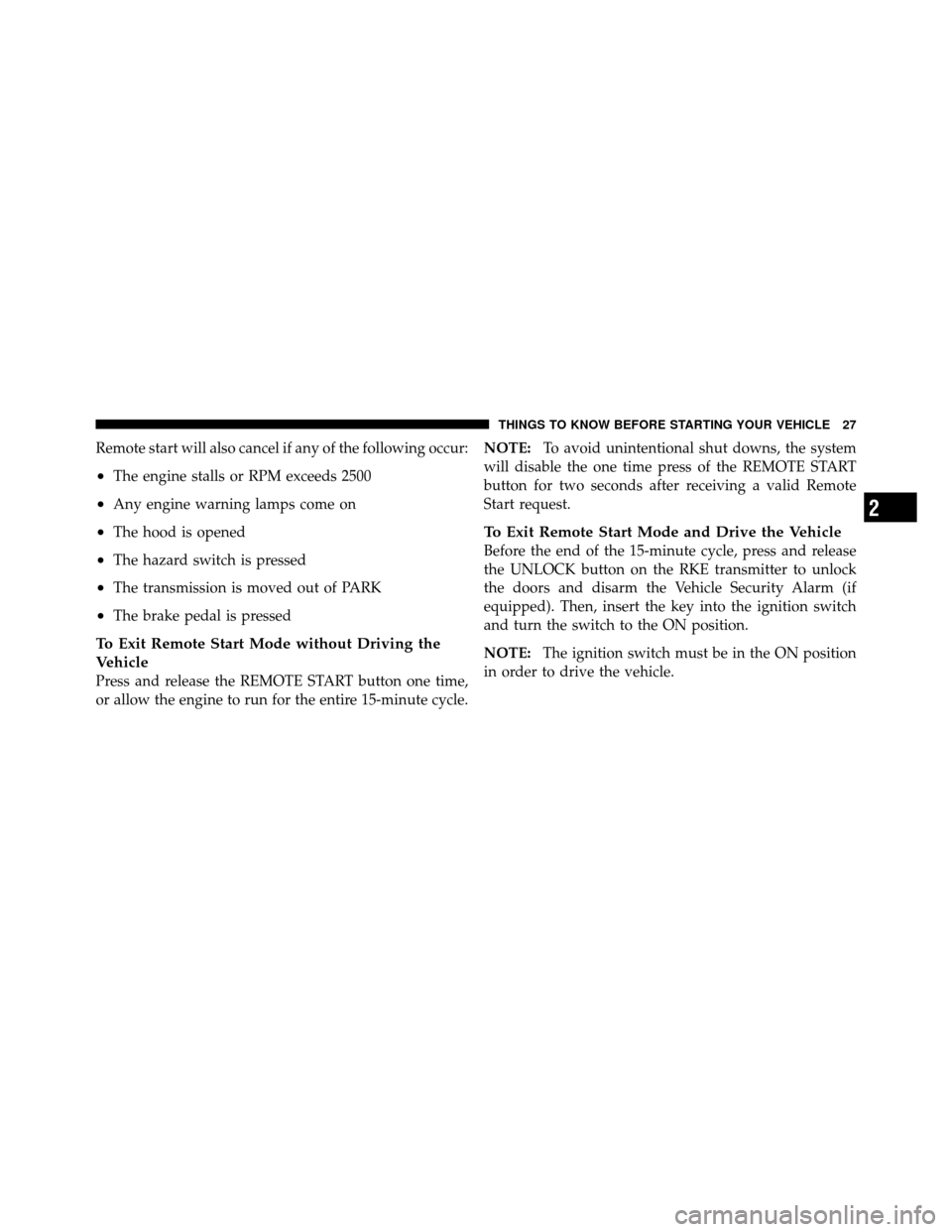

Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.NOTE:
To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, insert the key into the ignition switch
and turn the switch to the ON position.
NOTE: The ignition switch must be in the ON position
in order to drive the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

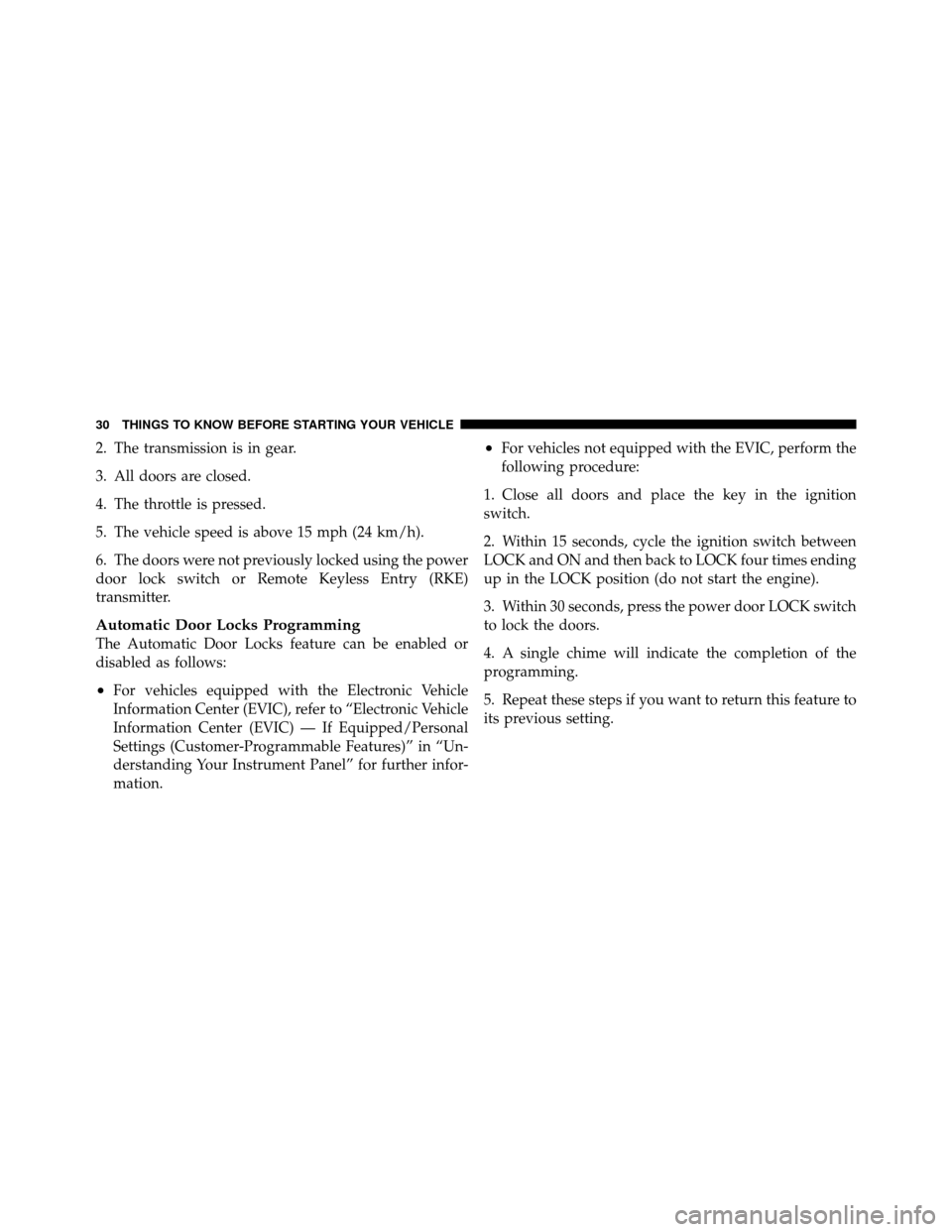

2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC) — If Equipped/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition
switch.
2. Within 15 seconds, cycle the ignition switch between
LOCK and ON and then back to LOCK four times ending
up in the LOCK position (do not start the engine).
3. Within 30 seconds, press the power door LOCK switch
to lock the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

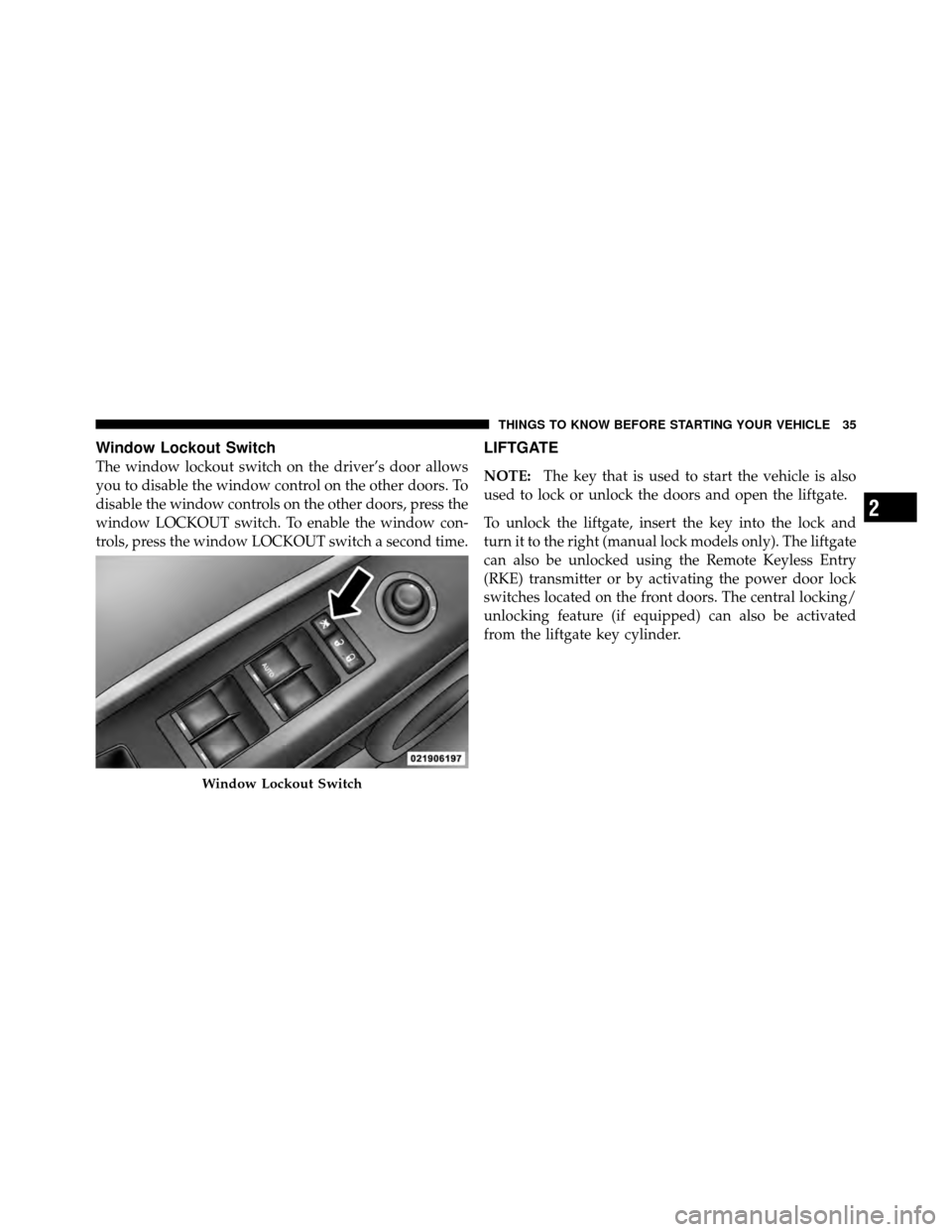

Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window LOCKOUT switch. To enable the window con-
trols, press the window LOCKOUT switch a second time.
LIFTGATE
NOTE:The key that is used to start the vehicle is also
used to lock or unlock the doors and open the liftgate.
To unlock the liftgate, insert the key into the lock and
turn it to the right (manual lock models only). The liftgate
can also be unlocked using the Remote Keyless Entry
(RKE) transmitter or by activating the power door lock
switches located on the front doors. The central locking/
unlocking feature (if equipped) can also be activated
from the liftgate key cylinder.
Window Lockout Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

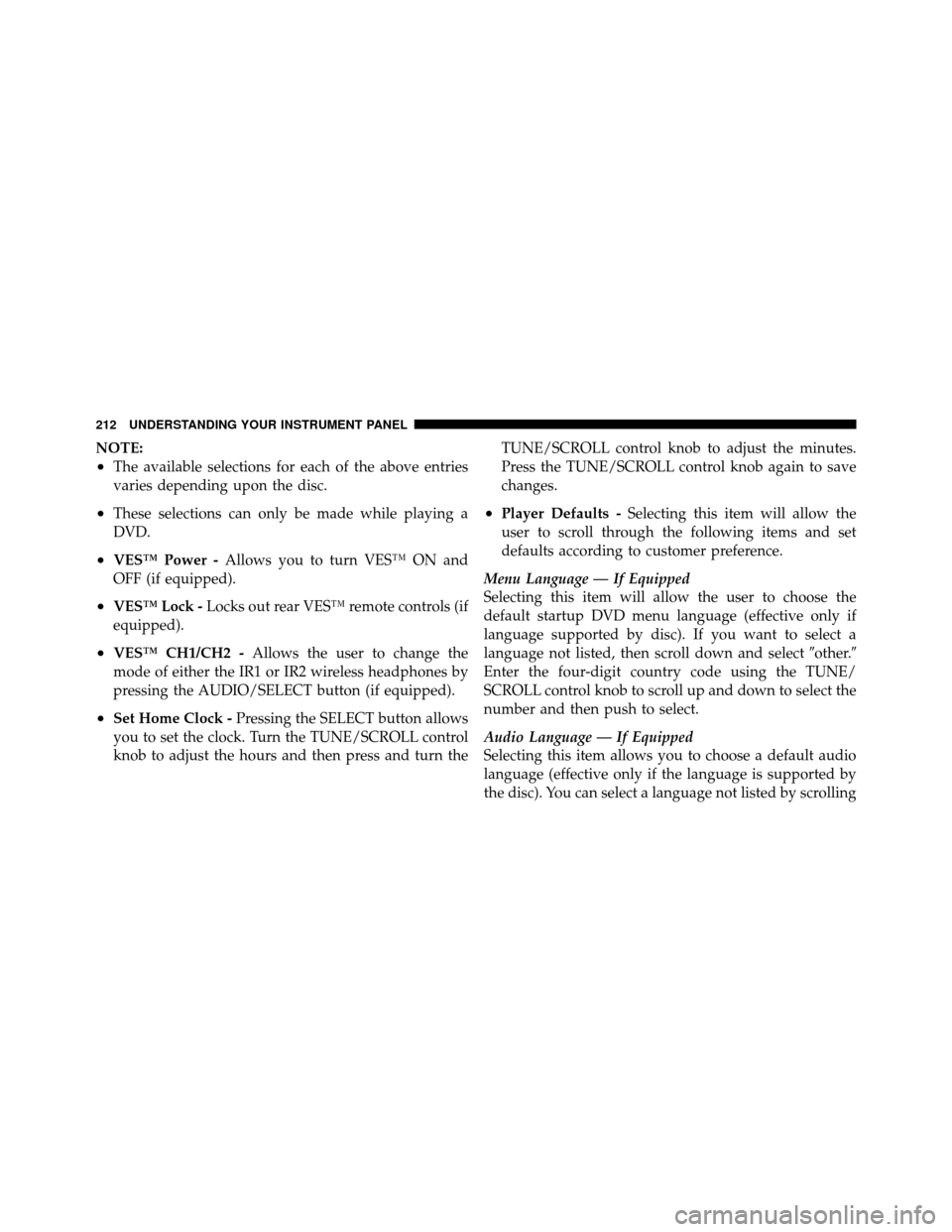

NOTE:
•The available selections for each of the above entries
varies depending upon the disc.
•These selections can only be made while playing a
DVD.
•VES™ Power -Allows you to turn VES™ ON and
OFF (if equipped).
•VES™ Lock - Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 - Allows the user to change the
mode of either the IR1 or IR2 wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults -
Selecting this item will allow the
user to scroll through the following items and set
defaults according to customer preference.
Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select other.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.
Audio Language — If Equipped
Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
212 UNDERSTANDING YOUR INSTRUMENT PANEL

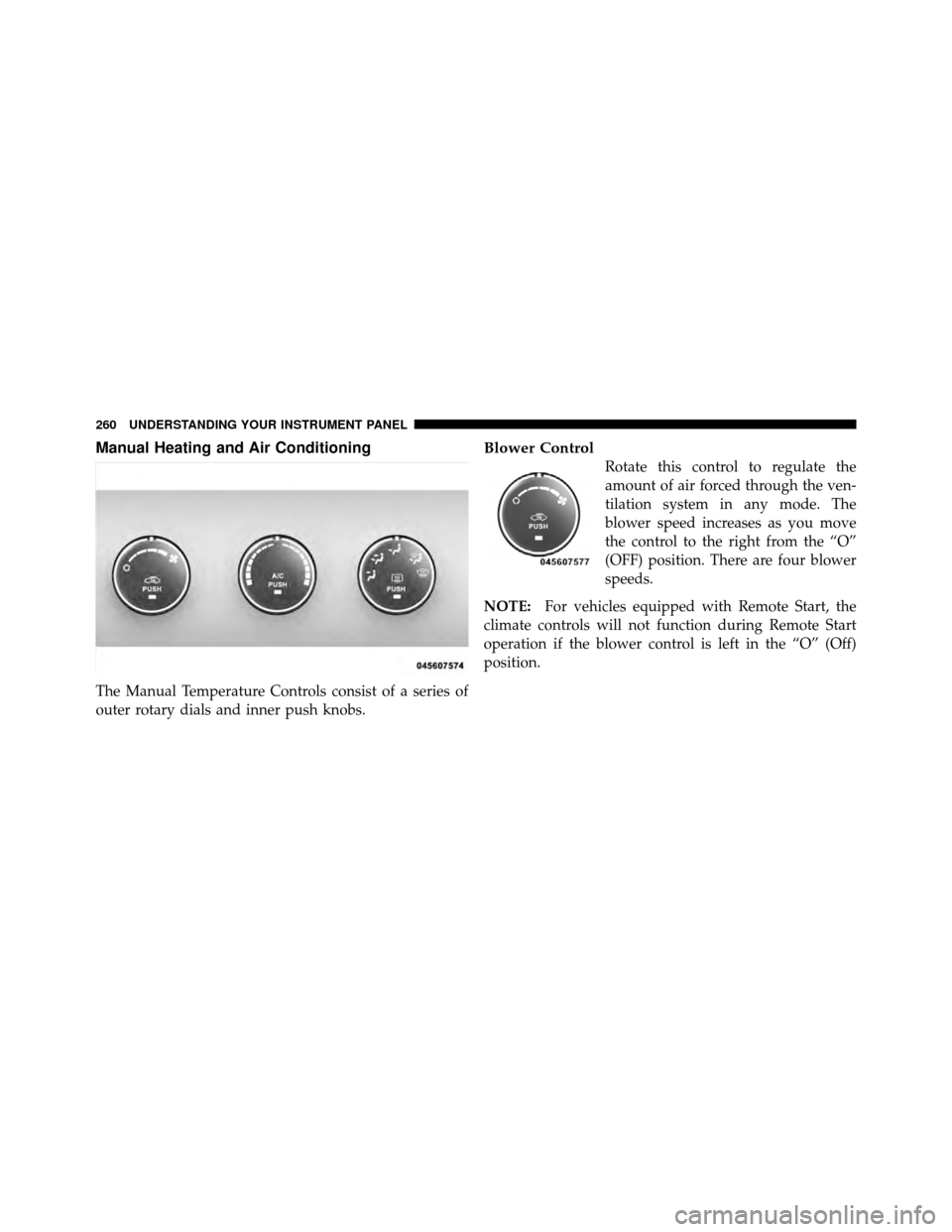

Manual Heating and Air Conditioning
The Manual Temperature Controls consist of a series of
outer rotary dials and inner push knobs.
Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
260 UNDERSTANDING YOUR INSTRUMENT PANEL

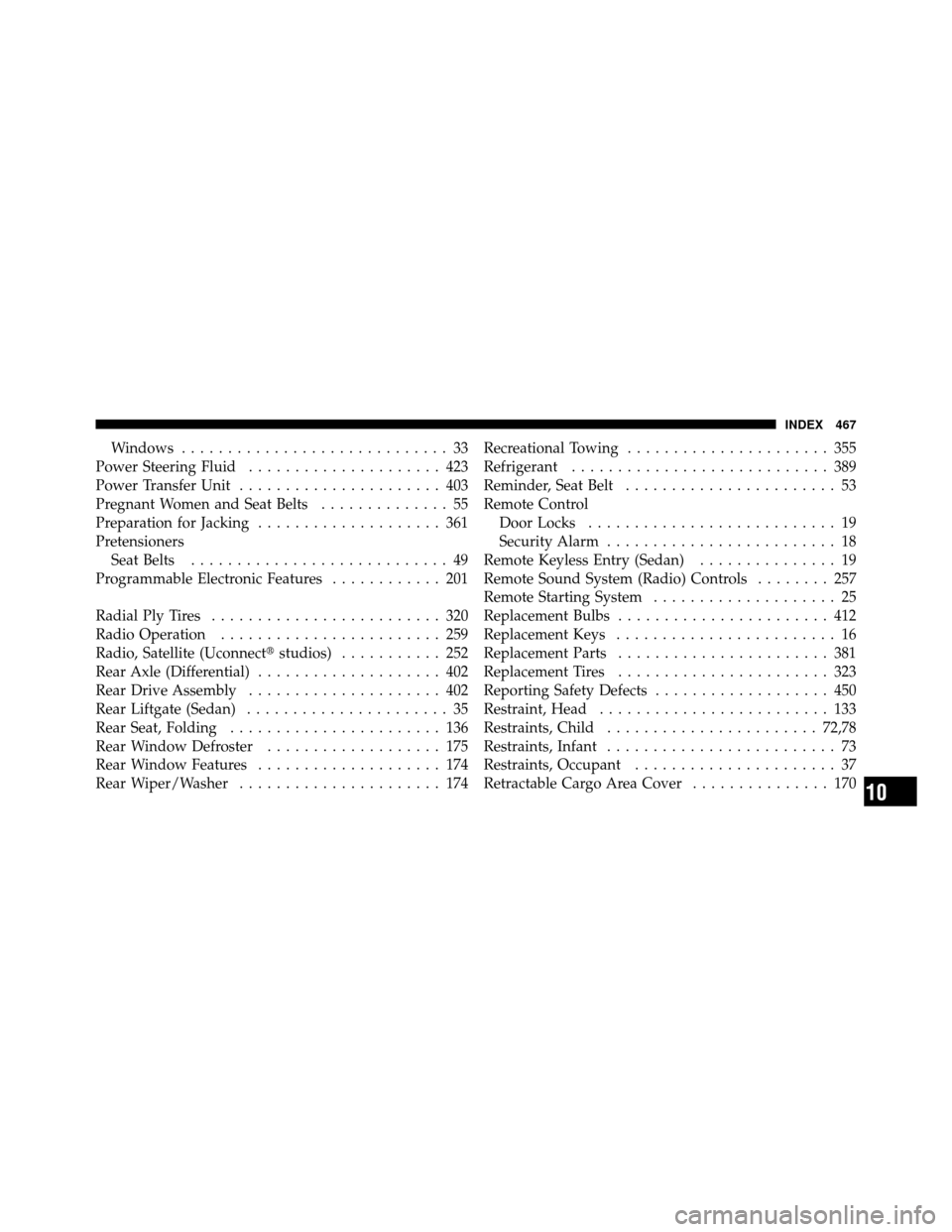

Windows............................. 33
Power Steering Fluid ..................... 423
Power Transfer Unit ...................... 403
Pregnant Women and Seat Belts .............. 55
Preparation for Jacking .................... 361
Pretensioners Seat Belts ............................ 49
Programmable Electronic Features ............ 201
Radial Ply Tires ......................... 320
Radio Operation ........................ 259
Radio, Satellite (Uconnect studios)........... 252
Rear Axle (Differential) .................... 402
Rear Drive Assembly ..................... 402
Rear Liftgate (Sedan) ...................... 35
Rear Seat, Folding ....................... 136
Rear Window Defroster ................... 175
Rear Window Features .................... 174
Rear Wiper/Washer ...................... 174 Recreational Towing
...................... 355
Refrigerant ............................ 389
Reminder, Seat Belt ....................... 53
Remote Control Door Locks ........................... 19
Security Alarm ......................... 18
Remote Keyless Entry (Sedan) ............... 19
Remote Sound System (Radio) Controls ........ 257
Remote Starting System .................... 25
Replacement Bulbs ....................... 412
Replacement Keys ........................ 16
Replacement Parts ....................... 381
Replacement Tires ....................... 323
Reporting Safety Defects ................... 450
Restraint, Head ......................... 133
Restraints, Child ....................... 72,78
Restraints, Infant ......................... 73
Restraints, Occupant ...................... 37
Retractable Cargo Area Cover ............... 170
10
INDEX 467

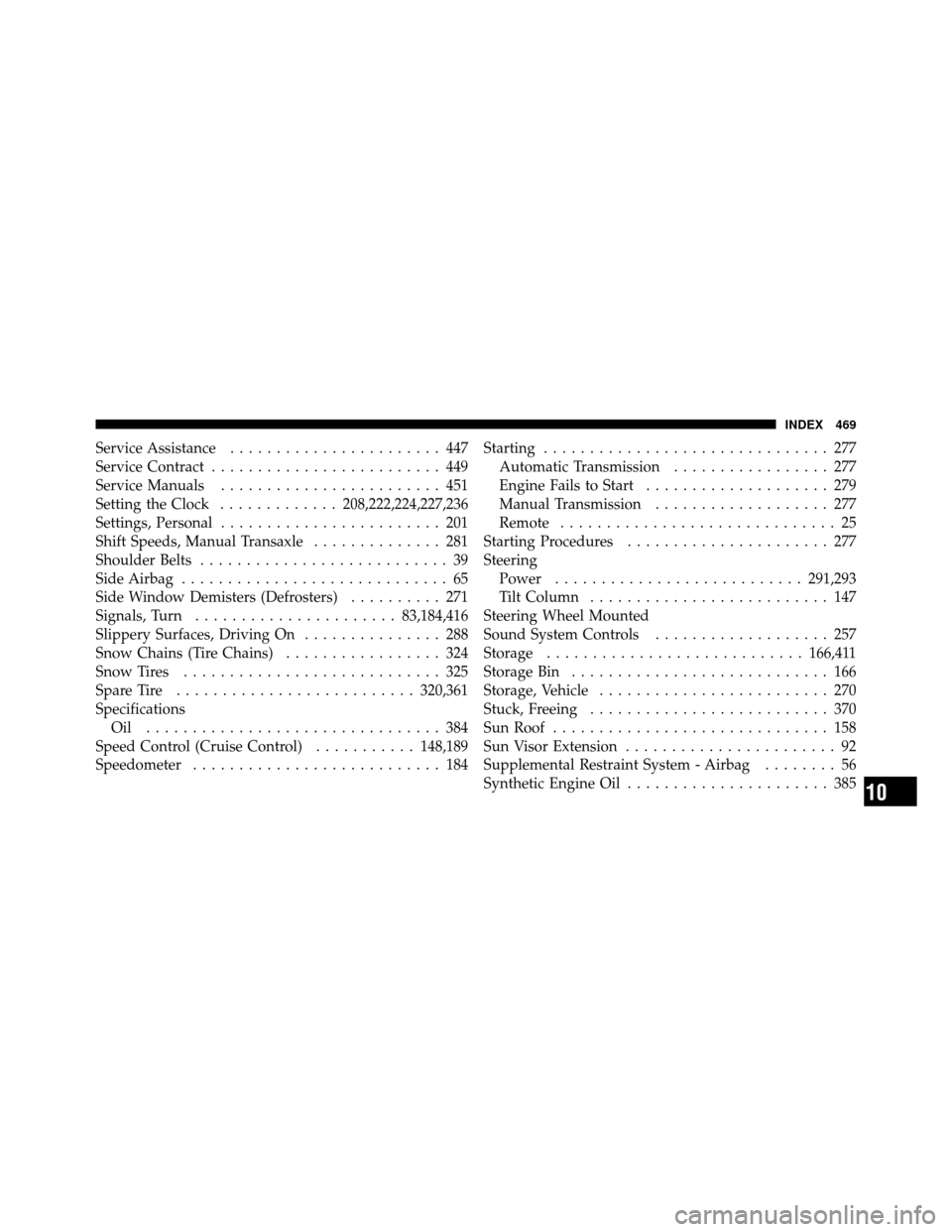

Service Assistance....................... 447
Service Contract ......................... 449
Service Manuals ........................ 451
Setting the Clock .............208,222,224,227,236
Settings, Personal ........................ 201
Shift Speeds, Manual Transaxle .............. 281
Shoulder Belts ........................... 39
Side Airbag ............................. 65
Side Window Demisters (Defrosters) .......... 271
Signals, Turn ...................... 83,184,416
Slippery Surfaces, Driving On ............... 288
Snow Chains (Tire Chains) ................. 324
Snow Tires ............................ 325
Spare Tire .......................... 320,361
Specifications Oil ................................ 384
Speed Control (Cruise Control) ...........148,189
Speedometer ........................... 184 Starting
............................... 277
Automatic Transmission ................. 277
Engine Fails to Start .................... 279
Manual Transmission ................... 277
Remote .............................. 25
Starting Procedures ...................... 277
Steering Power ........................... 291,293
Tilt Column .......................... 147
Steering Wheel Mounted
Sound System Controls ................... 257
Storage ............................ 166,411
Storage Bin ............................ 166
Storage, Vehicle ......................... 270
Stuck, Freeing .......................... 370
Sun Roof .............................. 158
Sun Visor Extension ....................... 92
Supplemental Restraint System - Airbag ........ 56
Synthetic Engine Oil ...................... 385
10
INDEX 469

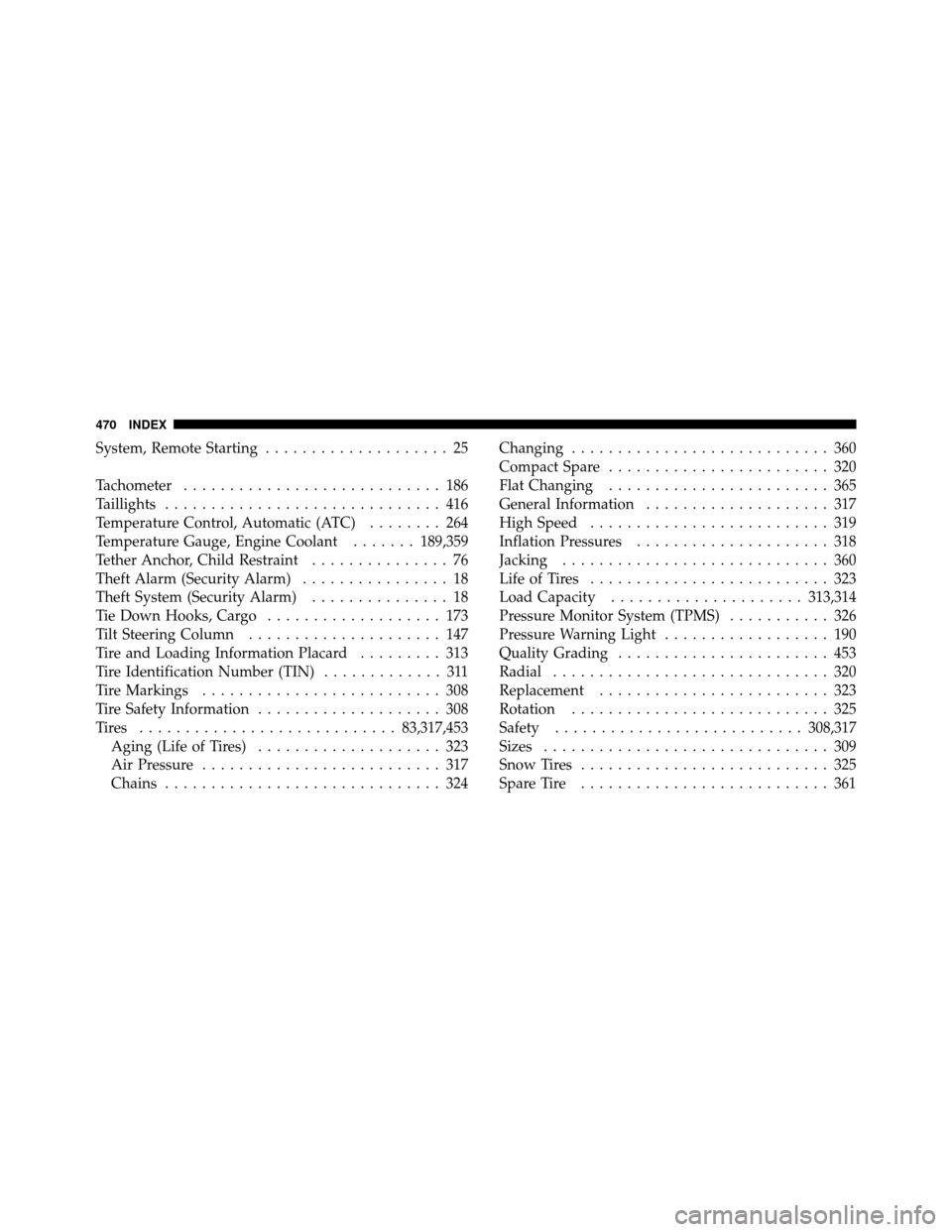

System, Remote Starting.................... 25
Tachometer ............................ 186
Taillights .............................. 416
Temperature Control, Automatic (ATC) ........ 264
Temperature Gauge, Engine Coolant .......189,359
Tether Anchor, Child Restraint ............... 76
Theft Alarm (Security Alarm) ................ 18
Theft System (Security Alarm) ............... 18
Tie Down Hooks, Cargo ................... 173
Tilt Steering Column ..................... 147
Tire and Loading Information Placard ......... 313
Tire Identification Number (TIN) ............. 311
Tire Markings .......................... 308
Tire Safety Information .................... 308
Tires ............................ 83,317,453
Aging (Life of Tires) .................... 323
Air Pressure .......................... 317
Chains .............................. 324 Changing
............................ 360
Compact Spare ........................ 320
Flat Changing ........................ 365
General Information .................... 317
High Speed .......................... 319
Inflation Pressures ..................... 318
Jacking ............................. 360
Life of Tires .......................... 323
Load Capacity ..................... 313,314
Pressure Monitor System (TPMS) ........... 326
Pressure Warning Light .................. 190
Quality Grading ....................... 453
Radial .............................. 320
Replacement ......................... 323
Rotation ............................ 325
Safety ........................... 308,317
Sizes ............................... 309
Snow Tires ........................... 325
Spare Tire ........................... 361
470 INDEX
