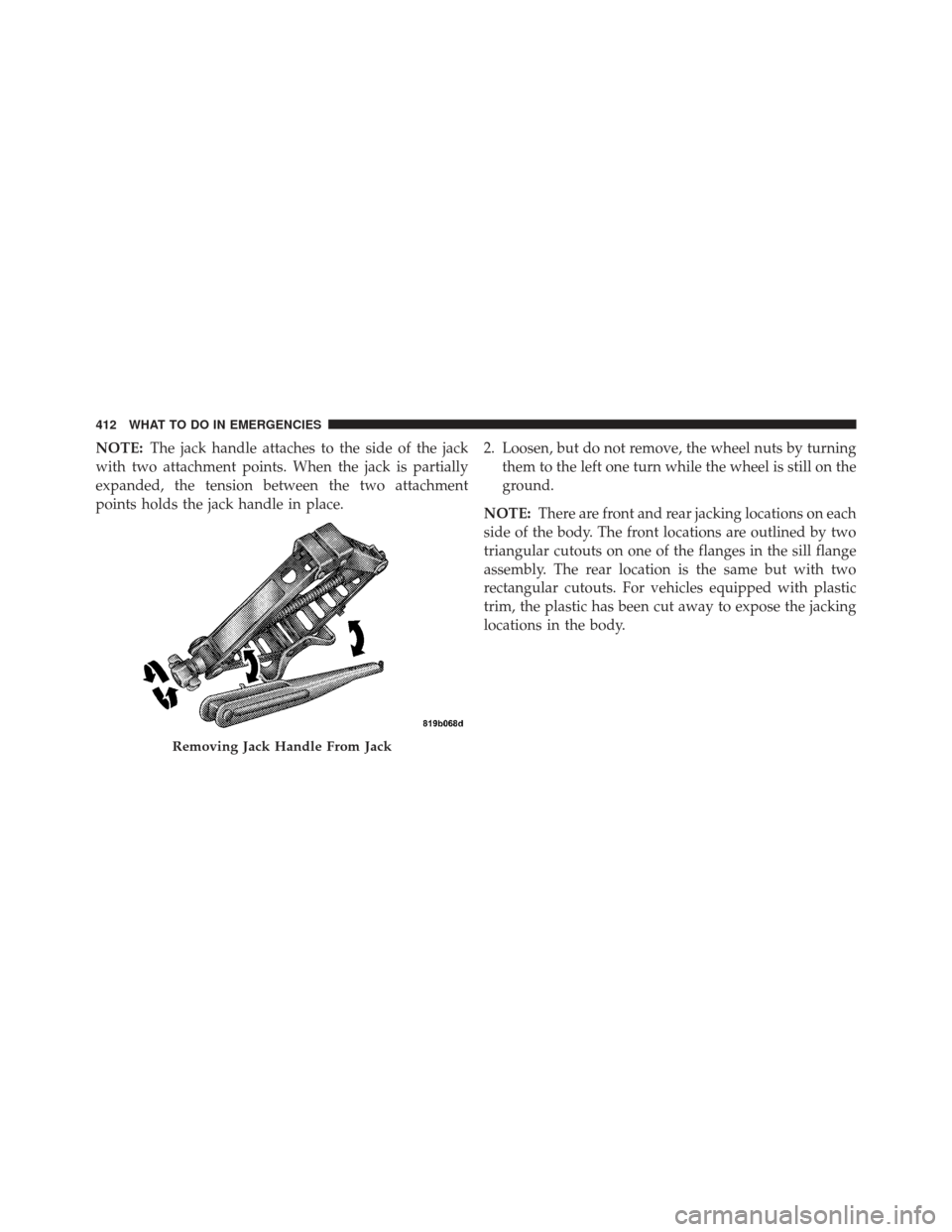

NOTE:The jack handle attaches to the side of the jack
with two attachment points. When the jack is partially
expanded, the tension between the two attachment
points holds the jack handle in place. 2. Loosen, but do not remove, the wheel nuts by turning
them to the left one turn while the wheel is still on the
ground.
NOTE: There are front and rear jacking locations on each
side of the body. The front locations are outlined by two
triangular cutouts on one of the flanges in the sill flange
assembly. The rear location is the same but with two
rectangular cutouts. For vehicles equipped with plastic
trim, the plastic has been cut away to expose the jacking
locations in the body.
Removing Jack Handle From Jack
412 WHAT TO DO IN EMERGENCIES
