height JEEP COMPASS 2013 1.G User Guide

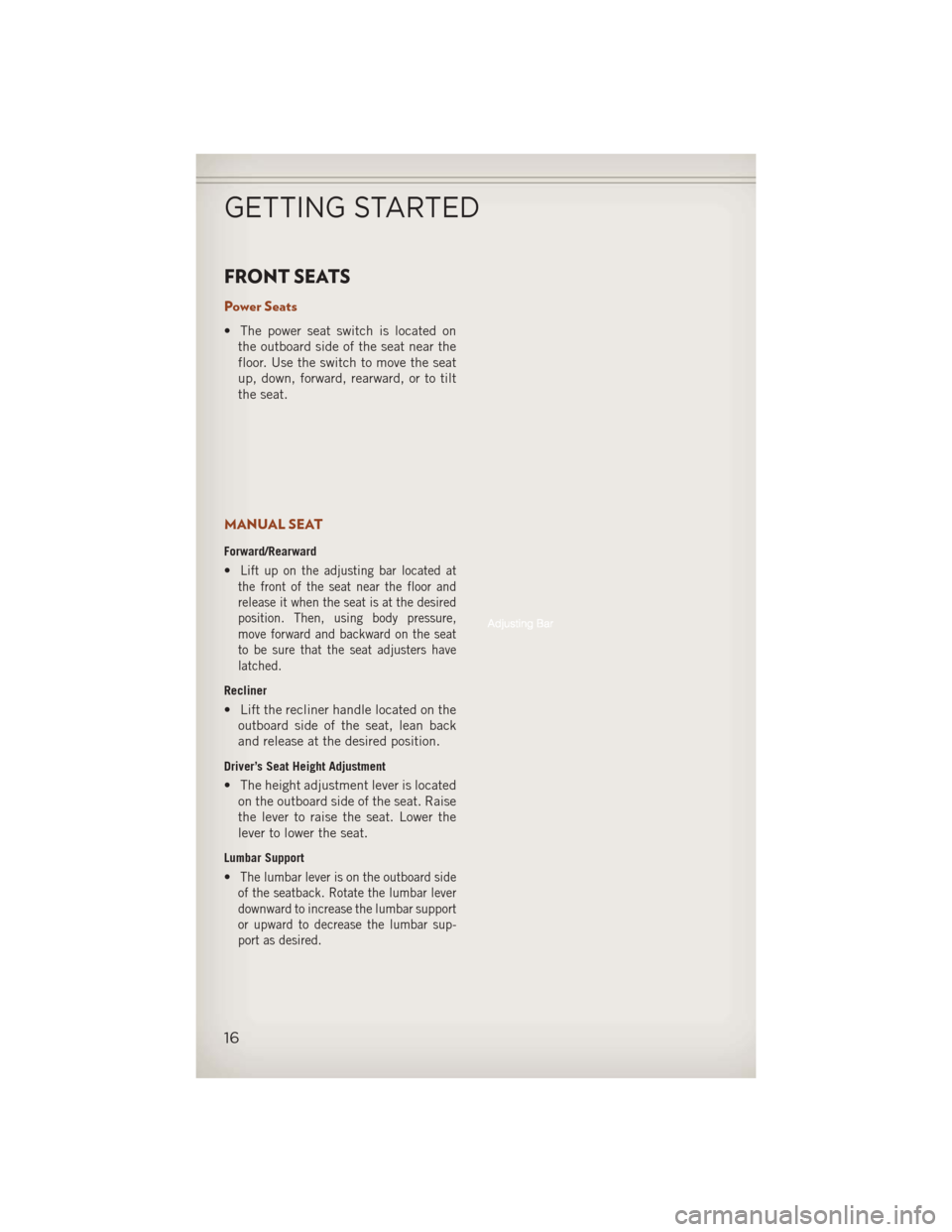

FRONT SEATS
Power Seats
• The power seat switch is located onthe outboard side of the seat near the
floor. Use the switch to move the seat
up, down, forward, rearward, or to tilt
the seat.
MANUAL SEAT
Forward/Rearward
•Lift up on the adjusting bar located at
the front of the seat near the floor and
release it when the seat is at the desired
position. Then, using body pressure,
move forward and backward on the seat
to be sure that the seat adjusters have
latched.
Recliner
• Lift the recliner handle located on the outboard side of the seat, lean back
and release at the desired position.
Driver’s Seat Height Adjustment
• The height adjustment lever is locatedon the outboard side of the seat. Raise
the lever to raise the seat. Lower the
lever to lower the seat.
Lumbar Support
•The lumbar lever is on the outboard side
of the seatback. Rotate the lumbar lever
downward to increase the lumbar support
or upward to decrease the lumbar sup-
port as desired.
GETTING STARTED
16
