JEEP COMPASS 2015 1.G Owners Manual

MAINTENANCE SCHEDULES
CONTENTS
!MAINTENANCE SCHEDULE.............520▫Maintenance Chart.....................522
8
MAINTENANCE
SCHEDULES

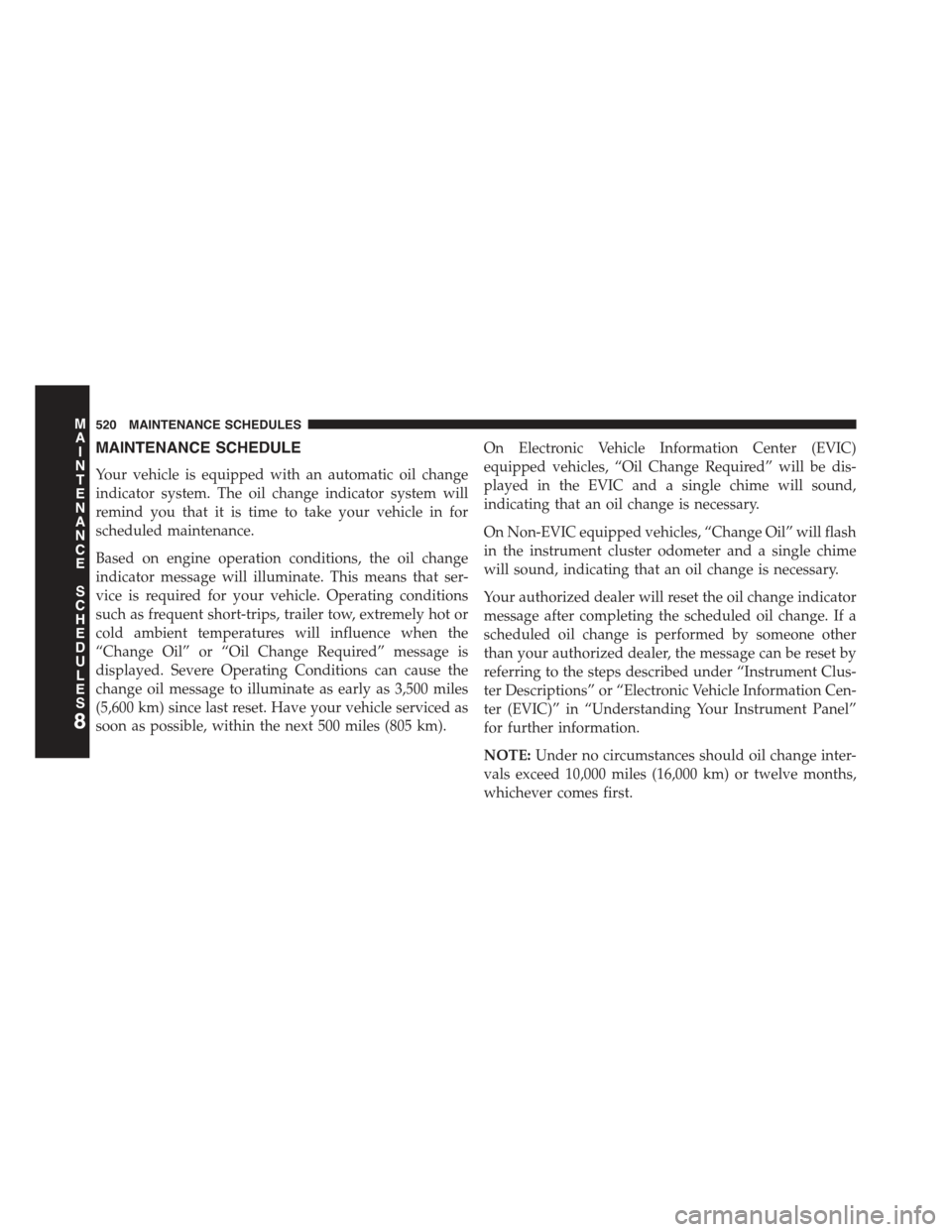

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures will influence when the
“Change Oil” or “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Clus-
ter Descriptions” or “Electronic Vehicle Information Cen-
ter (EVIC)” in “Understanding Your Instrument Panel”
for further information.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
8
MAINTENANCE
SCHEDULES
520 MAINTENANCE SCHEDULES

Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and fill as needed
•Check function of all interior and exterior lights
Required Maintenance Intervals.
Refer to the maintenance schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change oil and filter.
•Rotate the tires.Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
•Inspect battery and clean and tighten terminals as
required.
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
•Inspect engine cooling system protection and
hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or
off-road conditions.
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 521

Maintenance Chart
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
Mileage or time passed (whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Additional Inspections
Inspect the CV joints.XXX XX X X
Inspect front suspension, boot seals. tie rod ends,and replace if necessary.XXX XX X X
Inspect brake linings, replace if necessary.Check park brake function, adjust if necessary.XXX XX X X
8
MAINTENANCE
SCHEDULES
522 MAINTENANCE SCHEDULES

Mileage or time passed (whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Additional Maintenance
Replace engine air cleaner filter.XXXXX
Replace air conditioning/cabin air filter.XXX XX X X
Replace spark plugs**XXXXX
Flush and replace the engine coolant at 10 years or150,000 miles (240,000 km) whichever comes first.XX
Replace rear drive assembly (RDA) fluid.XX
Replace power transfer unit (PTU) fluid.XX8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 523

Mileage or time passed (whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000

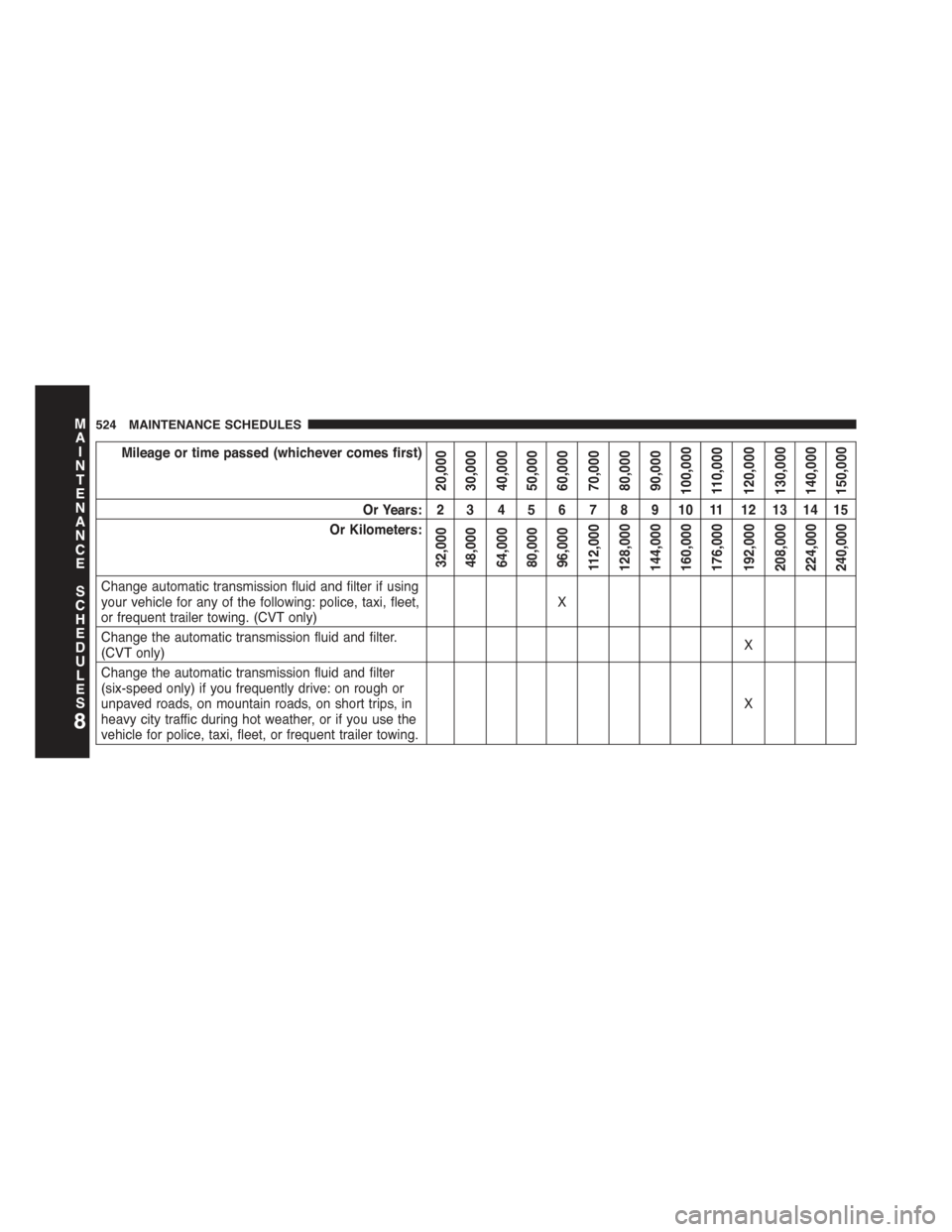

Change automatic transmission fluid and filter if usingyour vehicle for any of the following: police, taxi, fleet,or frequent trailer towing. (CVT only)X
Change the automatic transmission fluid and filter.(CVT only)X
Change the automatic transmission fluid and filter(six-speed only) if you frequently drive: on rough orunpaved roads, on mountain roads, on short trips, inheavy city traffic during hot weather, or if you use thevehicle for police, taxi, fleet, or frequent trailer towing.
X
8
MAINTENANCE
SCHEDULES
524 MAINTENANCE SCHEDULES

Mileage or time passed (whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000

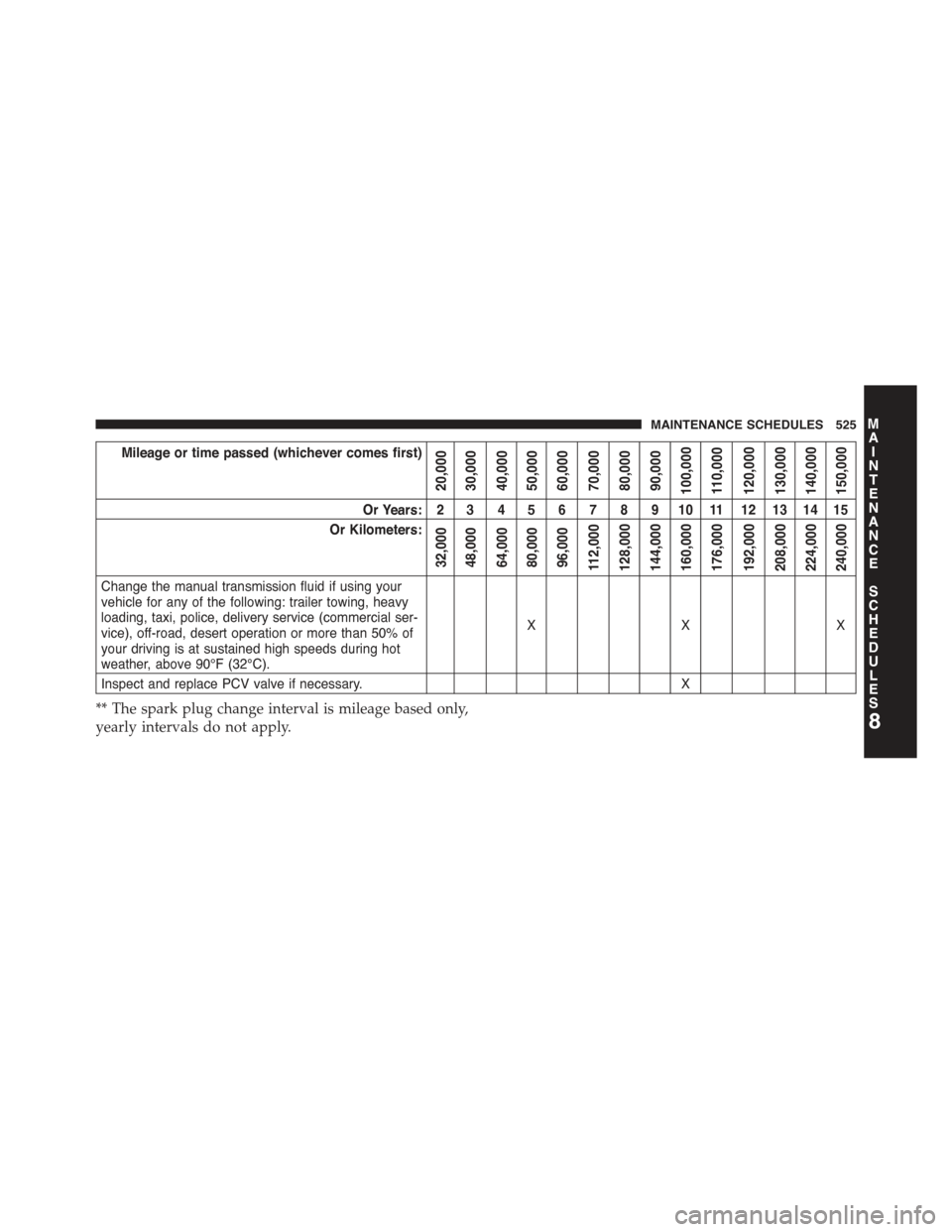

Change the manual transmission fluid if using yourvehicle for any of the following: trailer towing, heavyloading, taxi, police, delivery service (commercial ser-vice), off-road, desert operation or more than 50% ofyour driving is at sustained high speeds during hotweather, above 90°F (32°C).
XX X
Inspect and replace PCV valve if necessary.X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 525

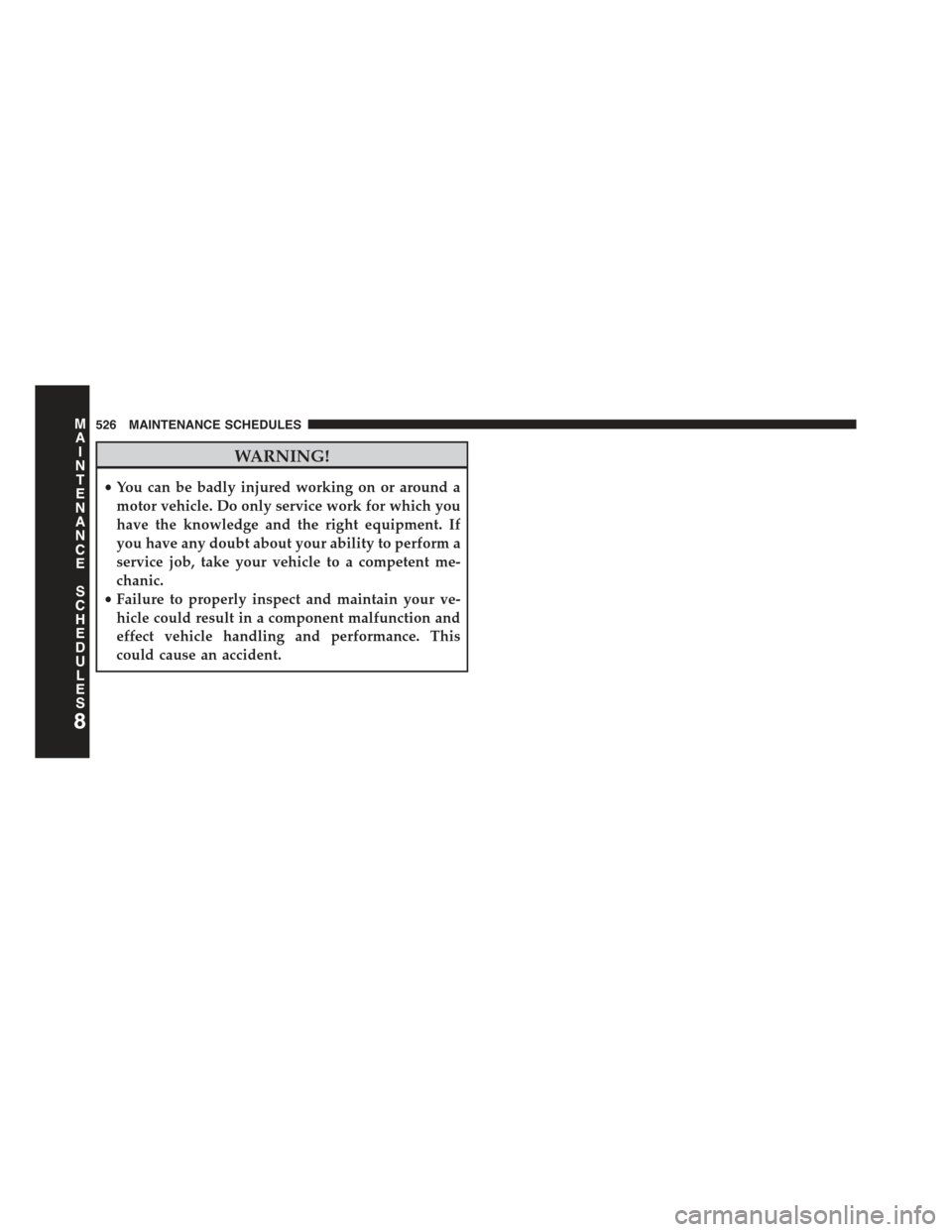

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
•Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
8
MAINTENANCE
SCHEDULES
526 MAINTENANCE SCHEDULES

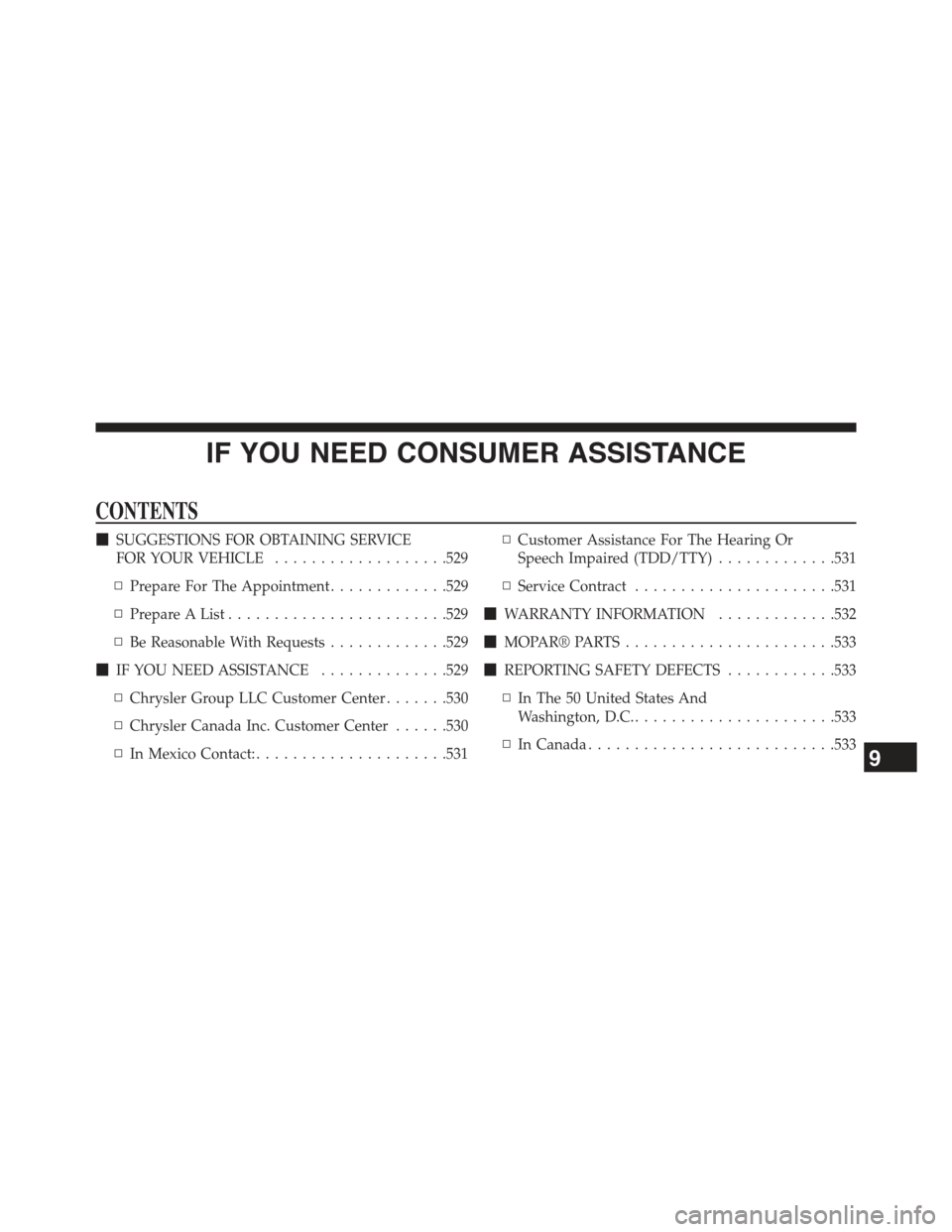

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
!SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE...................529
▫Prepare For The Appointment.............529
▫Prepare A List........................529
▫Be Reasonable With Requests.............529
!IF YOU NEED ASSISTANCE..............529
▫Chrysler Group LLC Customer Center.......530
▫Chrysler Canada Inc. Customer Center......530
▫In Mexico Contact:.....................531
▫Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY).............531
▫Service Contract......................531
!WARRANTY INFORMATION.............532
!MOPAR® PARTS . . . . . . . . . . . . . . . . . . . . . ..533
!REPORTING SAFETY DEFECTS............533
▫In The 50 United States And
Washington, D.C.......................533
▫In Canada...........................533
9

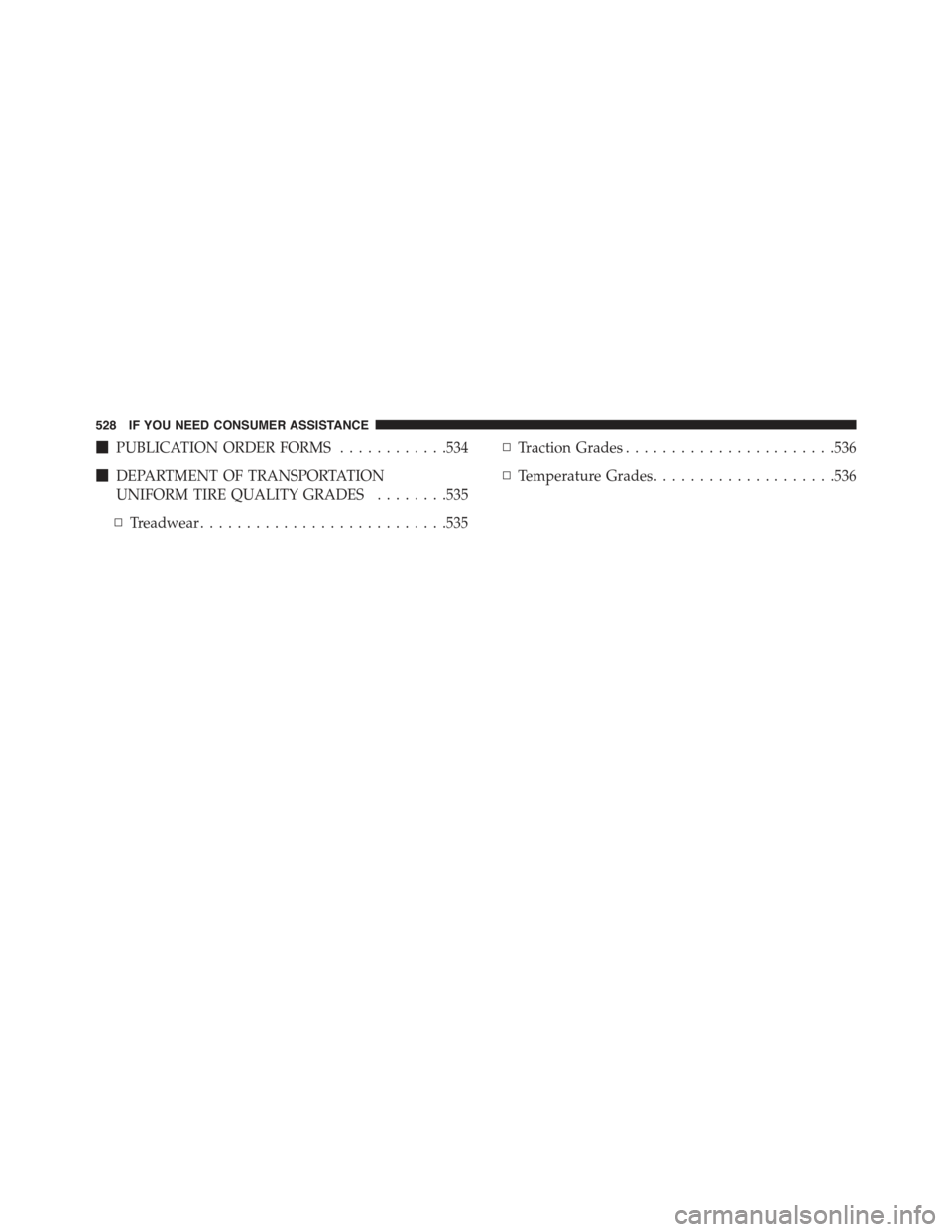

!PUBLICATION ORDER FORMS............534
!DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES........535
▫Treadwear...........................535
▫Traction Grades.......................536
▫Temperature Grades....................536
528 IF YOU NEED CONSUMER ASSISTANCE
