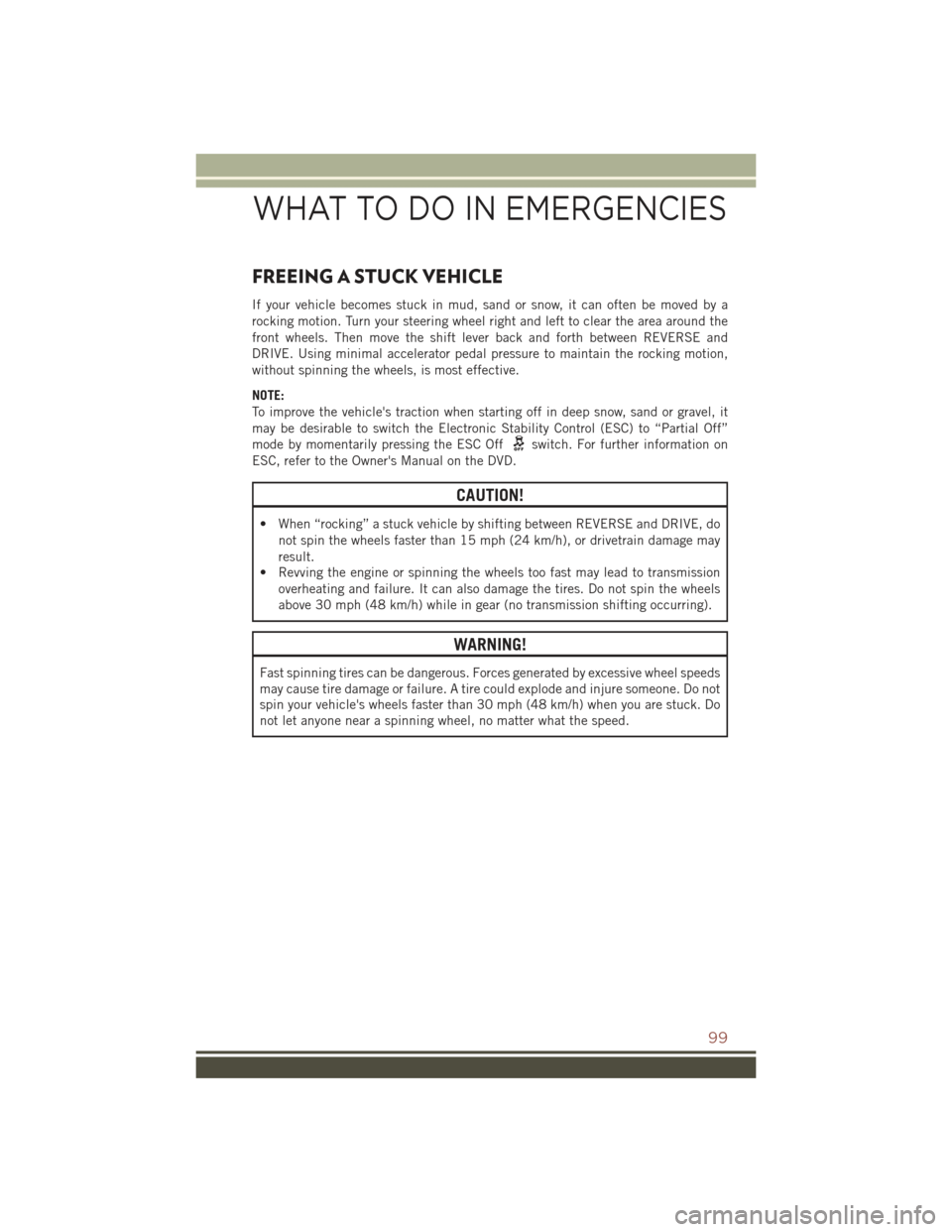

JEEP COMPASS 2015 1.G User Guide FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a
rocking motion. Turn your steering wheel right and left to clear the area around the
front wheels

Page 102 of 132

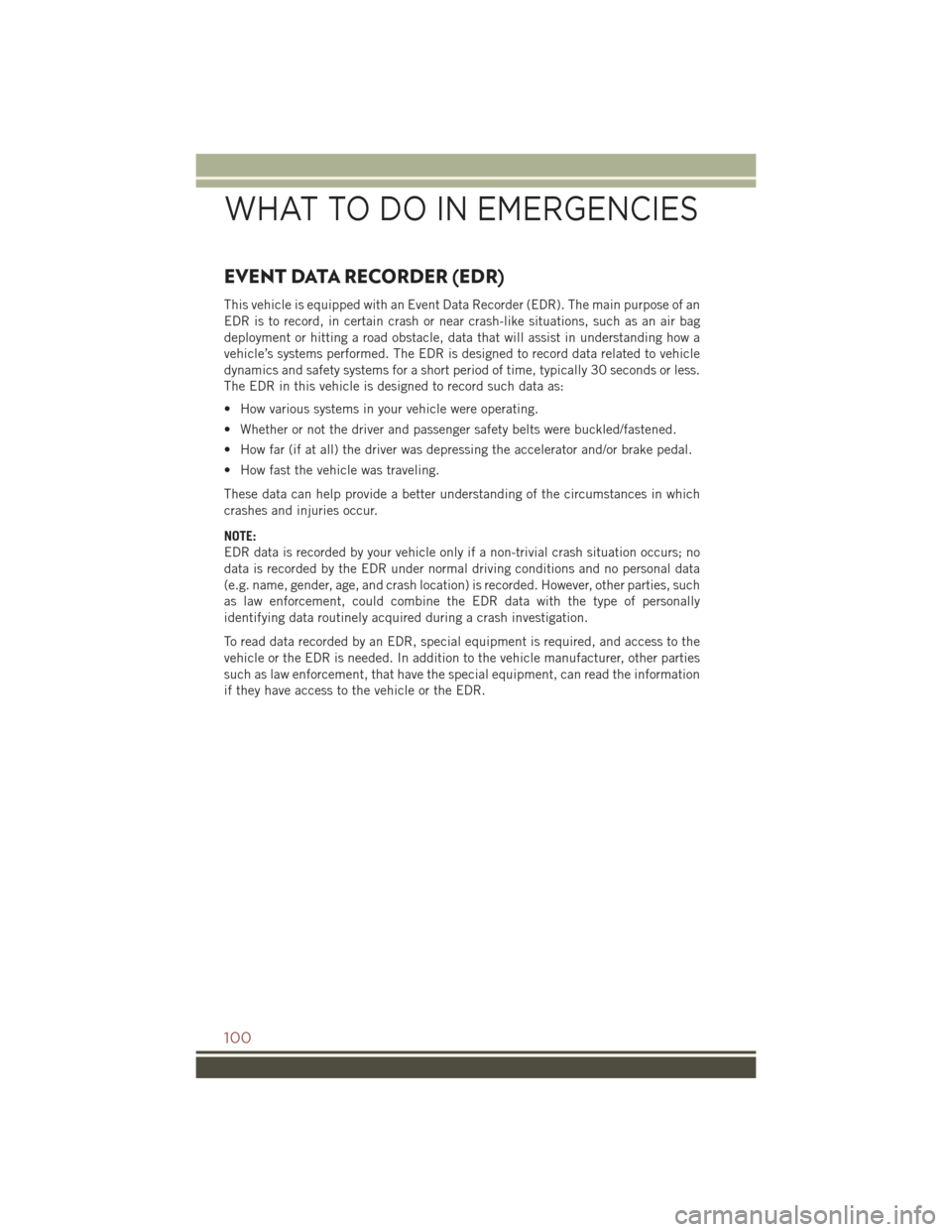

JEEP COMPASS 2015 1.G User Guide EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near crash-like situations, such as an air bag
deploy

Page 103 of 132

JEEP COMPASS 2015 1.G User Guide OPENING THE HOOD
1. Pull the release lever located below
the instrument panel and in front of
the driver’s door.
2. Raise the hood and locate the safety
latch, in the middle of the hood open-
ing.
3

Page 104 of 132

JEEP COMPASS 2015 1.G User Guide ENGINE COMPARTMENT
2.0L Engine
1. Washer Fluid Reservoir
2. Brake Fluid Reservoir
3. Integrated Power Module (Fuses)
4. Air Cleaner Filter
5. Battery
MAINTAINING YOUR VEHICLE
102

Page 105 of 132

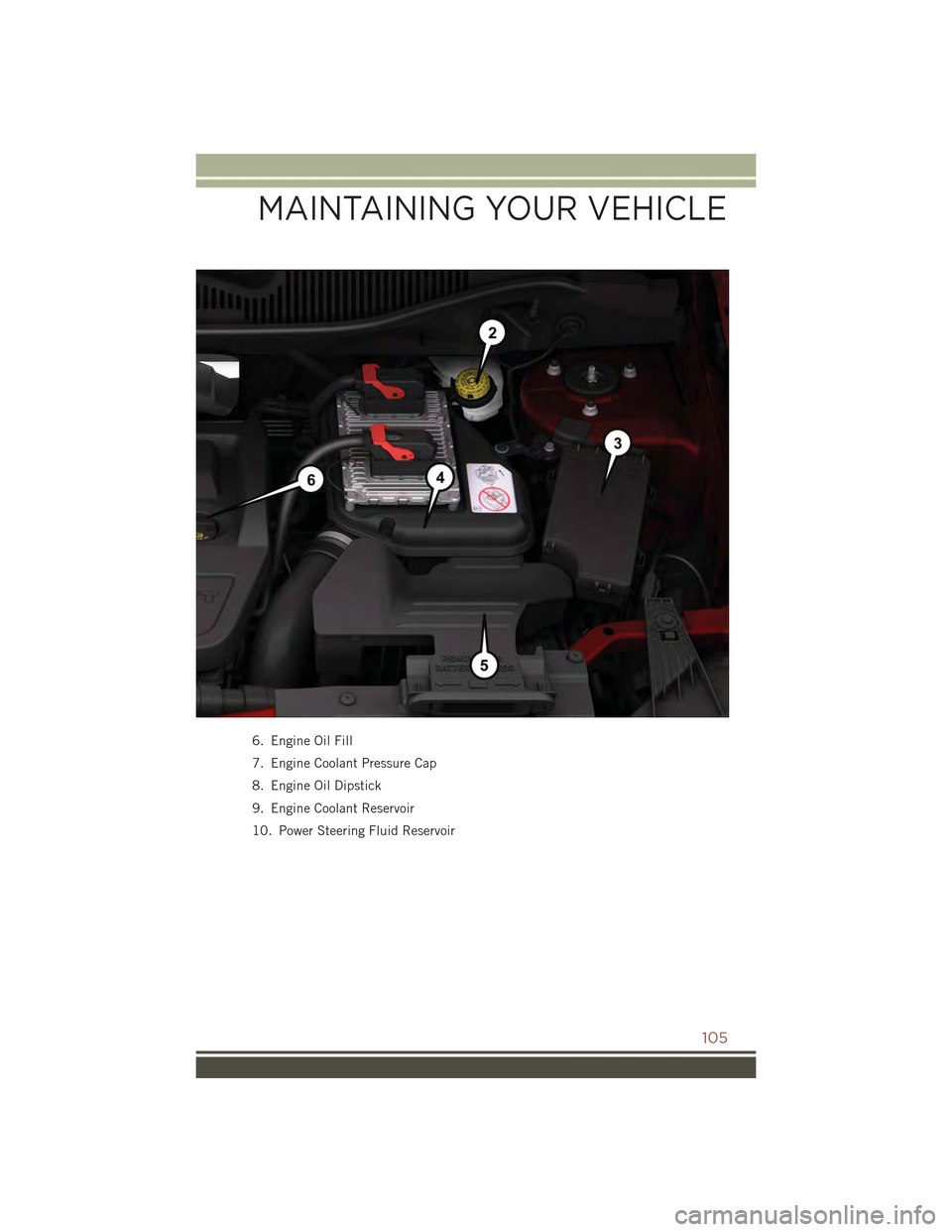

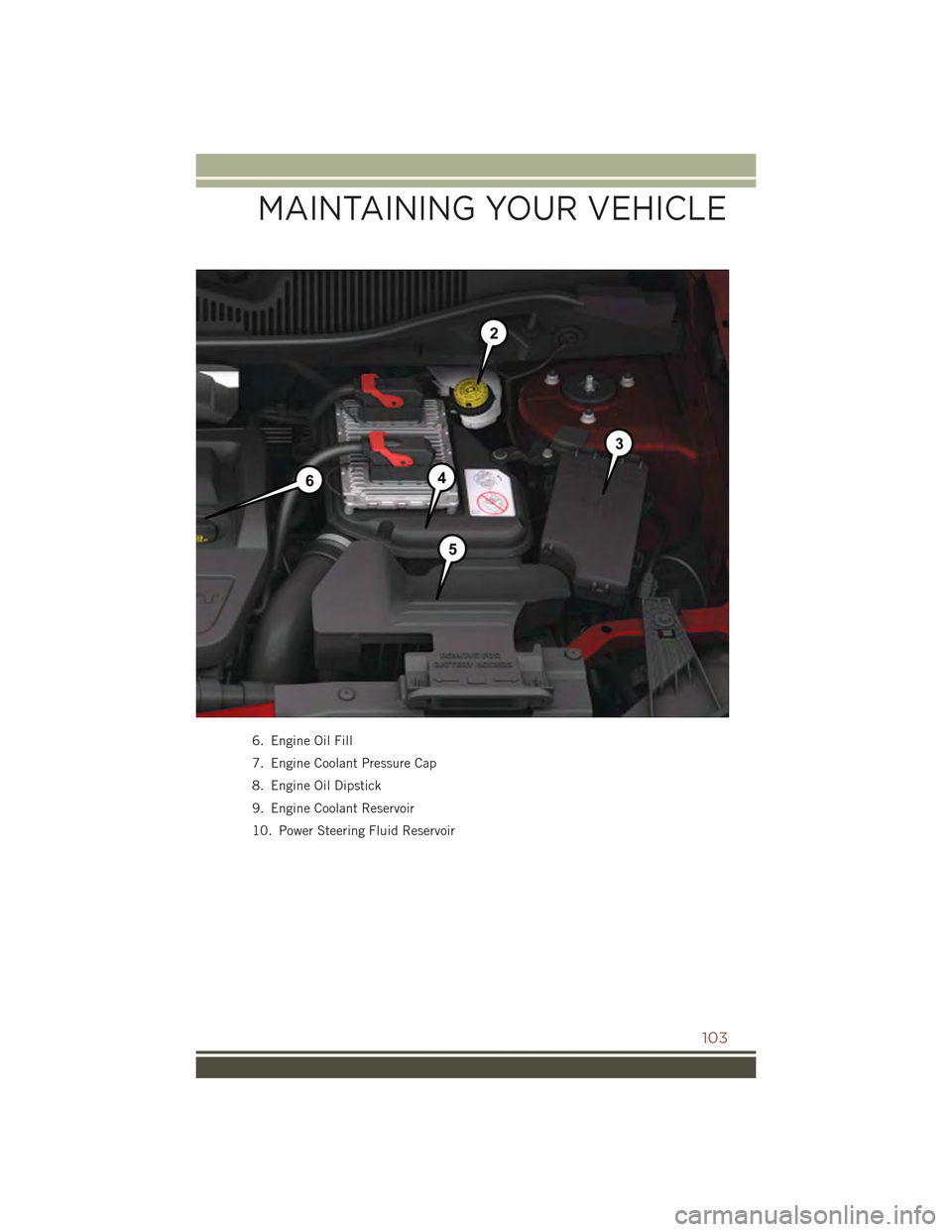

JEEP COMPASS 2015 1.G User Guide 6. Engine Oil Fill
7. Engine Coolant Pressure Cap
8. Engine Oil Dipstick
9. Engine Coolant Reservoir
10. Power Steering Fluid Reservoir
MAINTAINING YOUR VEHICLE
103

Page 106 of 132

JEEP COMPASS 2015 1.G User Guide 2.4L Engine
1. Washer Fluid Reservoir
2. Brake Fluid Reservoir
3. Integrated Power Module (Fuses)
4. Air Cleaner Filter
5. Battery
MAINTAINING YOUR VEHICLE
104

Page 107 of 132

JEEP COMPASS 2015 1.G User Guide 6. Engine Oil Fill
7. Engine Coolant Pressure Cap
8. Engine Oil Dipstick
9. Engine Coolant Reservoir
10. Power Steering Fluid Reservoir
MAINTAINING YOUR VEHICLE
105

Page 108 of 132

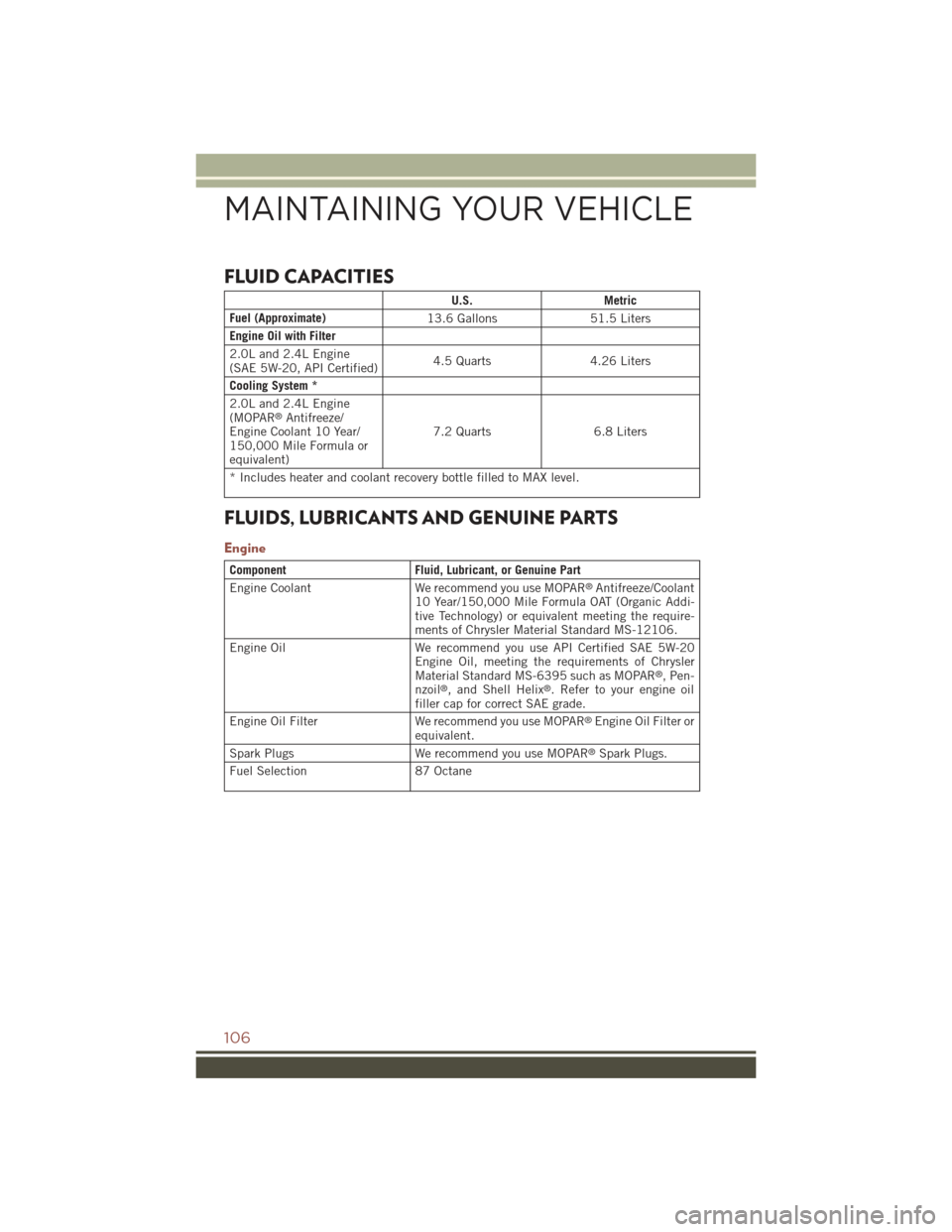

JEEP COMPASS 2015 1.G User Guide FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine(SAE 5W-20, API Certified)4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine(M

Page 109 of 132

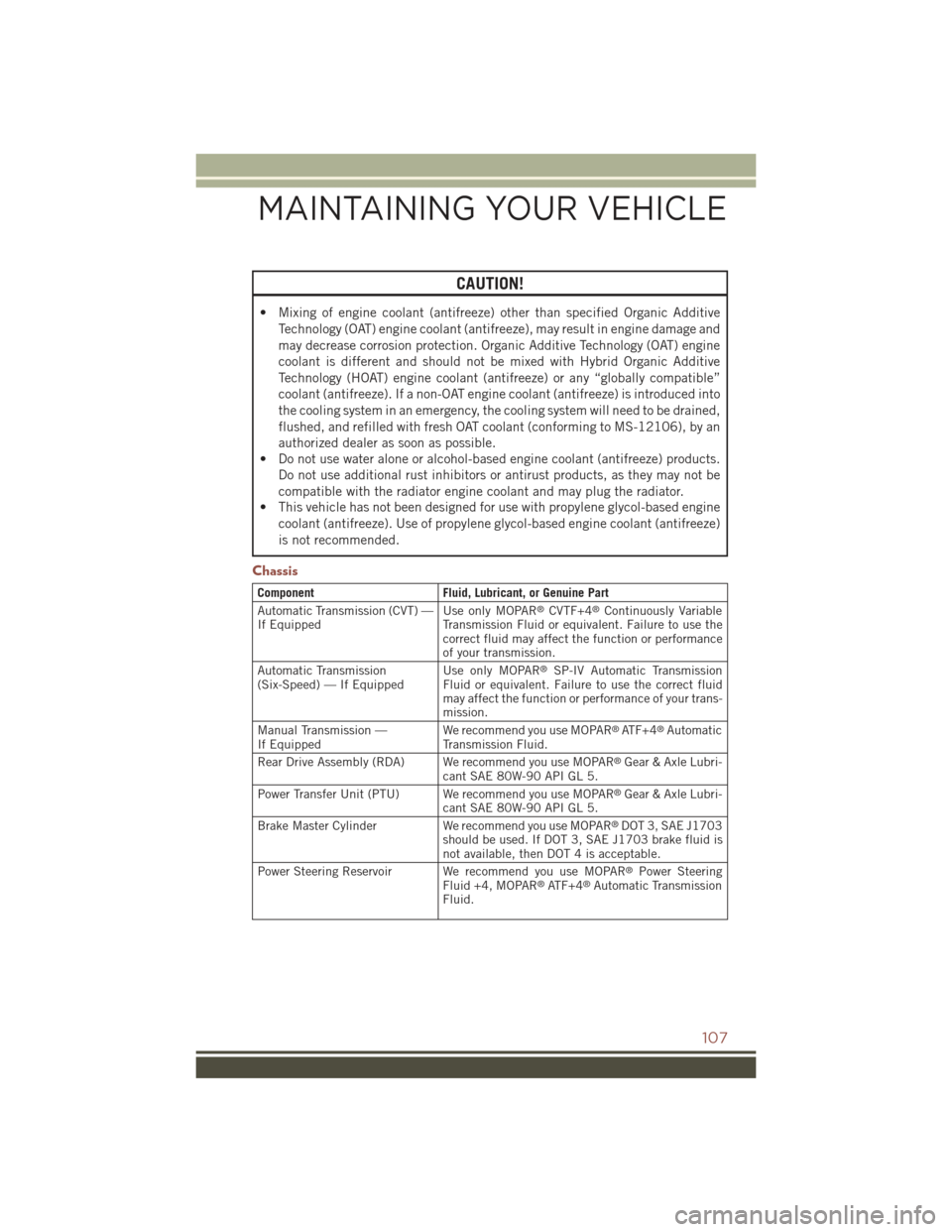

JEEP COMPASS 2015 1.G User Guide CAUTION!
• Mixing of engine coolant (antifreeze) other than specified Organic Additive
Technology (OAT) engine coolant (antifreeze), may result in engine damage and
may decrease corrosion protection

Page 110 of 132

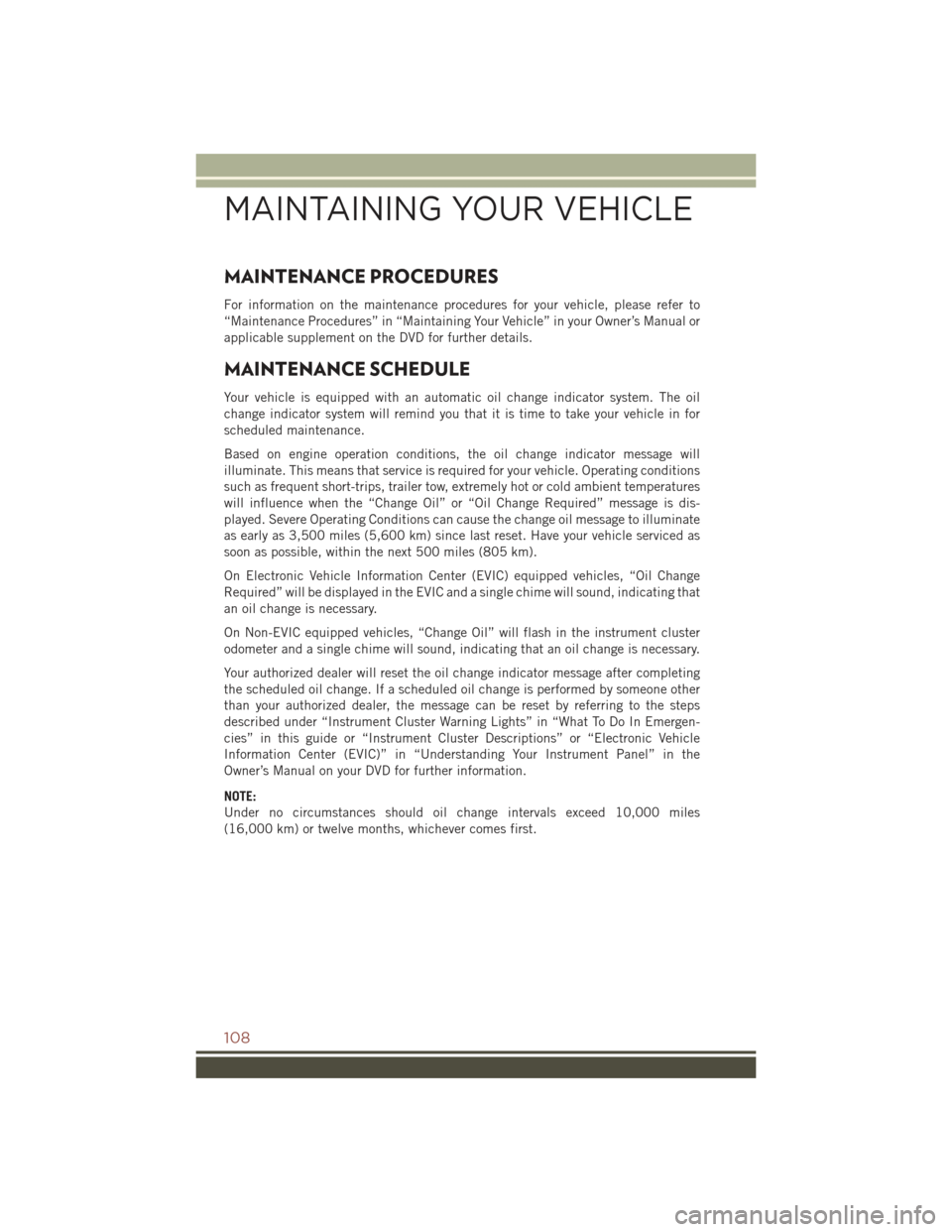

JEEP COMPASS 2015 1.G User Guide MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to
“Maintenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or
applic
