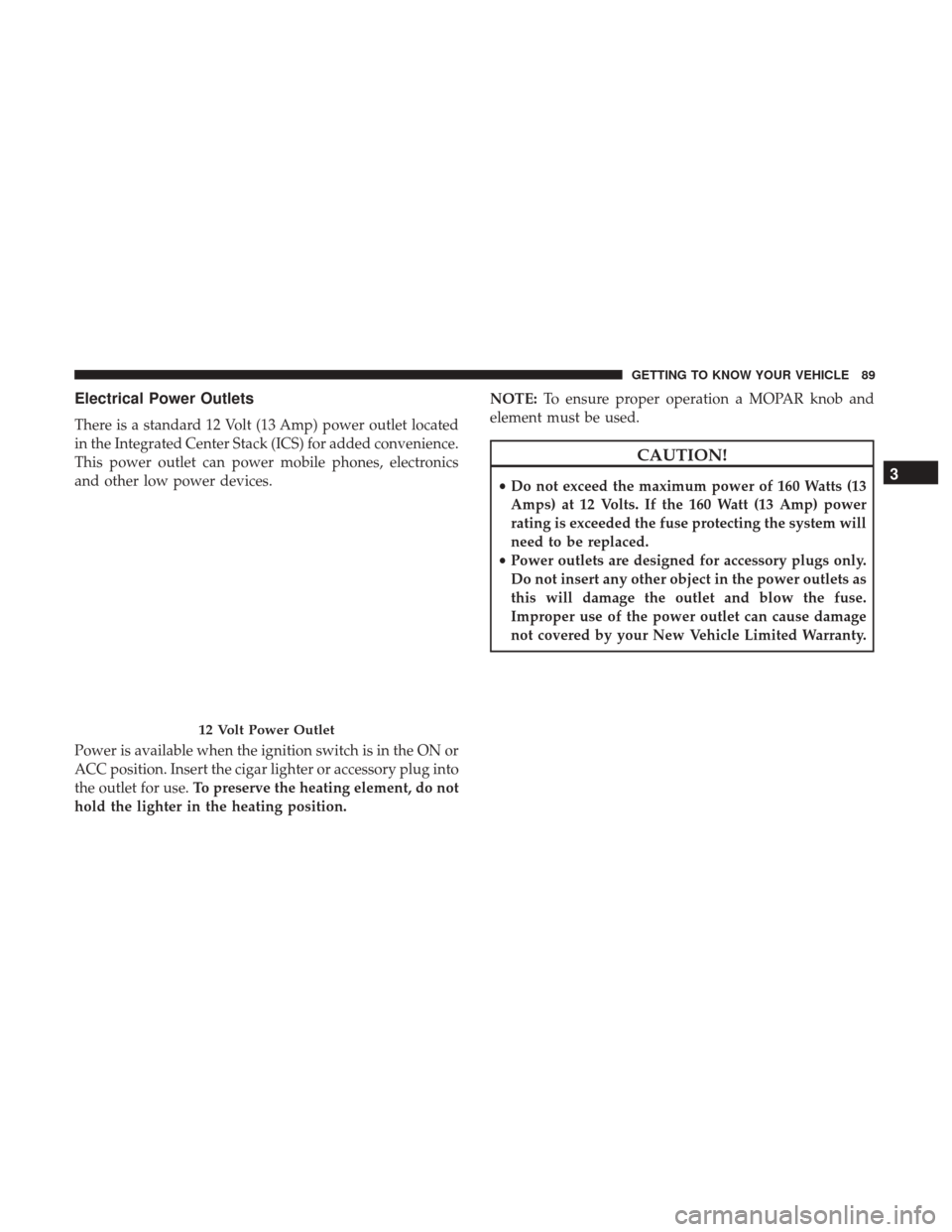

Electrical Power Outlets
There is a standard 12 Volt (13 Amp) power outlet located
in the Integrated Center Stack (ICS) for added convenience.
This power outlet can power mobile phones, electronics
and other low power devices.
Power is available when the ignition switch is in the ON or
ACC position. Insert the cigar lighter or accessory plug into
the outlet for use.To preserve the heating element, do not
hold the lighter in the heating position. NOTE:
To ensure proper operation a MOPAR knob and
element must be used.
CAUTION!
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
• Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.
12 Volt Power Outlet
3
GETTING TO KNOW YOUR VEHICLE 89

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with great caution.
• After the use of high power draw accessories, or long
periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.
Power Inverter — If Equipped
A 115 Volt (150 Watt) AC power inverter is located on the
front of the center console for added convenience. This
outlet can power mobile phones, electronics and other low
power devices requiring power up to 150 Watts. Certain
high-end video games consoles will exceed this power
limit, as will most power tools.
Power Outlet Fuse Location
90 GETTING TO KNOW YOUR VEHICLE

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter will automatically shut down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter may
have to be reset manually. To reset the inverter manually,
unplug the device and plug it in again. To avoid overload-
ing the circuit, check the power ratings on electrical devices
prior to using the inverter.WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
• Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent engine
starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with great caution.
(Continued)115 Volt Power Outlet
3
GETTING TO KNOW YOUR VEHICLE 91

CAUTION!(Continued)
•After the use of high power draw accessories, or long
periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

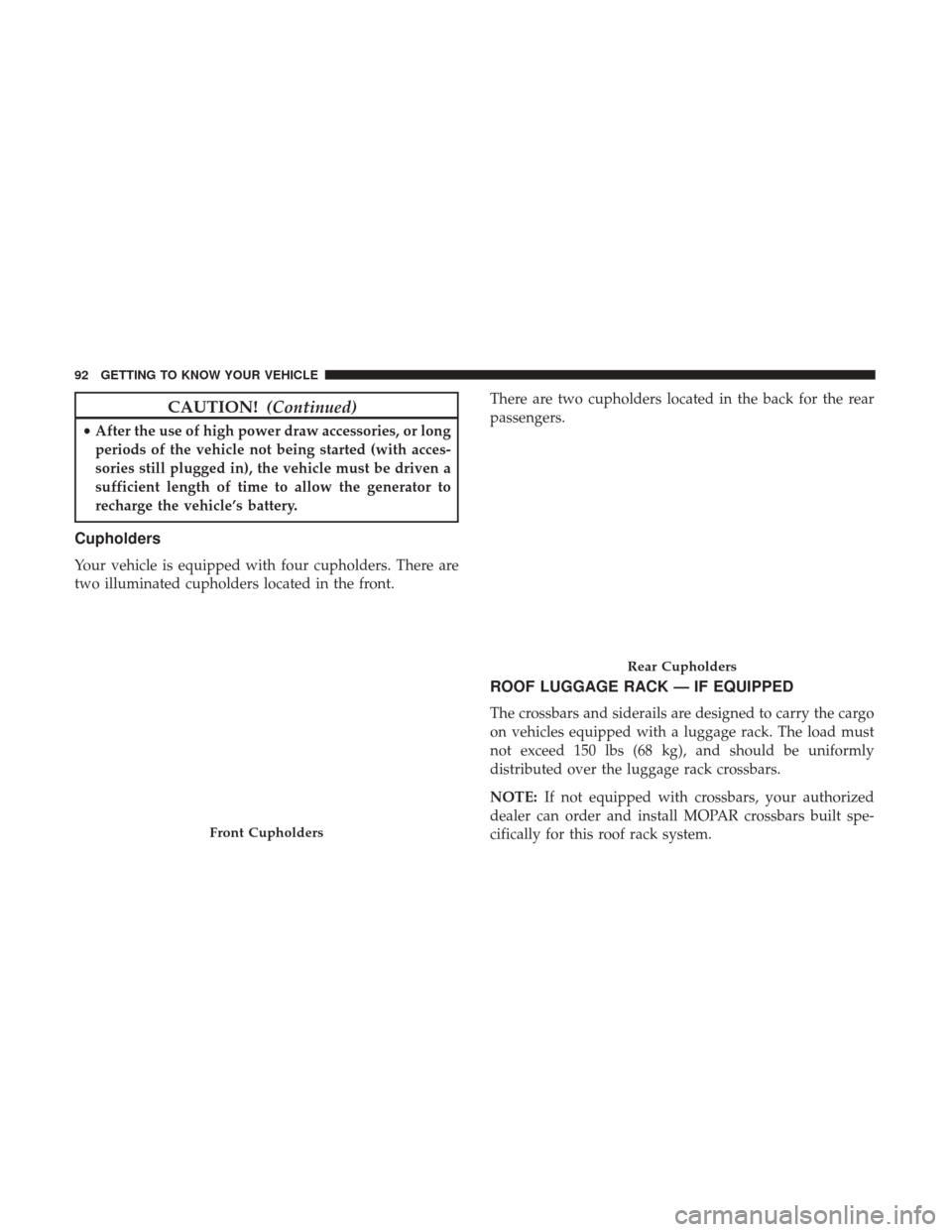

Cupholders
Your vehicle is equipped with four cupholders. There are
two illuminated cupholders located in the front. There are two cupholders located in the back for the rear
passengers.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the cargo
on vehicles equipped with a luggage rack. The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.
NOTE:
If not equipped with crossbars, your authorized
dealer can order and install MOPAR crossbars built spe-
cifically for this roof rack system.
Front Cupholders
Rear Cupholders
92 GETTING TO KNOW YOUR VEHICLE

Distribute cargo weight evenly on the luggage rack cross-
bars. The luggage rack does not increase the total load
carrying capacity of the vehicle. Be sure the total load of
cargo inside the vehicle plus that on the external rack does
not exceed the maximum vehicle load capacity.
The crossbars must also be secured in one of the seven
detent positions marked with an arrow on the siderails to
prevent movement. To move the crossbars, loosen the
thumb screws located at the upper edge of each crossbar
approximately eight turns, then move the crossbar to the
desired position, keeping the crossbars perpendicular to
the luggage rack side rails. Once the crossbar is in one of
the seven detent positions, retighten the thumb screws to
lock the crossbar into position.NOTE:
•
To help control wind noise when the crossbars are not in
use, place the front crossbar in the first detent from the
front of the vehicle and the rear crossbar in the second
detent from the rear of the vehicle.
• If the rear crossbar (or any metallic object) is placed over
the satellite radio antenna (if equipped), you may expe-
rience interruption of satellite radio reception. For im-
proved satellite radio reception, place the rear crossbar
in the second detent from the rear of the vehicle when
not in use.
WARNING!
Cargo must be securely tied before driving your ve-
hicle. Improperly secured loads can fly off the vehicle,
particularly at high speeds, resulting in personal injury
or property damage. Follow the roof rack cautions
when carrying cargo on your roof rack.
3
GETTING TO KNOW YOUR VEHICLE 93

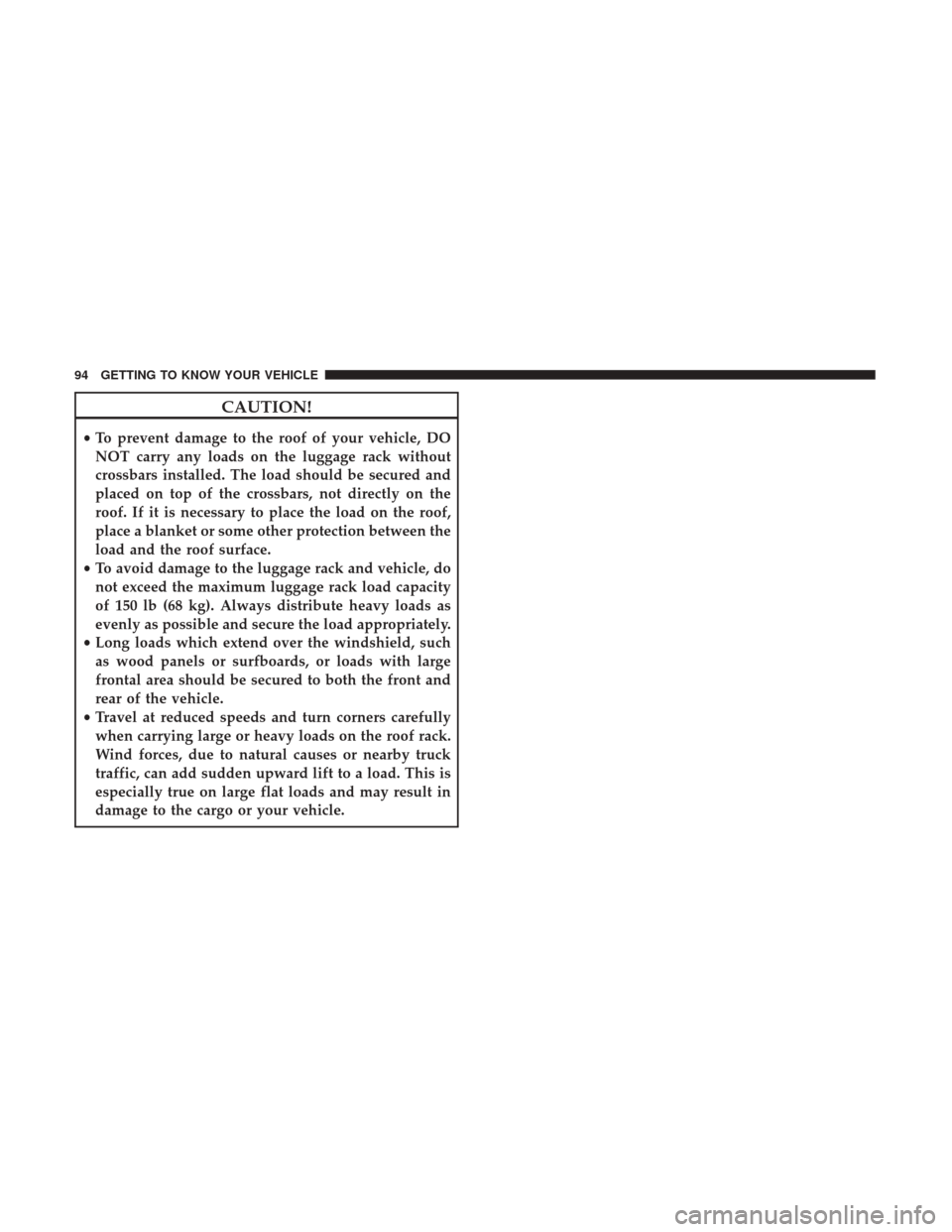

CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the luggage rack without
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between the
load and the roof surface.
• To avoid damage to the luggage rack and vehicle, do
not exceed the maximum luggage rack load capacity
of 150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropriately.
• Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
94 GETTING TO KNOW YOUR VEHICLE

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ...................97
 INSTRUMENT CLUSTER DISPLAY ...........100
▫ Interactive Display And Controls ............100
▫ Oil Change Indicator System ...............103
▫ Instrument Cluster Display Functions ........103
▫ Compass/Temperature/Audio ..............104
▫ Average Fuel Economy ...................104
▫ Distance To Empty (DTE) .................104
▫ Tire Pressure Monitor (TPM) ...............104
▫ Elapsed Time ..........................105
▫ Display Units Of Measure In ...............105
▫ Personal Settings (Customer-Programmable
Features) ............................105
MINI-TRIP COMPUTER — IF EQUIPPED ......109
▫ Control Buttons ........................109
▫ STEP Button ..........................109
▫ RESET Button ........................ .109
▫ Trip Odometer (ODO) ....................110
 WARNING/INDICATOR LIGHTS AND
MESSAGES .............................110
▫ Red Telltale Lights ......................111
▫ Yellow Telltale Lights ....................116
▫ Green Telltale Lights .....................123
▫ Blue Telltale Indicator Lights ...............124
▫ White Telltale Lights .....................1254

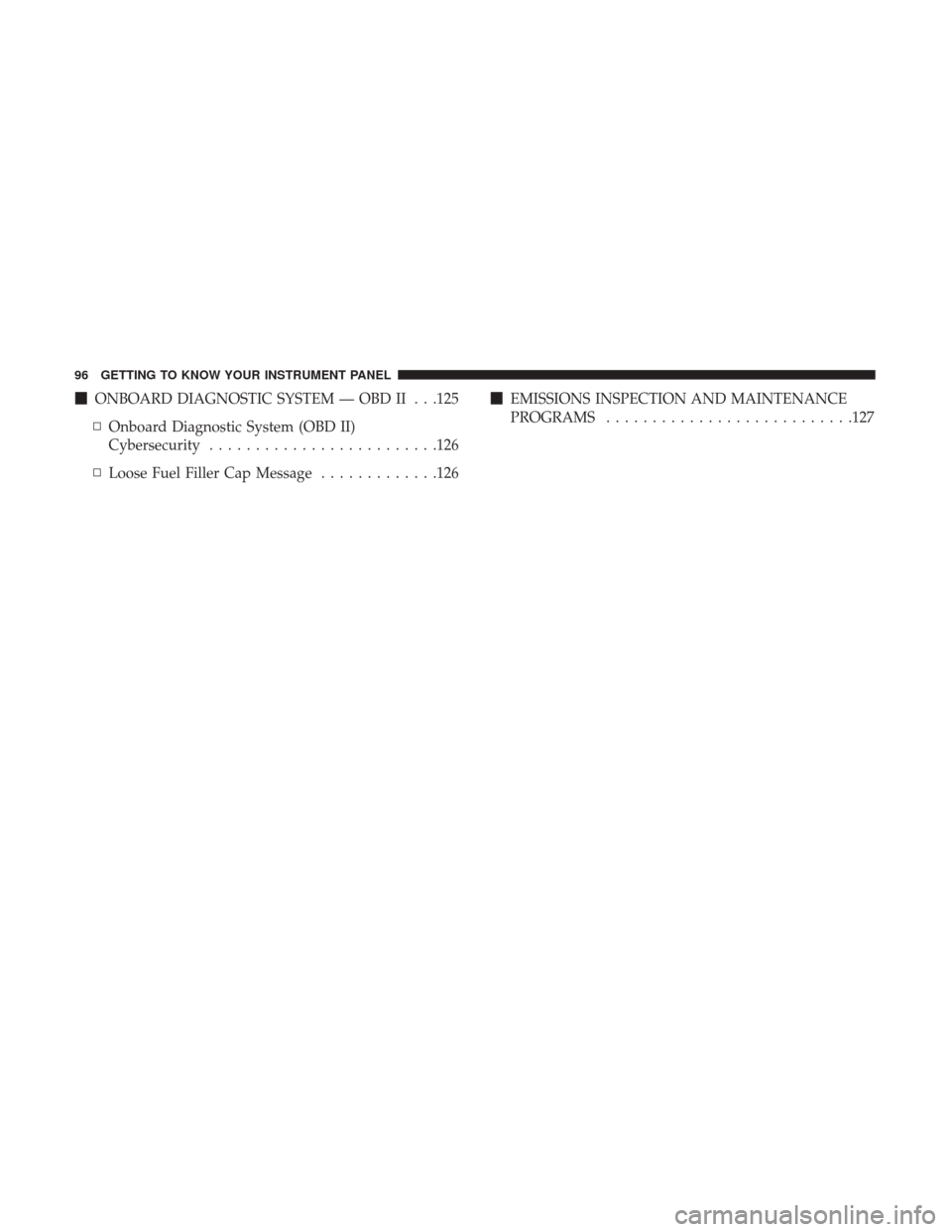

ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .125
