TECHNICAL SPECIFICATIONS
254
FLUID CAPACITIES
Diesel fuel containing up to 7 % (V/V) Fatty Acid Methyl Esters (FAME) EN590 compliant fuel
Diesel fuel containing up to 10 % (V/V) Fatty Acid Methyl Esters (FAME) EN16734 compliant fuel
US Metric
Fuel (Approximate)
All Engines 15.9 Gallons60 Liters
AdBlue® (UREA) Fluid Tank 3.4 Gallons13 Liters
Engine Oil With Filter
1.4 Liter Gasoline Engine (SAE 0W-30 ACEA C2, FCA Material Standard
9.55535-GS1) 4.0 Quarts
3.8 Liters
1.6 Liter Diesel Engine Without AdBlue® (UREA) (SAE 0W-30 ACEA C2, FCA
Material Standard 9.55535-DS1 or MS.90047) 5.07 Quarts
4.8 Liters
1.6 Liter Diesel Engine With AdBlue® (SAE 0W-20 ACEA C2, FCA Material
Standard 9.55535–DSX) 5.07 Quarts
4.8 Liters
2.0 Liter Diesel Engine Without AdBlue® (UREA) (SAE 0W-30 ACEA C2, FCA
Material Standard 9.55535-DS1 or MS.90047) 4.43 Quarts
4.2 Liters
2.0 Liter Diesel Engine With AdBlue® (UREA) (SAE 0W-20 ACEA C2, FCA
Material Standard 9.55535–DSX) 4.43 Quarts
4.2 Liters
Fuel Icons What It Means
2020_JEEP_M6_UG_UK.book Page 254

255
FLUIDS AND LUBRICANTS
Engine
Your vehicle is equipped with an engine oil
that has been thoroughly developed and
tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use
of the prescribed lubricants guarantees the
fuel consumption and emission specifica-
tions. Lubricant quality is crucial for engine
operation and duration. If lubricants
conforming to the specific request are not
available, products that meet the indicated
specifications can be used to top up, in this
case optimal performance of the engine is
not guaranteed. Cooling System*

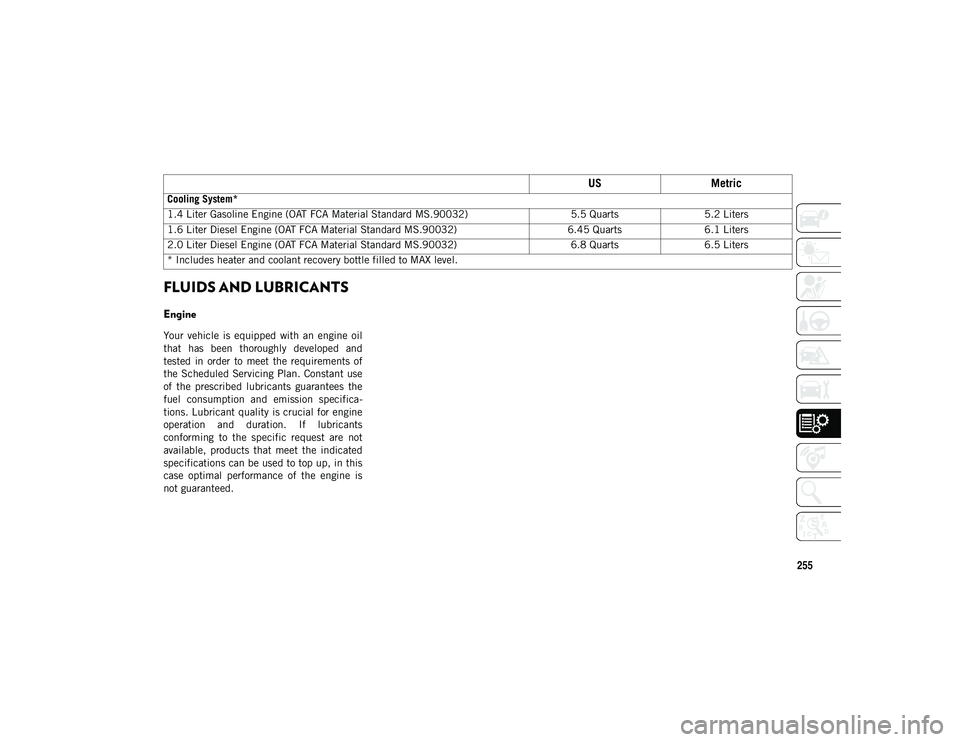

1.4 Liter Gasoline Engine (OAT FCA Material Standard MS.90032)
5.5 Quarts5.2 Liters
1.6 Liter Diesel Engine (OAT FCA Material Standard MS.90032) 6.45 Quarts6.1 Liters
2.0 Liter Diesel Engine (OAT FCA Material Standard MS.90032) 6.8 Quarts6.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
US Metric
2020_JEEP_M6_UG_UK.book Page 255

TECHNICAL SPECIFICATIONS
256Component
Fluid, Lubricant, or Genuine Part
Engine Coolant
We recommend you use PARAFLU UP Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of FCA Material
Standard MS.90032.
Engine Oil – 1.4L Gasoline Engine We recommend you use SELENIA DIGITEK P.E. or equivalent, SAE
0W-30 ACEA C2 Synthetic Engine Oil, meeting the requirements of
FCA Material Standard 9.55535-GS1.
Engine Oil – 1.6L / 2.0L Diesel Engine Without AdBlue® (UREA) For best performance and maximum protection under all types of operating conditions, the manufacturer recommends SELENIA WR
FORWARD engine oils, or equivalent, SAE 0W-30 that meet the
requirements of FCA Material Standard 9.55535-DS1 or MS.90047
and ACEA C2.
NOTE:
If lubricants compliant with the required specifications are not
available, products that comply with the minimum required char-
acteristics can be used for topping off; in this case optimal perfor -
mance of the engine is not guaranteed.
The use of products with specifications other than those indicated
above could cause damage to the engine not covered by the
warranty.
2020_JEEP_M6_UG_UK.book Page 256

257

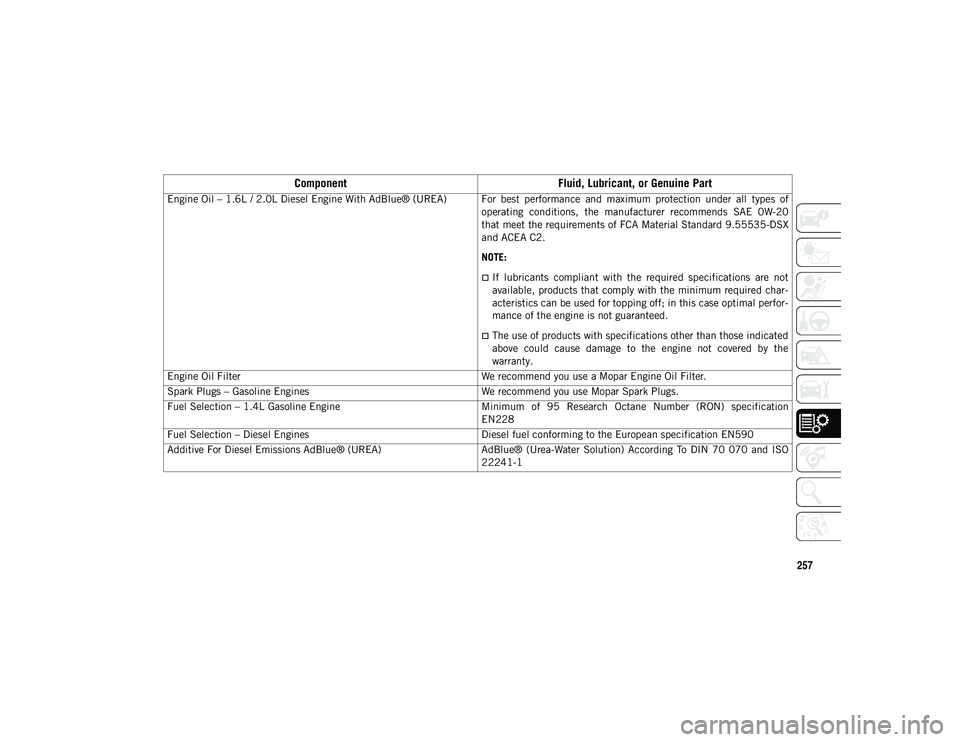

Engine Oil – 1.6L / 2.0L Diesel Engine With AdBlue® (UREA) For best performance and maximum protection under all types ofoperating conditions, the manufacturer recommends SAE 0W-20
that meet the requirements of FCA Material Standard 9.55535-DSX
and ACEA C2.
NOTE:
If lubricants compliant with the required specifications are not
available, products that comply with the minimum required char-
acteristics can be used for topping off; in this case optimal perfor -
mance of the engine is not guaranteed.
The use of products with specifications other than those indicated
above could cause damage to the engine not covered by the
warranty.
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs – Gasoline Engines We recommend you use Mopar Spark Plugs.
Fuel Selection – 1.4L Gasoline Engine Minimum of 95 Research Octane Number (RON) specification
EN228
Fuel Selection – Diesel Engines Diesel fuel conforming to the European specification EN590
Additive For Diesel Emissions AdBlue® (UREA) AdBlue® (Urea-Water Solution) According To DIN 70 070 and ISO
22241-1
ComponentFluid, Lubricant, or Genuine Part
2020_JEEP_M6_UG_UK.book Page 257

TECHNICAL SPECIFICATIONS
258
(Continued)
(Continued)
CAUTION!
Mixing of engine coolant (antifreeze)
other than specified Organic Additive
Technology (OAT) engine coolant (anti -
freeze), may result in engine damage
and may decrease corrosion protection.
Organic Additive Technology (OAT)
engine coolant is different and should
not be mixed with Hybrid Organic Addi -
tive Technology (HOAT) engine coolant
(antifreeze) or any “globally compatible”
coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into
the cooling system in an emergency, the
cooling system will need to be drained,
flushed, and refilled with fresh OAT
coolant (conforming to MS.90032), by
an authorized dealer as soon as possible.Do not use water alone or alcohol-based
engine coolant (antifreeze) products. Do
not use additional rust inhibitors or anti -
rust products, as they may not be
compatible with the radiator engine
coolant and may plug the radiator.
This vehicle has not been designed for
use with propylene glycol-based engine
coolant (antifreeze). Use of propylene
glycol-based engine coolant (antifreeze)
is not recommended.
The use of products with different spec-
ifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
CAUTION! (Continued)
Use AdBlue® only according to DIN 70
070 and ISO 22241-1. Other fluids may
cause damage to the system: also
exhaust emissions would no longer
comply with the law.
The distribution companies are respon -
sible for the compliance of their product.
Observe the precautions of storage and
servicing, in order to preserve the initial
qualities. The manufacturer of the
vehicle does not recognize any guarantee
in case of malfunctions and damage
caused to the vehicle due to the use of
AdBlue® not in accordance with regula-
tions.
CAUTION! (Continued)
2020_JEEP_M6_UG_UK.book Page 258

259

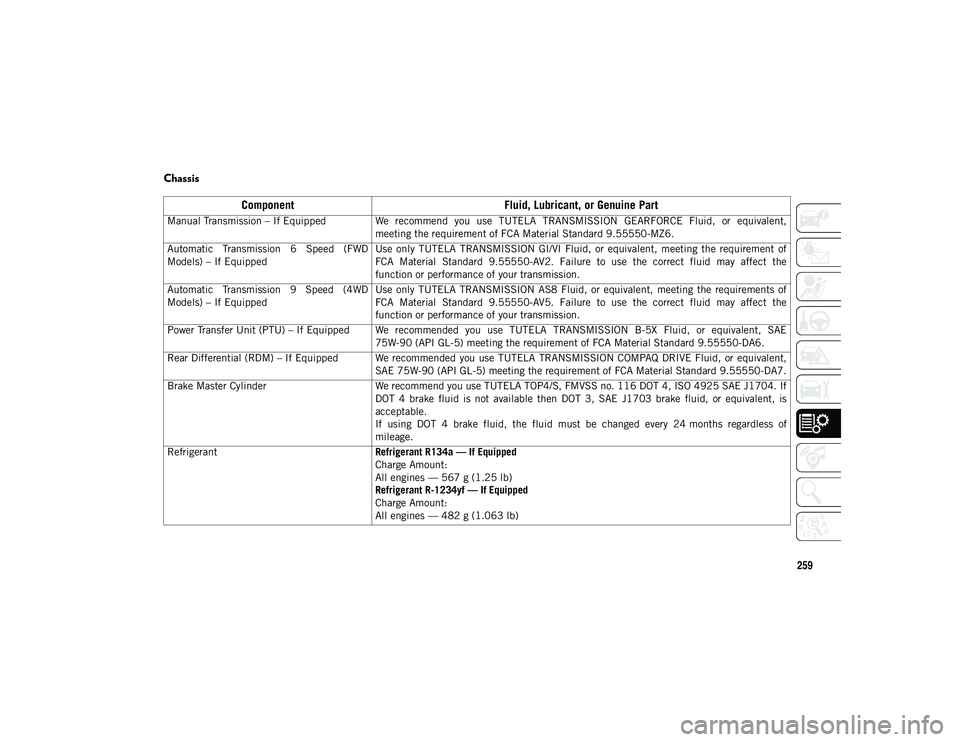

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped We recommend you use TUTELA TRANSMISSION GEARFORCE Fluid, or equivalent,
meeting the requirement of FCA Material Standard 9.55550-MZ6.
Automatic Transmission 6 Speed (FWD
Models) – If Equipped Use only TUTELA TRANSMISSION GI/VI Fluid, or equivalent, meeting the requirement of
FCA Material Standard 9.55550-AV2. Failure to use the correct fluid may affect the
function or performance of your transmission.
Automatic Transmission 9 Speed (4WD
Models) – If Equipped Use only TUTELA TRANSMISSION AS8 Fluid, or equivalent, meeting the requirements of
FCA Material Standard 9.55550-AV5. Failure to use the correct fluid may affect the
function or performance of your transmission.
Power Transfer Unit (PTU) – If Equipped We recommended you use TUTELA TRANSMISSION B-5X Fluid, or equivalent, SAE 75W-90 (API GL-5) meeting the requirement of FCA Material Standard 9.55550-DA6.
Rear Differential (RDM) – If Equipped We recommended you use TUTELA TRANSMISSION COMPAQ DRIVE Fluid, or equivalent, SAE 75W-90 (API GL-5) meeting the requirement of FCA Material Standard 9.55550-DA7.
Brake Master Cylinder We recommend you use TUTELA TOP4/S, FMVSS no. 116 DOT 4, ISO 4925 SAE J1704. If
DOT 4 brake fluid is not available then DOT 3, SAE J1703 brake fluid, or equivalent, is
acceptable.
If using DOT 4 brake fluid, the fluid must be changed every 24 months regardless of
mileage.
Refrigerant Refrigerant R134a — If Equipped
Charge Amount:
All engines — 567 g (1.25 lb)
Refrigerant R-1234yf — If Equipped
Charge Amount:
All engines — 482 g (1.063 lb)
2020_JEEP_M6_UG_UK.book Page 259

TECHNICAL SPECIFICATIONS
260
FUEL CONSUMPTION AND
CO
2 EMISSIONS
The fuel consumption and CO2 emission
figures declared by the manufacturer are
determined on the basis of the type-approval
tests laid down by the applicable standards
in the country where the vehicle is regis -
tered.
The type of route, traffic conditions, weather
conditions, driving style, general condition of
the vehicle, trim level/equipment/ accesso -
ries, use of the climate control system,
vehicle load, presence of roof racks and other
situations that adversely affect the aerody -
namics or wind resistance lead to different
fuel consumption values than those
measured. The fuel consumption will only become more
regular after driving the first 1,864 miles
(3000 km).
To find the specific fuel consumption and
CO
2 emission figures for this vehicle, please
refer to the data in the Certificate of Confor -
mity, and the related documentation that
accompanies the vehicle.
MOPAR ACCESSORIES
Authentic Accessories By Mopar
The following highlights just some of the
many Authentic Jeep Accessories by
Mopar featuring a fit, finish, and function -
ality specifically for your Jeep Vehicle.
In choosing Authentic Accessories you
gain far more than expressive style,
premium protection, or extreme entertain -
ment, you also benefit from enhancing
your vehicle with accessories that have
been thoroughly tested and
factory-approved.

For the full line of Authentic Jeep Accesso -
ries by Mopar, visit your local dealership.

NOTE:
All parts are subject to availability.
Compressor Oil
Use Only PAG Oil PSD1:
1.4L Gasoline engines — 120ml (4.1 fl oz)
Use Only PAG Oil ND12:
1.6L Diesel engines — 90 ml (3.0 fl oz)
2.0L Diesel engines — 90 ml (3.0 fl oz)
Component Fluid, Lubricant, or Genuine Part
2020_JEEP_M6_UG_UK.book Page 260

MULTIMEDIA
284
new route using Apple CarPlay®, via voice
or any other method, a pop-up appears
asking if you would like to switch from
Uconnect navigation to iPhone® naviga-
tion. A pop-up also appears, asking if
you’d like to switch, if an Apple CarPlay®
navigation is currently in use and you
attempt to launch a built-in Uconnect
route. Selecting “Yes” switches the navi-
gation type to the newly used method of
navigation and a route will be planned for
the new destination. If “No” is selected
the navigation type remains unchanged.
Navigation Pop-UpApps
To use a compatible app with Apple
CarPlay®, you must have the compatible app
downloaded, and you must be signed in to
the app.
Refer to http://www.apple.com/ios/carplay/
to see the latest list of available apps for
Apple CarPlay® to see the latest list of avail -
able apps for Apple CarPlay®.
Apps — If Equipped
To access Apps, press the Apps button on
the touchscreen to browse the list of applica -
tions:
EcoDrive
MyCar
TuneIn
Deezer
Reuters
Twitter
Facebook Check-In
Apple CarPlay®
Android Auto™
Jeep Skills
TomTom® Live Services, and many more.
UCONNECT SETTINGS
Push the SETTINGS button (Uconnect 3
With 5-inch Display and Uconnect 4 With
7-inch Display), or press the Apps button
(Uconnect 4C/4C NAV With 8.4-inch
Display) located near the bottom of the
touchscreen, then press the Settings button
on the touchscreen to access the Settings
screen. When making a selection, scroll up
or down until the preferred setting is high -
lighted, then press the preferred setting until
a check-mark appears next to the setting,
showing that setting has been selected. The
following feature settings are available:
Display, Voice, Clock, Safety & Driving Assis -
tance, Lights, Doors & Locks, Auto-On
Comfort & Remote Start (if equipped),
Engine Off Options, Audio, Phone/Blue -
tooth®, Restore Settings, Clear Personal
Data, and System Information.
NOTE:
Depending on the vehicles options, feature
settings may vary.
Refer to “Uconnect Settings” in “Multi -
media” in the Owner’s Manual for further
information.
2020_JEEP_M6_UG_UK.book Page 284

317
INDEX
A
Accessories ....................................... 260Mopar ........................................... 260
Active Speed Limiter .......................... 149
Adaptive Cruise Control (ACC) (Cruise Con -
trol) .................................................. 151
Adding Fuel ...................................... 167
Additives, Fuel .................................. 250
Air Bag ............................................... 99 Air Bag Operation ........................... 101Air Bag Warning Light ....................... 98
Enhanced Accident Response .. 111 , 211
Event Data Recorder (EDR) ............. 211
If Deployment Occurs ..................... 110
Knee Impact Bolsters ..................... 107
Maintaining Your Air Bag System ..... 113
Maintenance .................................. 113
Redundant Air Bag Warning Light ...... 99
Side Air Bags ................................. 107
Transporting Pets ........................... 127
Air Bag Light ..........................59 , 98 , 129
Air Conditioner Maintenance ............... 227
Air Conditioner Refrigerant ................. 227
Air Conditioner System ....................... 227
Air Conditioning................................... 43
Air Conditioning Filter .................. 44 , 228
Air Conditioning, Operating Tips ............ 44 Air Pressure
Tires ............................................. 233
Alarm Arm The System .............................. 18
Disarm The System .......................... 18
Security Alarm ............................18 , 62
Alarm System Security Alarm ............................18 , 19
Android Auto..............................271 , 302
Antifreeze (Engine Coolant) ................ 254
Anti-Lock Brake System (ABS) .............. 72
Anti-Lock Warning Light ....................... 62
Apple CarPlay ............................272 , 303
Arming System Security Alarm ................................. 18
Assist, Hill Start .................................. 78
Audio Jack .................................270 , 276
Audio Systems (Radio) ................262 , 264
Auto Down Power Windows ................... 45
Auto Up Power Windows ...................... 45
Automatic Headlights .......................... 32
Automatic High Beams ........................ 32
Automatic Temperature Control (ATC) ... 43
Automatic Transaxle .......................... 139 Automatic Transmission......................140
Adding Fluid ..................................259
Fluid Level Check ...........................231
Fluid Type ............................. 231 , 259
Special Additives ............................231
Auxiliary (Power Outlet) ........................52
Auxiliary Electrical Outlet (Power
Outlet) ................................................52
Axle Lubrication .................................259
B
Battery ........................................ 60 , 226
Charging System Light ......................60
Belts, Seat ........................................128
Blind Spot Monitoring ..........................80
Brake Assist System ....................... 73 , 84
Brake Control System, Electronic ...........73
Brake Fluid .......................................259
Brake System ....................................230 Fluid Check ........................... 230 , 259
Master Cylinder ..............................230
Parking ..........................................134 Warning Light...................................59
Brake/Transmission Interlock...............140
Bulb Replacement .............................177
Bulbs, Light ......................................130
2020_JEEP_M6_UG_UK.book Page 317

318
INDEX
C
Camera, Rear .................................... 164
Capacities, Fluid................................ 254
Caps, FillerFuel .............................................. 165
Oil (Engine) ................................... 222
Radiator (Coolant Pressure) ............. 230
Car Washes ....................................... 241
Carbon Monoxide Warning .......... 128 , 252
Certification Label ............................. 171
Chains, Tire ...................................... 239
Change Oil Indicator ............................ 56
Changing A Flat Tire .................. 189 , 232
Checking Your Vehicle For Safety ........ 128
Checks, Safety .................................. 128
Child Safety Locks ............................... 23
Cleaning Windshield Wiper Blades ................ 228
Climate Control ................................... 36
Clock Settings ................................... 263
Compact Spare Tire ........................... 238
Computer, Trip/Travel ........................... 59
Cooling Pressure Cap (Radiator Cap) .... 230
Cooling System .................................. 229 Coolant Level ................................. 229
Cooling Capacity ............................ 254Pressure Cap ................................. 230
Radiator Cap.................................. 230
Selection Of Coolant (Antifreeze) ........................ 254 , 255 Cruise Light ............................. 69
, 70 , 71
Customer Assistance .......................... 305
Customer Programmable Features ....... 284
Cybersecurity .................................... 262
D
Daytime Running Lights ..................31 , 32
Dealer Service ................................... 227
Defroster, Windshield......................... 129
Diagnostic System, Onboard ................. 71
Diesel Display Messages ............................. 57
Diesel Fuel ....................................... 252
Diesel Fuel Requirements .................. 252
Dimmer Switch Headlight ...................................31 , 32
Dipsticks Oil (Engine) ................................... 225
Disabled Vehicle Towing .................... 207
Do Not Disturb ...........................293 , 302
Door Ajar .......................................60 , 61
Door Ajar Light ...............................60 , 61
Drag And Drop Menu ......................... 268
Driver’s Seat Back Tilt ......................... 24
E
Electric Brake Control System............... 73 Anti-Lock Brake System.................... 72Traction Control System.................... 80
Electric Parking Brake ....................... 134 Electrical Outlet, Auxiliary (Power
Outlet) ................................................52
Electronic Speed Control (Cruise
Control) .............................................150
Electronic Stability Control (ESC) ..........74
Electronic Throttle Control Warning
Light ...................................................61
Emergency Gas Can Refueling .............204
Emergency, In Case Of Hazard Warning Flasher ..................177
Jacking .................................. 189 , 232
Jump Starting ................................202
Tow Hooks .....................................209
Towing ..........................................207
Emissions..........................................260
Engine ..............................................222 Checking Oil Level ..........................225
Coolant (Antifreeze) ........................255
Cooling ..........................................229Exhaust Gas Caution ............... 128 , 252
Jump Starting ................................202
Oil ........................................ 254 , 255
Oil Filler Cap ..................................222
Oil Selection ..................................254
Overheating....................................204
Starting .........................................131
Enhanced Accident Response
Feature ..................................... 111 , 211
Ethanol .............................................250
Exhaust Gas Cautions ................. 128 , 252
2020_JEEP_M6_UG_UK.book Page 318
