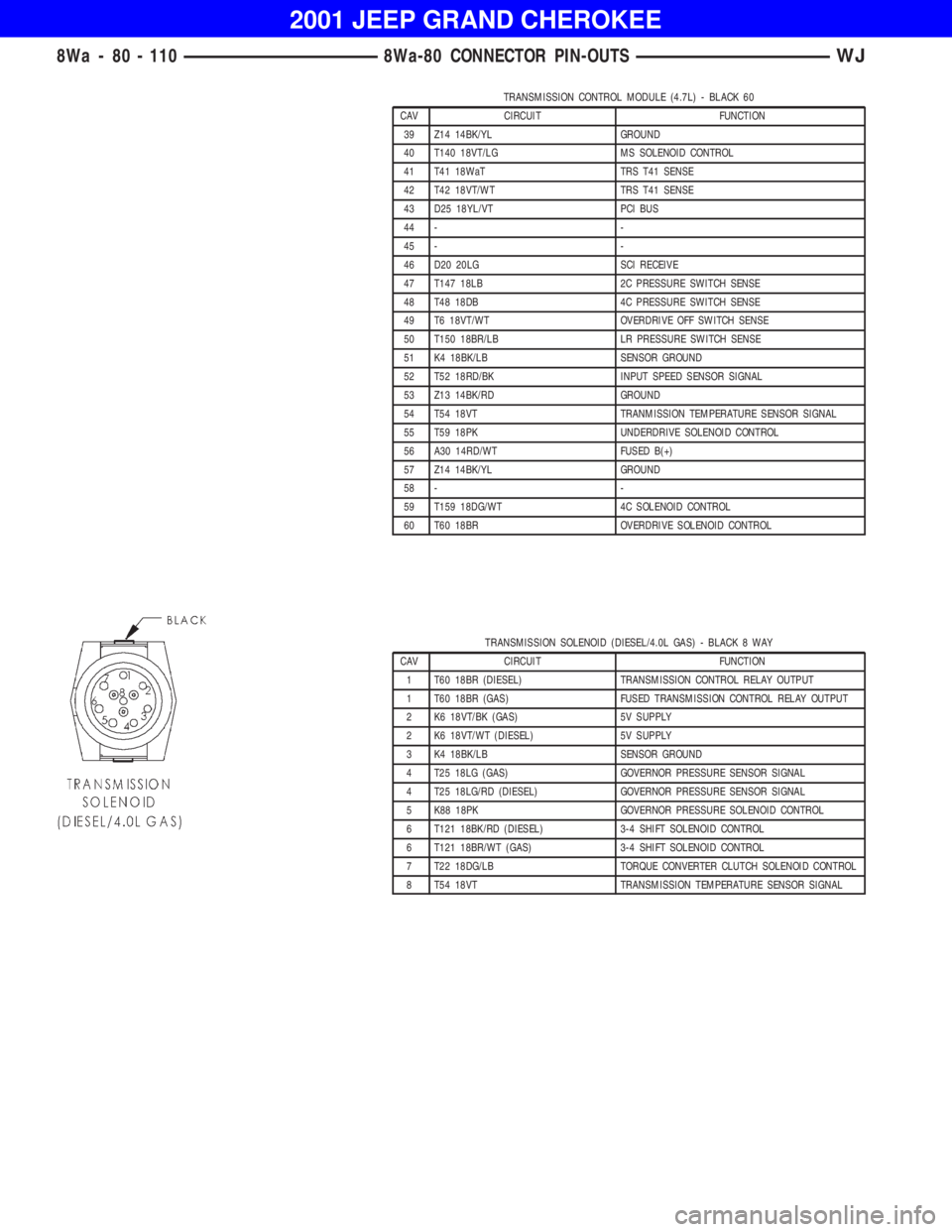

TRANSMISSION SOLENOID (DIESEL/4.0L GAS) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 T60 18BR (DIESEL) TRANSMISSION CONTROL RELAY OUTPUT
1 T60 18BR (GAS) FUSED TRANSMISSION CONTROL RELAY OUTPUT
2 K6 18VT/BK (GAS) 5V SUPPLY
2 K6 18VT/WT (DIESEL) 5V SUPPLY
3 K4 18BK/LB SENSOR GROUND
4 T25 18LG (GAS) GOVERNOR PRESSURE SENSOR SIGNAL
4 T25 18LG/RD (DIESEL) GOVERNOR PRESSURE SENSOR SIGNAL
5 K88 18PK GOVERNOR PRESSURE SOLENOID CONTROL
6 T121 18BK/RD (DIESEL) 3-4 SHIFT SOLENOID CONTROL
6 T121 18BR/WT (GAS) 3-4 SHIFT SOLENOID CONTROL
7 T22 18DG/LB TORQUE CONVERTER CLUTCH SOLENOID CONTROL
8 T54 18VT TRANSMISSION TEMPERATURE SENSOR SIGNAL
8Wa - 80 - 110 8Wa-80 CONNECTOR PIN-OUTSWJ

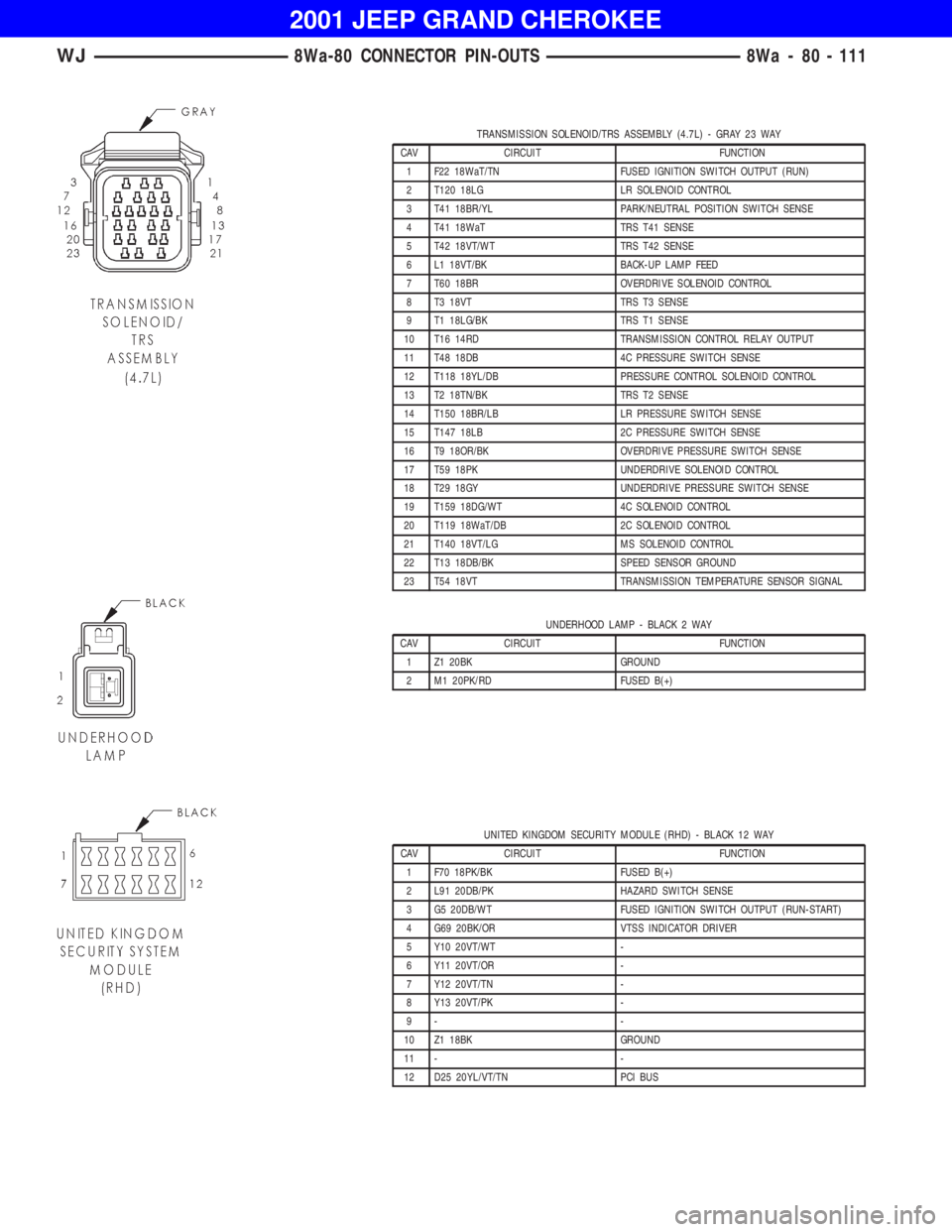

UNDERHOOD LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 M1 20PK/RD FUSED B(+)
UNITED KINGDOM SECURITY MODULE (RHD) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 F70 18PK/BK FUSED B(+)
2 L91 20DB/PK HAZARD SWITCH SENSE
3 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 G69 20BK/OR VTSS INDICATOR DRIVER
5 Y10 20VT/WT -
6 Y11 20VT/OR -
7 Y12 20VT/TN -
8 Y13 20VT/PK -
9- -
10 Z1 18BK GROUND
11 - -
12 D25 20YL/VT/TN PCI BUS
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 111

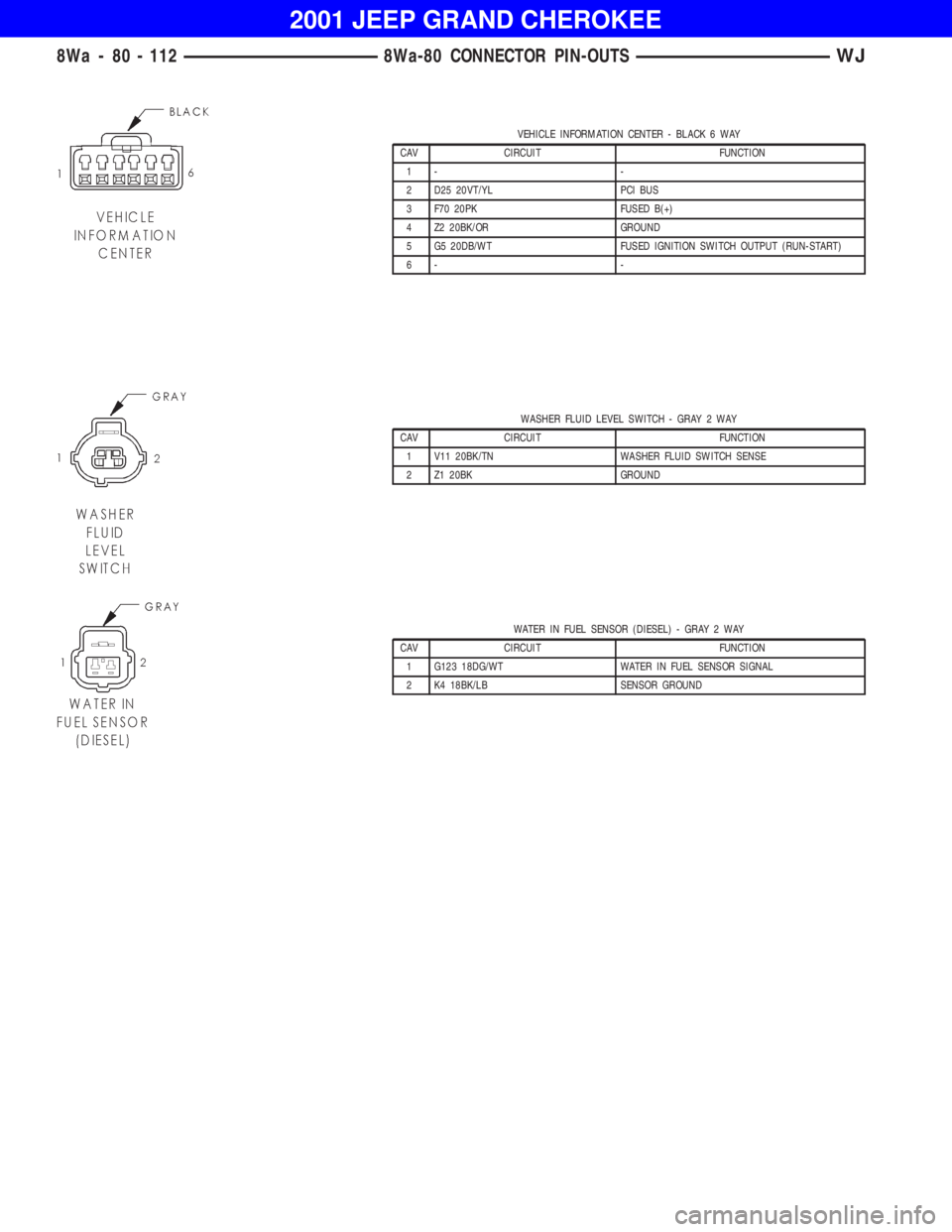

WASHER FLUID LEVEL SWITCH - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 V11 20BK/TN WASHER FLUID SWITCH SENSE
2 Z1 20BK GROUND
WATER IN FUEL SENSOR (DIESEL) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 G123 18DG/WT WATER IN FUEL SENSOR SIGNAL
2 K4 18BK/LB SENSOR GROUND
8Wa - 80 - 112 8Wa-80 CONNECTOR PIN-OUTSWJ

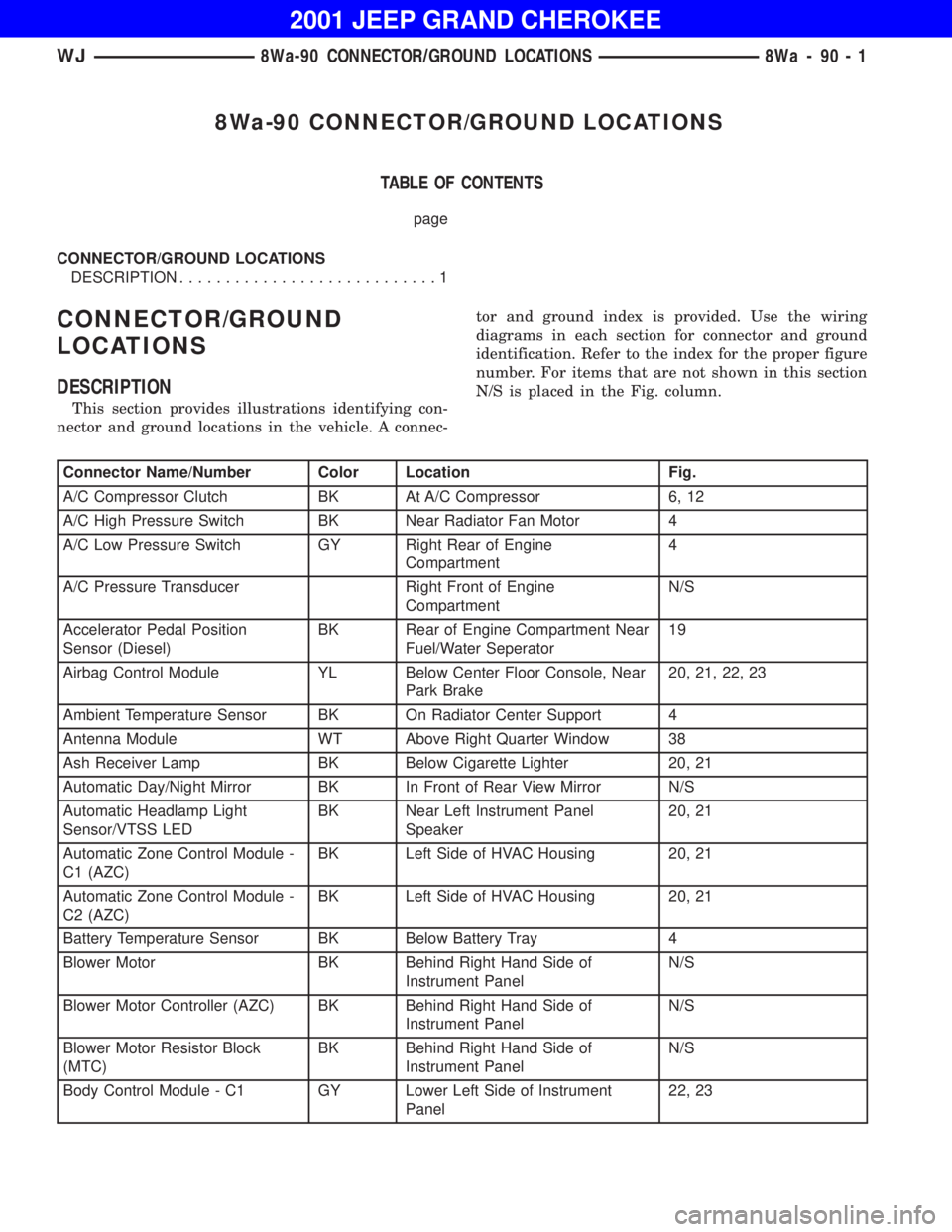

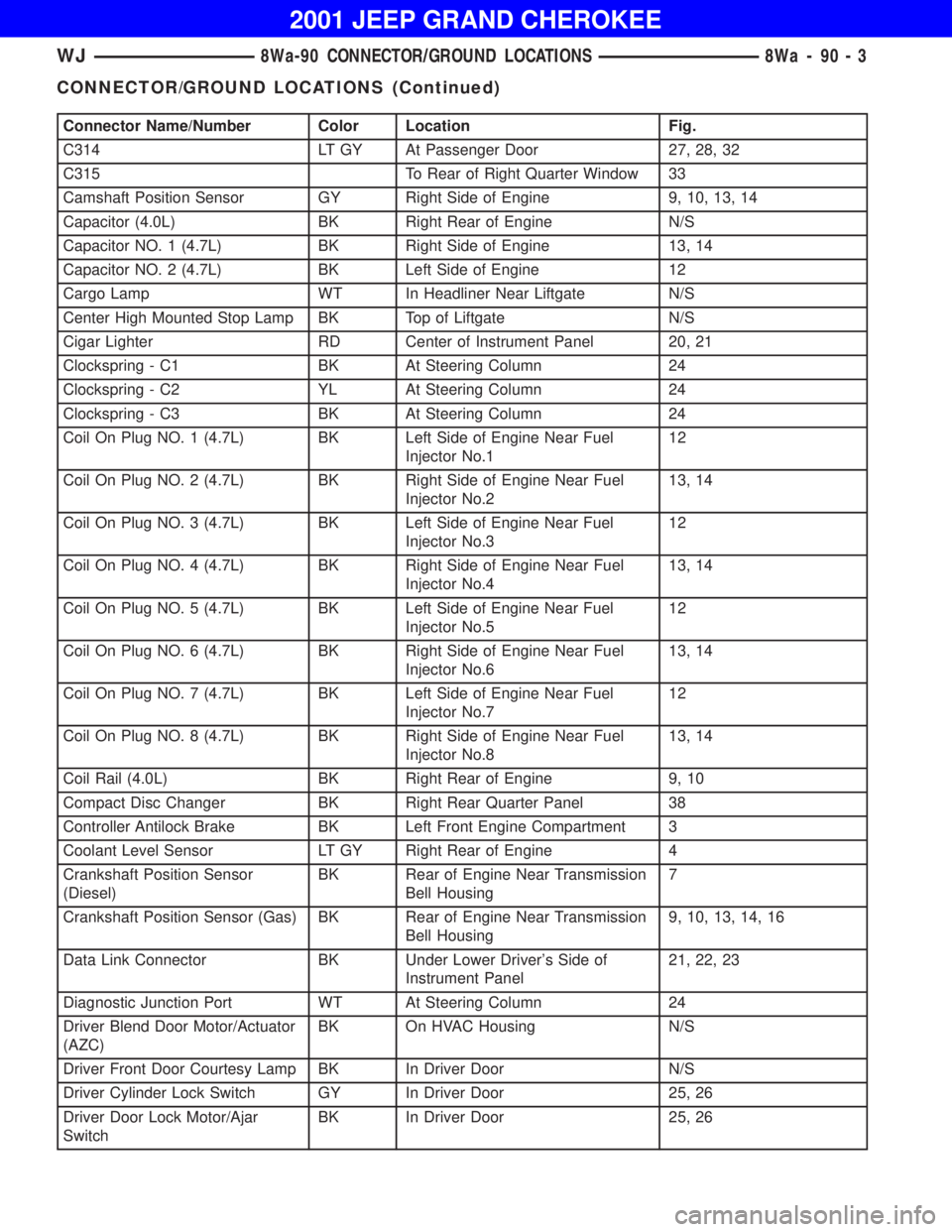

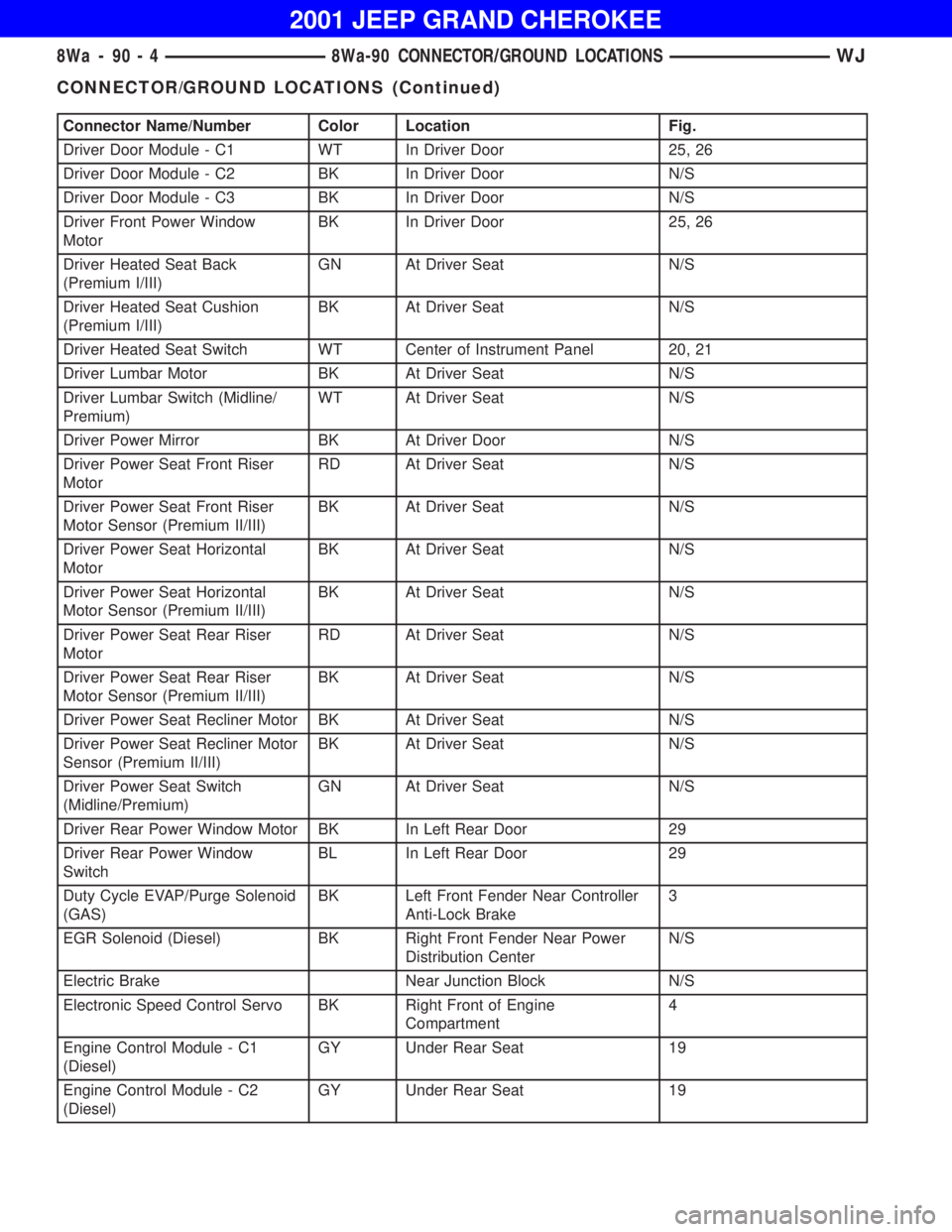

CONNECTOR/GROUND LOCATIONS (Continued)

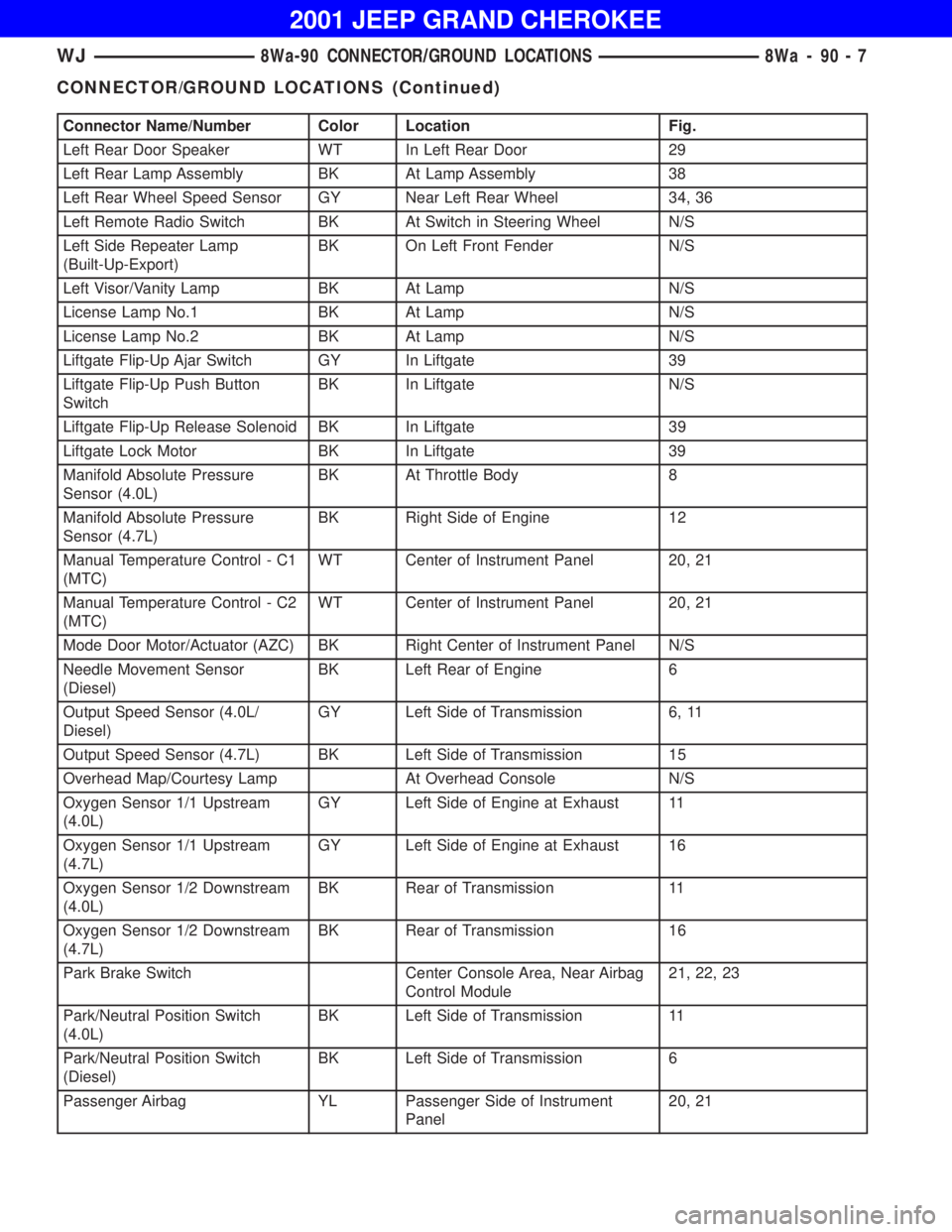

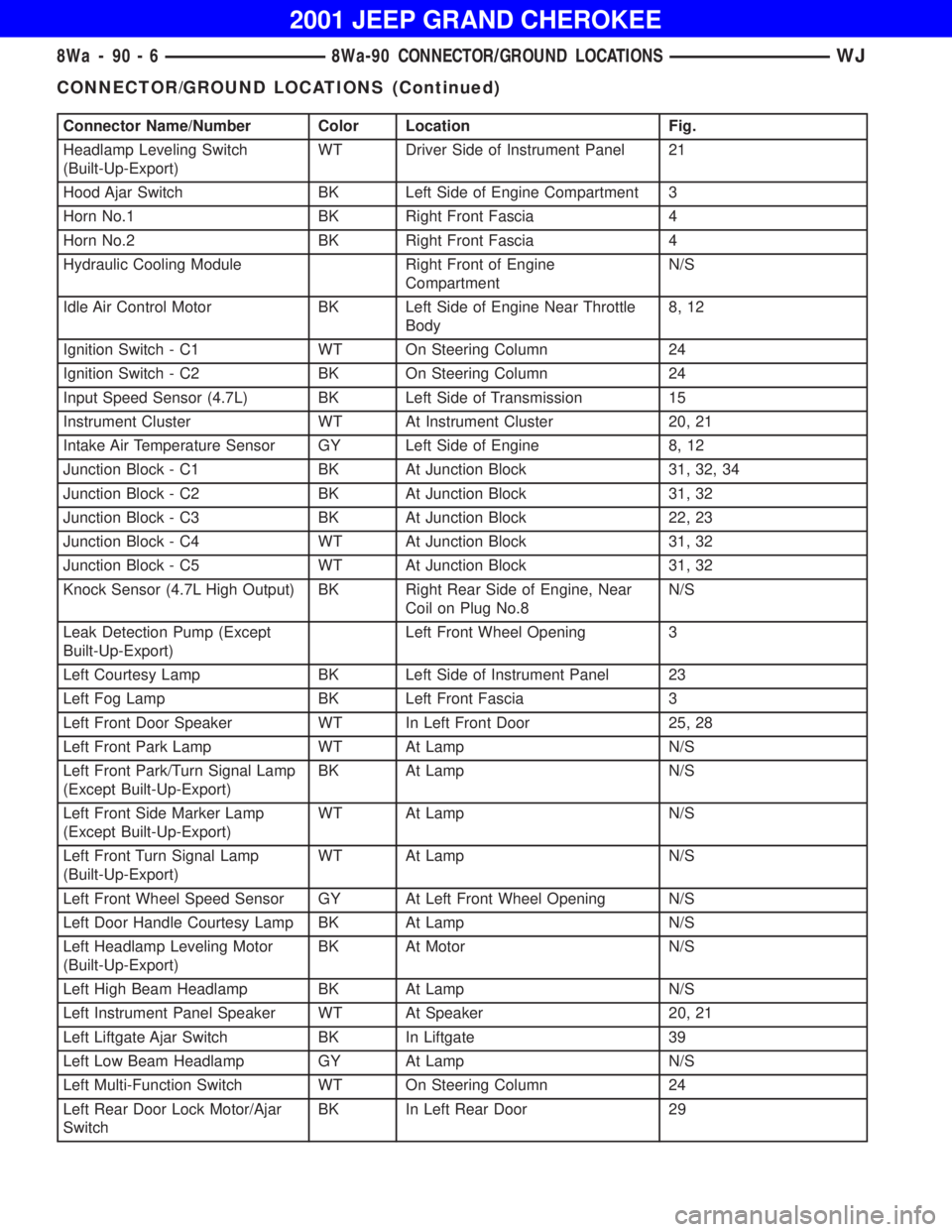

CONNECTOR/GROUND LOCATIONS (Continued)
