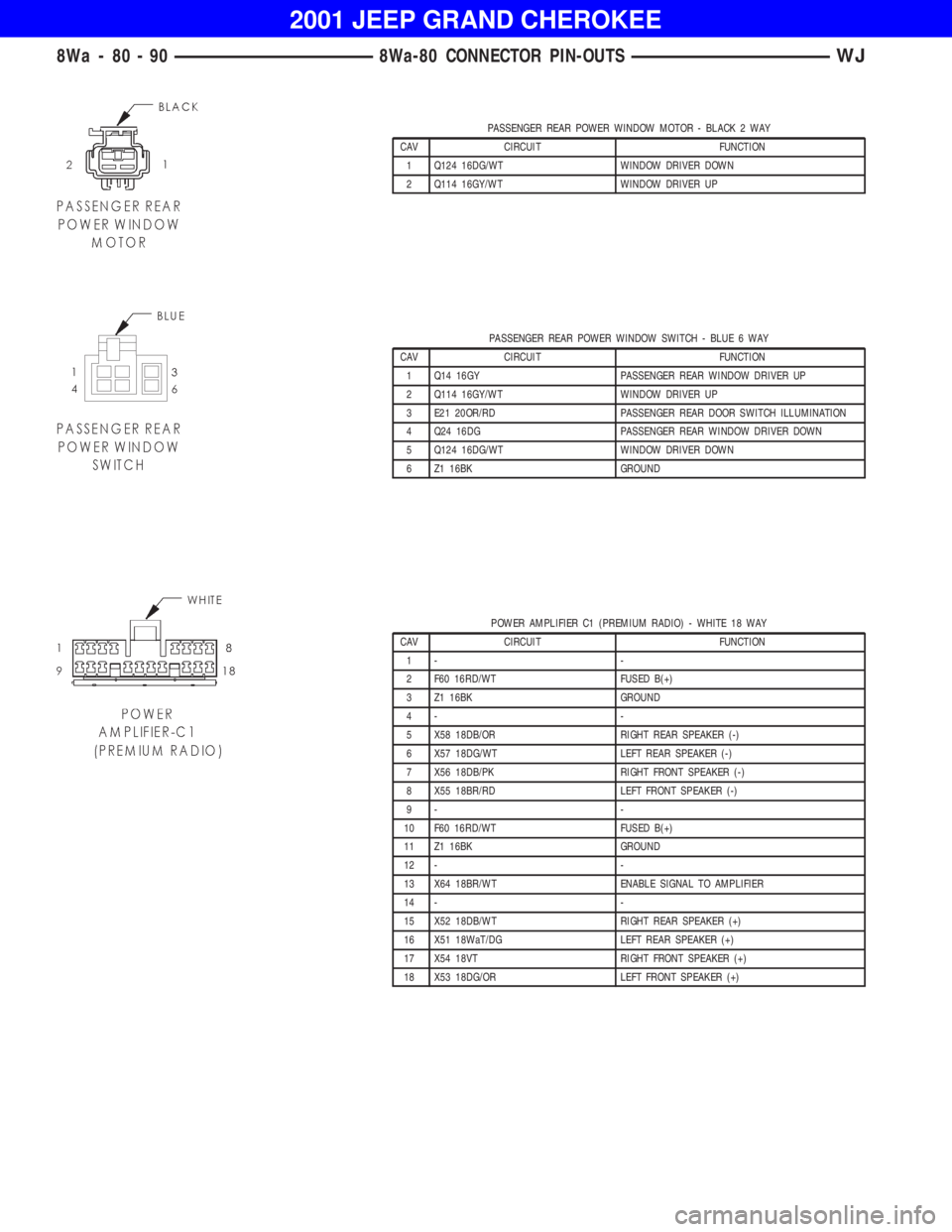

PASSENGER REAR POWER WINDOW SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 Q14 16GY PASSENGER REAR WINDOW DRIVER UP
2 Q114 16GY/WT WINDOW DRIVER UP
3 E21 20OR/RD PASSENGER REAR DOOR SWITCH ILLUMINATION
4 Q24 16DG PASSENGER REAR WINDOW DRIVER DOWN
5 Q124 16DG/WT WINDOW DRIVER DOWN
6 Z1 16BK GROUND
POWER AMPLIFIER C1 (PREMIUM RADIO) - WHITE 18 WAY
CAV CIRCUIT FUNCTION
1- -
2 F60 16RD/WT FUSED B(+)
3 Z1 16BK GROUND
4- -
5 X58 18DB/OR RIGHT REAR SPEAKER (-)
6 X57 18DG/WT LEFT REAR SPEAKER (-)
7 X56 18DB/PK RIGHT FRONT SPEAKER (-)
8 X55 18BR/RD LEFT FRONT SPEAKER (-)
9- -
10 F60 16RD/WT FUSED B(+)
11 Z1 16BK GROUND
12 - -
13 X64 18BR/WT ENABLE SIGNAL TO AMPLIFIER
14 - -
15 X52 18DB/WT RIGHT REAR SPEAKER (+)
16 X51 18WaT/DG LEFT REAR SPEAKER (+)
17 X54 18VT RIGHT FRONT SPEAKER (+)
18 X53 18DG/OR LEFT FRONT SPEAKER (+)
8Wa - 80 - 90 8Wa-80 CONNECTOR PIN-OUTSWJ

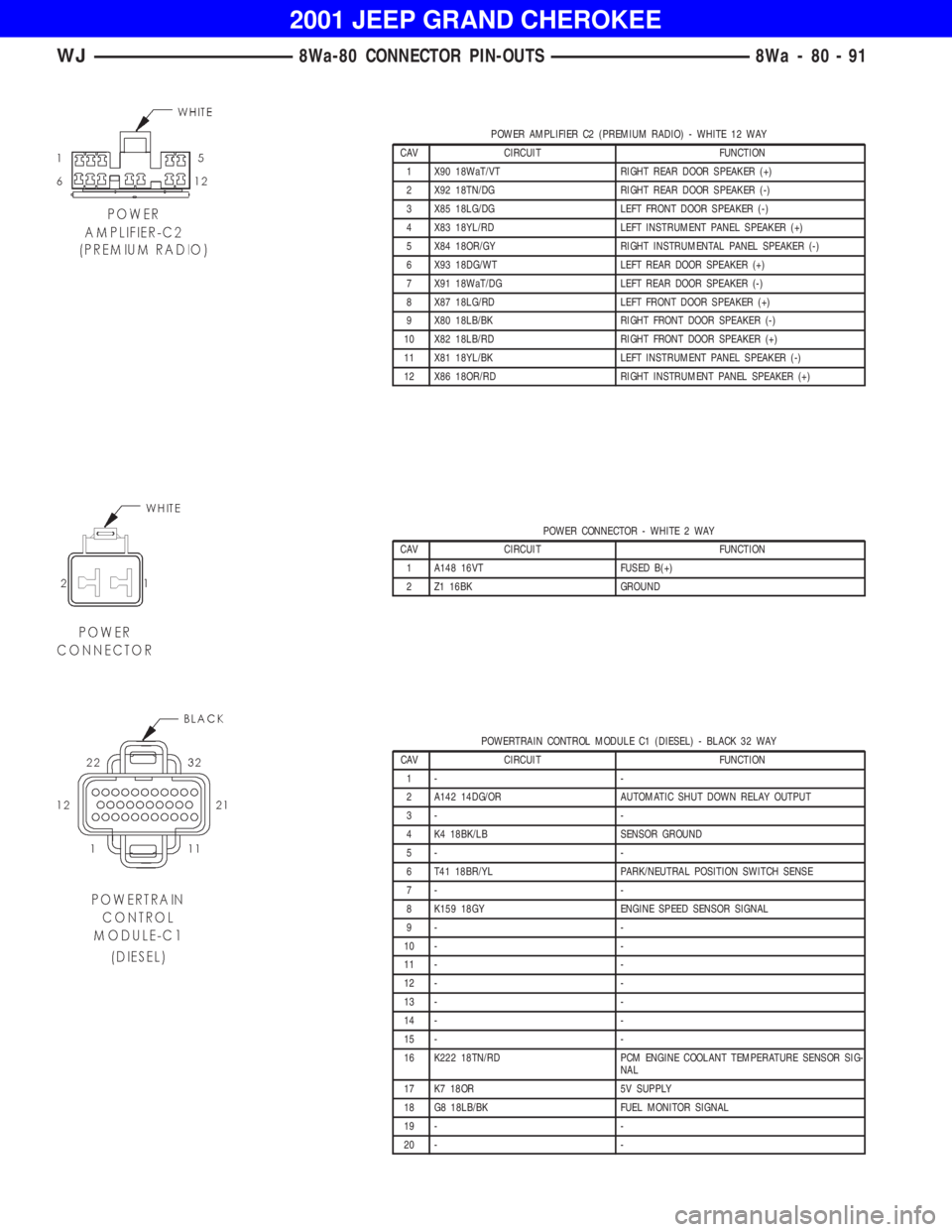

POWER CONNECTOR - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 A148 16VT FUSED B(+)
2 Z1 16BK GROUND
POWERTRAIN CONTROL MODULE C1 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1- -
2 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3- -
4 K4 18BK/LB SENSOR GROUND
5- -
6 T41 18BR/YL PARK/NEUTRAL POSITION SWITCH SENSE
7- -
8 K159 18GY ENGINE SPEED SENSOR SIGNAL
9- -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 K222 18TN/RD PCM ENGINE COOLANT TEMPERATURE SENSOR SIG-
NAL
17 K7 18OR 5V SUPPLY
18 G8 18LB/BK FUEL MONITOR SIGNAL
19 - -
20 - -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 91

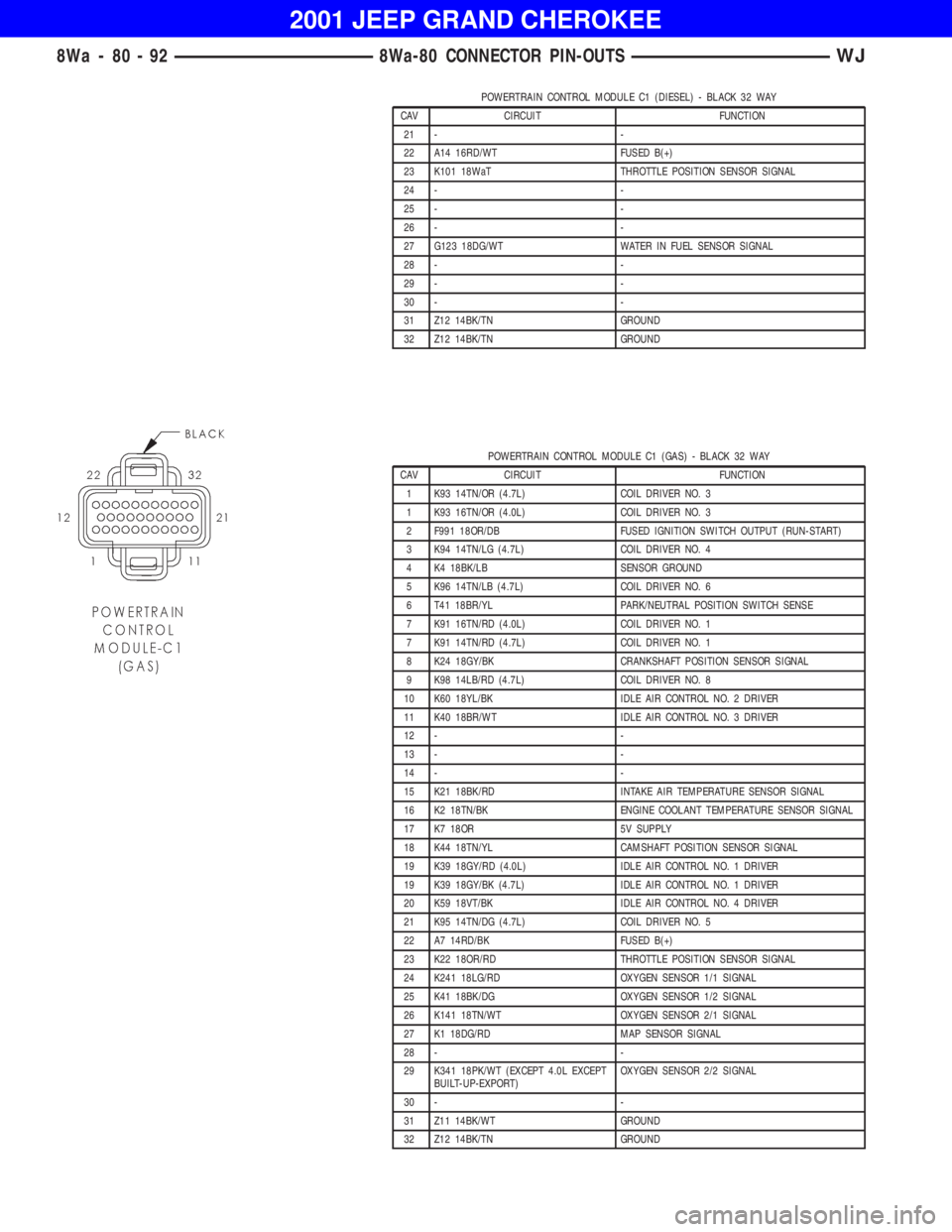

POWERTRAIN CONTROL MODULE C1 (GAS) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 K93 14TN/OR (4.7L) COIL DRIVER NO. 3
1 K93 16TN/OR (4.0L) COIL DRIVER NO. 3
2 F991 18OR/DB FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K94 14TN/LG (4.7L) COIL DRIVER NO. 4
4 K4 18BK/LB SENSOR GROUND
5 K96 14TN/LB (4.7L) COIL DRIVER NO. 6
6 T41 18BR/YL PARK/NEUTRAL POSITION SWITCH SENSE
7 K91 16TN/RD (4.0L) COIL DRIVER NO. 1
7 K91 14TN/RD (4.7L) COIL DRIVER NO. 1
8 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
9 K98 14LB/RD (4.7L) COIL DRIVER NO. 8
10 K60 18YL/BK IDLE AIR CONTROL NO. 2 DRIVER
11 K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
12 - -
13 - -
14 - -
15 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
16 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
17 K7 18OR 5V SUPPLY
18 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
19 K39 18GY/RD (4.0L) IDLE AIR CONTROL NO. 1 DRIVER
19 K39 18GY/BK (4.7L) IDLE AIR CONTROL NO. 1 DRIVER
20 K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
21 K95 14TN/DG (4.7L) COIL DRIVER NO. 5
22 A7 14RD/BK FUSED B(+)
23 K22 18OR/RD THROTTLE POSITION SENSOR SIGNAL
24 K241 18LG/RD OXYGEN SENSOR 1/1 SIGNAL
25 K41 18BK/DG OXYGEN SENSOR 1/2 SIGNAL
26 K141 18TN/WT OXYGEN SENSOR 2/1 SIGNAL
27 K1 18DG/RD MAP SENSOR SIGNAL
28 - -
29 K341 18PK/WT (EXCEPT 4.0L EXCEPT
BUILT-UP-EXPORT)OXYGEN SENSOR 2/2 SIGNAL
30 - -
31 Z11 14BK/WT GROUND
32 Z12 14BK/TN GROUND
8Wa - 80 - 92 8Wa-80 CONNECTOR PIN-OUTSWJ

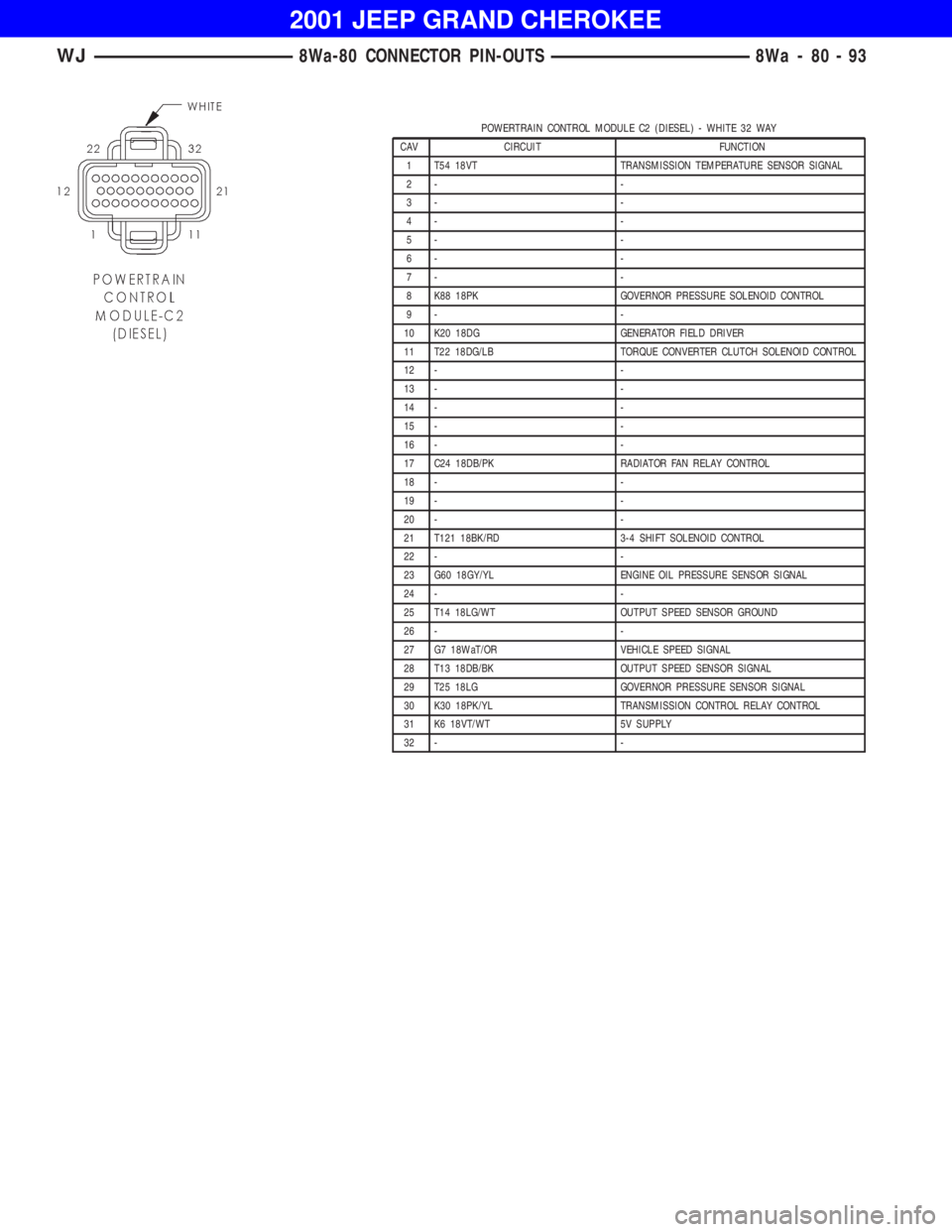

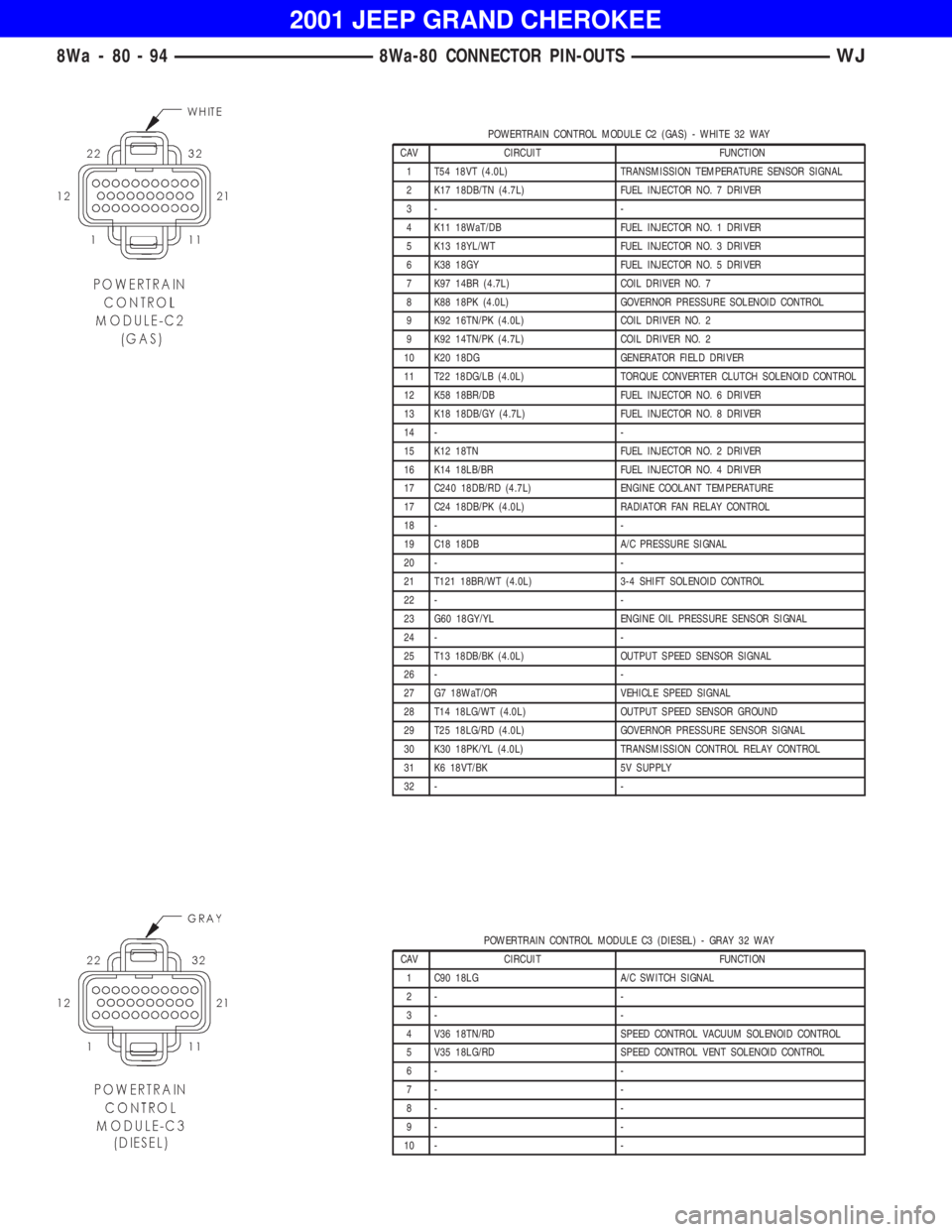

POWERTRAIN CONTROL MODULE C3 (DIESEL) - GRAY 32 WAY
CAV CIRCUIT FUNCTION
1 C90 18LG A/C SWITCH SIGNAL
2- -
3- -
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7- -
8- -
9- -
10 - -
8Wa - 80 - 94 8Wa-80 CONNECTOR PIN-OUTSWJ

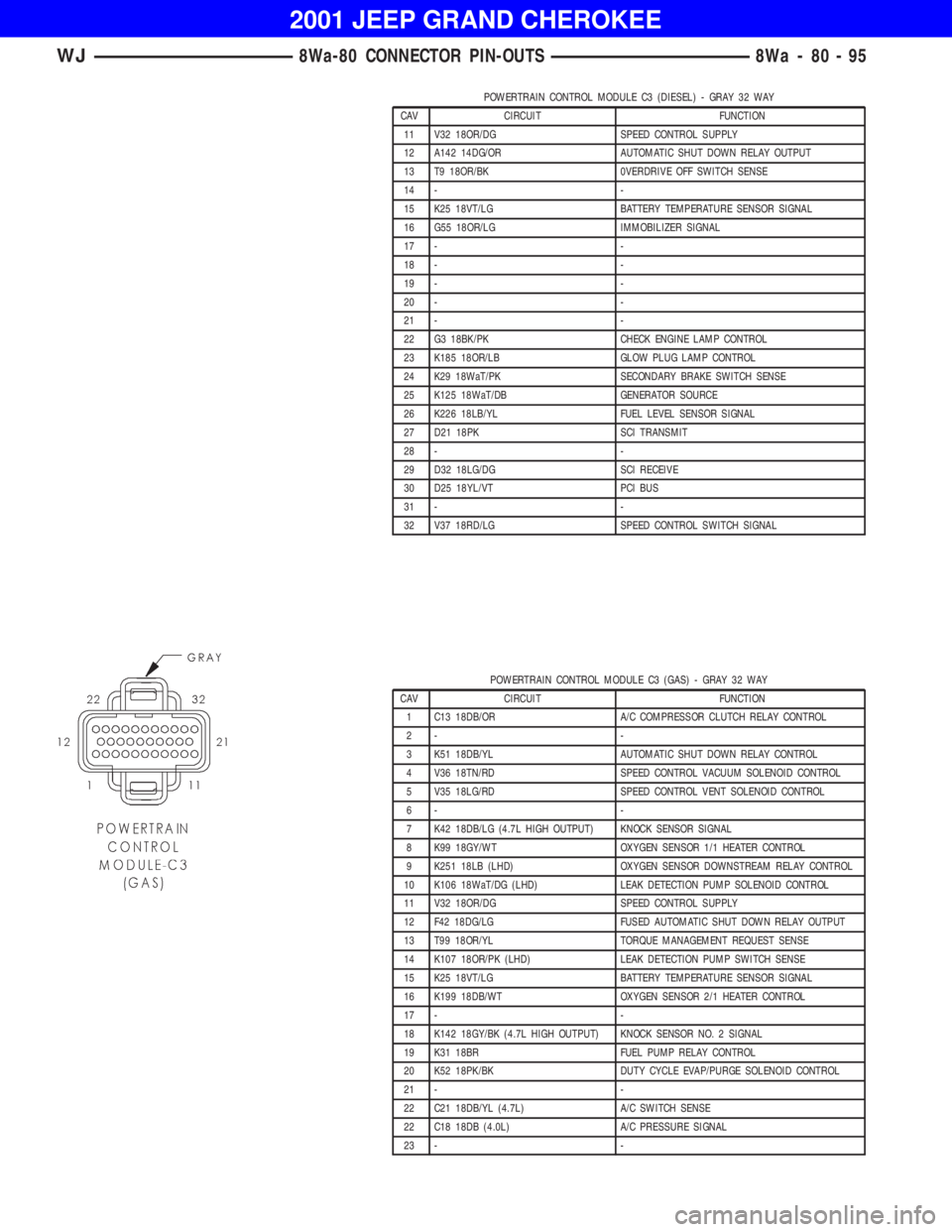

POWERTRAIN CONTROL MODULE C3 (GAS) - GRAY 32 WAY
CAV CIRCUIT FUNCTION
1 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
2- -
3 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7 K42 18DB/LG (4.7L HIGH OUTPUT) KNOCK SENSOR SIGNAL
8 K99 18GY/WT OXYGEN SENSOR 1/1 HEATER CONTROL
9 K251 18LB (LHD) OXYGEN SENSOR DOWNSTREAM RELAY CONTROL
10 K106 18WaT/DG (LHD) LEAK DETECTION PUMP SOLENOID CONTROL
11 V32 18OR/DG SPEED CONTROL SUPPLY
12 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
13 T99 18OR/YL TORQUE MANAGEMENT REQUEST SENSE
14 K107 18OR/PK (LHD) LEAK DETECTION PUMP SWITCH SENSE
15 K25 18VT/LG BATTERY TEMPERATURE SENSOR SIGNAL
16 K199 18DB/WT OXYGEN SENSOR 2/1 HEATER CONTROL
17 - -
18 K142 18GY/BK (4.7L HIGH OUTPUT) KNOCK SENSOR NO. 2 SIGNAL
19 K31 18BR FUEL PUMP RELAY CONTROL
20 K52 18PK/BK DUTY CYCLE EVAP/PURGE SOLENOID CONTROL
21 - -
22 C21 18DB/YL (4.7L) A/C SWITCH SENSE
22 C18 18DB (4.0L) A/C PRESSURE SIGNAL
23 - -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 95

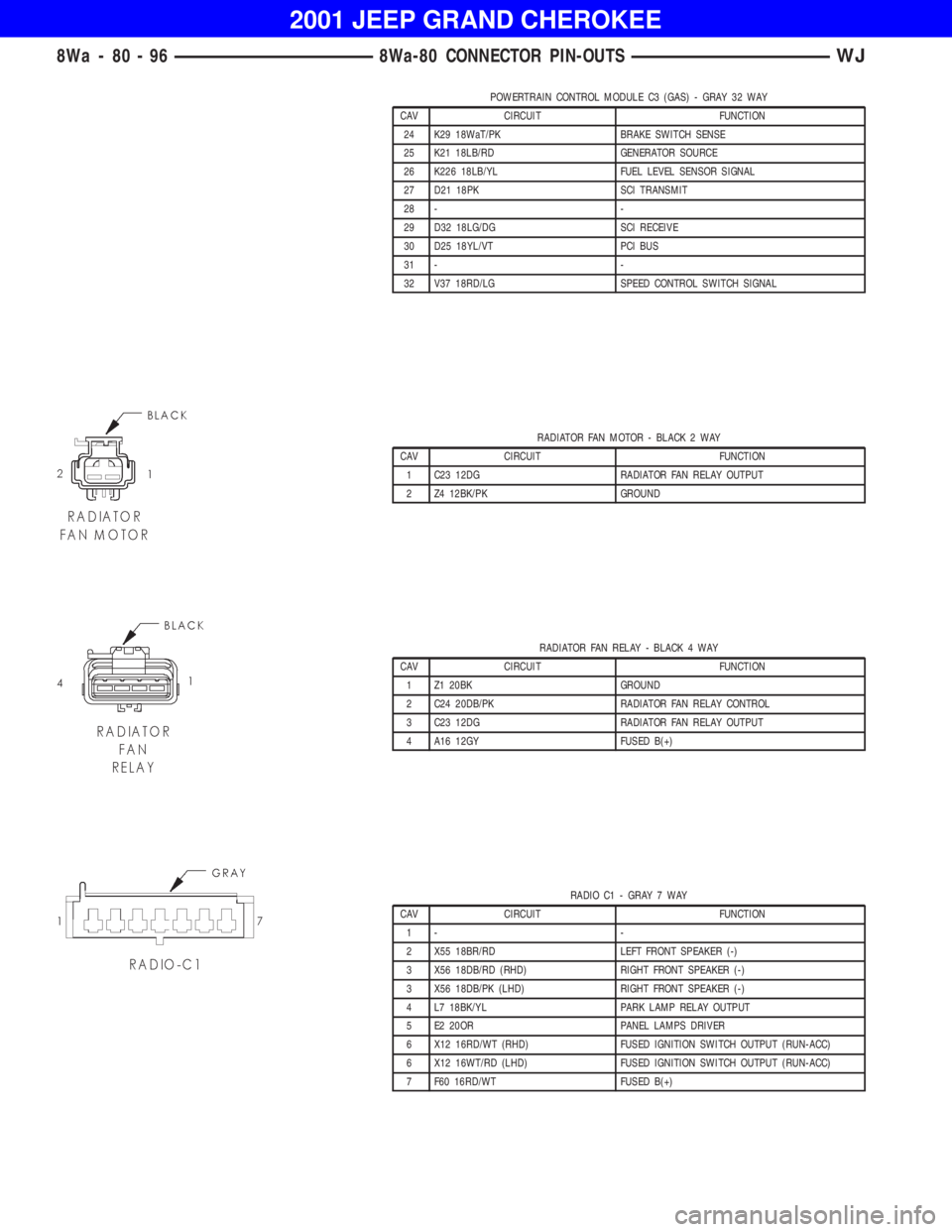

RADIATOR FAN MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C23 12DG RADIATOR FAN RELAY OUTPUT
2 Z4 12BK/PK GROUND
RADIATOR FAN RELAY - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 C24 20DB/PK RADIATOR FAN RELAY CONTROL
3 C23 12DG RADIATOR FAN RELAY OUTPUT
4 A16 12GY FUSED B(+)
RADIO C1 - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 X55 18BR/RD LEFT FRONT SPEAKER (-)
3 X56 18DB/RD (RHD) RIGHT FRONT SPEAKER (-)
3 X56 18DB/PK (LHD) RIGHT FRONT SPEAKER (-)
4 L7 18BK/YL PARK LAMP RELAY OUTPUT
5 E2 20OR PANEL LAMPS DRIVER
6 X12 16RD/WT (RHD) FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6 X12 16WT/RD (LHD) FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 F60 16RD/WT FUSED B(+)
8Wa - 80 - 96 8Wa-80 CONNECTOR PIN-OUTSWJ

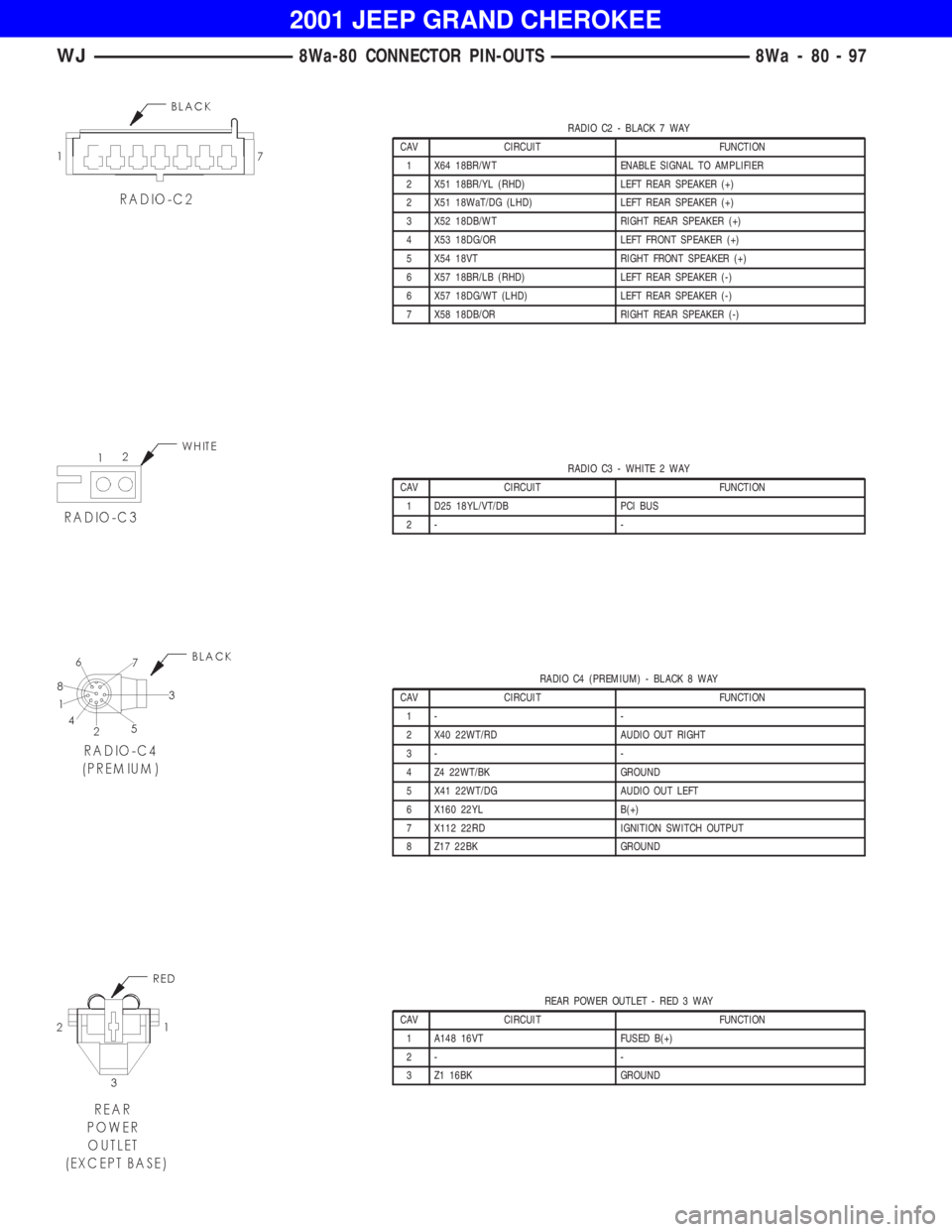

RADIO C3 - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 D25 18YL/VT/DB PCI BUS
2- -
RADIO C4 (PREMIUM) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2 X40 22WT/RD AUDIO OUT RIGHT
3- -
4 Z4 22WT/BK GROUND
5 X41 22WT/DG AUDIO OUT LEFT
6 X160 22YL B(+)
7 X112 22RD IGNITION SWITCH OUTPUT
8 Z17 22BK GROUND
REAR POWER OUTLET - RED 3 WAY
CAV CIRCUIT FUNCTION
1 A148 16VT FUSED B(+)
2- -
3 Z1 16BK GROUND
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 97

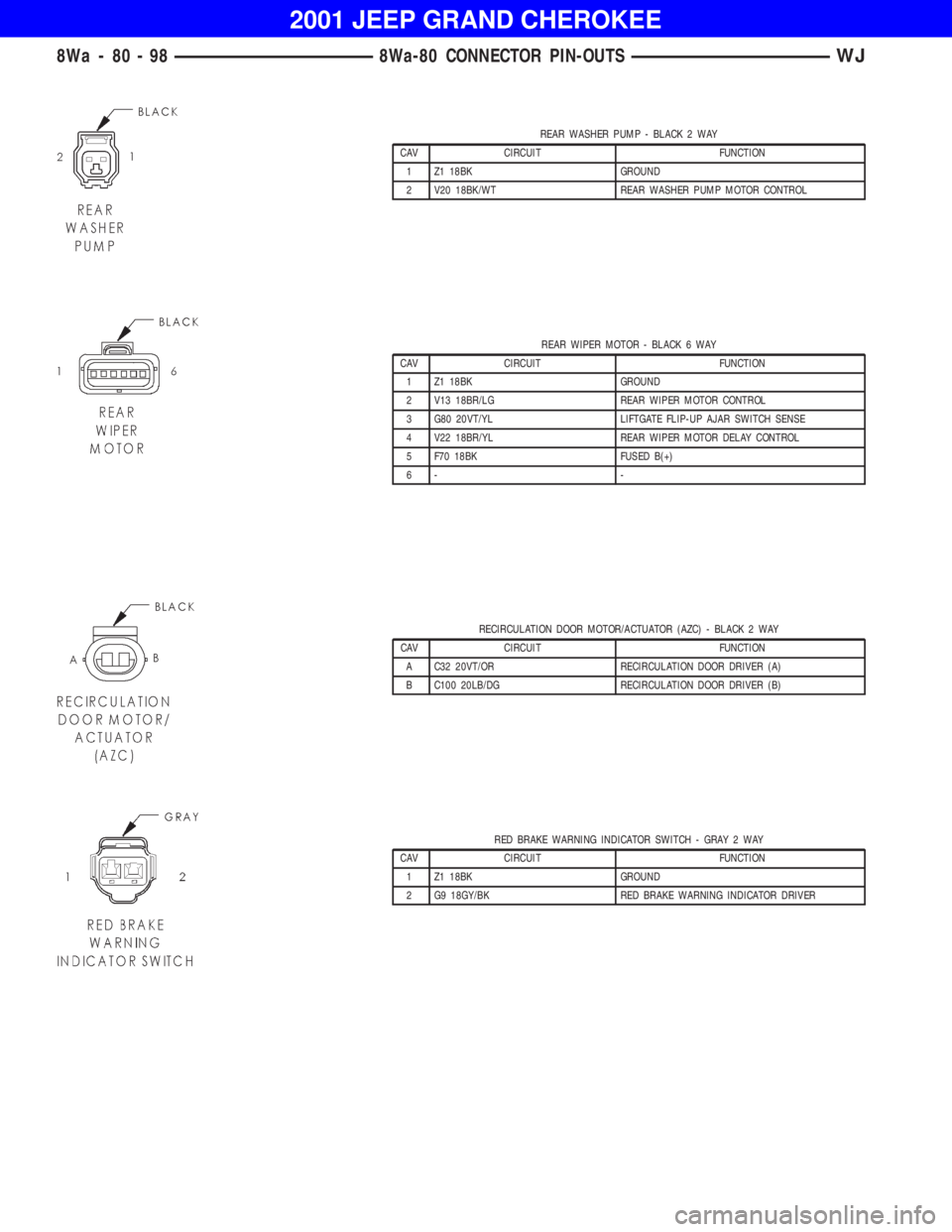

REAR WIPER MOTOR - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 V13 18BR/LG REAR WIPER MOTOR CONTROL
3 G80 20VT/YL LIFTGATE FLIP-UP AJAR SWITCH SENSE
4 V22 18BR/YL REAR WIPER MOTOR DELAY CONTROL
5 F70 18BK FUSED B(+)
6- -
RECIRCULATION DOOR MOTOR/ACTUATOR (AZC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A C32 20VT/OR RECIRCULATION DOOR DRIVER (A)
B C100 20LB/DG RECIRCULATION DOOR DRIVER (B)
RED BRAKE WARNING INDICATOR SWITCH - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 G9 18GY/BK RED BRAKE WARNING INDICATOR DRIVER
8Wa - 80 - 98 8Wa-80 CONNECTOR PIN-OUTSWJ

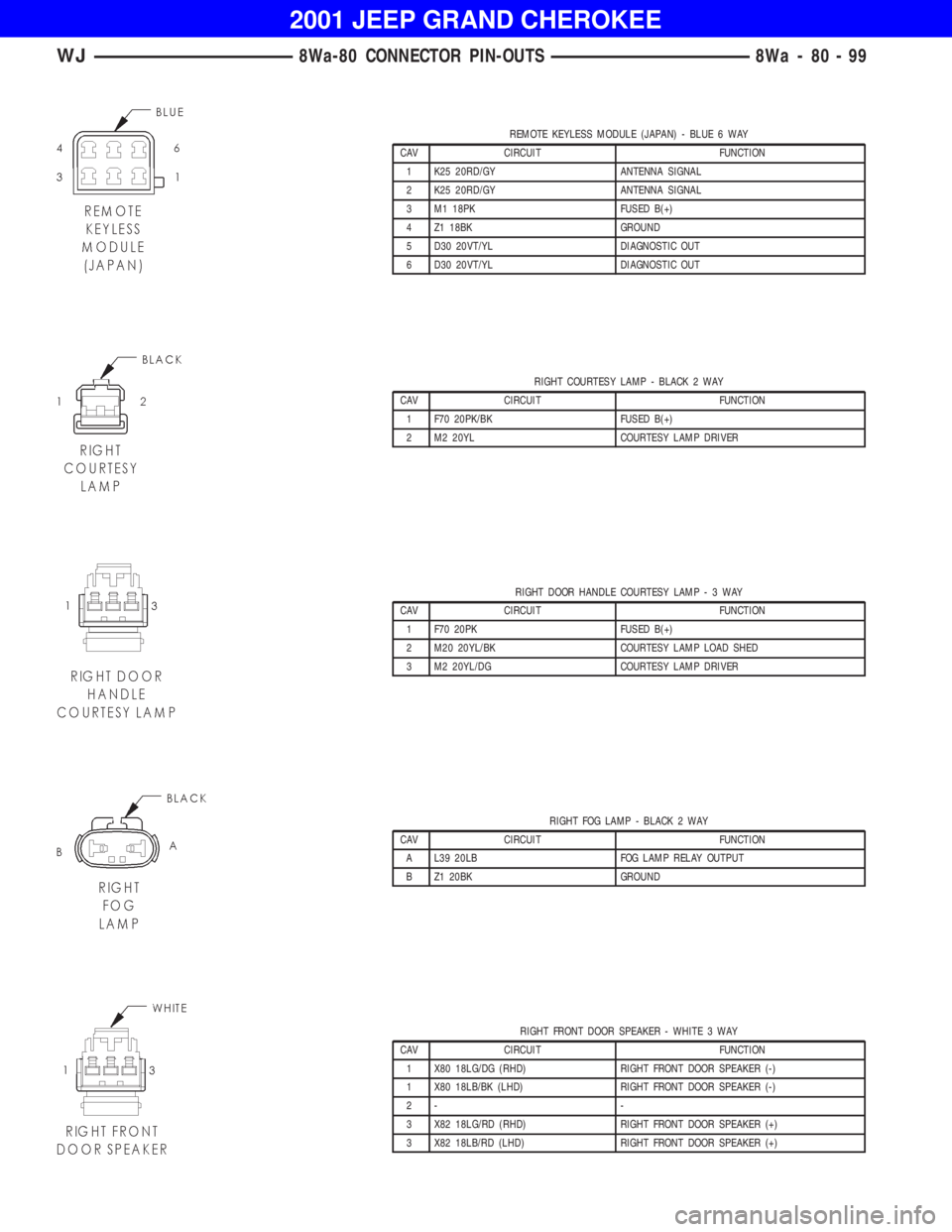

RIGHT COURTESY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F70 20PK/BK FUSED B(+)
2 M2 20YL COURTESY LAMP DRIVER
RIGHT DOOR HANDLE COURTESY LAMP-3WAY
CAV CIRCUIT FUNCTION
1 F70 20PK FUSED B(+)
2 M20 20YL/BK COURTESY LAMP LOAD SHED
3 M2 20YL/DG COURTESY LAMP DRIVER
RIGHT FOG LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L39 20LB FOG LAMP RELAY OUTPUT
B Z1 20BK GROUND
RIGHT FRONT DOOR SPEAKER - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 X80 18LG/DG (RHD) RIGHT FRONT DOOR SPEAKER (-)
1 X80 18LB/BK (LHD) RIGHT FRONT DOOR SPEAKER (-)
2- -
3 X82 18LG/RD (RHD) RIGHT FRONT DOOR SPEAKER (+)
3 X82 18LB/RD (LHD) RIGHT FRONT DOOR SPEAKER (+)
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 99
