JEEP GRAND CHEROKEE 2010 Owner handbook (in English)

7

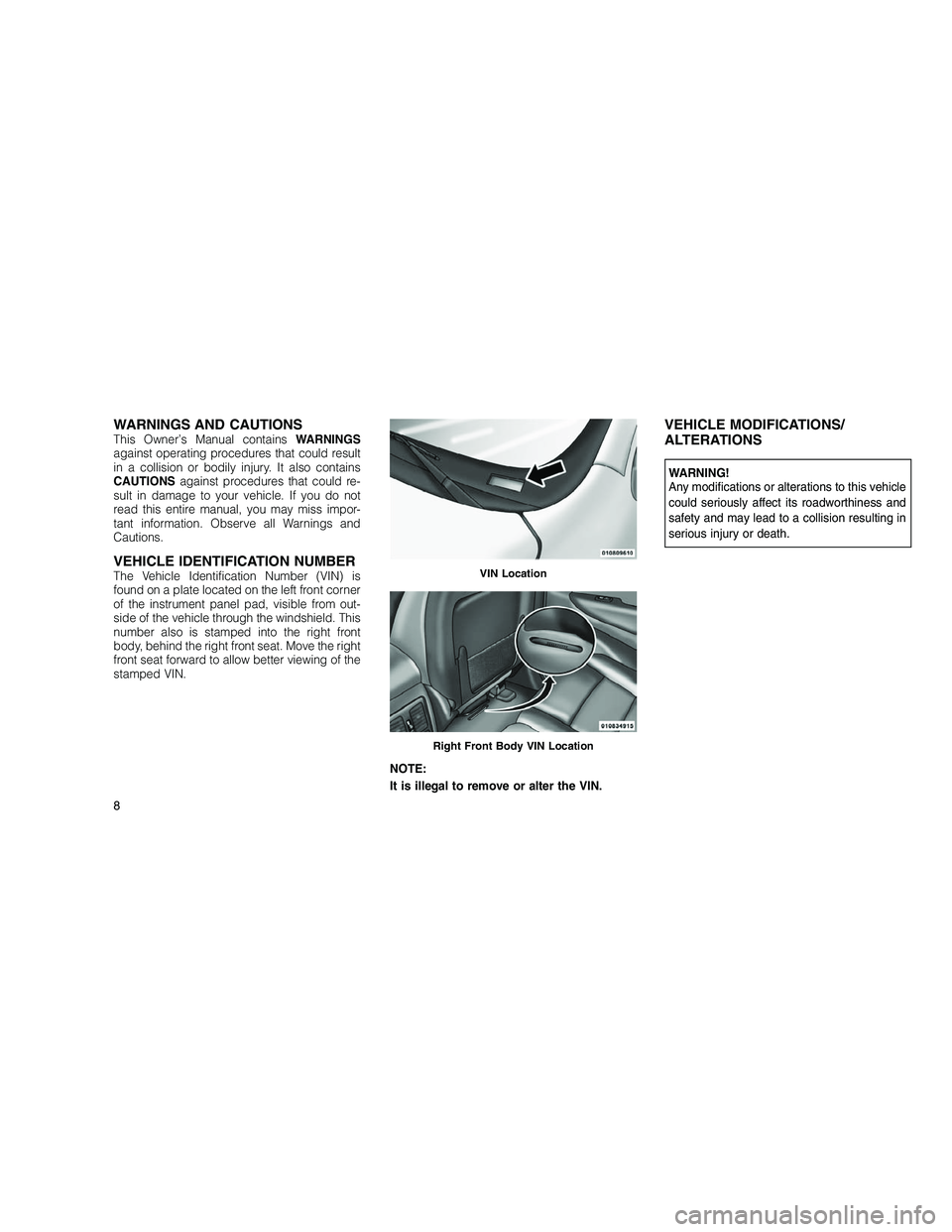

WARNINGS AND CAUTIONSThis Owner’s Manual containsWARNINGS
against operating procedures that could result
in a collision or bodily injury. It also contains
CAUTIONS against procedures that could re-
sult in damage to your vehicle. If you do not
read this entire manual, you may miss impor-
tant information. Observe all Warnings and
Cautions.
VEHICLE IDENTIFICATION NUMBERThe Vehicle Identification Number (VIN) is
found on a plate located on the left front corner
of the instrument panel pad, visible from out-
side of the vehicle through the windshield. This
number also is stamped into the right front
body, behind the right front seat. Move the right
front seat forward to allow better viewing of the
stamped VIN.
NOTE:
It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/
ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and
safety and may lead to a collision resulting in
serious injury or death.
VIN Location
Right Front Body VIN Location
8

2

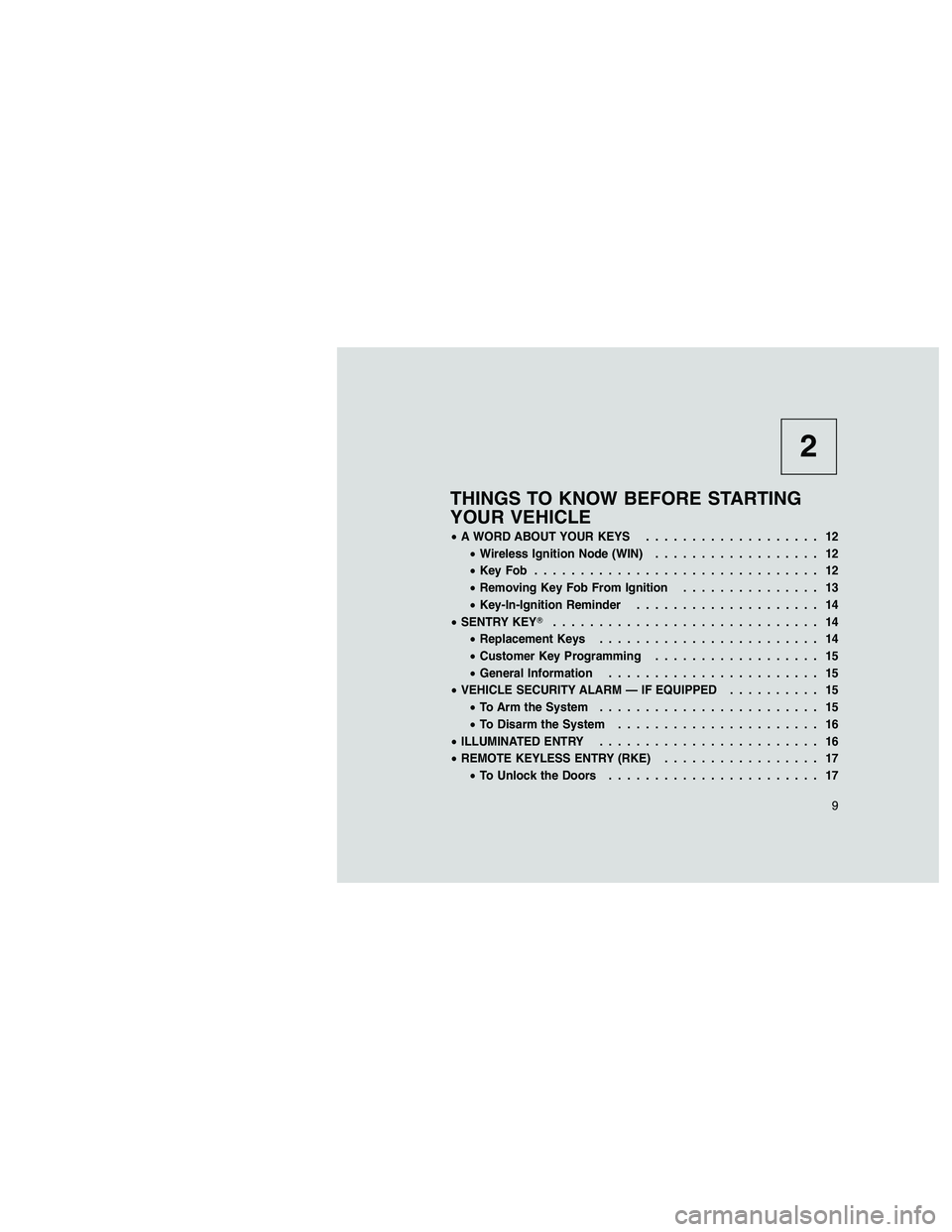

THINGS TO KNOW BEFORE STARTING
YOUR VEHICLE
•A WORD ABOUT YOUR KEYS ................... 12
• Wireless Ignition Node (WIN) .................. 12
• KeyFob ............................... 12
• Removing Key Fob From Ignition ............... 13
• Key-In-Ignition Reminder .................... 14
• SENTRY KEY ............................. 14
• Replacement Keys ........................ 14
• Customer Key Programming .................. 15
• General Information ....................... 15
• VEHICLE SECURITY ALARM — IF EQUIPPED .......... 15
• To Arm the System ........................ 15
• To Disarm the System ...................... 16
• ILLUMINATED ENTRY ........................ 16
• REMOTE KEYLESS ENTRY (RKE) ................. 17
• To Unlock the Doors ....................... 17
9

•To Lock the Doors ........................ 18
• To Release the Liftgate Flipper Glass ............. 18
• Remote Open Window Feature — If Equipped ........ 18
• Programming Additional Transmitters ............. 18
• Transmitter Battery Replacement ................ 18
• General Information ....................... 19
• DOOR LOCKS ............................. 20
• Power Door Locks ........................ 20
• Child-Protection Door Lock System — Rear Doors ..... 21
• KEYLESS ENTER-N-GO ....................... 22
• WINDOWS ............................... 24
• Power Windows .......................... 24
• Wind Buffeting ........................... 26
• LIFTGATE ............................... 26
• Liftgate Flipper Glass ...................... 26
• Power Liftgate — If Equipped .................. 27
• OCCUPANT RESTRAINTS ...................... 28
• Lap/Shoulder Belts ........................ 29
• Lap/Shoulder Belt Operating Instructions ........... 30
• Lap/Shoulder Belt Untwisting Procedure ........... 32
• Adjustable Upper Shoulder Belt Anchorage ......... 32
• Energy Management Feature .................. 32
10

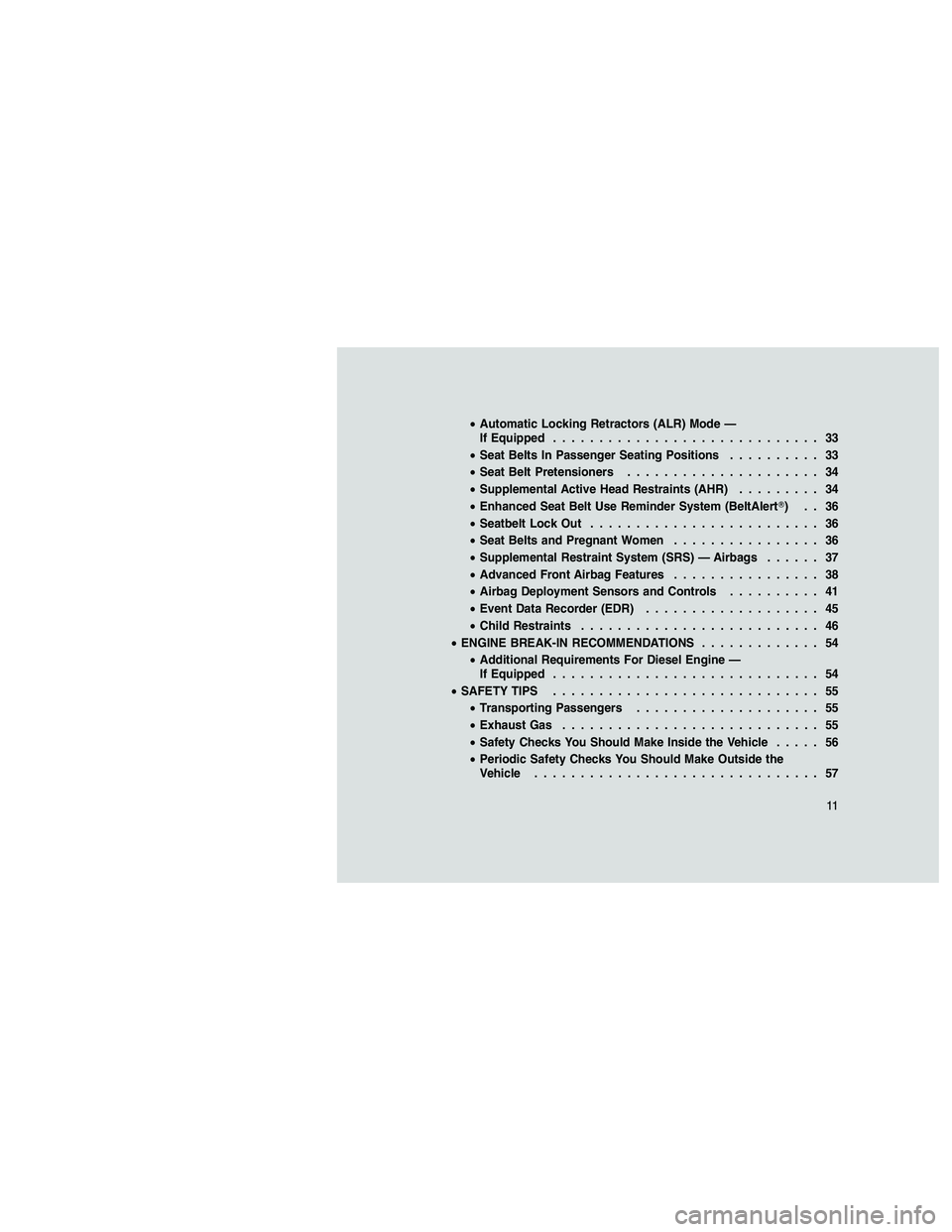

•Automatic Locking Retractors (ALR) Mode —
If Equipped ............................. 33
• Seat Belts In Passenger Seating Positions .......... 33
• Seat Belt Pretensioners ..................... 34
• Supplemental Active Head Restraints (AHR) ......... 34
• Enhanced Seat Belt Use Reminder System (BeltAlert )..36
• Seatbelt Lock Out ......................... 36
• Seat Belts and Pregnant Women ................ 36
• Supplemental Restraint System (SRS) — Airbags ...... 37
• Advanced Front Airbag Features ................ 38
• Airbag Deployment Sensors and Controls .......... 41
• Event Data Recorder (EDR) ................... 45
• Child Restraints .......................... 46
• ENGINE BREAK-IN RECOMMENDATIONS ............. 54
• Additional Requirements For Diesel Engine —
If Equipped ............................. 54
• SAFETY TIPS ............................. 55
• Transporting Passengers .................... 55
• Exhaust Gas ............................ 55
• Safety Checks You Should Make Inside the Vehicle ..... 56
• Periodic Safety Checks You Should Make Outside the
Vehicle ............................... 57
11

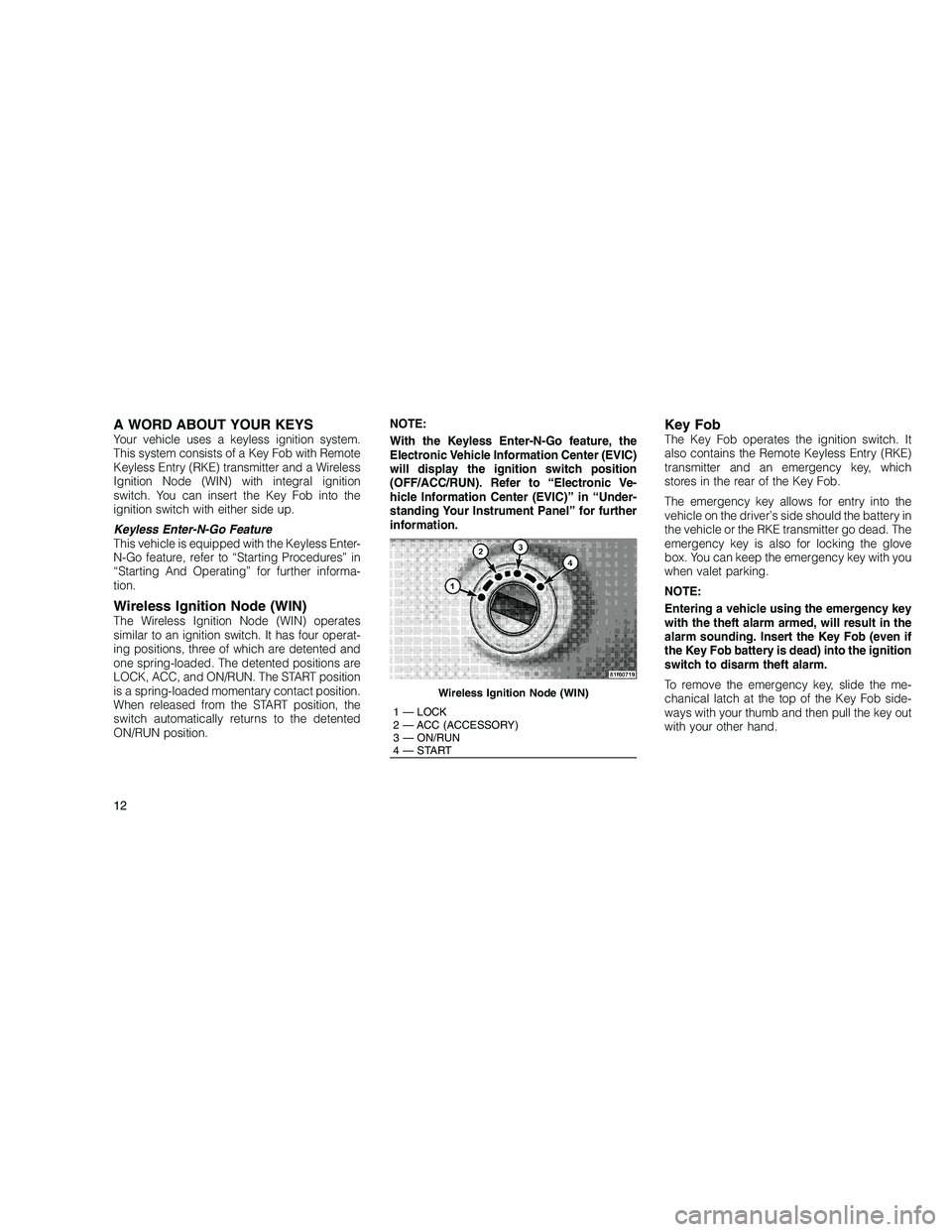

A WORD ABOUT YOUR KEYSYour vehicle uses a keyless ignition system.
This system consists of a Key Fob with Remote
Keyless Entry (RKE) transmitter and a Wireless
Ignition Node (WIN) with integral ignition
switch. You can insert the Key Fob into the
ignition switch with either side up.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-
N-Go feature, refer to “Starting Procedures” in
“Starting And Operating” for further informa-
tion.
Wireless Ignition Node (WIN)The Wireless Ignition Node (WIN) operates
similar to an ignition switch. It has four operat-
ing positions, three of which are detented and
one spring-loaded. The detented positions are
LOCK, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position.
When released from the START position, the
switch automatically returns to the detented
ON/RUN position.NOTE:
With the Keyless Enter-N-Go feature, the
Electronic Vehicle Information Center (EVIC)
will display the ignition switch position
(OFF/ACC/RUN). Refer to “Electronic Ve-
hicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further
information.
Key FobThe Key Fob operates the ignition switch. It
also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which
stores in the rear of the Key Fob.
The emergency key allows for entry into the
vehicle on the driver’s side should the battery in
the vehicle or the RKE transmitter go dead. The
emergency key is also for locking the glove
box. You can keep the emergency key with you
when valet parking.
NOTE:
Entering a vehicle using the emergency key
with the theft alarm armed, will result in the
alarm sounding. Insert the Key Fob (even if
the Key Fob battery is dead) into the ignition
switch to disarm theft alarm.
To remove the emergency key, slide the me-
chanical latch at the top of the Key Fob side-
ways with your thumb and then pull the key out
with your other hand.
Wireless Ignition Node (WIN)
1 — LOCK
2 — ACC (ACCESSORY)
3 — ON/RUN
4—START
12

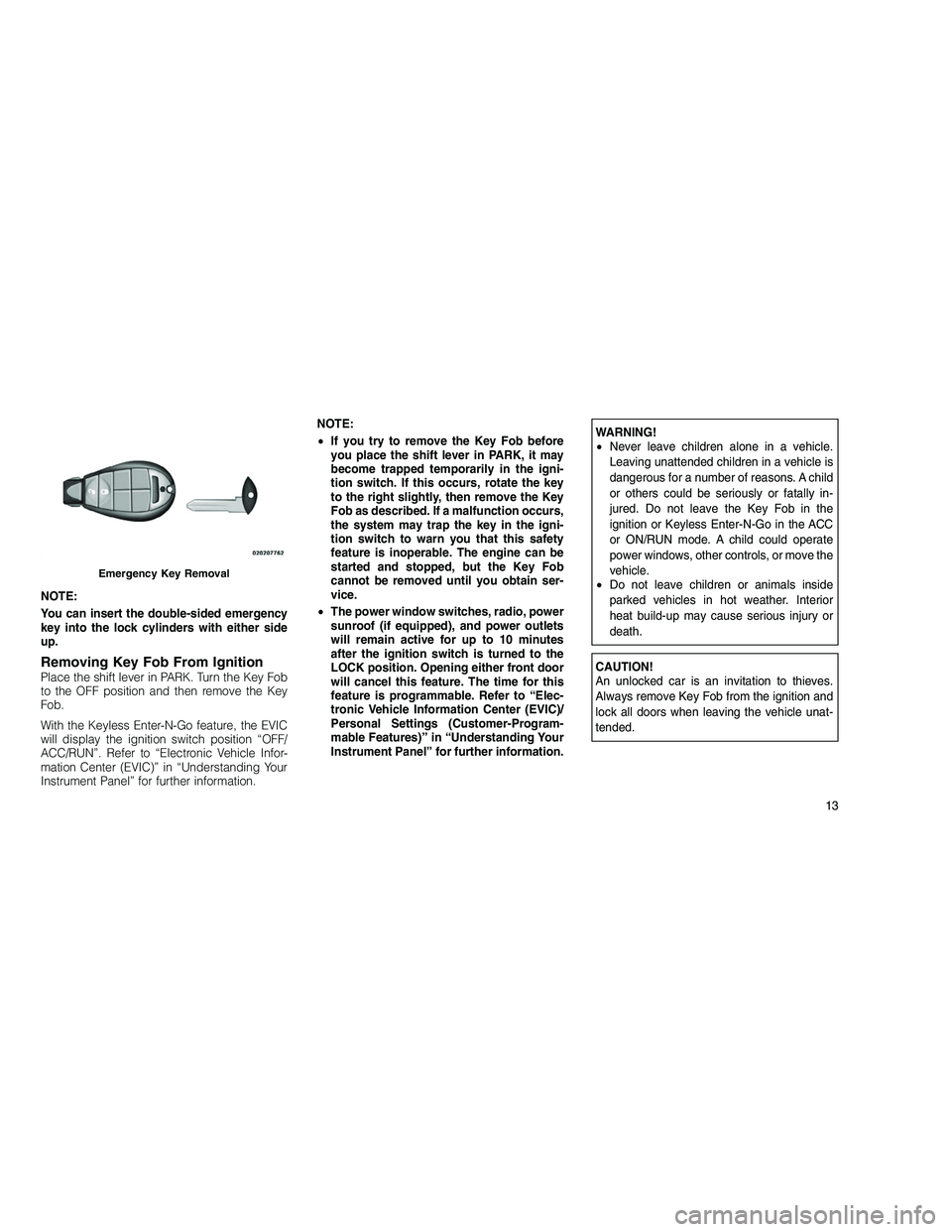

NOTE:
You can insert the double-sided emergency
key into the lock cylinders with either side
up.
Removing Key Fob From IgnitionPlace the shift lever in PARK. Turn the Key Fob
to the OFF position and then remove the Key
Fob.
With the Keyless Enter-N-Go feature, the EVIC
will display the ignition switch position “OFF/
ACC/RUN”. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.NOTE:
•
If you try to remove the Key Fob before
you place the shift lever in PARK, it may
become trapped temporarily in the igni-
tion switch. If this occurs, rotate the key
to the right slightly, then remove the Key
Fob as described. If a malfunction occurs,
the system may trap the key in the igni-
tion switch to warn you that this safety
feature is inoperable. The engine can be
started and stopped, but the Key Fob
cannot be removed until you obtain ser-
vice.
• The power window switches, radio, power
sunroof (if equipped), and power outlets
will remain active for up to 10 minutes
after the ignition switch is turned to the
LOCK position. Opening either front door
will cancel this feature. The time for this
feature is programmable. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Program-
mable Features)” in “Understanding Your
Instrument Panel” for further information.
WARNING!
• Never leave children alone in a vehicle.
Leaving unattended children in a vehicle is
dangerous for a number of reasons. A child
or others could be seriously or fatally in-
jured. Do not leave the Key Fob in the
ignition or Keyless Enter-N-Go in the ACC
or ON/RUN mode. A child could operate
power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or
death.
CAUTION!
An unlocked car is an invitation to thieves.
Always remove Key Fob from the ignition and
lock all doors when leaving the vehicle unat-
tended.
Emergency Key Removal
13

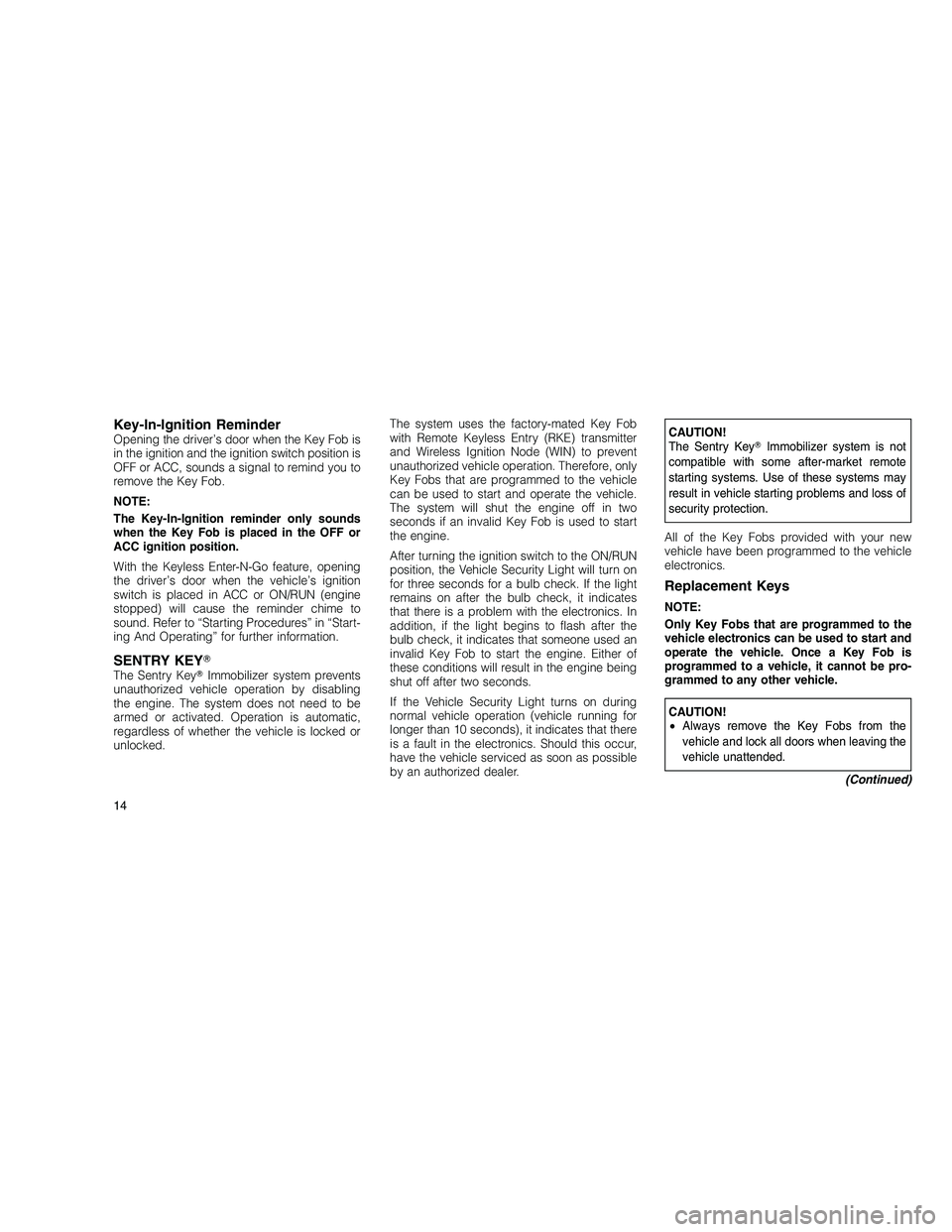

Key-In-Ignition ReminderOpening the driver’s door when the Key Fob is
in the ignition and the ignition switch position is
OFF or ACC, sounds a signal to remind you to
remove the Key Fob.
NOTE:
The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or
ACC ignition position.
With the Keyless Enter-N-Go feature, opening
the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine
stopped) will cause the reminder chime to
sound. Refer to “Starting Procedures” in “Start-
ing And Operating” for further information.
SENTRY KEYThe Sentry Key Immobilizer system prevents
unauthorized vehicle operation by disabling
the engine. The system does not need to be
armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or
unlocked. The system uses the factory-mated Key Fob
with Remote Keyless Entry (RKE) transmitter
and Wireless Ignition Node (WIN) to prevent
unauthorized vehicle operation. Therefore, only
Key Fobs that are programmed to the vehicle
can be used to start and operate the vehicle.
The system will shut the engine off in two
seconds if an invalid Key Fob is used to start
the engine.
After turning the ignition switch to the ON/RUN
position, the Vehicle Security Light will turn on
for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates
that there is a problem with the electronics. In
addition, if the light begins to flash after the
bulb check, it indicates that someone used an
invalid Key Fob to start the engine. Either of
these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during
normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there
is a fault in the electronics. Should this occur,
have the vehicle serviced as soon as possible
by an authorized dealer.
CAUTION!
The Sentry Key
Immobilizer system is not
compatible with some after-market remote
starting systems. Use of these systems may
result in vehicle starting problems and loss of
security protection.
All of the Key Fobs provided with your new
vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:
Only Key Fobs that are programmed to the
vehicle electronics can be used to start and
operate the vehicle. Once a Key Fob is
programmed to a vehicle, it cannot be pro-
grammed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the
vehicle and lock all doors when leaving the
vehicle unattended.
(Continued)
14

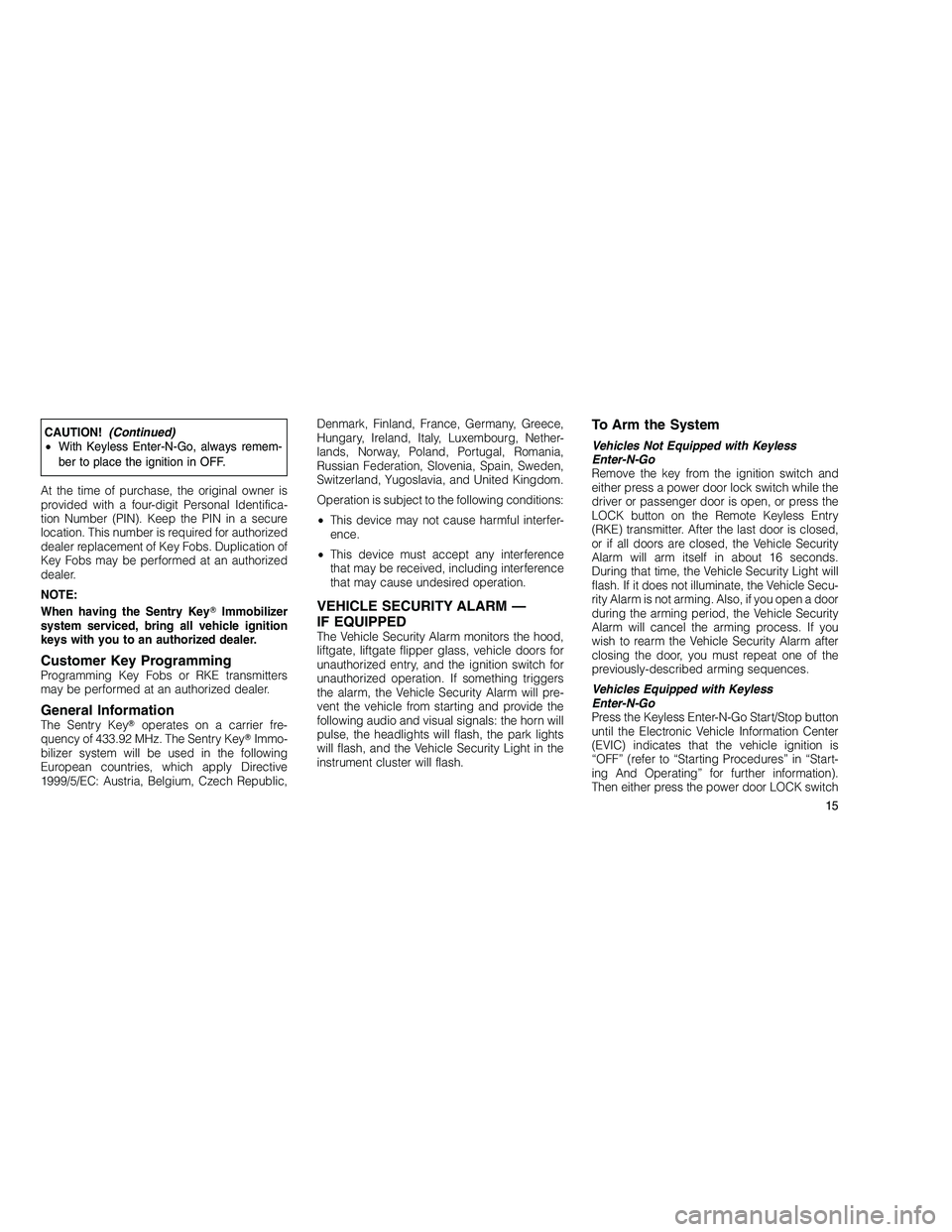

CAUTION!(Continued)
• With Keyless Enter-N-Go, always remem-
ber to place the ignition in OFF.
At the time of purchase, the original owner is
provided with a four-digit Personal Identifica-
tion Number (PIN). Keep the PIN in a secure
location. This number is required for authorized
dealer replacement of Key Fobs. Duplication of
Key Fobs may be performed at an authorized
dealer.
NOTE:
When having the Sentry Key Immobilizer
system serviced, bring all vehicle ignition
keys with you to an authorized dealer.
Customer Key ProgrammingProgramming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
General InformationThe Sentry Key operates on a carrier fre-
quency of 433.92 MHz. The Sentry Key Immo-
bilizer system will be used in the following
European countries, which apply Directive
1999/5/EC: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Luxembourg, Nether-
lands, Norway, Poland, Portugal, Romania,
Russian Federation, Slovenia, Spain, Sweden,
Switzerland, Yugoslavia, and United Kingdom.
Operation is subject to the following conditions:
•
This device may not cause harmful interfer-
ence.
• This device must accept any interference
that may be received, including interference
that may cause undesired operation.
VEHICLE SECURITY ALARM —
IF EQUIPPED
The Vehicle Security Alarm monitors the hood,
liftgate, liftgate flipper glass, vehicle doors for
unauthorized entry, and the ignition switch for
unauthorized operation. If something triggers
the alarm, the Vehicle Security Alarm will pre-
vent the vehicle from starting and provide the
following audio and visual signals: the horn will
pulse, the headlights will flash, the park lights
will flash, and the Vehicle Security Light in the
instrument cluster will flash.
To Arm the System
Vehicles Not Equipped with Keyless
Enter-N-Go
Remove the key from the ignition switch and
either press a power door lock switch while the
driver or passenger door is open, or press the
LOCK button on the Remote Keyless Entry
(RKE) transmitter. After the last door is closed,
or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds.
During that time, the Vehicle Security Light will
flash. If it does not illuminate, the Vehicle Secu-
rity Alarm is not arming. Also, if you open a door
during the arming period, the Vehicle Security
Alarm will cancel the arming process. If you
wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the
previously-described arming sequences.
Vehicles Equipped with Keyless
Enter-N-Go
Press the Keyless Enter-N-Go Start/Stop button
until the Electronic Vehicle Information Center
(EVIC) indicates that the vehicle ignition is
“OFF” (refer to “Starting Procedures” in “Start-
ing And Operating” for further information).
Then either press the power door LOCK switch
15

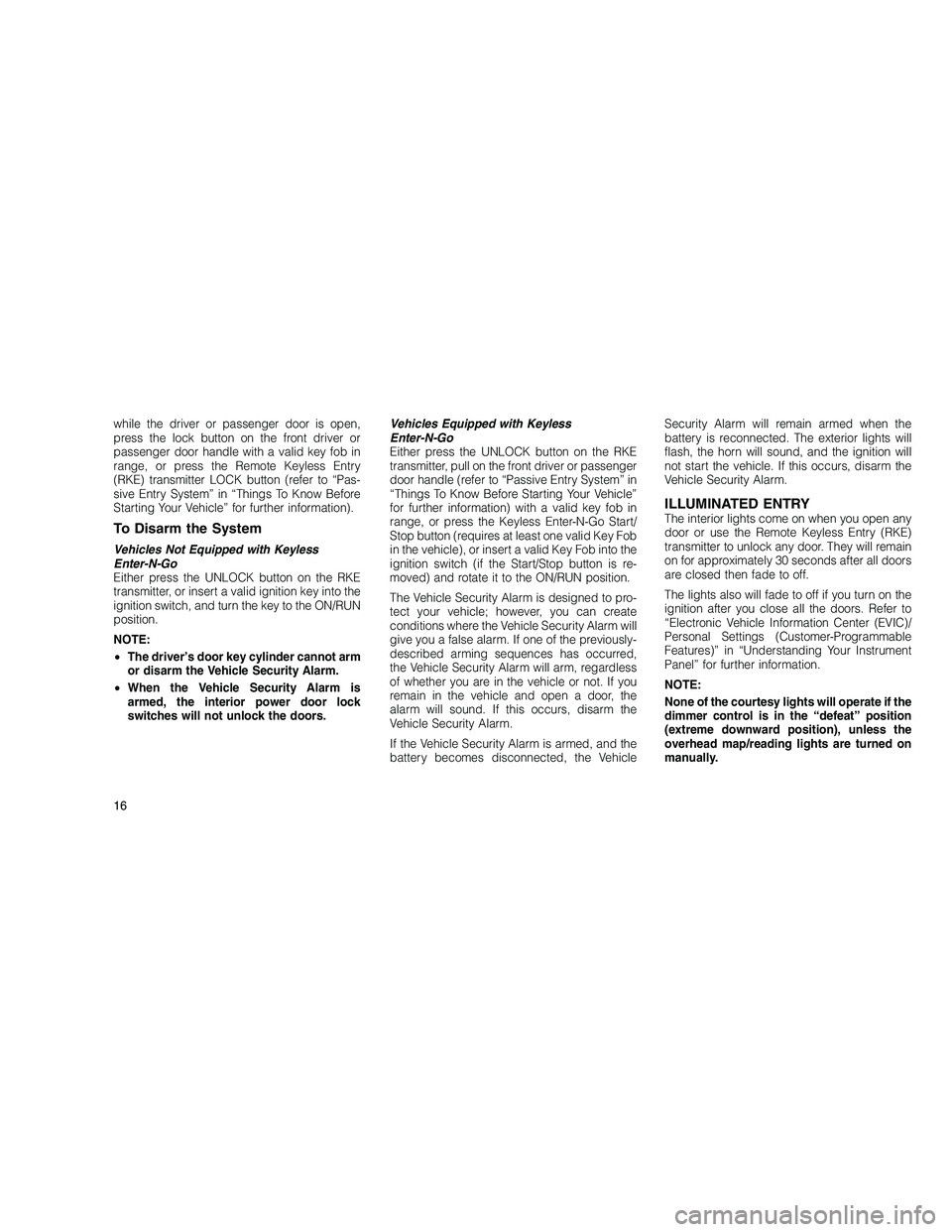

while the driver or passenger door is open,
press the lock button on the front driver or
passenger door handle with a valid key fob in
range, or press the Remote Keyless Entry
(RKE) transmitter LOCK button (refer to “Pas-
sive Entry System” in “Things To Know Before
Starting Your Vehicle” for further information).
To Disarm the System
Vehicles Not Equipped with Keyless
Enter-N-Go
Either press the UNLOCK button on the RKE
transmitter, or insert a valid ignition key into the
ignition switch, and turn the key to the ON/RUN
position.
NOTE:
•The driver’s door key cylinder cannot arm
or disarm the Vehicle Security Alarm.
• When the Vehicle Security Alarm is
armed, the interior power door lock
switches will not unlock the doors. Vehicles Equipped with Keyless
Enter-N-Go
Either press the UNLOCK button on the RKE
transmitter, pull on the front driver or passenger
door handle (refer to “Passive Entry System” in
“Things To Know Before Starting Your Vehicle”
for further information) with a valid key fob in
range, or press the Keyless Enter-N-Go Start/
Stop button (requires at least one valid Key Fob
in the vehicle), or insert a valid Key Fob into the
ignition switch (if the Start/Stop button is re-
moved) and rotate it to the ON/RUN position.
The Vehicle Security Alarm is designed to pro-
tect your vehicle; however, you can create
conditions where the Vehicle Security Alarm will
give you a false alarm. If one of the previously-
described arming sequences has occurred,
the Vehicle Security Alarm will arm, regardless
of whether you are in the vehicle or not. If you
remain in the vehicle and open a door, the
alarm will sound. If this occurs, disarm the
Vehicle Security Alarm.
If the Vehicle Security Alarm is armed, and the
battery becomes disconnected, the Vehicle Security Alarm will remain armed when the
battery is reconnected. The exterior lights will
flash, the horn will sound, and the ignition will
not start the vehicle. If this occurs, disarm the
Vehicle Security Alarm.
ILLUMINATED ENTRYThe interior lights come on when you open any
door or use the Remote Keyless Entry (RKE)
transmitter to unlock any door. They will remain
on for approximately 30 seconds after all doors
are closed then fade to off.
The lights also will fade to off if you turn on the
ignition after you close all the doors. Refer to
“Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
NOTE:
None of the courtesy lights will operate if the
dimmer control is in the “defeat” position
(extreme downward position), unless the
overhead map/reading lights are turned on
manually.
16
