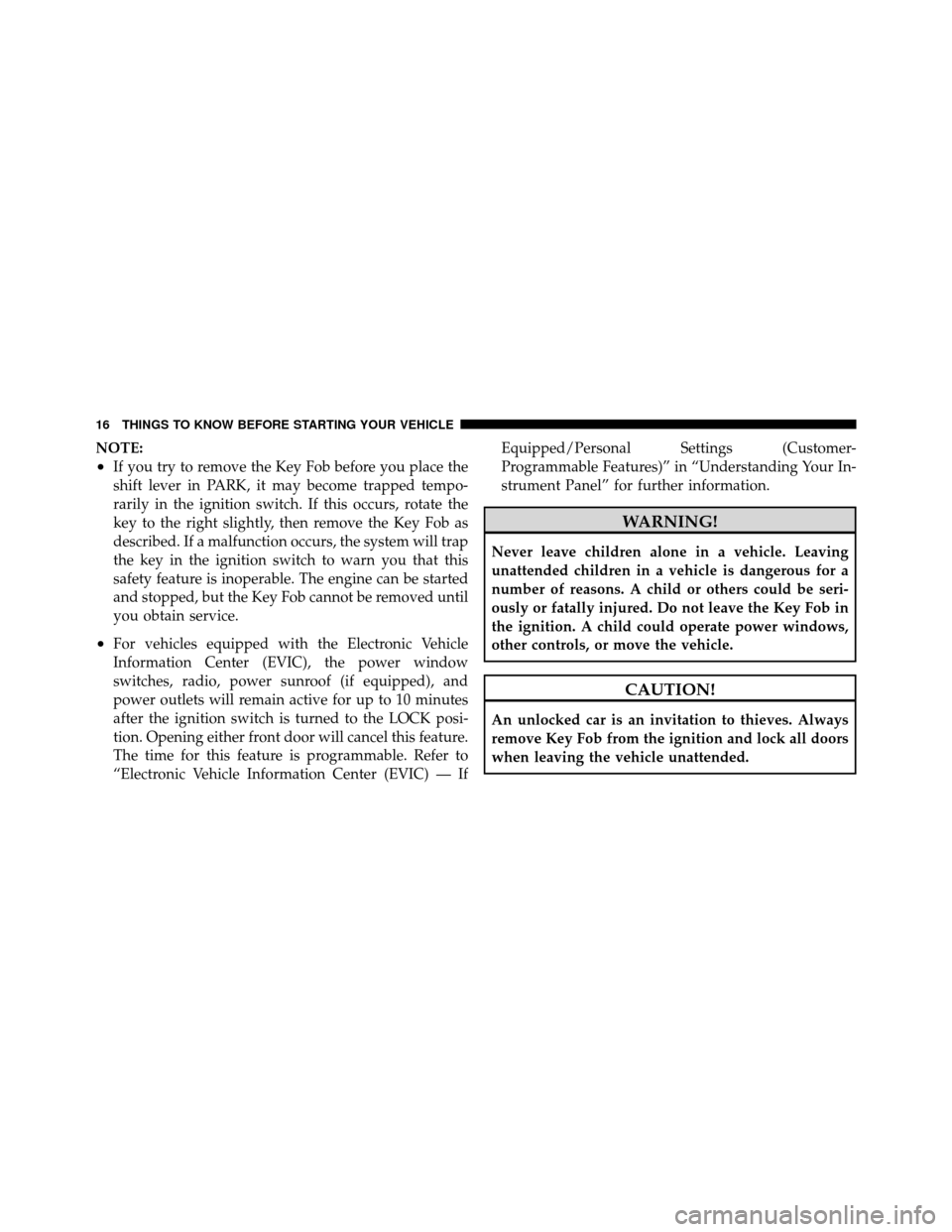

NOTE:
•If you try to remove the Key Fob before you place the
shift lever in PARK, it may become trapped tempo-
rarily in the ignition switch. If this occurs, rotate the
key to the right slightly, then remove the Key Fob as
described. If a malfunction occurs, the system will trap
the key in the ignition switch to warn you that this
safety feature is inoperable. The engine can be started
and stopped, but the Key Fob cannot be removed until
you obtain service.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. Refer to
“Electronic Vehicle Information Center (EVIC) — IfEquipped/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the Key Fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove Key Fob from the ignition and lock all doors
when leaving the vehicle unattended.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

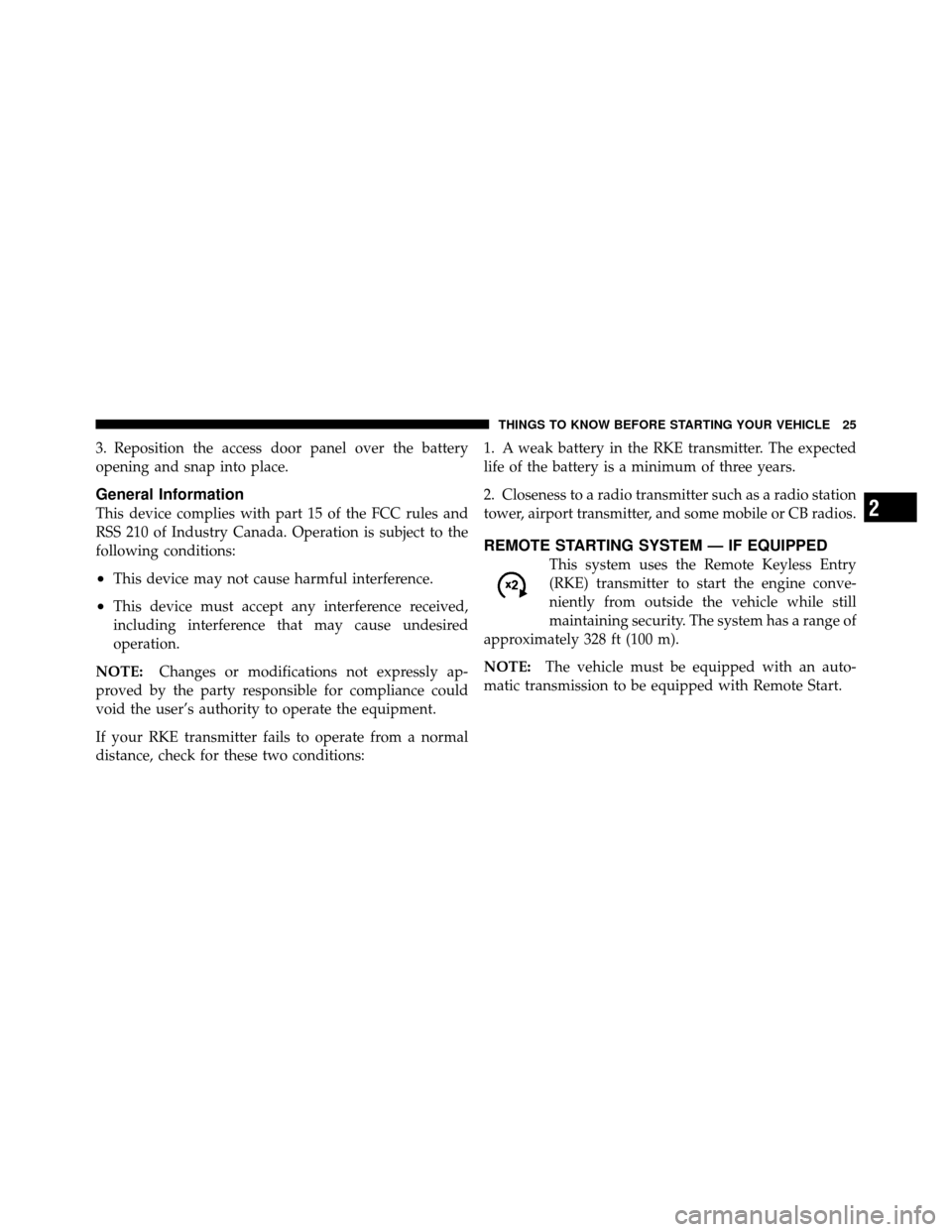

3. Reposition the access door panel over the battery
opening and snap into place.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions: 1. A weak battery in the RKE transmitter. The expected
life of the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 328 ft (100 m).
NOTE: The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

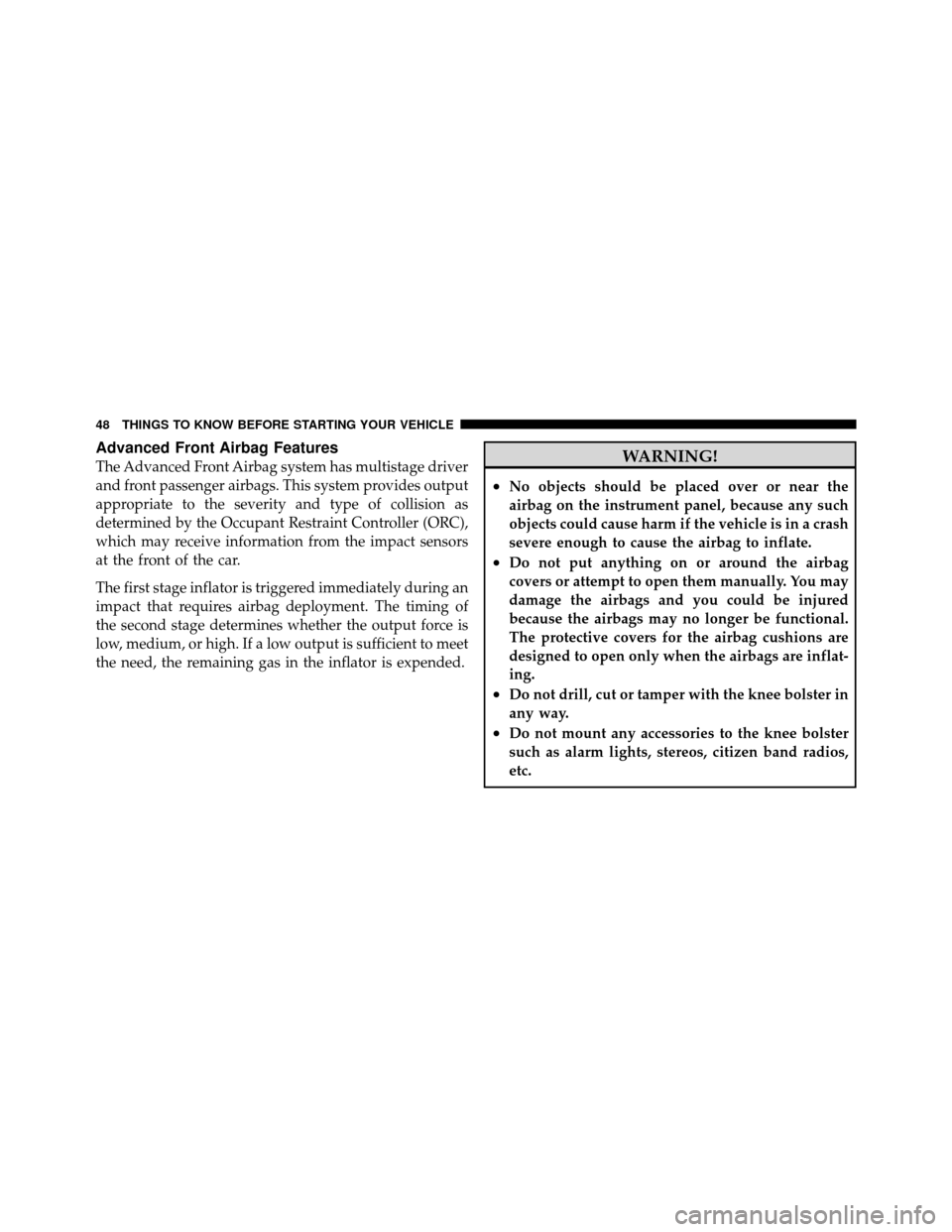

Advanced Front Airbag Features
The Advanced Front Airbag system has multistage driver
and front passenger airbags. This system provides output
appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the impact sensors
at the front of the car.
The first stage inflator is triggered immediately during an
impact that requires airbag deployment. The timing of
the second stage determines whether the output force is
low, medium, or high. If a low output is sufficient to meet
the need, the remaining gas in the inflator is expended.WARNING!
•No objects should be placed over or near the
airbag on the instrument panel, because any such
objects could cause harm if the vehicle is in a crash
severe enough to cause the airbag to inflate.
•Do not put anything on or around the airbag
covers or attempt to open them manually. You may
damage the airbags and you could be injured
because the airbags may no longer be functional.
The protective covers for the airbag cushions are
designed to open only when the airbags are inflat-
ing.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

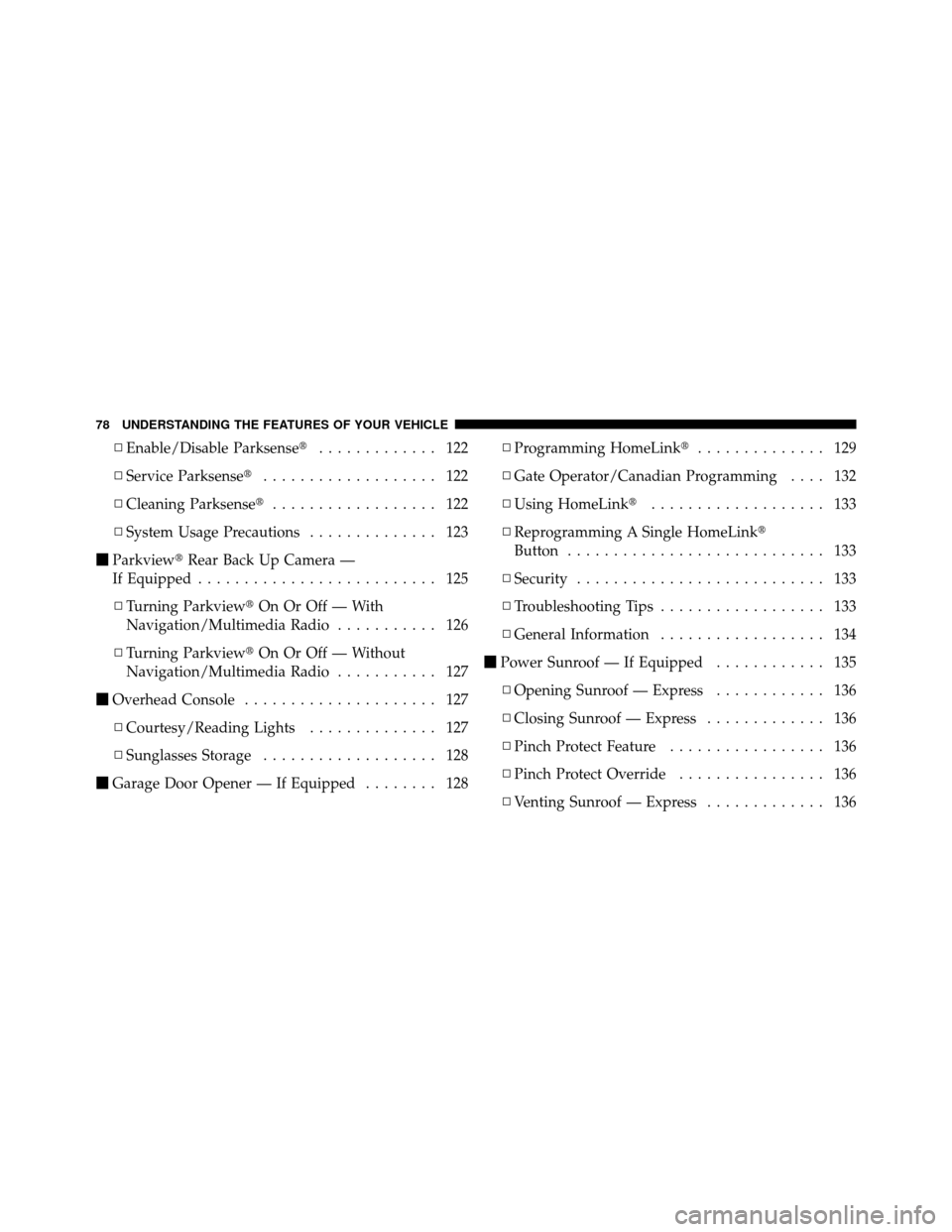

▫Enable/Disable Parksense ............. 122
▫ Service Parksense ................... 122
▫ Cleaning Parksense .................. 122
▫ System Usage Precautions .............. 123
 Parkview Rear Back Up Camera —
If Equipped .......................... 125
▫ Turning Parkview On Or Off — With
Navigation/Multimedia Radio ........... 126
▫ Turning Parkview On Or Off — Without
Navigation/Multimedia Radio ........... 127
 Overhead Console ..................... 127
▫ Courtesy/Reading Lights .............. 127
▫ Sunglasses Storage ................... 128
 Garage Door Opener — If Equipped ........ 128▫
Programming HomeLink .............. 129
▫ Gate Operator/Canadian Programming .... 132
▫ Using HomeLink ................... 133
▫ Reprogramming A Single HomeLink
Button ............................ 133
▫ Security ........................... 133
▫ Troubleshooting Tips .................. 133
▫ General Information .................. 134
 Power Sunroof — If Equipped ............ 135
▫ Opening Sunroof — Express ............ 136
▫ Closing Sunroof — Express ............. 136
▫ Pinch Protect Feature ................. 136
▫ Pinch Protect Override ................ 136
▫ Venting Sunroof — Express ............. 136
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

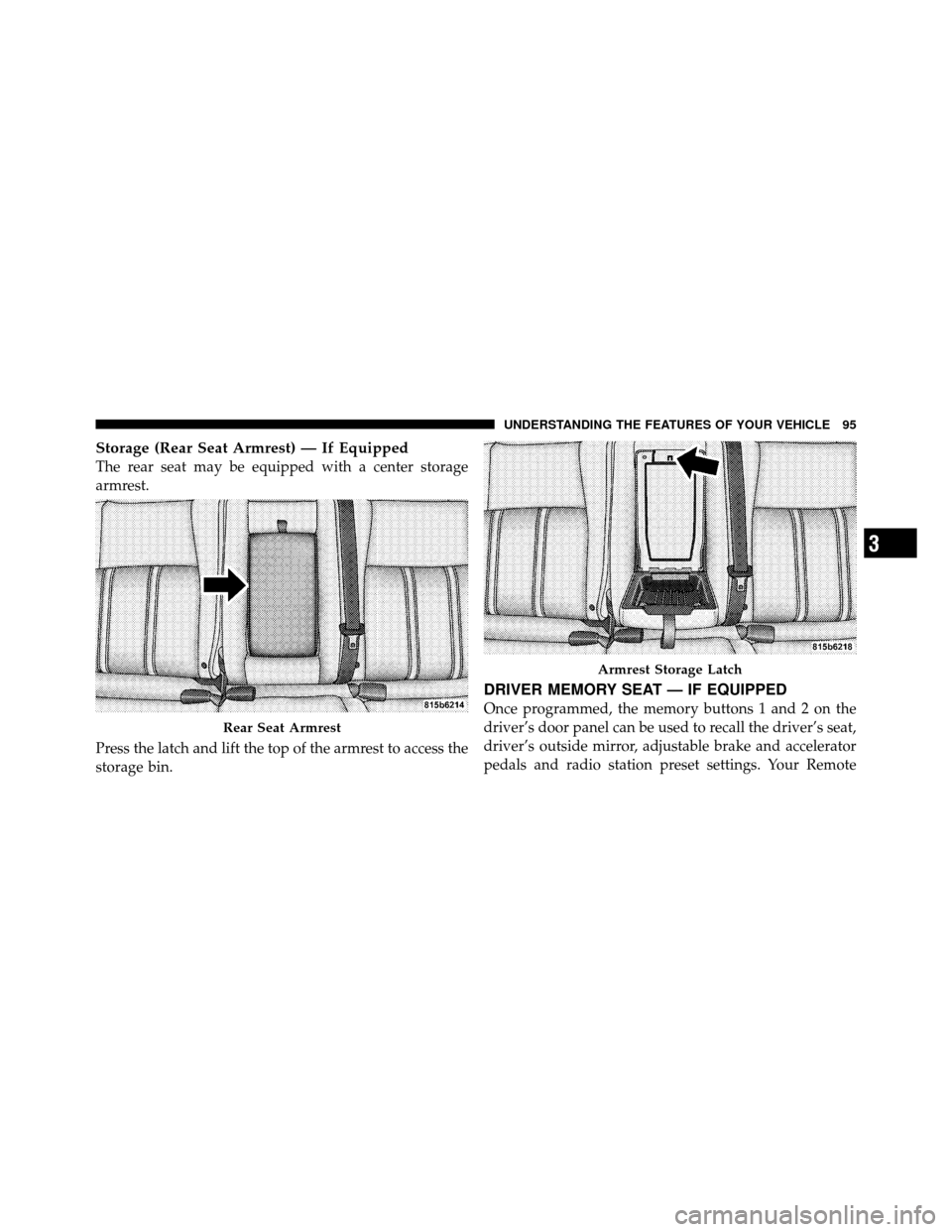

Storage (Rear Seat Armrest) — If Equipped
The rear seat may be equipped with a center storage
armrest.
Press the latch and lift the top of the armrest to access the
storage bin.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals and radio station preset settings. Your Remote
Rear Seat Armrest
Armrest Storage Latch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

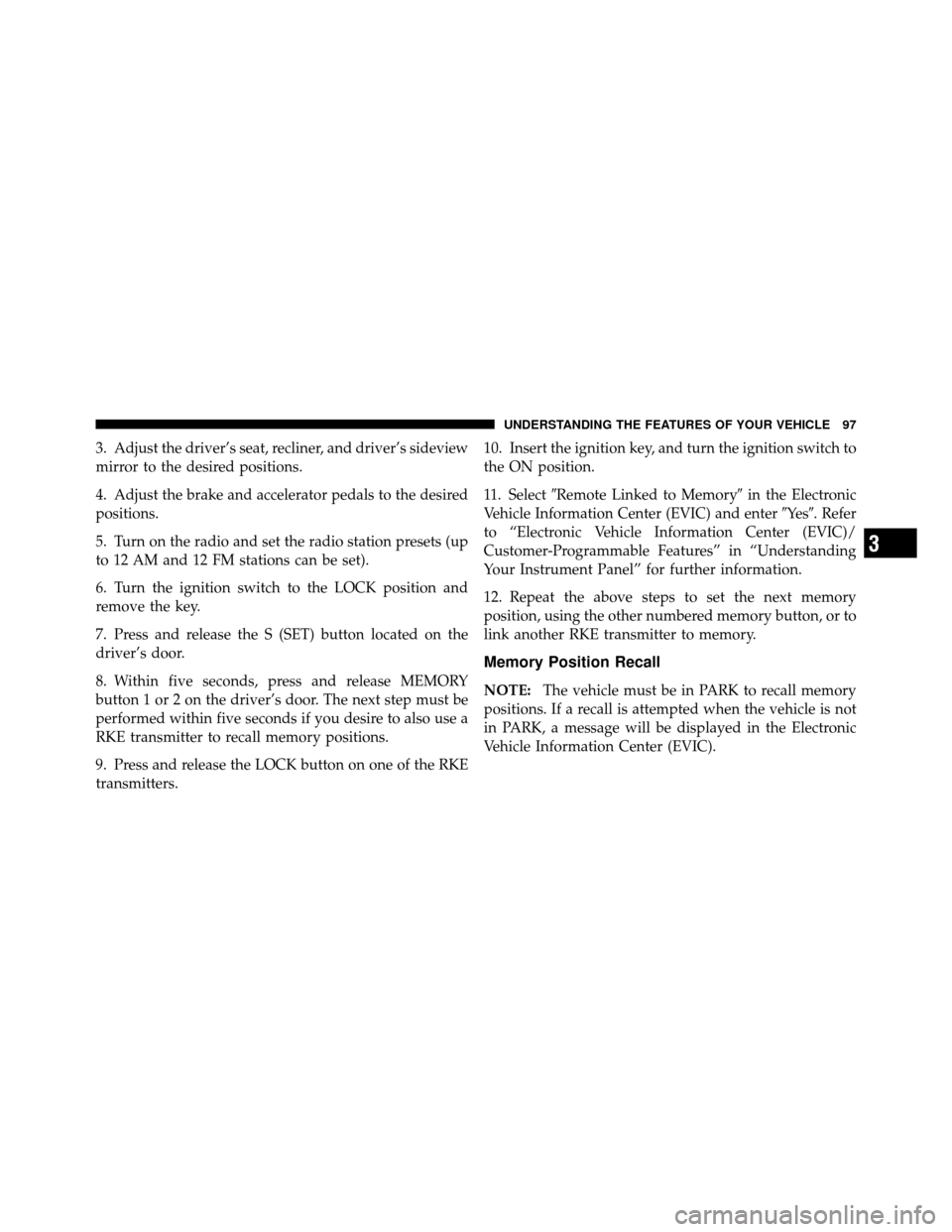

3. Adjust the driver’s seat, recliner, and driver’s sideview
mirror to the desired positions.
4. Adjust the brake and accelerator pedals to the desired
positions.
5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the LOCK position and
remove the key.
7. Press and release the S (SET) button located on the
driver’s door.
8. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.10. Insert the ignition key, and turn the ignition switch to
the ON position.
11. Select
Remote Linked to Memory in the Electronic
Vehicle Information Center (EVIC) and enter Ye s. Refer
to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE: The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

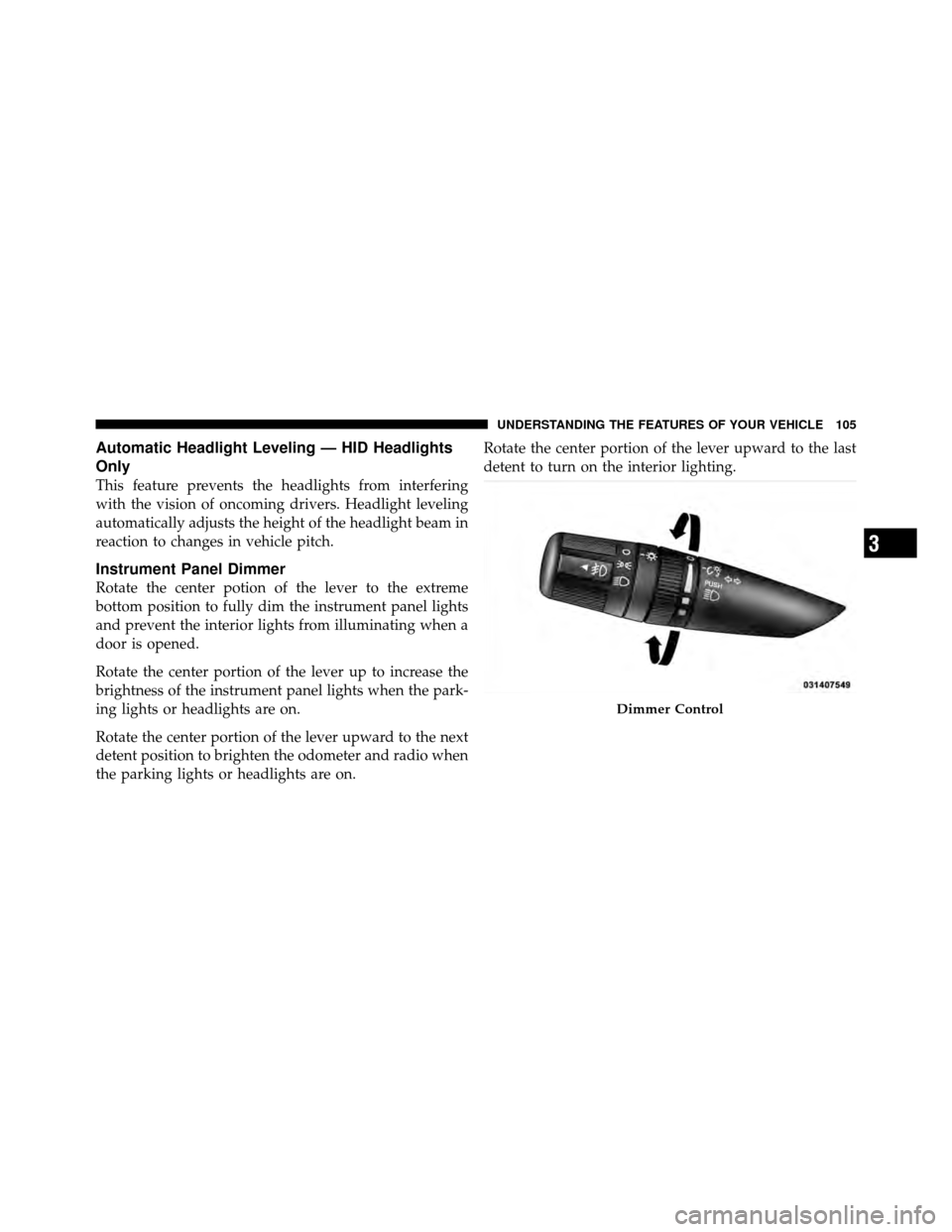

Automatic Headlight Leveling — HID Headlights
Only
This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
Instrument Panel Dimmer
Rotate the center potion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Dimmer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

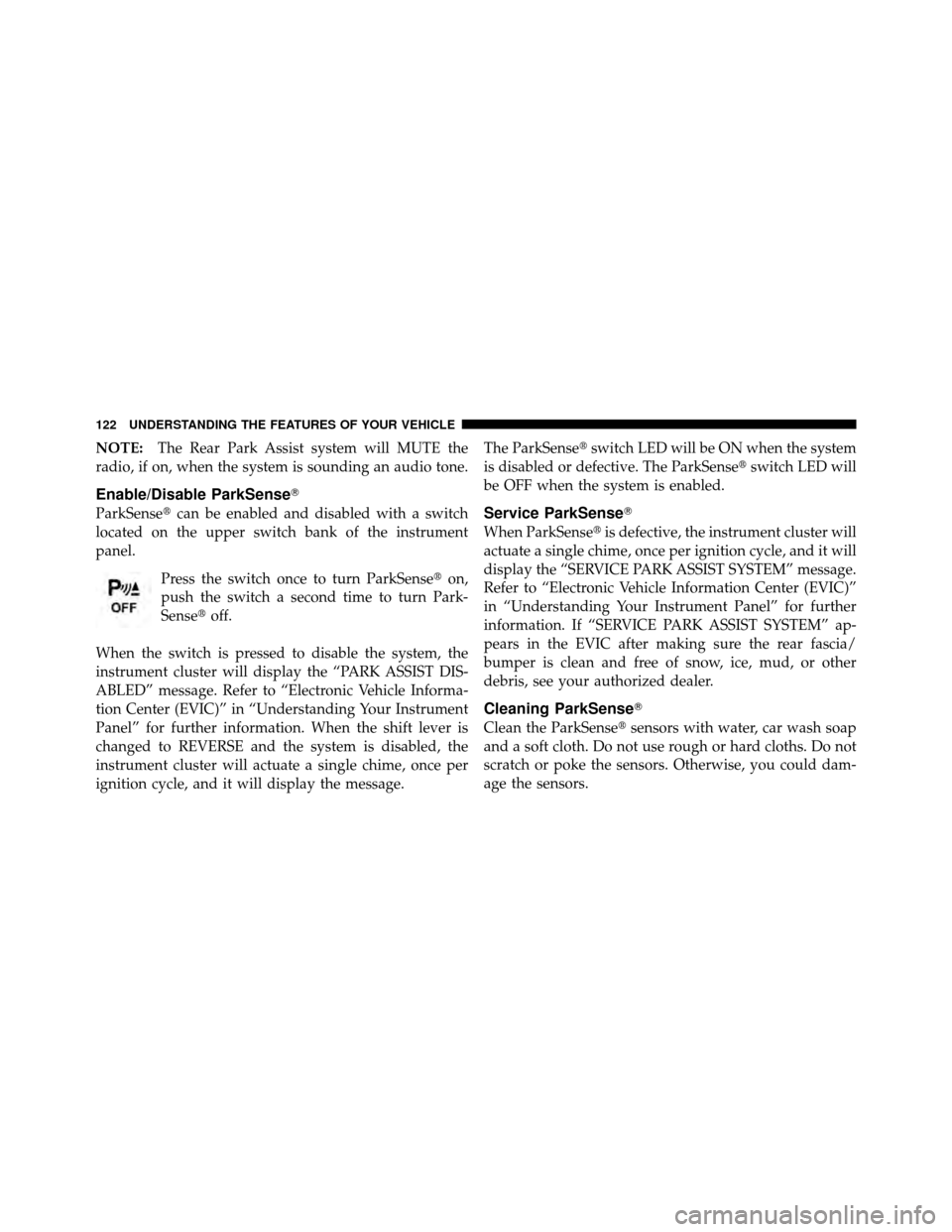

NOTE:The Rear Park Assist system will MUTE the
radio, if on, when the system is sounding an audio tone.
Enable/Disable ParkSense
ParkSense can be enabled and disabled with a switch
located on the upper switch bank of the instrument
panel.
Press the switch once to turn ParkSense on,
push the switch a second time to turn Park-
Sense off.
When the switch is pressed to disable the system, the
instrument cluster will display the “PARK ASSIST DIS-
ABLED” message. Refer to “Electronic Vehicle Informa-
tion Center (EVIC)” in “Understanding Your Instrument
Panel” for further information. When the shift lever is
changed to REVERSE and the system is disabled, the
instrument cluster will actuate a single chime, once per
ignition cycle, and it will display the message. The ParkSense
switch LED will be ON when the system
is disabled or defective. The ParkSense switch LED will
be OFF when the system is enabled.Service ParkSense
When ParkSense is defective, the instrument cluster will
actuate a single chime, once per ignition cycle, and it will
display the “SERVICE PARK ASSIST SYSTEM” message.
Refer to “Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for further
information. If “SERVICE PARK ASSIST SYSTEM” ap-
pears in the EVIC after making sure the rear fascia/
bumper is clean and free of snow, ice, mud, or other
debris, see your authorized dealer.
Cleaning ParkSense
Clean the ParkSense sensors with water, car wash soap
and a soft cloth. Do not use rough or hard cloths. Do not
scratch or poke the sensors. Otherwise, you could dam-
age the sensors.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

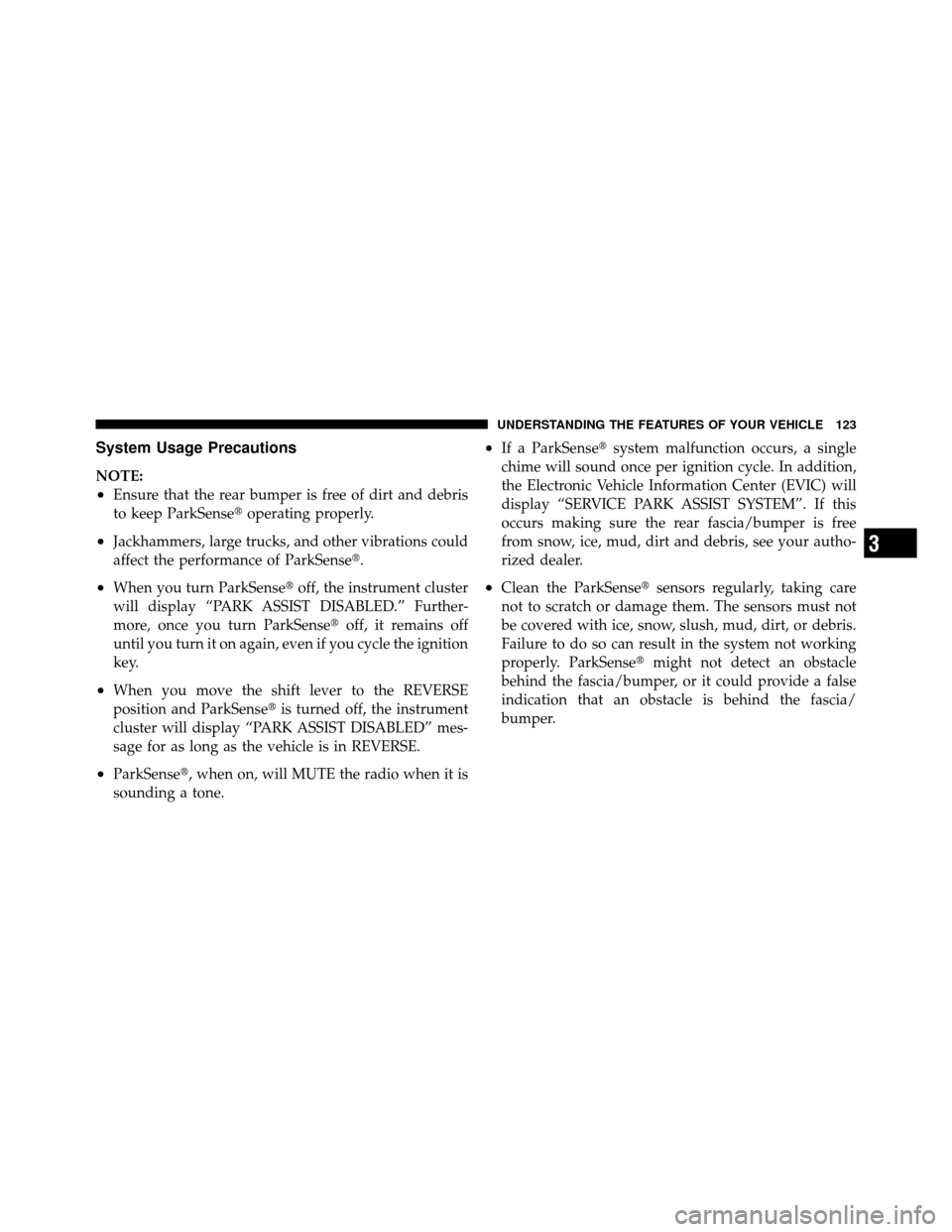

System Usage Precautions
NOTE:
•Ensure that the rear bumper is free of dirt and debris
to keep ParkSenseoperating properly.
•Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
•When you turn ParkSense off, the instrument cluster
will display “PARK ASSIST DISABLED.” Further-
more, once you turn ParkSense off, it remains off
until you turn it on again, even if you cycle the ignition
key.
•When you move the shift lever to the REVERSE
position and ParkSense is turned off, the instrument
cluster will display “PARK ASSIST DISABLED” mes-
sage for as long as the vehicle is in REVERSE.
•ParkSense, when on, will MUTE the radio when it is
sounding a tone.
•If a ParkSense system malfunction occurs, a single
chime will sound once per ignition cycle. In addition,
the Electronic Vehicle Information Center (EVIC) will
display “SERVICE PARK ASSIST SYSTEM”. If this
occurs making sure the rear fascia/bumper is free
from snow, ice, mud, dirt and debris, see your autho-
rized dealer.
•Clean the ParkSense sensors regularly, taking care
not to scratch or damage them. The sensors must not
be covered with ice, snow, slush, mud, dirt, or debris.
Failure to do so can result in the system not working
properly. ParkSense might not detect an obstacle
behind the fascia/bumper, or it could provide a false
indication that an obstacle is behind the fascia/
bumper.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

WARNING! (Continued)
•Before using the ParkSenseRear Park Assist
System, it is strongly recommended that the ball
mount and hitch ball assembly is disconnected
from the vehicle when the vehicle is not used for
towing. Failure to do so can result in injury or
damage to vehicles or obstacles because the hitch
ball will be much closer to the obstacle than the
rear fascia when the warning display turns on the
single flashing arc and sounds the continuous
tone. Also, the ParkSense sensors could detect
the ball mount and hitch ball assembly, depending
on its size and shape, giving a false indication that
an obstacle is behind the vehicle.
PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen
image of the rear of your vehicle whenever the shift lever
is put into REVERSE. The image will be displayed on the
Navigation/Multimedia radio display screen. The Park-
View camera is located on the rear liftgate.
WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You are
responsible for the safety of your surroundings and
must continue to pay attention while backing up.
Failure to do so can result in serious injury or death.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
