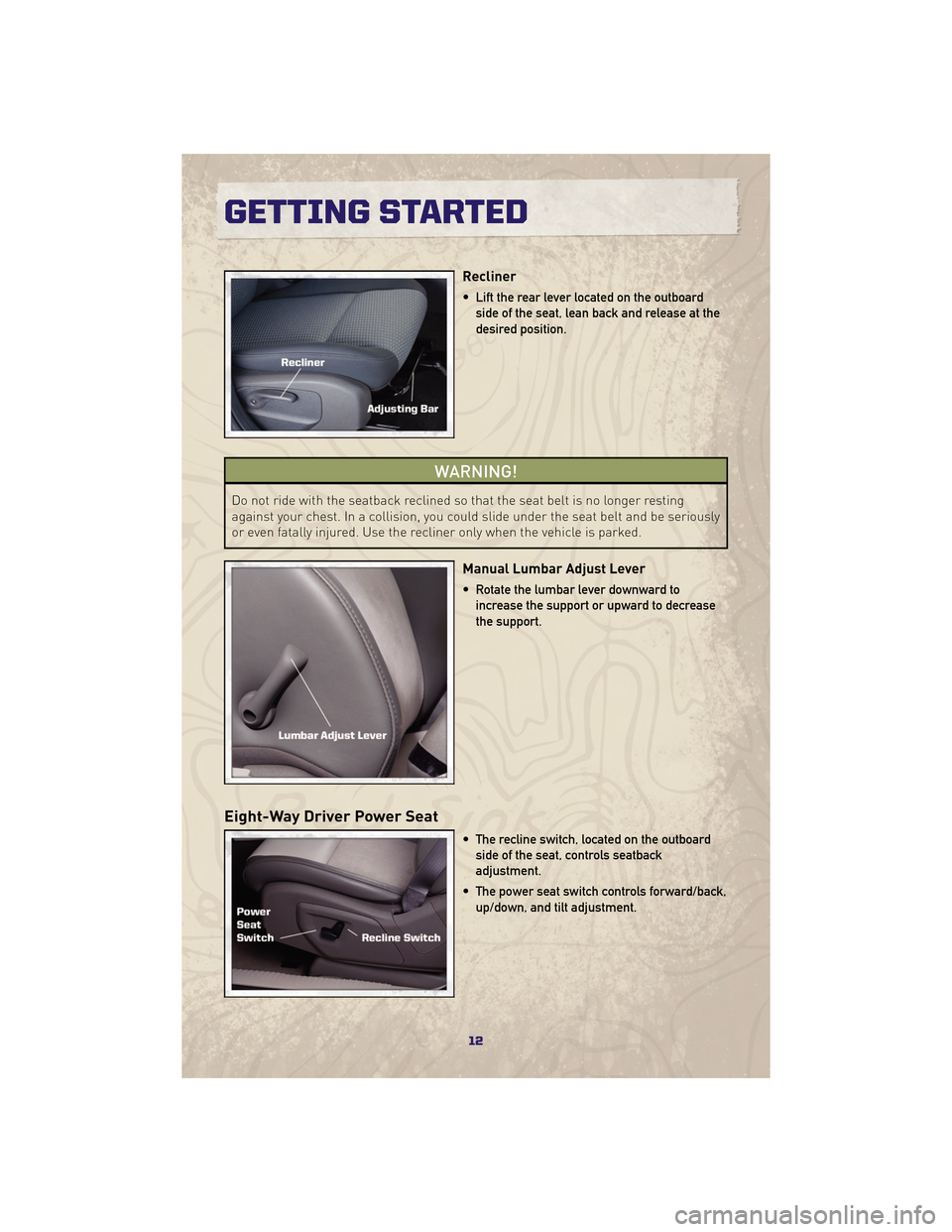

driver seat adjustment JEEP GRAND CHEROKEE 2010 WK / 3.G User Guide

Recliner
• Lift the rear lever located on the outboardside of the seat, lean back and release at the
desired position.
WARNING!
Do not ride with the seatback reclined so that the seat belt is no longer resting
against your chest. In a collision, you could slide under the seat belt and be seriously
or even fatally injured. Use the recliner only when the vehicle is parked.
Manual Lumbar Adjust Lever
• Rotate the lumbar lever downward toincrease the support or upward to decrease
the support.
Eight-Way Driver Power Seat
• The recline switch, located on the outboardside of the seat, controls seatback
adjustment.
• The power seat switch controls forward/back, up/down, and tilt adjustment.
GETTING STARTED
12
