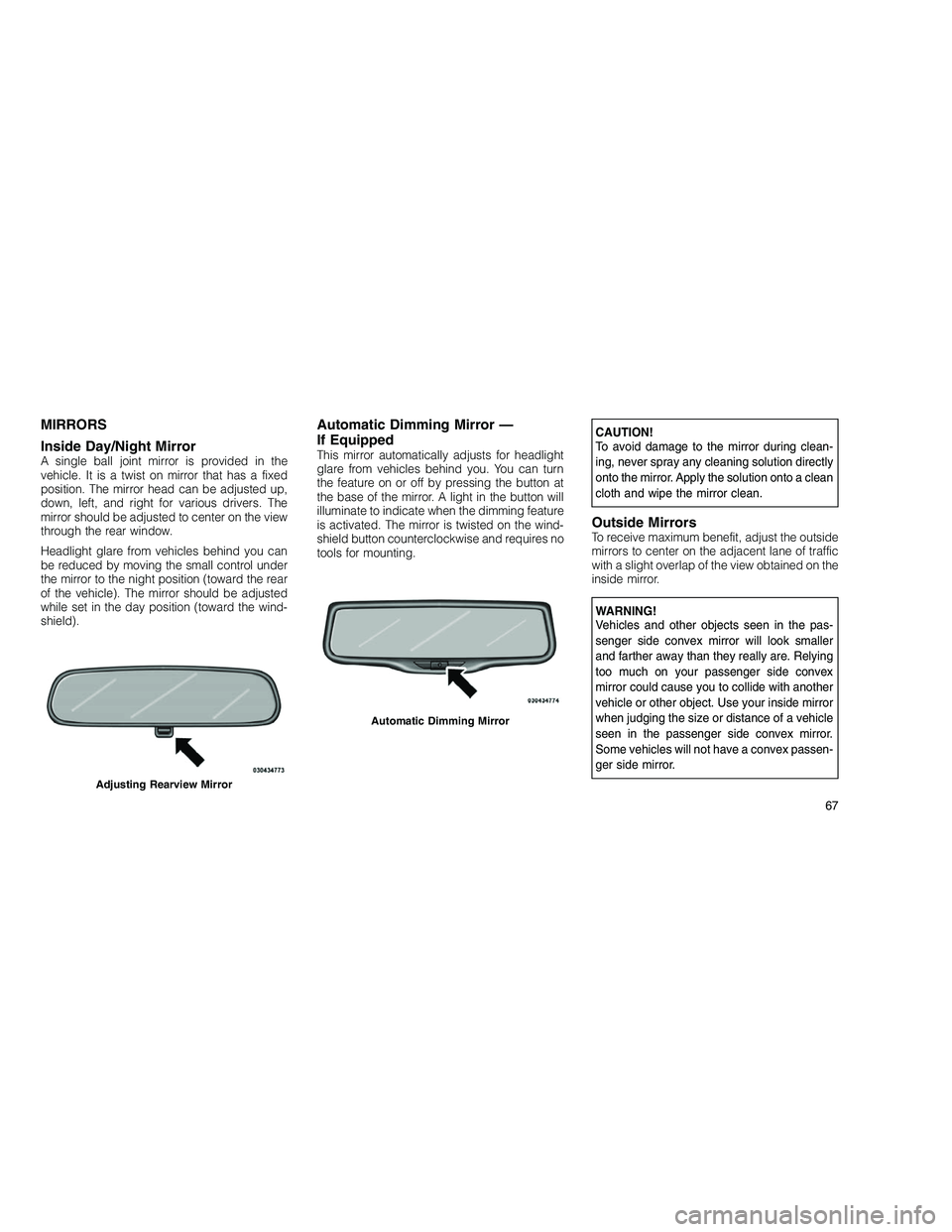

MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the
vehicle. It is a twist on mirror that has a fixed
position. The mirror head can be adjusted up,
down, left, and right for various drivers. The
mirror should be adjusted to center on the view
through the rear window.
Headlight glare from vehicles behind you can
be reduced by moving the small control under
the mirror to the night position (toward the rear
of the vehicle). The mirror should be adjusted
while set in the day position (toward the wind-
shield).
Automatic Dimming Mirror —
If Equipped
This mirror automatically adjusts for headlight
glare from vehicles behind you. You can turn
the feature on or off by pressing the button at
the base of the mirror. A light in the button will
illuminate to indicate when the dimming feature
is activated. The mirror is twisted on the wind-
shield button counterclockwise and requires no
tools for mounting.
CAUTION!
To avoid damage to the mirror during clean-
ing, never spray any cleaning solution directly
onto the mirror. Apply the solution onto a clean
cloth and wipe the mirror clean.
Outside MirrorsTo receive maximum benefit, adjust the outside
mirrors to center on the adjacent lane of traffic
with a slight overlap of the view obtained on the
inside mirror.
WARNING!
Vehicles and other objects seen in the pas-
senger side convex mirror will look smaller
and farther away than they really are. Relying
too much on your passenger side convex
mirror could cause you to collide with another
vehicle or other object. Use your inside mirror
when judging the size or distance of a vehicle
seen in the passenger side convex mirror.
Some vehicles will not have a convex passen-
ger side mirror.
Adjusting Rearview Mirror
Automatic Dimming Mirror
67

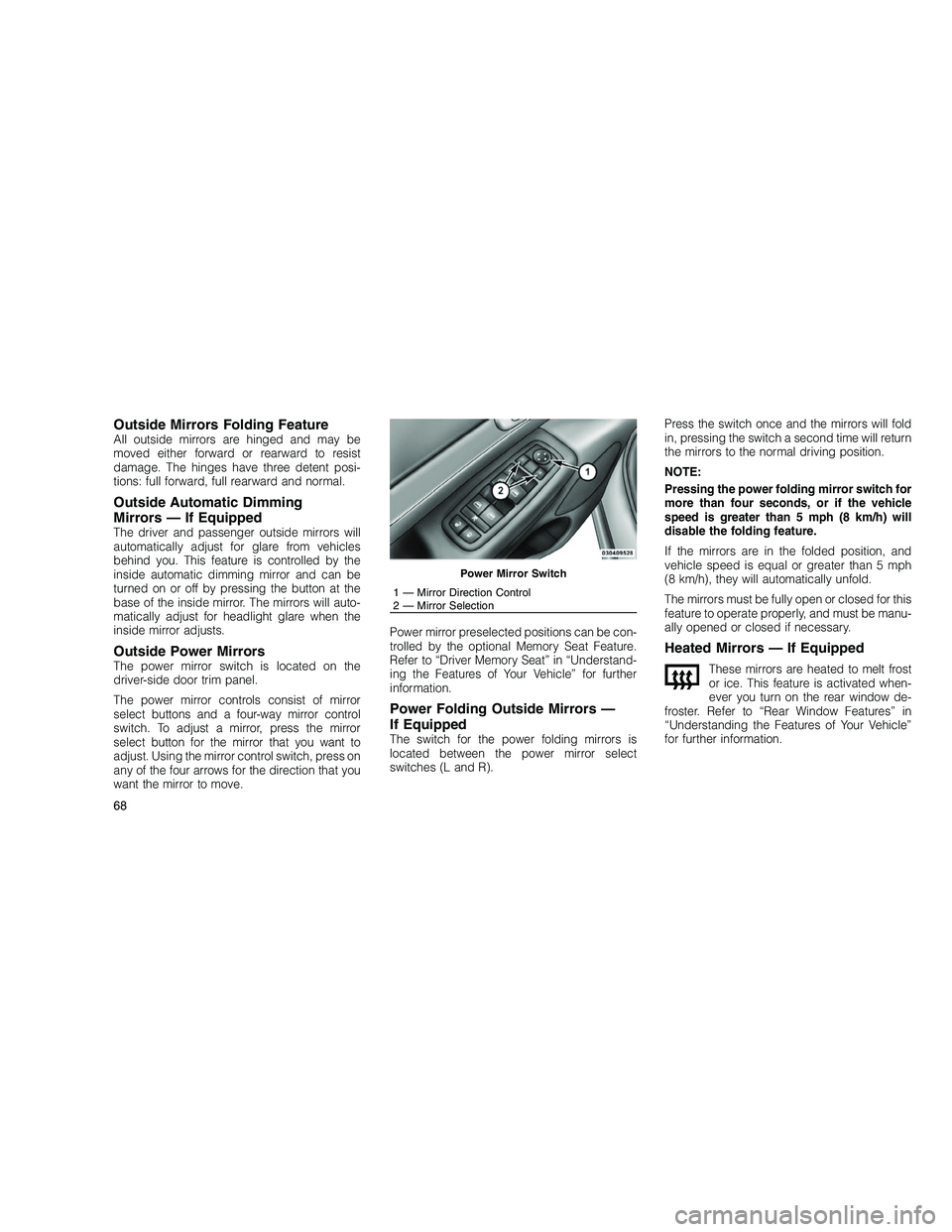

Outside Mirrors Folding FeatureAll outside mirrors are hinged and may be
moved either forward or rearward to resist
damage. The hinges have three detent posi-
tions: full forward, full rearward and normal.
Outside Automatic Dimming
Mirrors — If Equipped
The driver and passenger outside mirrors will
automatically adjust for glare from vehicles
behind you. This feature is controlled by the
inside automatic dimming mirror and can be
turned on or off by pressing the button at the
base of the inside mirror. The mirrors will auto-
matically adjust for headlight glare when the
inside mirror adjusts.
Outside Power MirrorsThe power mirror switch is located on the
driver-side door trim panel.
The power mirror controls consist of mirror
select buttons and a four-way mirror control
switch. To adjust a mirror, press the mirror
select button for the mirror that you want to
adjust. Using the mirror control switch, press on
any of the four arrows for the direction that you
want the mirror to move.Power mirror preselected positions can be con-
trolled by the optional Memory Seat Feature.
Refer to “Driver Memory Seat” in “Understand-
ing the Features of Your Vehicle” for further
information.
Power Folding Outside Mirrors —
If Equipped
The switch for the power folding mirrors is
located between the power mirror select
switches (L and R).Press the switch once and the mirrors will fold
in, pressing the switch a second time will return
the mirrors to the normal driving position.
NOTE:
Pressing the power folding mirror switch for
more than four seconds, or if the vehicle
speed is greater than 5 mph (8 km/h) will
disable the folding feature.
If the mirrors are in the folded position, and
vehicle speed is equal or greater than 5 mph
(8 km/h), they will automatically unfold.
The mirrors must be fully open or closed for this
feature to operate properly, and must be manu-
ally opened or closed if necessary.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost
or ice. This feature is activated when-
ever you turn on the rear window de-
froster. Refer to “Rear Window Features” in
“Understanding the Features of Your Vehicle”
for further information.
Power Mirror Switch
1 — Mirror Direction Control
2 — Mirror Selection
68

Illuminated Vanity MirrorsTo access an illuminated vanity mirror, flip down
one of the visors.
Lift the cover to reveal the mirror. The light will
turn on automatically.
Sun Visor Extension — If EquippedThis feature has a pull out extension on the sun
visor for increased coverage.
BLIND SPOT MONITORING —
IF EQUIPPED
The Blind Spot Monitoring (BSM) system uses
two radar-based sensors, located inside the
rear bumper fascia, to detect Highway licens-
able vehicles (automobiles, trucks, motor-
cycles etc.) that enter the blind spot zones from
the rear/front/side of the vehicle.
When the vehicle is started, the BSM warning
light will be momentarily illuminated in both
outside rear view mirrors to let the driver know
that the system is operational. The BSM system
sensors operate when the vehicle is in anyforward gear or REVERSE and enters stand by
mode when the vehicle is in PARK.
The BSM detection zone covers approximately
one lane on both sides of the vehicle (11 ft or
3.35 m). The zone starts at the outside rear view
mirror and extends approximately 20 ft (6 m) to
the rear of the vehicle. The BSM system moni-
tors the detection zones on both sides of the
vehicle when the vehicle speed has reached
approximately 6 mph (10 km/h) or higher and
will alert the driver of vehicles in these areas.
NOTE:
•
The BSM system does NOT alert the
driver about rapidly approaching vehicles
that are outside the detection zones.
•
The BSM system detection zone DOES
NOT change if your vehicle is towing a
trailer. Therefore, visually verify the adja-
cent lane is clear for both your vehicle and
trailer before making a lane change. If the
trailer or other object (i.e., bicycle, sports
equipment) extends beyond the side of
your vehicle, this may result in the BSM
warning light remaining illuminated the
entire time the vehicle is in a forward gear.Illuminated Vanity Mirror
Rear Detection Zones
69

The area on the rear fascia where the radar
sensors are located must remain free of snow,
ice, and dirt/road contamination so that the
BSM system can function properly. Do not
block the area of the rear fascia where the radar
sensors are located with foreign objects
(bumper stickers, bicycle racks, etc.).
The BSM system notifies the driver of objects in
the detection zones by illuminating the BSM
warning light located in the outside mirrors.The BSM system can also be configured to
sound an audible (chime) alert and reduce the
radio volume to notify the driver of objects that
have entered the detection zones. Refer to
“Modes Of Operation” for further information.
The BSM system monitors the detection zone
from three different entry points (Side, Rear,
Front) while driving to see if an alert is neces-
sary. The BSM system will issue an alert during
these types of zone entries.Entering From The Side
Vehicles that move into your adjacent lanes
from either side of the vehicle.
Entering From The Rear
Vehicles that come up from behind your vehicle
on either side and enter the rear detection zone
with a relative speed of less than 30 mph
(48 km/h).
Sensor Location (Driver Side Shown)
Warning Light Location
Side Monitoring
70

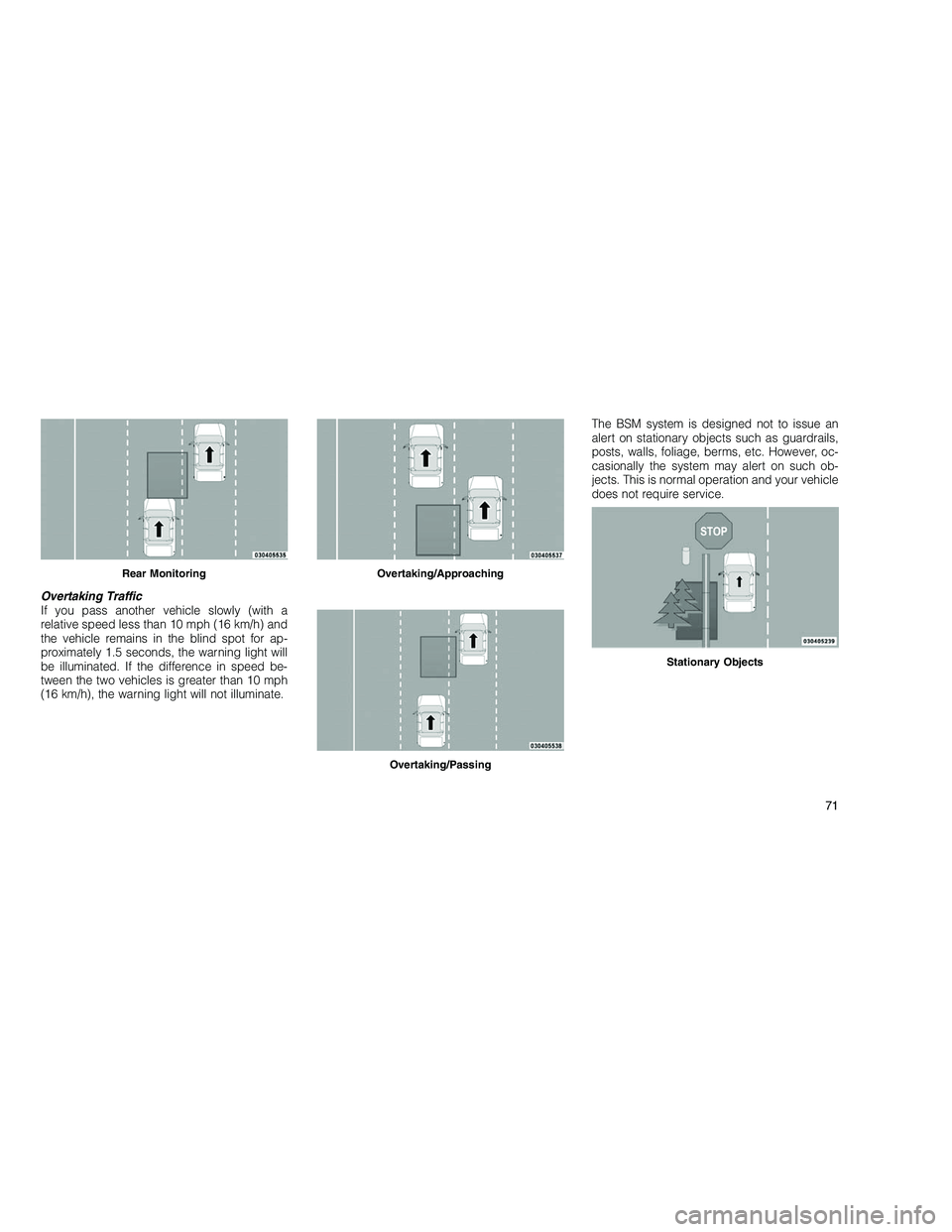

Overtaking Traffic
If you pass another vehicle slowly (with a
relative speed less than 10 mph (16 km/h) and
the vehicle remains in the blind spot for ap-
proximately 1.5 seconds, the warning light will
be illuminated. If the difference in speed be-
tween the two vehicles is greater than 10 mph
(16 km/h), the warning light will not illuminate.The BSM system is designed not to issue an
alert on stationary objects such as guardrails,
posts, walls, foliage, berms, etc. However, oc-
casionally the system may alert on such ob-
jects. This is normal operation and your vehicle
does not require service.
Rear MonitoringOvertaking/Approaching
Overtaking/Passing
Stationary Objects
71

The BSM system will not alert you of objects
that are traveling in the opposite direction of the
vehicle in adjacent lanes.WARNING!
The Blind Spot Monitoring system is only an
aid to help detect objects in the blind spot
zones. The BSM system is not designed to
detect pedestrians, bicyclists, or animals.
Even if your vehicle is equipped with the BSM
system, always check your vehicles mirrors,
glance over your shoulder, and use your turn
signal before changing lanes. Failure to do so
can result in serious injury or death.
Rear Cross PathThe Rear Cross Path (RCP) feature is intended
to aid the driver when backing out of parking
spaces where their vision of oncoming vehicles
may be blocked. Proceed slowly and cau-
tiously out of the parking space until the rear
end of the vehicle is exposed. The RCP system
will then have a clear view of the cross traffic
and if an oncoming vehicle is detected, alert
the driver.RCP monitors the rear detection zones on both
sides of the vehicle, for objects that are moving
toward the side of the vehicle with a minimum
speed of approximately 1 to 2 mph (1 km/h to
3 km/h), to objects moving a maximum of
approximately 10 mph (16 km/h), such as in
parking lot situations.
NOTE:
In a parking lot situation, oncoming vehicles
can be obscured by vehicles parked on
either side. If the sensors are blocked by
other structures or vehicles, the system will
not be able to alert the driver.Opposing Traffic
RCP Detection Zones
72

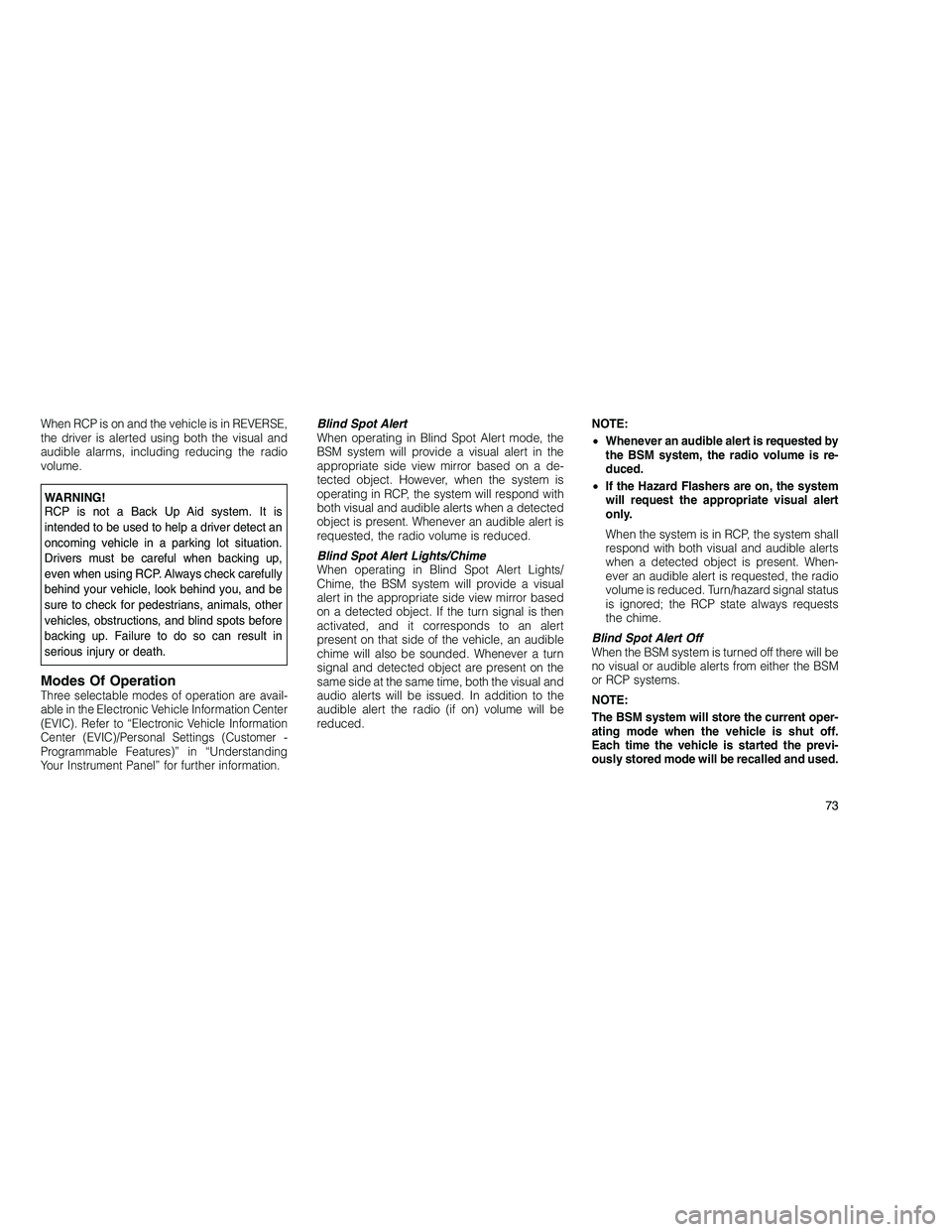

When RCP is on and the vehicle is in REVERSE,
the driver is alerted using both the visual and
audible alarms, including reducing the radio
volume.
WARNING!
RCP is not a Back Up Aid system. It is
intended to be used to help a driver detect an
oncoming vehicle in a parking lot situation.
Drivers must be careful when backing up,
even when using RCP. Always check carefully
behind your vehicle, look behind you, and be
sure to check for pedestrians, animals, other
vehicles, obstructions, and blind spots before
backing up. Failure to do so can result in
serious injury or death.
Modes Of OperationThree selectable modes of operation are avail-
able in the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer -
Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
Blind Spot Alert
When operating in Blind Spot Alert mode, the
BSM system will provide a visual alert in the
appropriate side view mirror based on a de-
tected object. However, when the system is
operating in RCP, the system will respond with
both visual and audible alerts when a detected
object is present. Whenever an audible alert is
requested, the radio volume is reduced.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/
Chime, the BSM system will provide a visual
alert in the appropriate side view mirror based
on a detected object. If the turn signal is then
activated, and it corresponds to an alert
present on that side of the vehicle, an audible
chime will also be sounded. Whenever a turn
signal and detected object are present on the
same side at the same time, both the visual and
audio alerts will be issued. In addition to the
audible alert the radio (if on) volume will be
reduced.NOTE:
•
Whenever an audible alert is requested by
the BSM system, the radio volume is re-
duced.
• If the Hazard Flashers are on, the system
will request the appropriate visual alert
only.
When the system is in RCP, the system shall
respond with both visual and audible alerts
when a detected object is present. When-
ever an audible alert is requested, the radio
volume is reduced. Turn/hazard signal status
is ignored; the RCP state always requests
the chime.
Blind Spot Alert Off
When the BSM system is turned off there will be
no visual or audible alerts from either the BSM
or RCP systems.
NOTE:
The BSM system will store the current oper-
ating mode when the vehicle is shut off.
Each time the vehicle is started the previ-
ously stored mode will be recalled and used.
73

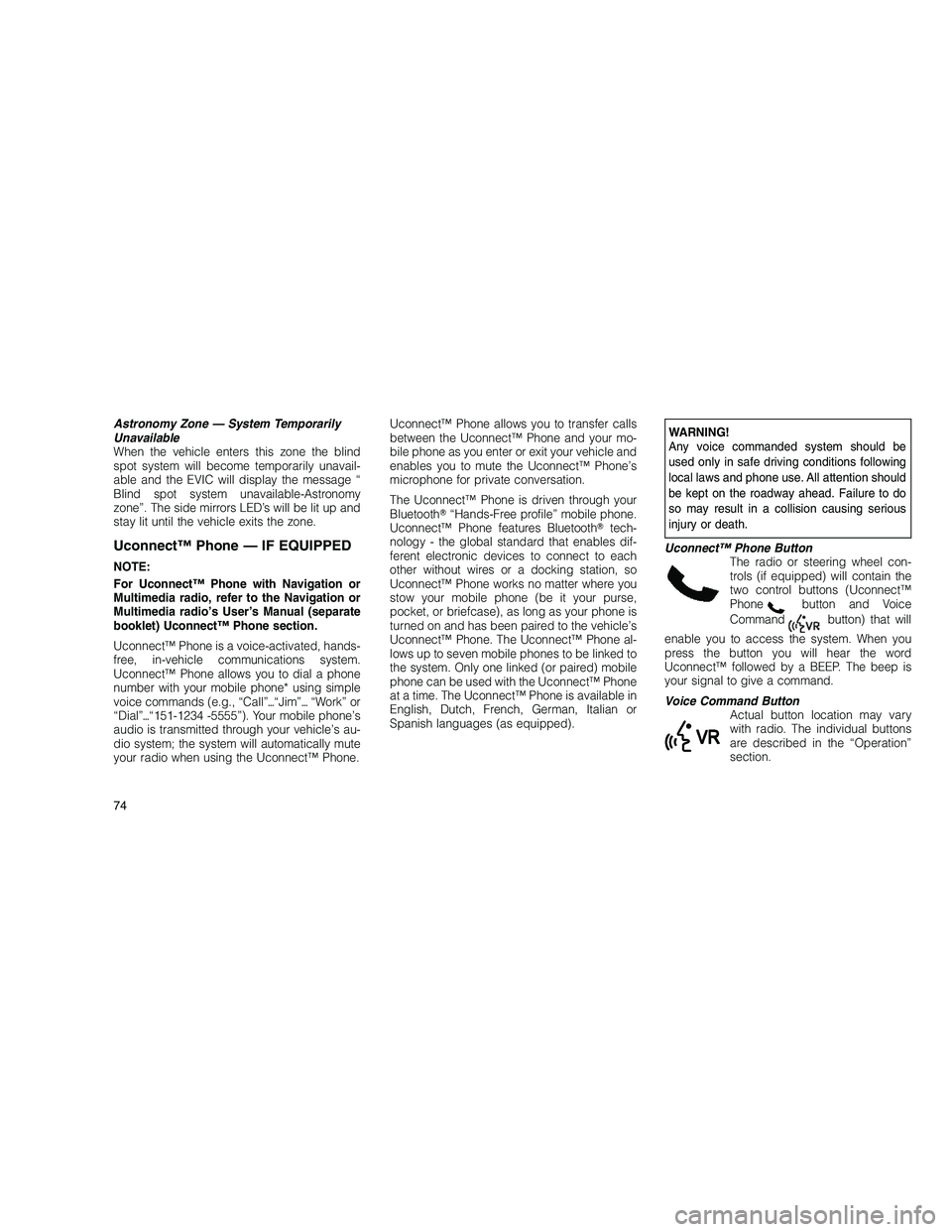

Astronomy Zone — System Temporarily
Unavailable
When the vehicle enters this zone the blind
spot system will become temporarily unavail-
able and the EVIC will display the message “
Blind spot system unavailable-Astronomy
zone”. The side mirrors LED’s will be lit up and
stay lit until the vehicle exits the zone.
Uconnect™ Phone — IF EQUIPPED
NOTE:
For Uconnect™ Phone with Navigation or
Multimedia radio, refer to the Navigation or
Multimedia radio’s User’s Manual (separate
booklet) Uconnect™ Phone section.
Uconnect™ Phone is a voice-activated, hands-
free, in-vehicle communications system.
Uconnect™ Phone allows you to dial a phone
number with your mobile phone* using simple
voice commands (e.g., “Call”“Jim” “Work” or
“Dial” “151-1234 -5555”). Your mobile phone’s
audio is transmitted through your vehicle’s au-
dio system; the system will automatically mute
your radio when using the Uconnect™ Phone. Uconnect™ Phone allows you to transfer calls
between the Uconnect™ Phone and your mo-
bile phone as you enter or exit your vehicle and
enables you to mute the Uconnect™ Phone’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth
“Hands-Free profile” mobile phone.
Uconnect™ Phone features Bluetooth tech-
nology - the global standard that enables dif-
ferent electronic devices to connect to each
other without wires or a docking station, so
Uconnect™ Phone works no matter where you
stow your mobile phone (be it your purse,
pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
Uconnect™ Phone. The Uconnect™ Phone al-
lows up to seven mobile phones to be linked to
the system. Only one linked (or paired) mobile
phone can be used with the Uconnect™ Phone
at a time. The Uconnect™ Phone is available in
English, Dutch, French, German, Italian or
Spanish languages (as equipped).
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
local laws and phone use. All attention should
be kept on the roadway ahead. Failure to do
so may result in a collision causing serious
injury or death.
Uconnect™ Phone Button The radio or steering wheel con-
trols (if equipped) will contain the
two control buttons (Uconnect™
Phone
button and Voice
Commandbutton) that will
enable you to access the system. When you
press the button you will hear the word
Uconnect™ followed by a BEEP. The beep is
your signal to give a command.
Voice Command Button Actual button location may vary
with radio. The individual buttons
are described in the “Operation”
section.
74

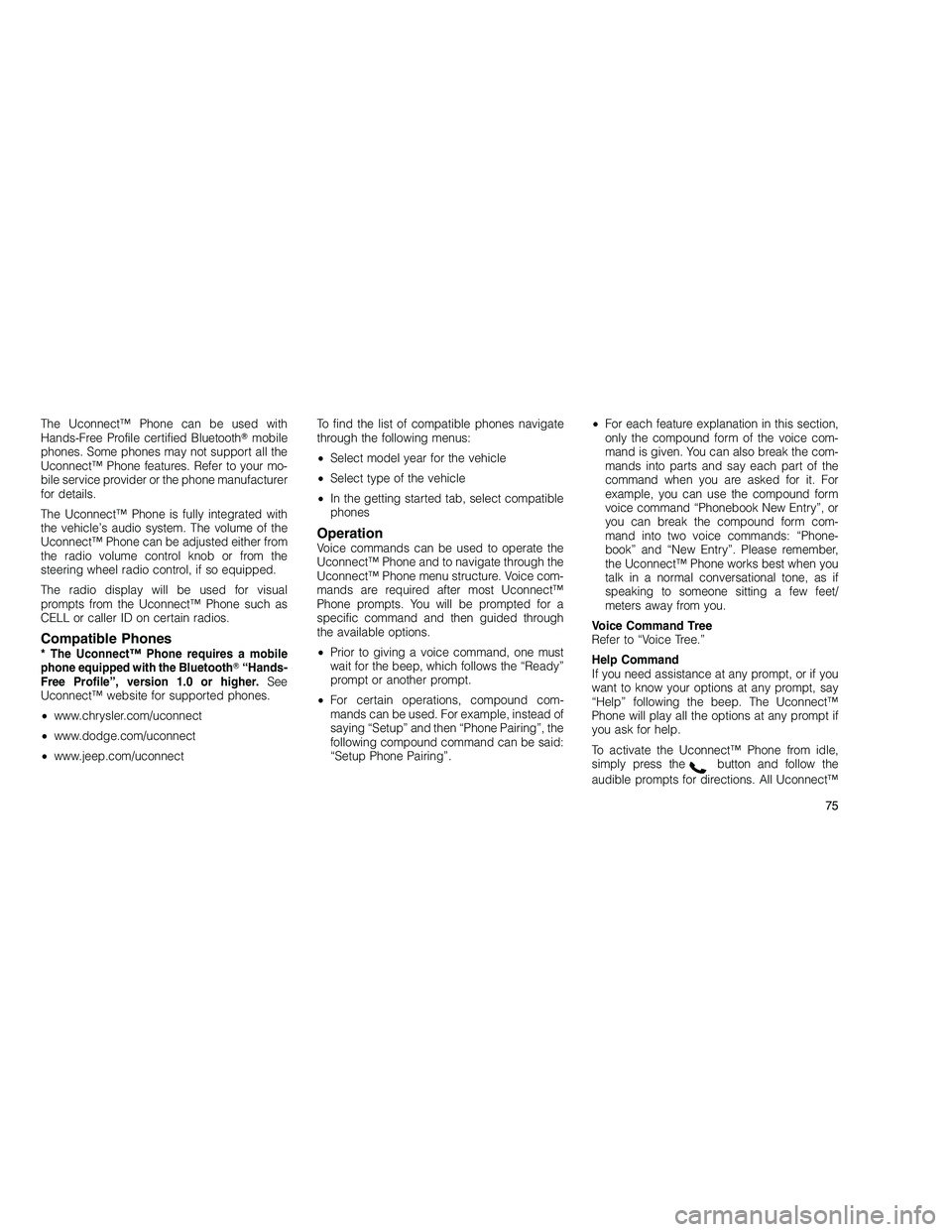

The Uconnect™ Phone can be used with
Hands-Free Profile certified Bluetoothmobile
phones. Some phones may not support all the
Uconnect™ Phone features. Refer to your mo-
bile service provider or the phone manufacturer
for details.
The Uconnect™ Phone is fully integrated with
the vehicle’s audio system. The volume of the
Uconnect™ Phone can be adjusted either from
the radio volume control knob or from the
steering wheel radio control, if so equipped.
The radio display will be used for visual
prompts from the Uconnect™ Phone such as
CELL or caller ID on certain radios.
Compatible Phones* The Uconnect™ Phone requires a mobile
phone equipped with the Bluetooth “Hands-
Free Profile”, version 1.0 or higher.
See
Uconnect™ website for supported phones.
• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect To find the list of compatible phones navigate
through the following menus:
•
Select model year for the vehicle
• Select type of the vehicle
• In the getting started tab, select compatible
phones
OperationVoice commands can be used to operate the
Uconnect™ Phone and to navigate through the
Uconnect™ Phone menu structure. Voice com-
mands are required after most Uconnect™
Phone prompts. You will be prompted for a
specific command and then guided through
the available options.
• Prior to giving a voice command, one must
wait for the beep, which follows the “Ready”
prompt or another prompt.
• For certain operations, compound com-
mands can be used. For example, instead of
saying “Setup” and then “Phone Pairing”, the
following compound command can be said:
“Setup Phone Pairing”. •
For each feature explanation in this section,
only the compound form of the voice com-
mand is given. You can also break the com-
mands into parts and say each part of the
command when you are asked for it. For
example, you can use the compound form
voice command “Phonebook New Entry”, or
you can break the compound form com-
mand into two voice commands: “Phone-
book” and “New Entry”. Please remember,
the Uconnect™ Phone works best when you
talk in a normal conversational tone, as if
speaking to someone sitting a few feet/
meters away from you.
Voice Command Tree
Refer to “Voice Tree.”
Help Command
If you need assistance at any prompt, or if you
want to know your options at any prompt, say
“Help” following the beep. The Uconnect™
Phone will play all the options at any prompt if
you ask for help.
To activate the Uconnect™ Phone from idle,
simply press the
button and follow the
audible prompts for directions. All Uconnect™
75

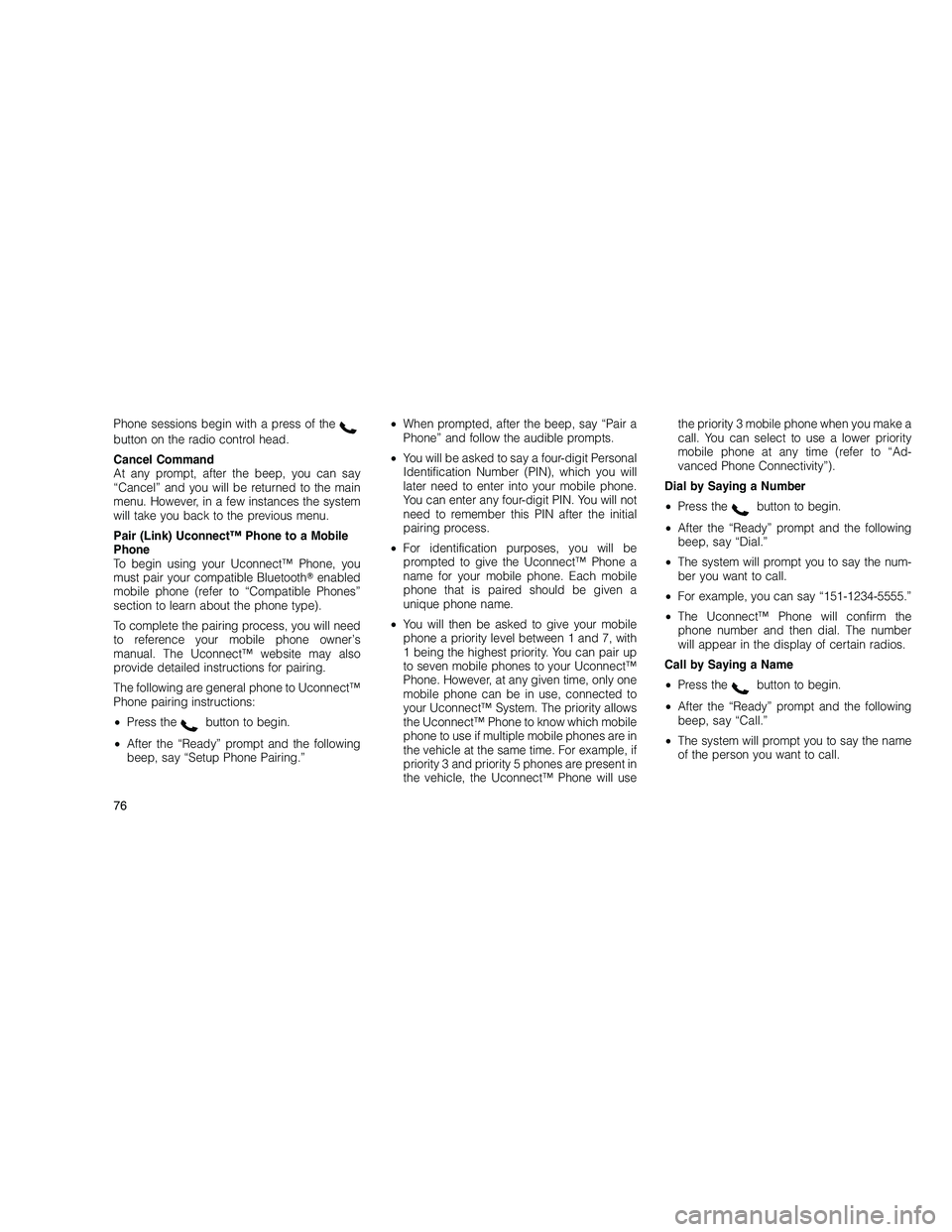

Phone sessions begin with a press of thebutton on the radio control head.
Cancel Command
At any prompt, after the beep, you can say
“Cancel” and you will be returned to the main
menu. However, in a few instances the system
will take you back to the previous menu.
Pair (Link) Uconnect™ Phone to a Mobile
Phone
To begin using your Uconnect™ Phone, you
must pair your compatible Bluetoothenabled
mobile phone (refer to “Compatible Phones”
section to learn about the phone type).
To complete the pairing process, you will need
to reference your mobile phone owner’s
manual. The Uconnect™ website may also
provide detailed instructions for pairing.
The following are general phone to Uconnect™
Phone pairing instructions:
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Setup Phone Pairing.” •
When prompted, after the beep, say “Pair a
Phone” and follow the audible prompts.
• You will be asked to say a four-digit Personal
Identification Number (PIN), which you will
later need to enter into your mobile phone.
You can enter any four-digit PIN. You will not
need to remember this PIN after the initial
pairing process.
• For identification purposes, you will be
prompted to give the Uconnect™ Phone a
name for your mobile phone. Each mobile
phone that is paired should be given a
unique phone name.
• You will then be asked to give your mobile
phone a priority level between 1 and 7, with
1 being the highest priority. You can pair up
to seven mobile phones to your Uconnect™
Phone. However, at any given time, only one
mobile phone can be in use, connected to
your Uconnect™ System. The priority allows
the Uconnect™ Phone to know which mobile
phone to use if multiple mobile phones are in
the vehicle at the same time. For example, if
priority 3 and priority 5 phones are present in
the vehicle, the Uconnect™ Phone will use the priority 3 mobile phone when you make a
call. You can select to use a lower priority
mobile phone at any time (refer to “Ad-
vanced Phone Connectivity”).
Dial by Saying a Number
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Dial.”
• The system will prompt you to say the num-
ber you want to call.
• For example, you can say “151-1234-5555.”
• The Uconnect™ Phone will confirm the
phone number and then dial. The number
will appear in the display of certain radios.
Call by Saying a Name
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Call.”
• The system will prompt you to say the name
of the person you want to call.
76
