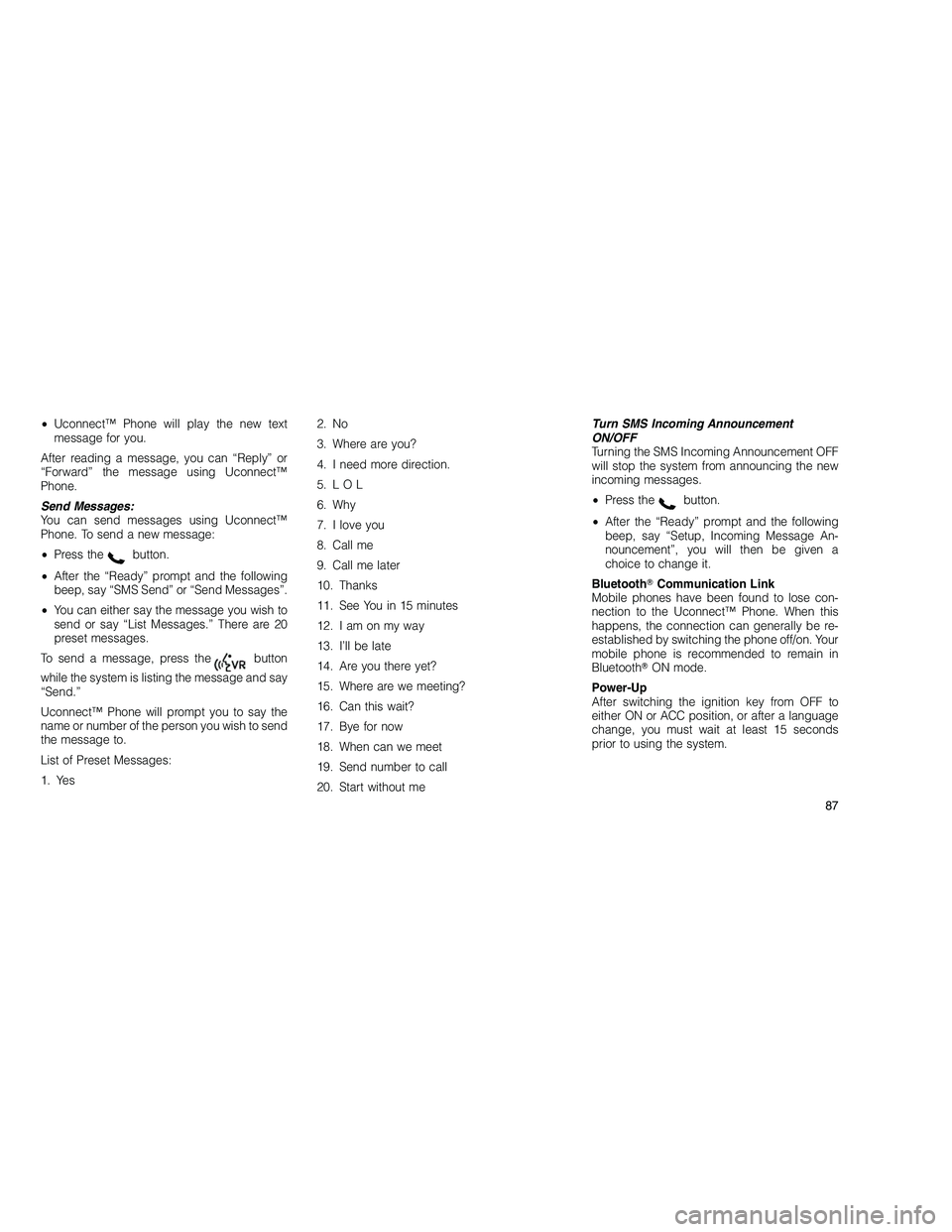

•Uconnect™ Phone will play the new text
message for you.
After reading a message, you can “Reply” or
“Forward” the message using Uconnect™
Phone.
Send Messages:
You can send messages using Uconnect™
Phone. To send a new message:
• Press the
button.
• After the “Ready” prompt and the following
beep, say “SMS Send” or “Send Messages”.
• You can either say the message you wish to
send or say “List Messages.” There are 20
preset messages.
To send a message, press the
button
while the system is listing the message and say
“Send.”
Uconnect™ Phone will prompt you to say the
name or number of the person you wish to send
the message to.
List of Preset Messages:
1. Yes 2. No
3. Where are you?
4. I need more direction.
5. LOL
6. Why
7. I love you
8. Call me
9. Call me later
10. Thanks
11. See You in 15 minutes
12. Iamonmyway
13. I’ll be late
14. Are you there yet?
15. Where are we meeting?
16. Can this wait?
17. Bye for now
18. When can we meet
19. Send number to call
20. Start without meTurn SMS Incoming Announcement
ON/OFF
Turning the SMS Incoming Announcement OFF
will stop the system from announcing the new
incoming messages.
•
Press the
button.
• After the “Ready” prompt and the following
beep, say “Setup, Incoming Message An-
nouncement”, you will then be given a
choice to change it.
Bluetooth Communication Link
Mobile phones have been found to lose con-
nection to the Uconnect™ Phone. When this
happens, the connection can generally be re-
established by switching the phone off/on. Your
mobile phone is recommended to remain in
Bluetooth ON mode.
Power-Up
After switching the ignition key from OFF to
either ON or ACC position, or after a language
change, you must wait at least 15 seconds
prior to using the system.
87

88

89

90

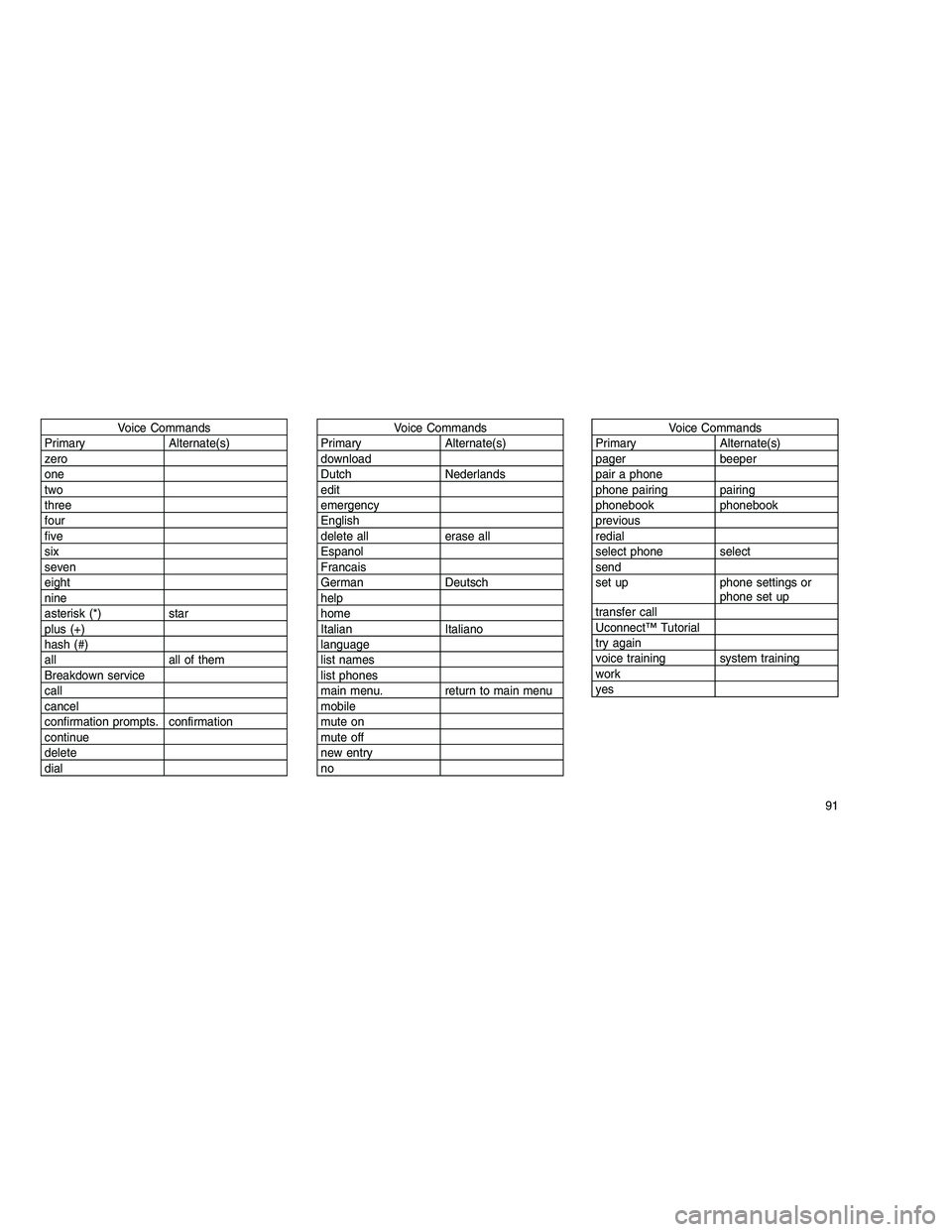

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
asterisk (*) star
plus (+)
hash (#)
all all of them
Breakdown service
call
cancel
confirmation prompts. confirmation
continue
delete
dialVoice Commands
Primary Alternate(s)
download
Dutch Nederlands
edit
emergency
English
delete all erase all
Espanol
Francais
German Deutsch
help
home
Italian Italiano
language
list names
list phones
main menu. return to main menu
mobile
mute on
mute off
new entry
noVoice Commands
Primary Alternate(s)
pager beeper
pair a phone
phone pairing pairing
phonebook phonebook
previous
redial
select phone select
send
set up phone settings or phone set up
transfer call
Uconnect™ Tutorial
try again
voice training system training
work
yes
91

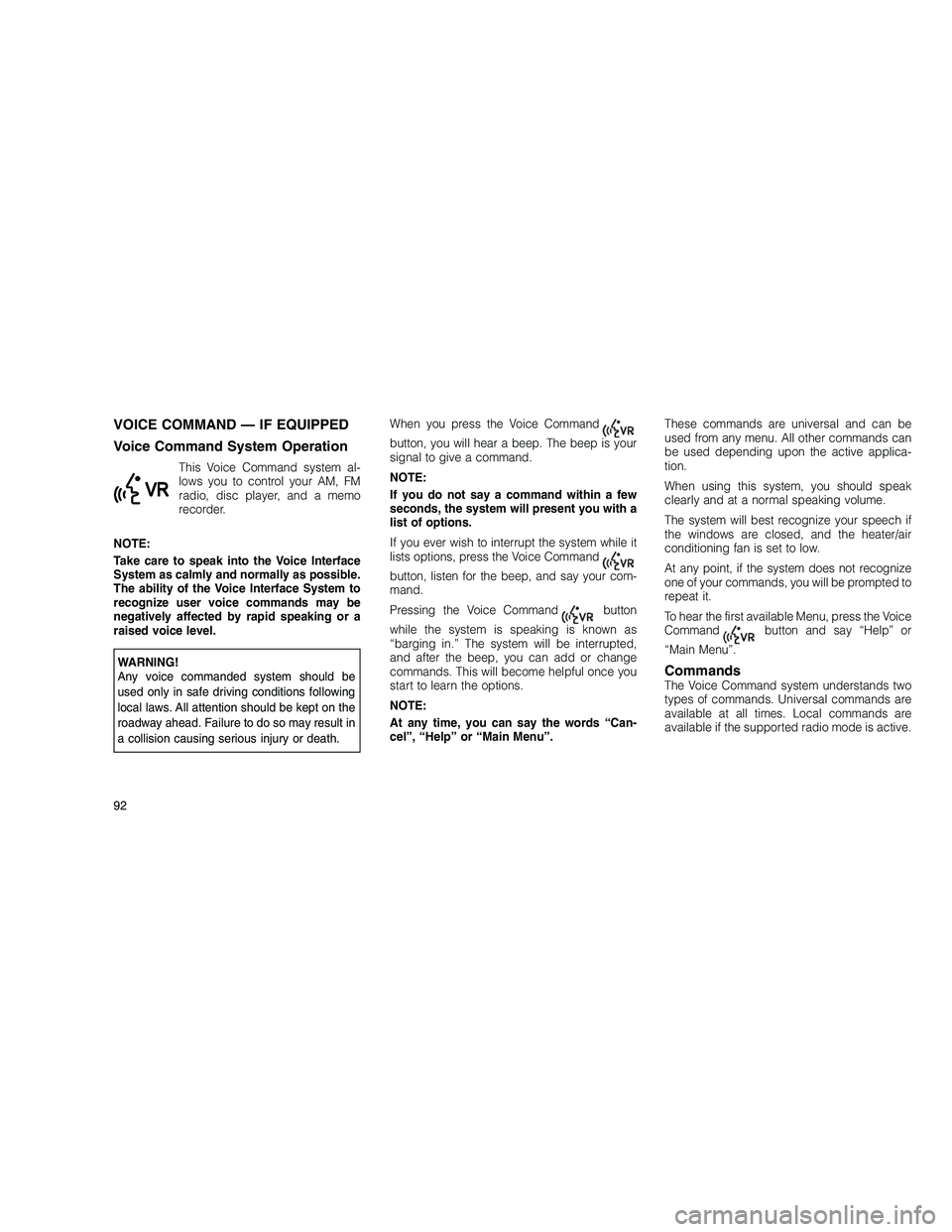

VOICE COMMAND — IF EQUIPPED
Voice Command System Operation
This Voice Command system al-
lows you to control your AM, FM
radio, disc player, and a memo
recorder.
NOTE:
Take care to speak into the Voice Interface
System as calmly and normally as possible.
The ability of the Voice Interface System to
recognize user voice commands may be
negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
local laws. All attention should be kept on the
roadway ahead. Failure to do so may result in
a collision causing serious injury or death. When you press the Voice Command
button, you will hear a beep. The beep is your
signal to give a command.
NOTE:
If you do not say a command within a few
seconds, the system will present you with a
list of options.
If you ever wish to interrupt the system while it
lists options, press the Voice Command
button, listen for the beep, and say your com-
mand.
Pressing the Voice Command
button
while the system is speaking is known as
“barging in.” The system will be interrupted,
and after the beep, you can add or change
commands. This will become helpful once you
start to learn the options.
NOTE:
At any time, you can say the words “Can-
cel”, “Help” or “Main Menu”. These commands are universal and can be
used from any menu. All other commands can
be used depending upon the active applica-
tion.
When using this system, you should speak
clearly and at a normal speaking volume.
The system will best recognize your speech if
the windows are closed, and the heater/air
conditioning fan is set to low.
At any point, if the system does not recognize
one of your commands, you will be prompted to
repeat it.
To hear the first available Menu, press the Voice
Command
button and say “Help” or
“Main Menu”.
CommandsThe Voice Command system understands two
types of commands. Universal commands are
available at all times. Local commands are
available if the supported radio mode is active.
92

Changing the Volume
1. Start a dialogue by pressing the Voice
Command
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to
adjust the volume to a comfortable level while
the Voice Command system is speaking.
Please note the volume setting for Voice Com-
mand is different than the audio system.
Main Menu
Start a dialogue by pressing the Voice
Command
button. You may say “Main
Menu” to switch to the main menu.
In this mode, you can say the following com-
mands:
• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “System Setup” (to switch to system setup) Radio AM (or Radio Long Wave or Radio
Medium Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio
AM”. In this mode, you may say the following
commands:
•
“Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)
Radio FM
To switch to the FM band, say “FM” or “Radio
FM”. In this mode, you may say the following
commands:
• “Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu) Disc
To switch to the disc mode, say “Disc”. In this
mode, you may say the following commands:
•
“Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu)
Memo
To switch to the voice recorder mode, say
“Memo”. In this mode, you may say the follow-
ing commands:
• “New Memo” (to record a new memo) —
During the recording, you may press the
Voice Command
button to stop re-
cording. You proceed by saying one of the
following commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
• “Play Memos” (to play previously recorded
memos) — During the playback you may
press the Voice Command
button to
93

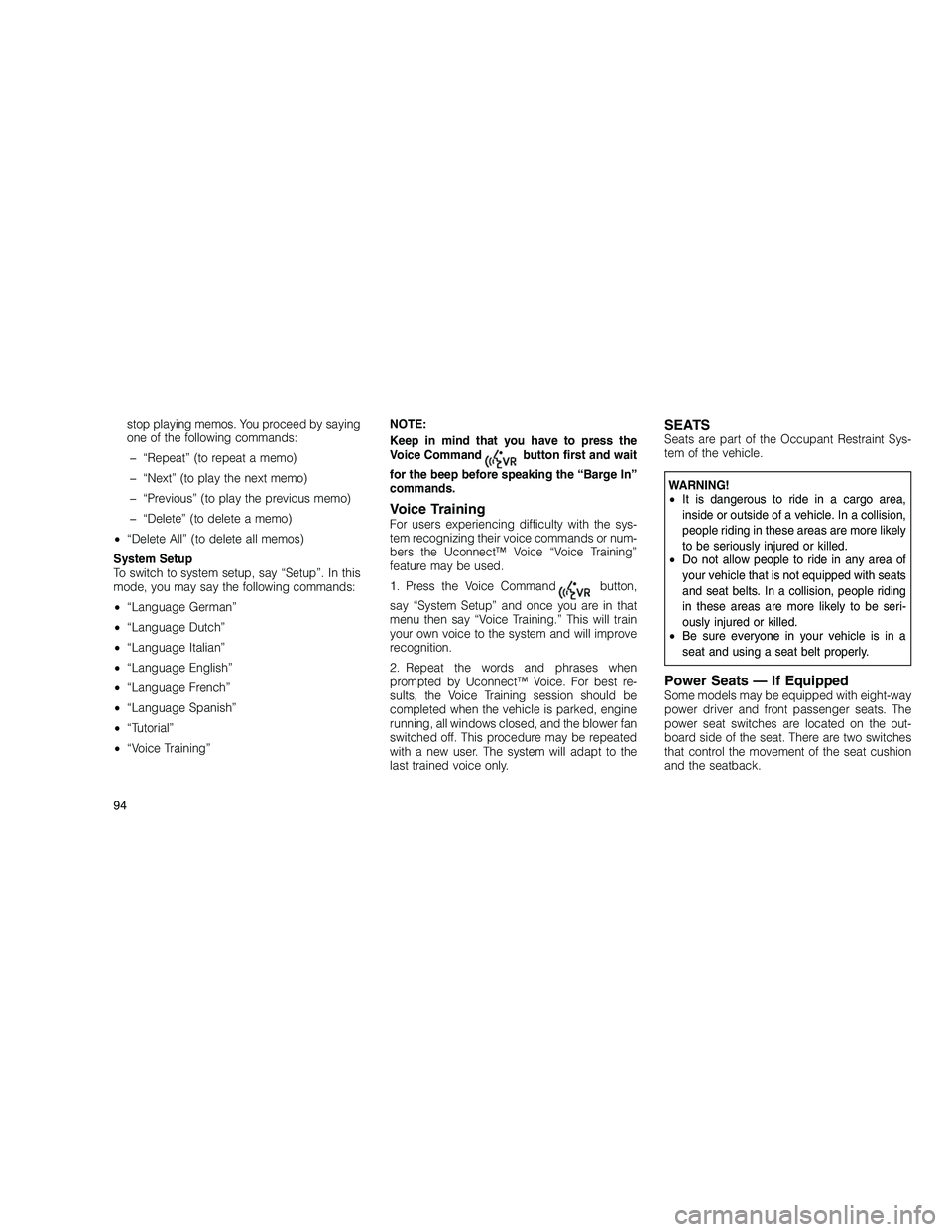

stop playing memos. You proceed by saying
one of the following commands: “Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
• “Delete All” (to delete all memos)
System Setup
To switch to system setup, say “Setup”. In this
mode, you may say the following commands:
• “Language German”
• “Language Dutch”
• “Language Italian”
• “Language English”
• “Language French”
• “Language Spanish”
• “Tutorial”
• “Voice Training” NOTE:
Keep in mind that you have to press the
Voice Command
button first and wait
for the beep before speaking the “Barge In”
commands.
Voice TrainingFor users experiencing difficulty with the sys-
tem recognizing their voice commands or num-
bers the Uconnect™ Voice “Voice Training”
feature may be used.
1. Press the Voice Command
button,
say “System Setup” and once you are in that
menu then say “Voice Training.” This will train
your own voice to the system and will improve
recognition.
2. Repeat the words and phrases when
prompted by Uconnect™ Voice. For best re-
sults, the Voice Training session should be
completed when the vehicle is parked, engine
running, all windows closed, and the blower fan
switched off. This procedure may be repeated
with a new user. The system will adapt to the
last trained voice only.
SEATSSeats are part of the Occupant Restraint Sys-
tem of the vehicle.
WARNING!
• It is dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be seriously injured or killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. In a collision, people riding
in these areas are more likely to be seri-
ously injured or killed.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
Power Seats — If EquippedSome models may be equipped with eight-way
power driver and front passenger seats. The
power seat switches are located on the out-
board side of the seat. There are two switches
that control the movement of the seat cushion
and the seatback.
94

Adjusting the seat forward or rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.Adjusting the seat up or down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
rear of the seat switch, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.
Tilting the seat up or down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.
Reclining the Seatback
The angle of the seatback can be adjusted
forward or backward. Push the seatback switch
forward or rearward, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.
WARNING!
•
Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seatbelts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seatbelt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.

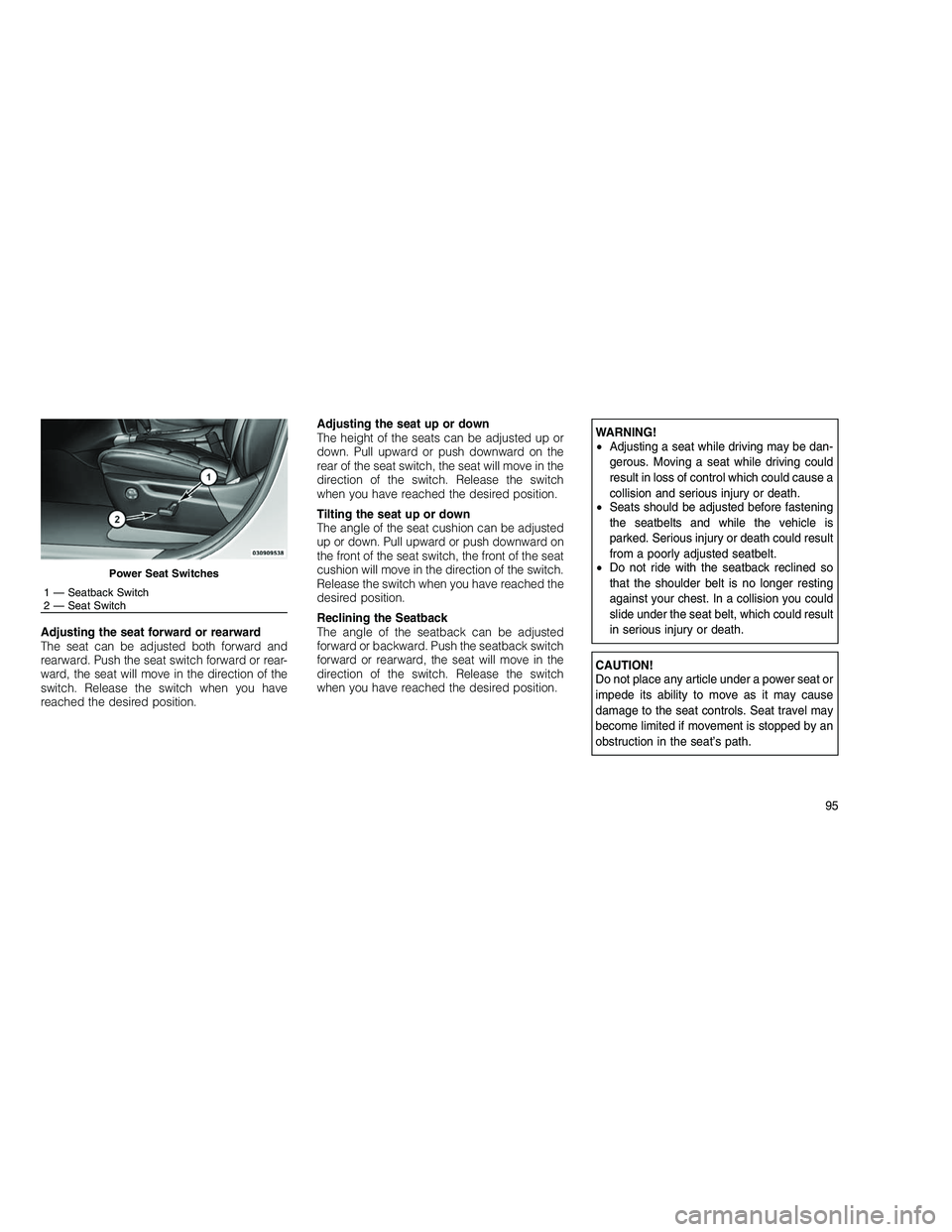

Power Seat Switches
1 — Seatback Switch
2 — Seat Switch
95

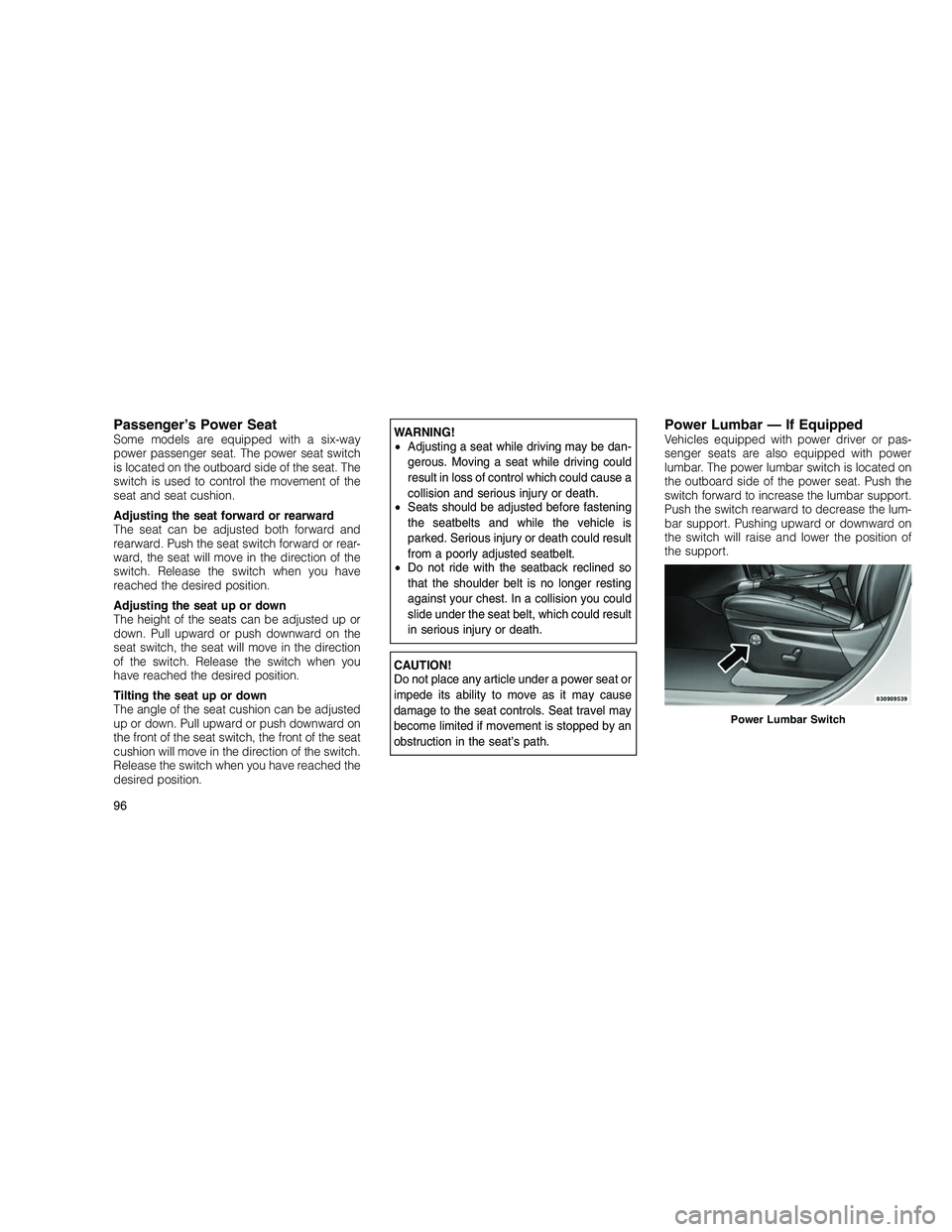

Passenger’s Power SeatSome models are equipped with a six-way
power passenger seat. The power seat switch
is located on the outboard side of the seat. The
switch is used to control the movement of the
seat and seat cushion.
Adjusting the seat forward or rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.
Adjusting the seat up or down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
seat switch, the seat will move in the direction
of the switch. Release the switch when you
have reached the desired position.
Tilting the seat up or down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.WARNING!
•Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seatbelts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seatbelt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.
Power Lumbar — If EquippedVehicles equipped with power driver or pas-
senger seats are also equipped with power
lumbar. The power lumbar switch is located on
the outboard side of the power seat. Push the
switch forward to increase the lumbar support.
Push the switch rearward to decrease the lum-
bar support. Pushing upward or downward on
the switch will raise and lower the position of
the support.
Power Lumbar Switch
96
