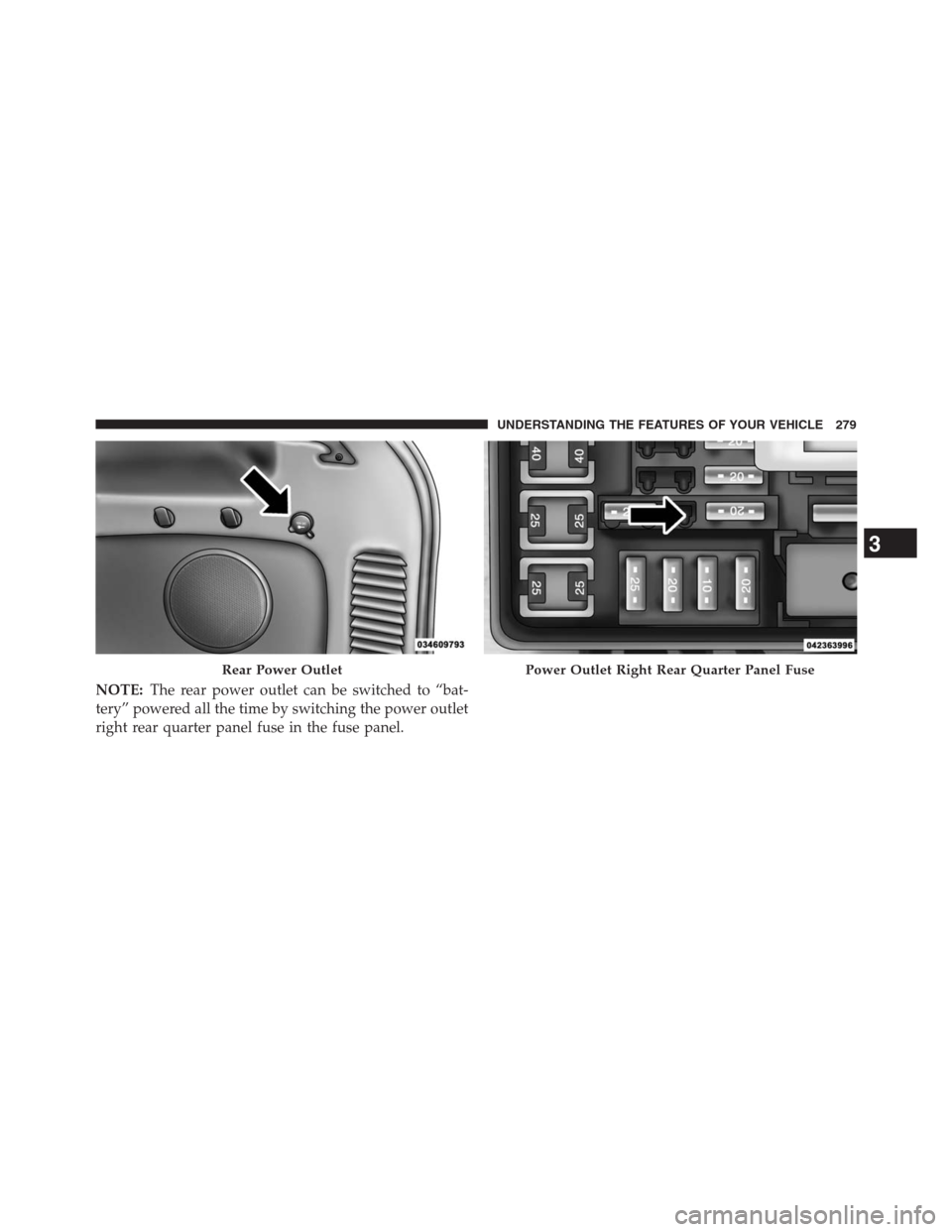

NOTE:The rear power outlet can be switched to “bat-
tery” powered all the time by switching the power outlet
right rear quarter panel fuse in the fuse panel.
Rear Power OutletPower Outlet Right Rear Quarter Panel Fuse
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.
(Continued)
Power Outlet Fuse Locations
1 — M7 Fuse 20 A Yellow Power Outlet Right Rear Quarter Panel
2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel
3 — M36 Fuse 20 A Yellow Power Outlet Console Bin 280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

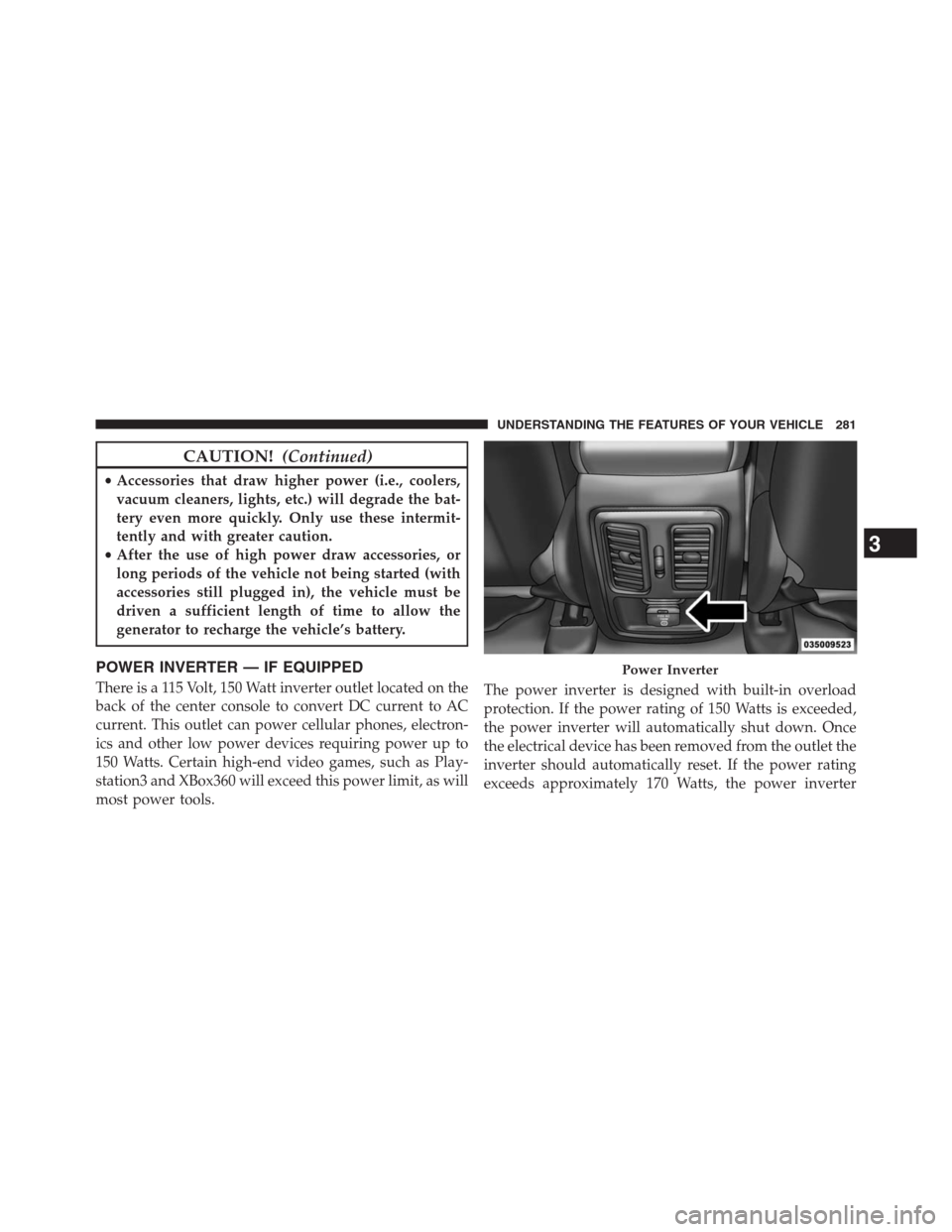

CAUTION!(Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
150 Watts. Certain high-end video games, such as Play-
station3 and XBox360 will exceed this power limit, as will
most power tools.The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
Power Inverter
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

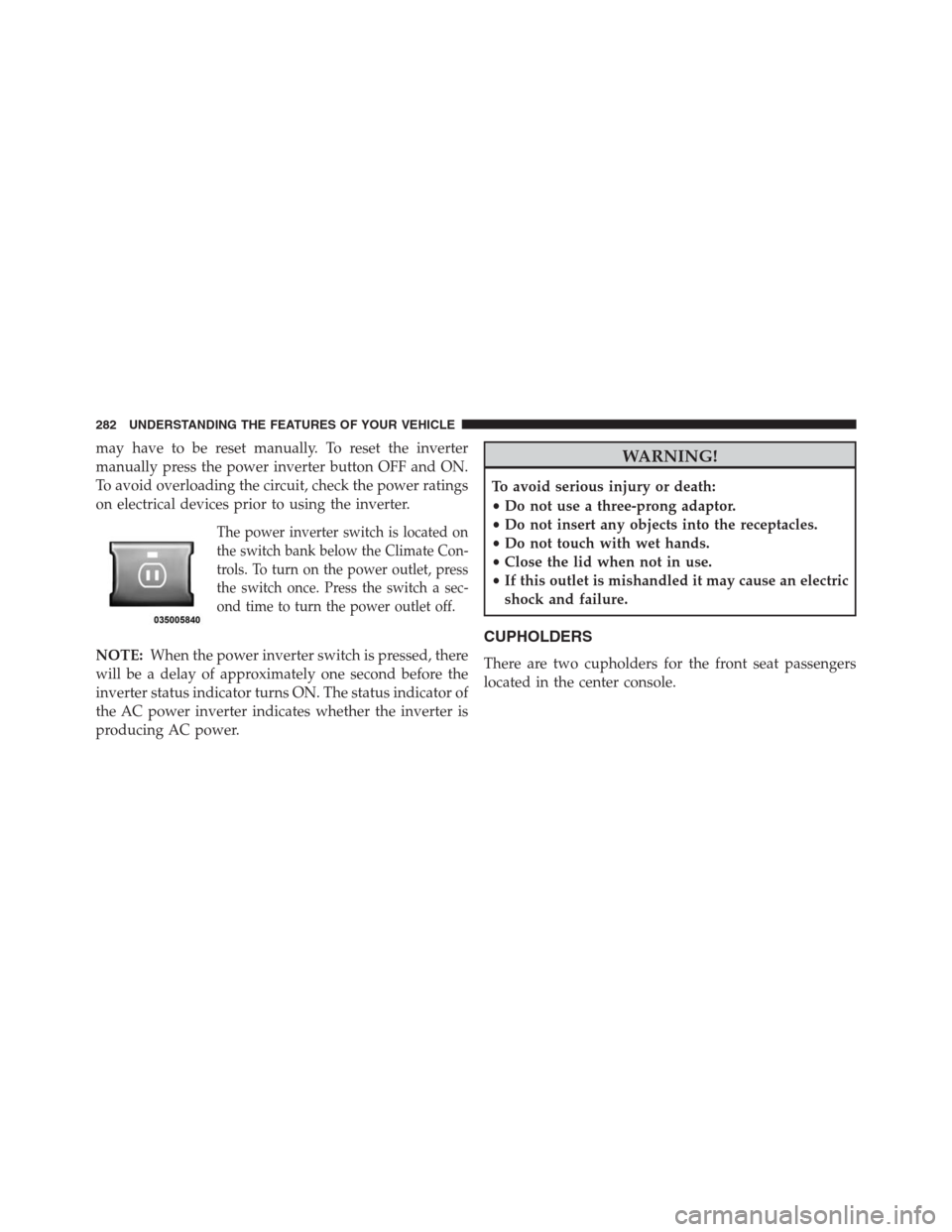

may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.
To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.
The power inverter switch is located on
the switch bank below the Climate Con-
trols. To turn on the power outlet, press
the switch once. Press the switch a sec-
ond time to turn the power outlet off.
NOTE:When the power inverter switch is pressed, there
will be a delay of approximately one second before the
inverter status indicator turns ON. The status indicator of
the AC power inverter indicates whether the inverter is
producing AC power.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
CUPHOLDERS
There are two cupholders for the front seat passengers
located in the center console.
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

There are two cupholders for the rear seat passengers
located in the fold-down center armrest.

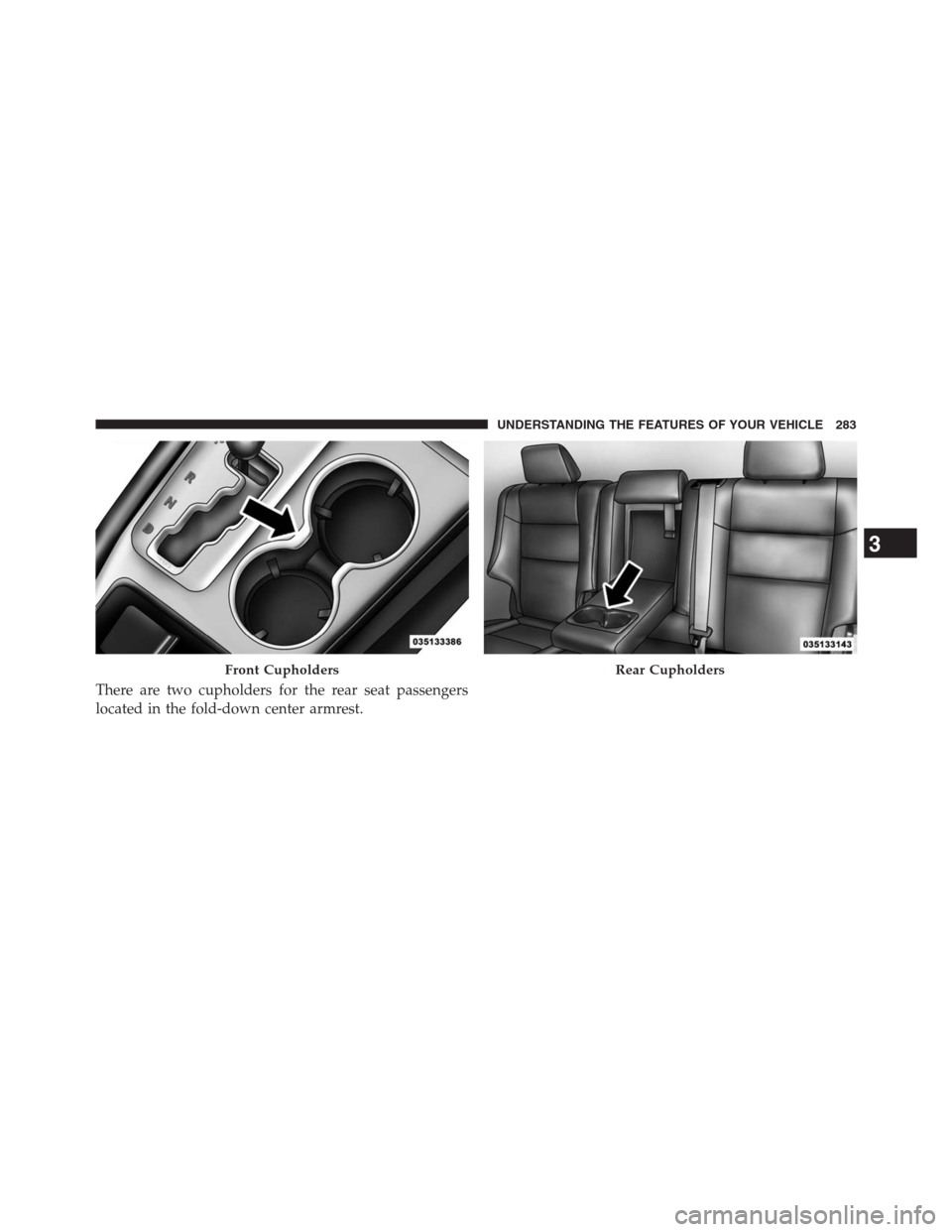

Front CupholdersRear Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

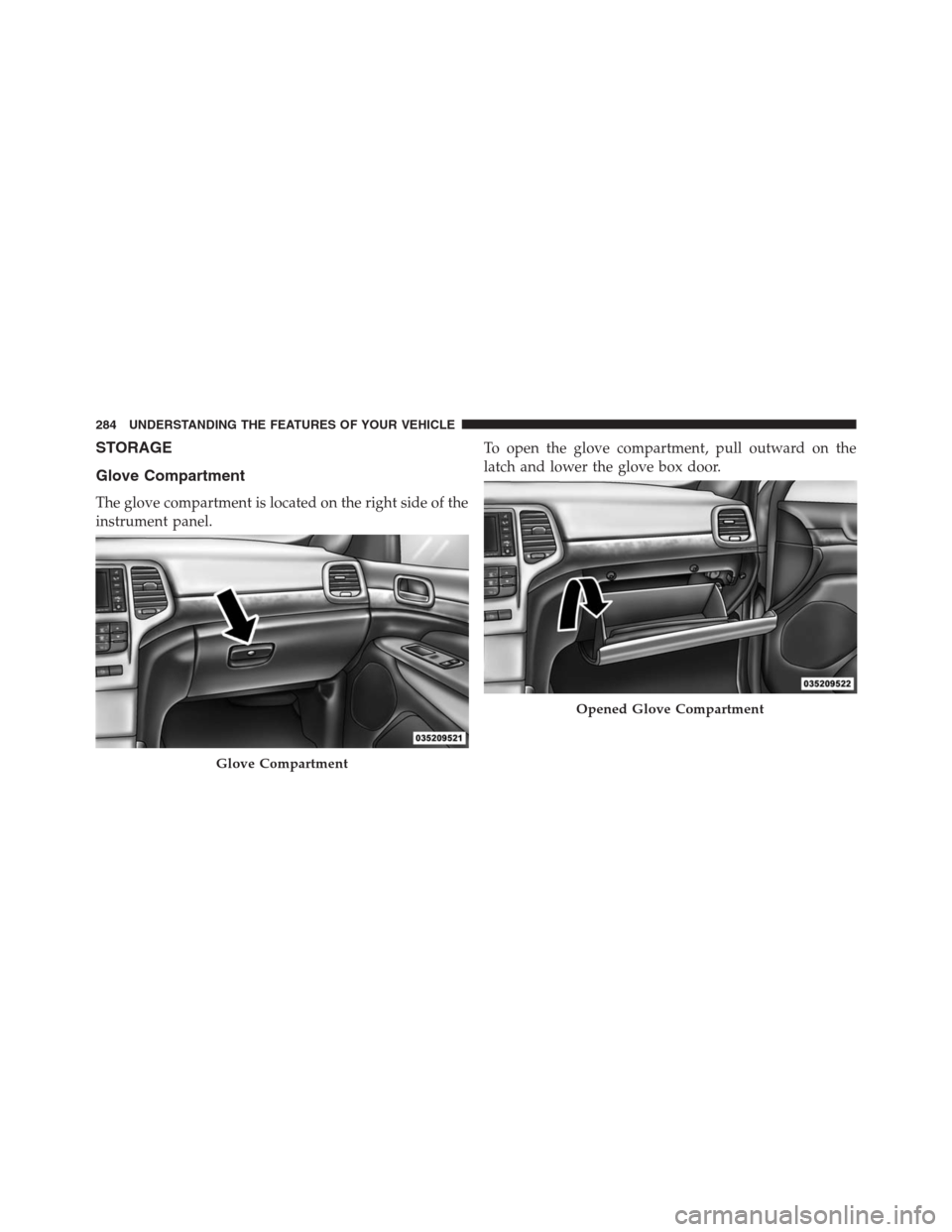

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel.To open the glove compartment, pull outward on the
latch and lower the glove box door.
Glove Compartment
Opened Glove Compartment
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

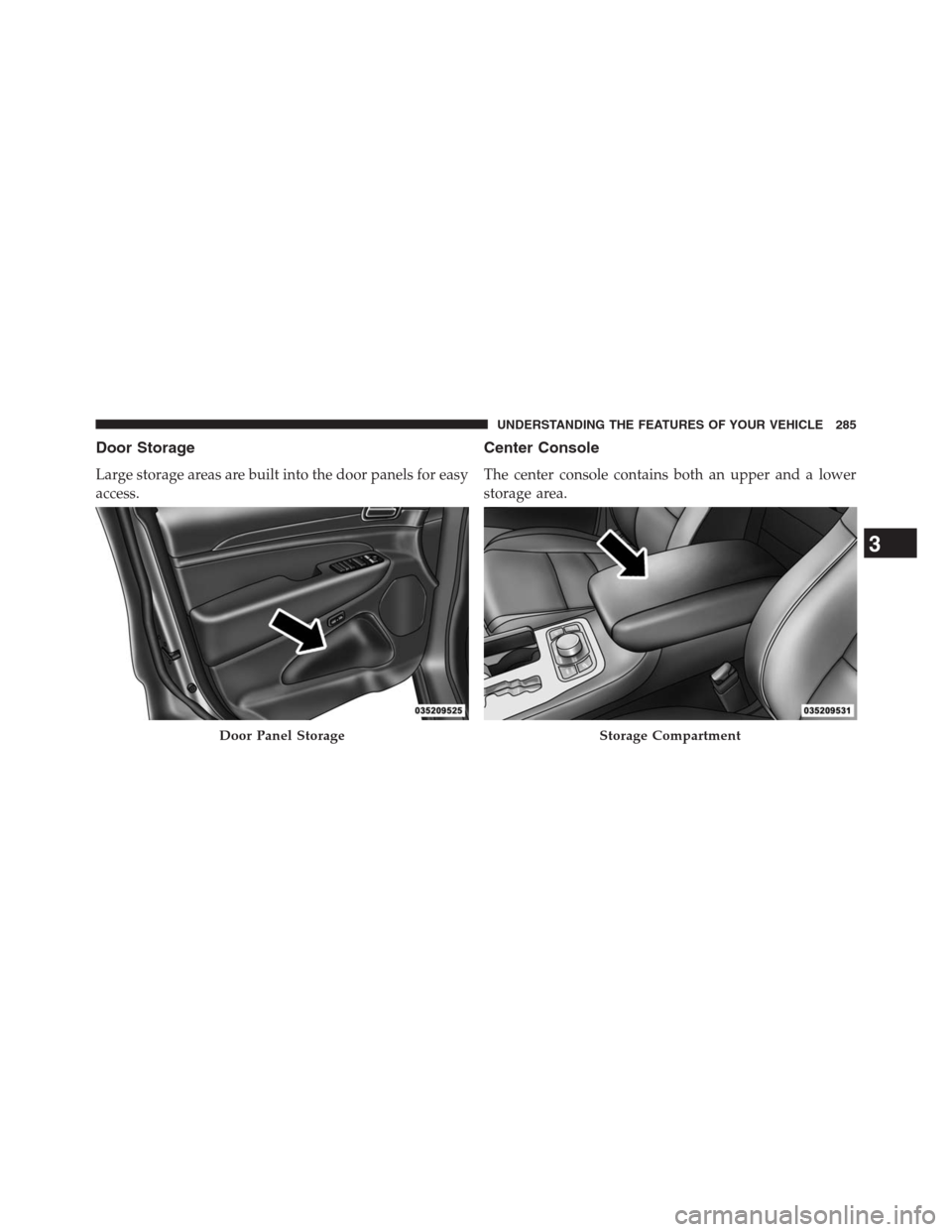

Door Storage
Large storage areas are built into the door panels for easy
access.
Center Console
The center console contains both an upper and a lower
storage area.
Door Panel StorageStorage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

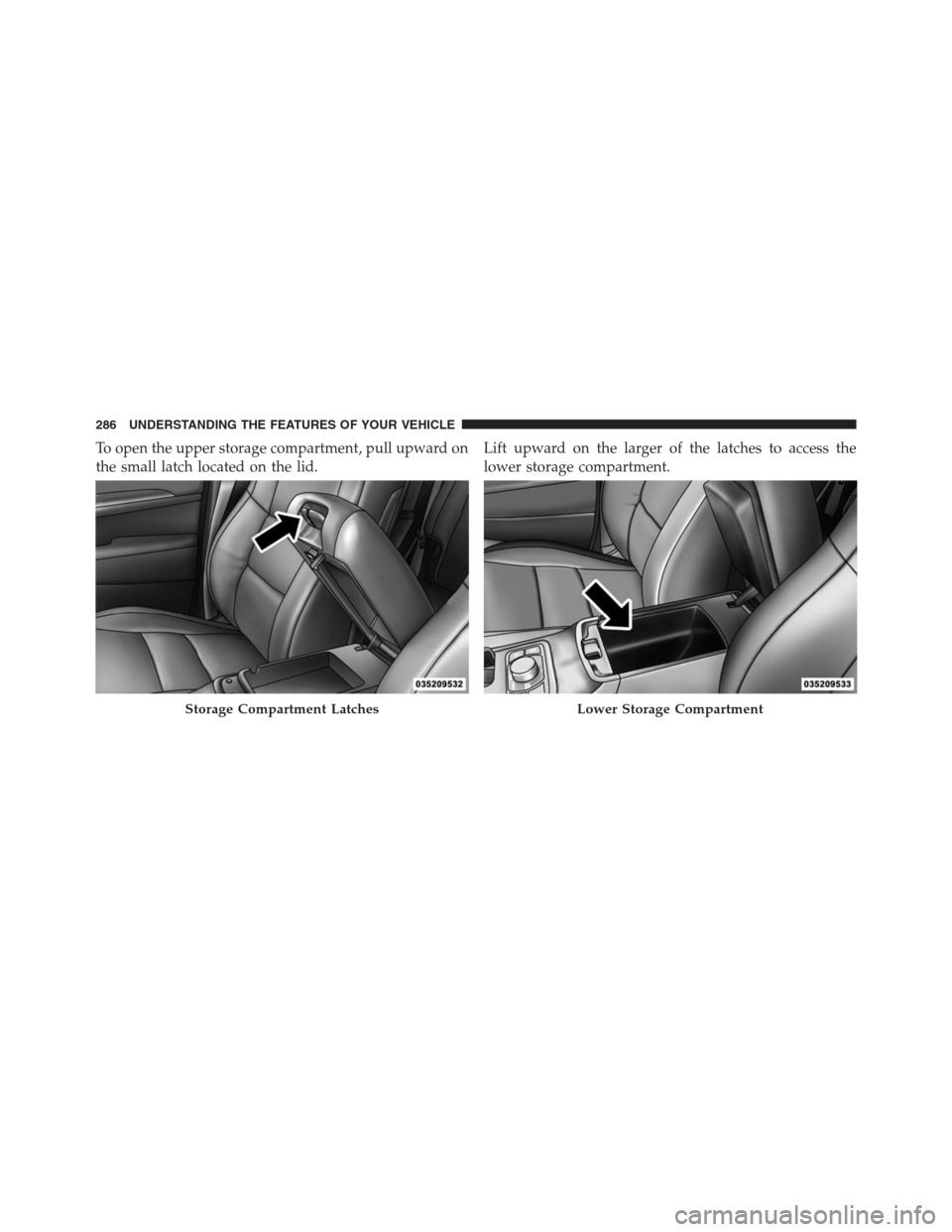

To open the upper storage compartment, pull upward on
the small latch located on the lid.Lift upward on the larger of the latches to access the
lower storage compartment.
Storage Compartment LatchesLower Storage Compartment
286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

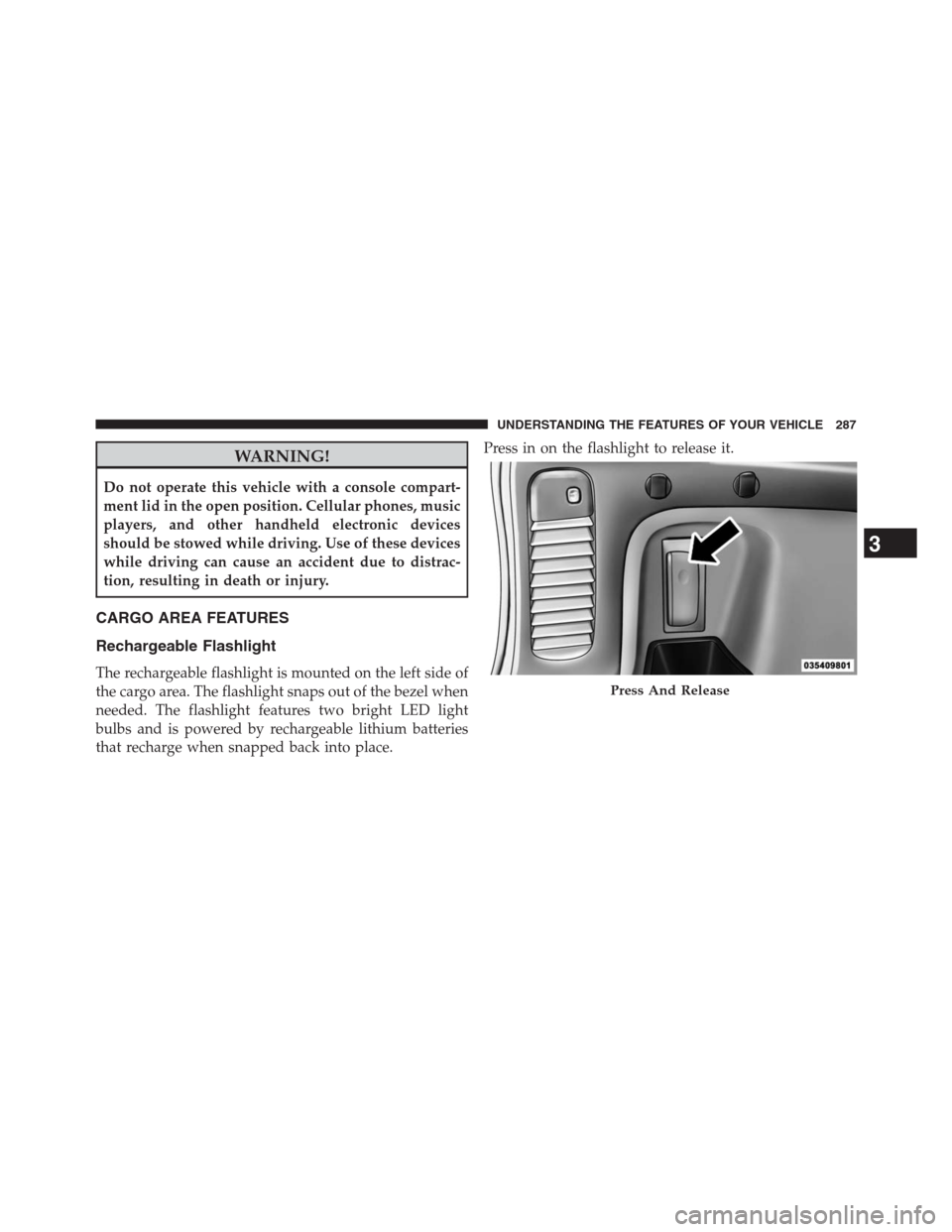

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the left side of
the cargo area. The flashlight snaps out of the bezel when
needed. The flashlight features two bright LED light
bulbs and is powered by rechargeable lithium batteries
that recharge when snapped back into place.Press in on the flashlight to release it.
Press And Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.
Cargo Storage Bins
There are four removable storage bins located in the rear
cargo area. There are two storage bins located on either
side of the cargo area.Two additional storage bins are located under the load
floor. To access the lower storage bins, raise the load floor
and attach the tether hook (attached to the bottom of the
load floor) to the liftgate opening.
Three-Press Switch
Rear Storage Bins
