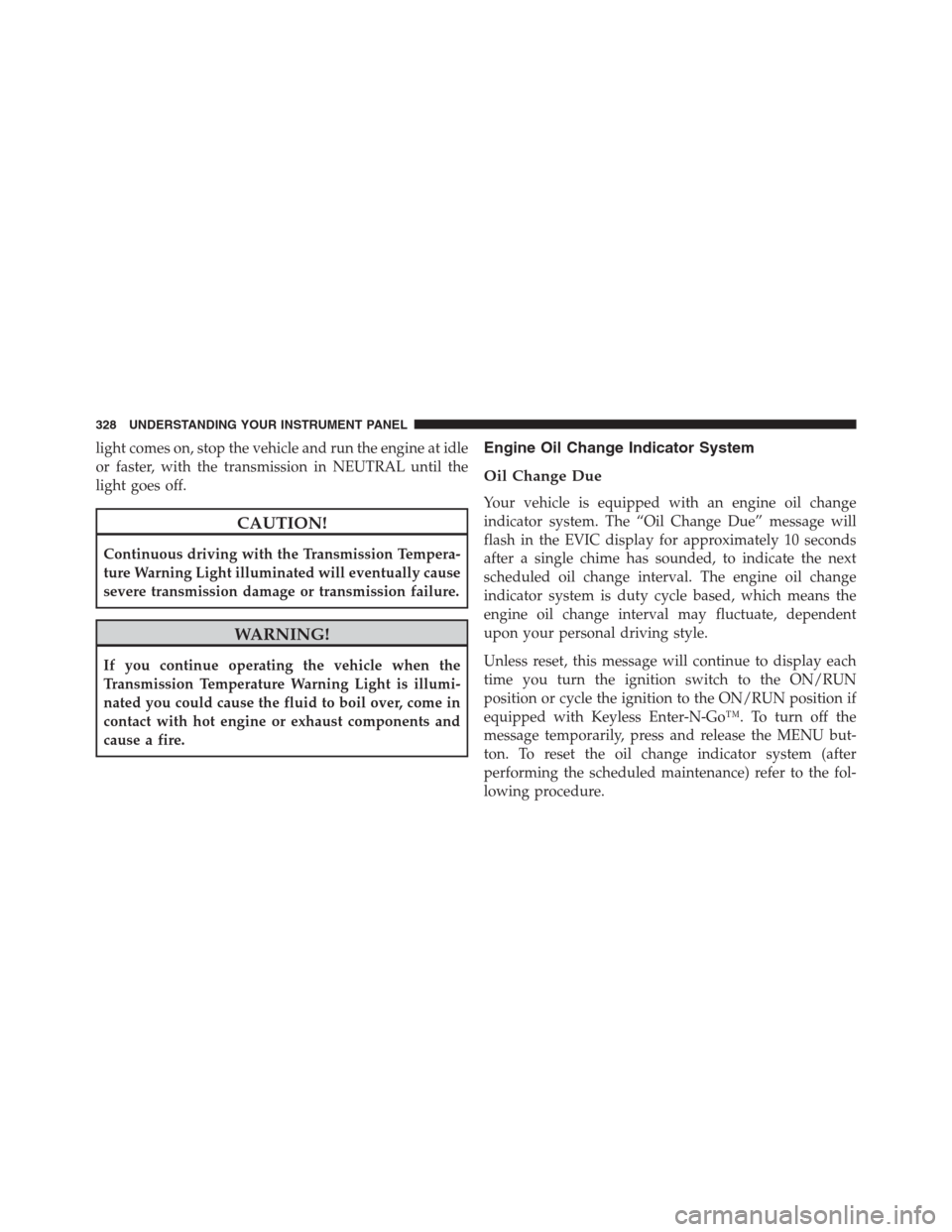

oil temperature JEEP GRAND CHEROKEE 2013 WK2 / 4.G Owners Manual

light comes on, stop the vehicle and run the engine at idle
or faster, with the transmission in NEUTRAL until the
light goes off.
CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
WARNING!
If you continue operating the vehicle when the
Transmission Temperature Warning Light is illumi-
nated you could cause the fluid to boil over, come in
contact with hot engine or exhaust components and
cause a fire.
Engine Oil Change Indicator System
Oil Change Due
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Due” message will
flash in the EVIC display for approximately 10 seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position or cycle the ignition to the ON/RUN position if
equipped with Keyless Enter-N-Go™. To turn off the
message temporarily, press and release the MENU but-
ton. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the fol-
lowing procedure.
328 UNDERSTANDING YOUR INSTRUMENT PANEL

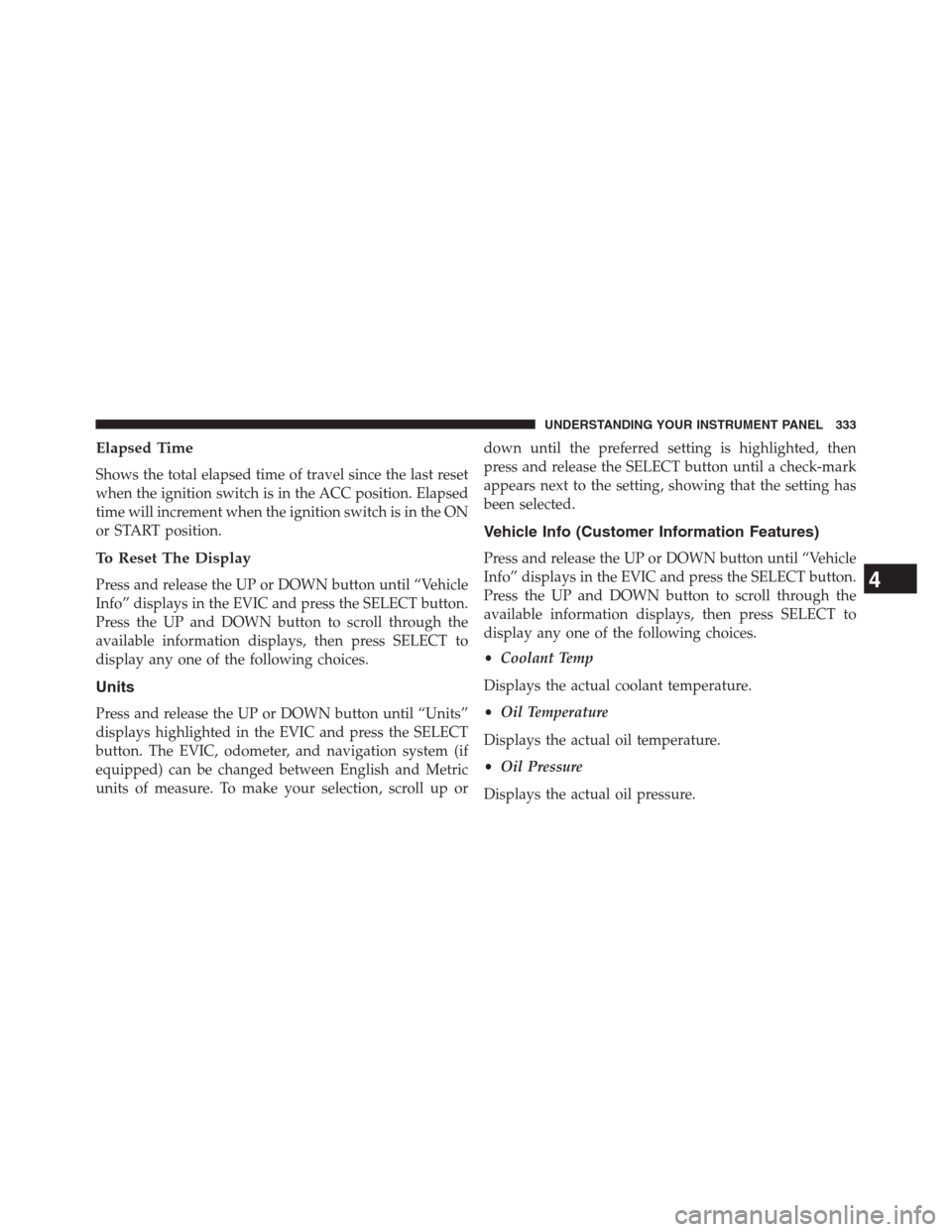

Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
To Reset The Display
Press and release the UP or DOWN button until “Vehicle
Info” displays in the EVIC and press the SELECT button.
Press the UP and DOWN button to scroll through the
available information displays, then press SELECT to
display any one of the following choices.
Units
Press and release the UP or DOWN button until “Units”
displays highlighted in the EVIC and press the SELECT
button. The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, scroll up ordown until the preferred setting is highlighted, then
press and release the SELECT button until a check-mark
appears next to the setting, showing that the setting has
been selected.
Vehicle Info (Customer Information Features)
Press and release the UP or DOWN button until “Vehicle
Info” displays in the EVIC and press the SELECT button.
Press the UP and DOWN button to scroll through the
available information displays, then press SELECT to
display any one of the following choices.
•Coolant Temp
Displays the actual coolant temperature.
•Oil Temperature
Displays the actual oil temperature.
•Oil Pressure
Displays the actual oil pressure.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333

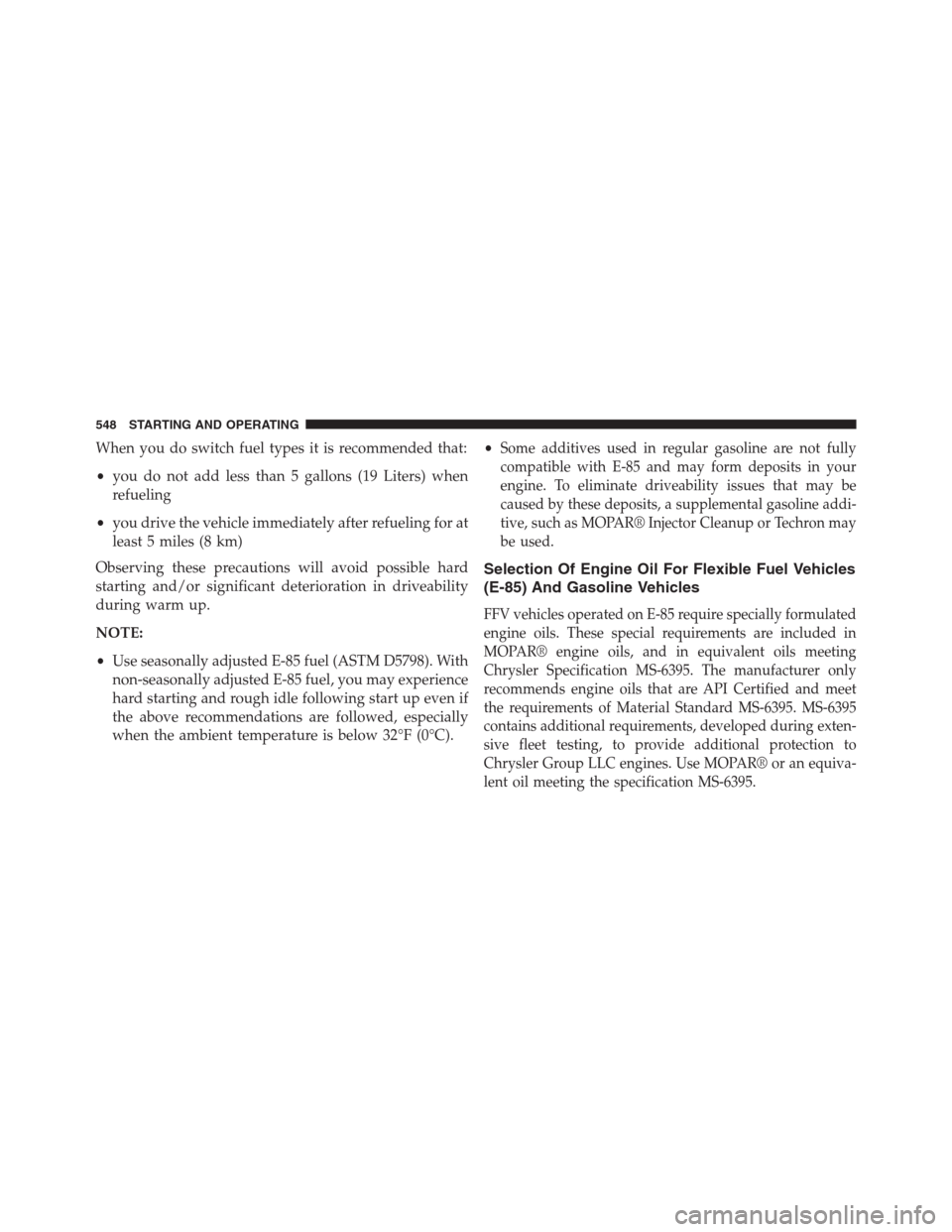

When you do switch fuel types it is recommended that:
•you do not add less than 5 gallons (19 Liters) when
refueling
•you drive the vehicle immediately after refueling for at
least 5 miles (8 km)
Observing these precautions will avoid possible hard
starting and/or significant deterioration in driveability
during warm up.
NOTE:
•Use seasonally adjusted E-85 fuel (ASTM D5798). With
non-seasonally adjusted E-85 fuel, you may experience
hard starting and rough idle following start up even if
the above recommendations are followed, especially
when the ambient temperature is below 32°F (0°C).•Some additives used in regular gasoline are not fully
compatible with E-85 and may form deposits in your
engine. To eliminate driveability issues that may be
caused by these deposits, a supplemental gasoline addi-
tive, such as MOPAR® Injector Cleanup or Techron may
be used.
Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles
FFV vehicles operated on E-85 require specially formulated
engine oils. These special requirements are included in
MOPAR® engine oils, and in equivalent oils meeting
Chrysler Specification MS-6395. The manufacturer only
recommends engine oils that are API Certified and meet
the requirements of Material Standard MS-6395. MS-6395
contains additional requirements, developed during exten-
sive fleet testing, to provide additional protection to
Chrysler Group LLC engines. Use MOPAR® or an equiva-
lent oil meeting the specification MS-6395.
548 STARTING AND OPERATING

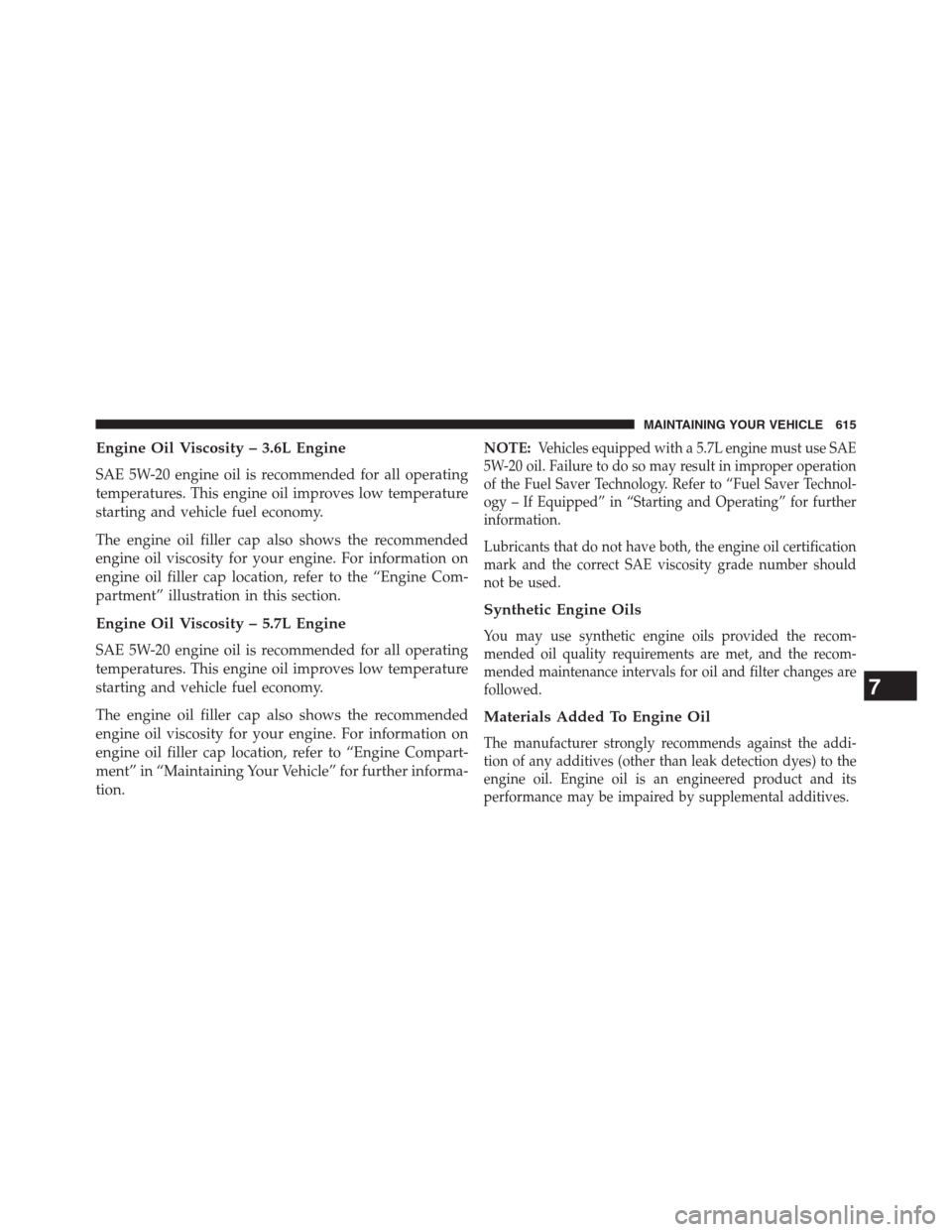

Engine Oil Viscosity – 3.6L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
Engine Oil Viscosity – 5.7L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.NOTE:
Vehicles equipped with a 5.7L engine must use SAE
5W-20 oil. Failure to do so may result in improper operation
of the Fuel Saver Technology. Refer to “Fuel Saver Technol-
ogy – If Equipped” in “Starting and Operating” for further
information.
Lubricants that do not have both, the engine oil certification
mark and the correct SAE viscosity grade number should
not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes are
followed.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
7
MAINTAINING YOUR VEHICLE 615

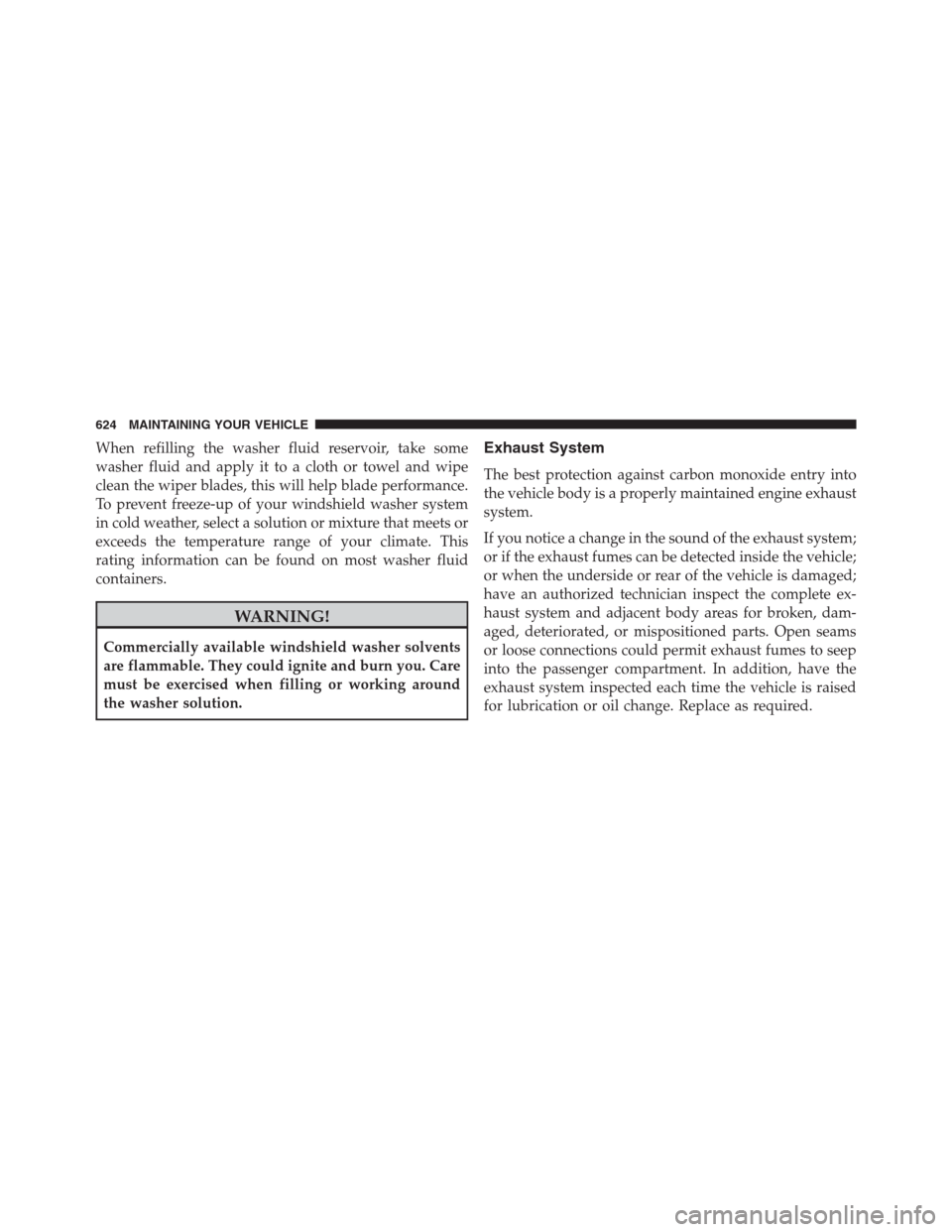

When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes to seep
into the passenger compartment. In addition, have the
exhaust system inspected each time the vehicle is raised
for lubrication or oil change. Replace as required.
624 MAINTAINING YOUR VEHICLE

CAUTION!
•If a transmission fluid leak occurs, visit your au-
thorized dealer immediately. Severe transmission
damage may occur. Your authorized dealer has the
proper tools to adjust the fluid level accurately.
Fluid Level Check – 5.7L Engine
It is best to check the fluid level when the transmission is
at normal operating temperature (approximately 180°F /
82°C). This occurs after at least 15 miles (25 km) of
driving. At normal operating temperature the fluid can-
not be held comfortably between the fingertips.
Use the following procedure to check the fluid level
properly:
1. Park the vehicle on level ground.
2. Run the engine at idle speed and normal operating
temperature.3. Fully apply the parking brake, and press the brake
pedal.
4. Place the shift lever momentarily into each gear posi-
tion (allowing time for the transmission to fully en-
gage in each position), ending with the shift lever in
PARK.
5. Remove the dipstick, wipe it clean and reinsert it until
seated.
6. Remove the dipstick again, and note the fluid level on
both sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
The holes in the dipstick will be full of fluid if the
actual level is at or above the hole. The fluid level
should be between theHOT(upper) reference holes
on the dipstick at normal operating temperature. If the
fluid level is low, add fluid through the dipstick tube
to bring it to the proper level.Do not overfill.
638 MAINTAINING YOUR VEHICLE

Use ONLY the recommended fluid (seeFluids, Lubri-
cants, and Genuine Partsfor fluid specifications).
After adding any quantity of oil through the dipstick
tube, wait a minimum of two minutes for the oil to
fully drain into the transmission before rechecking the
fluid level.
NOTE:If it is necessary to check the transmissionbelow
the operating temperature, the fluid level should be
between the two “COLD” (lower) holes on the dipstick
with the fluid at approximately 70°F (21°C) (room tem-
perature). If the fluid level is correctly established at
room temperature, it should be between the “HOT”
(upper) reference holes when the transmission reaches
180°F (82°C). Remember it is best to check the level at the
normal operating temperature.CAUTION!
If the fluid temperature is below 50°F (10°C) it may
not register on the dipstick. Do not add fluid until
the temperature is elevated enough to produce an
accurate reading. Run the engine at idle, in PARK, to
warm the fluid.
7. Check for leaks. Release the parking brake.
NOTE:To prevent dirt and water from entering the
transmission after checking or replenishing fluid, make
sure that the dipstick cap is properly reseated. It is
normal for the dipstick cap to spring back slightly from
its fully seated position, as long as its seal remains
engaged in the dipstick tube.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
7
MAINTAINING YOUR VEHICLE 639

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If ascheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” for further in-
formation
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S664 MAINTENANCE SCHEDULES

Electric Rear Window Defrost.................294
Electric Remote Mirrors.....................125
Electronic Brake Control System...............494
Brake Assist System.....................495
Electronic Roll Mitigation (ERM)..............496
Electronic Speed Control (Cruise Control)........215
Electronic Stability Control (ESC)..............497
Electronic Vehicle Information Center (EVIC)......306
Emergency, In Case of
Freeing Vehicle When Stuck...............597
Hazard Warning Flasher..................582
Jump Starting.........................593
Tow Hooks...........................599
Emission Control System Maintenance..........610
Engine
Air Cleaner...........................616
Block Heater..........................445
Break-In Recommendations................108
Compartment.........................607Compartment Identification...............607
Cooling..............................627
Exhaust Gas Caution.....................50
Fails to Start..........................443
Flooded, Starting.......................443
Fuel Requirements......................541
Jump Starting.........................593
Oil .................................613
Oil Filler Cap.........................615
Oil Selection..........................614
Oil Synthetic..........................615
Overheating..........................582
Starting..............................439
Temperature Gauge.....................312
Engine Oil Viscosity.......................615
Engine Oil Viscosity Chart...................615
Enhanced Accident Response Feature............79
Entry System, Illuminated....................23
Ethanol................................542
686 INDEX

Cold Weather.........................443
Engine Block Heater.....................445
Engine Fails to Start.....................443
Remote...............................29
Starting and Operating.....................439
Starting Procedures........................439
Steering
Power...............................487
Tilt Column...........................212
Wheel, Heated.........................214
Wheel, Tilt...........................212
Steering Wheel Audio Controls...............415
Steering Wheel Mounted Sound System Controls . . .415
Storage................................652
Storage, Vehicle...........................430
Storing Your Vehicle.......................652
Sunglasses Storage........................260
Sun Roof...............................269
Sun Visor Extension.......................127Supplemental Restraint System - Airbag..........69
Suspension, Air...........................476
Sway Control, Trailer.......................500
Synthetic Engine Oil.......................615
System, Remote Starting.....................29
Tachometer..............................303
Telescoping Steering Column.................212
Temperature Control, Automatic (ATC)..........422
Temperature Gauge, Engine Coolant............312
Tie Down Hooks, Cargo....................291
Tilt Steering Column.......................212
Tire and Loading Information Placard...........513
Tire Markings............................507
Tires ..................................113
Aging (Life of Tires).....................526
Air Pressure..........................518
Chains..............................528
Compact Spare........................523
10
INDEX 697
