windshield wipers JEEP LIBERTY 2011 KK / 2.G User Guide

Turn Signals/Lane Change Assist
• Tap the lever up or down once and the turn signal (right or left) will flash three timesand automatically turn off.
WIPER/WASHER LEVER
Front Wipers
Intermittent, Low And High Operation
• Rotate the end of the lever to the first detent position for one of five intermittent settings, the second detent for low wiper operation and the third detent for high
wiper operation.
Washer Operation
• Pull the lever toward you and hold for as long as spray is desired.
Mist
• Pull down on the lever and release when a single wipe is desired.
NOTE: The mist feature does not activate the washer pump; therefore, no washer fluid
will be sprayed on the windshield. The wash function must be used in order to spray the
windshield with washer fluid.
Rain Sensing Wipers
• This feature senses moisture on the vehicle's windshield and automatically activates the wipers for the driver when the switch is in the intermittent position.
Rear Wiper
Wiper Operation
• Rotate the center portion of the lever forward to the first detent for rear wiper operation.
Washer Operation
• Rotate the center portion of the lever past the first detent to activate the rear washer.
OPERATING YOUR VEHICLE
19

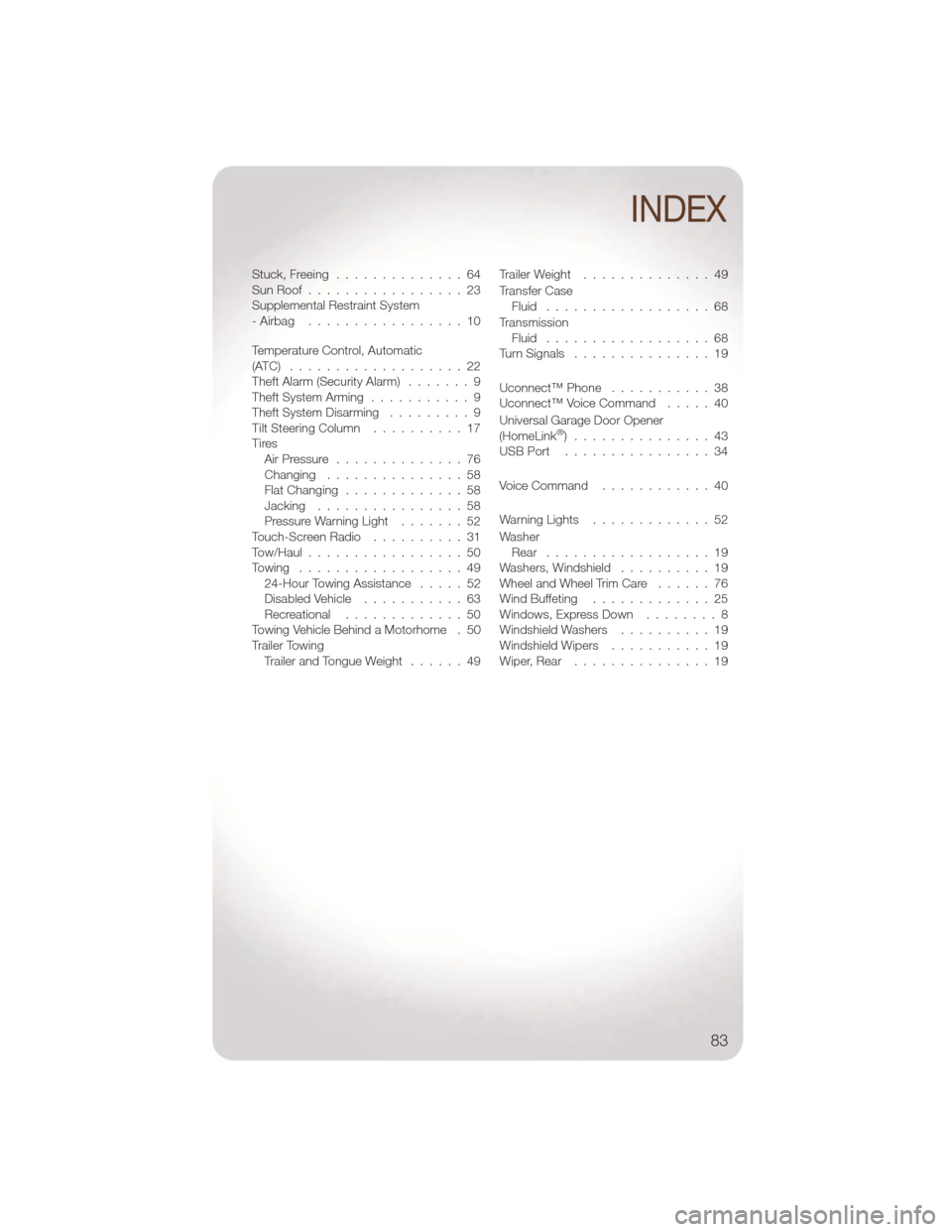

Stuck,Freeing ..............64
Sun Roof.................23
Supplemental Restraint System
-Airbag .................10
Temperature Control, Automatic
(ATC) ...................22
Theft Alarm (Security Alarm) .......9
Theft System Arming ...........9
Theft System Disarming .........9
TiltSteeringColumn ..........17
Tires Air Pressure ..............76
Changing ...............58
Flat Changing .............58
Jacking ................58
PressureWarningLight .......52
Touch-Screen Radio ..........31
Tow/Haul.................50
Towing ..................49 24-Hour Towing Assistance .....52
DisabledVehicle ...........63
Recreational .............50
Towing Vehicle Behind a Motorhome . 50
Trailer Towing Trailer and Tongue Weight ......49TrailerWeight ..............49
Transfer Case
Fluid ..................68
Transmission Fluid ..................68
TurnSignals ...............19
Uconnect™ Phone ...........38
Uconnect™ Voice Command .....40
Universal Garage Door Opener
(HomeLink
®) ...............43
USBPort ................34
Voice Command ............40
Warning Lights .............52
Washer Rear ..................19
Washers, Windshield ..........19
Wheel and Wheel Trim Care ......76
Wind Buffeting .............25
Windows, Express Down ........8
Windshield Washers ..........19
WindshieldWipers ...........19
Wiper,Rear ...............19
INDEX
83
