3. Remove the green connector from the back of the bulb
by pulling straight back.4. Twist the bulb to the left.
MAINTAINING YOUR VEHICLE 399
7

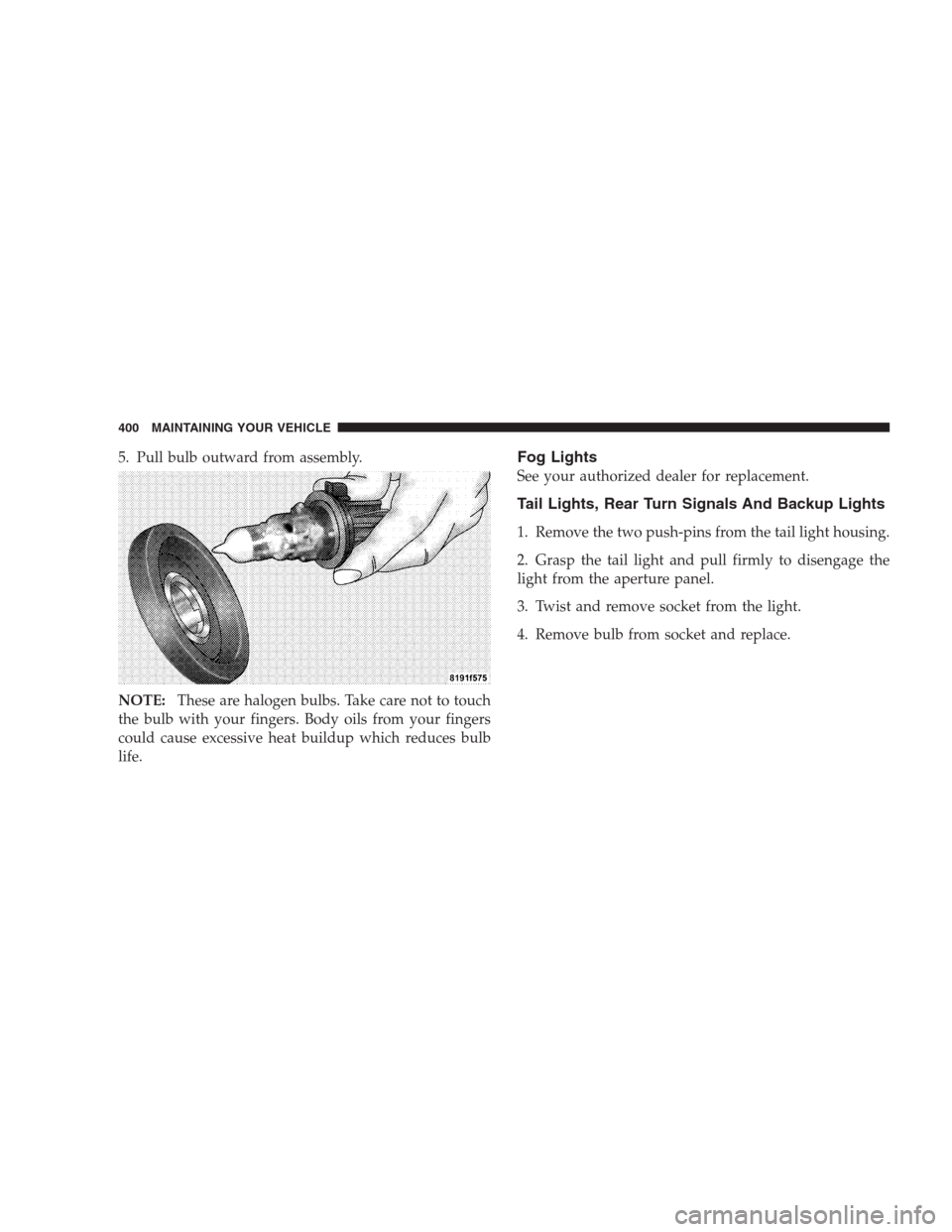

5. Pull bulb outward from assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.Fog Lights
See your authorized dealer for replacement.
Tail Lights, Rear Turn Signals And Backup Lights
1. Remove the two push-pins from the tail light housing.
2. Grasp the tail light and pull firmly to disengage the
light from the aperture panel.
3. Twist and remove socket from the light.
4. Remove bulb from socket and replace.
400 MAINTAINING YOUR VEHICLE

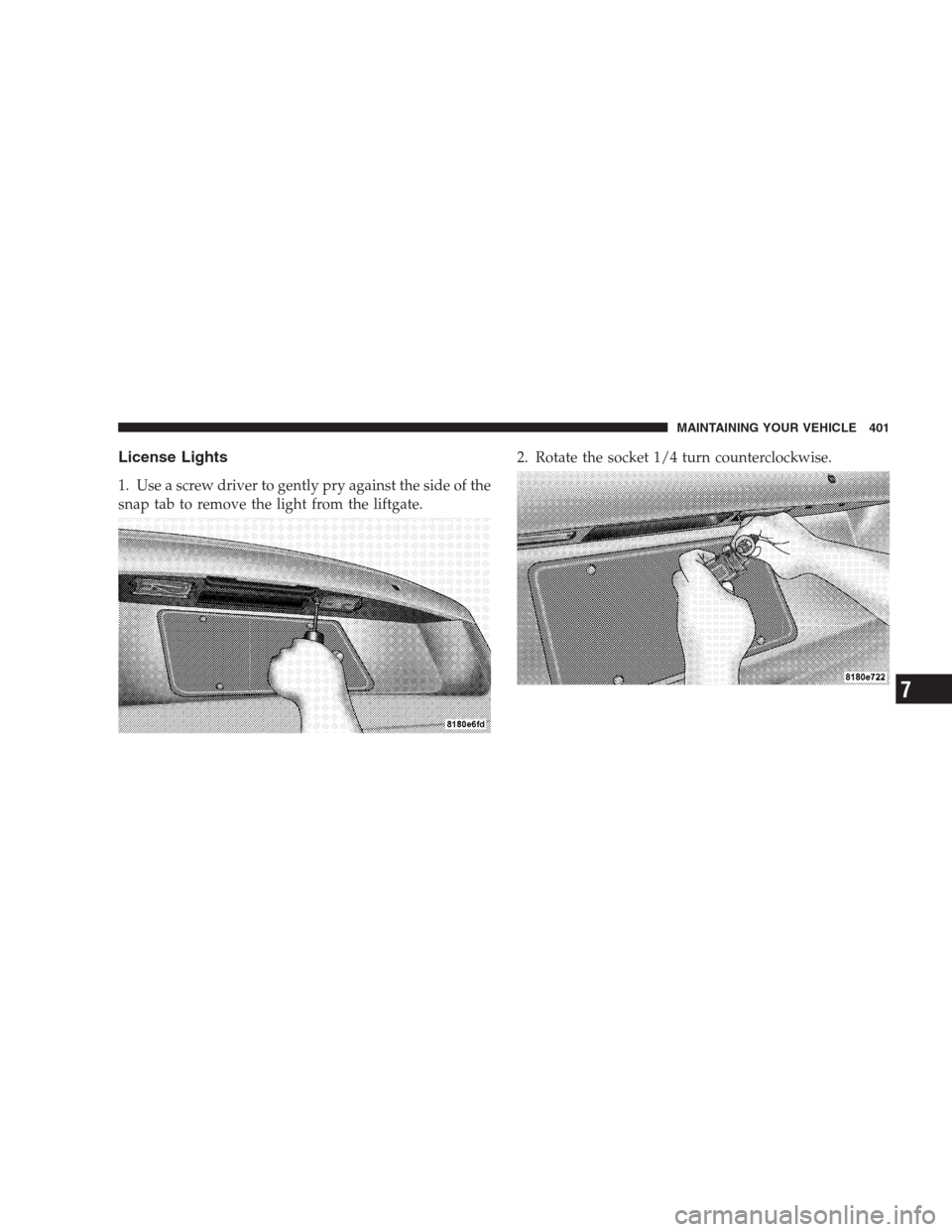

License Lights
1. Use a screw driver to gently pry against the side of the
snap tab to remove the light from the liftgate.2. Rotate the socket 1/4 turn counterclockwise.
MAINTAINING YOUR VEHICLE 401
7

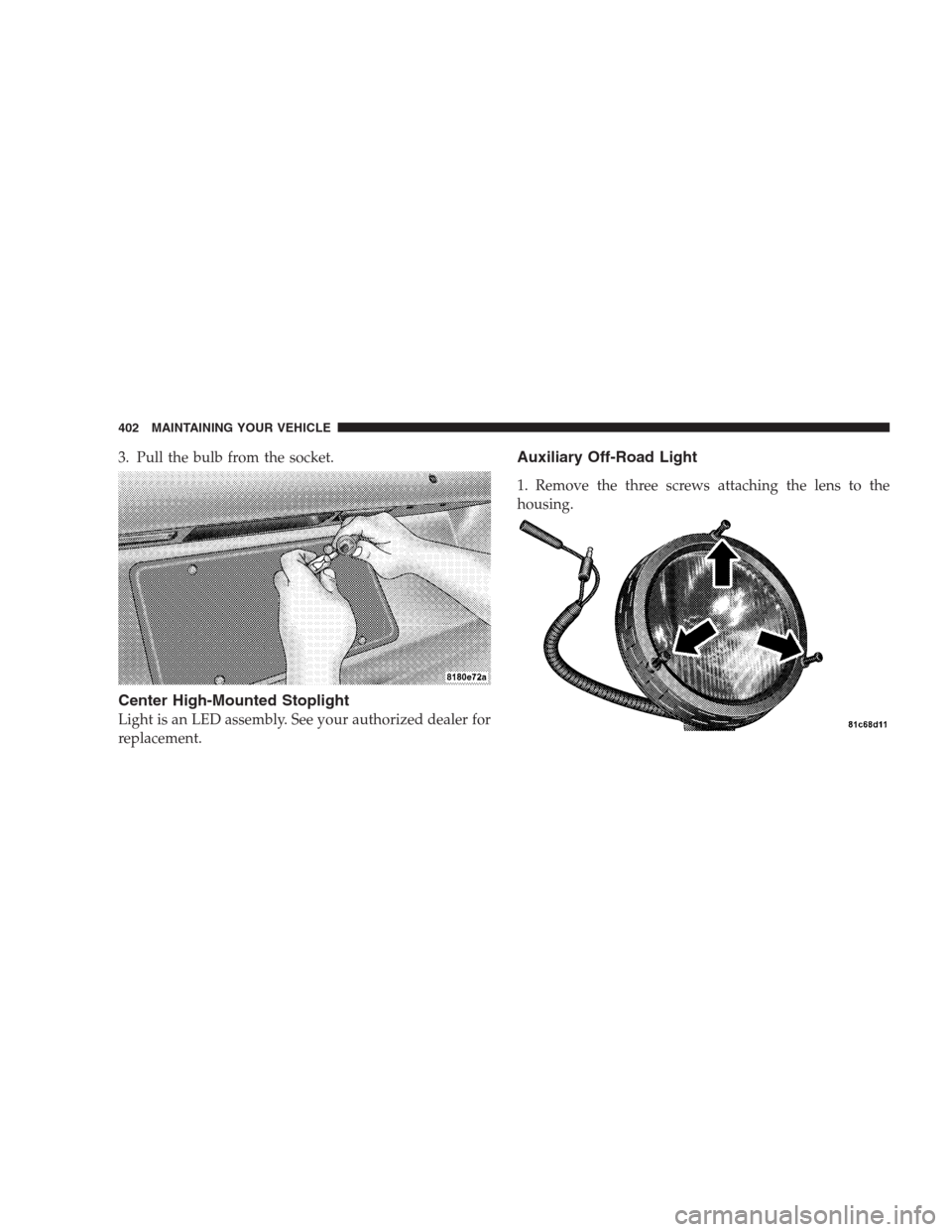

3. Pull the bulb from the socket.
Center High-Mounted Stoplight
Light is an LED assembly. See your authorized dealer for
replacement.
Auxiliary Off-Road Light
1. Remove the three screws attaching the lens to the
housing.
402 MAINTAINING YOUR VEHICLE

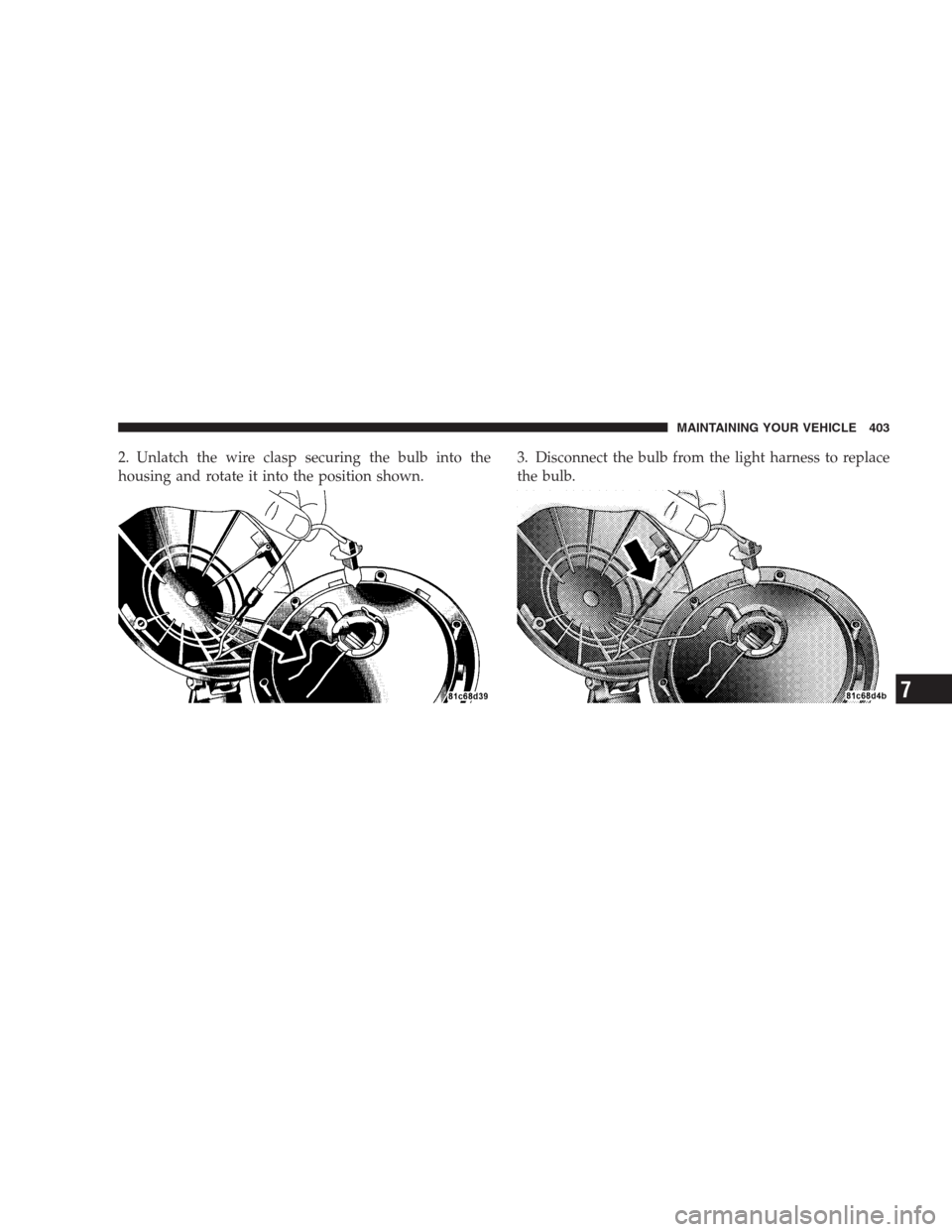

2. Unlatch the wire clasp securing the bulb into the
housing and rotate it into the position shown.3. Disconnect the bulb from the light harness to replace
the bulb.
MAINTAINING YOUR VEHICLE 403
7

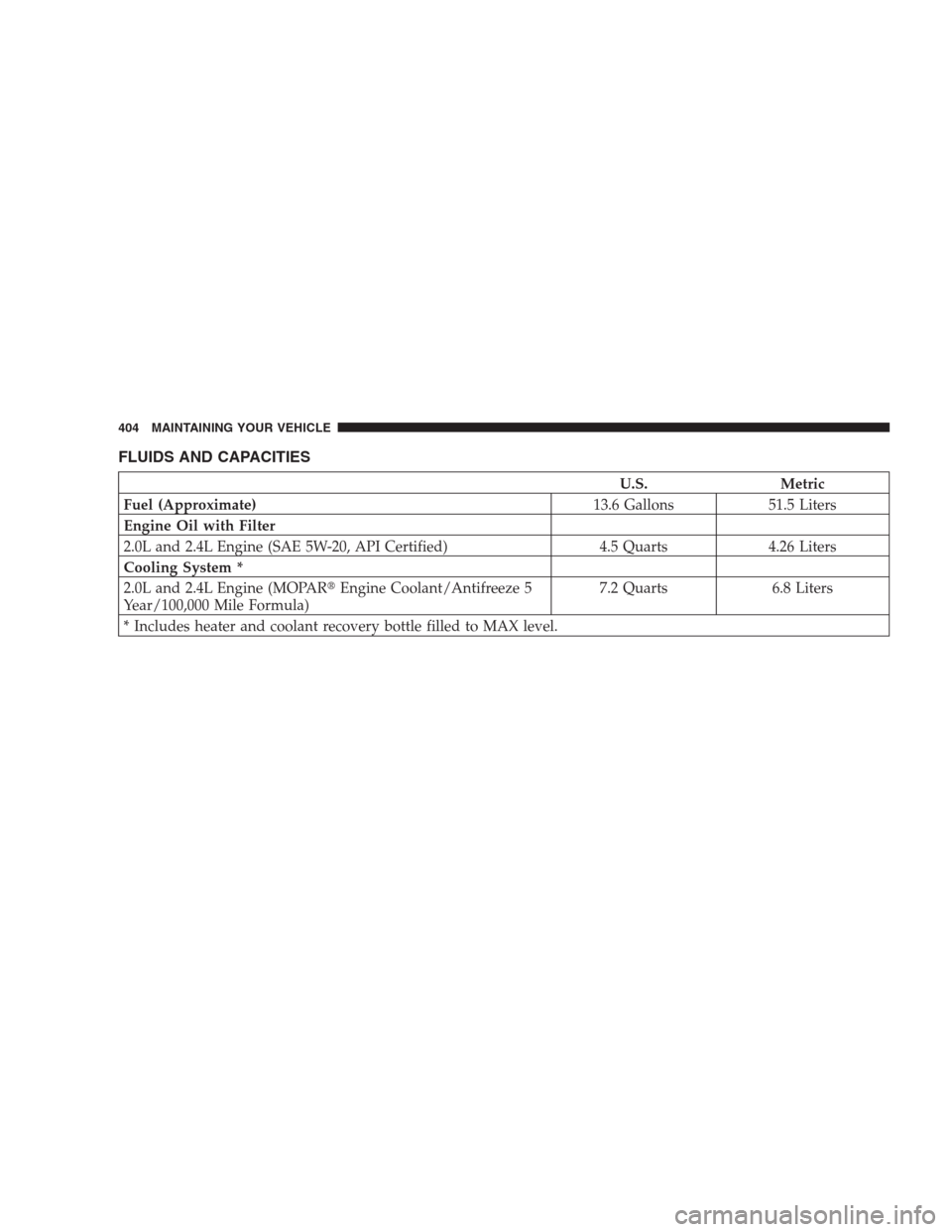

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)13.6 Gallons 51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAREngine Coolant/Antifreeze 5
Year/100,000 Mile Formula)7.2 Quarts 6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
404 MAINTAINING YOUR VEHICLE

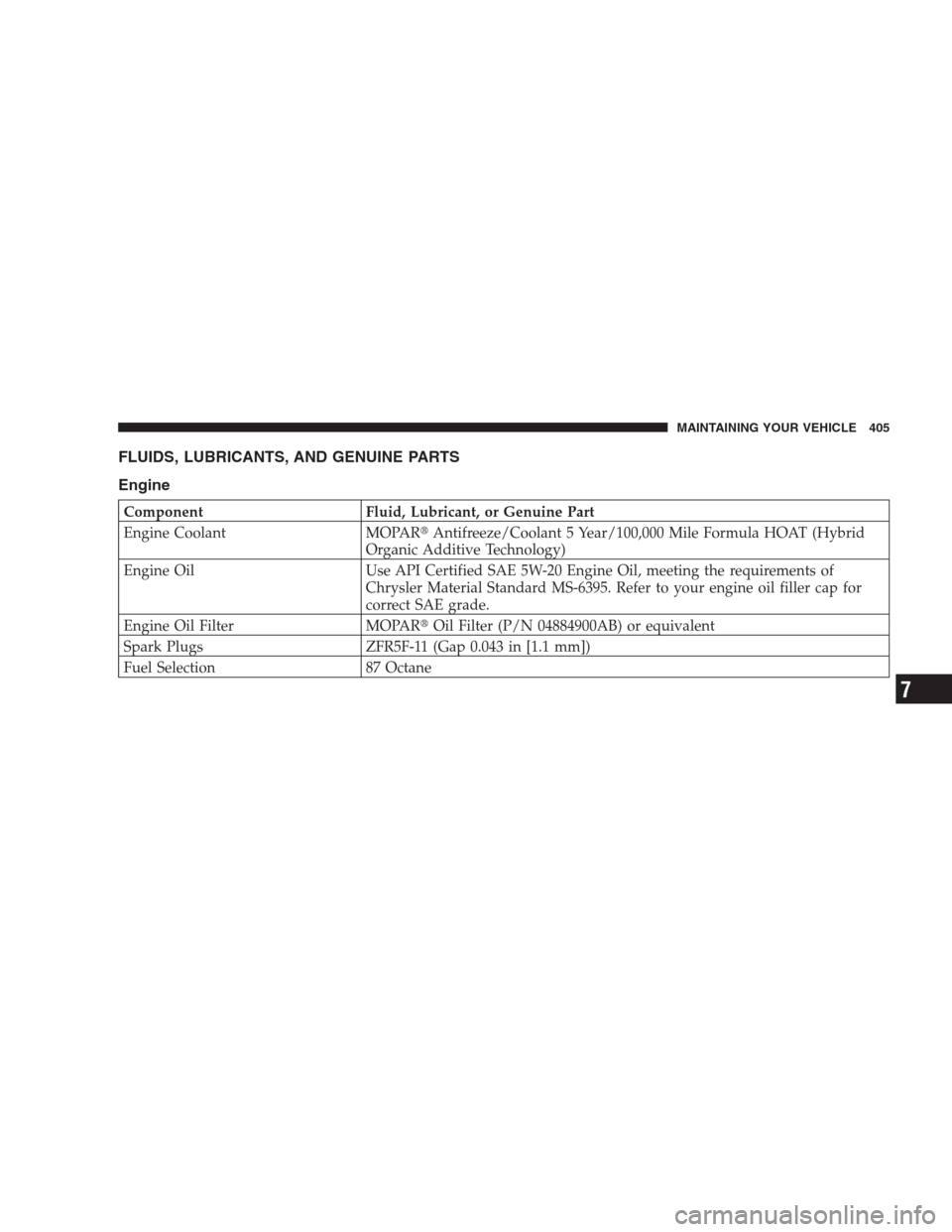

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAROil Filter (P/N 04884900AB) or equivalent
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
MAINTAINING YOUR VEHICLE 405
7

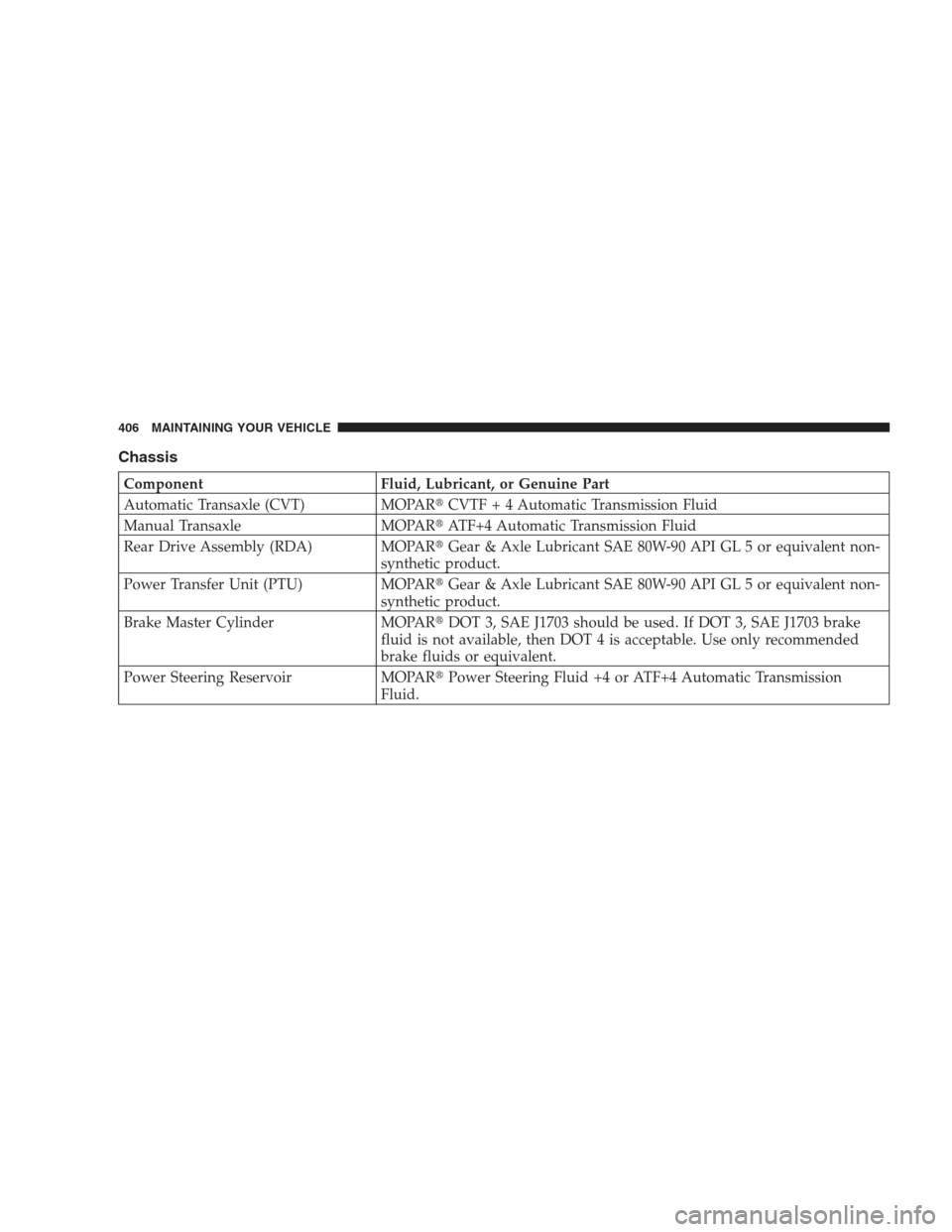

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transaxle (CVT) MOPARCVTF + 4 Automatic Transmission Fluid
Manual Transaxle MOPARATF+4 Automatic Transmission Fluid
Rear Drive Assembly (RDA) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent non-
synthetic product.
Power Transfer Unit (PTU) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent non-
synthetic product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
Power Steering Reservoir MOPARPower Steering Fluid +4 or ATF+4 Automatic Transmission
Fluid.
406 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance...... 408
Maintenance Schedule.................. 408▫Required Maintenance Intervals.......... 410
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

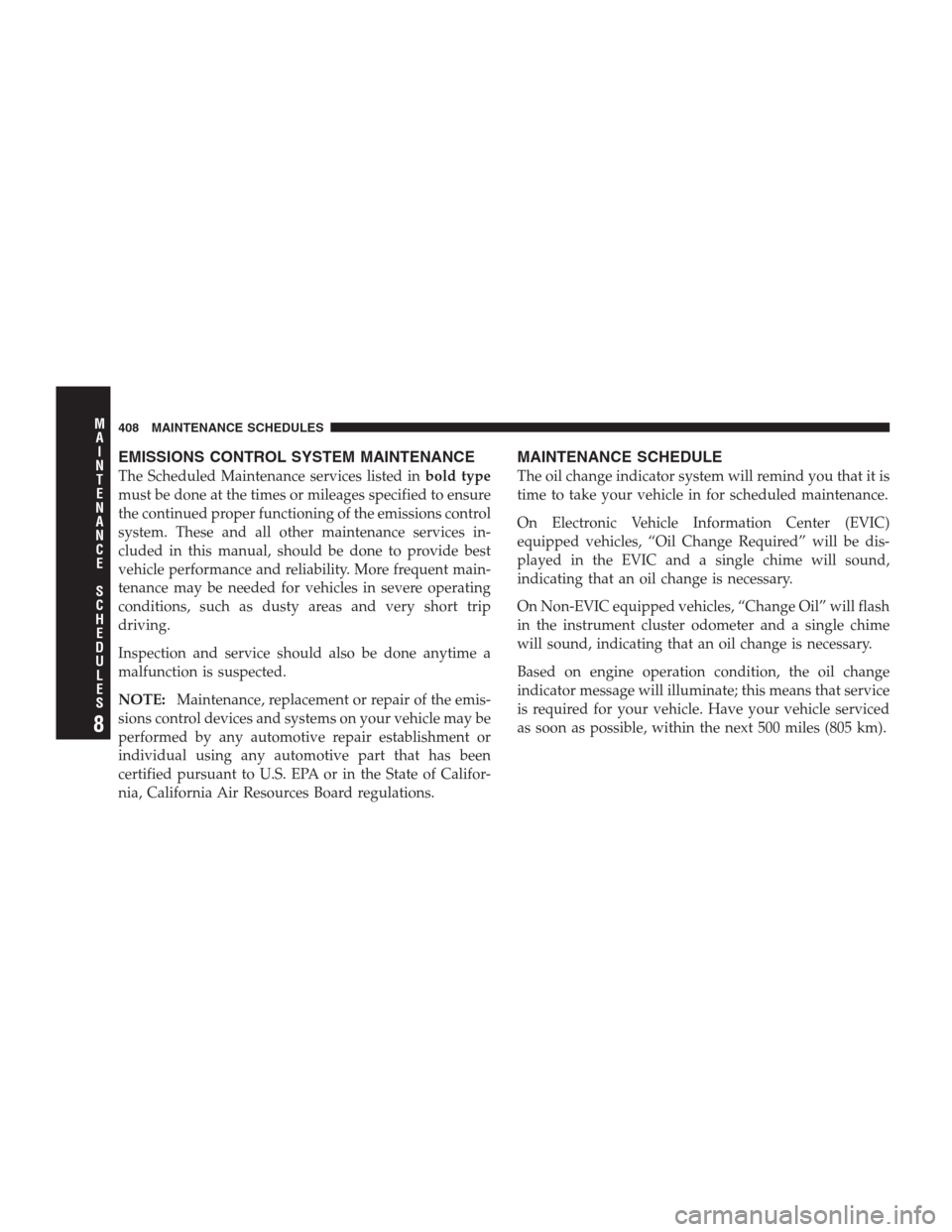

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE:Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation condition, the oil change
indicator message will illuminate; this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
408 MAINTENANCE SCHEDULES
