JEEP PATRIOT 2009 1.G Owners Manual

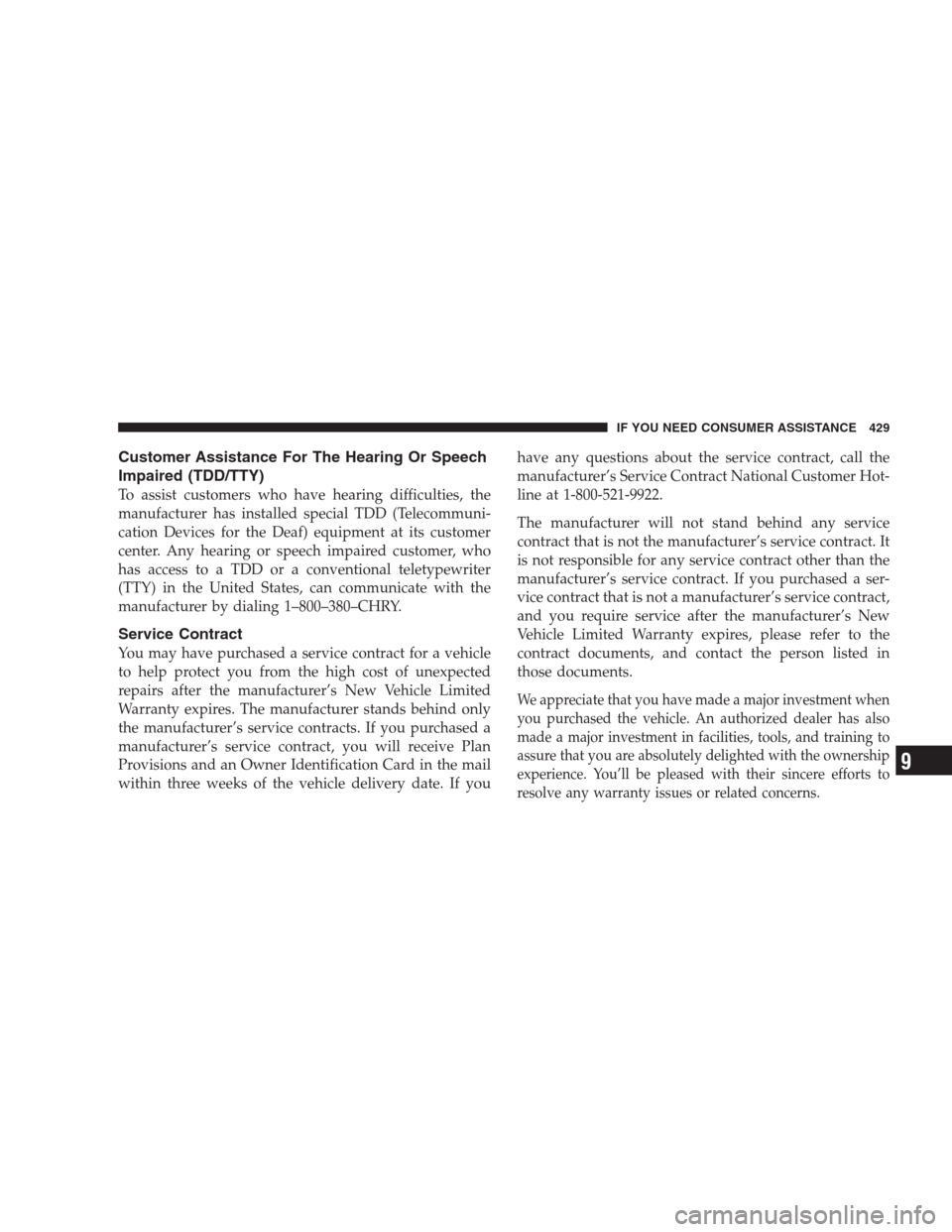

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind only
the manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If youhave any questions about the service contract, call the
manufacturer’s Service Contract National Customer Hot-
line at 1-800-521-9922.
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
We appreciate that you have made a major investment when
you purchased the vehicle. An authorized dealer has also
made a major investment in facilities, tools, and training to
assure that you are absolutely delighted with the ownership
experience. You’ll be pleased with their sincere efforts to
resolve any warranty issues or related concerns.
IF YOU NEED CONSUMER ASSISTANCE 429
9

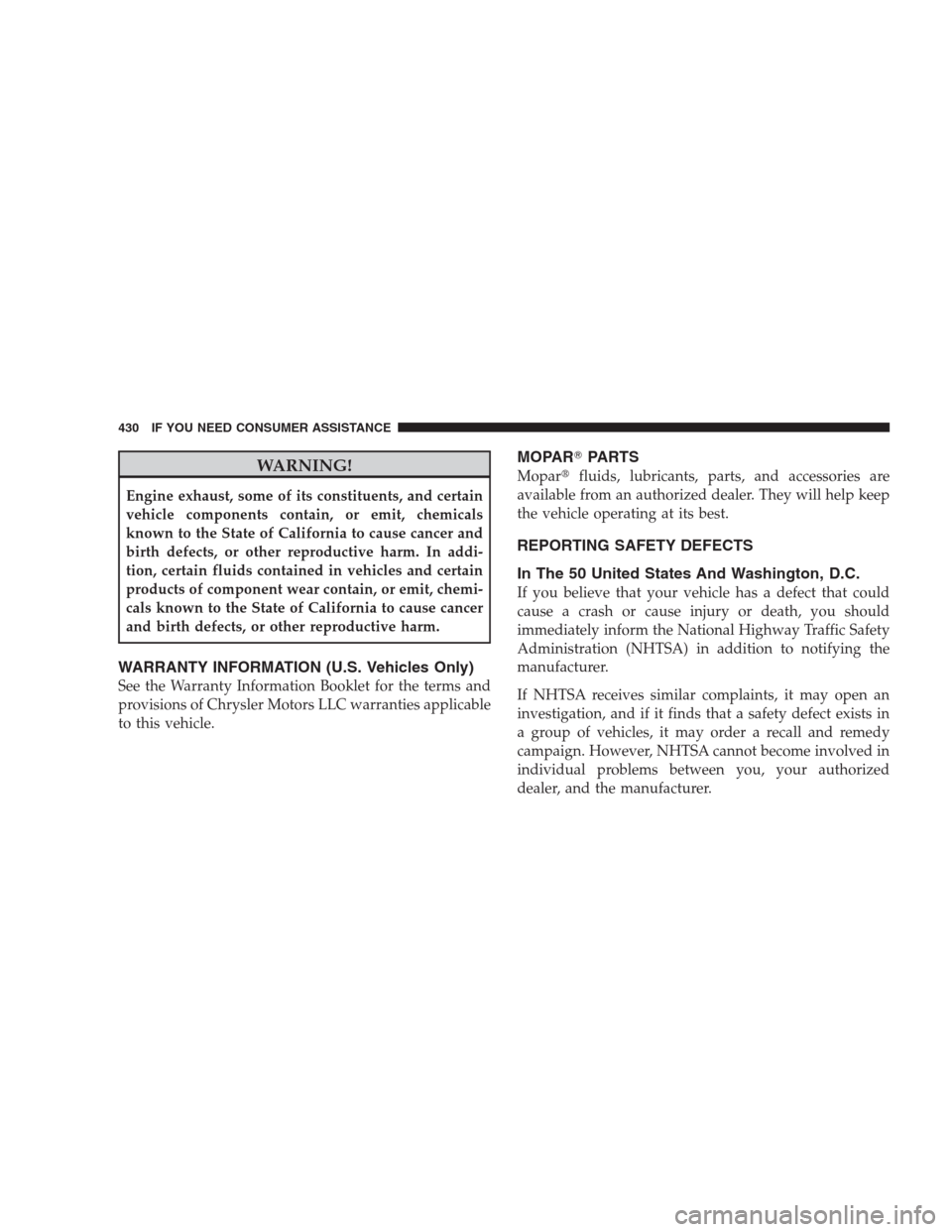

WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION (U.S. Vehicles Only)
See the Warranty Information Booklet for the terms and
provisions of Chrysler Motors LLC warranties applicable
to this vehicle.
MOPARPARTS
Moparfluids, lubricants, parts, and accessories are
available from an authorized dealer. They will help keep
the vehicle operating at its best.
REPORTING SAFETY DEFECTS
In The 50 United States And Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.
430 IF YOU NEED CONSUMER ASSISTANCE

To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424– 9153),
or go to http://www.safercar.gov; or write to: Adminis-
trator, NHTSA, 400 Seventh Street, SW., Washington, D.C.
20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov.
In Canada
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department imme-
diately. Canadian customers who wish to report a safety
defect to the Canadian government should write to:
Transport Canada, Motor Vehicle Defect Investigations
and Recalls, 2780 Sheffield Road, Ottawa, Ontario K1B
3V9.
PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE:A street address is required when ordering
manuals (no P.O. Boxes).
•Service Manuals
These comprehensive Service Manuals provide the
information that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing, and repairing Chrysler LLC
vehicles. A complete working knowledge of the ve-
hicle, system, and/or components is written in
straightforward language with illustrations, diagrams,
and charts.
IF YOU NEED CONSUMER ASSISTANCE 431
9

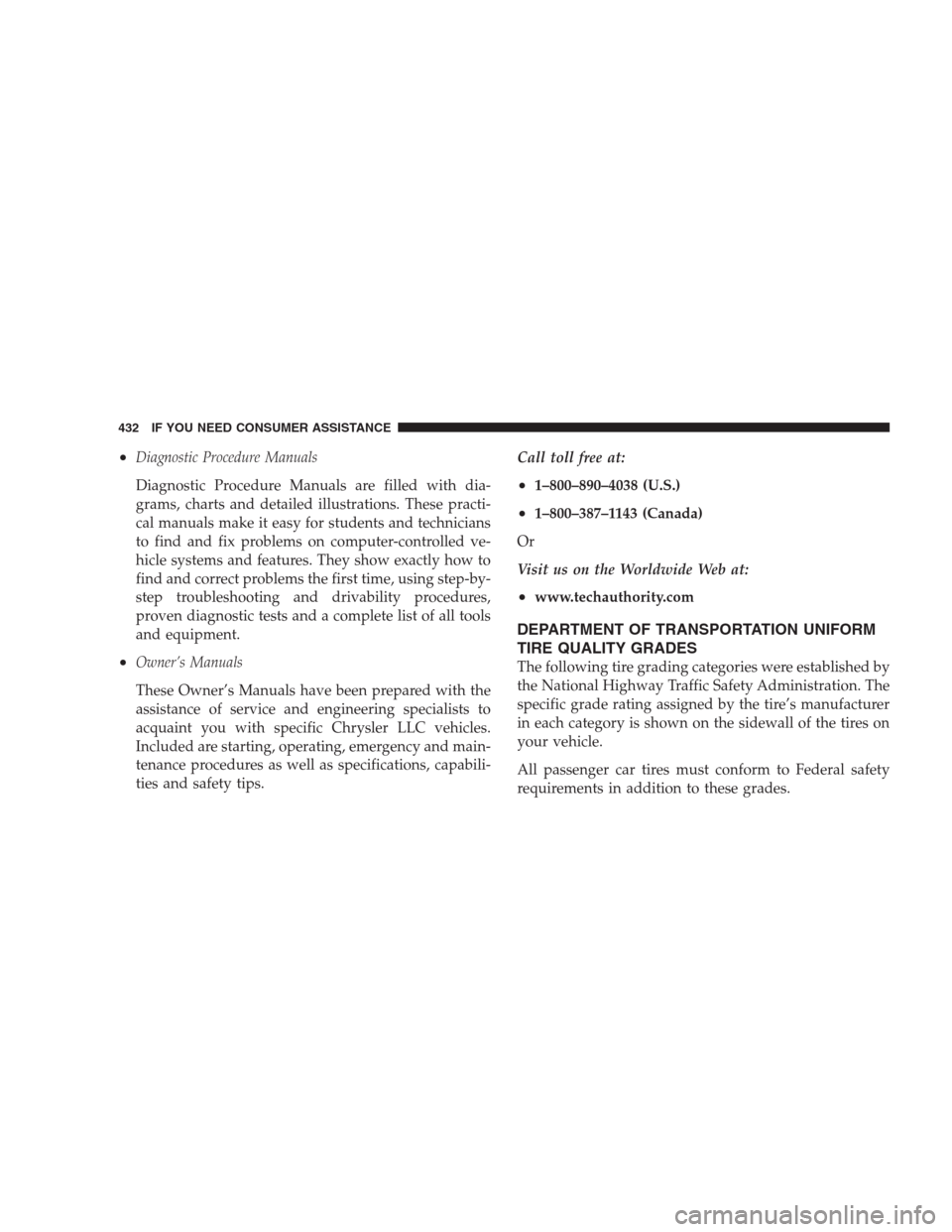

•Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with dia-
grams, charts and detailed illustrations. These practi-
cal manuals make it easy for students and technicians
to find and fix problems on computer-controlled ve-
hicle systems and features. They show exactly how to
find and correct problems the first time, using step-by-
step troubleshooting and drivability procedures,
proven diagnostic tests and a complete list of all tools
and equipment.
•Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific Chrysler LLC vehicles.
Included are starting, operating, emergency and main-
tenance procedures as well as specifications, capabili-
ties and safety tips.Call toll free at:
•1–800–890–4038 (U.S.)
•1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
•www.techauthority.com
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
432 IF YOU NEED CONSUMER ASSISTANCE

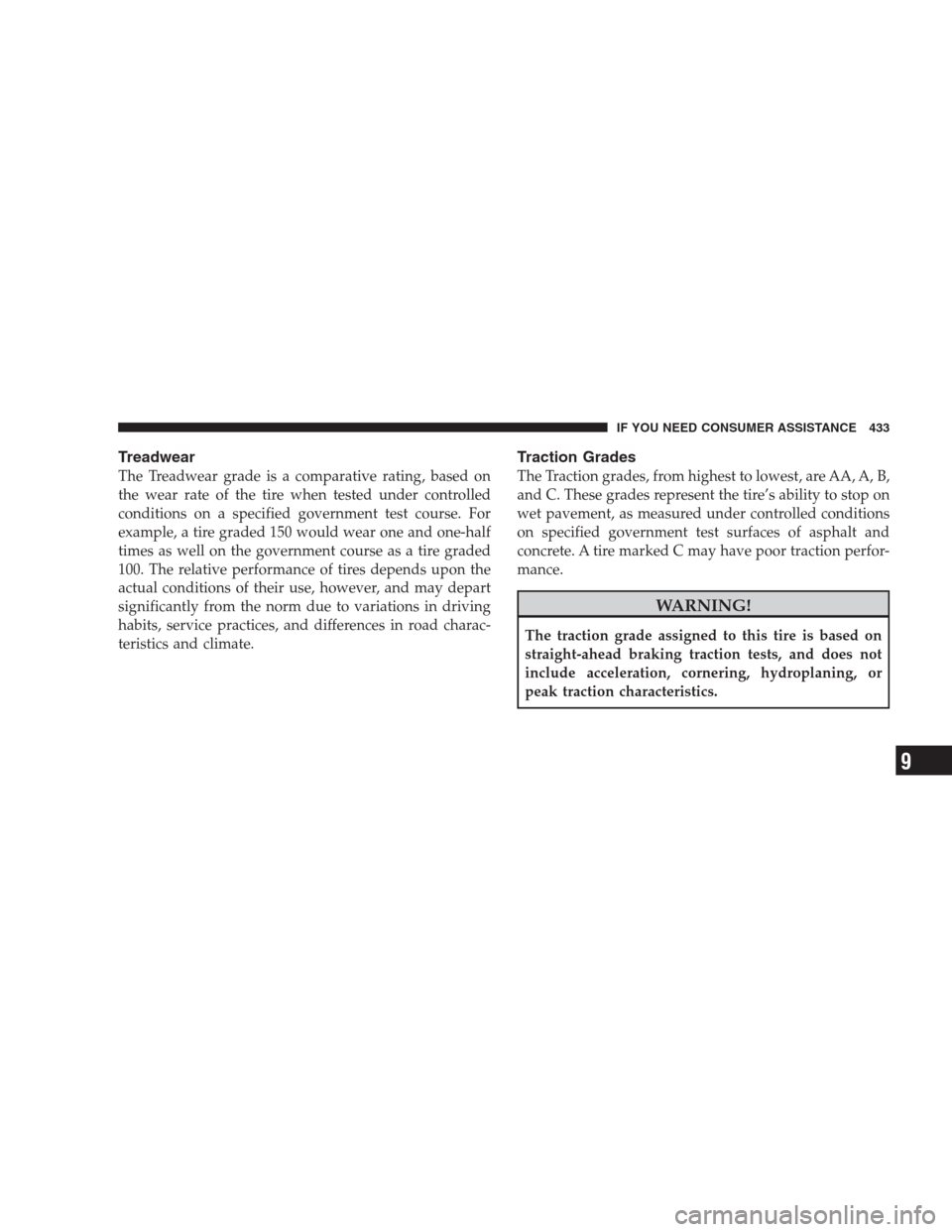

Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
IF YOU NEED CONSUMER ASSISTANCE 433
9

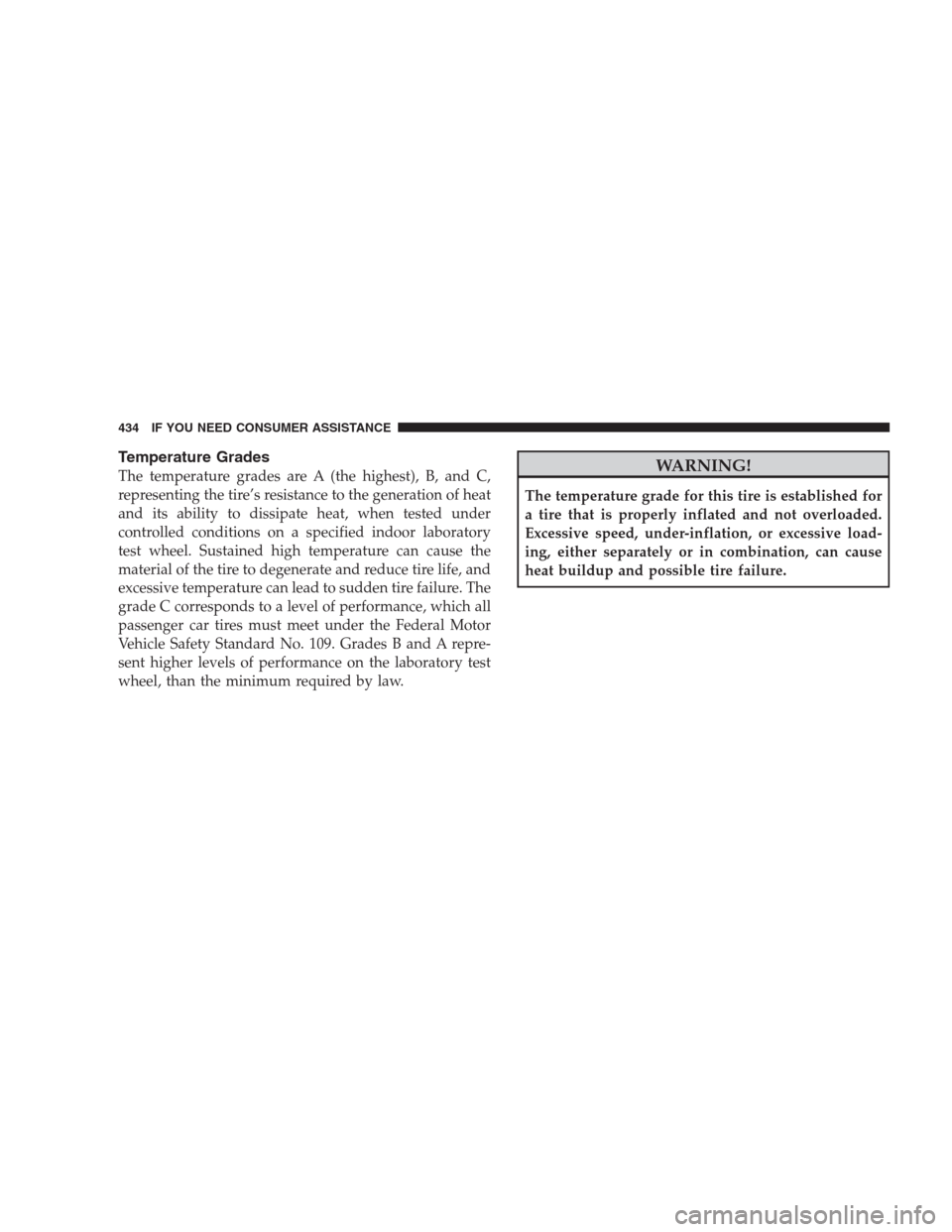

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
434 IF YOU NEED CONSUMER ASSISTANCE

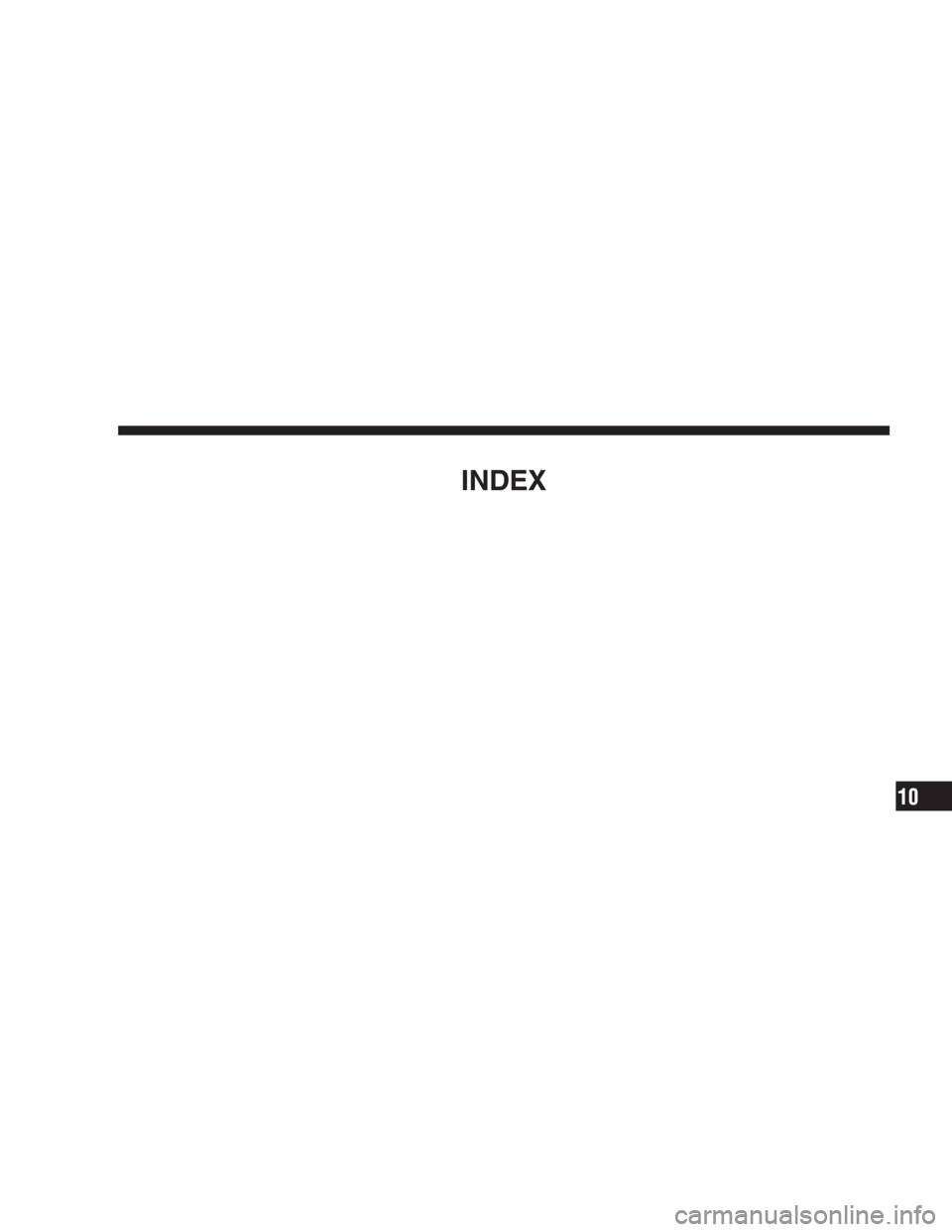

INDEX
10

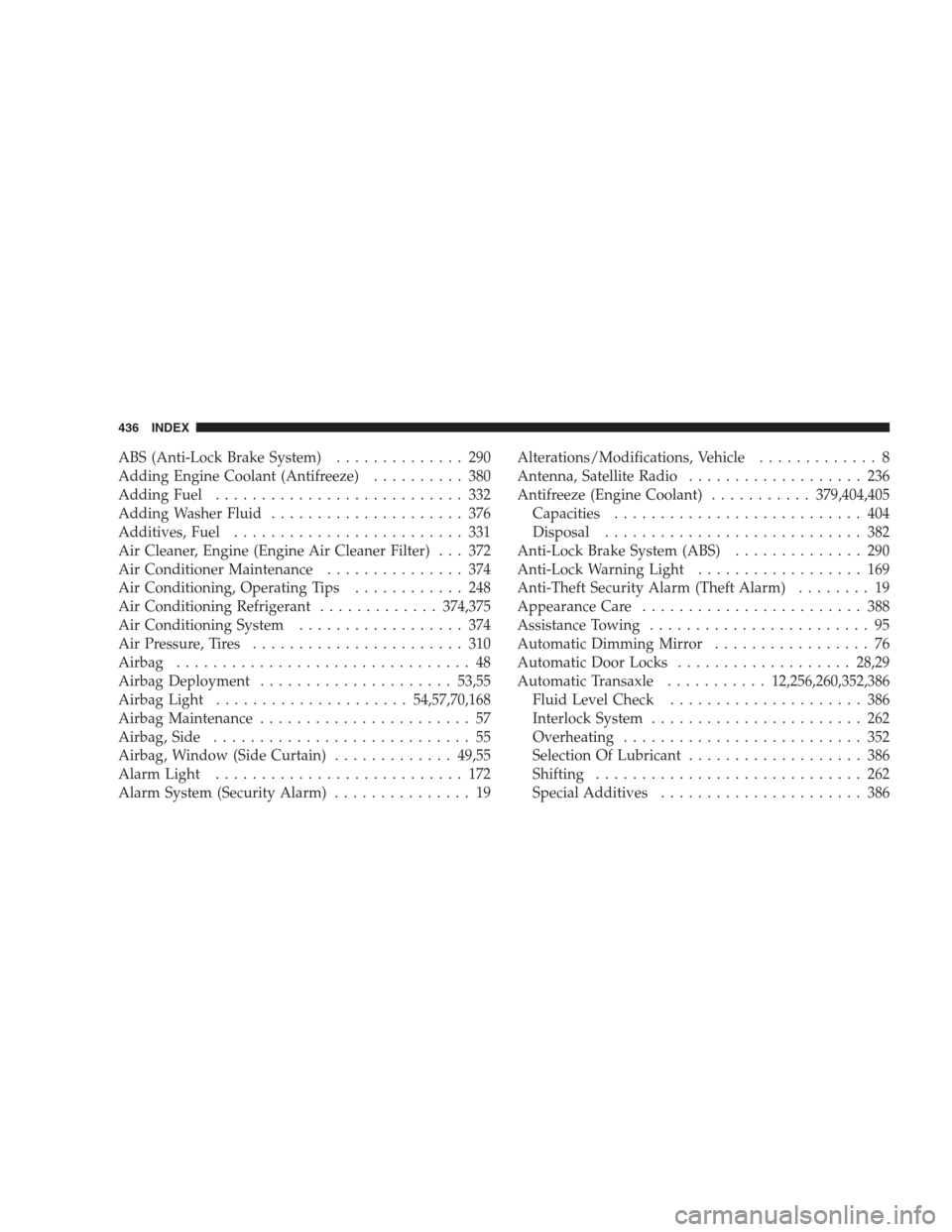

ABS (Anti-Lock Brake System).............. 290
Adding Engine Coolant (Antifreeze).......... 380
Adding Fuel........................... 332
Adding Washer Fluid..................... 376
Additives, Fuel......................... 331
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 372
Air Conditioner Maintenance............... 374
Air Conditioning, Operating Tips............ 248
Air Conditioning Refrigerant.............374,375
Air Conditioning System.................. 374
Air Pressure, Tires....................... 310
Airbag................................ 48
Airbag Deployment.....................53,55
Airbag Light.....................54,57,70,168
Airbag Maintenance....................... 57
Airbag, Side............................ 55
Airbag, Window (Side Curtain).............49,55
Alarm Light........................... 172
Alarm System (Security Alarm)............... 19Alterations/Modifications, Vehicle............. 8
Antenna, Satellite Radio................... 236
Antifreeze (Engine Coolant)...........379,404,405
Capacities........................... 404
Disposal............................ 382
Anti-Lock Brake System (ABS).............. 290
Anti-Lock Warning Light.................. 169
Anti-Theft Security Alarm (Theft Alarm)........ 19
Appearance Care........................ 388
Assistance Towing........................ 95
Automatic Dimming Mirror................. 76
Automatic Door Locks...................28,29
Automatic Transaxle...........12,256,260,352,386
Fluid Level Check..................... 386
Interlock System....................... 262
Overheating.......................... 352
Selection Of Lubricant................... 386
Shifting............................. 262
Special Additives...................... 386
436 INDEX

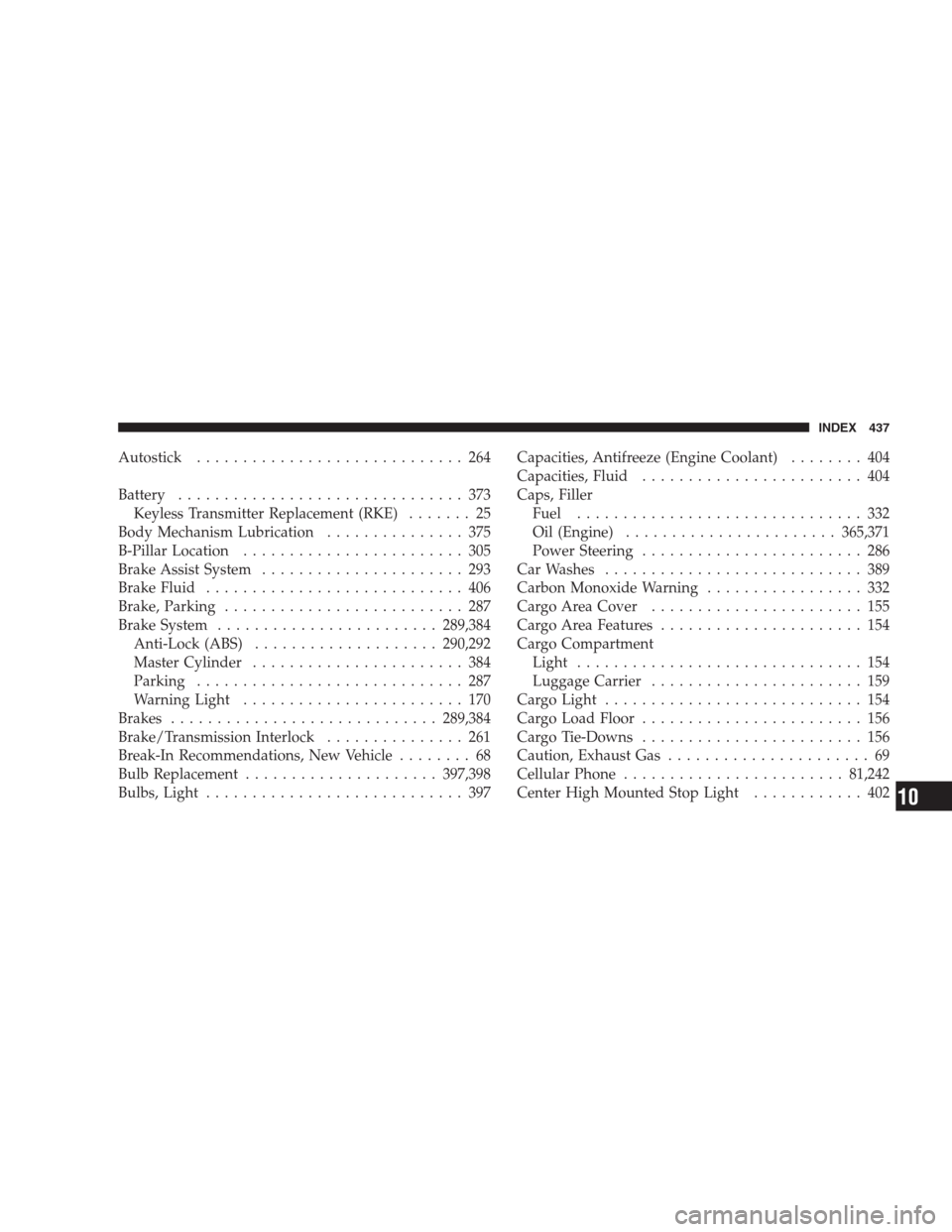

Autostick............................. 264
Battery............................... 373
Keyless Transmitter Replacement (RKE)....... 25
Body Mechanism Lubrication............... 375
B-Pillar Location........................ 305
Brake Assist System...................... 293
Brake Fluid............................ 406
Brake, Parking.......................... 287
Brake System........................289,384
Anti-Lock (ABS)....................290,292
Master Cylinder....................... 384
Parking............................. 287
Warning Light........................ 170
Brakes.............................289,384
Brake/Transmission Interlock............... 261
Break-In Recommendations, New Vehicle........ 68
Bulb Replacement.....................397,398
Bulbs, Light............................ 397Capacities, Antifreeze (Engine Coolant)........ 404
Capacities, Fluid........................ 404
Caps, Filler
Fuel............................... 332
Oil (Engine).......................365,371
Power Steering........................ 286
Car Washes............................ 389
Carbon Monoxide Warning................. 332
Cargo Area Cover....................... 155
Cargo Area Features...................... 154
Cargo Compartment
Light............................... 154
Luggage Carrier....................... 159
Cargo Light............................ 154
Cargo Load Floor........................ 156
Cargo Tie-Downs........................ 156
Caution, Exhaust Gas...................... 69
Cellular Phone........................81,242
Center High Mounted Stop Light............ 402
INDEX 437
10

Chains, Tire............................ 318
Changing A Flat Tire..................... 352
Chart, Tire Sizing........................ 302
Check Engine Light
(Malfunction Indicator Light)............... 367
Child Restraint.......................... 60
Child Restraint Tether Anchors............... 64
Child Restraint with Automatic Belts........... 63
Child Safety Locks........................ 31
Child Seat.............................. 66
Clean Air Gasoline....................... 329
Cleaning
Wheels............................. 390
Climate Control......................... 242
Clock.....................189,192,206,209,219
Clutch............................... 384
Clutch Fluid........................... 384
Coin Holder........................... 153
Compact Disc (CD) Maintenance............. 241Compact Spare Tire...................... 312
Compass Variance....................... 186
Connector
UCI ................................ 229
Universal Consumer Interface (UCI)......... 229
Console.............................. 153
Contract, Service........................ 429
Coolant (Antifreeze)...................404,405
Cooling System......................... 378
Adding Coolant (Antifreeze).............. 380
Coolant Level......................379,382
Disposal of Used Coolant................ 382
Drain, Flush, and Refill.................. 379
Inspection........................... 382
Points to Remember.................381,383
Pressure Cap......................... 381
Selection of Coolant (Antifreeze)........... 379
Corrosion Protection..................... 388
Cruise Light........................... 173
438 INDEX
