Electric Park Brake (EPB) Engaged
•What Does It Mean
The light comes on with Electric Park Brake
(EPB) engaged.
•What To Do
Switch off the EPB and check that the
indicator light goes off.
If the light remains on, see an authorized dealer.
Electronic Breakforce Distribution (EBD) Failure
•What Does It Mean
The simultaneous firing ofBRAKE lights
(Red) and(Amber) with the engine
running indicates a failure of the Elec-
tronic Breakforce Distribution (EBD) sys-
tem or that the system is not available. In
this case, with heavy braking, the rear
wheels may lock early and increase the possibility
of skidding.
The dedicated message will appear on the display.
•What To Do
Drive with extreme caution, immediately reach the
nearest authorized dealer for the verification of the
system.
Air Bag
•What Does It Mean
By placing the ignition switch in MAR/
RUN, the indicator light illuminates but
should go out after a few seconds. If the
indicator illuminates, this indicates a failure of the air
bag system.
The dedicated message shows in the display.
For more details, refer to#Occupant Restraint Sys-
tems#in#Safety#for more information.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 185

•What To Do
In the case of normal gear:stop the car, shut off the
engine, and check that the level of coolant inside the
tank is not below the minimum (MIN). In this case,
wait for the engine to cool, then slowly and carefully
open the cap, fill with coolant, make sure it is
between the MIN and MAX marks. Also, check for
coolant leaks. If at the next start-up, the light (or the
icon on the display) would once again illuminate,
contact an authorized dealer.
In the case of heavy use of the car (e.g. In terms of
performance):slow down and, if the light stays on,
stop the car. For two or three minutes, keep the
engine running and slightly accelerate to help the
flow of coolant in the system. Then, turn the engine
off. Check for the correct level of coolant as described
above.
Electric Park Brake Failure
•What Does It Mean
By placing the ignition in the MAR/RUN
position, the light (If Equipped) will illumi-
nate but should go out after a few seconds.
The light comes on when it detects a failure
in Electric Parking Brake.
The display shows the dedicated message.
•What To Do
Please contact your authorized dealer as soon as
possible.
NOTE:In this case, with heavy braking, the rear wheels
may lock early and increase the possibility of skidding.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 187

CAUTION!(Continued)
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Using aftermarket tire sealants may
cause the Tire Pressure Monitoring System (TPMS)
sensor to become inoperable. After using an after-
market tire sealant it is recommended that you take
your vehicle to an authorized dealership to have your
sensor function checked.
•What To Do
Do not drive your vehicle with one or more tires
deflated because the driveability of the car could be
compromised. Stop the car and avoid braking and
sharp turns. Contact your authorized dealer as soon
as possible.
ESC System
•What Does It Mean
Intervention ESC System:The light will
start to flash as soon as the tires lose
traction and the ESC system becomes ac-
tive. If the “ESC Activation/Malfunction Indicator
Light” begins to flash during acceleration, ease up on
the accelerator and apply as little throttle as possible.
Be sure to adapt your speed and driving to the
prevailing road conditions.
Failure ESC System:If the light remains perma-
nently on after four second of the engine running,
there may be a failure in ESC system.
190 GETTING TO KNOW YOUR INSTRUMENT PANEL

System Failure Hill Start Assist:The warning light
comes on to indicate a failure of the system Hill Start
Assist.
•What To Do
Please contact your authorized dealer as soon as
possible.
ESC System Disabled
•What Does It Mean
By placing the ignition in the MAR/RUN
position, the indicator light illuminates, but
should go out as soon as the engine is started.
The warning light will come on to indicate the safety
systems have been partially or totally disabled. For
more information of the system, refer to#Electronic
Stability Control (ESC)#in the#Safety#section.
By reactivating the ESC system, the light goes out.
Engine Malfunction
•What Does It Mean
The light is an integral part of the diagnostic
system of the vehicle, called OBD II. This
system monitors the performance of the emissions,
engine, and automatic transmission control systems.
The light comes on briefly (as a bulb check) when the
ignition is turned to the MAR/RUN. If the light does
not illuminate, it means that there is a failure.
In some conditions, such as the poor quality of the fuel,
the light may come on only after starting the engine.
•What To Do
Under these conditions, you can continue driving.
Avoid heavy efforts to the engine or high speeds. The
prolonged use of the car with the light illuminated
can cause damage to the engine.
Please contact your authorized dealer as soon as
possible.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 191

Do not operate the vehicle until the cause is cor-
rected. This light does not show how much oil is in
the engine. The engine oil level must be checked
under the hood.
NOTE:If the symbol comes on while driving, stop the
engine immediately and see an authorized dealer as soon
as possible.
Air Bag Warning Light
•What Does It Mean
Illumination of the Air Bag Warning Light
indicates a failure of the air bag system
when the ignition switch is placed in the
MAR/RUN position.
The display shows the message dedicated.
•What To Do
If the light is either not on during starting, stays on,
or turns on while driving, have the system inspected
at an authorized dealer as soon as possible.
Charging System Light
•What Does It Mean
This light shows the status of the electrical
charging system. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine speed
(if at idle). If the charging system light remains on, it
means that the vehicle is experiencing a problem with
the charging system.
•What To Do
Have your vehicle serviced immediately. See an au-
thorized dealer.
Door Ajar
•What Does It Mean
This light will illuminate to indicate that
one or more doors may be ajar. With the
doors open and the vehicle in motion, a
chime will sound.
194 GETTING TO KNOW YOUR INSTRUMENT PANEL

What To Do
Properly close the door(s).
Hood Open Warning Light
•What Does It Mean
The light will illuminate when the engine
hood is not completely closed. With the
hood open and the vehicle in motion, a
chime will sound.
•What To Do
Properly close the hood.
Liftgate Open Warning Light
•What Does It Mean
This light will illuminate when the liftgate
is open. With the tailgate open and the
vehicle in motion, a chime will sound.
•What To Do
Properly close the liftgate.
Electronic Throttle Control (ETC)
•What Does It Mean
The light will illuminate when the ignition is
first placed in the MAR/RUN or AVV/
START position and remain on briefly as a
bulb check. If the light does not come on during starting,
have the system checked by an authorized dealer.
If a problem is detected, the light will come on while
the engine is running. Bring the vehicle to a complete
stop and place it into PARK. Cycle the ignition to the
STOP/OFF position; the light should turn off.
If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an
authorized dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required. You may experience
reduced performance, an elevated/rough idle or en-
gine stall, and your vehicle may require towing.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 195

BRAKE SYSTEM
Your vehicle is equipped with dual hydraulic
brake systems. If either of the two hydraulic
systems loses normal capability, the remaining
system will still function. However, there will
be some loss of overall braking effectiveness. This will be
evident by increased pedal travel during application and
greater pedal force required to slow or stop the vehicle. In
addition, if the malfunction is caused by a leak in the
hydraulic system, the “Brake Warning Light” will turn on
as the brake fluid level drops in the master cylinder.
In the event power assist is lost for any reason (i.e.,
repeated brake applications with the engine OFF) the
brakes will still function. However, the effort required to
brake the vehicle will be much greater than that required
with the power system operating.
WARNING!
•Riding the brakes can lead to brake failure and
possibly a collision. Driving with your foot resting
or riding on the brake pedal can result in abnor-
mally high brake temperatures, excessive lining
wear, and possible brake damage. You would not
have your full braking capacity in an emergency.
•Driving a vehicle with the “Brake Warning Light”
on is dangerous. A significant decrease in braking
performance or vehicle stability during braking
may occur. It will take you longer to stop the
vehicle or will make your vehicle harder to control.
You could have a collision. Have the vehicle
checked immediately.
6
SAFETY 223

Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event, the ORC will determine
whether to have the Enhanced Accident Response Sys-
tem perform the following functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition is placed in the “OFF” position. The
customer can deactivate the hazard lights flasher
pressing the Hazard flasher button also before the
rearm procedure.
•Turn on the interior lights, which remain on as long as
the battery has power or for 15 minutes from the
intervention of the Enhanced Accident Response Sys-
tem.
•Unlock the doors automatically.
•Turn off the Fuel Pump Heater.
•Turn Off the HVAC Blower Motor.
•Close the HVAC Circulation Door.
System Reset Procedure
Depending on the nature of the event the left and right
turn signal lights, located in the instrument panel, may
both be blinking and will continue to blink until the
ignition switch is turned to the OFF position. After an
accident, turn the ignition switch to STOP/OFF position,
check that there aren’t any losses of fuel/liquids. In order
to move your vehicle to the side of the road, you must
follow the system reset procedure.
6
SAFETY 281

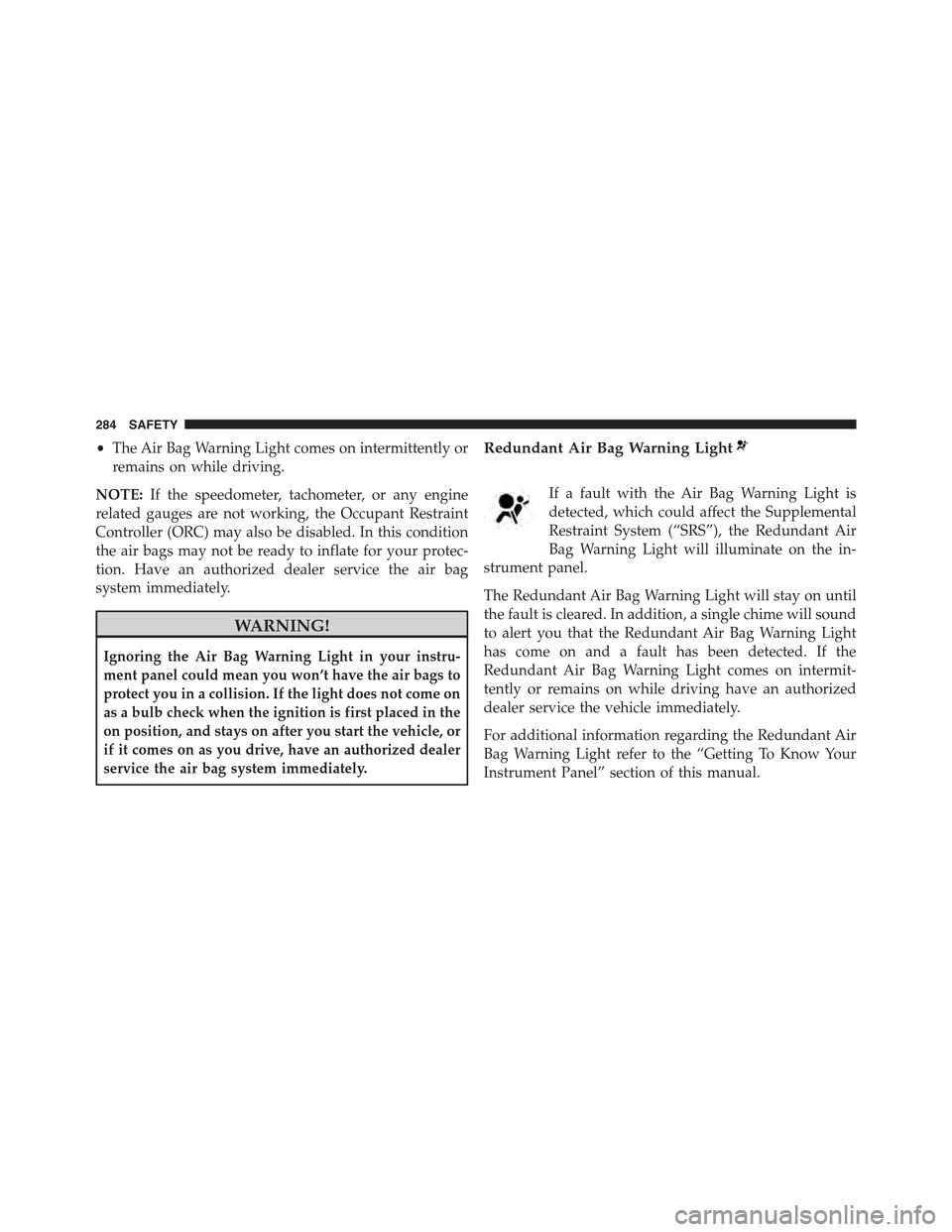

•The Air Bag Warning Light comes on intermittently or
remains on while driving.
NOTE:If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. In this condition
the air bags may not be ready to inflate for your protec-
tion. Have an authorized dealer service the air bag
system immediately.
WARNING!
Ignoring the Air Bag Warning Light in your instru-
ment panel could mean you won’t have the air bags to
protect you in a collision. If the light does not come on
as a bulb check when the ignition is first placed in the
on position, and stays on after you start the vehicle, or
if it comes on as you drive, have an authorized dealer
service the air bag system immediately.
Redundant Air Bag Warning Light
If a fault with the Air Bag Warning Light is
detected, which could affect the Supplemental
Restraint System (“SRS”), the Redundant Air
Bag Warning Light will illuminate on the in-
strument panel.
The Redundant Air Bag Warning Light will stay on until
the fault is cleared. In addition, a single chime will sound
to alert you that the Redundant Air Bag Warning Light
has come on and a fault has been detected. If the
Redundant Air Bag Warning Light comes on intermit-
tently or remains on while driving have an authorized
dealer service the vehicle immediately.
For additional information regarding the Redundant Air
Bag Warning Light refer to the “Getting To Know Your
Instrument Panel” section of this manual.
284 SAFETY

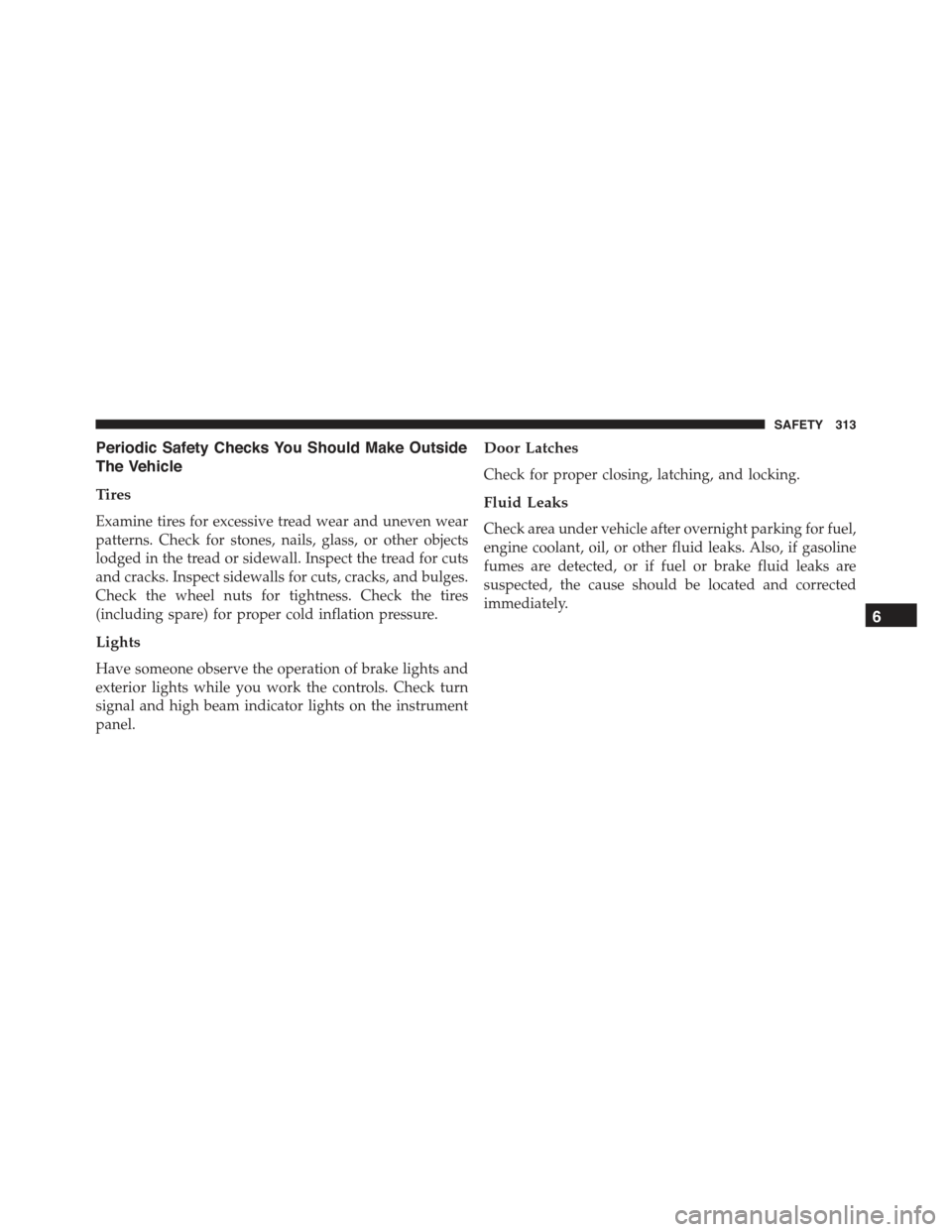

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected, or if fuel or brake fluid leaks are
suspected, the cause should be located and corrected
immediately.6
SAFETY 313
