Replacing Exterior Bulbs
Headlamps
Hi/Lo Beam Light Halogen
To replace the bulbs proceed as follows:
1. Open the engine compartment and remove the head-
lamp bulb cap.
Headlamp Bulb Cap8
IN CASE OF EMERGENCY 445

4. Install the new headlamp bulb making sure it is
properly locked.5. Install the headlamp bulb and socket; turn it clockwise
making sure it is properly locked.
WARNING!
Carry out the operation of replacing lamps only with
the engine off. Also make sure that the engine is cold,
to avoid the danger of burns.
Headlamp Bulb8
IN CASE OF EMERGENCY 447

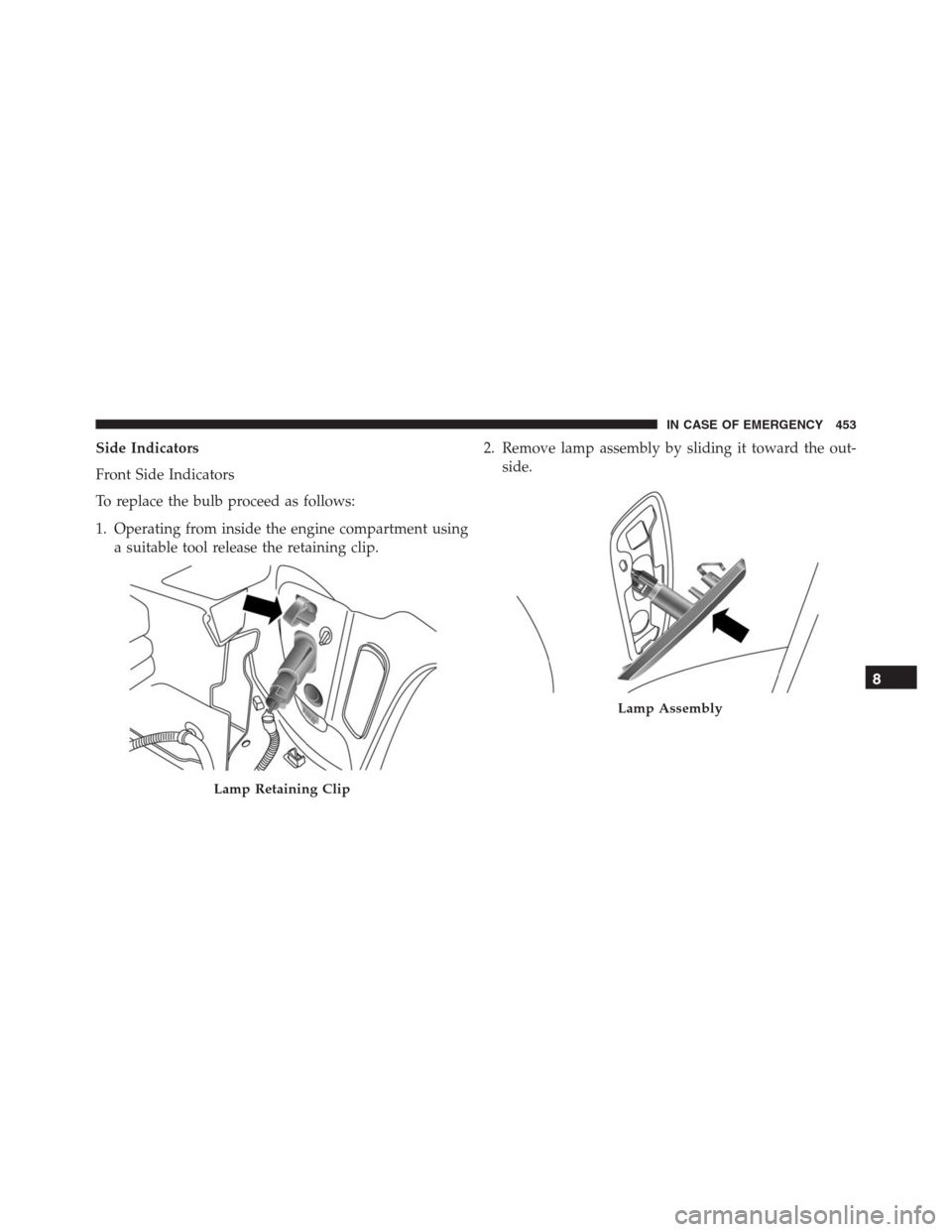

Side Indicators
Front Side Indicators
To replace the bulb proceed as follows:
1. Operating from inside the engine compartment using
a suitable tool release the retaining clip.2. Remove lamp assembly by sliding it toward the out-
side.
Lamp Retaining Clip
Lamp Assembly
8
IN CASE OF EMERGENCY 453

WARNING!(Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
General Information
The fuses protect electrical systems against excessive
current.
When a device does not work you must check the
electrical circuit inside the fuse for a break/melt.Also please be aware that when using power outlets for
extended periods of time with the engine off may result
in vehicle battery discharge.
Blade Fuses
1 — Electrical Circuit
2 — Blade Fuse With Good Electrical Circuit
3 — Blade Fuse With Bad Electrical Circuit 470 IN CASE OF EMERGENCY

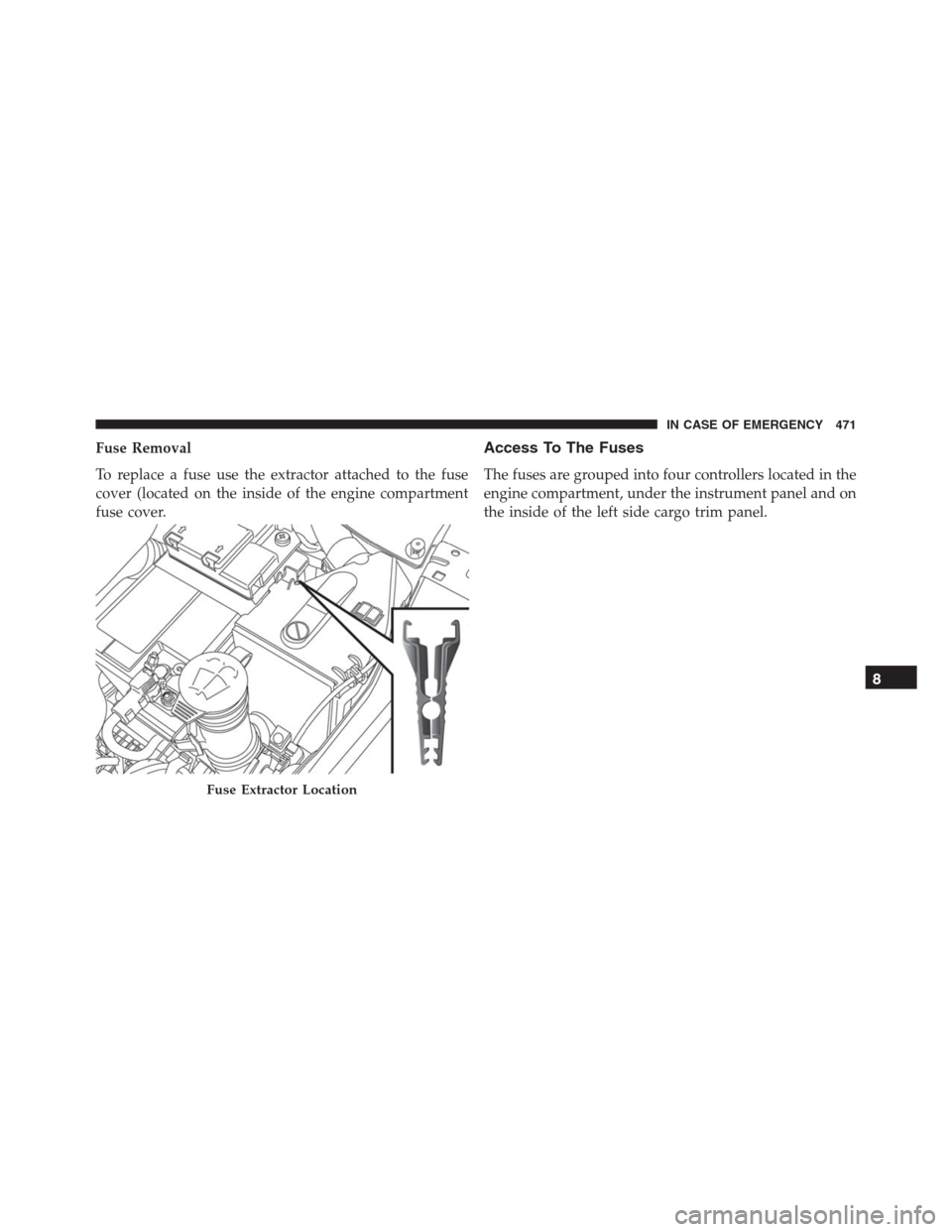

Fuse Removal
To replace a fuse use the extractor attached to the fuse
cover (located on the inside of the engine compartment
fuse cover.Access To The Fuses
The fuses are grouped into four controllers located in the
engine compartment, under the instrument panel and on
the inside of the left side cargo trim panel.
Fuse Extractor Location
8
IN CASE OF EMERGENCY 471

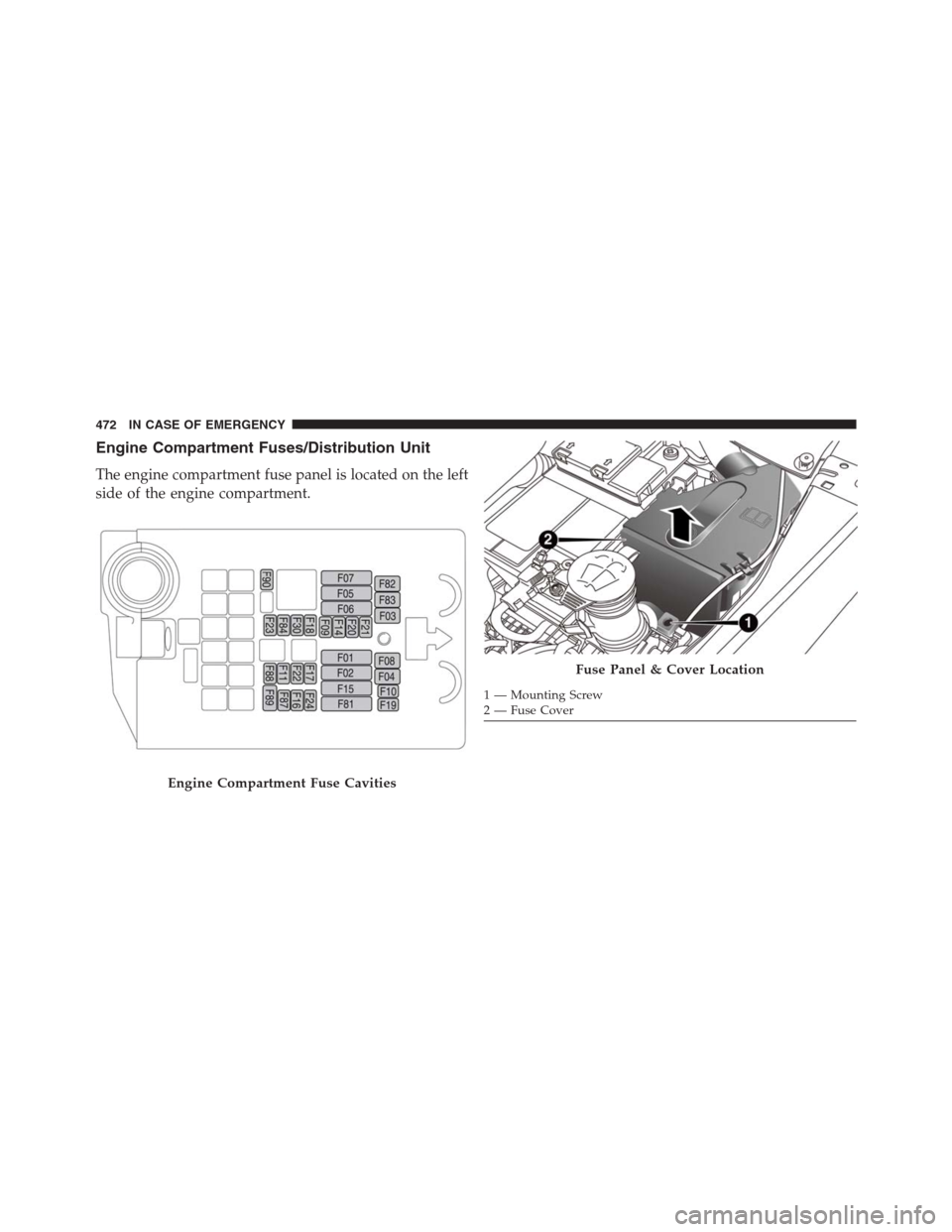

Engine Compartment Fuses/Distribution Unit
The engine compartment fuse panel is located on the left
side of the engine compartment.
Engine Compartment Fuse Cavities
Fuse Panel & Cover Location
1 — Mounting Screw
2 — Fuse Cover 472 IN CASE OF EMERGENCY

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Computer,
Rear Distribution Units
F03 – 20 Amp Blue – Controller Power Supply Body
Computer
F04 – 30 Amp Pink – Brake Control Electronics Module
F05 70 Amp Tan – – Electric Power-Assisted Steering
F06 20 Amp Yellow – – Engine Cooling fan
F07 40 Amp Orange –
1.4 Without A/C
50 Amp Red – 1.4
With A/C And All
2.4 Models– – Engine Cooling fan
F08 – 30 Amp Pink – Automatic Transmission, GSM
F09 – – 5 Amp Tan Control Module Engine
F10 – – 15 Amp Blue Horn
474 IN CASE OF EMERGENCY

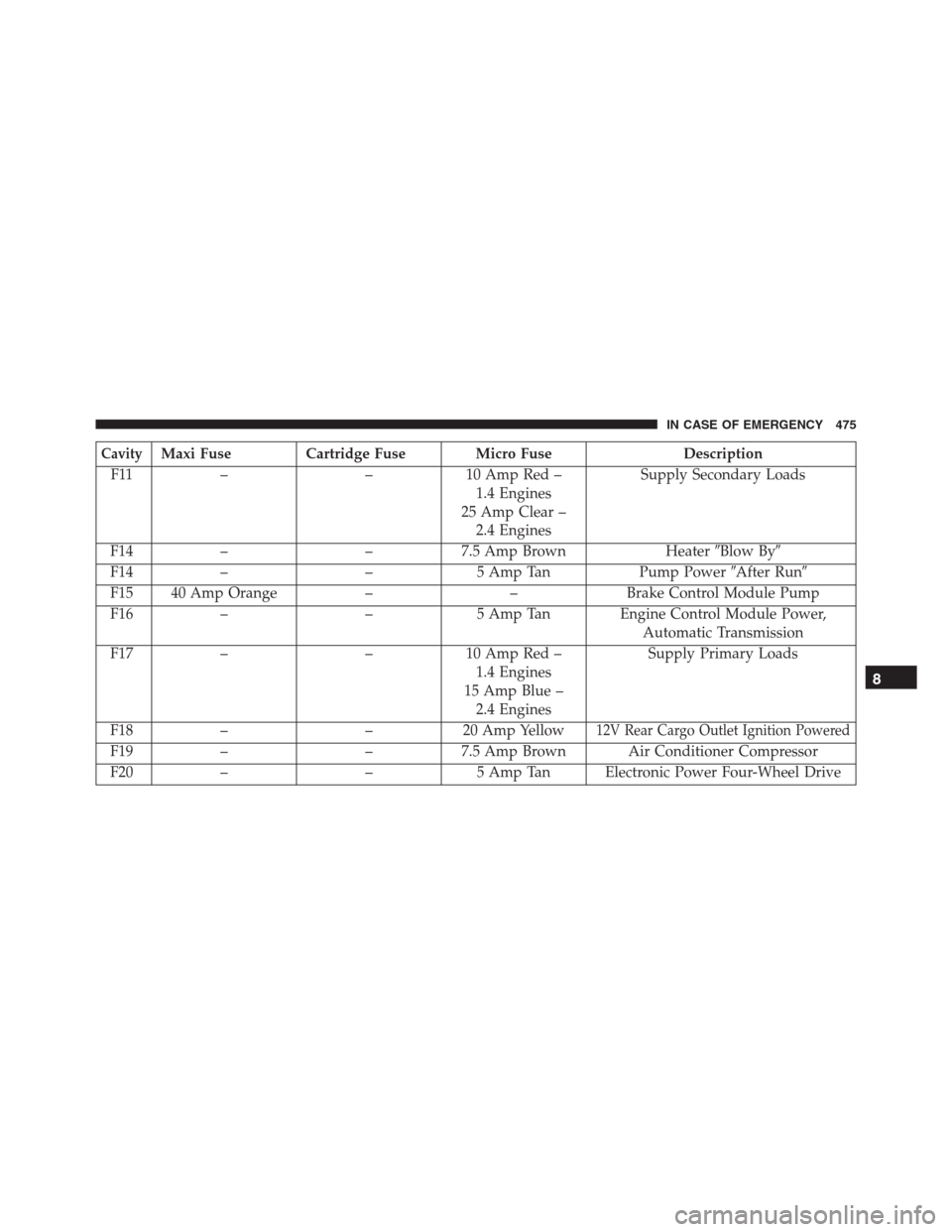

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F11 – – 10 Amp Red –
1.4 Engines
25 Amp Clear –
2.4 EnginesSupply Secondary Loads
F14 – – 7.5 Amp Brown HeaterBlow By
F14 – – 5 Amp Tan Pump PowerAfter Run
F15 40 Amp Orange – – Brake Control Module Pump
F16 – – 5 Amp Tan Engine Control Module Power,
Automatic Transmission
F17 – – 10 Amp Red –
1.4 Engines
15 Amp Blue –
2.4 EnginesSupply Primary Loads
F18 – – 20 Amp Yellow
12V Rear Cargo Outlet Ignition Powered
F19 – – 7.5 Amp Brown Air Conditioner Compressor
F20 – – 5 Amp Tan Electronic Power Four-Wheel Drive
8
IN CASE OF EMERGENCY 475

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F21 – – 15 Amp Blue Fuel Pump
F22 – – 20 Amp Yellow Power Control Module Engine
F23 – – 30 Amp Green Heated Windshield – If Equipped
F24 – – 15 Amp Blue Electronic Unit Supply Automatic
Transmission
F30 – –
20 Amp Yellow
(Customer Installed)12V Rear Cargo Outlet Constant Bat-
tery Powered
F83 – 40 Amp Green – Air Conditioning Fan
F84 – – 30 Amp Green Power Supply All Wheel Drive
F87 – – 5 Amp Tan Shift Lever Automatic Transmission
F88 – – 7.5 Amp Brown Heated Outside Mirrors
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan IBS Sensor (Battery State Of Charge)
Body Computer Fuse Center
The controller is located at the left side of the steering
column at the bottom of the instrument panel.For the fuse replacement see your authorized dealer.
476 IN CASE OF EMERGENCY

JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
(Continued)
WARNING!(Continued)
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
•Never start or run the engine while the vehicle is
on a jack.
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
