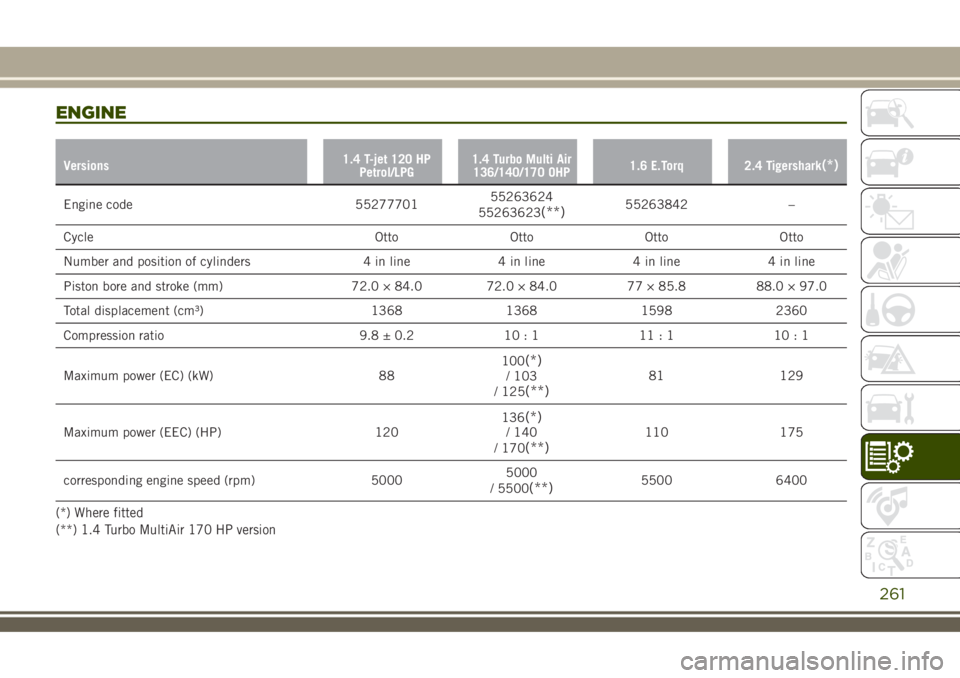

ENGINE
Versions1.4 T-jet 120 HP
Petrol/LPG1.4 Turbo Multi Air
136/140/170 OHP1.6 E.Torq 2.4 Tigershark(*)
Engine code 5527770155263624
55263623(**)55263842 –
Cycle Otto Otto Otto Otto
Number and position of cylinders 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0 77 × 85.8 88.0 × 97.0
Total displacement (cm³) 1368 1368 1598 2360
Compression ratio 9.8 ± 0.2 10 : 1 11 : 1 10 : 1
Maximum power (EC) (kW) 88100
(*)/ 103
/ 125(**)81 129
Maximum power (EEC) (HP) 120136
(*)/ 140
/ 170(**)110 175
corresponding engine speed (rpm) 50005000
/ 5500
(**)5500 6400
(*) Where fitted
(**) 1.4 Turbo MultiAir 170 HP version
261

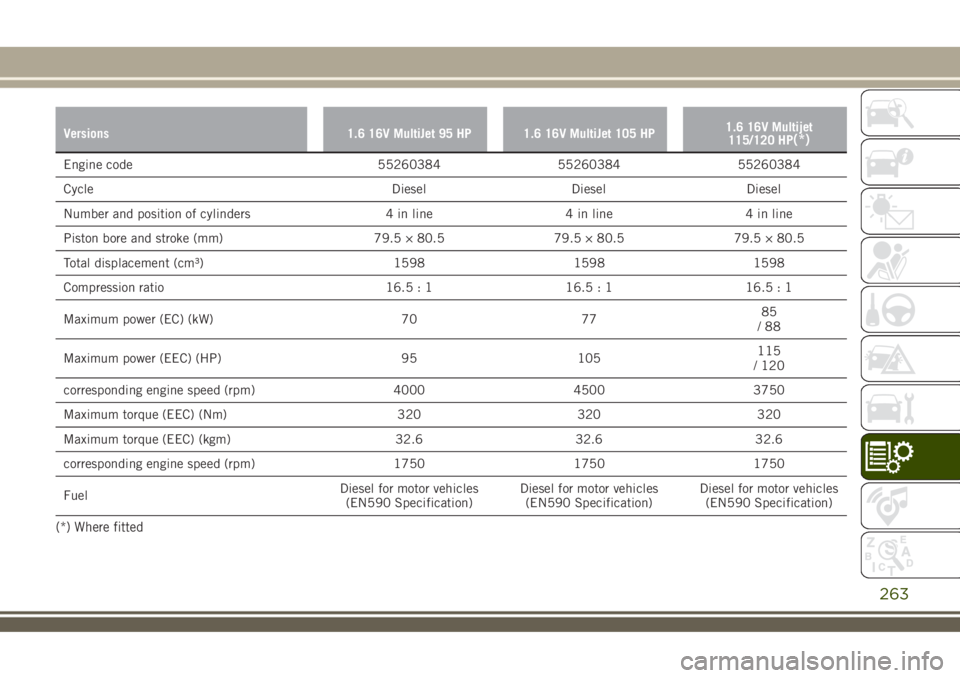

Versions 1.6 16V MultiJet 95 HP 1.6 16V MultiJet 105 HP1.6 16V Multijet
115/120 HP(*)
Engine code 55260384 55260384 55260384
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 79.5 × 80.5 79.5 × 80.5 79.5 × 80.5
Total displacement (cm³) 1598 1598 1598
Compression ratio 16.5 : 1 16.5 : 1 16.5 : 1
Maximum power (EC) (kW) 70 7785
/88
Maximum power (EEC) (HP) 95 105115
/ 120
corresponding engine speed (rpm) 4000 4500 3750
Maximum torque (EEC) (Nm) 320 320 320
Maximum torque (EEC) (kgm) 32.6 32.6 32.6
corresponding engine speed (rpm) 1750 1750 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) Where fitted
263

Versions 2.0 16V Multijet 120 HP 2.0 16V Multijet 140 HP 2.0 16V Multijet 170 HP
Engine code 5526308755263087 / 55263088(*)55263088
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 83 × 90.4 83 × 90.4 83 × 90.4
Total displacement (cm³) 1956 1956 1956
Compression ratio 16.5 16.5 16.5
Maximum power (EC) (kW) 88 103 125
Maximum power (EEC) (HP) 120 140 170
corresponding engine speed (rpm) 4000
3750 / 4000
(*)3750
Maximum torque (EC) (Nm) 320 350 350
Maximum torque (EC) (kgm) 32.6 35.7 35.7
corresponding engine speed (rpm) 1250
1500 / 1750
(*)1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) Versions with automatic transmission
264
