JEEP RENEGADE LATITUDE 2017 Owners Manual

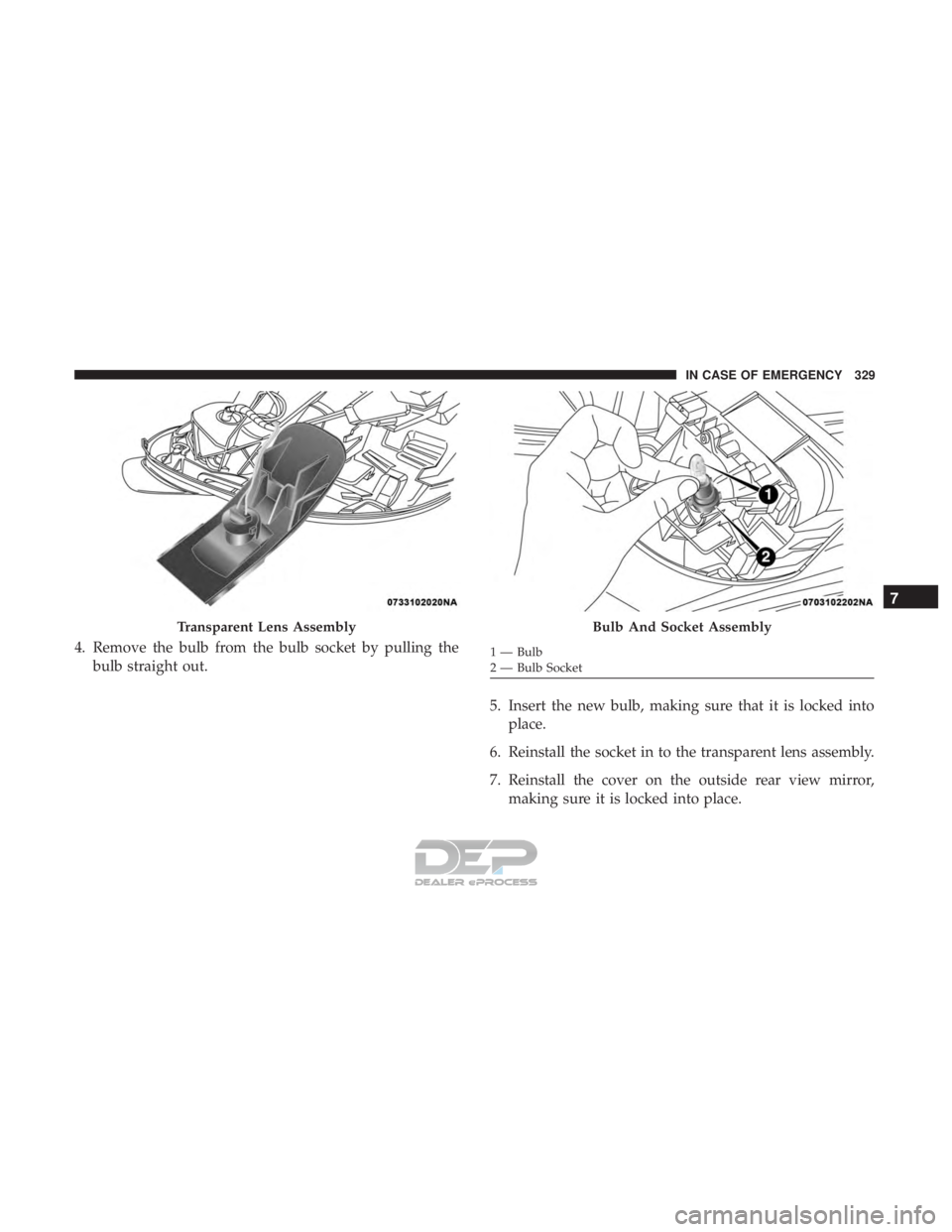

Bulb And Socket Assembly

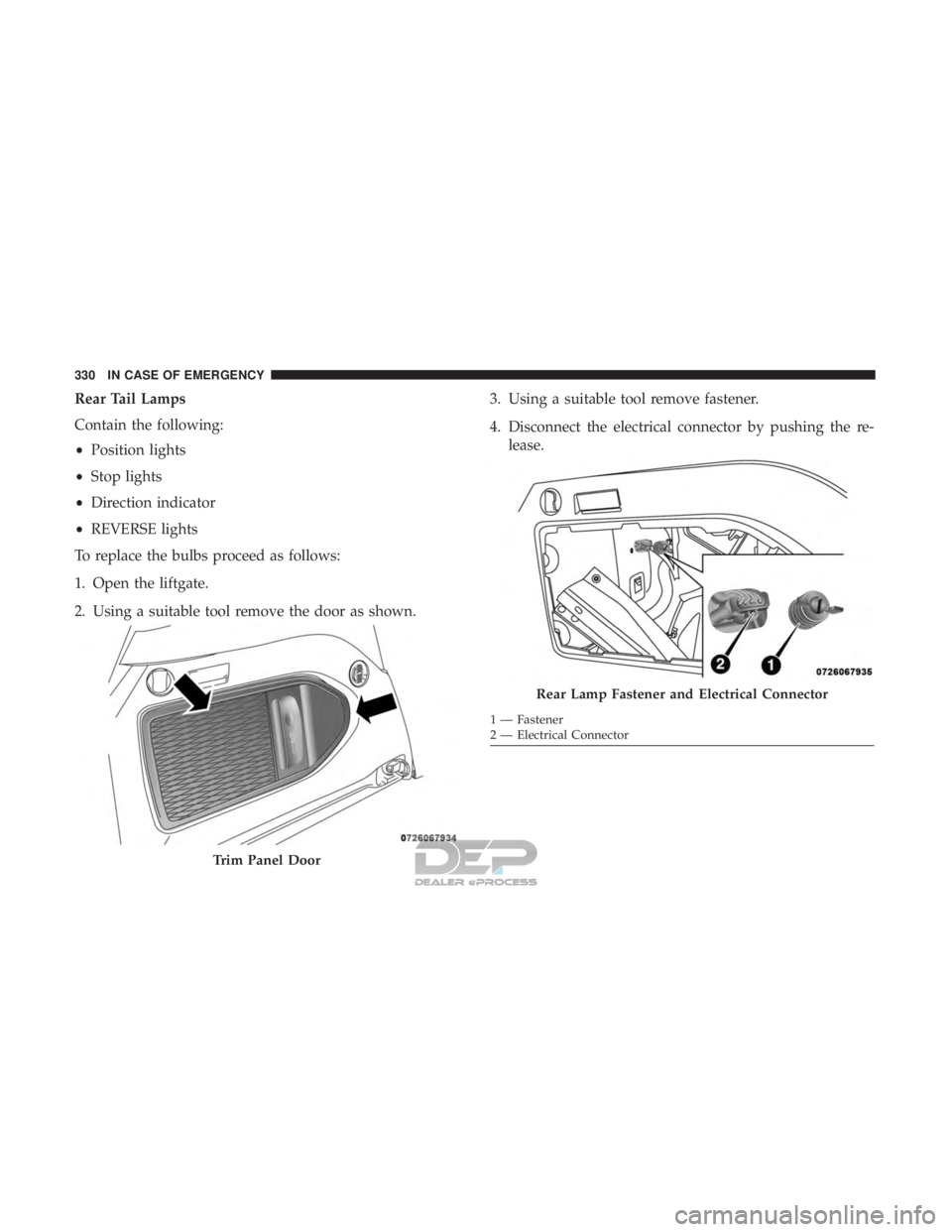

Rear Lamp Fastener and Electrical Connector

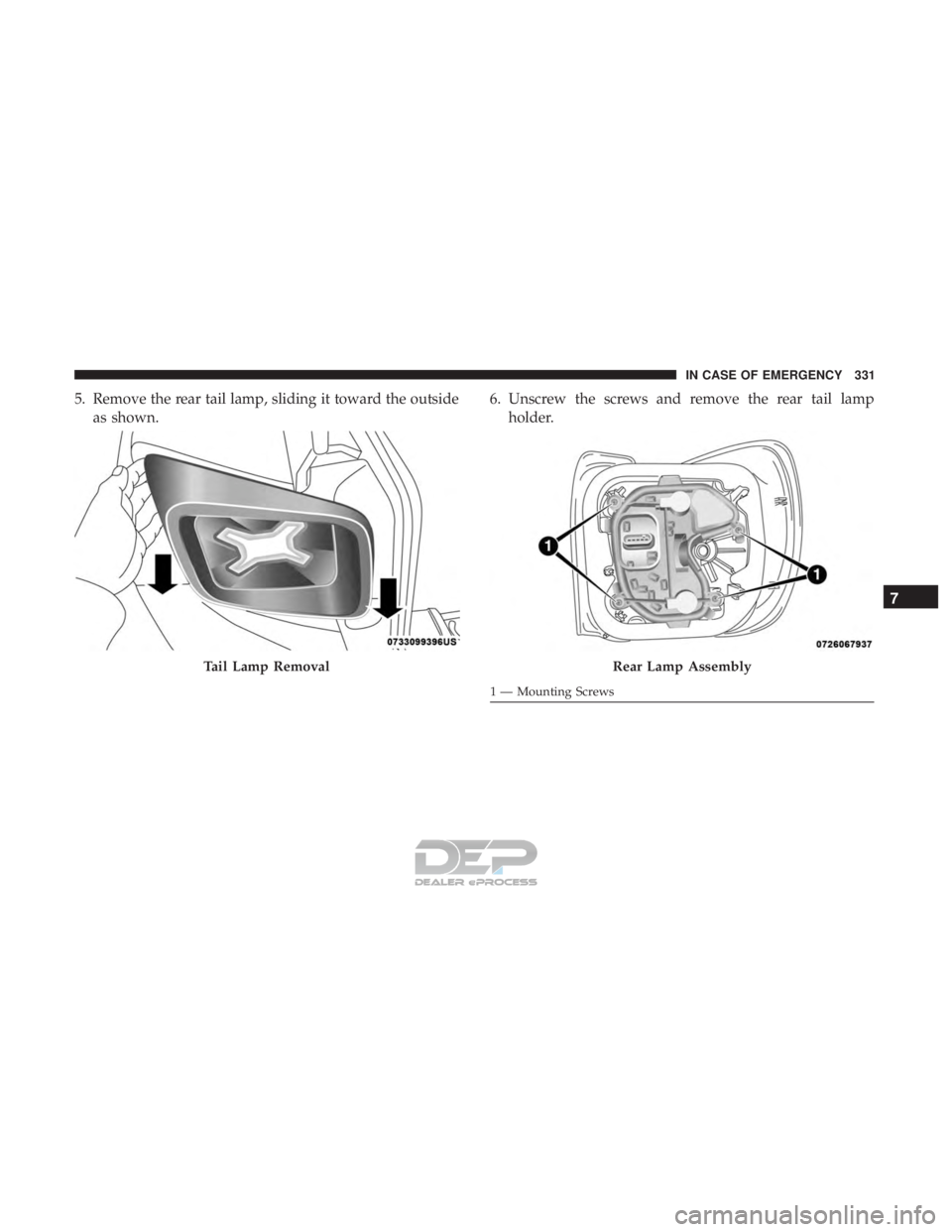

Rear Lamp Assembly

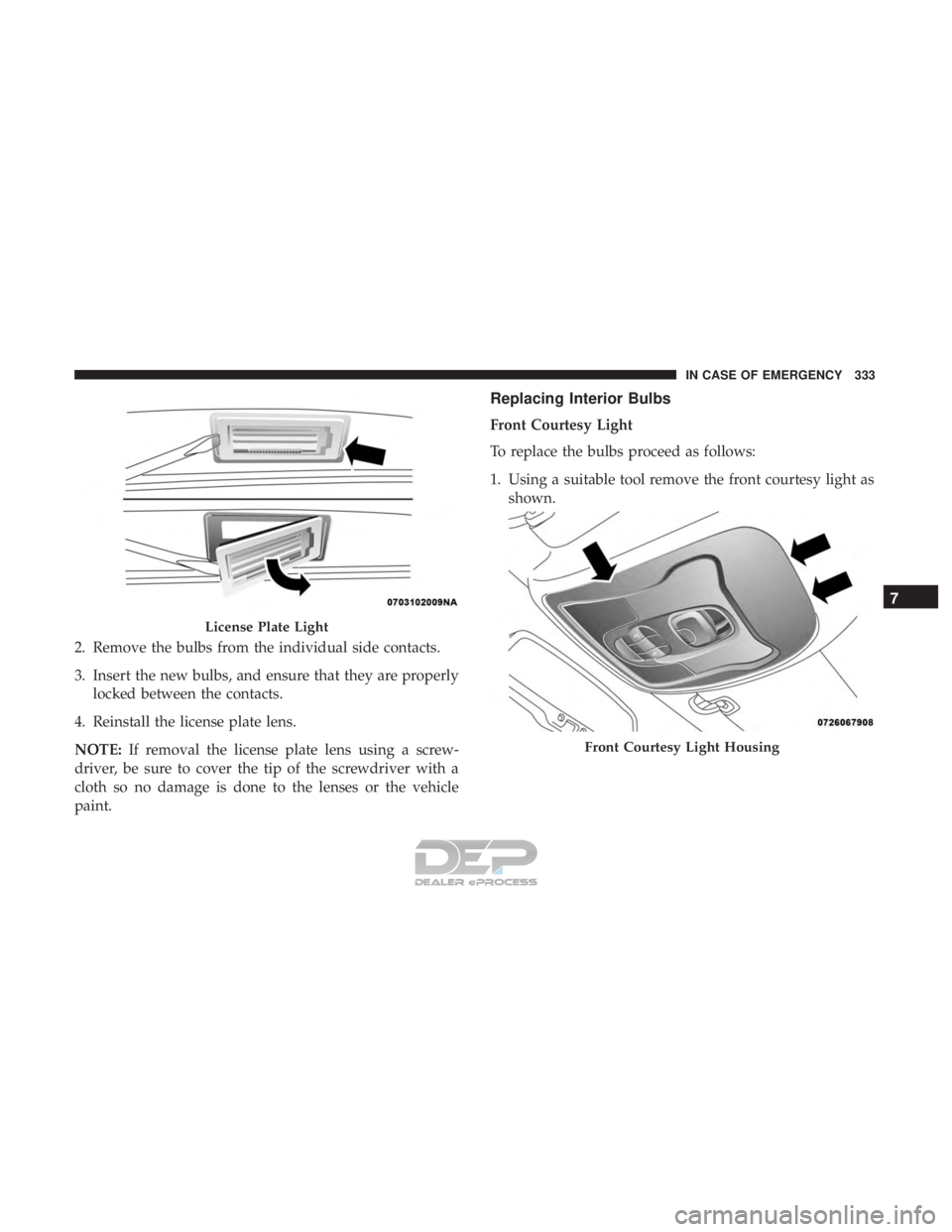

Front Courtesy Light Housing
7
IN CASE OF EMERGENCY 333

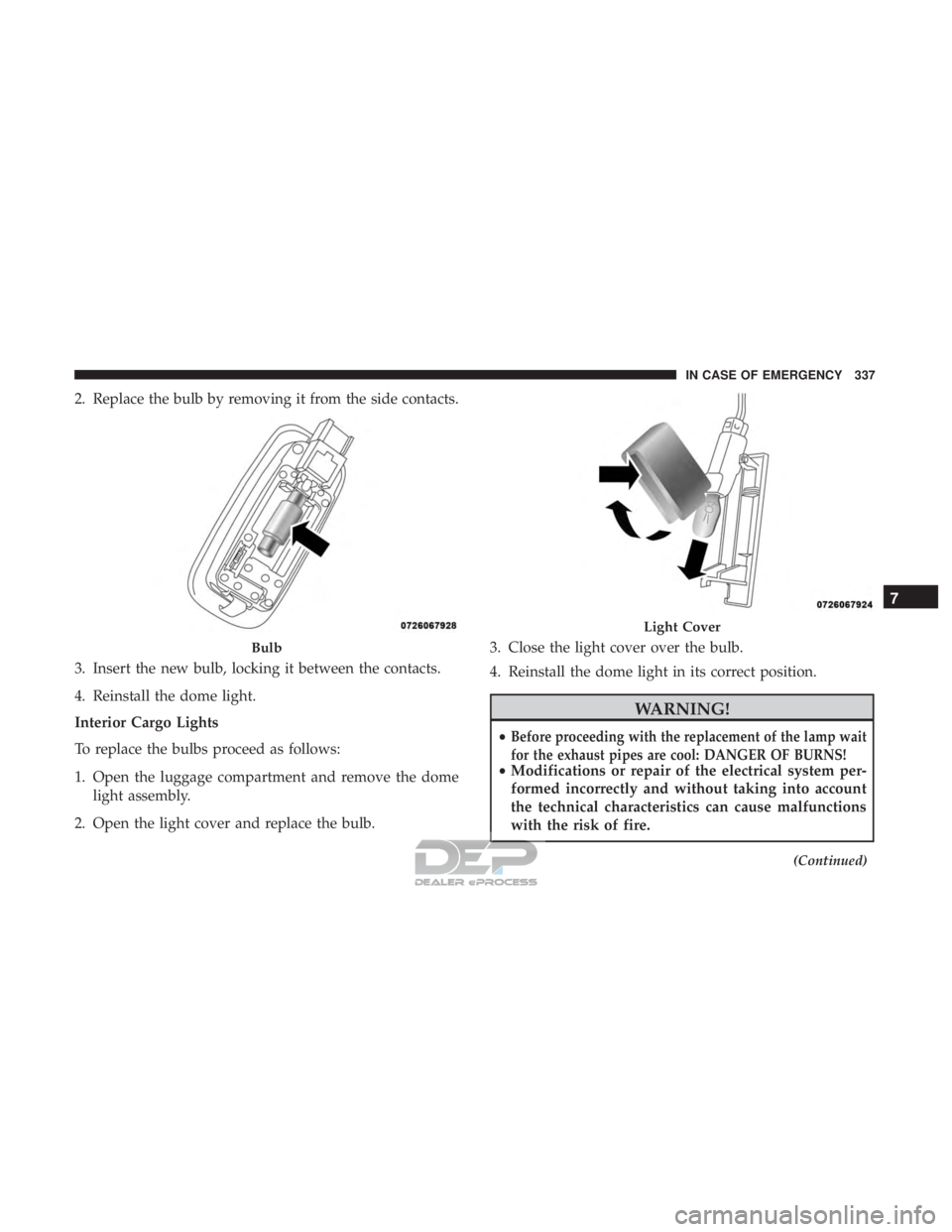

2. Replace the bulb by removing it from the side contacts.
3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.
Interior Cargo Lights
To replace the bulbs proceed as follows:
1. Open the luggage compartment and remove the domelight assembly.
2. Open the light cover and replace the bulb. 3. Close the light cover over the bulb.
4. Reinstall the dome light in its correct position.
Light Cover
7
IN CASE OF EMERGENCY 337

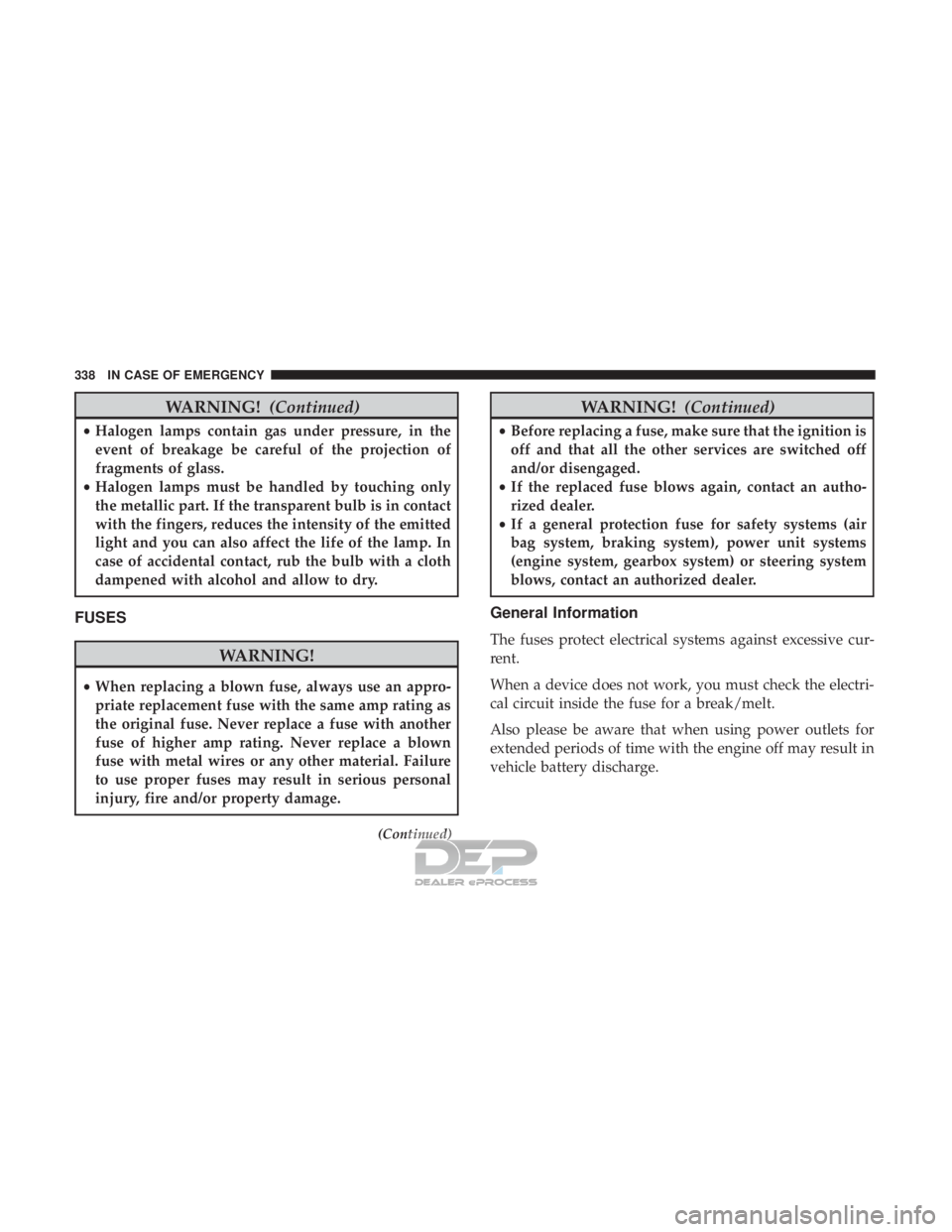

WARNING!(Continued)
•Halogen lamps contain gas under pressure, in the
event of breakage be careful of the projection of
fragments of glass.
• Halogen lamps must be handled by touching only
the metallic part. If the transparent bulb is in contact
with the fingers, reduces the intensity of the emitted
light and you can also affect the life of the lamp. In
case of accidental contact, rub the bulb with a cloth
dampened with alcohol and allow to dry.
FUSES
