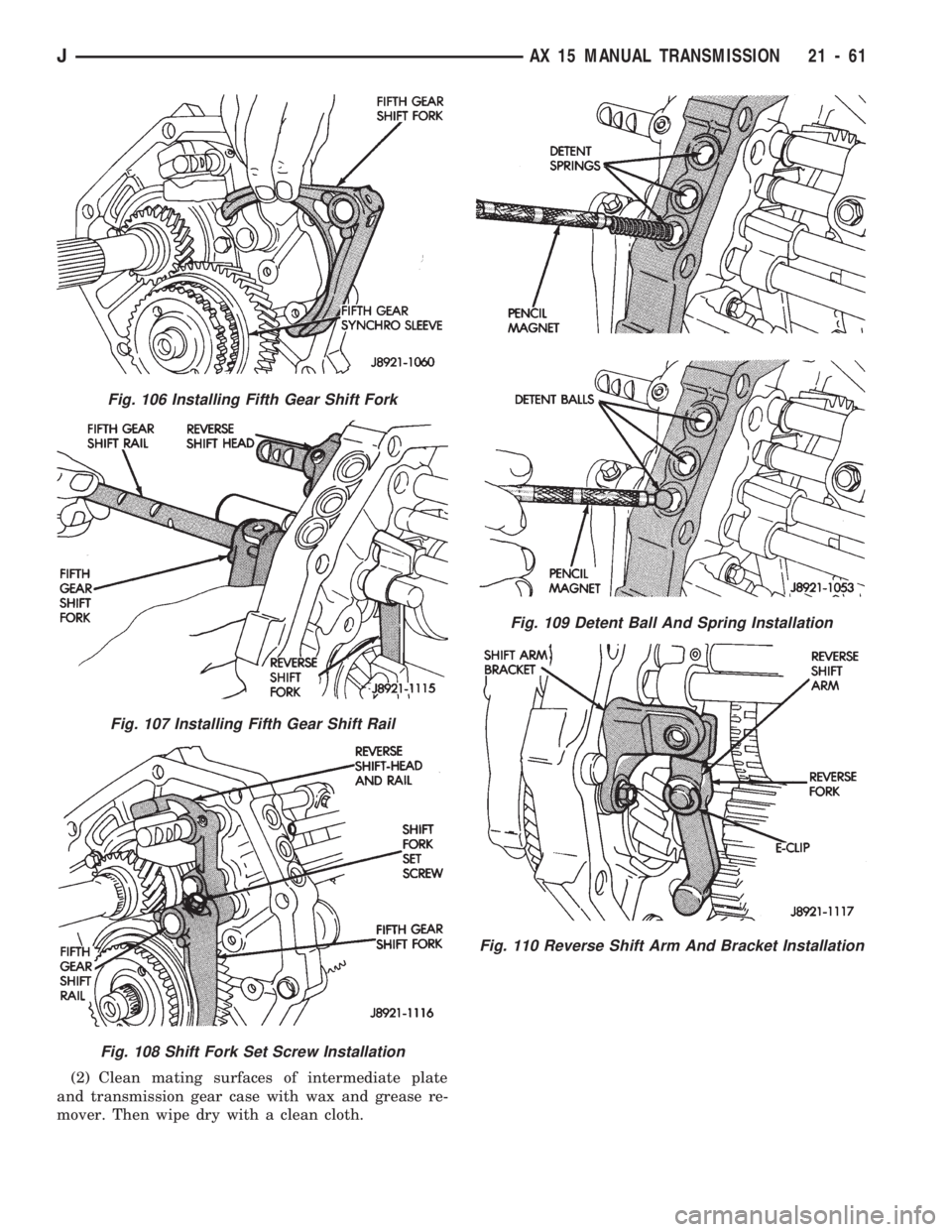

Fig. 107 Installing Fifth Gear Shift Rail
Fig. 108 Shift Fork Set Screw Installation
Fig. 109 Detent Ball And Spring Installation
Fig. 110 Reverse Shift Arm And Bracket Installation

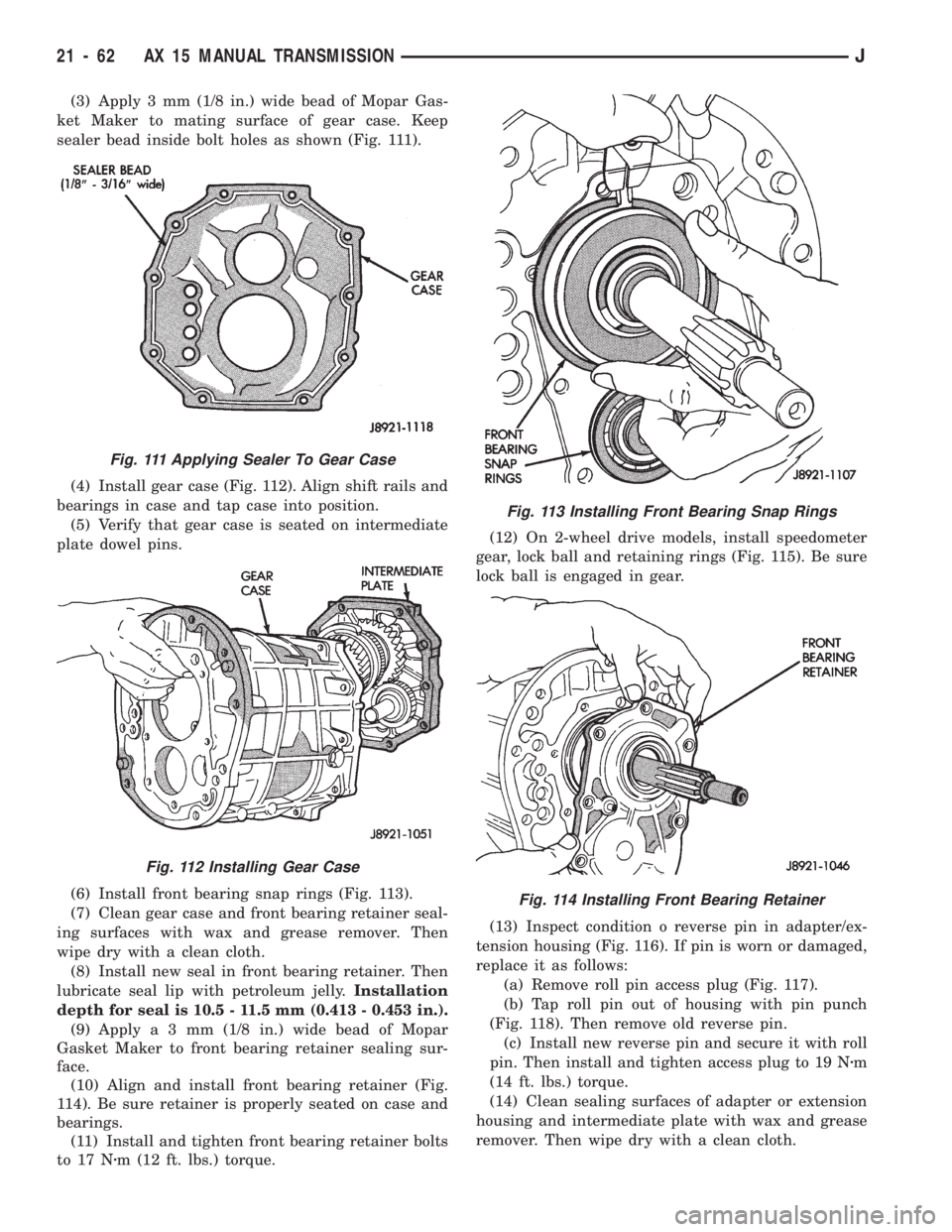

JAX 15 MANUAL TRANSMISSION 21 - 61

Fig. 112 Installing Gear Case
Fig. 113 Installing Front Bearing Snap Rings
Fig. 114 Installing Front Bearing Retainer

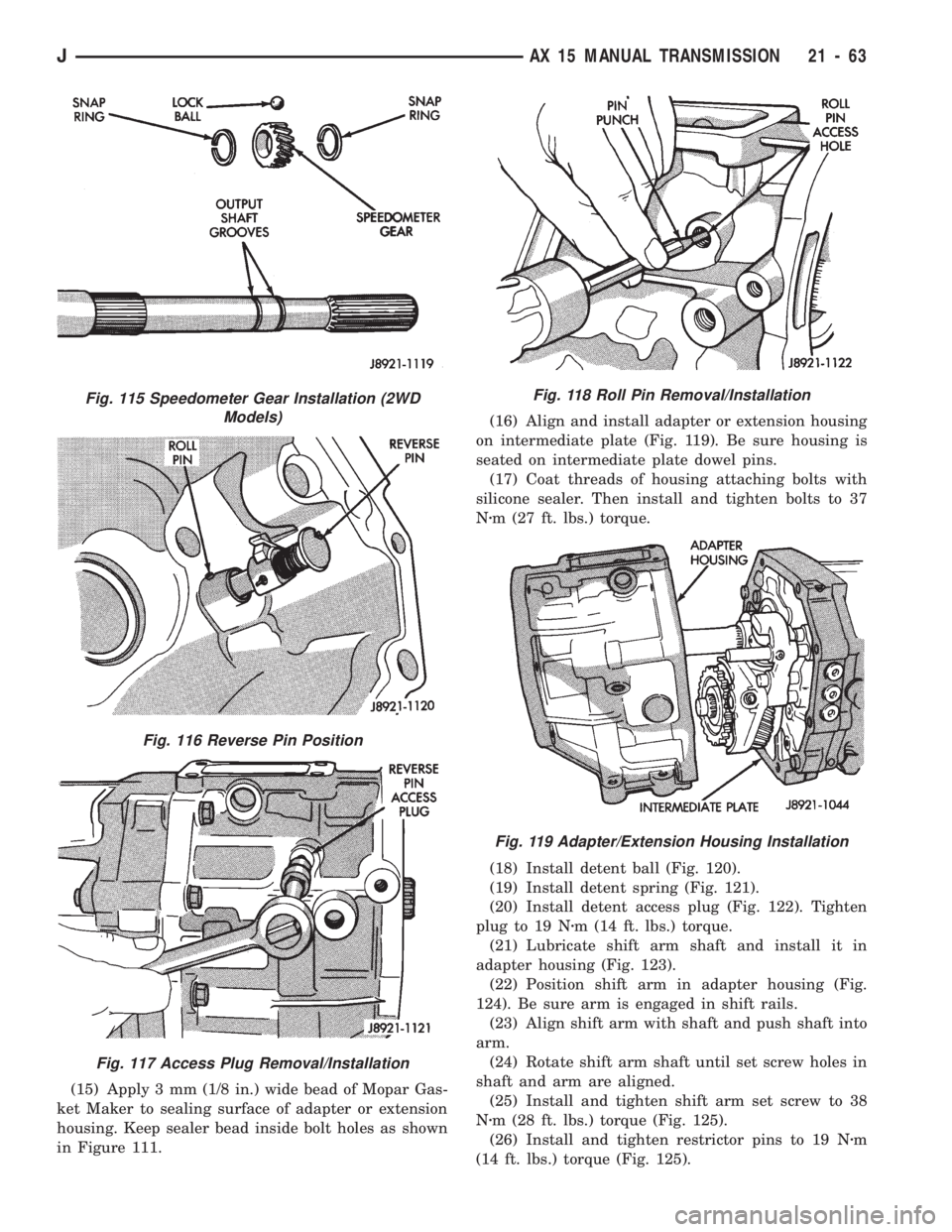

21 - 62 AX 15 MANUAL TRANSMISSIONJ

Fig. 116 Reverse Pin Position
Fig. 117 Access Plug Removal/Installation
Fig. 118 Roll Pin Removal/Installation
Fig. 119 Adapter/Extension Housing Installation

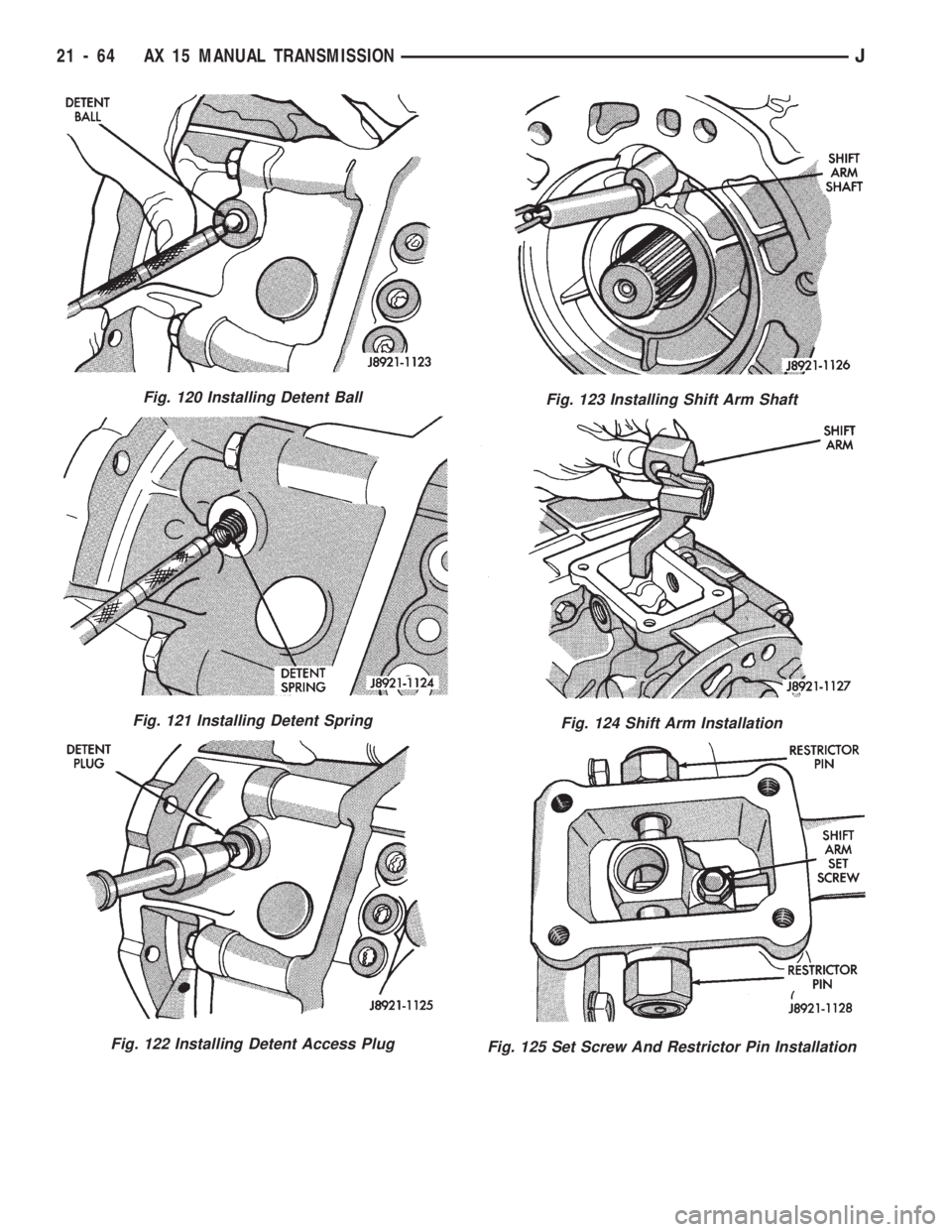

JAX 15 MANUAL TRANSMISSION 21 - 63

Fig. 121 Installing Detent Spring
Fig. 122 Installing Detent Access Plug
Fig. 123 Installing Shift Arm Shaft
Fig. 124 Shift Arm Installation
Fig. 125 Set Screw And Restrictor Pin Installation
21 - 64 AX 15 MANUAL TRANSMISSIONJ

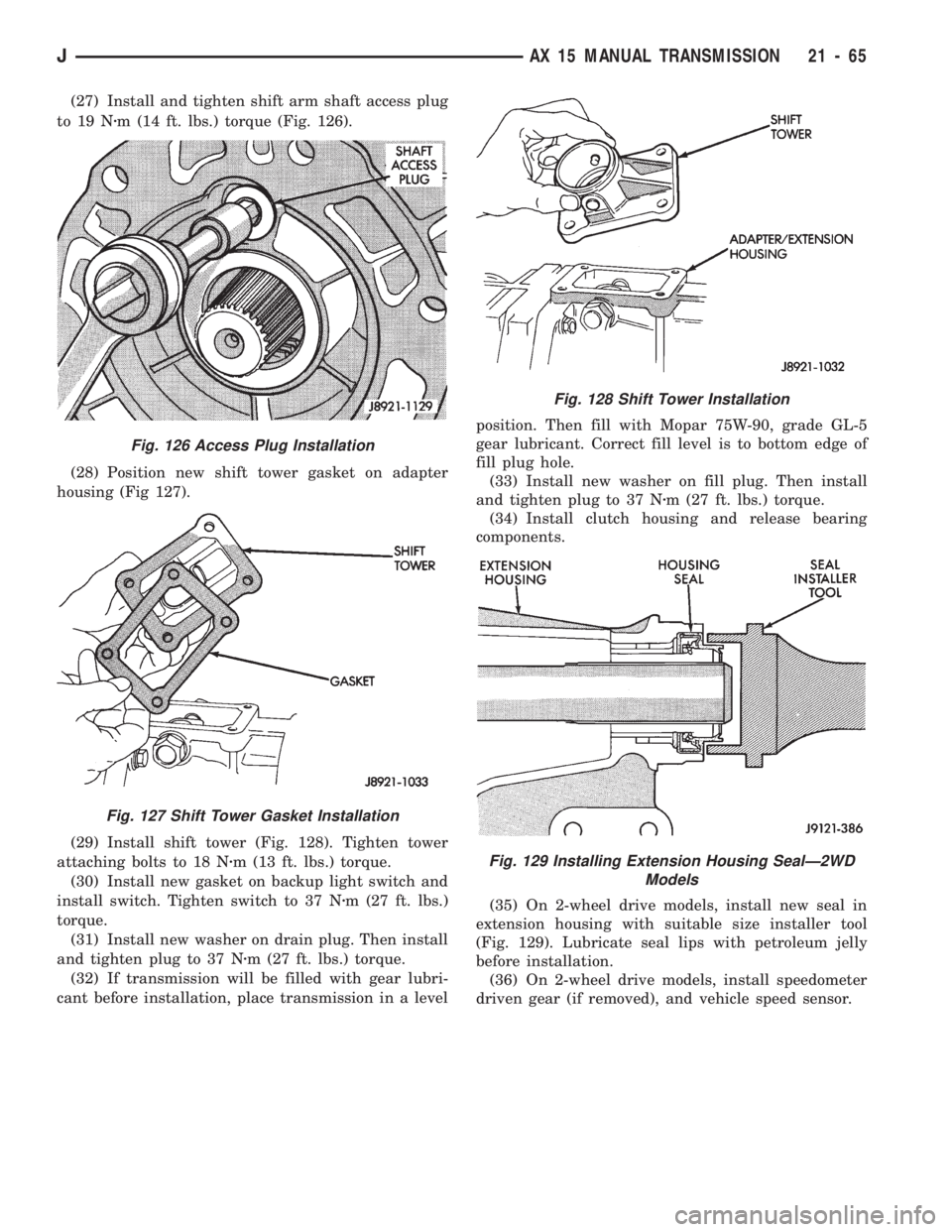

Fig. 127 Shift Tower Gasket Installation
Fig. 128 Shift Tower Installation
Fig. 129 Installing Extension Housing SealÐ2WD
Models
