JEEP WRANGLER 2007 JK / 3.G Owners Manual

Also, be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to fold
down easily.
1. Lift the seatback release lever and fold seatback for-
ward.
2. Slowly flip the entire seat forward.3. When completed, return seat to it’s normal position.
4. Raise the rear seatback using the assist strap and
firmly lock seat into position.
Rear Seat Release
Folding Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

Removing the Rear Seat (2 Door Models)
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•In a collision, you or others in your vehicle could
be injured if seats are not properly latched to their
floor attachments. Always be sure that the seats
are fully latched.1. Remove the rear subwoofer (if equipped) mounting
screws (3) using a #T30 Torxhead driver.
2. Unplug electrical connector from rear subwoofer (if
equipped).
3. Fold the rear seat forward following steps 1 through 3
under “Fold and Tumble Rear Seat” in this section.Subwoofer
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Press down on release bar on each side, and pull seat
out and away from lower bracket.
5. Remove seat from the vehicle.Replacing the Rear Seat (2 Door Models)
Reverse steps for removing the seat.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area with the
rear seat folded down or removed from the ve-
hicle.
•The rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
60/40 Split Folding Rear Seat (4 Door Models)
To provide additional storage area, each rear seat can be
folded flat to allow for extended cargo space and still
maintain some rear seating room.Release Bar Location
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

NOTE:Prior to folding the rear seat, it may be necessary
to reposition the front seat to it’s mid-track position.
Also, be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to fold
down easily.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
To Fold Down the Rear Seat
1. Locate the seatback release handle on the outboard top
side of each rear seatback; lift up on the handle until the
seatback releases. Fold the seatback completely forward.
Rear Seat Release
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:When lifting up on the release handle, the
seatback will release easier if you do not pull forward on
the seatback; only lift up on the release handle until the
seatback disengages, then fold the seat forward.To Raise the Rear Seat
1. Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the
center shoulder belt will not be able to be extended for
use. If you cannot extend the center shoulder belt, please
make sure your seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Folding Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

TO OPEN AND CLOSE THE HOOD
To open hood, first release both hood latches.
Next, locate handle in middle of the front end of the
hood. Insert hand into gap between hood and top of
grille, and push handle to the side to raise hood. You mayhave to push down slightly on hood before pushing the
handle. Insert the support rod into the slot on the hood
panel.
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.
Hood Latch
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS
Interior Lights
The overhead light comes on when a door is opened. It
may also be turned on by rotating the control for the
dimmer switch on the multi-function control lever fully
upward.
The overhead light will automatically turn off in about 20
minutes if a door is left open or the dimmer control is left
in the dome light position. Turn the ignition switch ON to
restore the overhead light operation.
Cargo Lamp
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the right side of the switch) is rotated to the
upward detent position, or if equipped, when the “Un-
lock” button is pressed on the key fob.Also, the rear cargo lamp may be operated by pressing
the lens to turn it on. Press the lens again, to shut it off.
Cargo Lamp
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

When a door is open and the interior lights are on,
rotating the dimmer control all the way down to the OFF
detent will cause all the interior lights to go out. This is
also known as thePartymode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.Daytime Brightness Feature
Certain instrument panel components (odometer, radio
display) can be illuminated at full brightness during the
daytime. This can be helpful when driving with your
headlights on during the daytime such as in a parade or
a funeral procession. To activate this feature, rotate the
left stalk one detent lower than the dome light.
Multi-Function Control Lever
The multi-function control lever controls the operation of
the parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming,
and turn signals.
Rear Cargo Lamp (4 Door Only)
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Parking Lights, Instrument Panel Lights, and
Headlights
Turn the end of the multi-function control lever to the
first detent for parking lights and instrument panel
lights. Turn to the second detent for headlight operation.To change the brightness of the instrument panel lights,
rotate the center portion of the multi-function control
lever up or down.
Multi-Function Control LeverHeadlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

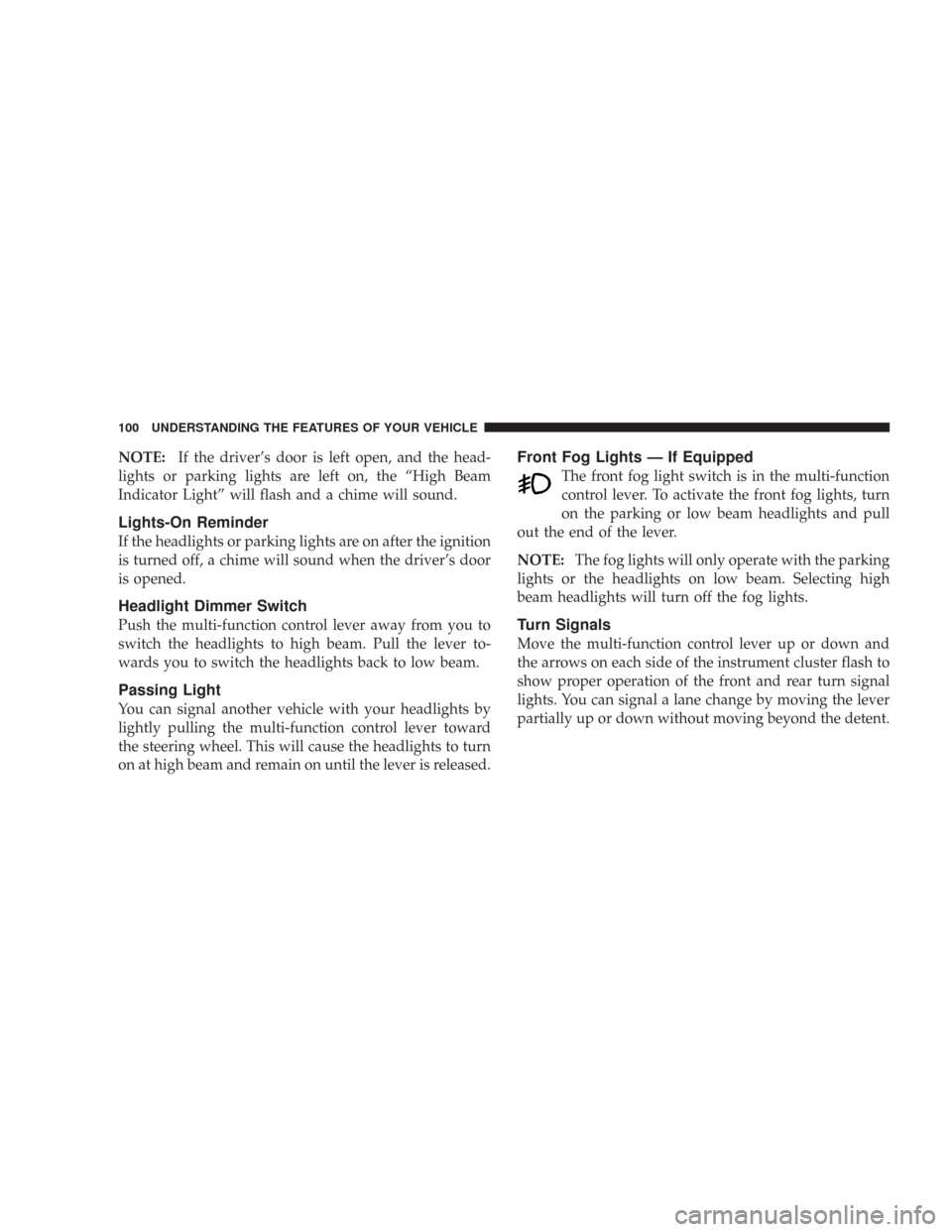

NOTE:If the driver’s door is left open, and the head-
lights or parking lights are left on, the “High Beam
Indicator Light” will flash and a chime will sound.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned off, a chime will sound when the driver’s door
is opened.
Headlight Dimmer Switch
Push the multi-function control lever away from you to
switch the headlights to high beam. Pull the lever to-
wards you to switch the headlights back to low beam.
Passing Light
You can signal another vehicle with your headlights by
lightly pulling the multi-function control lever toward
the steering wheel. This will cause the headlights to turn
on at high beam and remain on until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is in the multi-function
control lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull
out the end of the lever.
NOTE:The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Turn Signals
Move the multi-function control lever up or down and
the arrows on each side of the instrument cluster flash to
show proper operation of the front and rear turn signal
lights. You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
