JEEP WRANGLER 2008 JK / 3.G Owners Manual

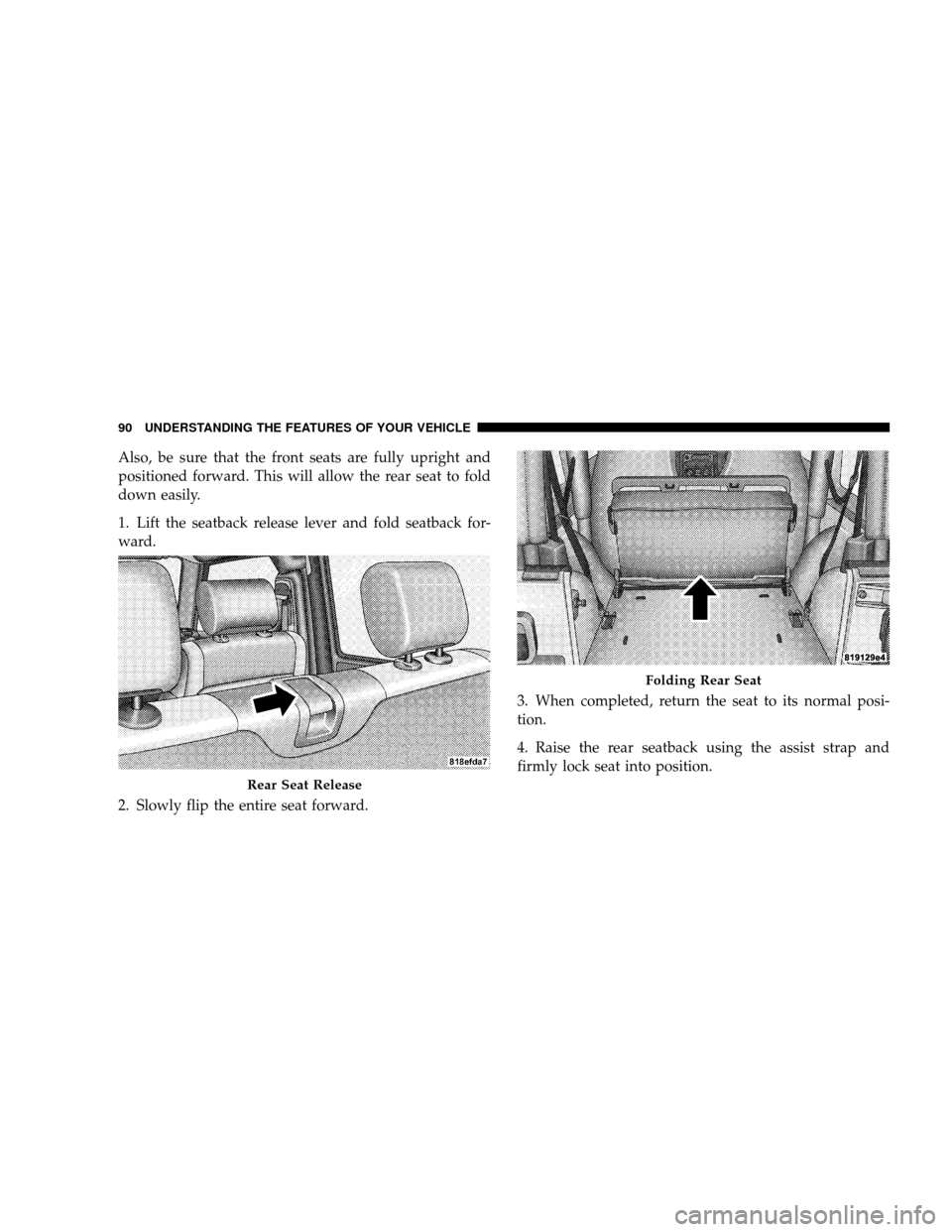

Also, be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to fold
down easily.
1. Lift the seatback release lever and fold seatback for-
ward.
2. Slowly flip the entire seat forward.3. When completed, return the seat to its normal posi-
tion.
4. Raise the rear seatback using the assist strap and
firmly lock seat into position.
Rear Seat Release
Folding Rear Seat
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

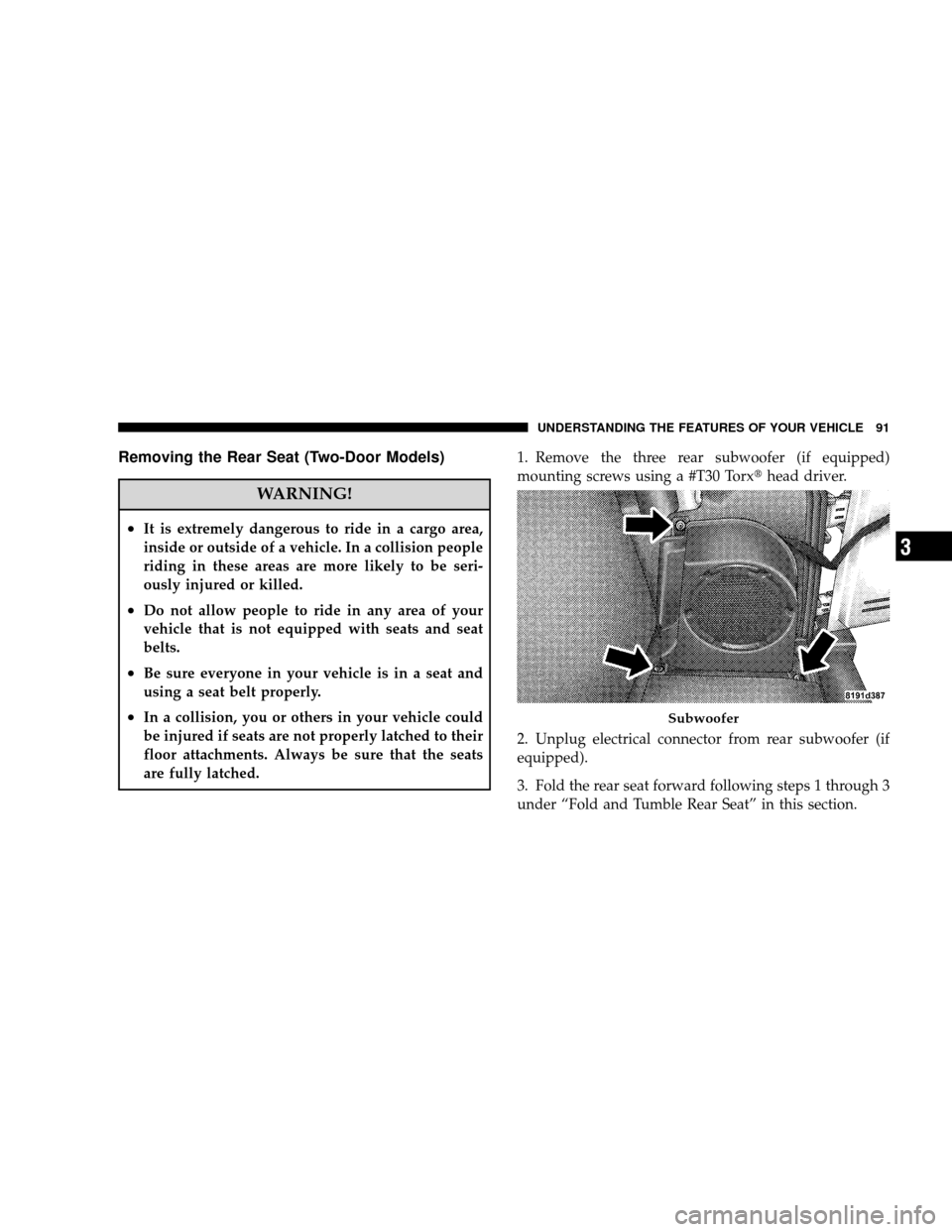

Removing the Rear Seat (Two-Door Models)
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•In a collision, you or others in your vehicle could
be injured if seats are not properly latched to their
floor attachments. Always be sure that the seats
are fully latched.1. Remove the three rear subwoofer (if equipped)
mounting screws using a #T30 Torx
head driver.
2. Unplug electrical connector from rear subwoofer (if
equipped).
3. Fold the rear seat forward following steps 1 through 3
under “Fold and Tumble Rear Seat” in this section.Subwoofer
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

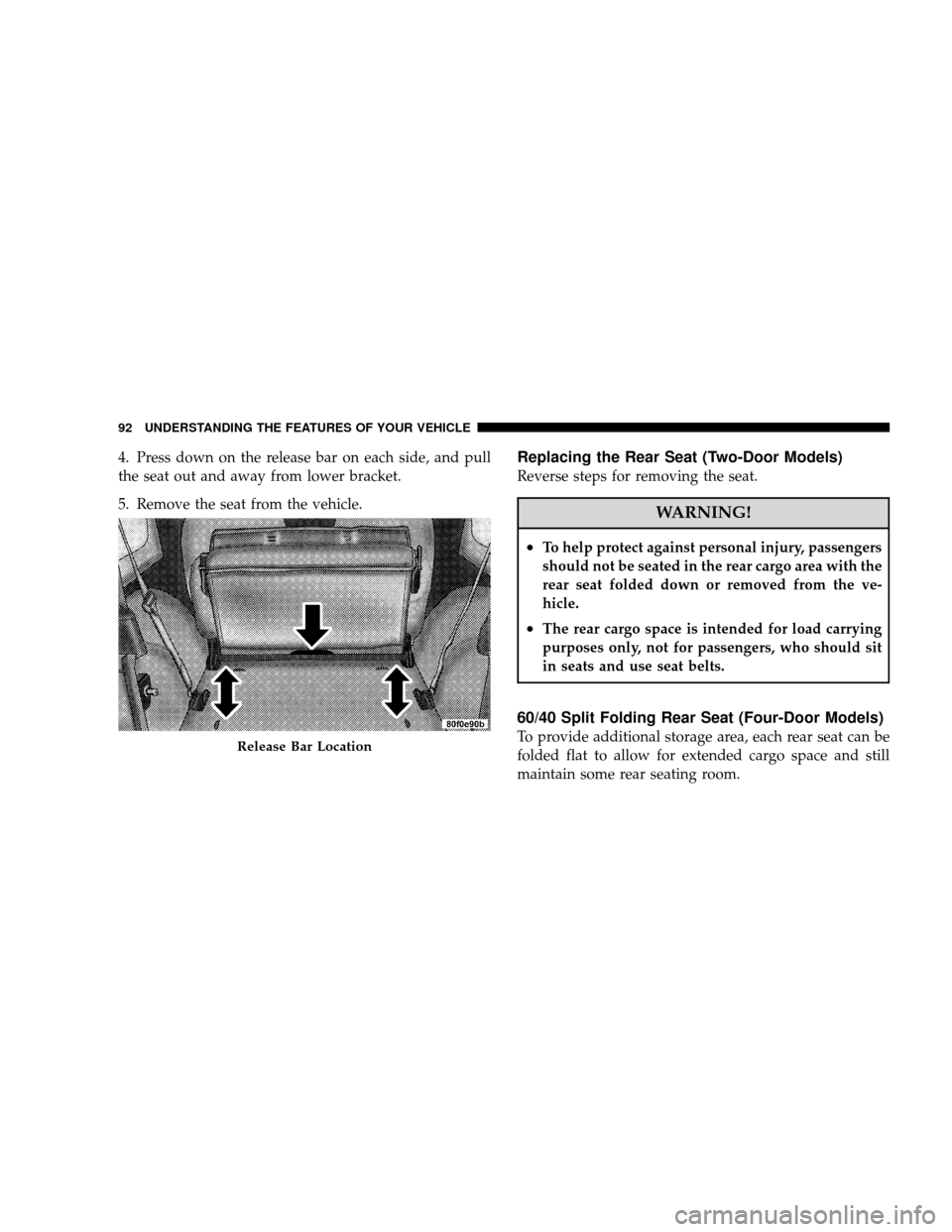

4. Press down on the release bar on each side, and pull
the seat out and away from lower bracket.
5. Remove the seat from the vehicle.Replacing the Rear Seat (Two-Door Models)
Reverse steps for removing the seat.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area with the
rear seat folded down or removed from the ve-
hicle.
•The rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
60/40 Split Folding Rear Seat (Four-Door Models)
To provide additional storage area, each rear seat can be
folded flat to allow for extended cargo space and still
maintain some rear seating room.Release Bar Location
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

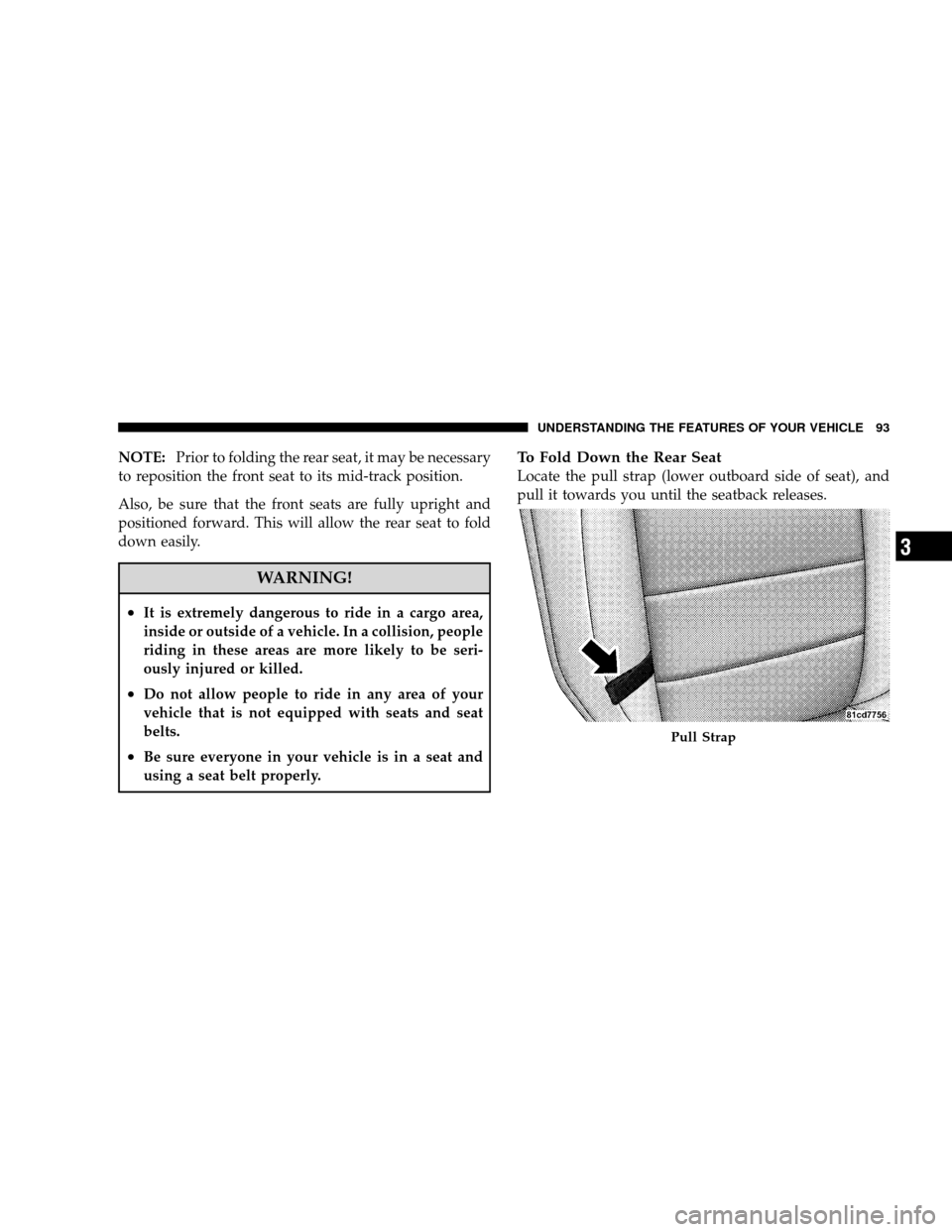

NOTE:Prior to folding the rear seat, it may be necessary
to reposition the front seat to its mid-track position.
Also, be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to fold
down easily.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
To Fold Down the Rear Seat
Locate the pull strap (lower outboard side of seat), and
pull it towards you until the seatback releases.
Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

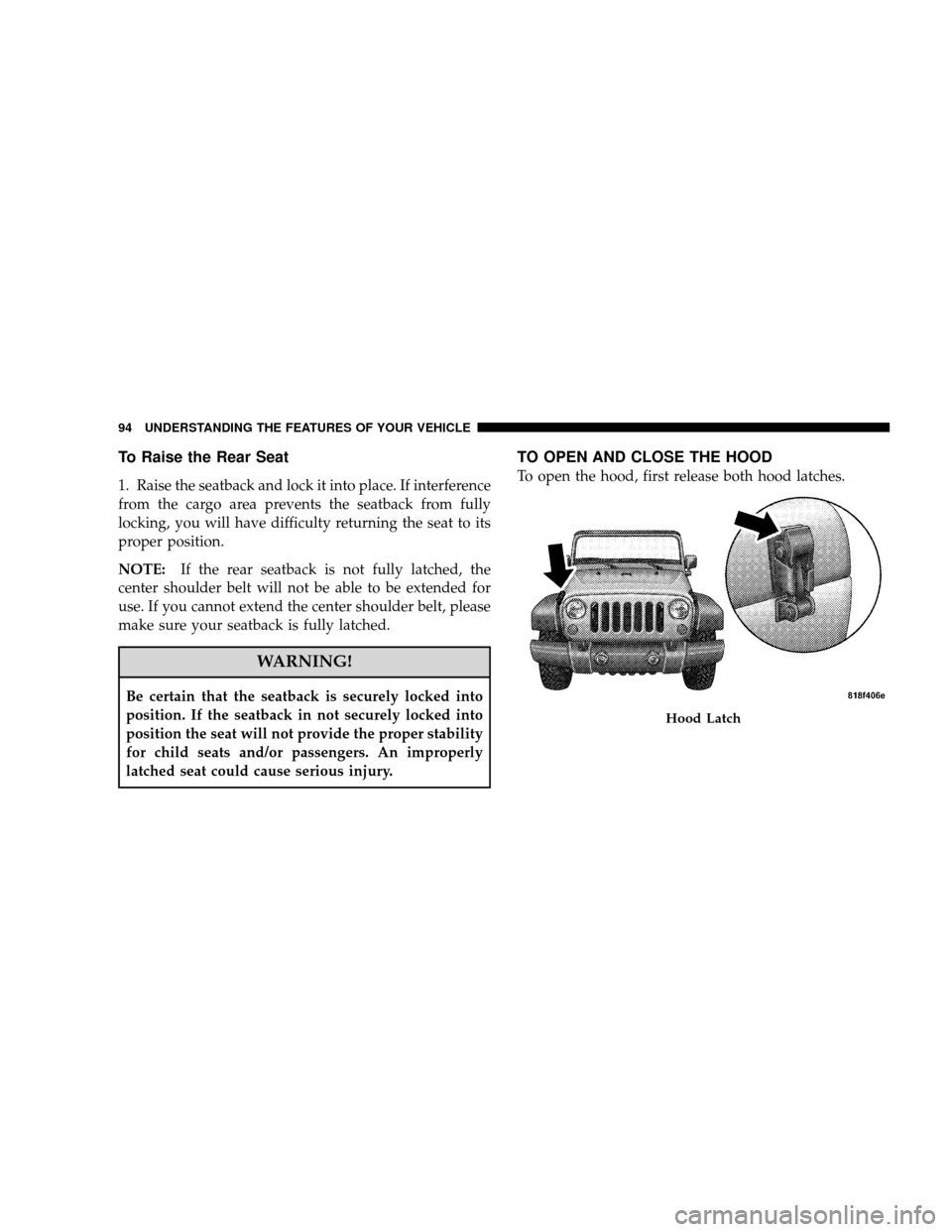

To Raise the Rear Seat
1. Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the
center shoulder belt will not be able to be extended for
use. If you cannot extend the center shoulder belt, please
make sure your seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
TO OPEN AND CLOSE THE HOOD
To open the hood, first release both hood latches.
Hood Latch
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Next, locate handle in middle of the front end of the
hood. Insert hand into gap between hood and top of
grille, and push handle to the side to raise hood. You may
have to push down slightly on the hood before pushing
the handle. Insert the support rod into the slot on the
hood panel.
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.
LIGHTS
Interior Lights
The overhead light will come on when a door is opened.
It may also be turned on by rotating the control for the
dimmer switch on the multifunction control lever fully
upward.
The overhead light will automatically turn off in about 20
minutes if a door is left open or the dimmer control is left
in the dome light position. Turn the ignition switch ON to
restore the overhead light operation.
Cargo Lamp
The courtesy and dome lights will turn on when the front
doors are opened, when the dimmer control (rotating
wheel on the right side of the switch) is rotated to the
upward detent position, or if equipped, when the UN-
LOCK button is pressed on the RKE key fob.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

Also, the rear cargo lamp may be turned on by pressing
the lens. Press the lens again to turn it off.When a door is open and the interior lights are on,
rotating the dimmer control all the way down to the OFF
detent will cause all the interior lights to turn off. This is
also known as the
Partymode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.
Cargo Lamp
Rear Cargo Lamp (Four-Door Models)
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

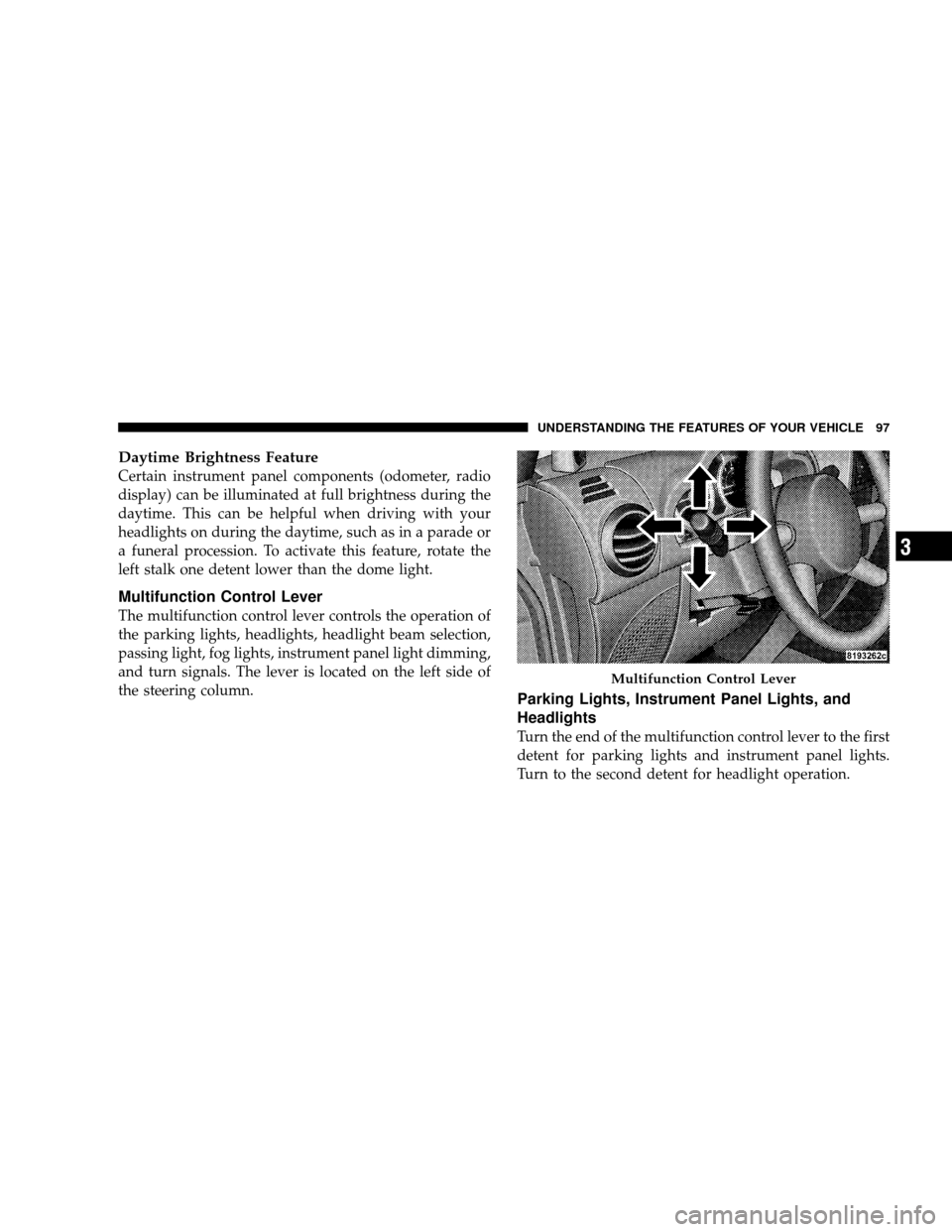

Daytime Brightness Feature
Certain instrument panel components (odometer, radio
display) can be illuminated at full brightness during the
daytime. This can be helpful when driving with your
headlights on during the daytime, such as in a parade or
a funeral procession. To activate this feature, rotate the
left stalk one detent lower than the dome light.
Multifunction Control Lever
The multifunction control lever controls the operation of
the parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming,
and turn signals. The lever is located on the left side of
the steering column.
Parking Lights, Instrument Panel Lights, and
Headlights
Turn the end of the multifunction control lever to the first
detent for parking lights and instrument panel lights.
Turn to the second detent for headlight operation.
Multifunction Control Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

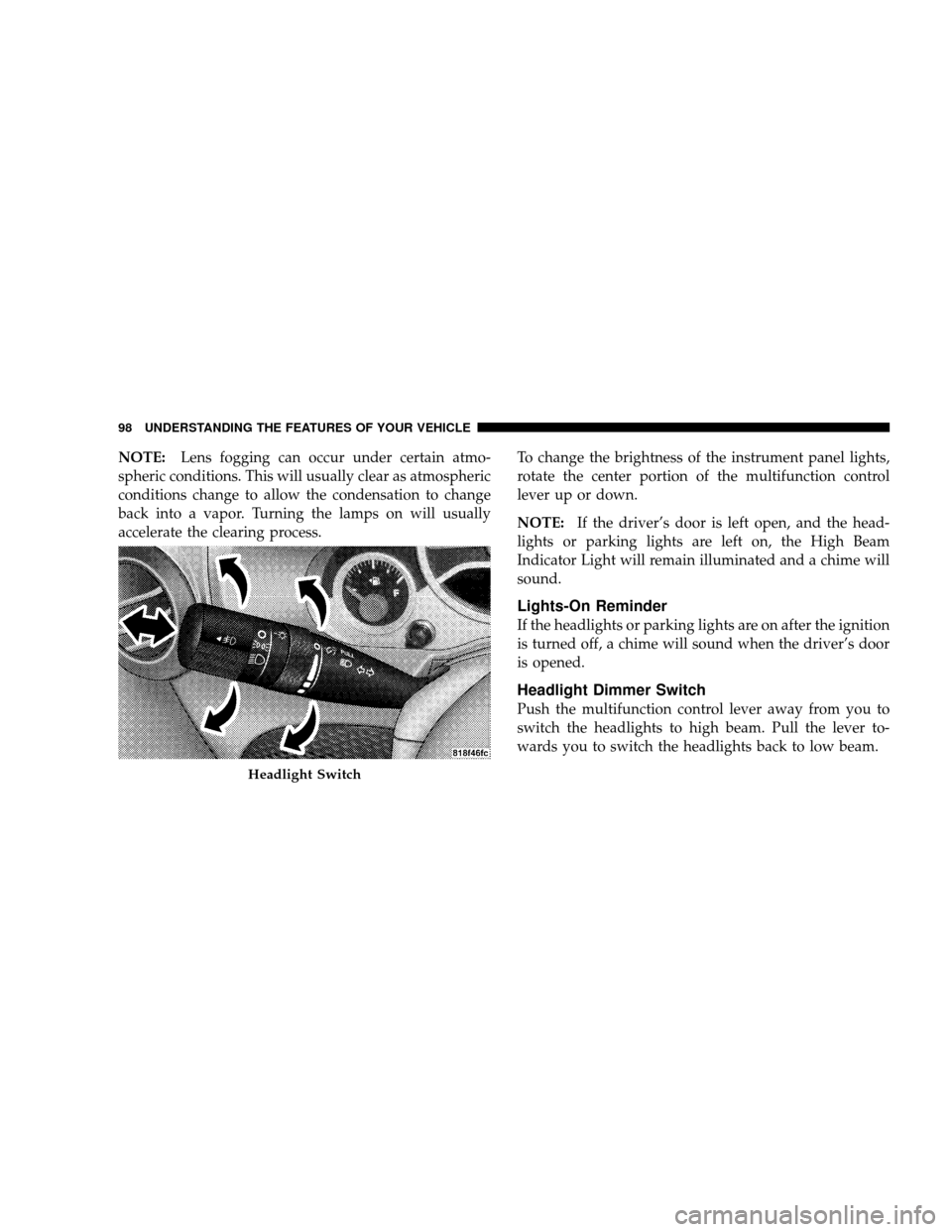

NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process. To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction control
lever up or down.
NOTE:
If the driver’s door is left open, and the head-
lights or parking lights are left on, the High Beam
Indicator Light will remain illuminated and a chime will
sound.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned off, a chime will sound when the driver’s door
is opened.
Headlight Dimmer Switch
Push the multifunction control lever away from you to
switch the headlights to high beam. Pull the lever to-
wards you to switch the headlights back to low beam.
Headlight Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

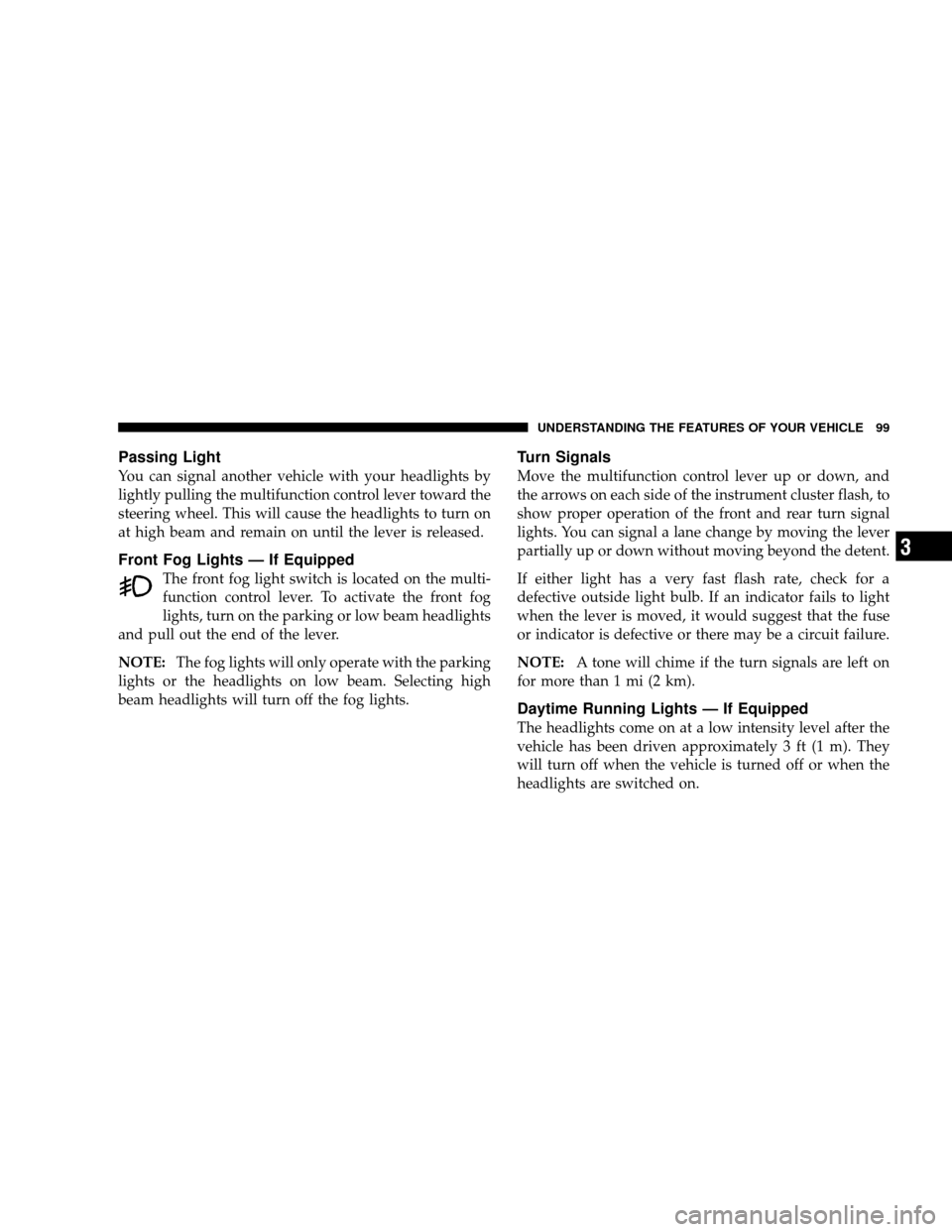

Passing Light
You can signal another vehicle with your headlights by
lightly pulling the multifunction control lever toward the
steering wheel. This will cause the headlights to turn on
at high beam and remain on until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is located on the multi-
function control lever. To activate the front fog
lights, turn on the parking or low beam headlights
and pull out the end of the lever.
NOTE: The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction control lever up or down, and
the arrows on each side of the instrument cluster flash, to
show proper operation of the front and rear turn signal
lights. You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
If either light has a very fast flash rate, check for a
defective outside light bulb. If an indicator fails to light
when the lever is moved, it would suggest that the fuse
or indicator is defective or there may be a circuit failure.
NOTE: A tone will chime if the turn signals are left on
for more than 1 mi (2 km).
Daytime Running Lights — If Equipped
The headlights come on at a low intensity level after the
vehicle has been driven approximately 3 ft (1 m). They
will turn off when the vehicle is turned off or when the
headlights are switched on.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3
