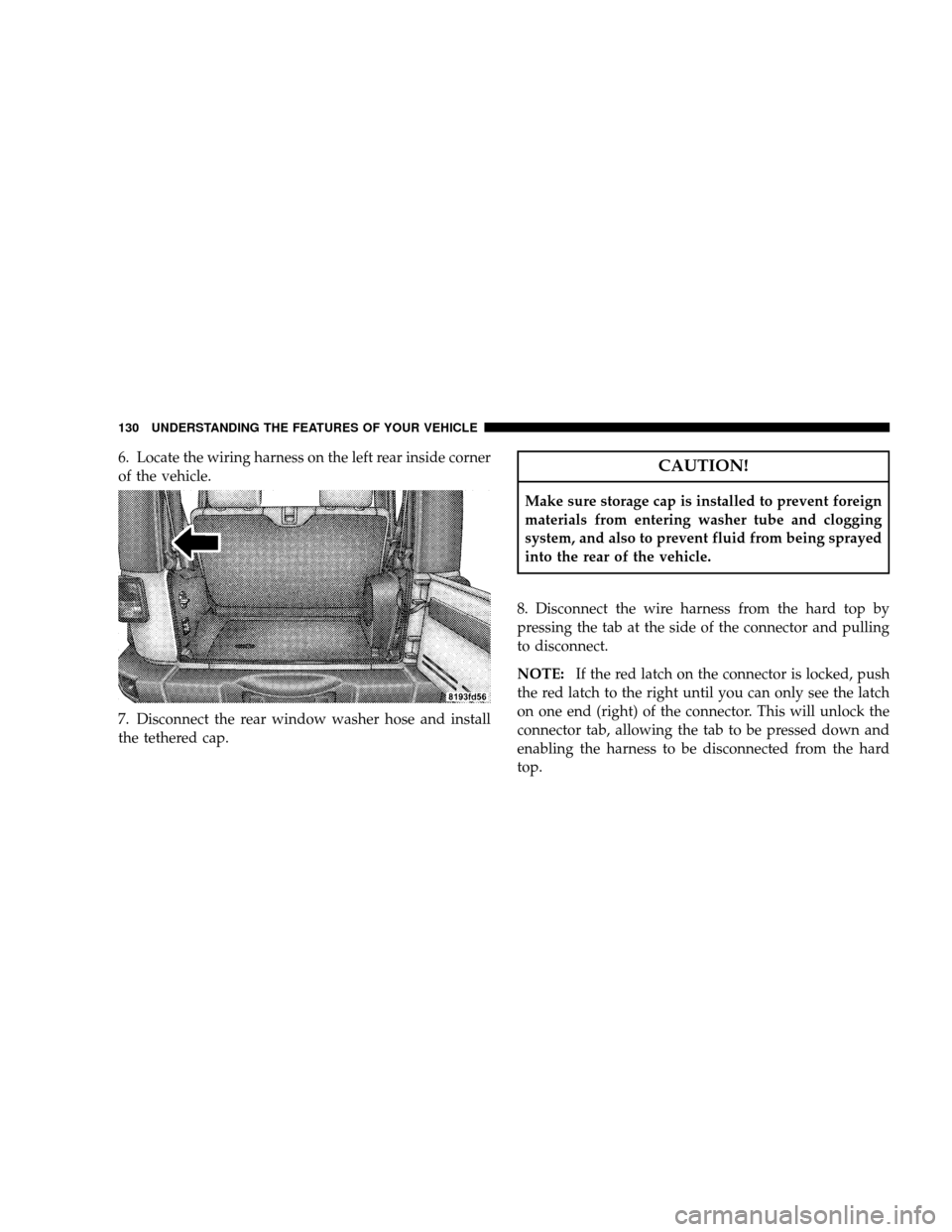

6. Locate the wiring harness on the left rear inside corner
of the vehicle.
7. Disconnect the rear window washer hose and install
the tethered cap.CAUTION!
Make sure storage cap is installed to prevent foreign
materials from entering washer tube and clogging
system, and also to prevent fluid from being sprayed
into the rear of the vehicle.
8. Disconnect the wire harness from the hard top by
pressing the tab at the side of the connector and pulling
to disconnect.
NOTE: If the red latch on the connector is locked, push
the red latch to the right until you can only see the latch
on one end (right) of the connector. This will unlock the
connector tab, allowing the tab to be pressed down and
enabling the harness to be disconnected from the hard
top.
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

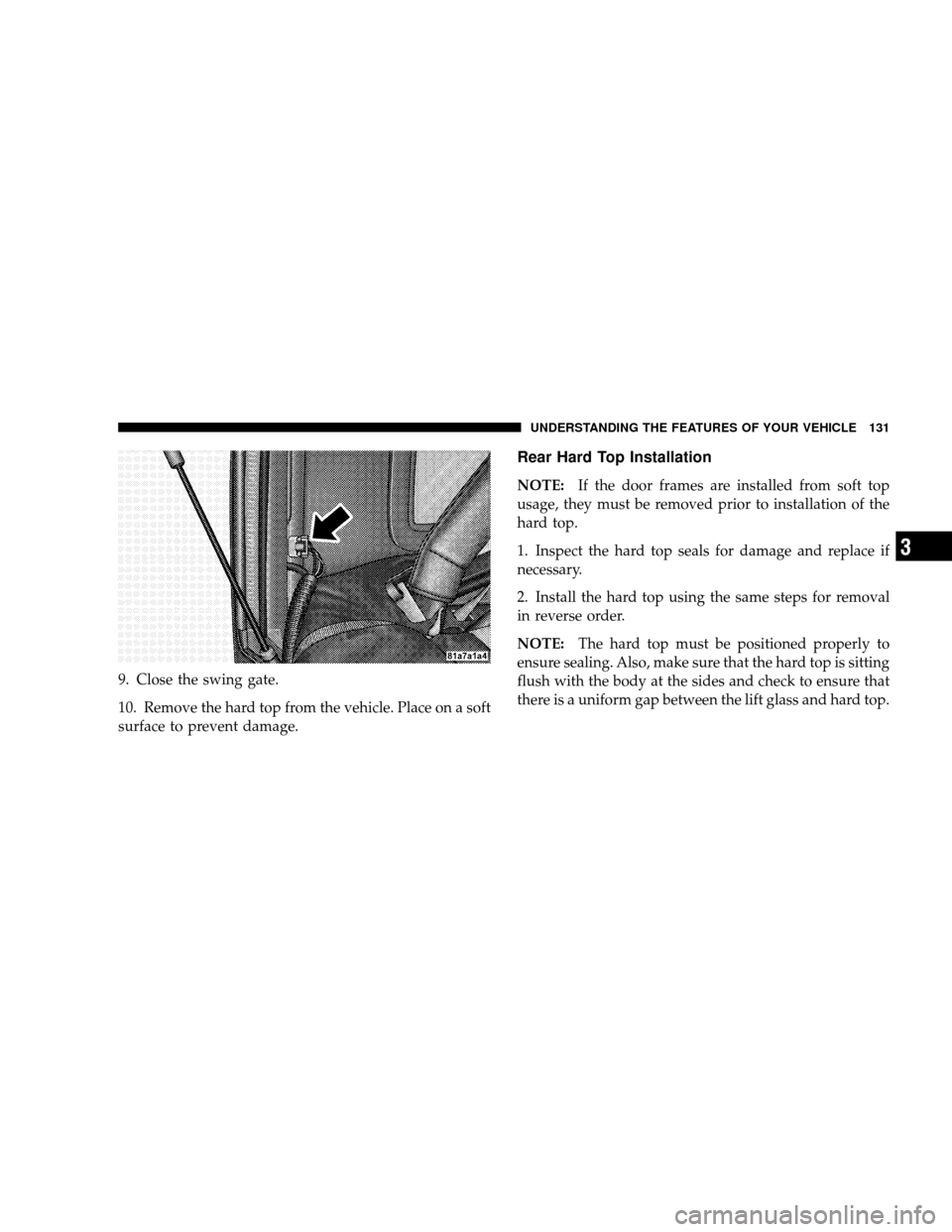

9. Close the swing gate.
10. Remove the hard top from the vehicle. Place on a soft
surface to prevent damage.
Rear Hard Top Installation
NOTE:If the door frames are installed from soft top
usage, they must be removed prior to installation of the
hard top.
1. Inspect the hard top seals for damage and replace if
necessary.
2. Install the hard top using the same steps for removal
in reverse order.
NOTE: The hard top must be positioned properly to
ensure sealing. Also, make sure that the hard top is sitting
flush with the body at the sides and check to ensure that
there is a uniform gap between the lift glass and hard top.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

DOOR FRAME
WARNING!
Do not drive your vehicle on pavement with the door
frame(s) removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.

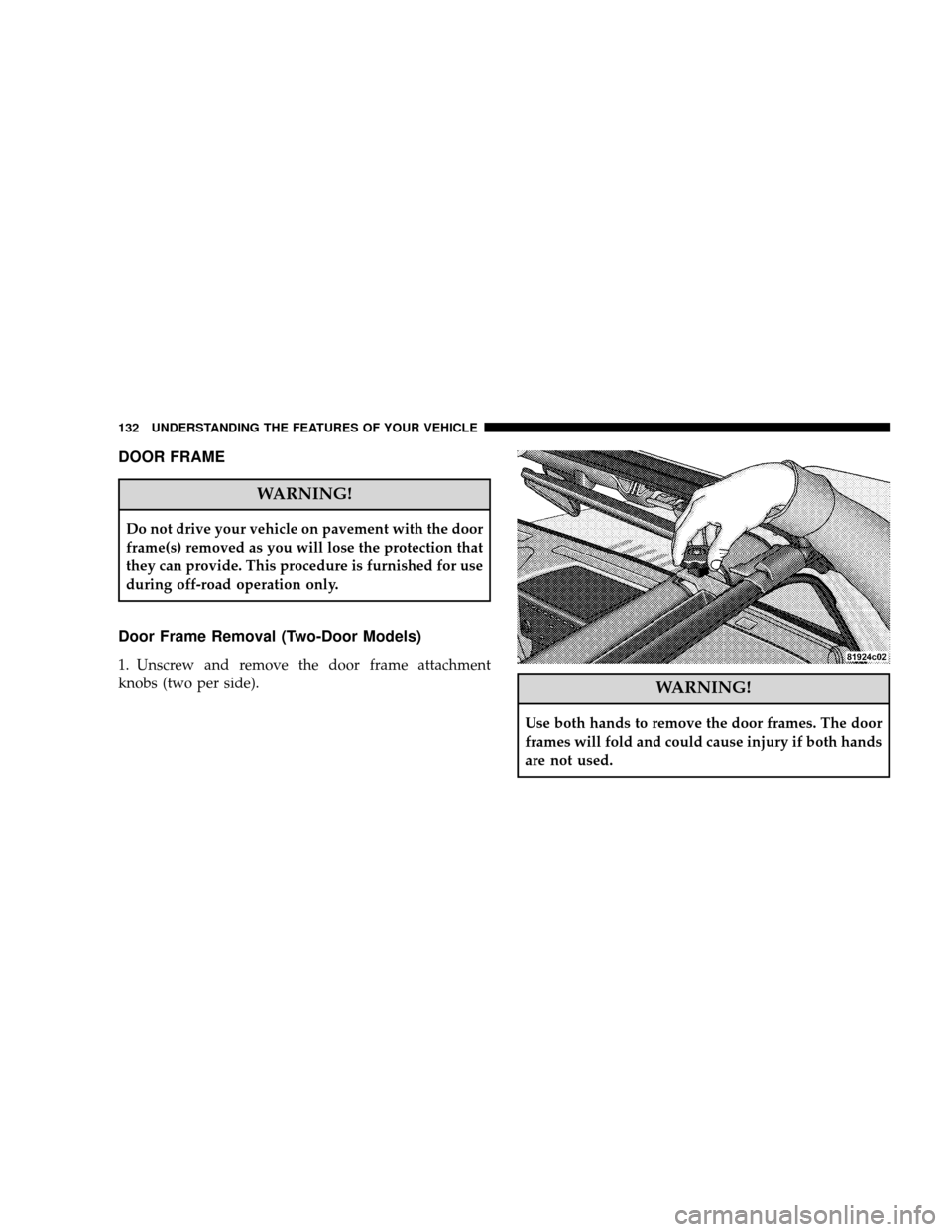

Door Frame Removal (Two-Door Models)
1. Unscrew and remove the door frame attachment
knobs (two per side).
WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

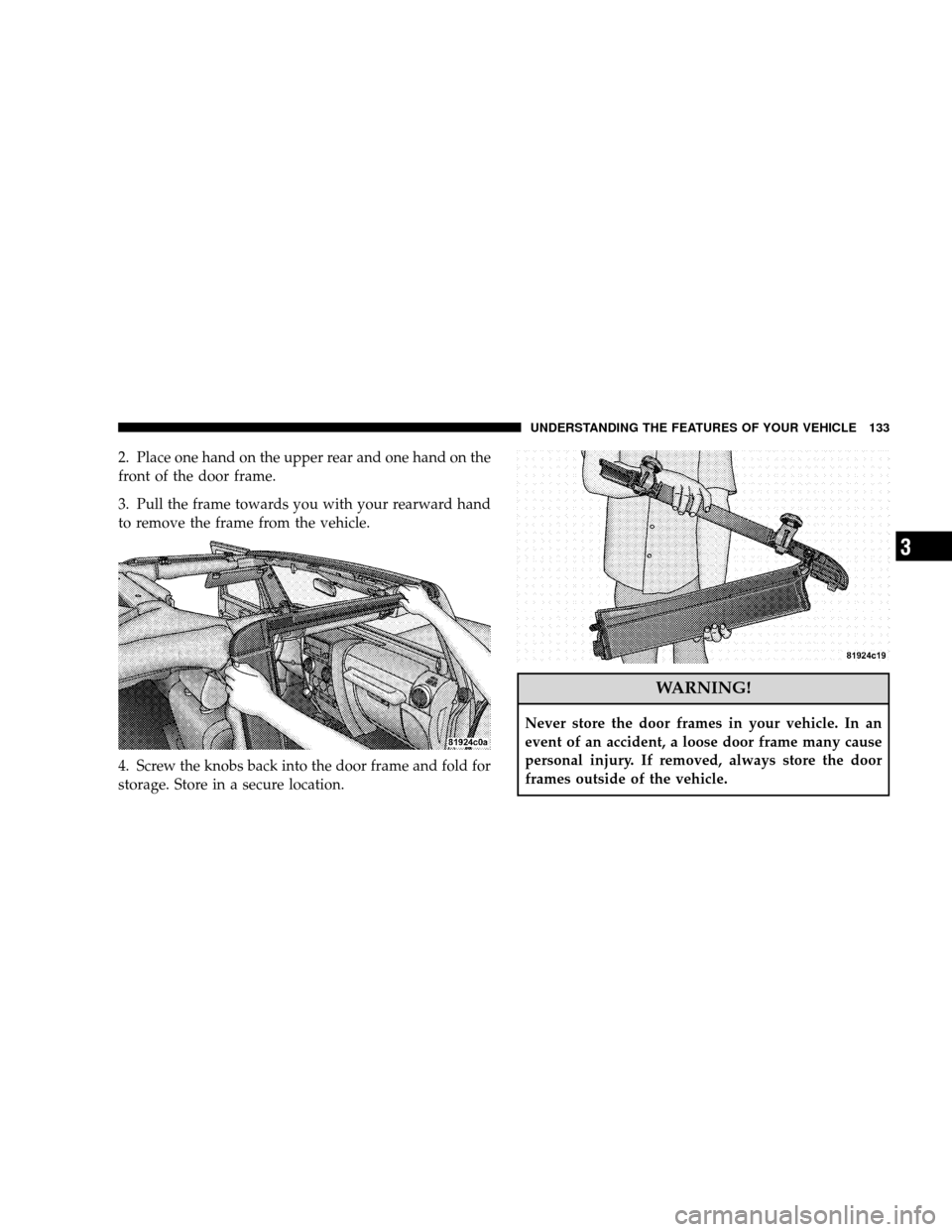

2. Place one hand on the upper rear and one hand on the
front of the door frame.
3. Pull the frame towards you with your rearward hand
to remove the frame from the vehicle.
4. Screw the knobs back into the door frame and fold for
storage. Store in a secure location.
WARNING!
Never store the door frames in your vehicle. In an
event of an accident, a loose door frame many cause
personal injury. If removed, always store the door
frames outside of the vehicle.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

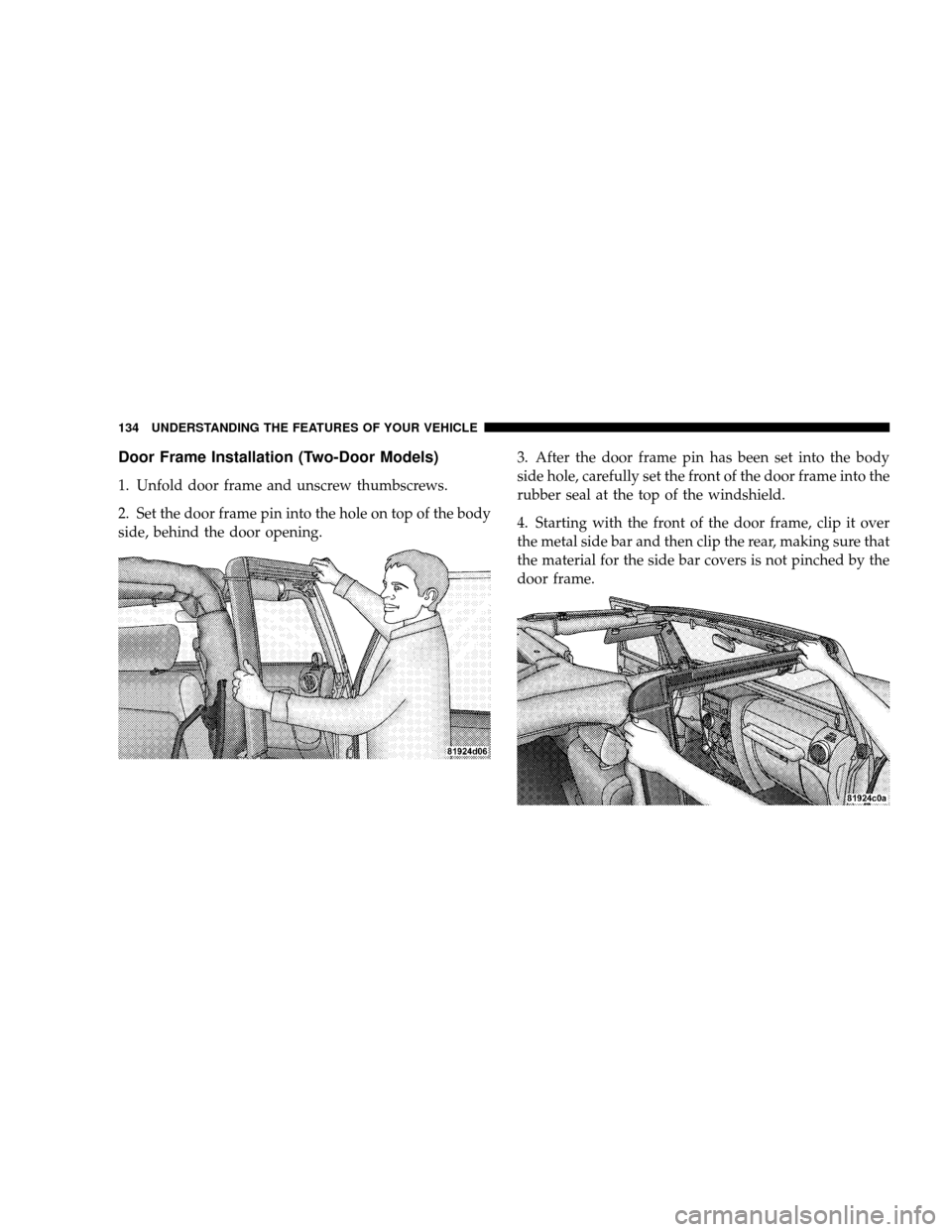

Door Frame Installation (Two-Door Models)
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body
side, behind the door opening.3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into the
rubber seal at the top of the windshield.
4. Starting with the front of the door frame, clip it over
the metal side bar and then clip the rear, making sure that
the material for the side bar covers is not pinched by the
door frame.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

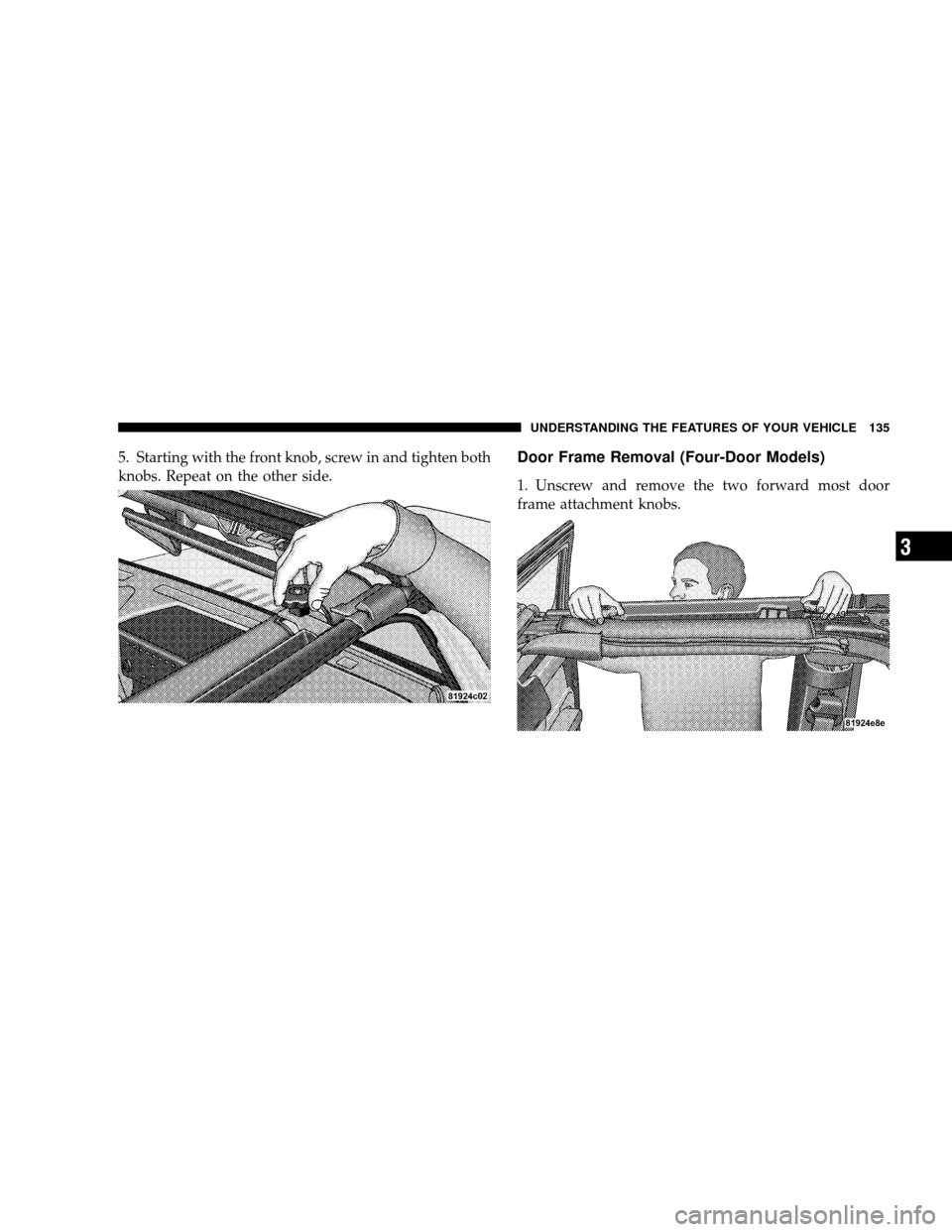

5. Starting with the front knob, screw in and tighten both
knobs. Repeat on the other side.Door Frame Removal (Four-Door Models)
1. Unscrew and remove the two forward most door
frame attachment knobs.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.

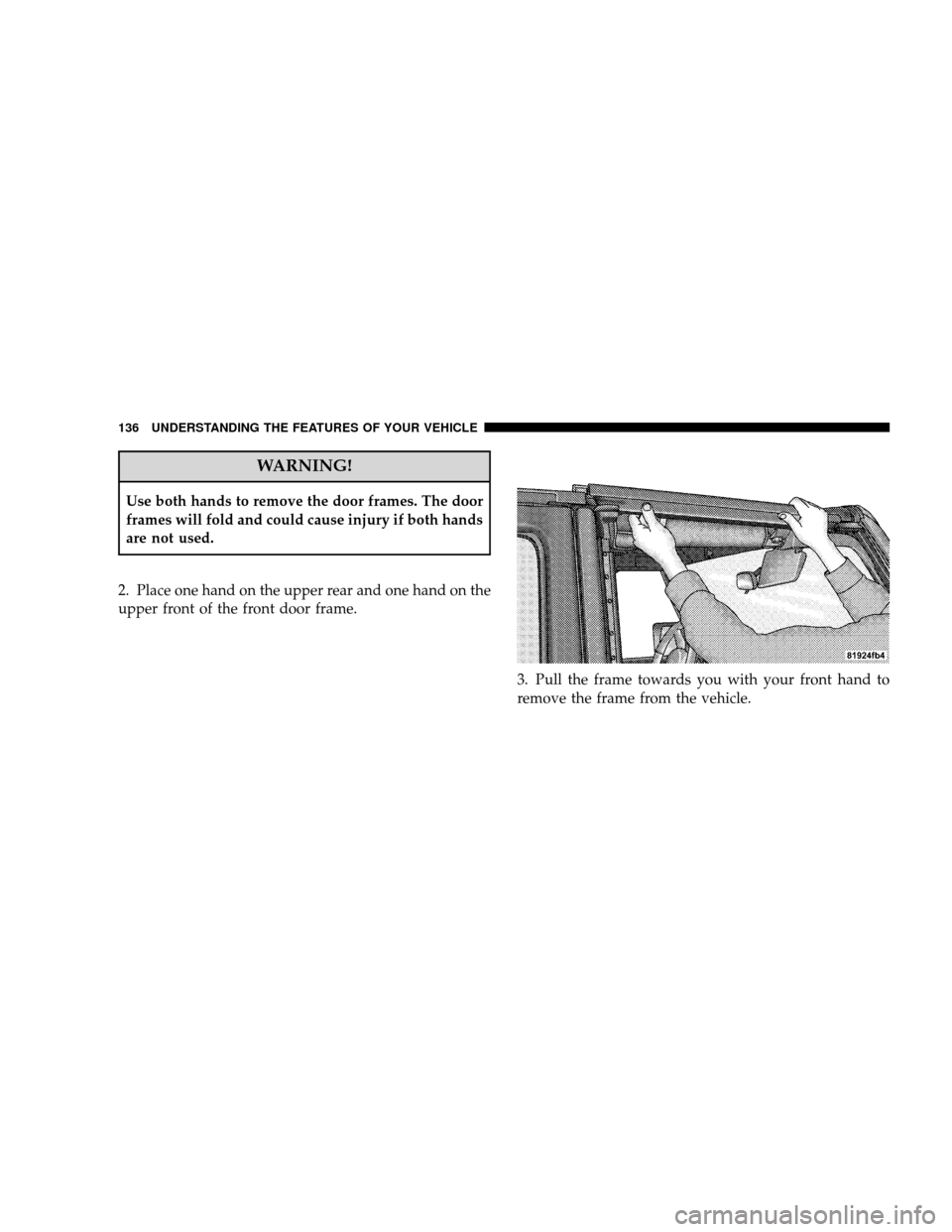

2. Place one hand on the upper rear and one hand on the
upper front of the front door frame.
3. Pull the frame towards you with your front hand to
remove the frame from the vehicle.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

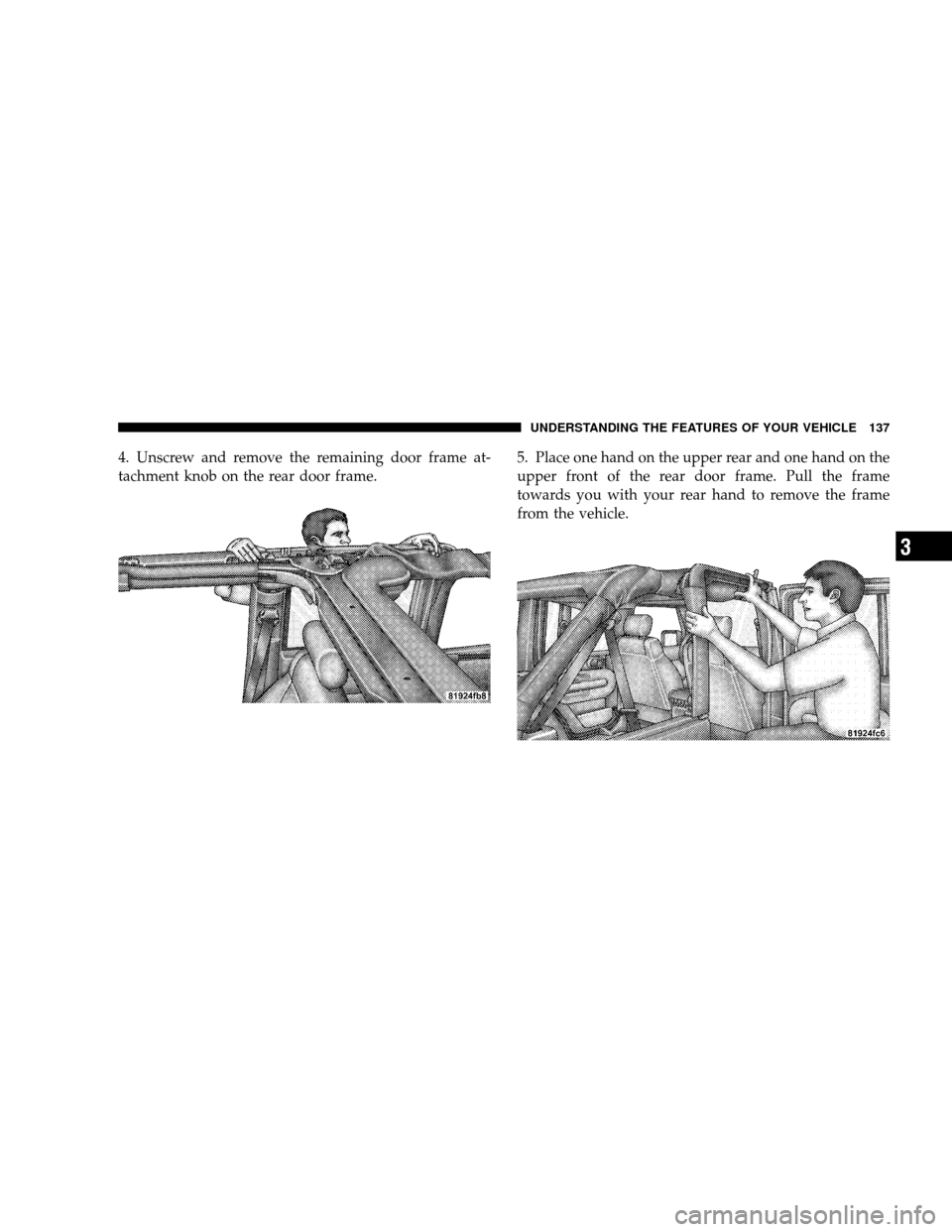

4. Unscrew and remove the remaining door frame at-
tachment knob on the rear door frame.5. Place one hand on the upper rear and one hand on the
upper front of the rear door frame. Pull the frame
towards you with your rear hand to remove the frame
from the vehicle.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

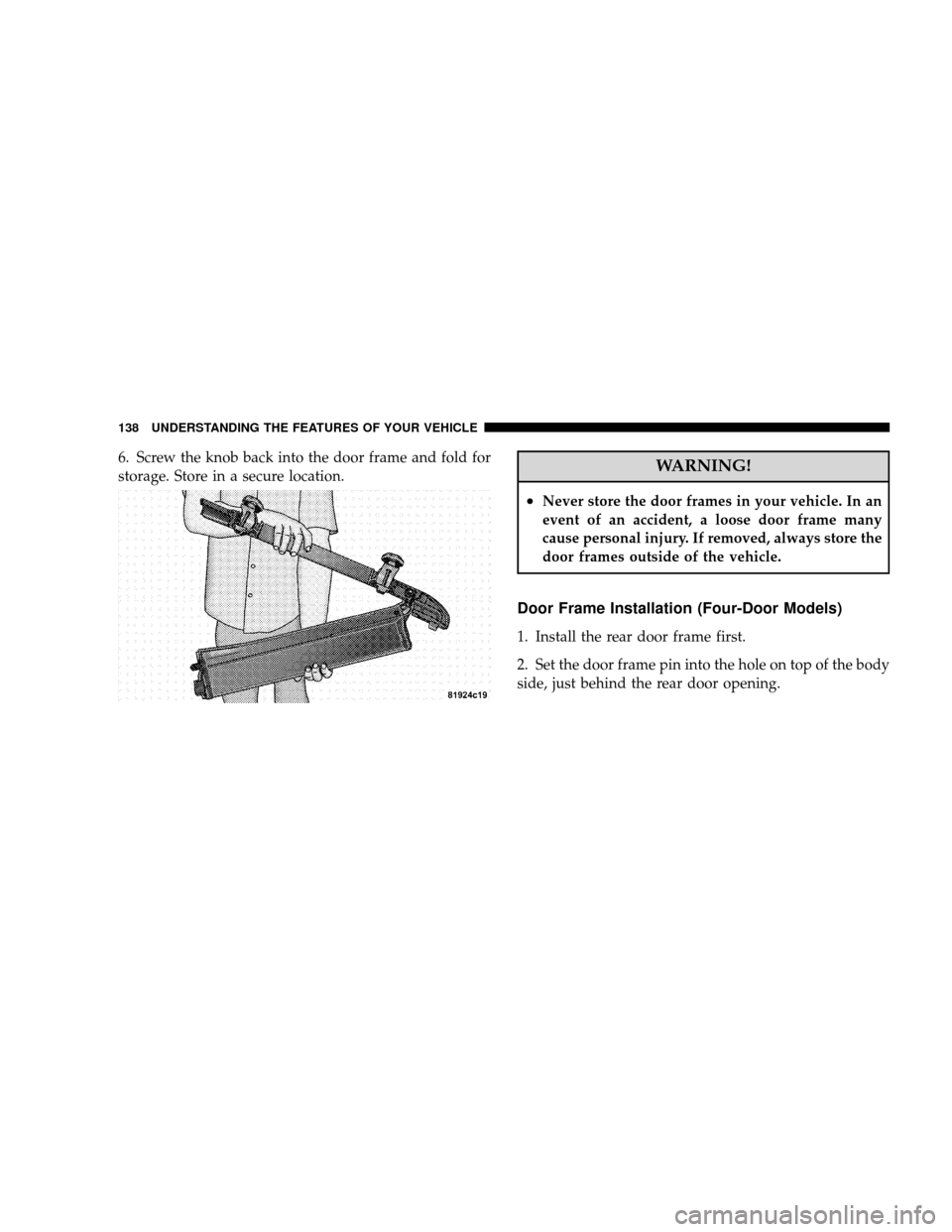

6. Screw the knob back into the door frame and fold for
storage. Store in a secure location.WARNING!
•Never store the door frames in your vehicle. In an
event of an accident, a loose door frame many
cause personal injury. If removed, always store the
door frames outside of the vehicle.
Door Frame Installation (Four-Door Models)
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the body
side, just behind the rear door opening.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

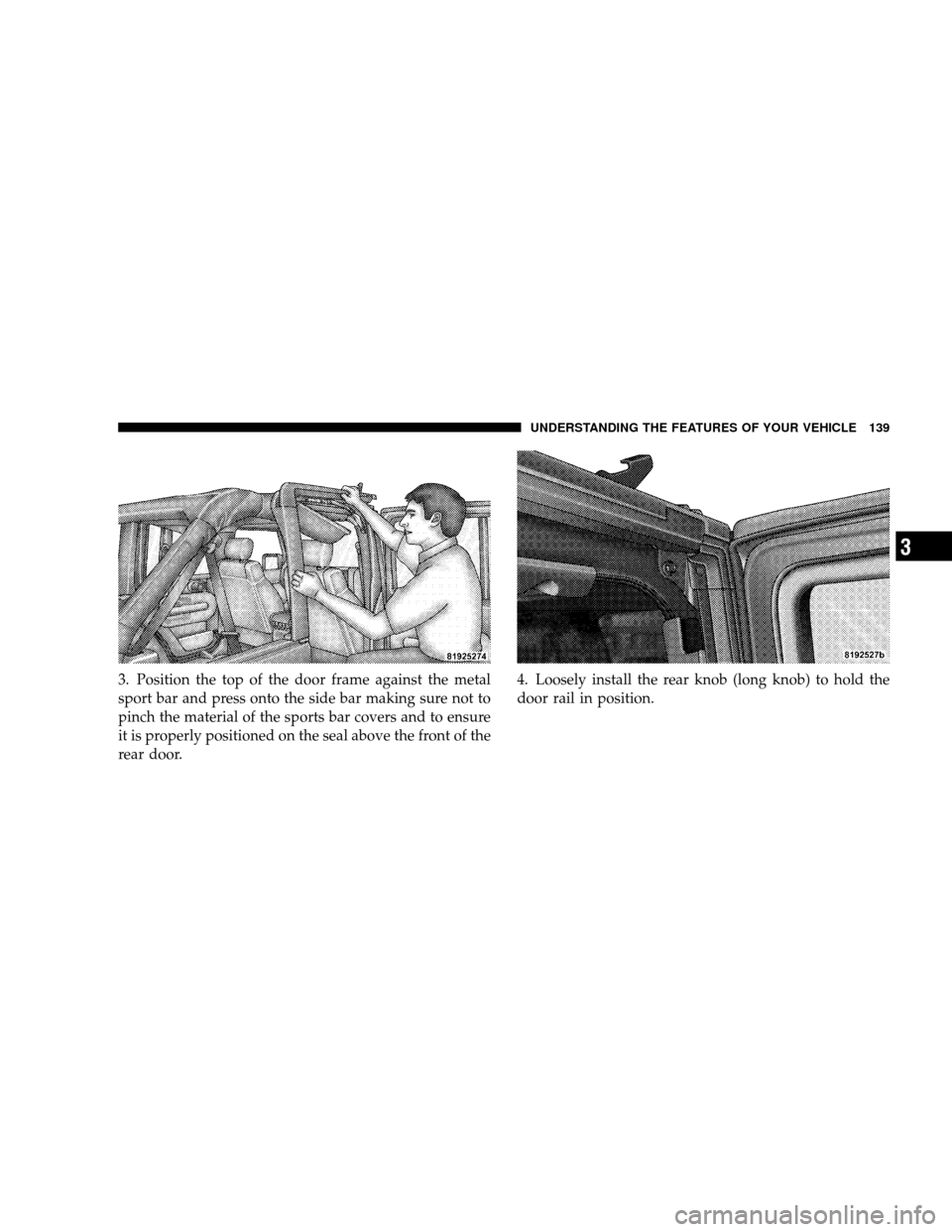

3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not to
pinch the material of the sports bar covers and to ensure
it is properly positioned on the seal above the front of the
rear door.4. Loosely install the rear knob (long knob) to hold the
door rail in position.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
