JEEP WRANGLER 2009 JK / 3.G Owners Manual

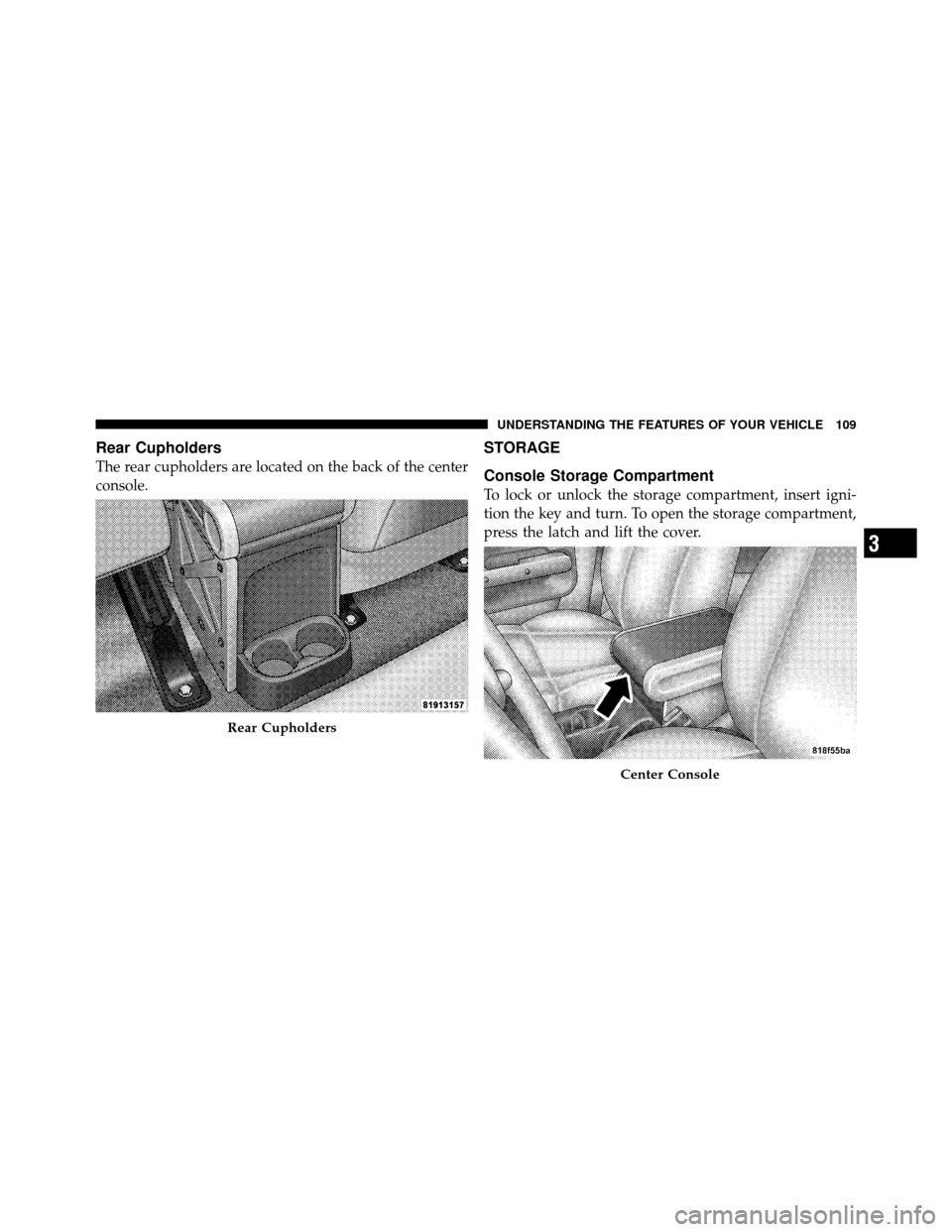

Rear Cupholders
The rear cupholders are located on the back of the center
console.
STORAGE
Console Storage Compartment
To lock or unlock the storage compartment, insert igni-
tion the key and turn. To open the storage compartment,
press the latch and lift the cover.
Rear Cupholders
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

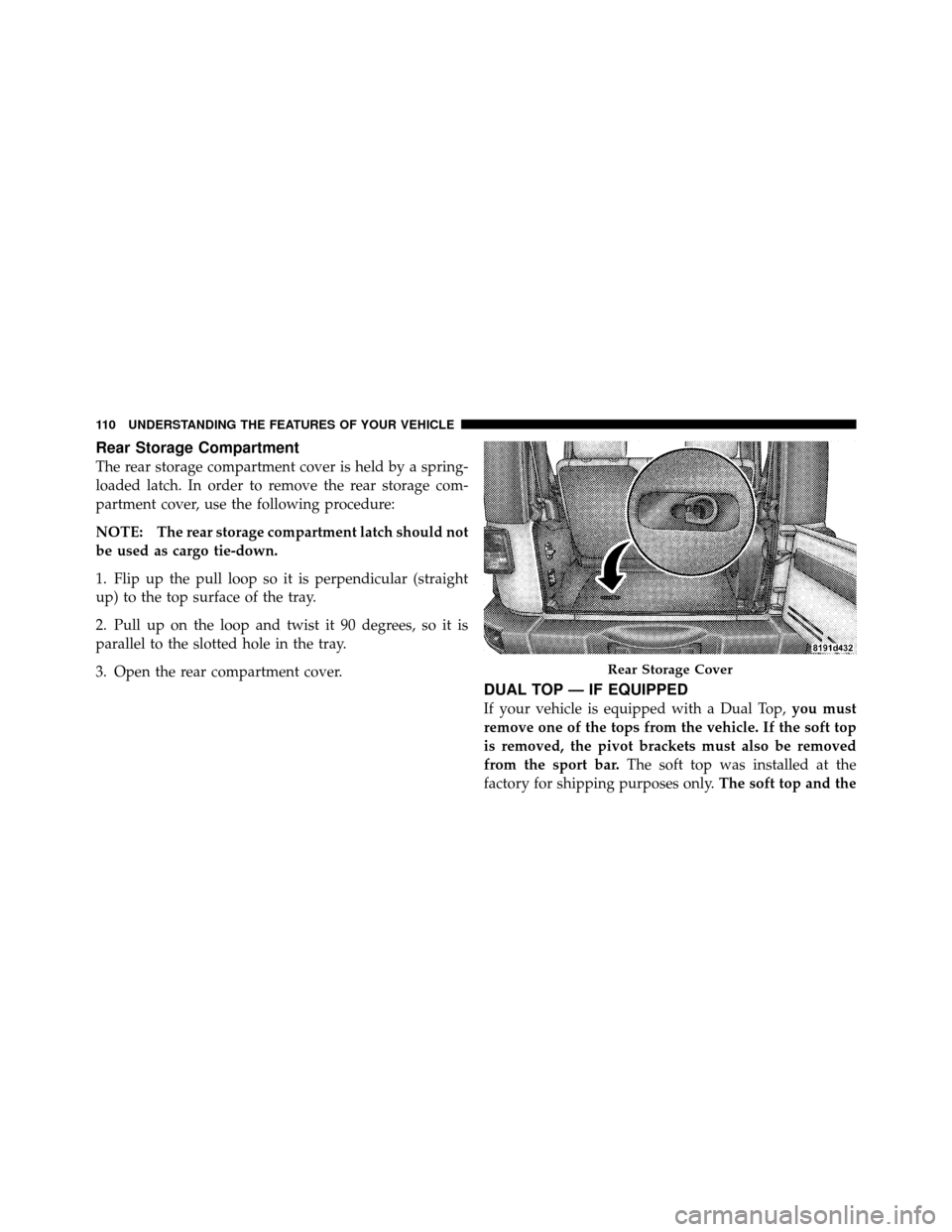

Rear Storage Compartment
The rear storage compartment cover is held by a spring-
loaded latch. In order to remove the rear storage com-
partment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.
1. Flip up the pull loop so it is perpendicular (straight
up) to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is
parallel to the slotted hole in the tray.
3. Open the rear compartment cover.
DUAL TOP — IF EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar. The soft top was installed at the
factory for shipping purposes only. The soft top and the
Rear Storage Cover
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

hard top are to be used independently.Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing the Soft Top
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunrider secure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
later in this section.

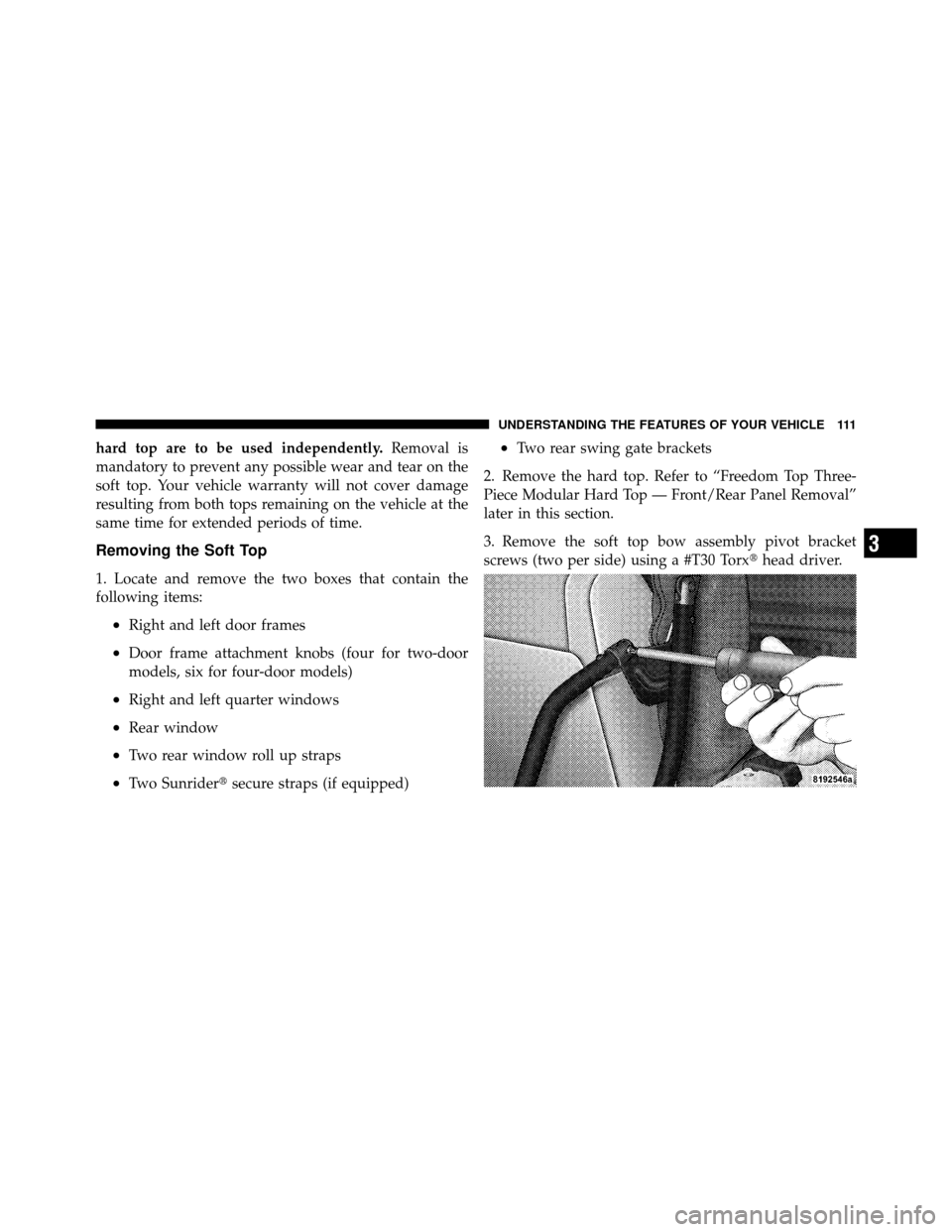

3. Remove the soft top bow assembly pivot bracket
screws (two per side) using a #T30 Torx head driver.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

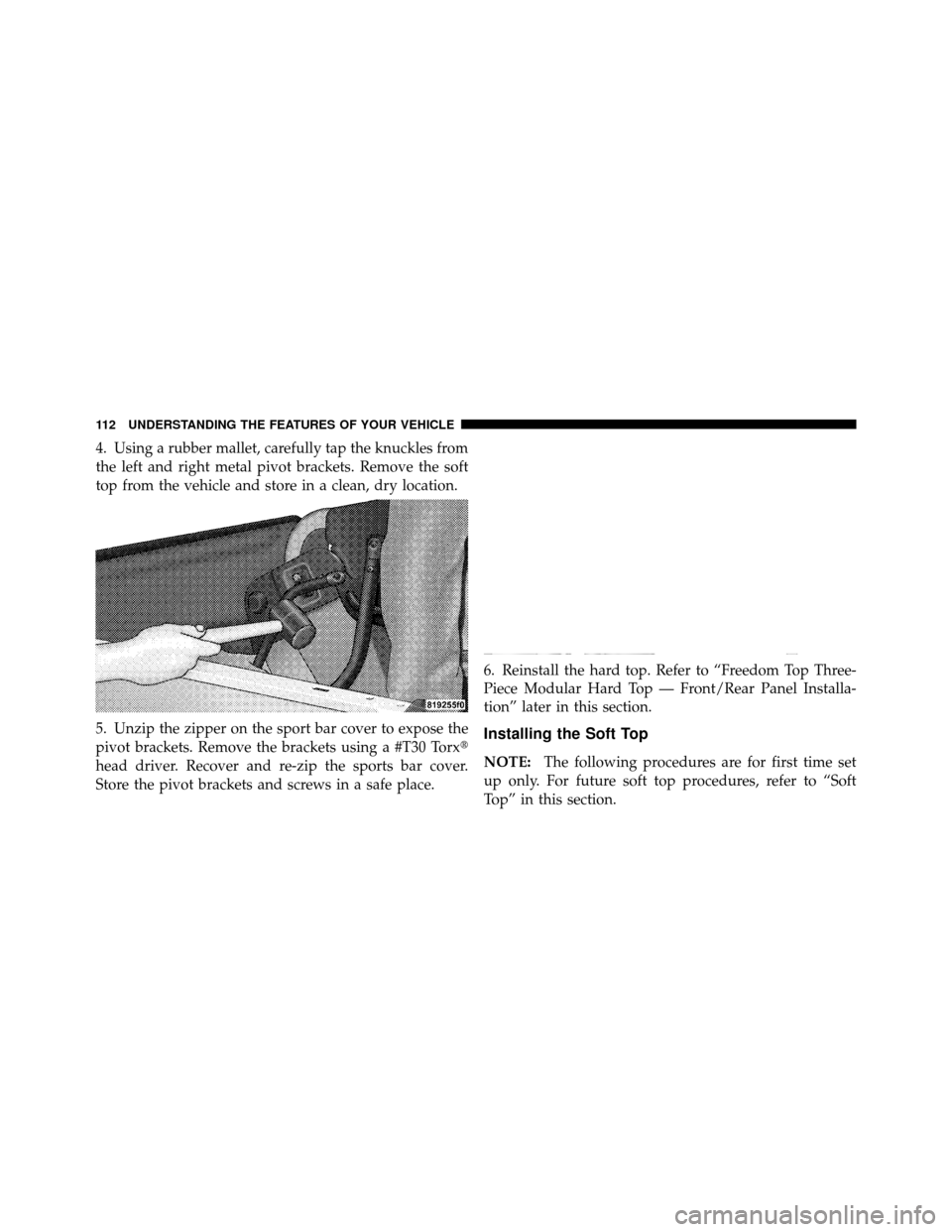

4. Using a rubber mallet, carefully tap the knuckles from
the left and right metal pivot brackets. Remove the soft
top from the vehicle and store in a clean, dry location.
5. Unzip the zipper on the sport bar cover to expose the
pivot brackets. Remove the brackets using a #T30 Torx
head driver. Recover and re-zip the sports bar cover.
Store the pivot brackets and screws in a safe place.6. Reinstall the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Installa-
tion” later in this section.
Installing the Soft Top
NOTE:
The following procedures are for first time set
up only. For future soft top procedures, refer to “Soft
Top” in this section.
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

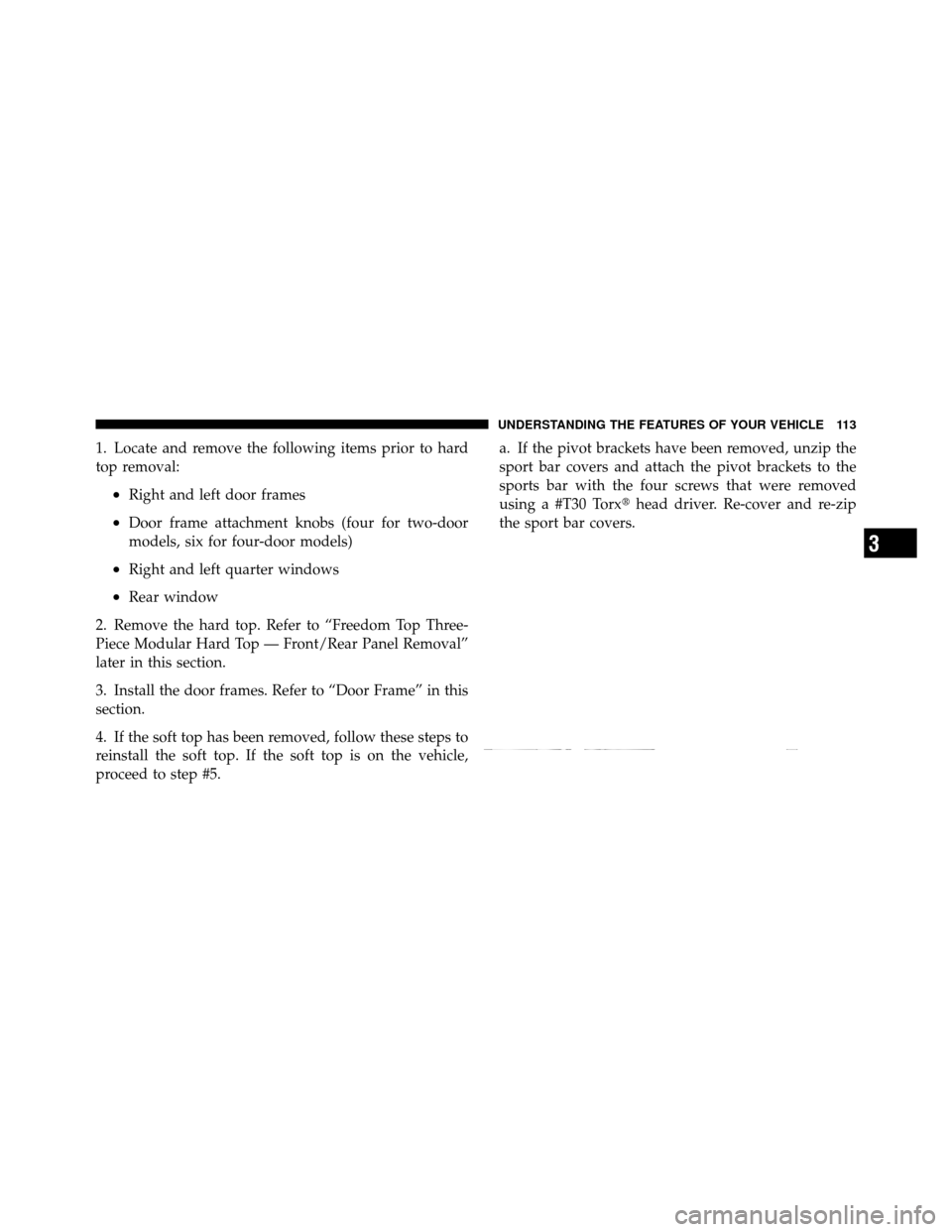

1. Locate and remove the following items prior to hard
top removal:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
later in this section.
3. Install the door frames. Refer to “Door Frame” in this
section.
4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5. a. If the pivot brackets have been removed, unzip the
sport bar covers and attach the pivot brackets to the
sports bar with the four screws that were removed
using a #T30 Torx
head driver. Re-cover and re-zip
the sport bar covers.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

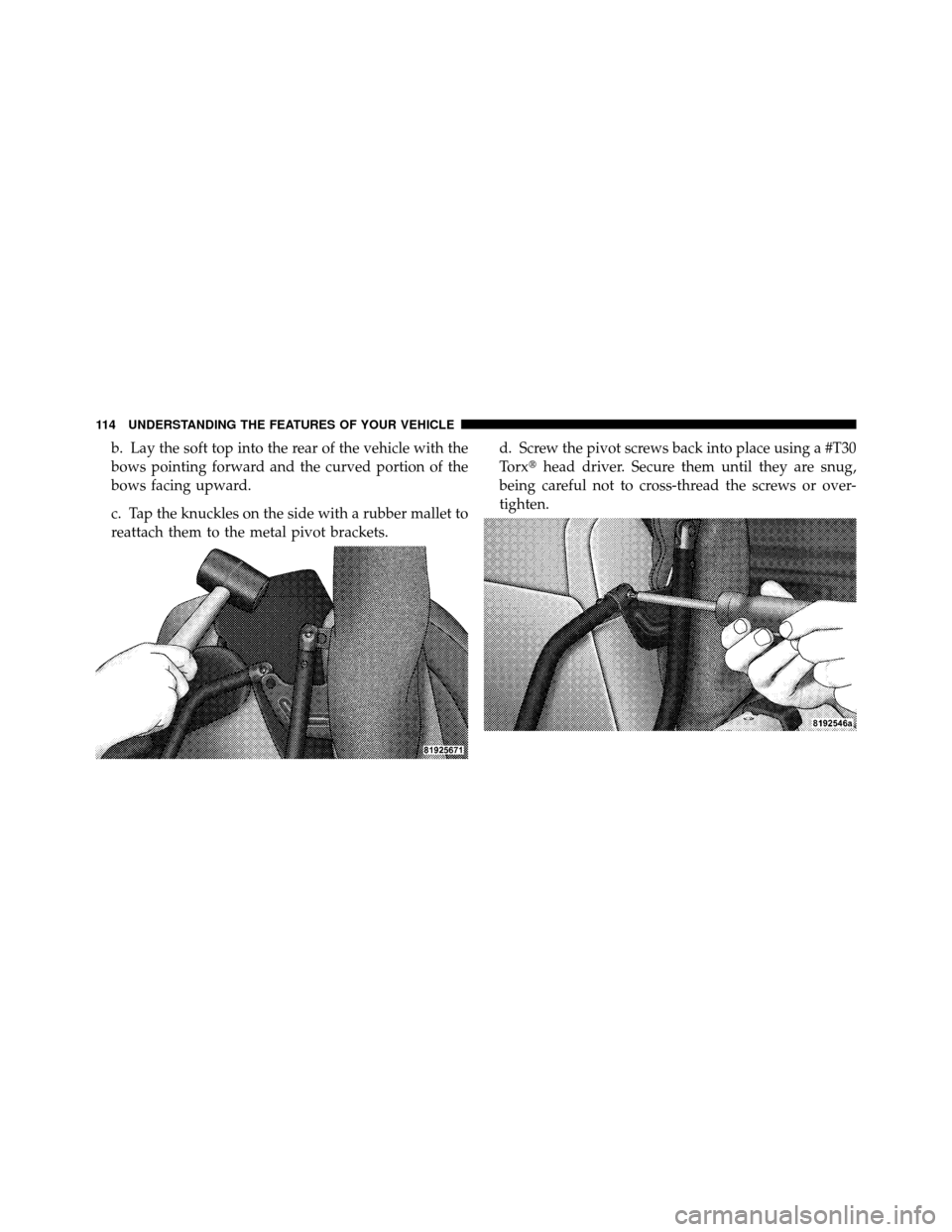

b. Lay the soft top into the rear of the vehicle with the
bows pointing forward and the curved portion of the
bows facing upward.
c. Tap the knuckles on the side with a rubber mallet to
reattach them to the metal pivot brackets.d. Screw the pivot screws back into place using a #T30
Torx
head driver. Secure them until they are snug,
being careful not to cross-thread the screws or over-
tighten.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

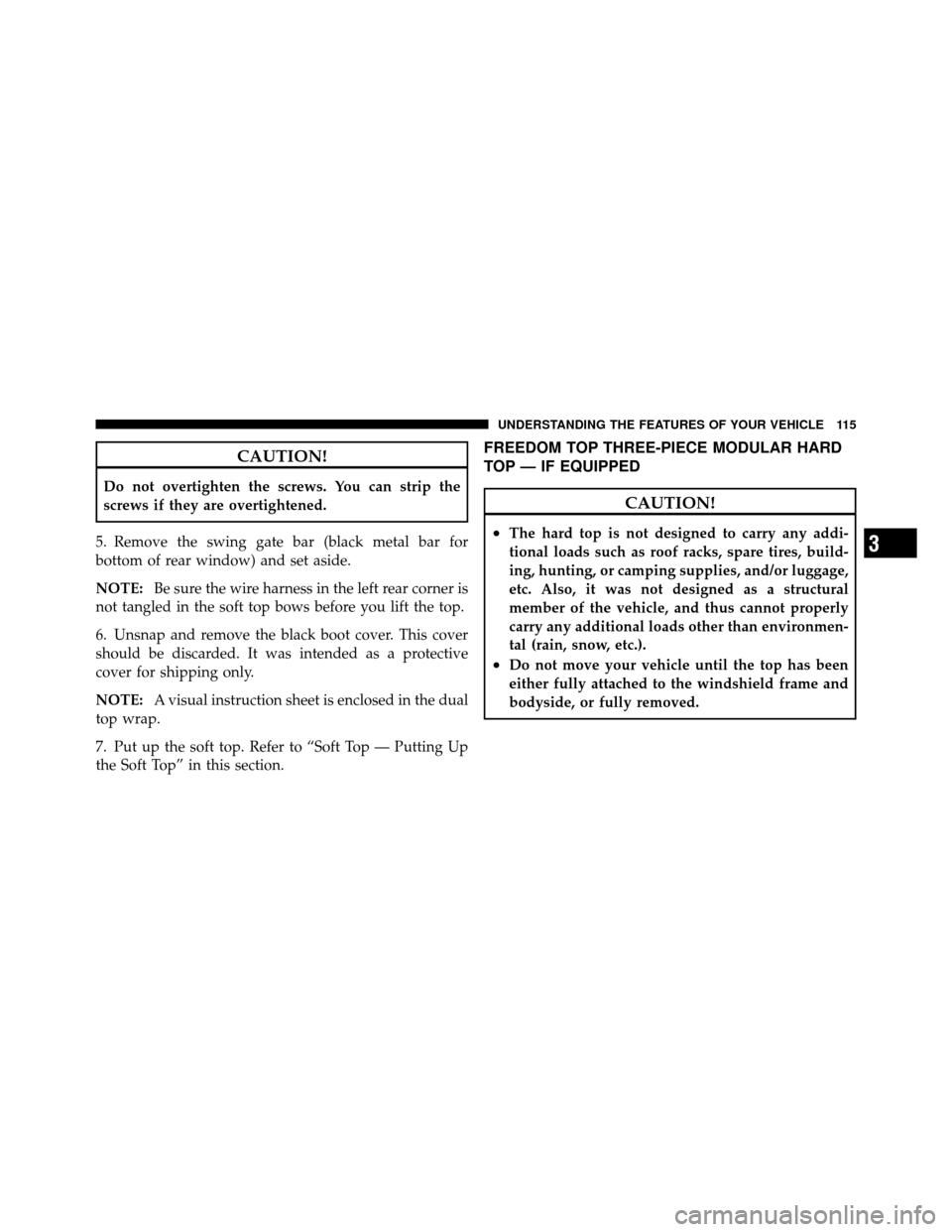

CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
5. Remove the swing gate bar (black metal bar for
bottom of rear window) and set aside.
NOTE: Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE: A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
the Soft Top” in this section.
FREEDOM TOP THREE-PIECE MODULAR HARD
TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural
member of the vehicle, and thus cannot properly
carry any additional loads other than environmen-
tal (rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

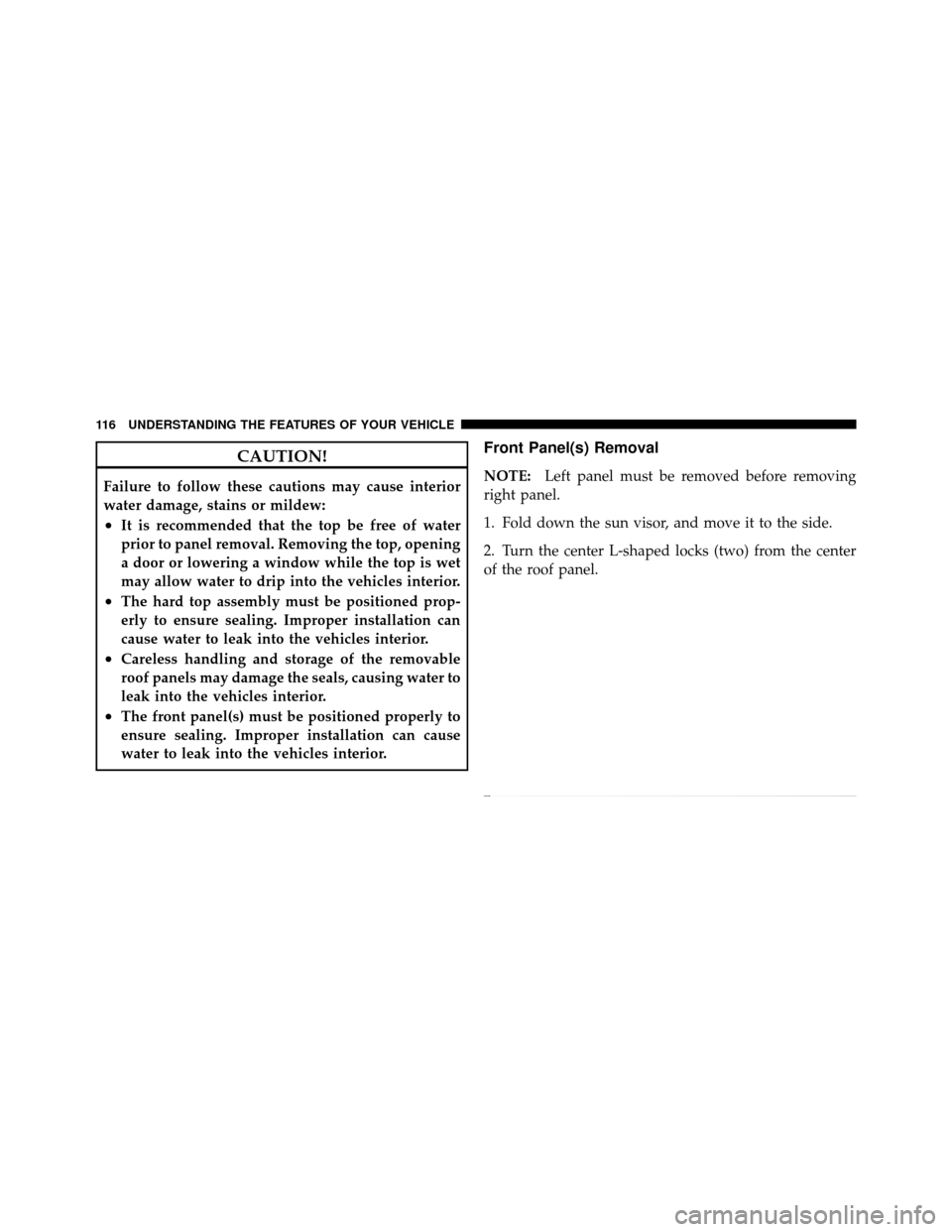

CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
•The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
Front Panel(s) Removal
NOTE:Left panel must be removed before removing
right panel.
1. Fold down the sun visor, and move it to the side.
2. Turn the center L-shaped locks (two) from the center
of the roof panel.
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

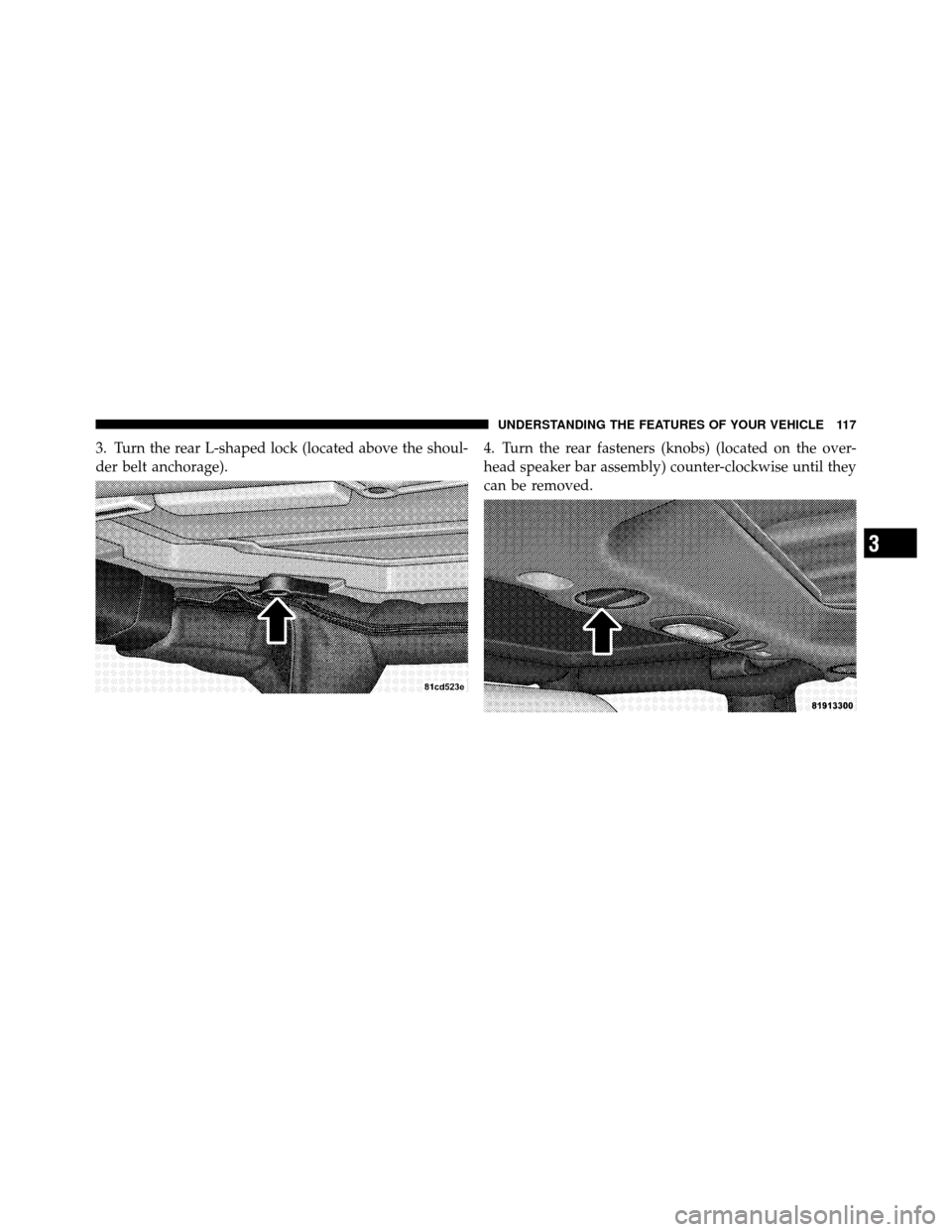

3. Turn the rear L-shaped lock (located above the shoul-
der belt anchorage).4. Turn the rear fasteners (knobs) (located on the over-
head speaker bar assembly) counter-clockwise until they
can be removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

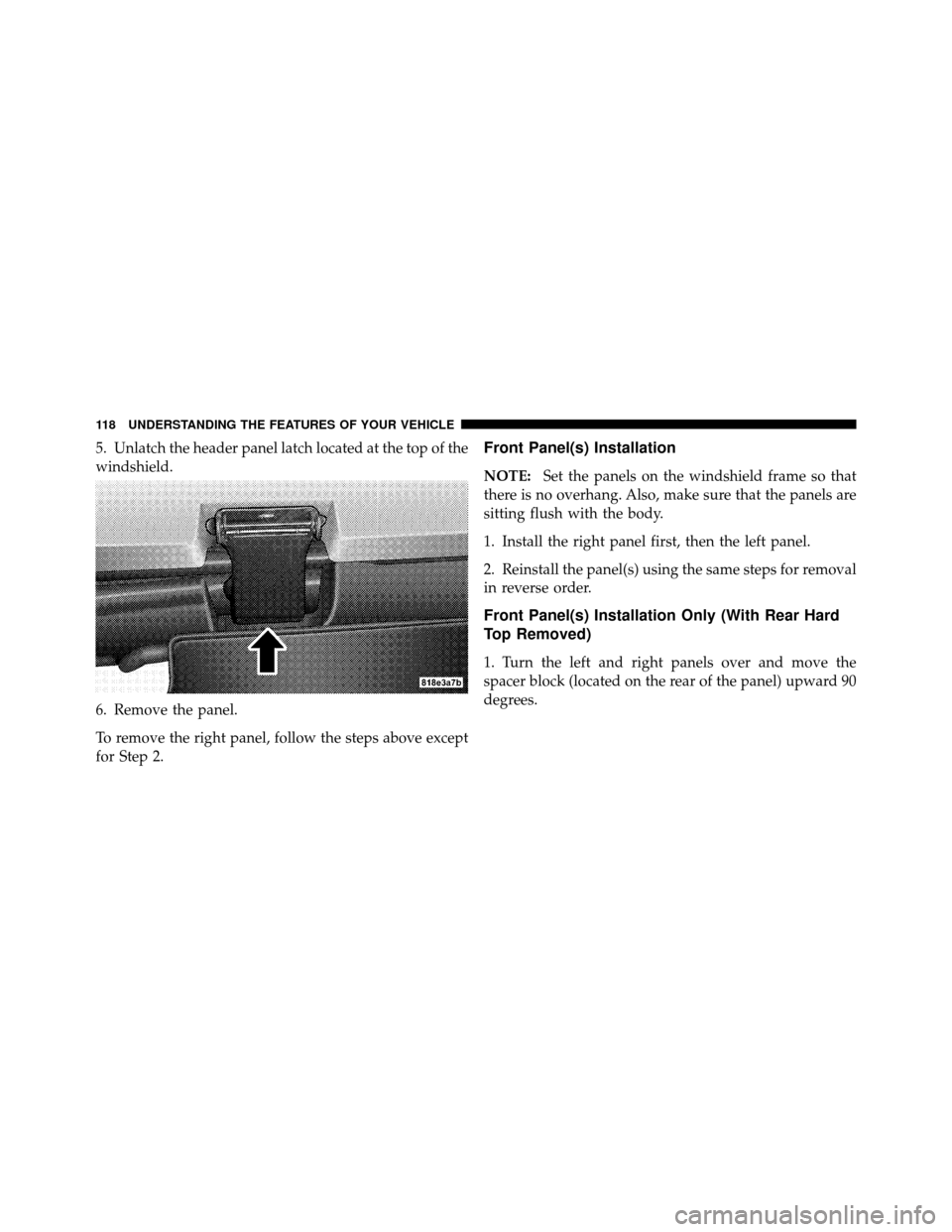

5. Unlatch the header panel latch located at the top of the
windshield.
6. Remove the panel.
To remove the right panel, follow the steps above except
for Step 2.Front Panel(s) Installation
NOTE:Set the panels on the windshield frame so that
there is no overhang. Also, make sure that the panels are
sitting flush with the body.
1. Install the right panel first, then the left panel.
2. Reinstall the panel(s) using the same steps for removal
in reverse order.
Front Panel(s) Installation Only (With Rear Hard
Top Removed)
1. Turn the left and right panels over and move the
spacer block (located on the rear of the panel) upward 90
degrees.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
