WARNING!

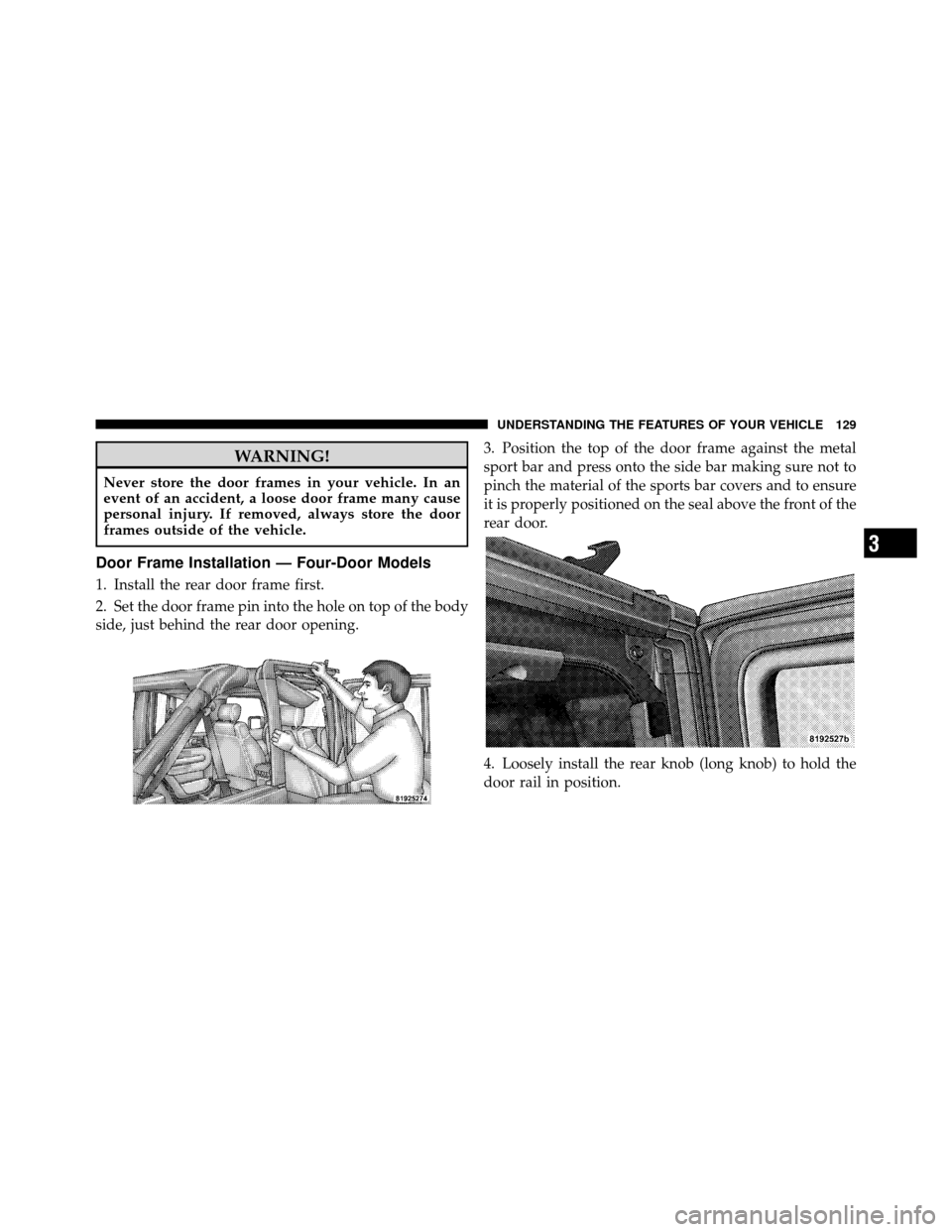

Never store the door frames in your vehicle. In an
event of an accident, a loose door frame many cause
personal injury. If removed, always store the door
frames outside of the vehicle.
Door Frame Installation — Four-Door Models
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the body
side, just behind the rear door opening.3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not to
pinch the material of the sports bar covers and to ensure
it is properly positioned on the seal above the front of the
rear door.
4. Loosely install the rear knob (long knob) to hold the
door rail in position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

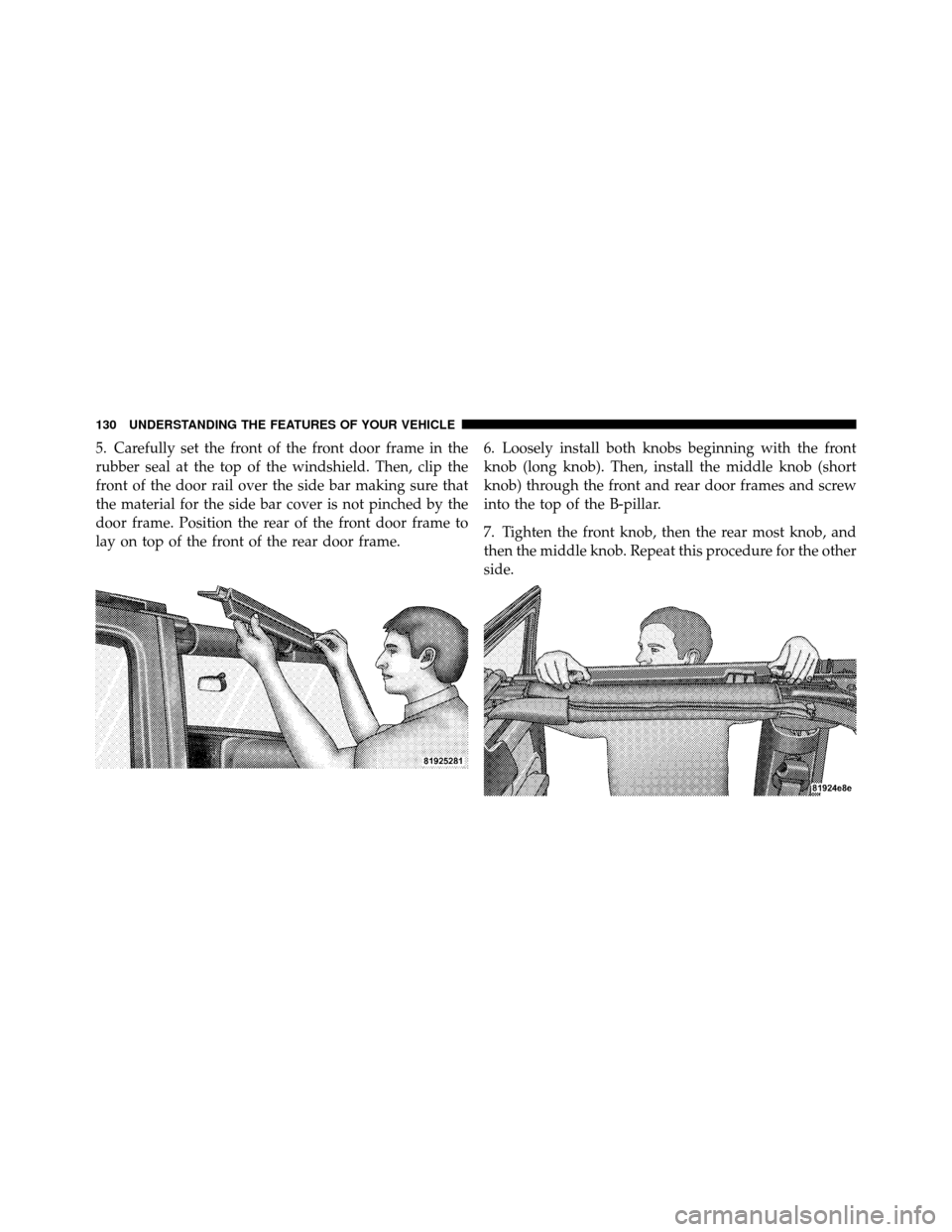

5. Carefully set the front of the front door frame in the
rubber seal at the top of the windshield. Then, clip the
front of the door rail over the side bar making sure that
the material for the side bar cover is not pinched by the
door frame. Position the rear of the front door frame to
lay on top of the front of the rear door frame.6. Loosely install both knobs beginning with the front
knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and screw
into the top of the B-pillar.
7. Tighten the front knob, then the rear most knob, and
then the middle knob. Repeat this procedure for the other
side.
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SOFT TOP — TWO DOOR MODELS
Please visit the owners section of Jeep.com for instruc-
tional videos.

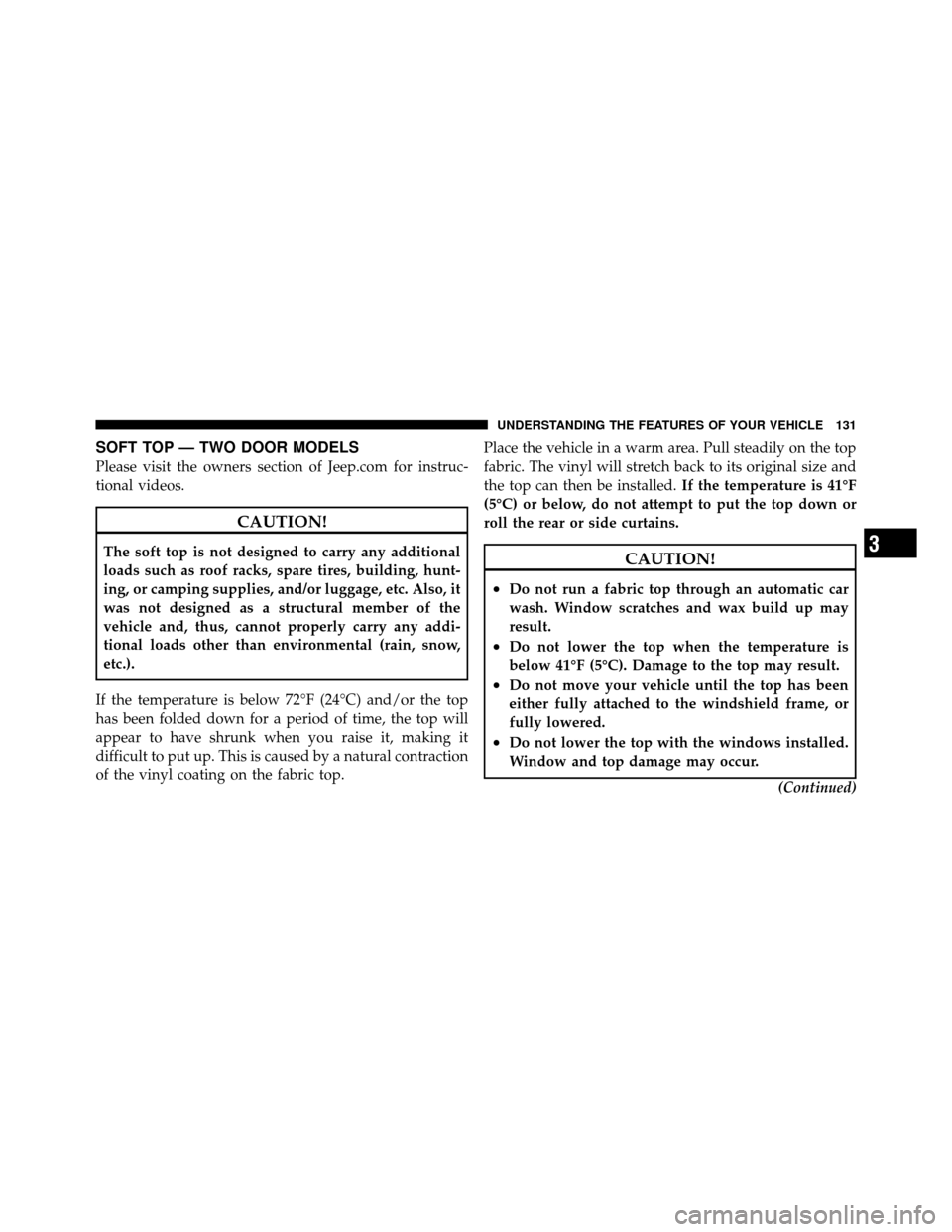

CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle and, thus, cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top. Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be installed.
If the temperature is 41°F
(5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.CAUTION!
•Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
•Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
•Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
•Do not lower the top with the windows installed.
Window and top damage may occur.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

CAUTION! (Continued)
•Refer to “Appearance Care for Fabric Top Models”
in Section 7 of this manual. It contains important
information on cleaning and caring for your vehi-
cle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.

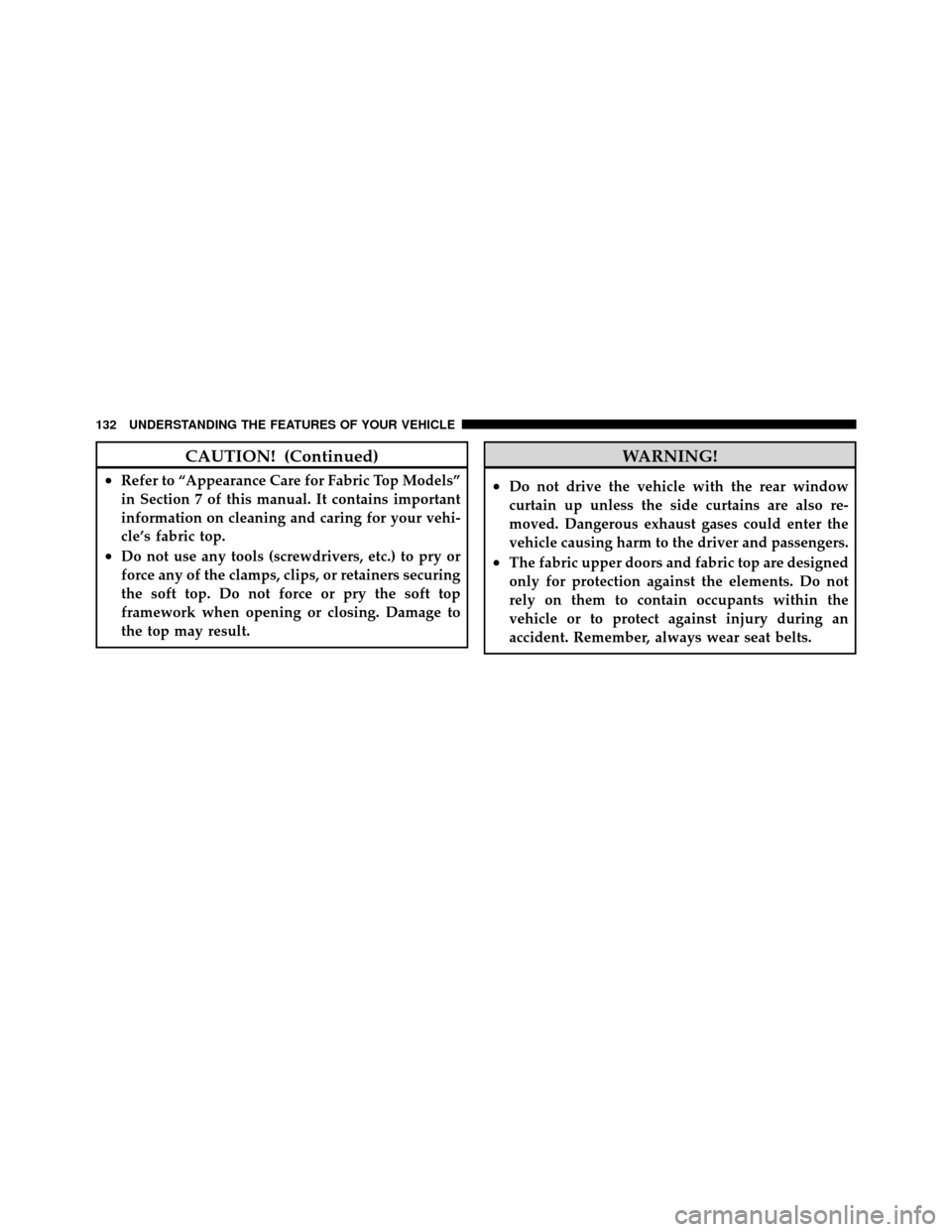

WARNING!
•Do not drive the vehicle with the rear window
curtain up unless the side curtains are also re-
moved. Dangerous exhaust gases could enter the
vehicle causing harm to the driver and passengers.
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the
vehicle or to protect against injury during an
accident. Remember, always wear seat belts.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

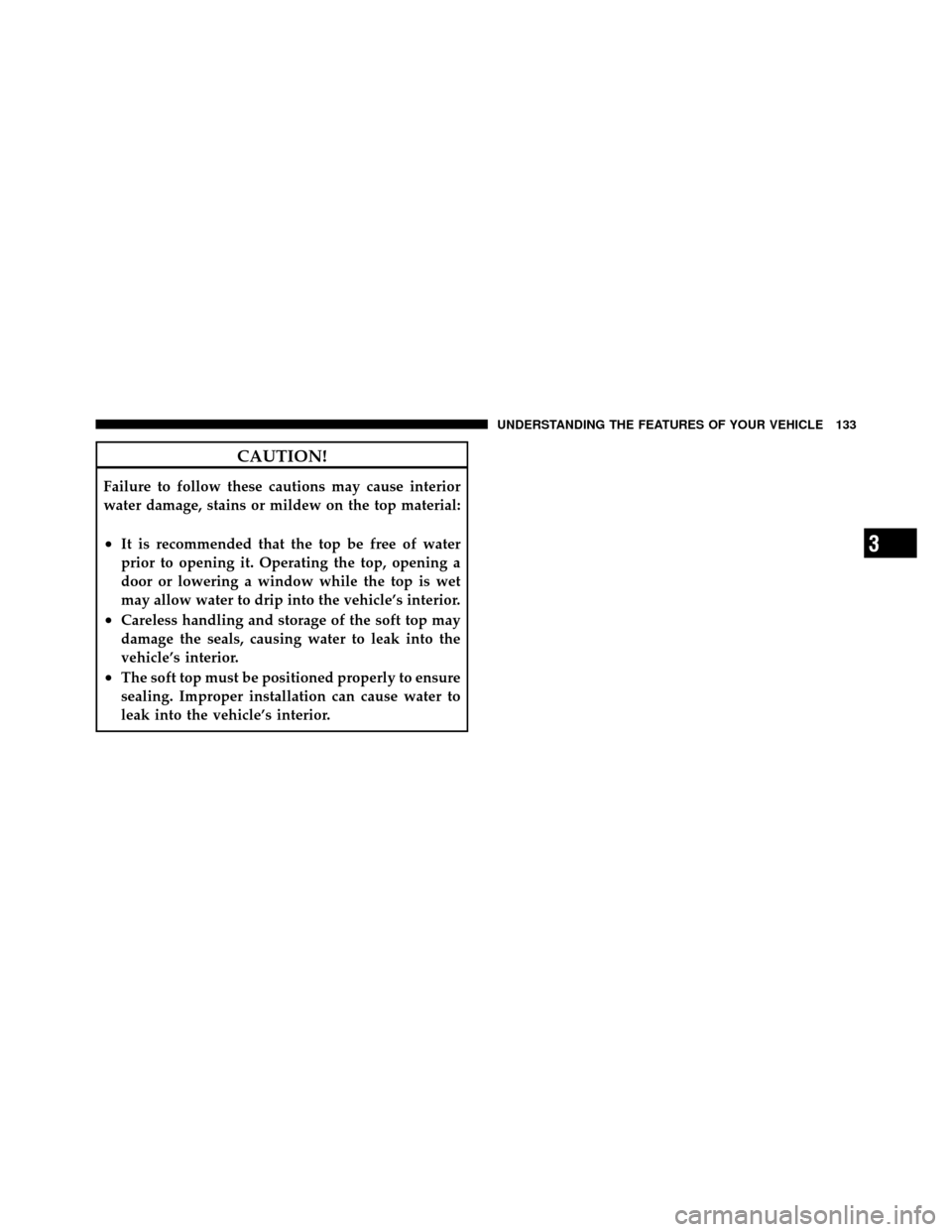

CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

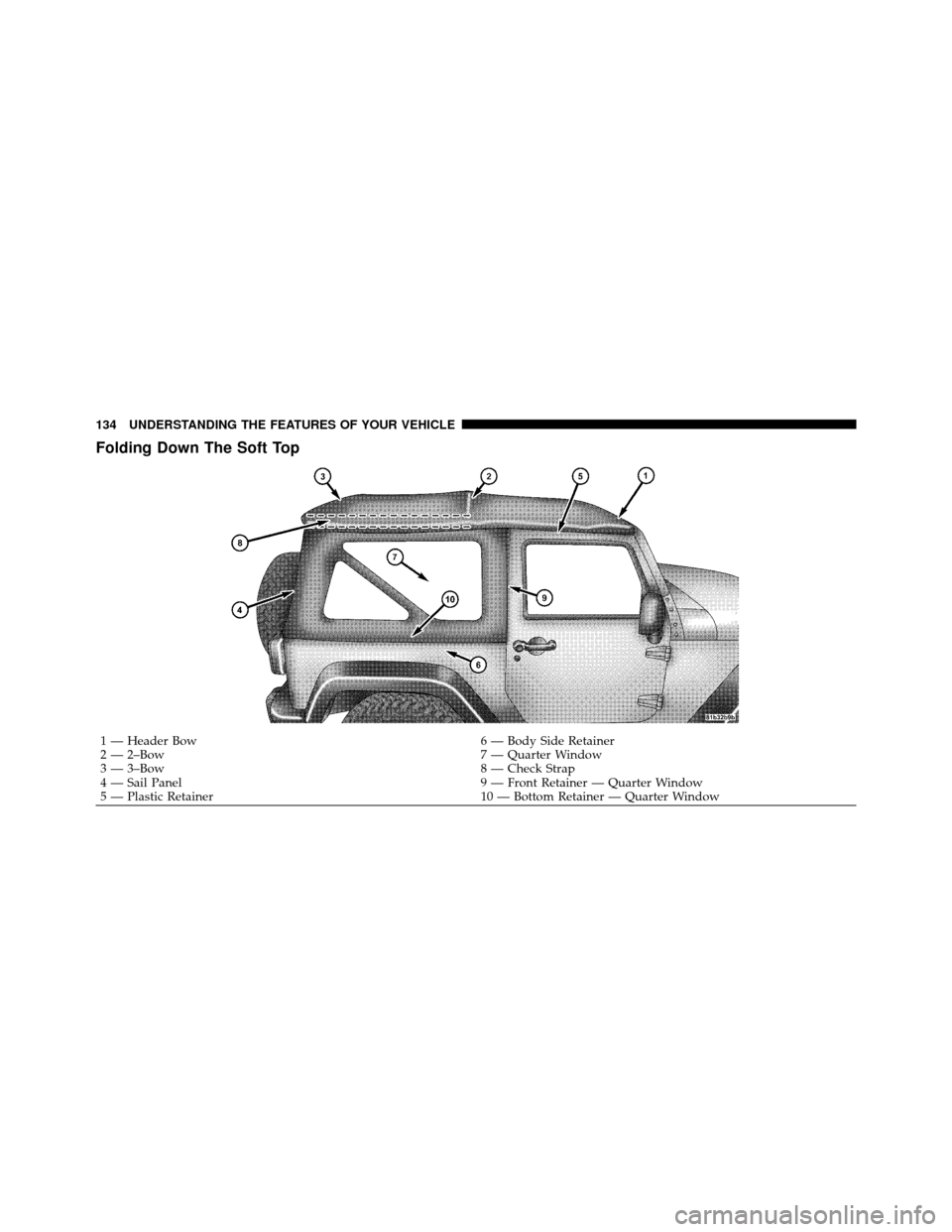

Folding Down The Soft Top
1 — Header Bow6 — Body Side Retainer
2 — 2–Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — Sail Panel 9 — Front Retainer — Quarter Window
5 — Plastic Retainer 10 — Bottom Retainer — Quarter Window
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

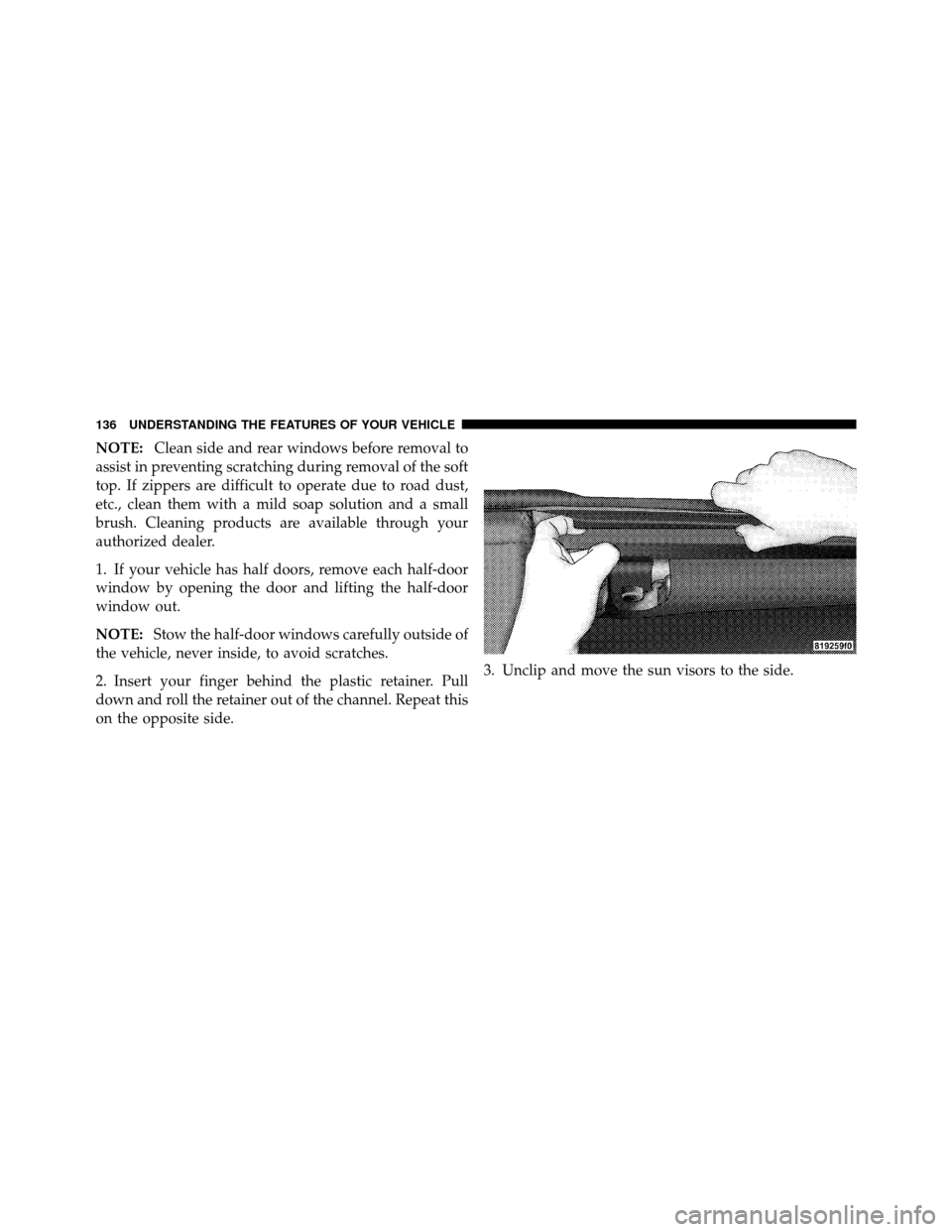

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Insert your finger behind the plastic retainer. Pull
down and roll the retainer out of the channel. Repeat this
on the opposite side. 3. Unclip and move the sun visors to the side.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

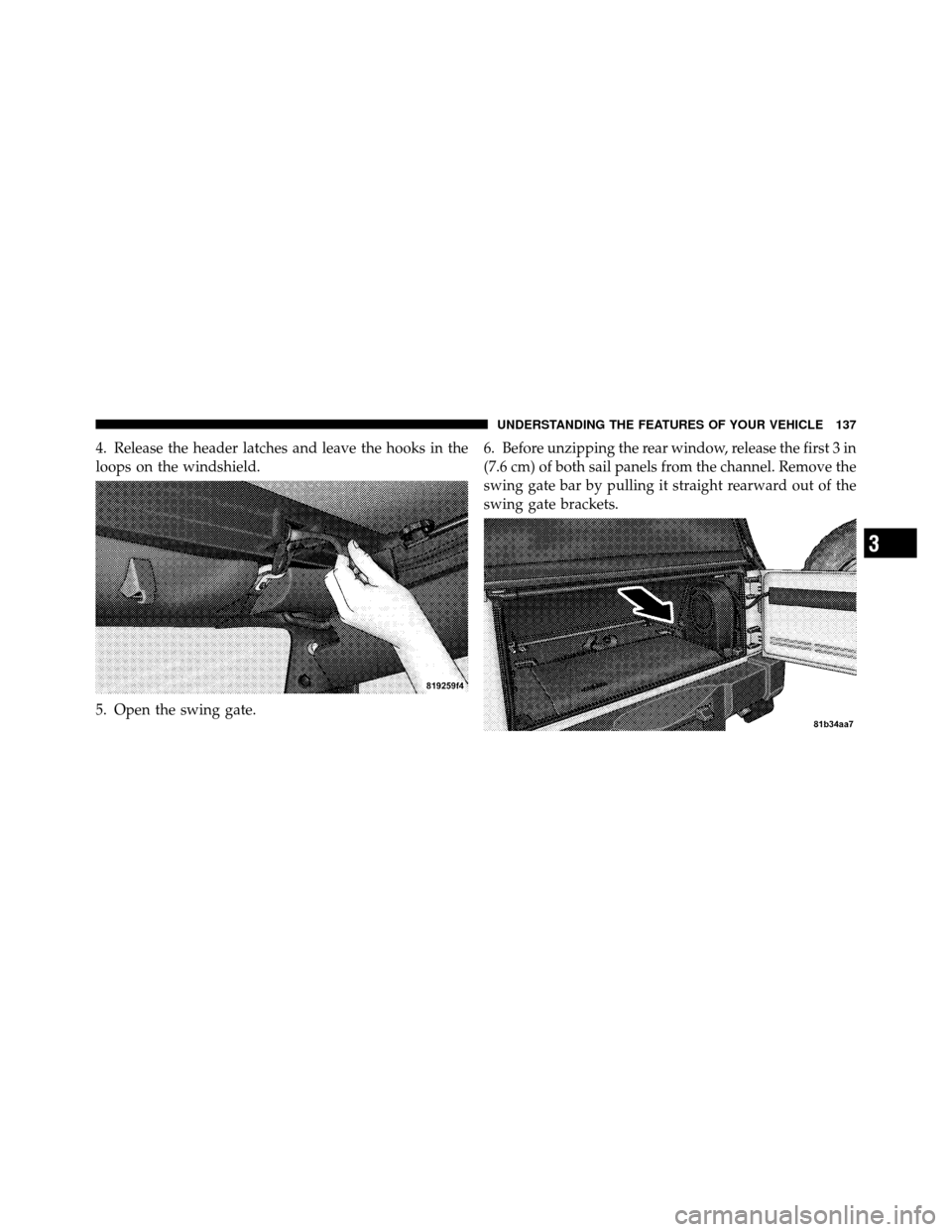

4. Release the header latches and leave the hooks in the
loops on the windshield.
5. Open the swing gate.6. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

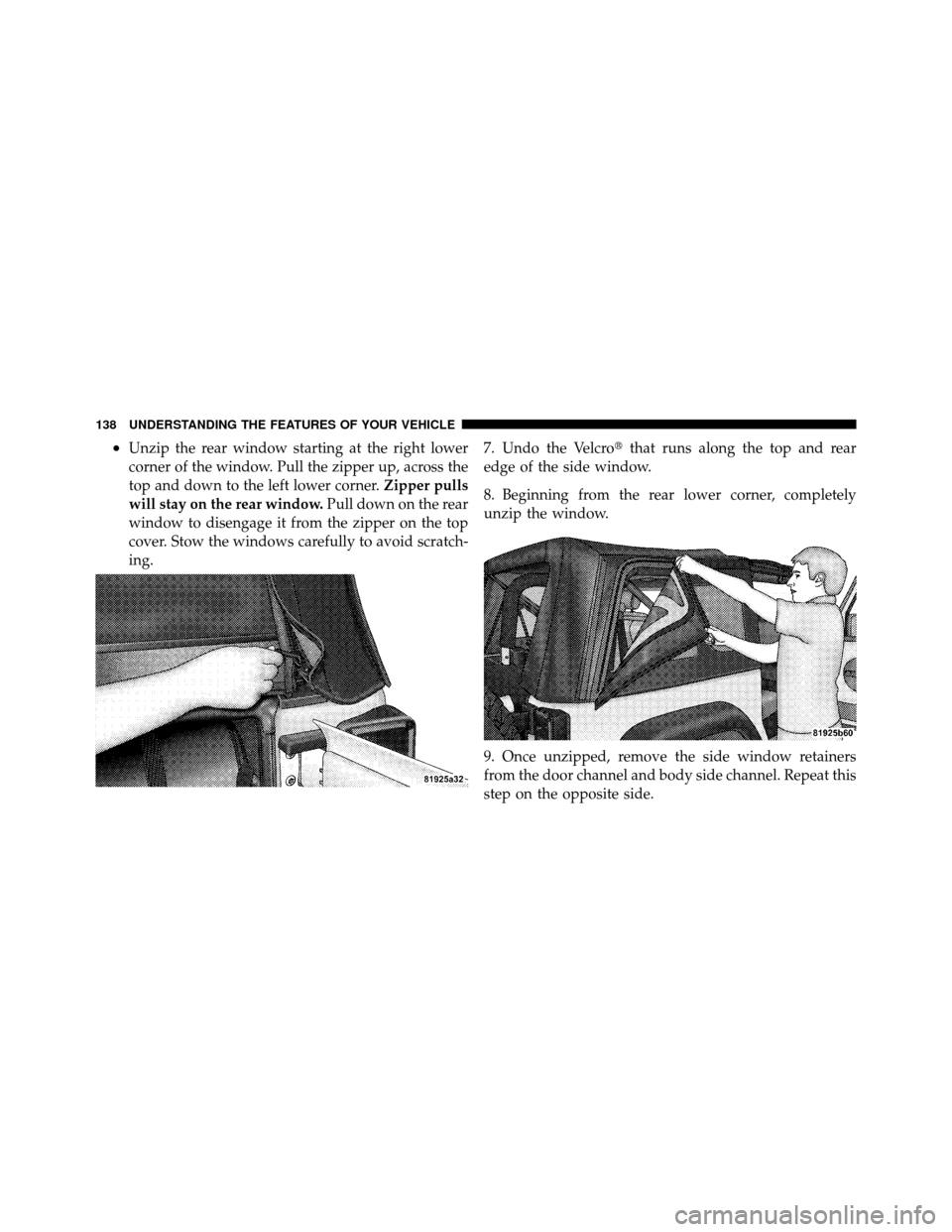

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing. 7. Undo the Velcro
that runs along the top and rear
edge of the side window.
8. Beginning from the rear lower corner, completely
unzip the window.
9. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side.
