JEEP WRANGLER 2009 JK / 3.G Owners Manual

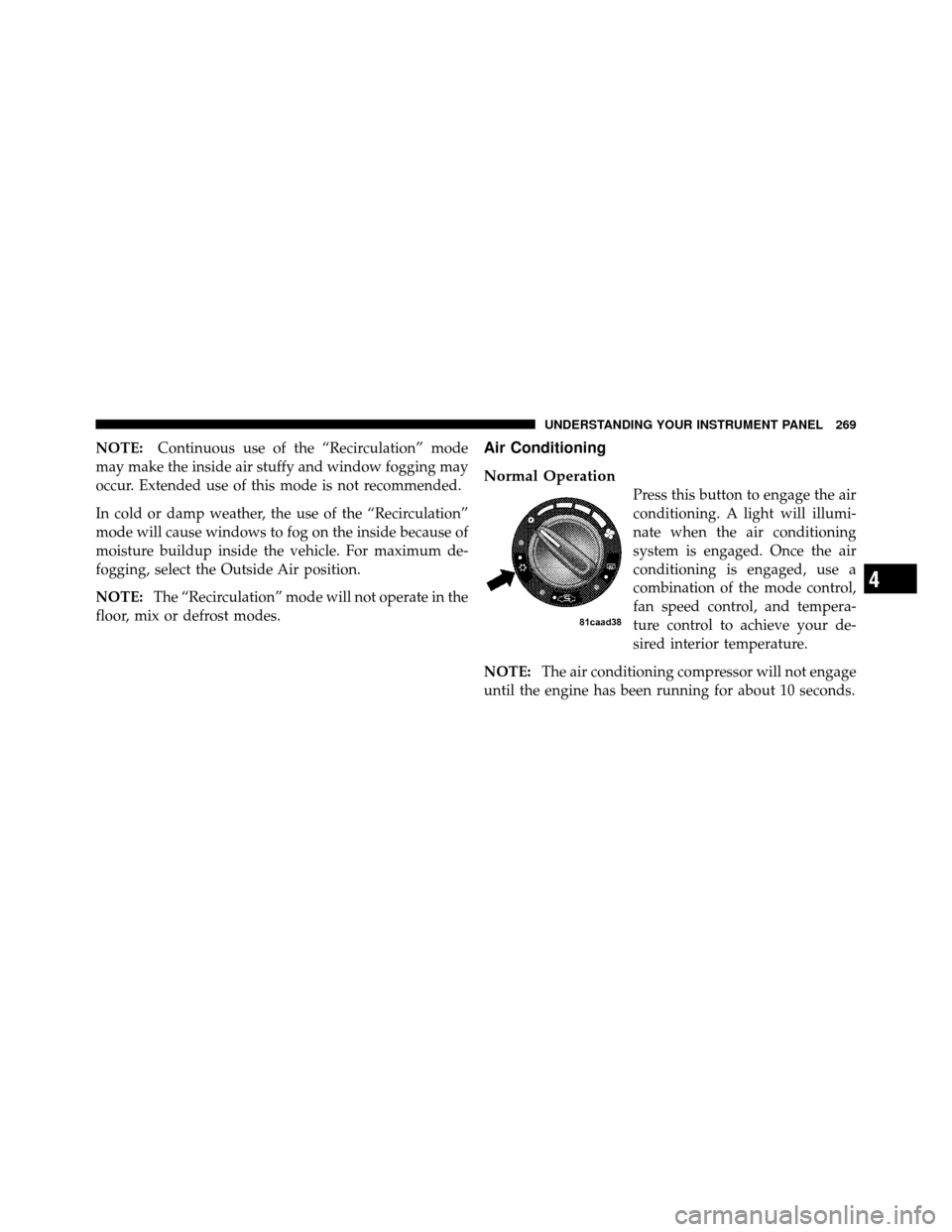

NOTE:Continuous use of the “Recirculation” mode
may make the inside air stuffy and window fogging may
occur. Extended use of this mode is not recommended.
In cold or damp weather, the use of the “Recirculation”
mode will cause windows to fog on the inside because of
moisture buildup inside the vehicle. For maximum de-
fogging, select the Outside Air position.
NOTE: The “Recirculation” mode will not operate in the
floor, mix or defrost modes.Air Conditioning
Normal Operation
Press this button to engage the air
conditioning. A light will illumi-
nate when the air conditioning
system is engaged. Once the air
conditioning is engaged, use a
combination of the mode control,
fan speed control, and tempera-
ture control to achieve your de-
sired interior temperature.
NOTE: The air conditioning compressor will not engage
until the engine has been running for about 10 seconds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 269

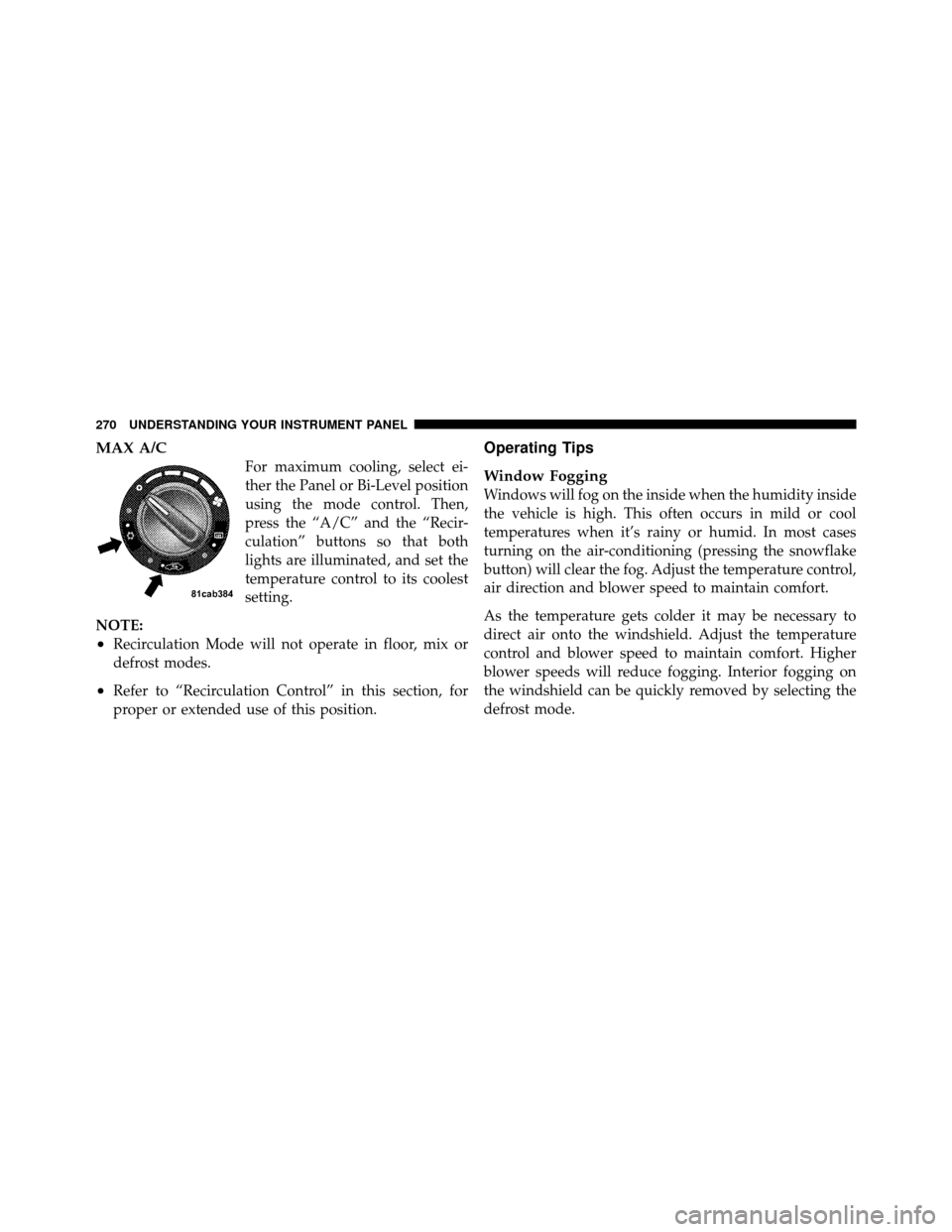

MAX A/C
For maximum cooling, select ei-
ther the Panel or Bi-Level position
using the mode control. Then,
press the “A/C” and the “Recir-
culation” buttons so that both
lights are illuminated, and set the
temperature control to its coolest
setting.
NOTE:
•Recirculation Mode will not operate in floor, mix or
defrost modes.
•Refer to “Recirculation Control” in this section, for
proper or extended use of this position.
Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases
turning on the air-conditioning (pressing the snowflake
button) will clear the fog. Adjust the temperature control,
air direction and blower speed to maintain comfort.
As the temperature gets colder it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
defrost mode.
270 UNDERSTANDING YOUR INSTRUMENT PANEL

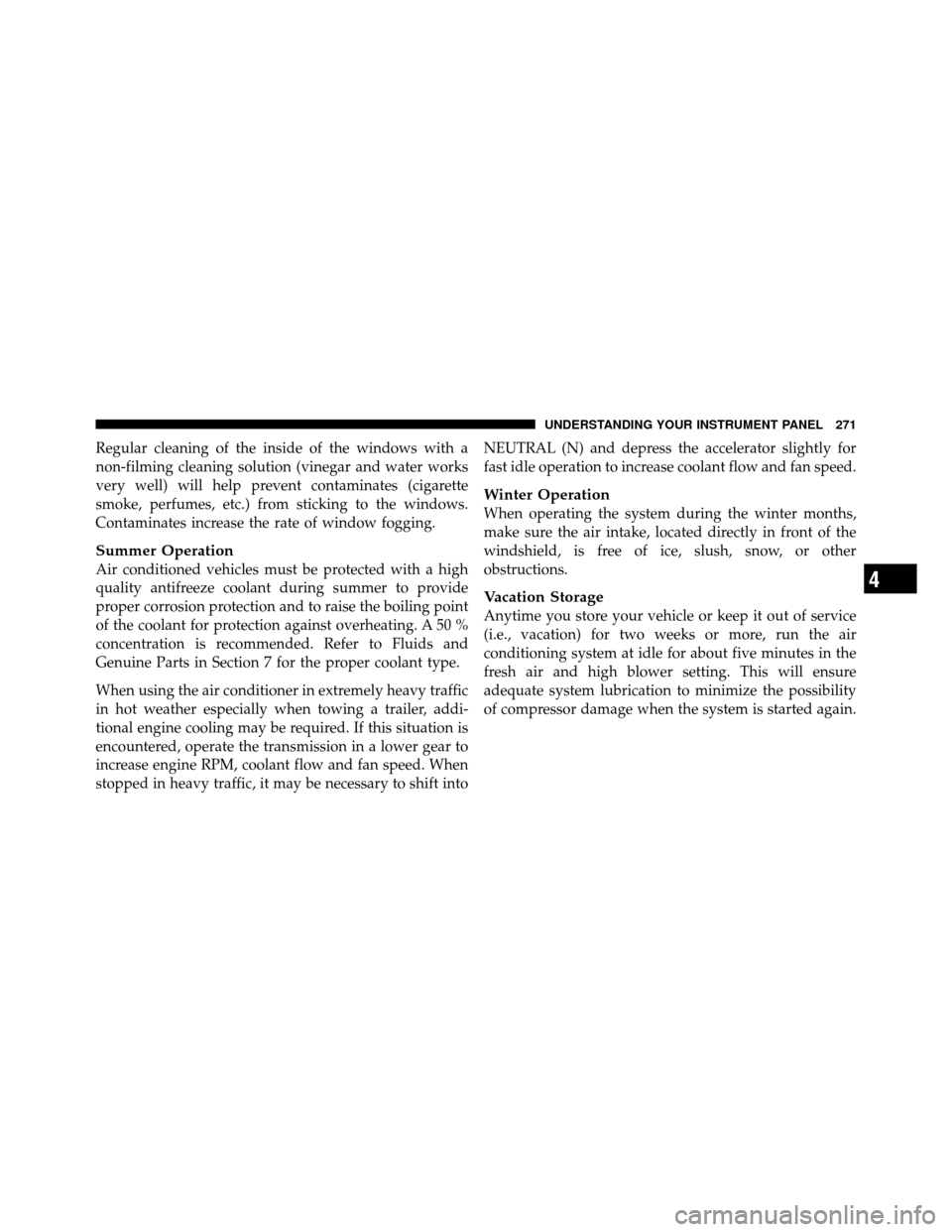

Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended. Refer to Fluids and
Genuine Parts in Section 7 for the proper coolant type.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear to
increase engine RPM, coolant flow and fan speed. When
stopped in heavy traffic, it may be necessary to shift intoNEUTRAL (N) and depress the accelerator slightly for
fast idle operation to increase coolant flow and fan speed.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other
obstructions.
Vacation Storage
Anytime you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 271

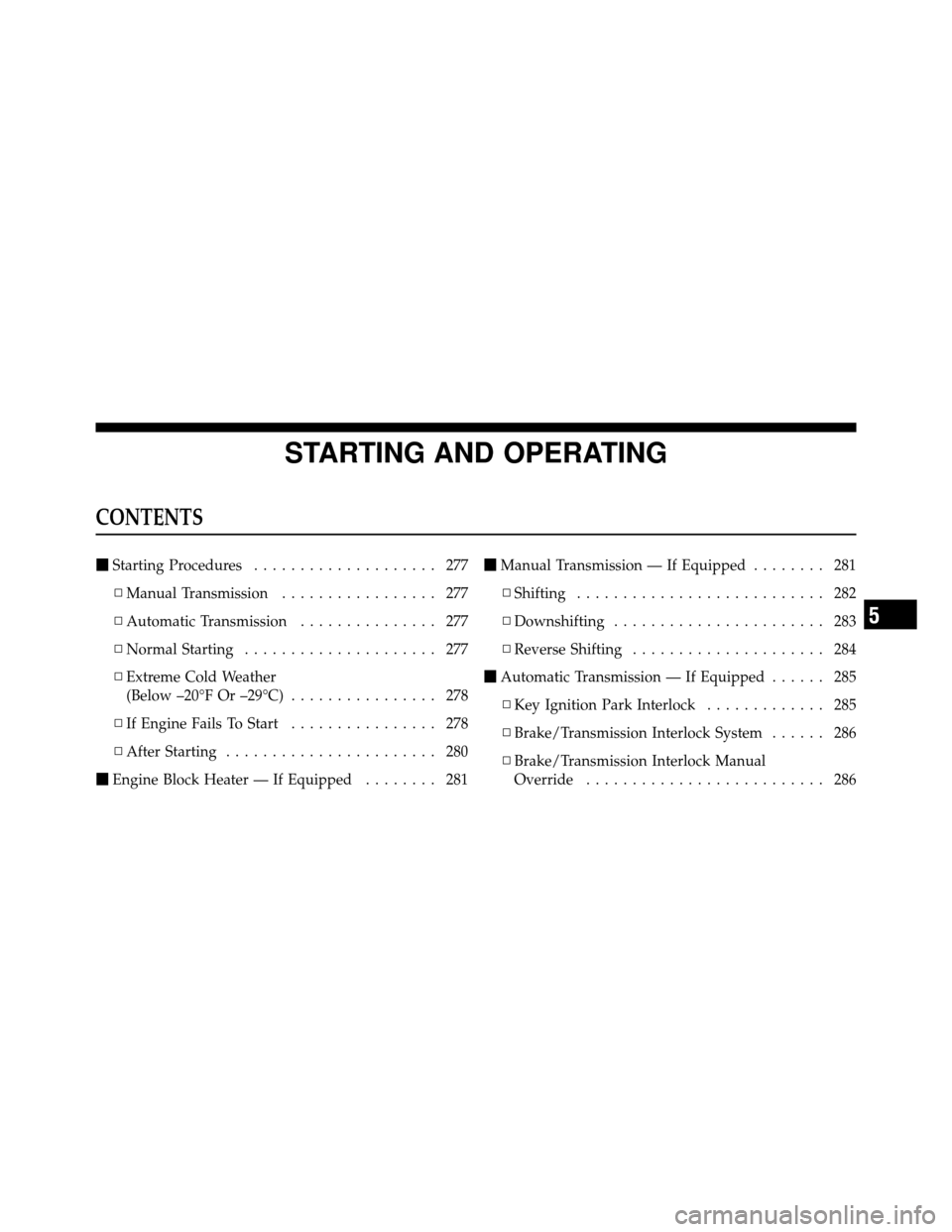

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 277
▫ Manual Transmission ................. 277
▫ Automatic Transmission ............... 277
▫ Normal Starting ..................... 277
▫ Extreme Cold Weather
(Below –20°F Or –29°C) ................ 278
▫ If Engine Fails To Start ................ 278
▫ After Starting ....................... 280
 Engine Block Heater — If Equipped ........ 281
Manual Transmission — If Equipped ........ 281
▫ Shifting ........................... 282
▫ Downshifting ....................... 283
▫ Reverse Shifting ..................... 284
 Automatic Transmission — If Equipped ...... 285
▫ Key Ignition Park Interlock ............. 285
▫ Brake/Transmission Interlock System ...... 286
▫ Brake/Transmission Interlock Manual
Override .......................... 286
5

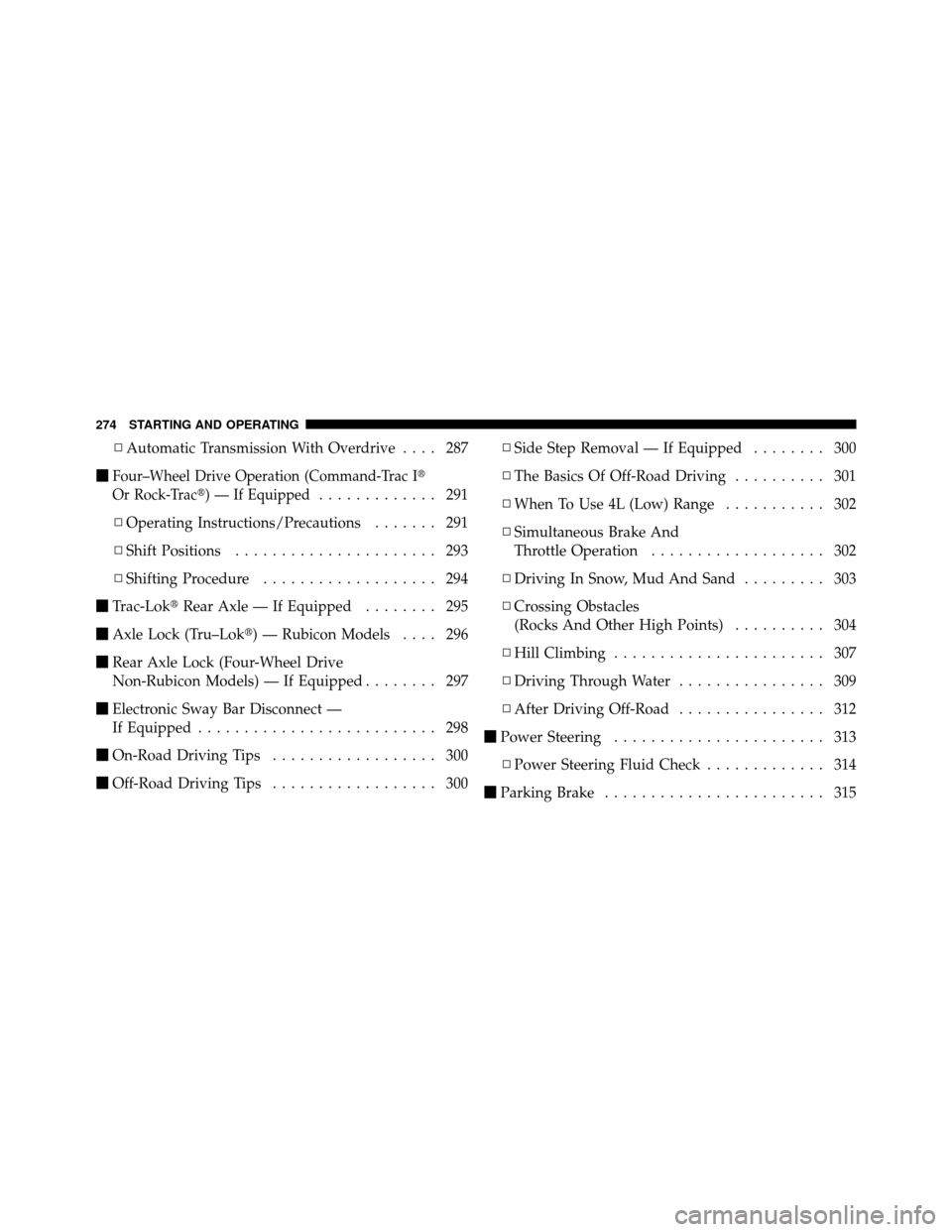

▫Automatic Transmission With Overdrive .... 287

Four–Wheel Drive Operation (Command-Trac I
Or Rock-Trac) — If Equipped
............. 291
▫ Operating Instructions/Precautions ....... 291
▫ Shift Positions ...................... 293
▫ Shifting Procedure ................... 294
 Trac-Lok Rear Axle — If Equipped ........ 295
 Axle Lock (Tru–Lok) — Rubicon Models .... 296
 Rear Axle Lock (Four-Wheel Drive
Non-Rubicon Models) — If Equipped ........ 297
 Electronic Sway Bar Disconnect —
If Equipped .......................... 298
 On-Road Driving Tips .................. 300
 Off-Road Driving Tips .................. 300 ▫
Side Step Removal — If Equipped ........ 300
▫ The Basics Of Off-Road Driving .......... 301
▫ When To Use 4L (Low) Range ........... 302
▫ Simultaneous Brake And
Throttle Operation ................... 302
▫ Driving In Snow, Mud And Sand ......... 303
▫ Crossing Obstacles
(Rocks And Other High Points) .......... 304
▫ Hill Climbing ....................... 307
▫ Driving Through Water ................ 309
▫ After Driving Off-Road ................ 312
 Power Steering ....................... 313
▫ Power Steering Fluid Check ............. 314
 Parking Brake ........................ 315
274 STARTING AND OPERATING

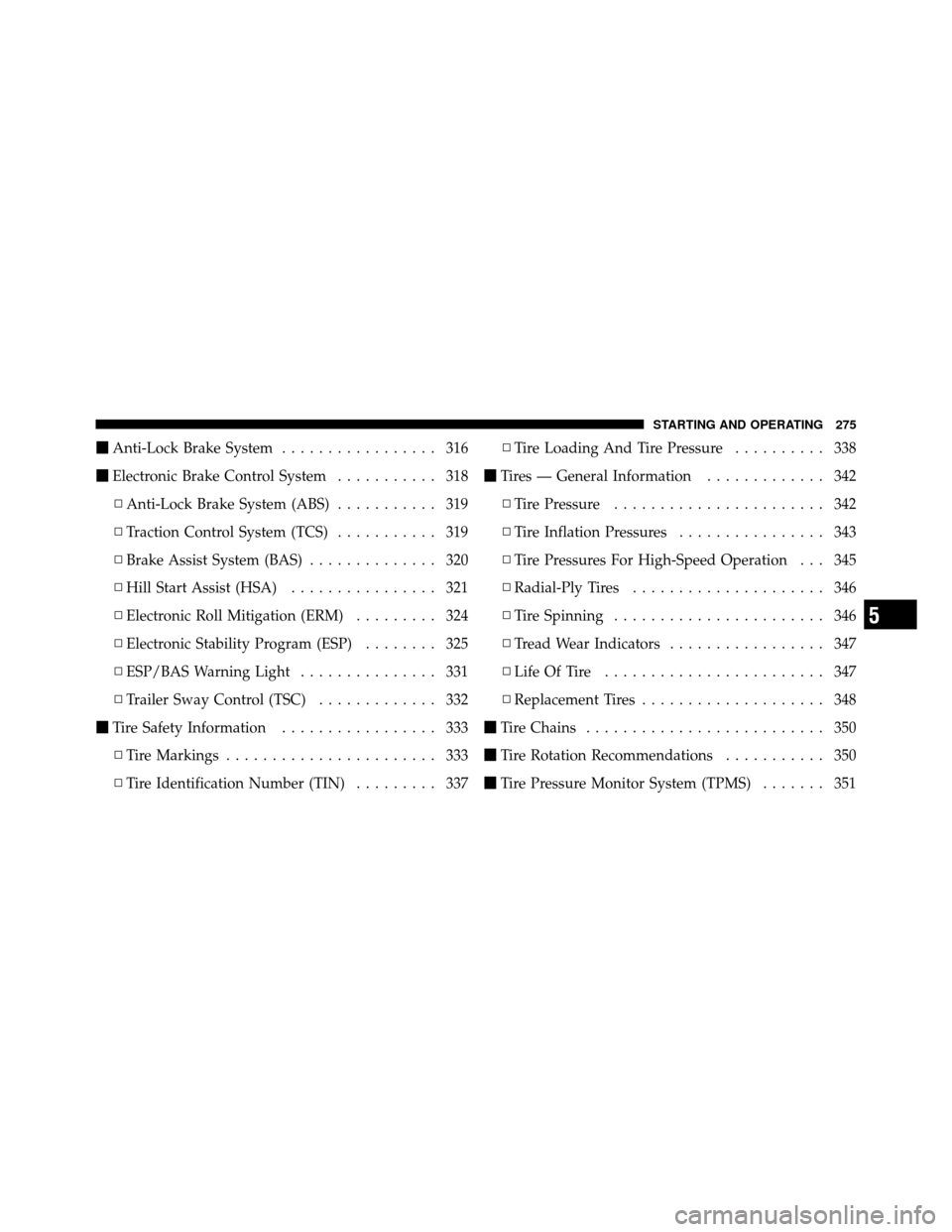

Anti-Lock Brake System ................. 316
 Electronic Brake Control System ........... 318
▫ Anti-Lock Brake System (ABS) ........... 319
▫ Traction Control System (TCS) ........... 319
▫ Brake Assist System (BAS) .............. 320
▫ Hill Start Assist (HSA) ................ 321
▫ Electronic Roll Mitigation (ERM) ......... 324
▫ Electronic Stability Program (ESP) ........ 325
▫ ESP/BAS Warning Light ............... 331
▫ Trailer Sway Control (TSC) ............. 332
 Tire Safety Information ................. 333
▫ Tire Markings ....................... 333
▫ Tire Identification Number (TIN) ......... 337▫
Tire Loading And Tire Pressure .......... 338
 Tires — General Information ............. 342
▫ Tire Pressure ....................... 342
▫ Tire Inflation Pressures ................ 343
▫ Tire Pressures For High-Speed Operation . . . 345
▫ Radial-Ply Tires ..................... 346
▫ Tire Spinning ....................... 346
▫ Tread Wear Indicators ................. 347
▫ Life Of Tire ........................ 347
▫ Replacement Tires .................... 348
 Tire Chains .......................... 350
 Tire Rotation Recommendations ........... 350
 Tire Pressure Monitor System (TPMS) ....... 351
5
STARTING AND OPERATING 275

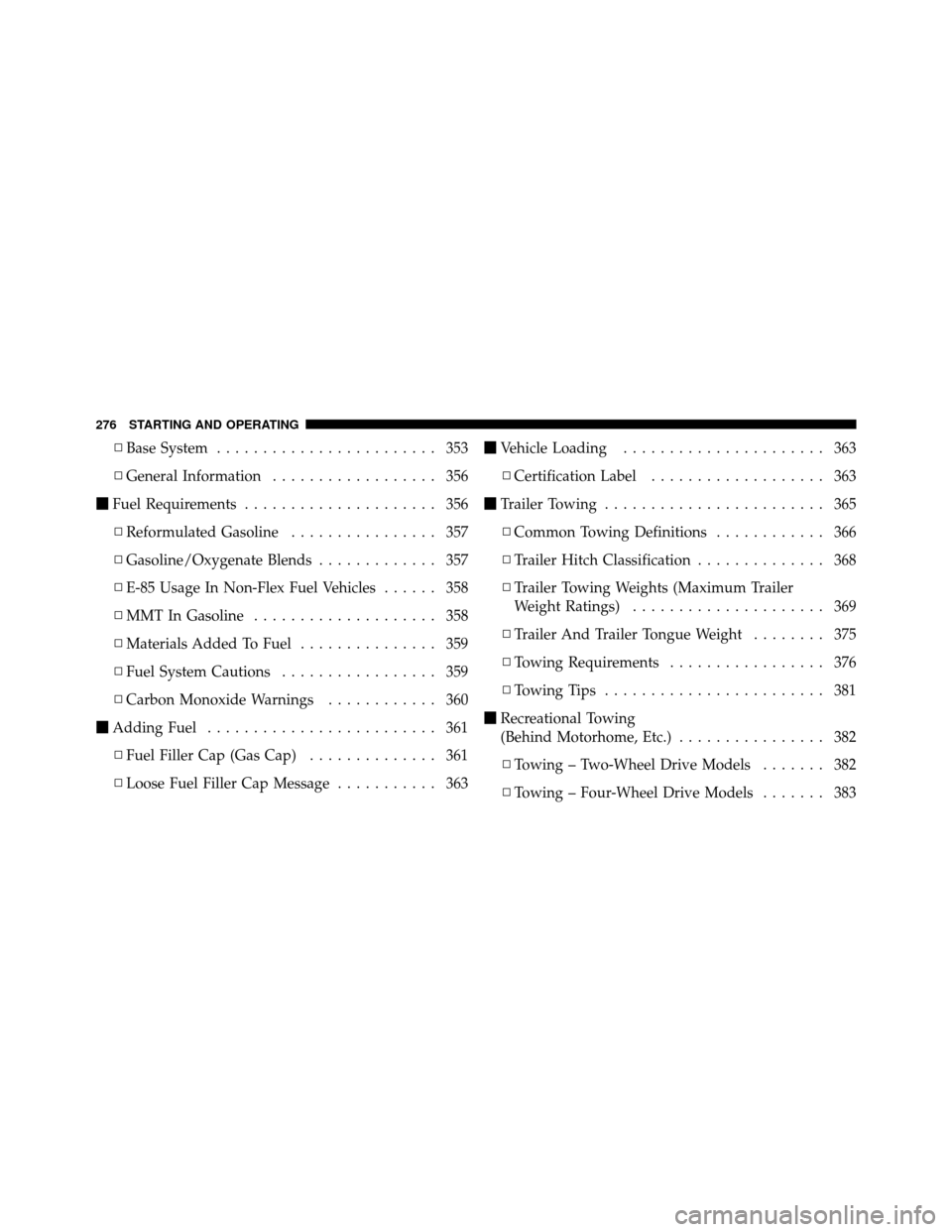

▫Base System ........................ 353
▫ General Information .................. 356
 Fuel Requirements ..................... 356
▫ Reformulated Gasoline ................ 357
▫ Gasoline/Oxygenate Blends ............. 357
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 358
▫ MMT In Gasoline .................... 358
▫ Materials Added To Fuel ............... 359
▫ Fuel System Cautions ................. 359
▫ Carbon Monoxide Warnings ............ 360
 Adding Fuel ......................... 361
▫ Fuel Filler Cap (Gas Cap) .............. 361
▫ Loose Fuel Filler Cap Message ........... 363
Vehicle Loading ...................... 363
▫ Certification Label ................... 363
 Trailer Towing ........................ 365
▫ Common Towing Definitions ............ 366
▫ Trailer Hitch Classification .............. 368
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... 369
▫ Trailer And Trailer Tongue Weight ........ 375
▫ Towing Requirements ................. 376
▫ Towing Tips ........................ 381
 Recreational Towing
(Behind Motorhome, Etc.) ................ 382
▫ Towing – Two-Wheel Drive Models ....... 382
▫ Towing – Four-Wheel Drive Models ....... 383
276 STARTING AND OPERATING

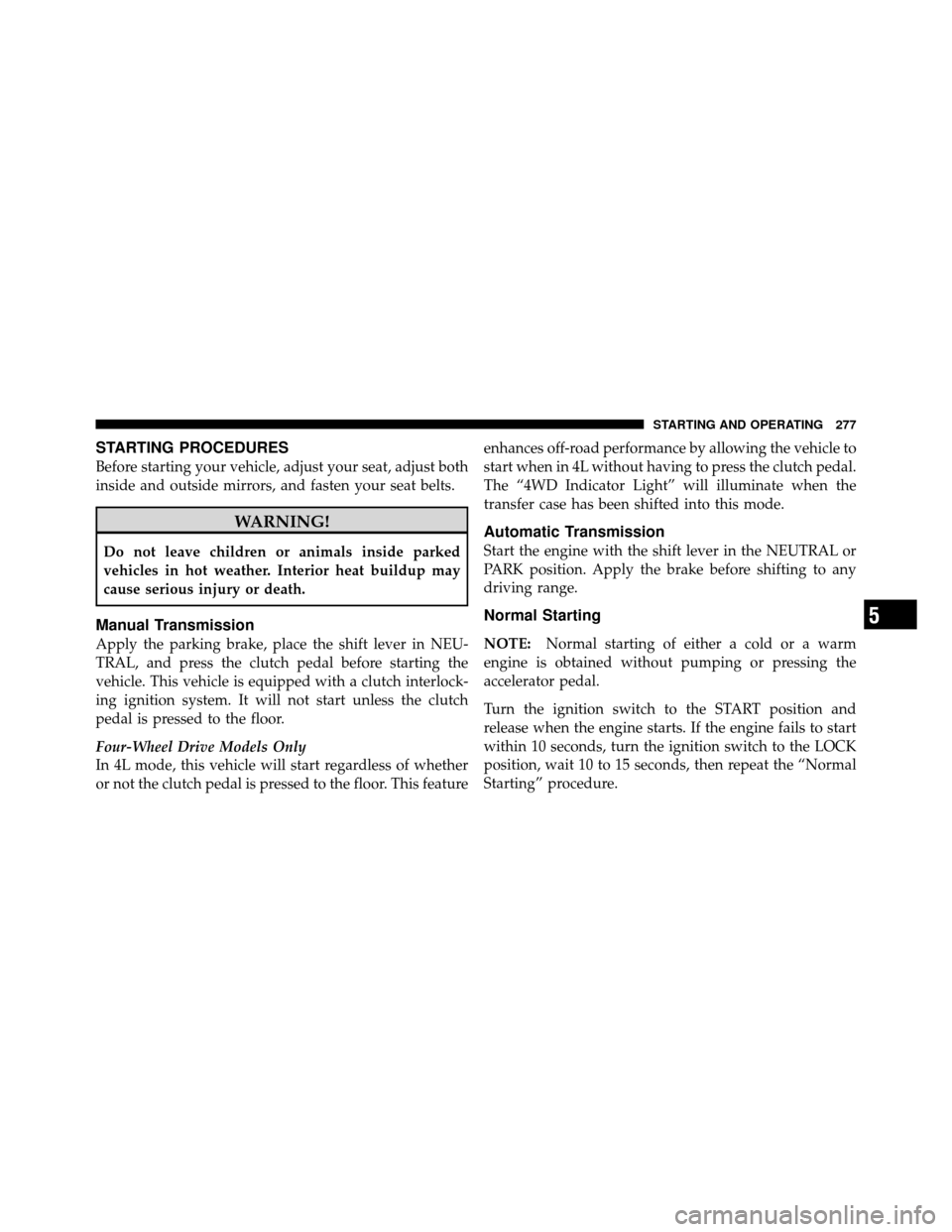

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.
Manual Transmission
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.
Four-Wheel Drive Models Only
In 4L mode, this vehicle will start regardless of whether
or not the clutch pedal is pressed to the floor. This featureenhances off-road performance by allowing the vehicle to
start when in 4L without having to press the clutch pedal.
The “4WD Indicator Light” will illuminate when the
transfer case has been shifted into this mode.
Automatic Transmission
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Normal Starting
NOTE:
Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
Turn the ignition switch to the START position and
release when the engine starts. If the engine fails to start
within 10 seconds, turn the ignition switch to the LOCK
position, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.
5
STARTING AND OPERATING 277

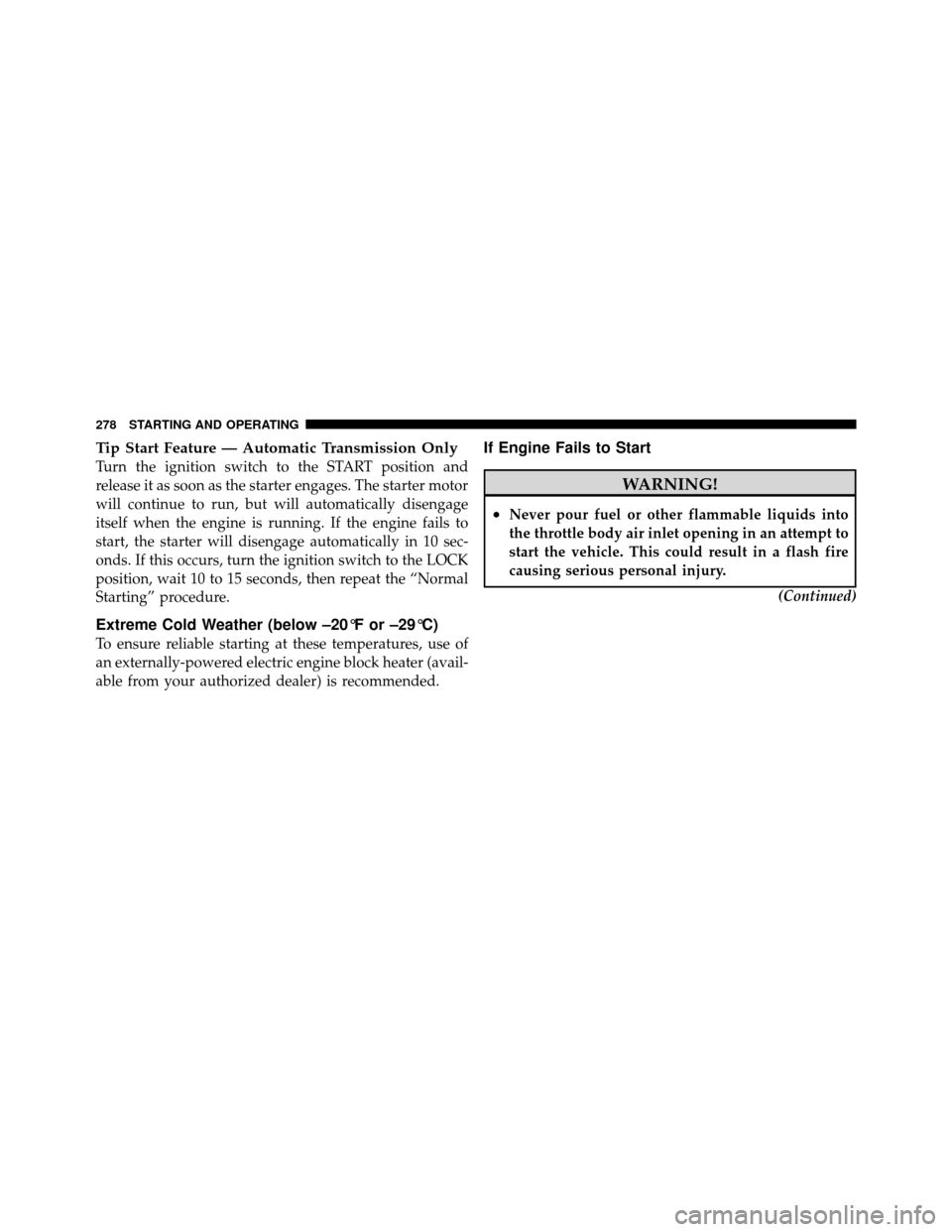

Tip Start Feature — Automatic Transmission Only
Turn the ignition switch to the START position and
release it as soon as the starter engages. The starter motor
will continue to run, but will automatically disengage
itself when the engine is running. If the engine fails to
start, the starter will disengage automatically in 10 sec-
onds. If this occurs, turn the ignition switch to the LOCK
position, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.
Extreme Cold Weather (below –20°F or –29°C)
To ensure reliable starting at these temperatures, use of
an externally-powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If Engine Fails to Start
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.(Continued)
278 STARTING AND OPERATING
