Page 491 of 554

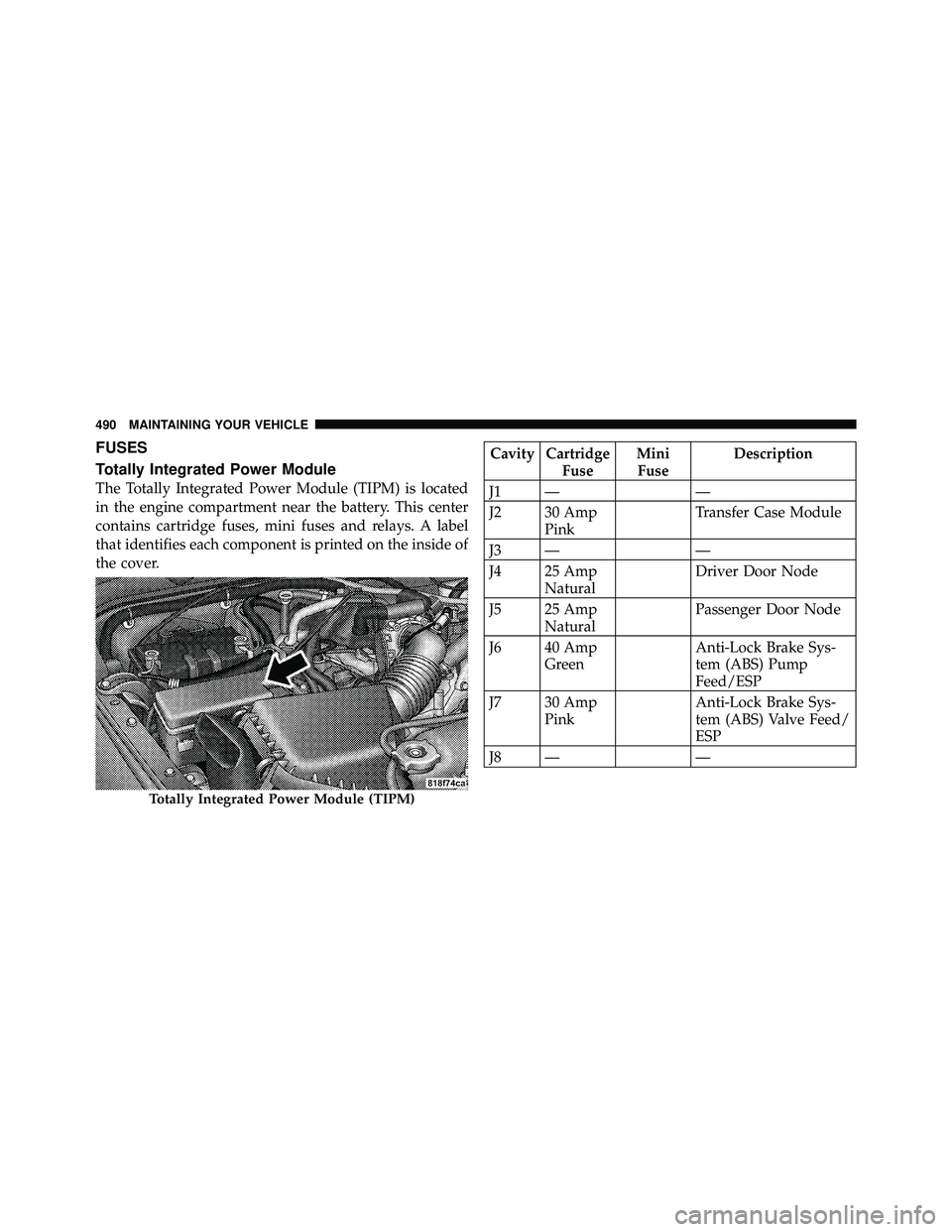

JEEP WRANGLER 2010 Owners Manual FUSES Totally Integrated Power Module The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery. This center contains cartridge fuses, mini fuses and relays. A l

Page 493 of 554

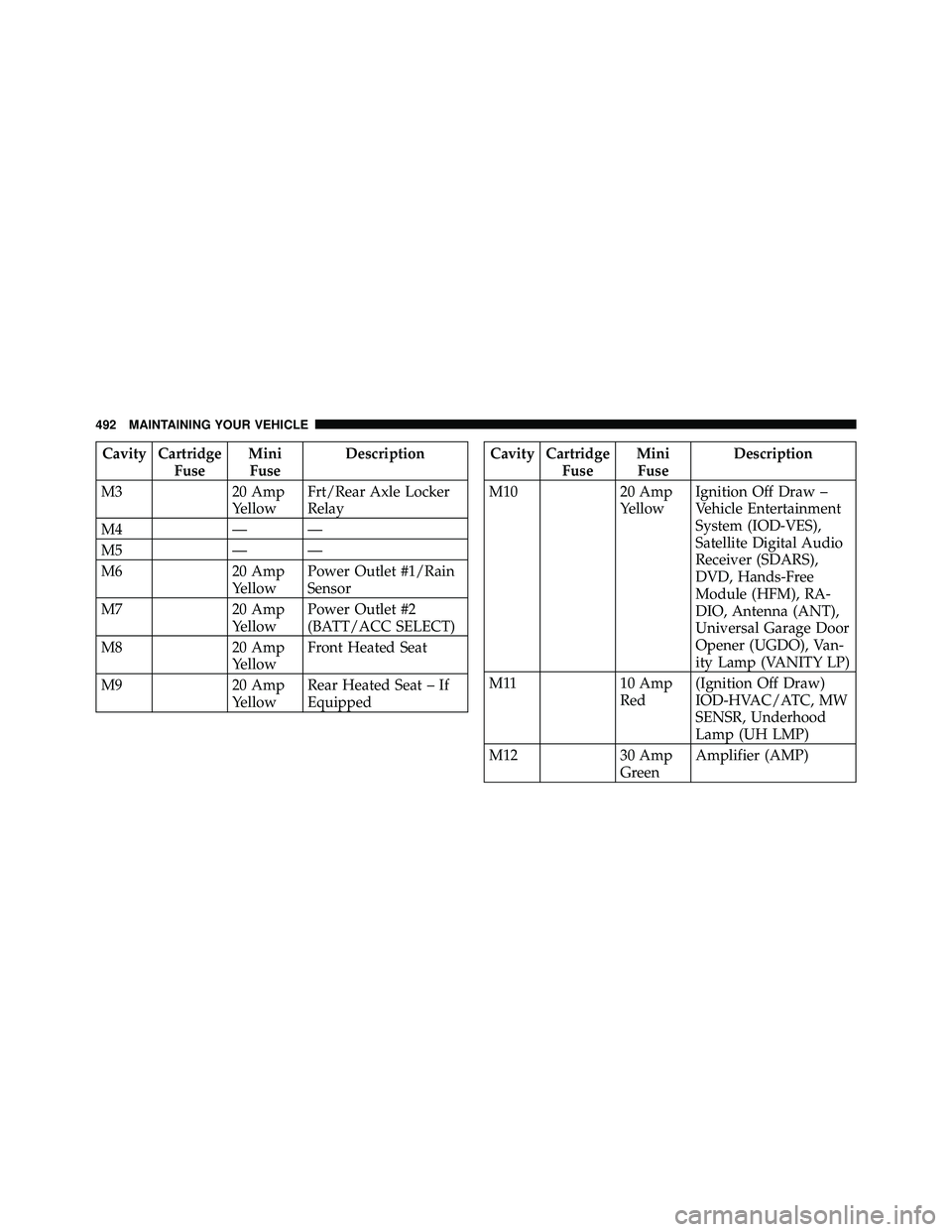

JEEP WRANGLER 2010 Owners Manual Cavity CartridgeFuse Mini Fuse Description M3 20 Amp YellowFrt/Rear Axle Locker Relay M4 — — M5 — — M6 20 Amp YellowPower Outlet #1/Rain Sensor M7 20 Amp YellowPower Outlet #2 (BATT/ACC SELECT
