JEEP WRANGLER 2011 JK / 3.G Owners Manual

Towing Condition Wheels OFF the Ground4WD MODELS
Flat Tow NONESee instructions under “Recreational Towing”
•
Automatic Transmission in PARK
• Manual Transmission in gear ( NOTin Neutral)
• Transfer Case in NEUTRAL
• To w i n forward direction
Wheel Lift or Dolly Tow Front
NOT ALLOWED
Rear NOT ALLOWED
Flatbed ALL BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the vehicle’s battery is discharged, refer to “Shift Lever
Override” in “What To Do In Emergencies” for instruc-
tions on shifting the automatic transmission out of the
PARK position for towing.
6
WHAT TO DO IN EMERGENCIES 499

CAUTION!
•Do not attempt to use sling type equipment when
towing. When securing the vehicle to a flatbed
truck, do not attach to front or rear suspension
components. Damage to your vehicle may result
from improper towing.
•If the vehicle being towed requires steering. the
ignition switch must be in the ON/RUN or ACC
position, not the LOCK/OFF position.
Towing Without The Ignition Key Fob
Special care must be taken when the vehicle is towed
with the ignition in the LOCK/OFF position. The only
approved method of towing without the ignition key is
with a flatbed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
Four–Wheel Drive Models
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of the vehicle raised
and the opposite end on a towing dolly.
500 WHAT TO DO IN EMERGENCIES

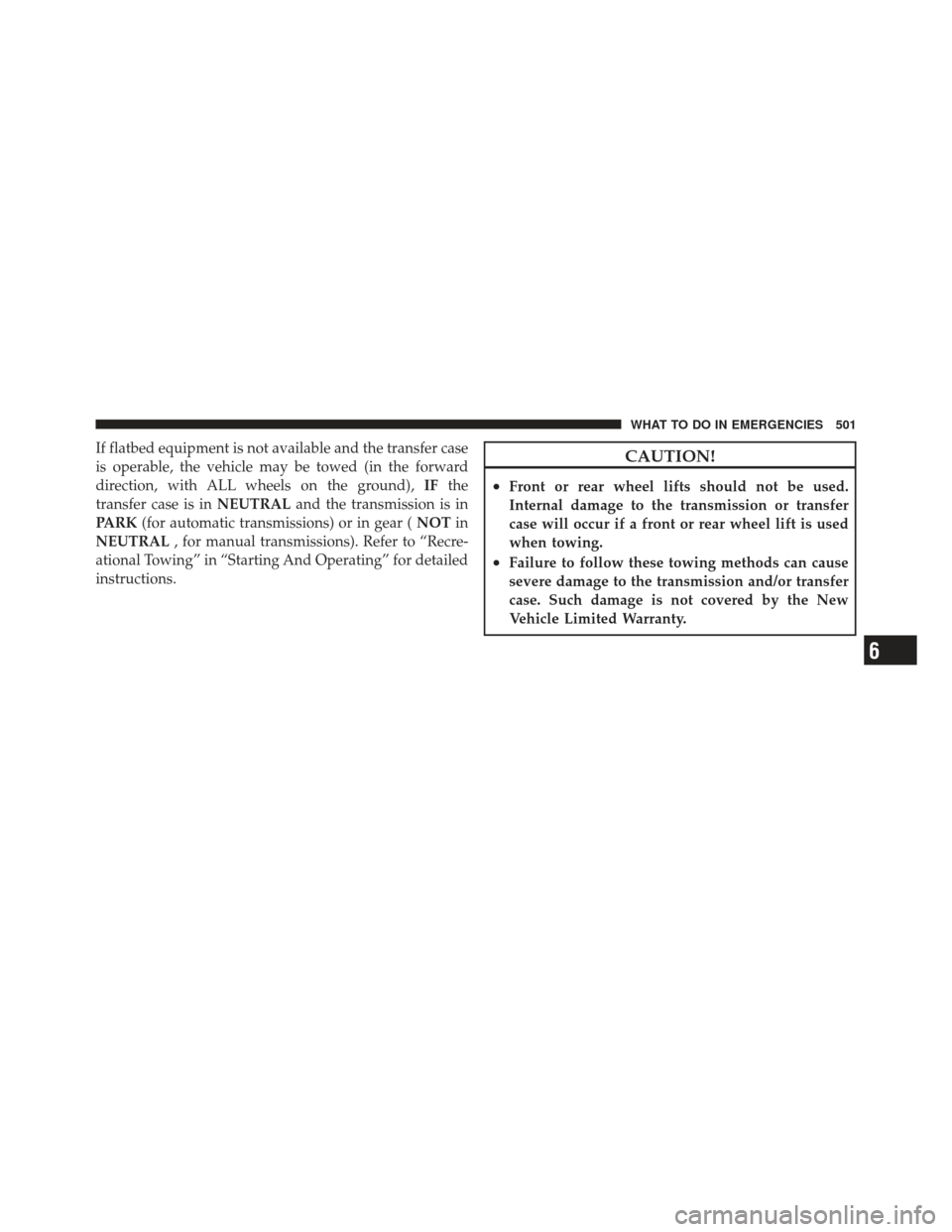

If flatbed equipment is not available and the transfer case
is operable, the vehicle may be towed (in the forward
direction, with ALL wheels on the ground),IFthe
transfer case is in NEUTRALand the transmission is in
PARK (for automatic transmissions) or in gear ( NOTin
NEUTRAL , for manual transmissions). Refer to “Recre-
ational Towing” in “Starting And Operating” for detailed
instructions.CAUTION!
•Front or rear wheel lifts should not be used.
Internal damage to the transmission or transfer
case will occur if a front or rear wheel lift is used
when towing.
•Failure to follow these towing methods can cause
severe damage to the transmission and/or transfer
case. Such damage is not covered by the New
Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 501

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.8L ............. 505
 Onboard Diagnostic System — OBD II ...... 506
▫ Loose Fuel Filler Cap Message ........... 506
 Emissions Inspection And Maintenance
Programs ............................ 507
 Replacement Parts ..................... 508
 Dealer Service ........................ 509
 Maintenance Procedures ................. 509
▫ Engine Oil ......................... 510 ▫
Engine Oil Filter ..................... 512
▫ Engine Air Cleaner Filter ............... 512
▫ Maintenance-Free Battery .............. 513
▫ Air Conditioner Maintenance ............ 514
▫ Body Lubrication .................... 515
▫ Windshield Wiper Blades ............... 516
▫ Adding Washer Fluid ................. 516
▫ Exhaust System ..................... 517
▫ Cooling System ..................... 520
7

▫Brake System ....................... 525
▫ Automatic Transmission – If Equipped ..... 527
▫ Hydraulic Clutch Fluid – Manual
Transmission ....................... 530
▫ Manual Transmission – If Equipped ....... 530
▫ Transfer Case ....................... 531
▫ Front/Rear Axle Fluid ................. 531
▫ Appearance Care And Protection From
Corrosion .......................... 532
 Fuses .............................. 539
▫ Totally Integrated Power Module ......... 539
 Vehicle Storage ....................... 545
 Replacement Bulbs .................... 545
Bulb Replacement ..................... 546
▫ Headlamp ......................... 546
▫ Front Park/Turn Signal ................ 547
▫ Front Side Marker .................... 547
▫ Front Fog Lamp ..................... 547
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 548
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 549
 Fluid Capacities ...................... 549
 Fluids, Lubricants And Genuine Parts ....... 550
▫ Engine ............................ 550
▫ Chassis ........................... 551
504 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 3.8L
1 — Integrated Power Module (Fuses)7 — Engine Coolant Reservoir
2 — Battery 8 — Engine Oil Fill
3 — Automatic Transmission Dipstick 9 — Air Cleaner Filter
4 — Engine Oil Dipstick 10 — Coolant Pressure Cap
5 — Brake Fluid Reservoir 11 — Power Steering Fluid Reservoir
6 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 505

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose, improp-
erly installed, or damaged. A “gASCAP” message will be
displayed in the odometer. Tighten the gas cap until a
clickingsound is heard. This is an indication that the
gas cap is properly tightened. Press the odometer reset
button to turn the message off. If the problem persists,
506 MAINTAINING YOUR VEHICLE

the message will appear the next time the vehicle is
started. This might indicate a damaged cap. If the prob-
lem is detected twice in a row, the system will turn on the
MIL. Resolving the problem will turn the MIL off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
7
MAINTAINING YOUR VEHICLE 507

4. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready. Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
508 MAINTAINING YOUR VEHICLE
