18. Tuck the fabric and the check straps between the
bows and as far inward as possible. This will keep any
portion of the top from flapping outside of the vehicle.19. Close the front header latches.
20. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

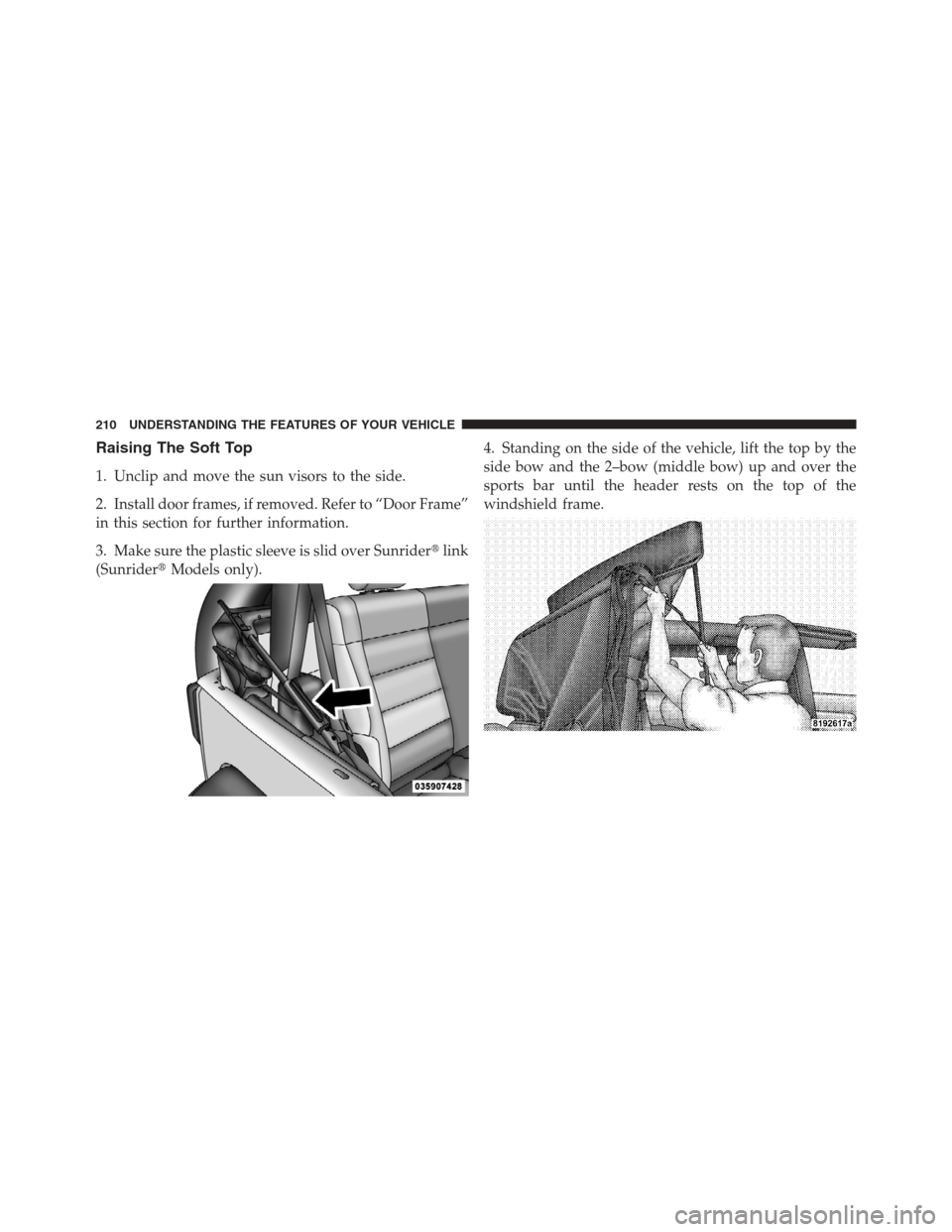

Raising The Soft Top
1. Unclip and move the sun visors to the side.
2. Install door frames, if removed. Refer to “Door Frame”
in this section for further information.
3. Make sure the plastic sleeve is slid over Sunriderlink
(Sunrider Models only). 4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

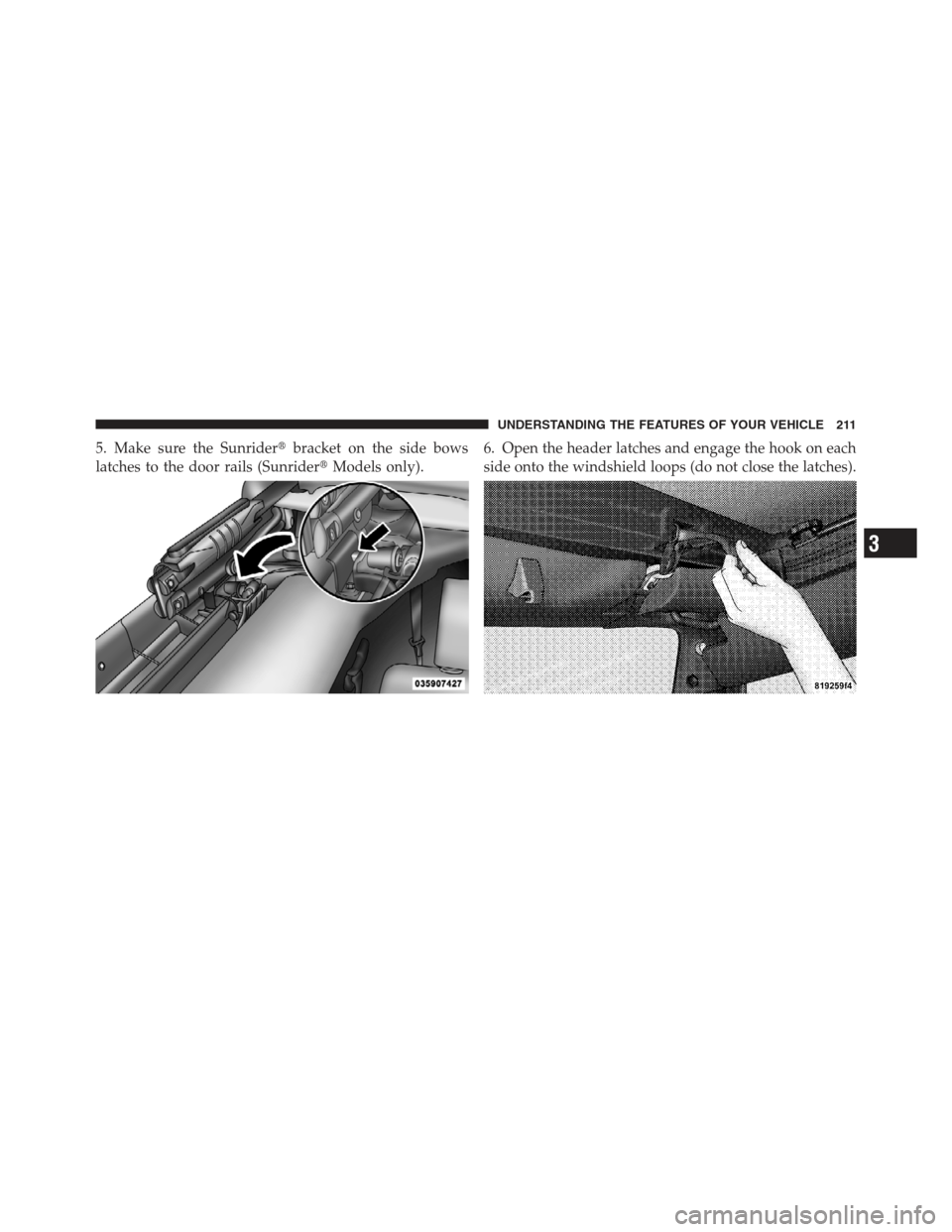

5. Make sure the Sunriderbracket on the side bows
latches to the door rails (Sunrider Models only).6. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the latches).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

7. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the interior
side of the body channel. Then, rotate it rearward and
over the channel until it snaps onto the exterior part of
the rail. To be properly located, the bracket must only be
clipped to the shortened rail edge.8. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

9. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (3–bow) will aid to reach the channel with the
retainers.10. To install the side windows, affix the window tem-
porarily by attaching to the Velcro
in the rear corner.
Start the zipper but close only about 1 in (2.5 cm).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

11. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.
1 — Incorrect Insertion
2 — Correct Insertion
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

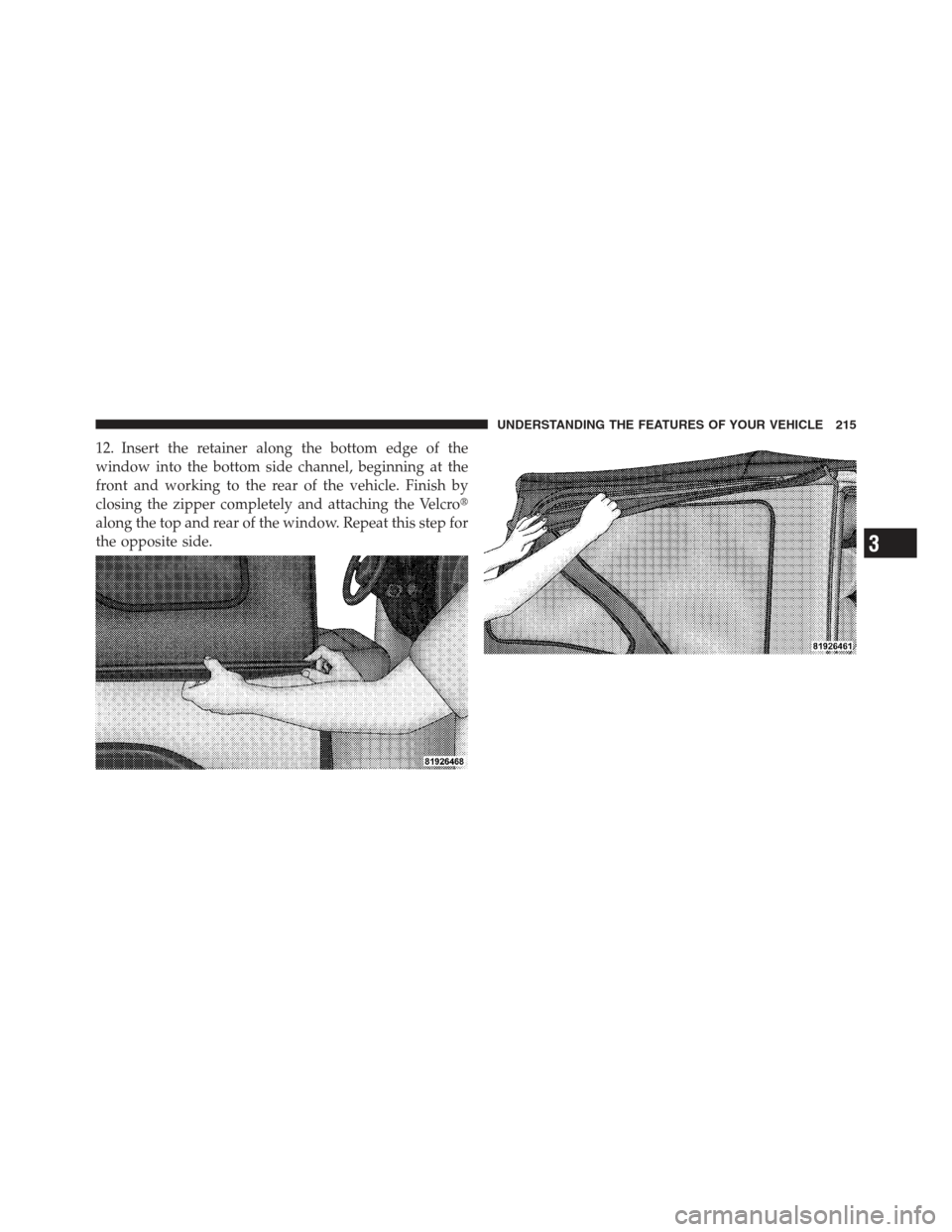

12. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

13. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down and
pointed outward to seal with the swing gate when closed.14. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.
216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

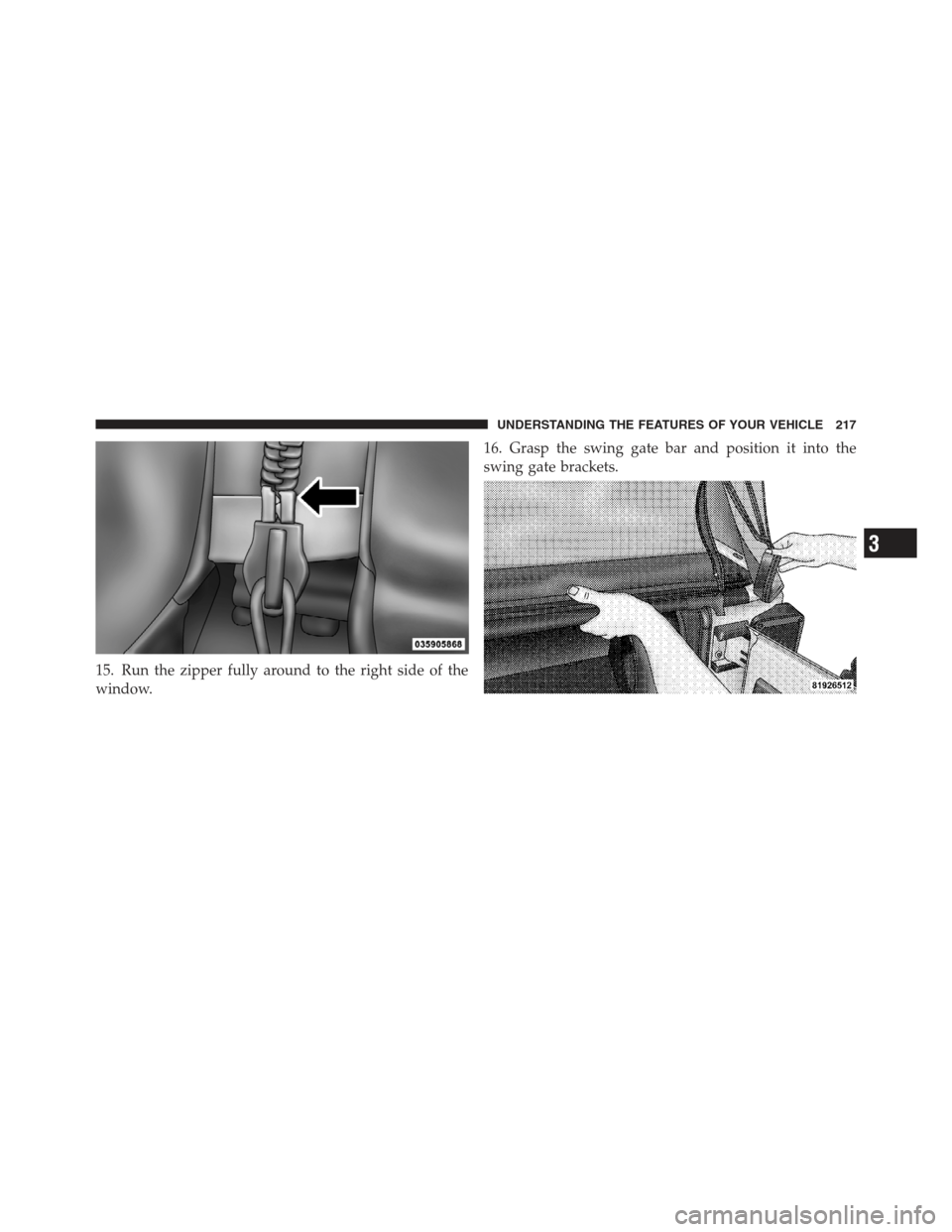

15. Run the zipper fully around to the right side of the
window.16. Grasp the swing gate bar and position it into the
swing gate brackets.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

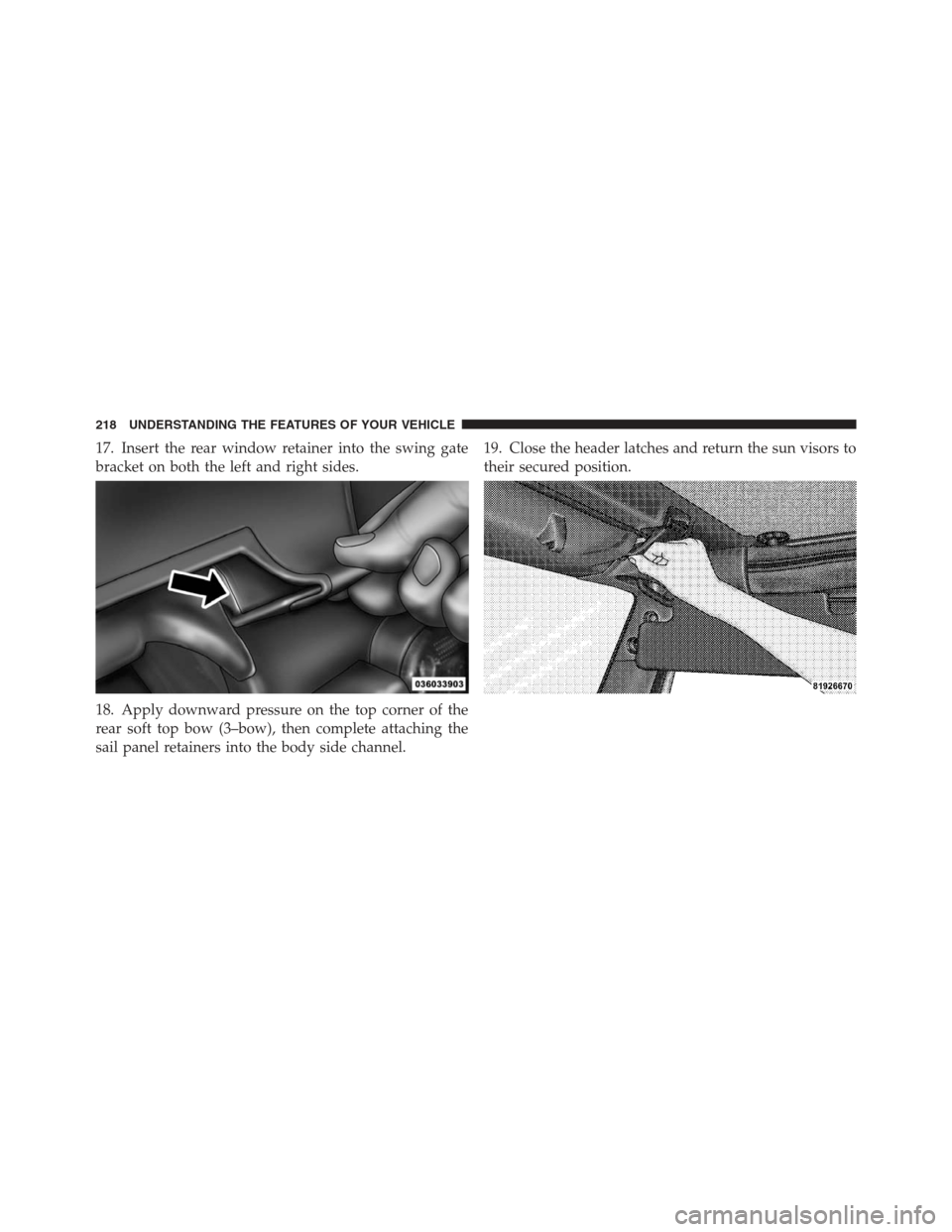

17. Insert the rear window retainer into the swing gate
bracket on both the left and right sides.
18. Apply downward pressure on the top corner of the
rear soft top bow (3–bow), then complete attaching the
sail panel retainers into the body side channel.19. Close the header latches and return the sun visors to
their secured position.
