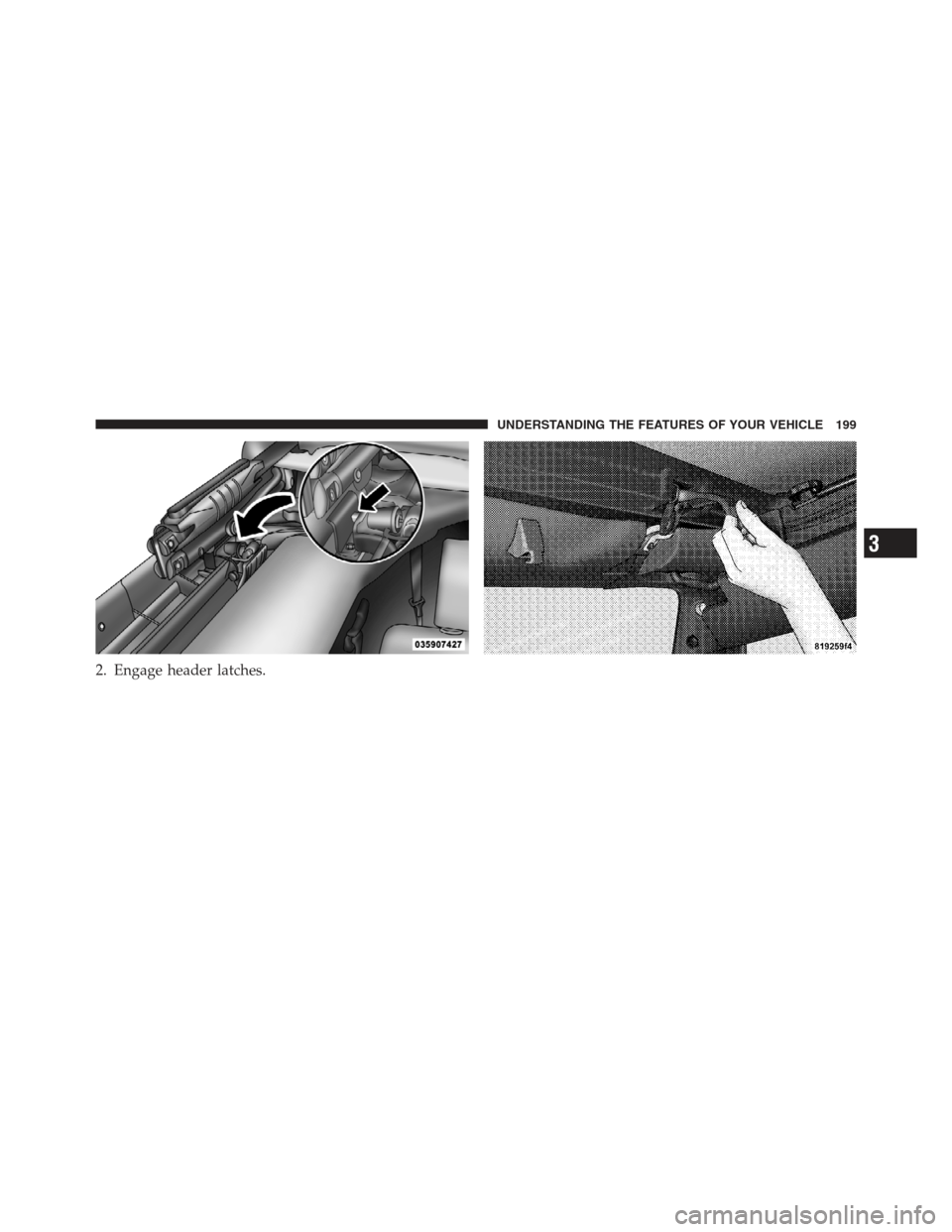

2. Engage header latches.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199

3. Install rear corner panels.4. Install side and back windows.
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lowering The Soft Top
1 — Header Bow6 — Quarter Window
2 — 2–Bow 7 — Check Strap
3 — 3–Bow 8 — Front Retainer — Quarter Window
4 — Sail Panel 9 — Bottom Retainer — Quarter Window
5 — Body Side Retainer
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201

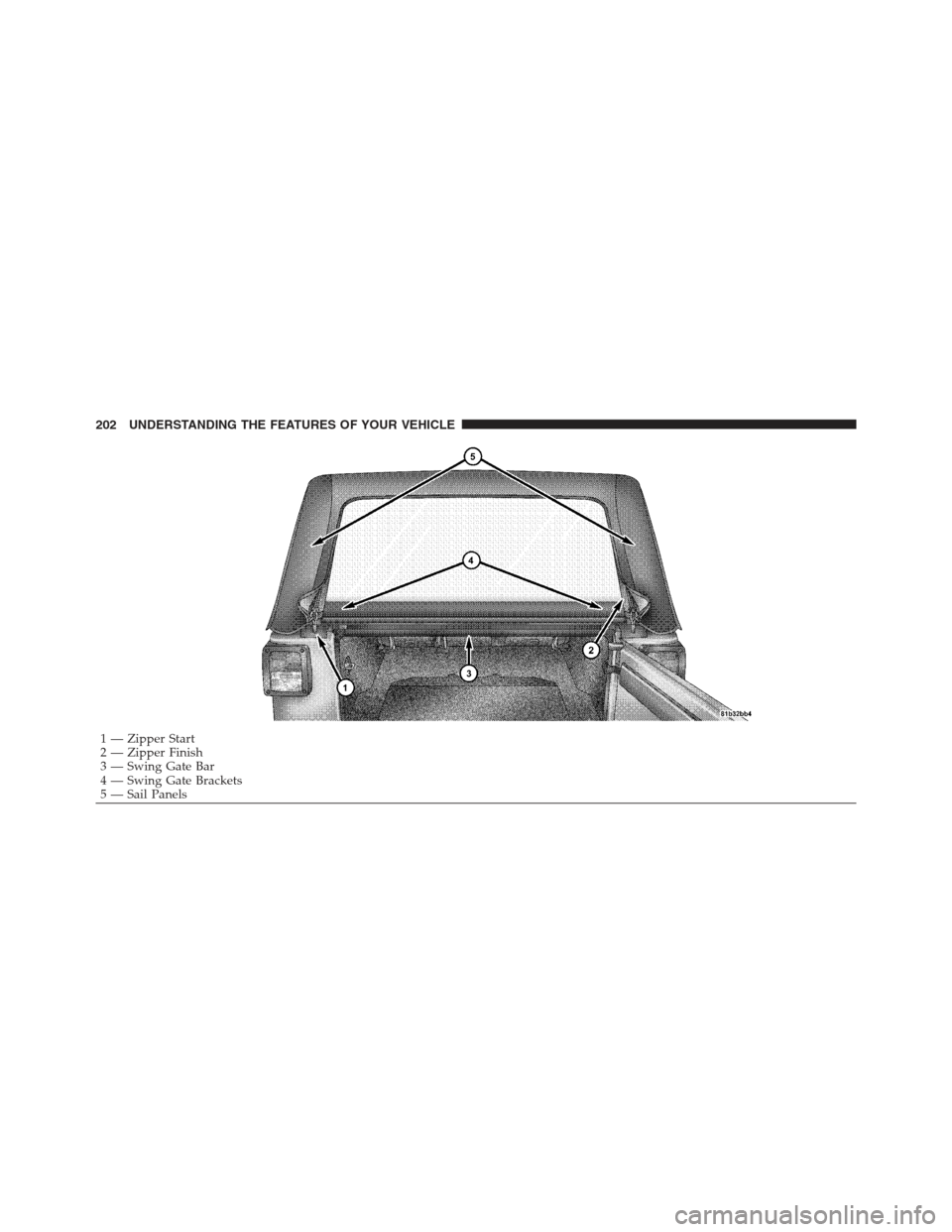

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side.
3. Release the header latches and leave the hooks in the
loops on the windshield. 4. Open the swing gate.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

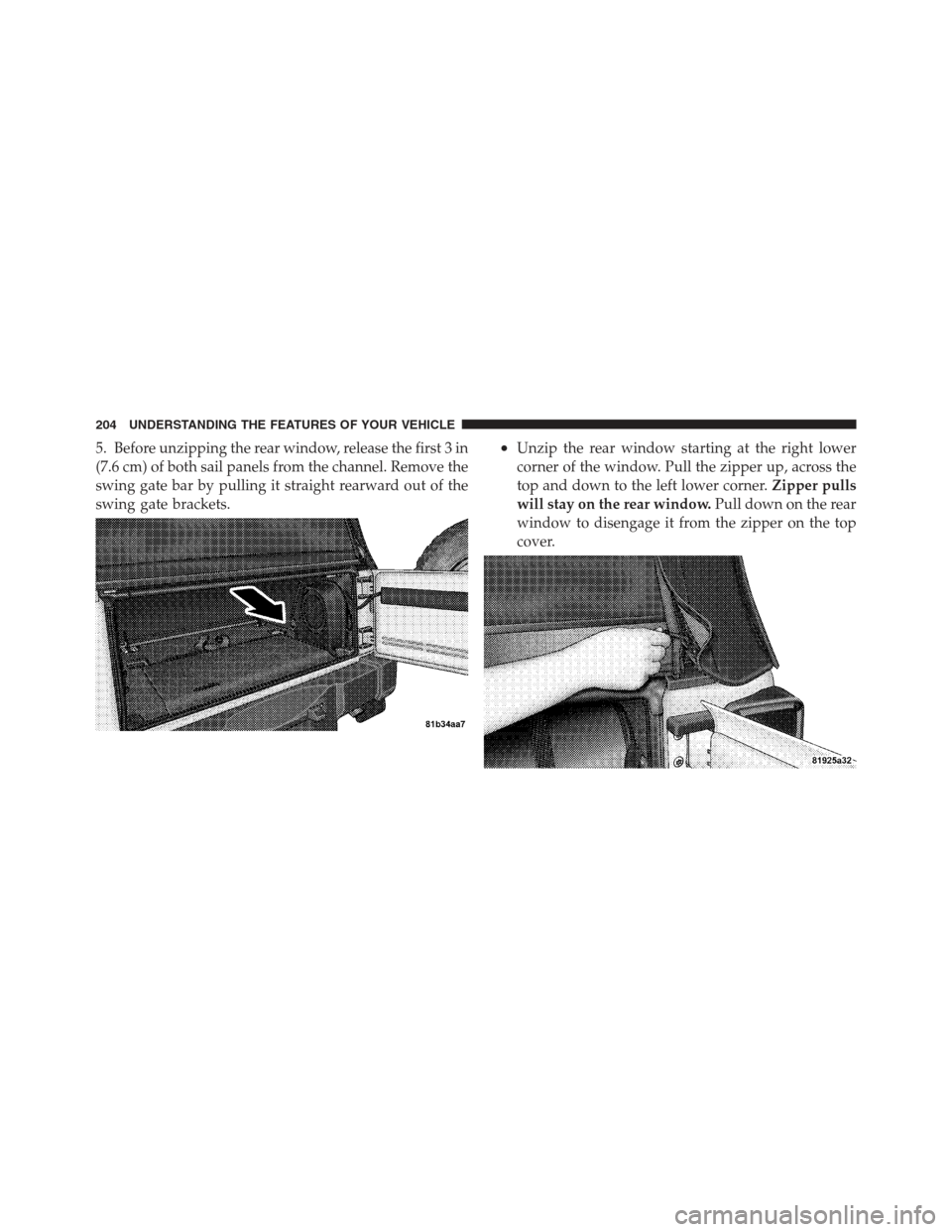

5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover.
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcrothat runs along the top and rear
edge of the side window. 9. Beginning from the rear lower corner, completely
unzip the window.
10. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

11. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 12. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

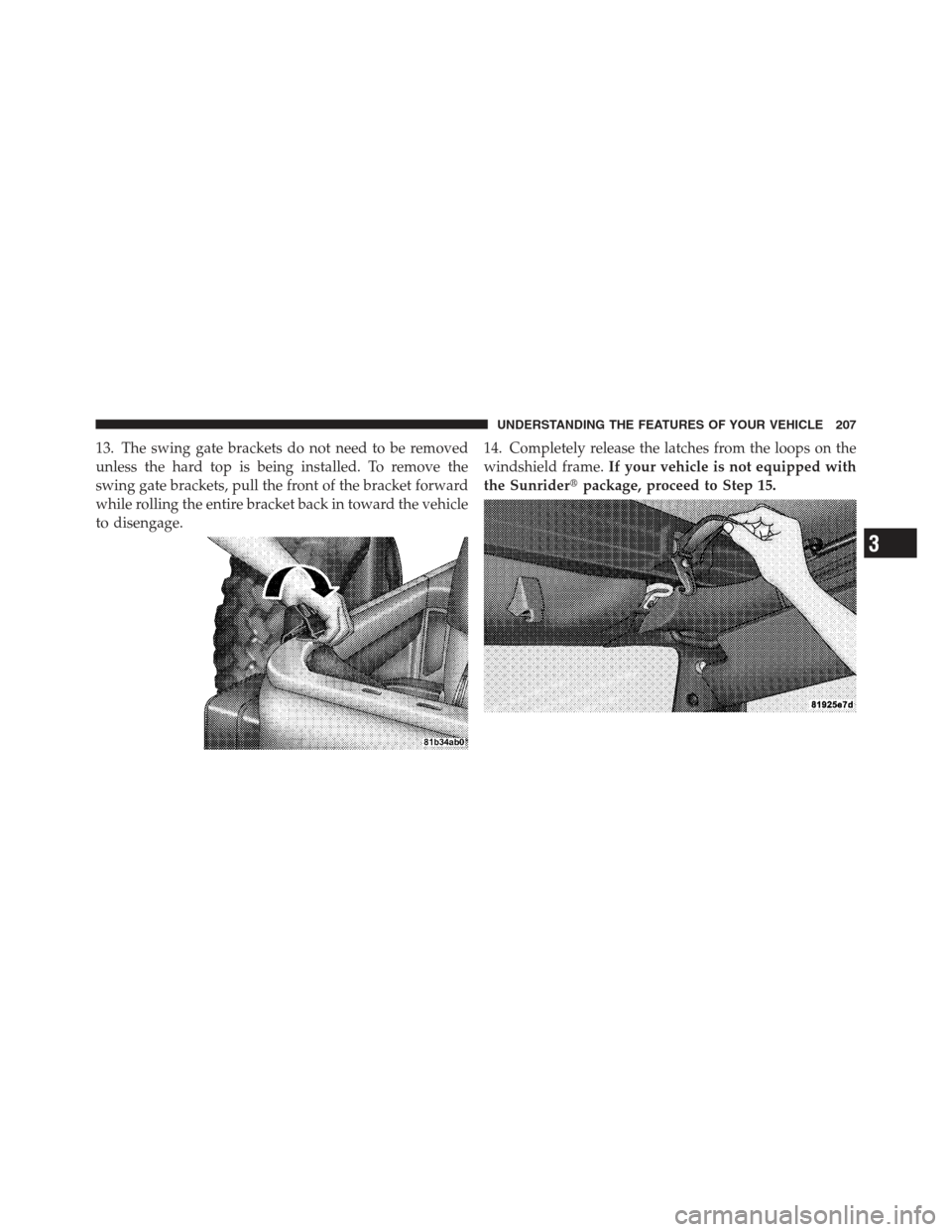

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.14. Completely release the latches from the loops on the
windshield frame.
If your vehicle is not equipped with
the Sunrider package, proceed to Step 15.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

15. Make sure the plastic sleeves are slid rearward over
the Sunriderlink (Sunrider Models only).
16. Unlatch the side bows from both door rails (Sun-
rider Models only). 17. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Move to the front of the vehicle. Grasp the
side bow behind the header and lift the top, folding it
toward the rear of the vehicle.
NOTE:
Help from another person will ease this opera-
tion.
